PNEUMATIC NAILER KAYMO PRO-38100V2

Name: PNEUMATIC NAILER KAYMO PRO-38100V2
Brand: Kaymo
SKU: PRO-PN38100V2
Availability: InStock

SKU: PRO-PN38100V2

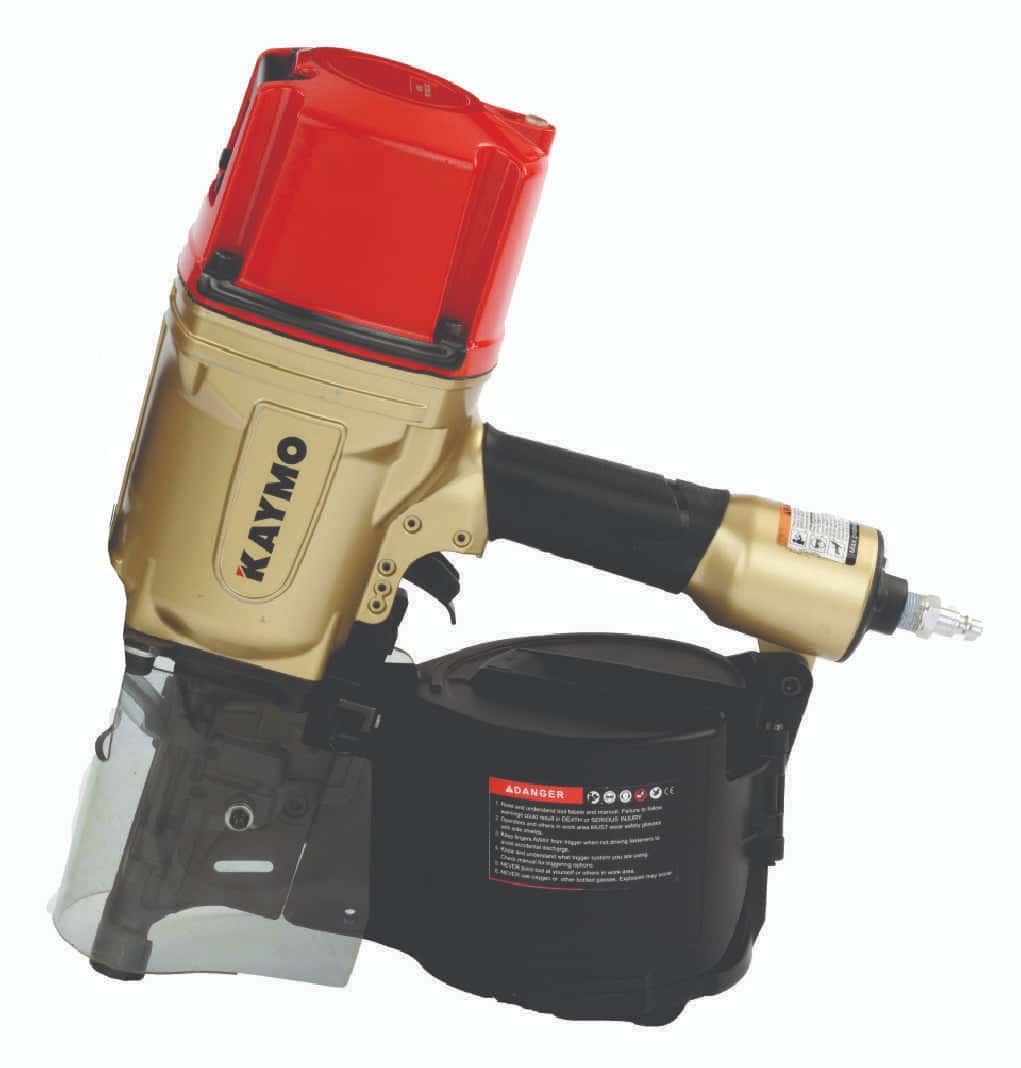

The KAYMO PRO-PN38100V2 is a heavy-duty pneumatic coil nailer designed for high-performance industrial applications. With a robust metal nail tray, side body protectors, and a Read More...

Features:

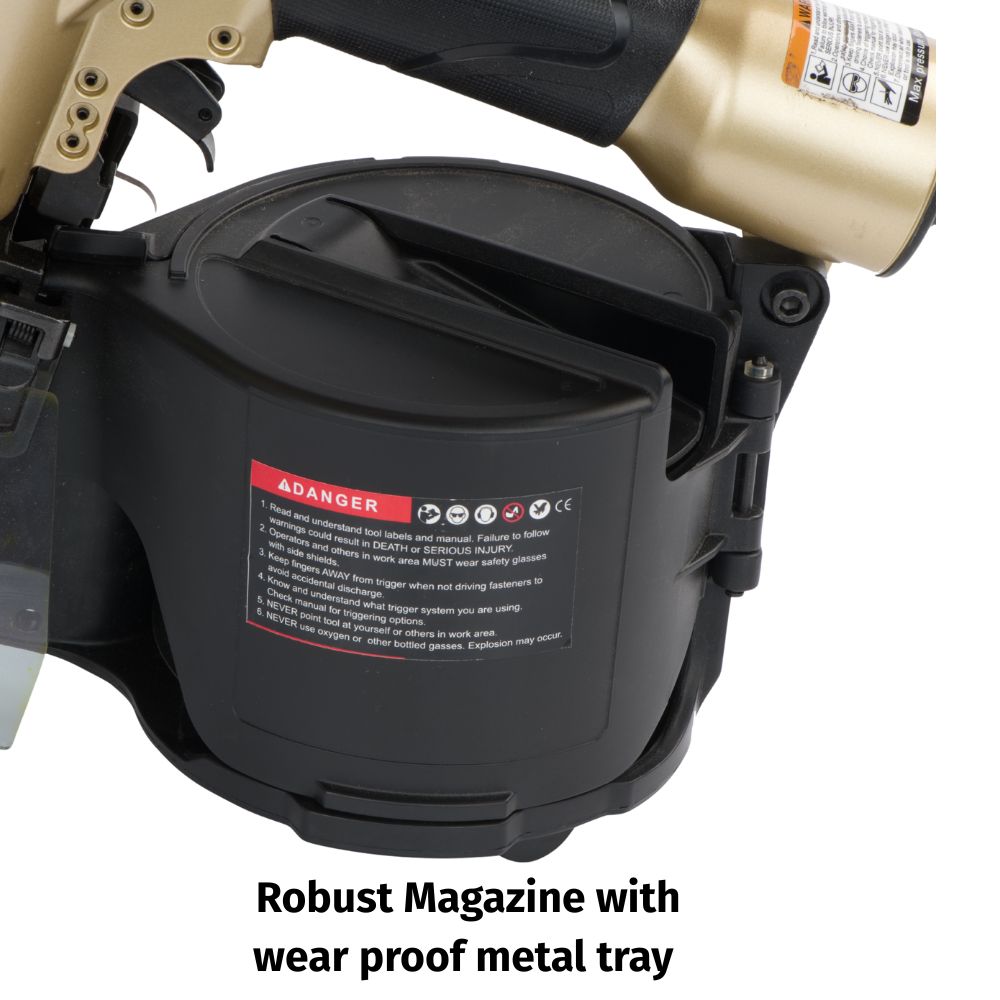

Robust magazine with wear proof metal nail tray

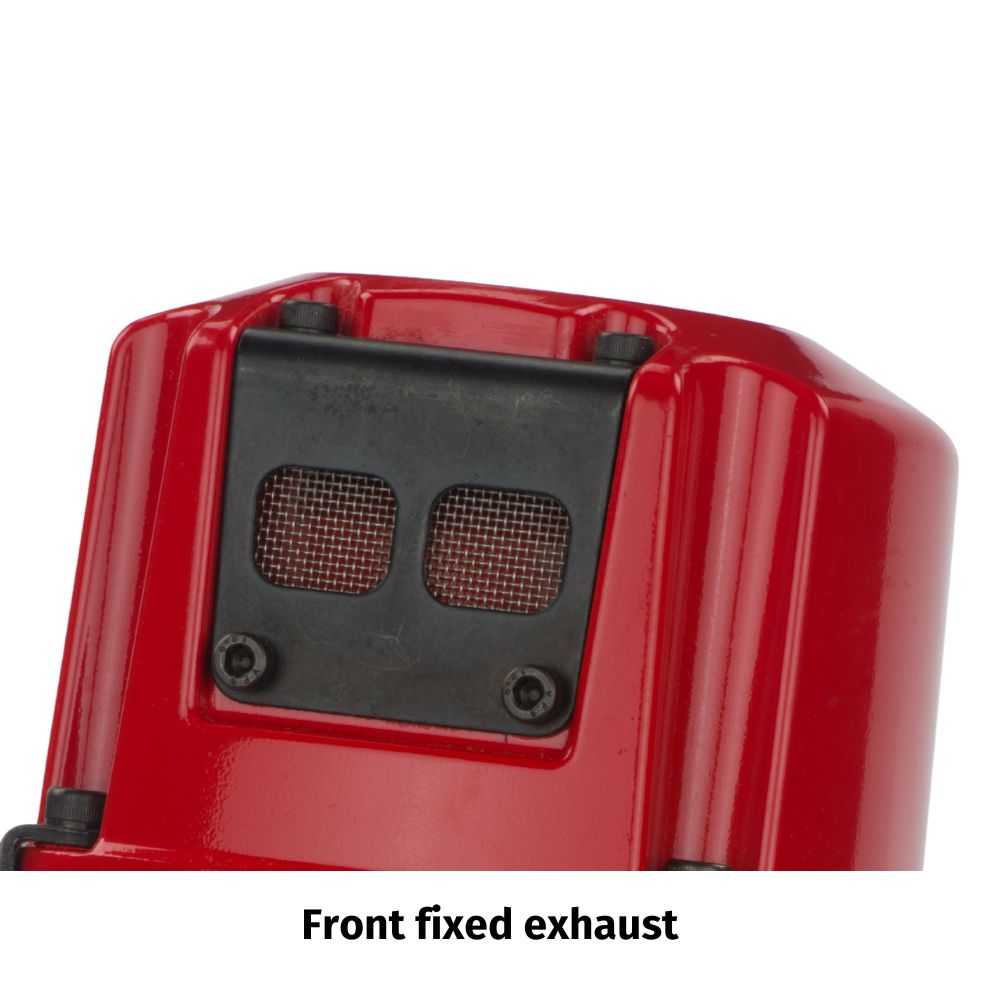

Front fixed exhaust

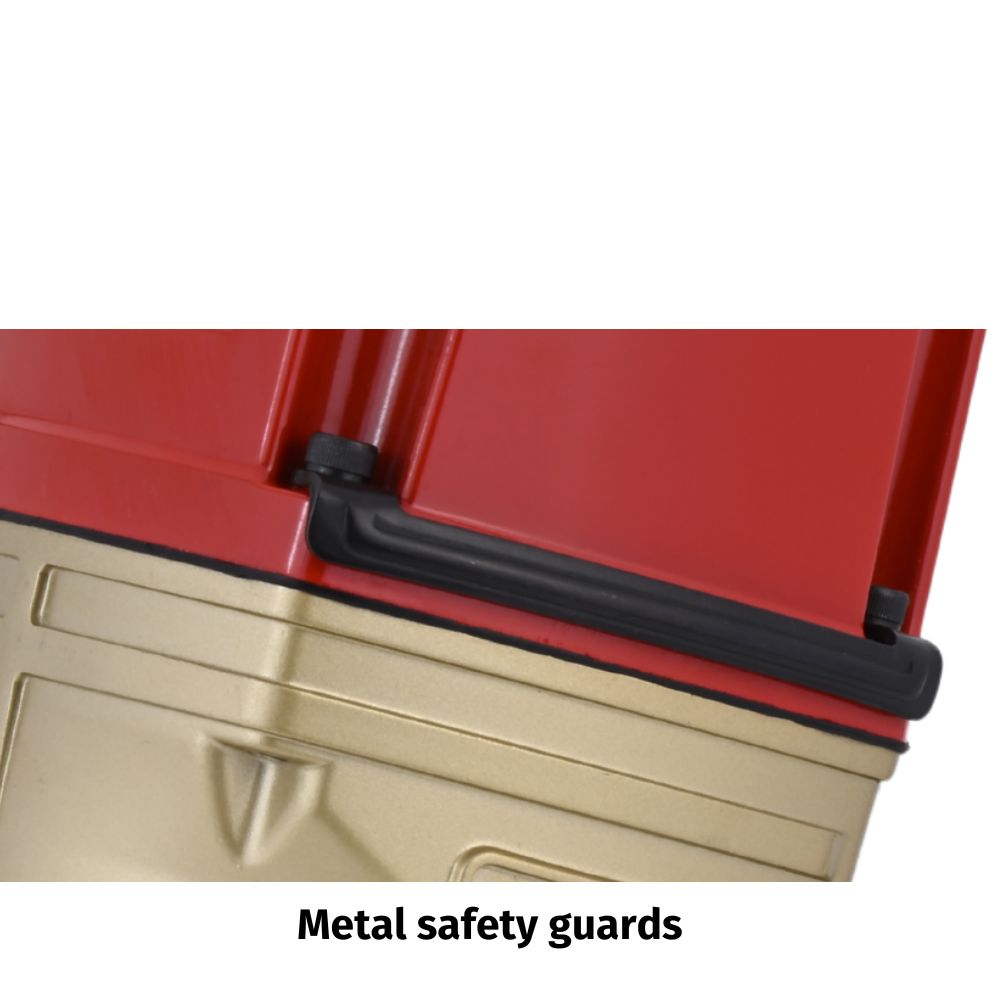

Metal safety guards

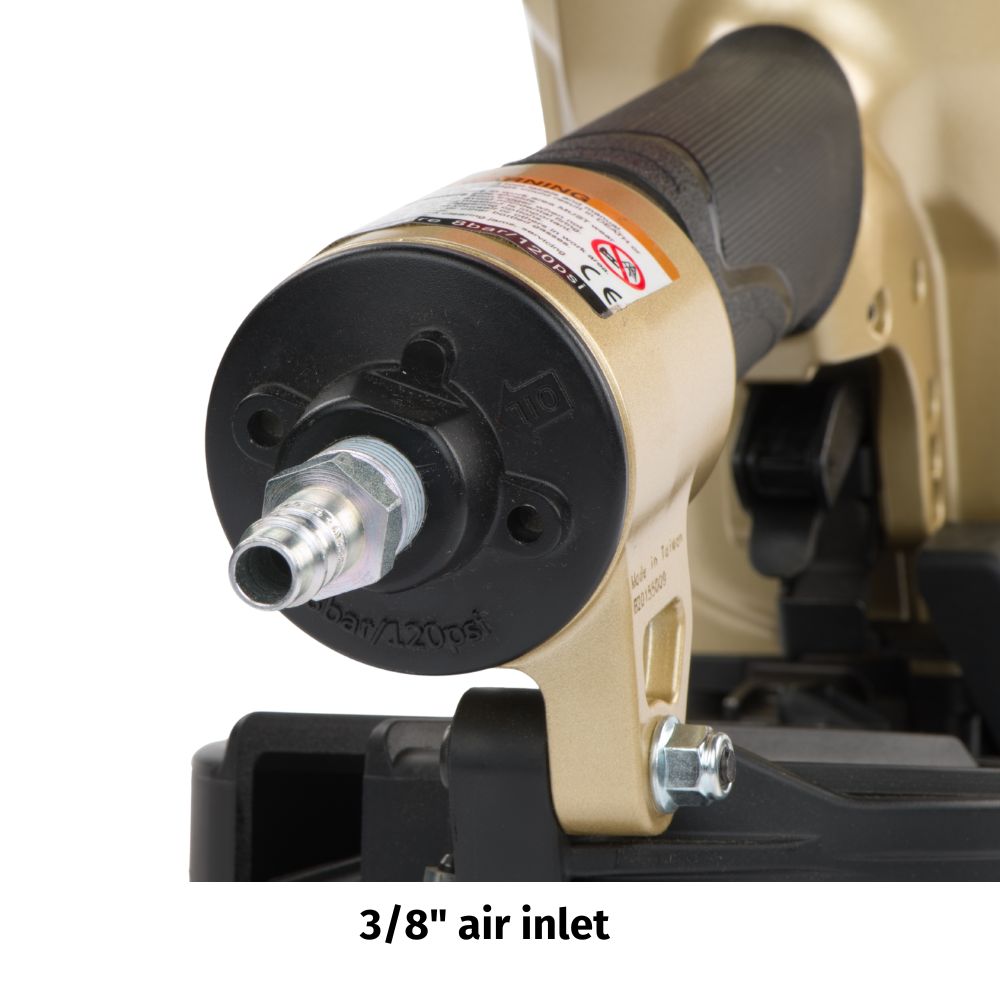

3/8” air inlet
Powerful tool for heavy duty application
Fastener Range: 50mm – 90mm

Applications:

Wooden crates
Wooden pallets
Cable drums

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

COIL NAILS KAYMO 3.0 SERIES

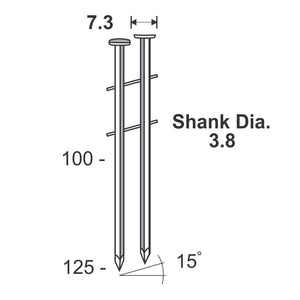

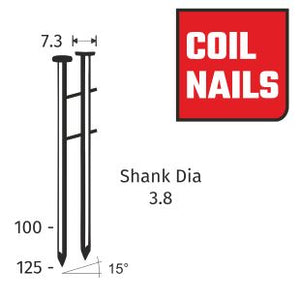

COIL NAILS KAYMO 3.8 SERIES

COIL NAILS KAYMO 2.8 SERIES

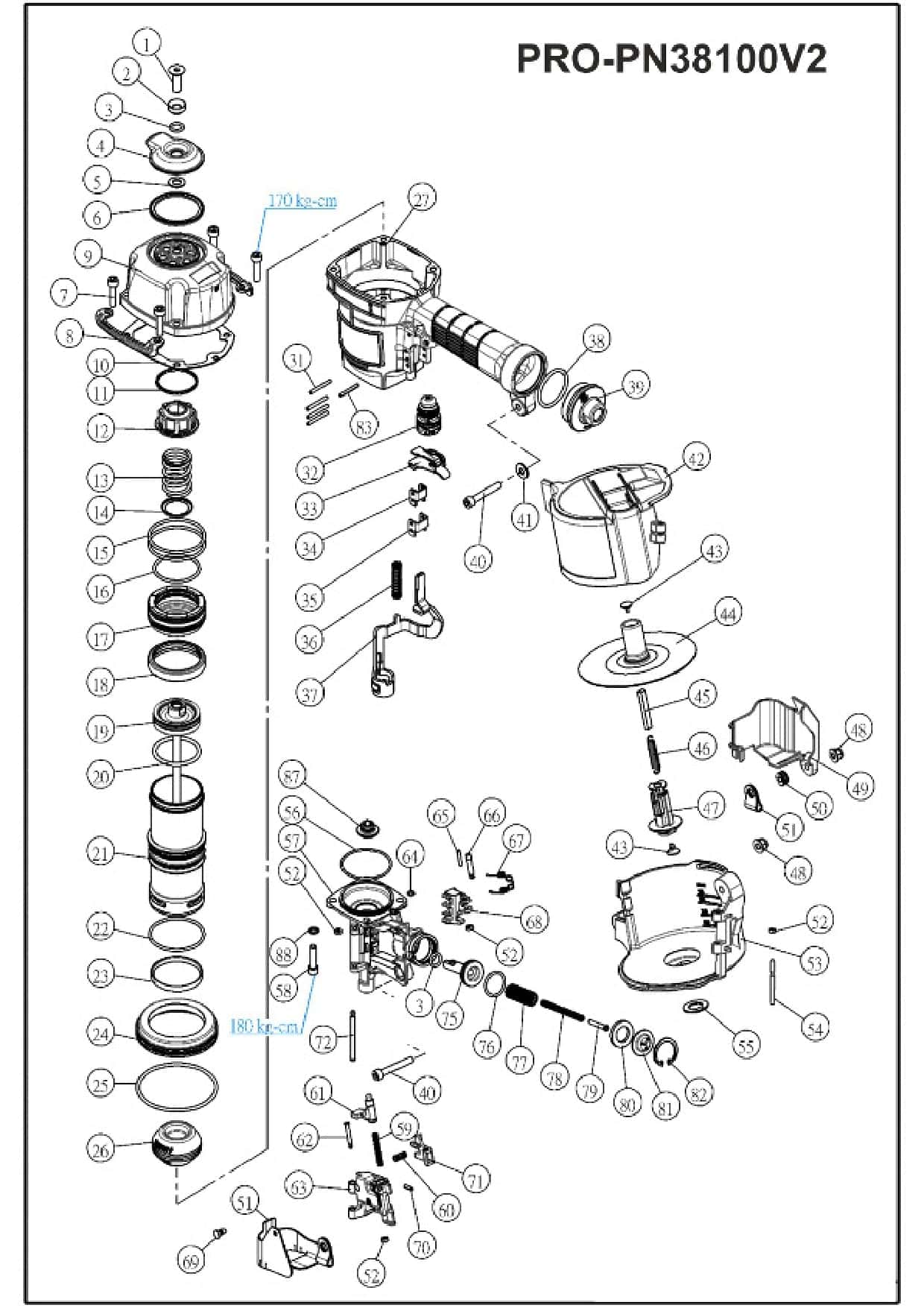

Blow Up

Spares

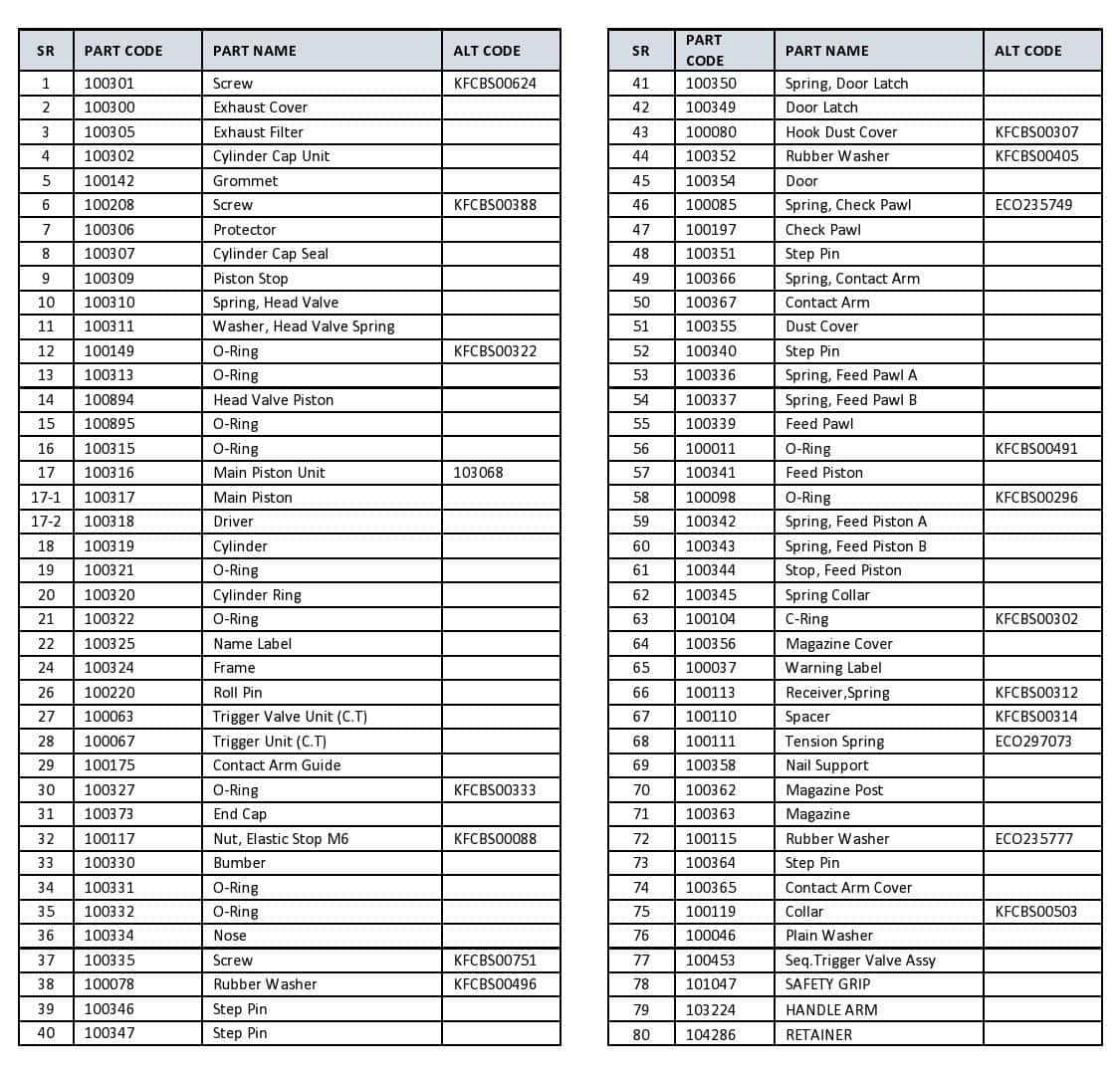

		TOOL MODEL:	PRO-PN38100V2					REV.1ST APRIL2023
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
78		101047	SAFETY GRIP		45		100354	Door
79		103224	HANDLE ARM		46		100085	Spring, Check Pawl	ECO235749
80		104286	RETAINER		47		100197	Check Pawl
1		100301	Screw	KM0510	48		100351	Step Pin
10		100310	Spring, Head Valve	KFCBS00572	49		100366	Spring, Contact Arm
11		100311	Washer, Head Valve Spring	KFCBS00574	5		100142	Grommet
12		100149	O-Ring	KFCBS00322	50		100367	Contact Arm
13		100313	O-Ring		51		100355	Dust Cover
14		100894	Head Valve Piston		52		100340	Step Pin
15		100895	O-Ring		53		100336	Spring, Feed Pawl A
16		100315	O-Ring		54		100337	Spring, Feed Pawl B
17		100316	Main Piston Unit	103068	55		100339	Feed Pawl
17. 1		100317	Main Piston		56		100011	O-Ring	KFCBS00491
17. 2		100318	Driver		57		100341	Feed Piston
18		100319	Cylinder		58		100098	O-Ring	KFCBS00296
19		100321	O-Ring		59		100342	Spring, Feed Piston A
2		100300	Exhaust Cover		6		100208	Screw	KFCBS00388
20		100320	Cylinder Ring		60		100343	Spring, Feed Piston B	ECO338349
21		100322	Check valve	KFCBS00583	61		100344	Stop, Feed Piston	ECO235742
22		100325	Name Label	103927	62		100345	Spring Collar
24		100324	Frame		63		100104	C-Ring	KFCBS00302
26		100220	Roll Pin		64		100356	Magazine Cover
27		100063	Trigger Valve Unit (C.T)		65		100037	Warning Label
28	FMS	100067	Trigger Unit (C.T)	ECO235769	66		100113	Receiver,Spring	KFCBS00312
29		100175	Contact Arm Guide	ECO297035	67		100110	Spacer	KFCBS00314
3		100305	Exhaust Filter		68		100111	Tension Spring	ECO297073
30		100327	O-Ring	KFCBS00333	69		100358	Nail Support
31		100373	End Cap		7		100306	Protector
32		100117	Nut, Elastic Stop M6	KFCBS00088	70		100362	Magazine Post
33		100330	Bumber		71		100363	Magazine
34		100331	O-Ring		72		100115	Rubber Washer	ECO235777
35		100332	O-Ring	ECO297041	73		100364	Step Pin
36		100334	Nose		74		100365	Contact Arm Cover
37		100335	Screw	KFCBS00751	75		100119	Collar	KFCBS00503
38		100078	Rubber Washer	KFCBS00496	76		100046	Plain Washer
39		100346	Step Pin		77		100453	Seq.Trigger Valve Assy
4		100302	Cylinder Cap Unit	103305	8		100307	Cylinder Cap Seal
4		103305	Cylinder Cap Unit KAYMO		9		100309	Piston Stop
40		100347	Step Pin	ECO235751			100603	HANGER LOOP LONG SET
41		100350	Spring, Door Latch				100603	HANGER LOOP LONG SET
42		100349	Door Latch				103413	HANGER LOOP SHORT SET
43		100080	Hook Dust Cover	KFCBS00307			103413	HANGER LOOP SHORT SET
44		100352	Rubber Washer	KFCBS00405

One Sheeter

Applications

WOODEN PALLETS

To make wooden pallets

PNEUMATIC NAILER KAYMO PRO-38100V2

Compatible Products

COIL NAILS KAYMO 3.0 SERIES

COIL NAILS KAYMO 3.8 SERIES

COIL NAILS KAYMO 2.8 SERIES

Blow Up

Spares

One Sheeter

Applications
