SKU: PRO-PN38100

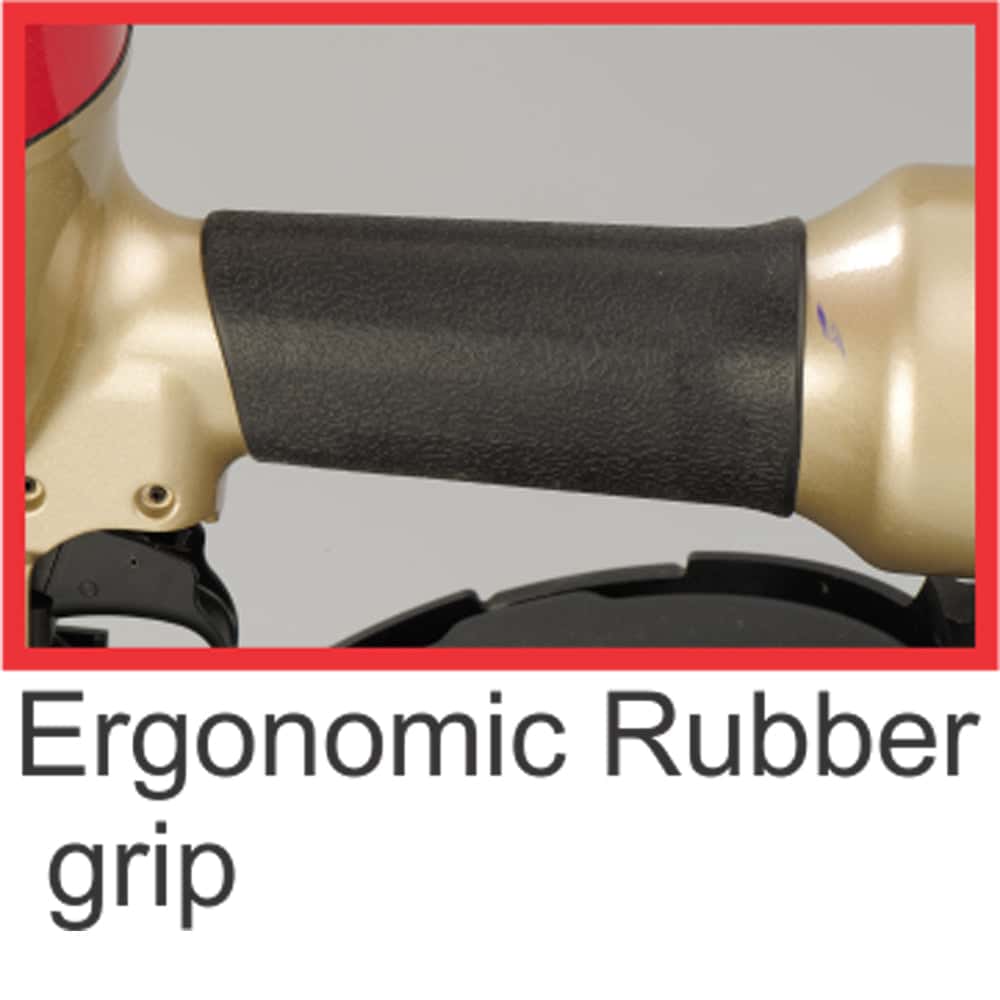

Ergonomic rubber grip
.

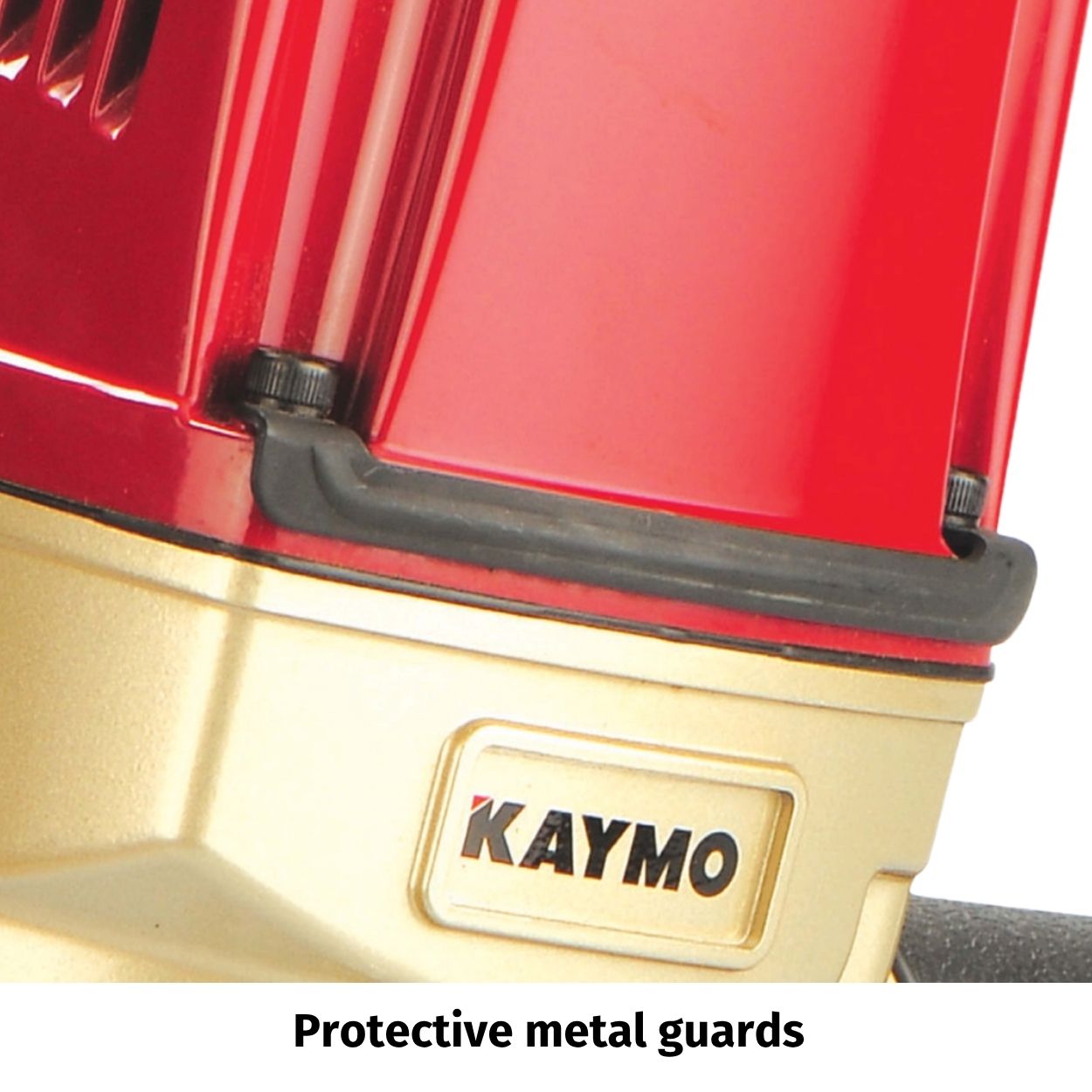

Set of metal guards to prevent tool body damage.
Tough nylon magazine
.

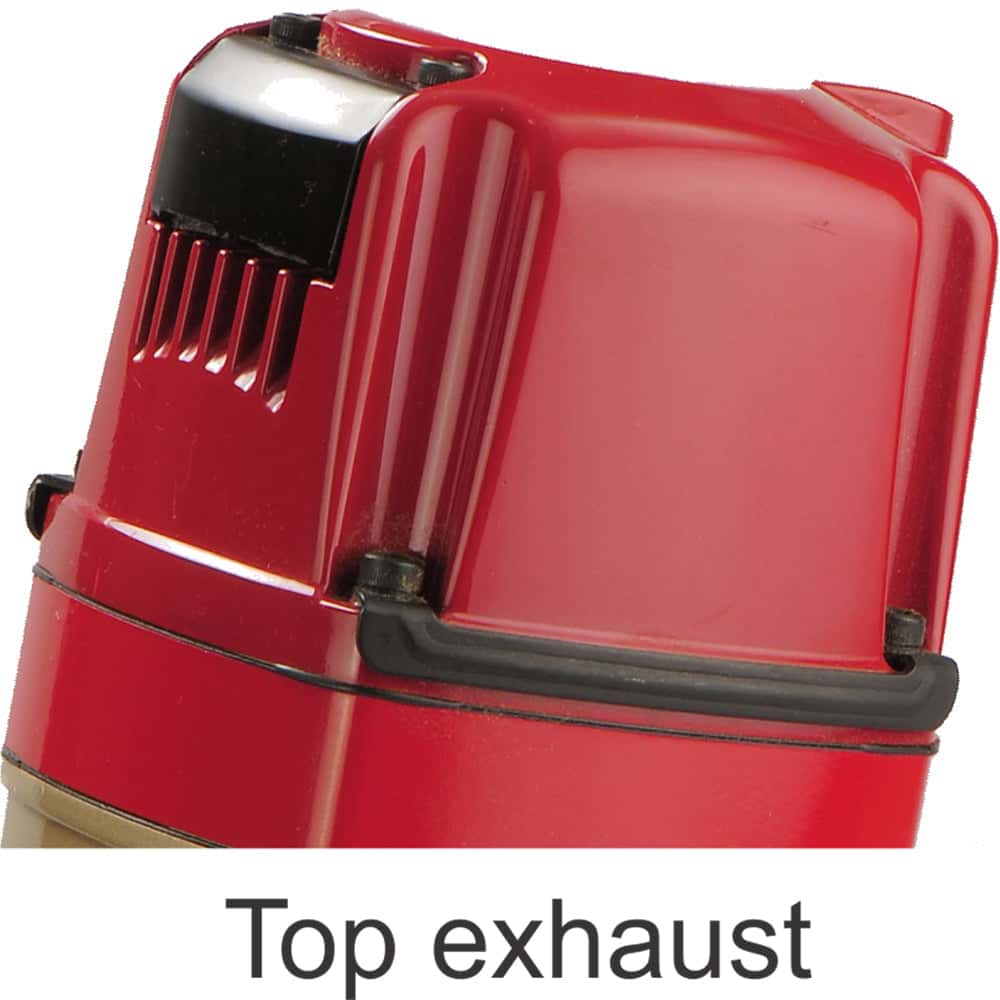

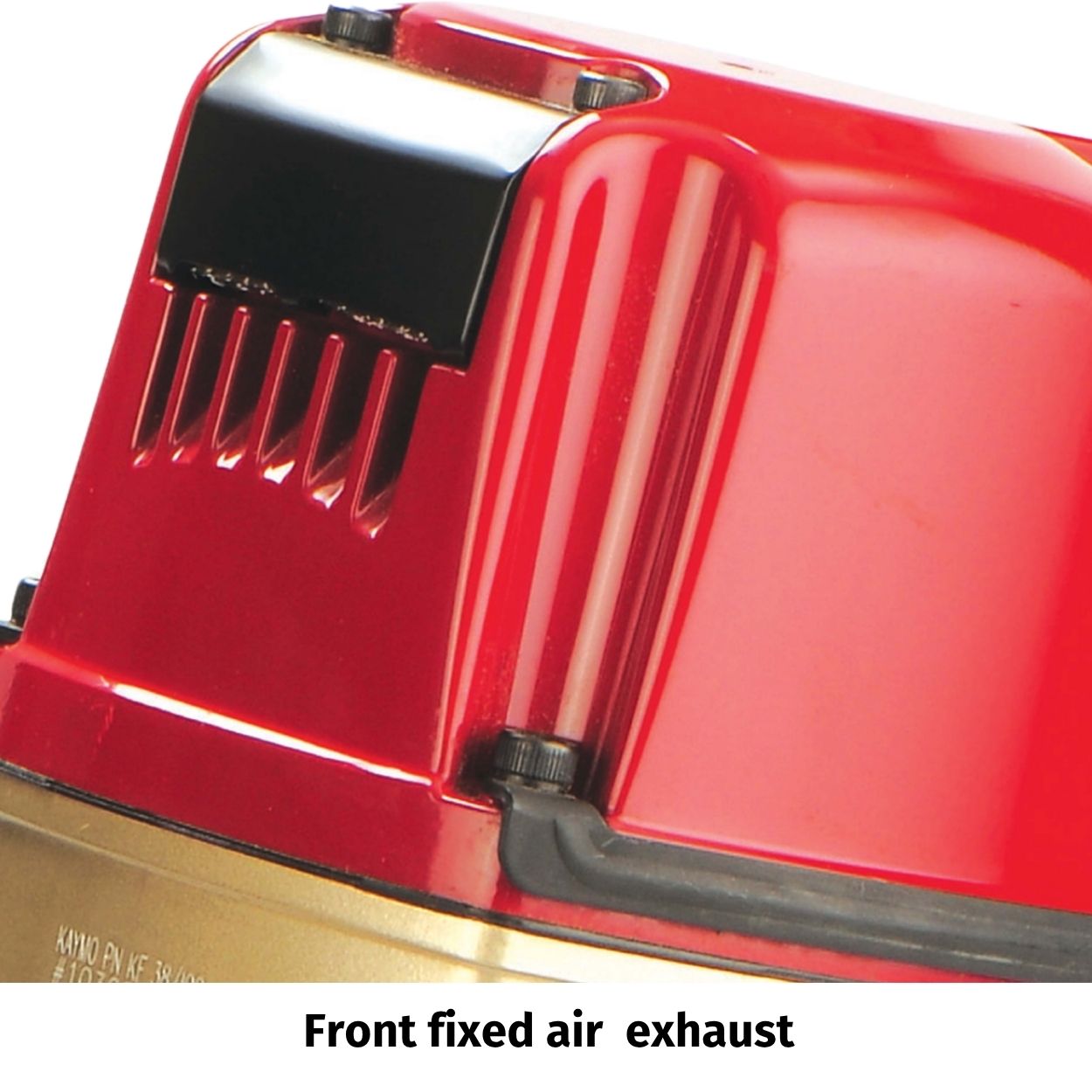

Silencer for noise reduction at exhaust
.

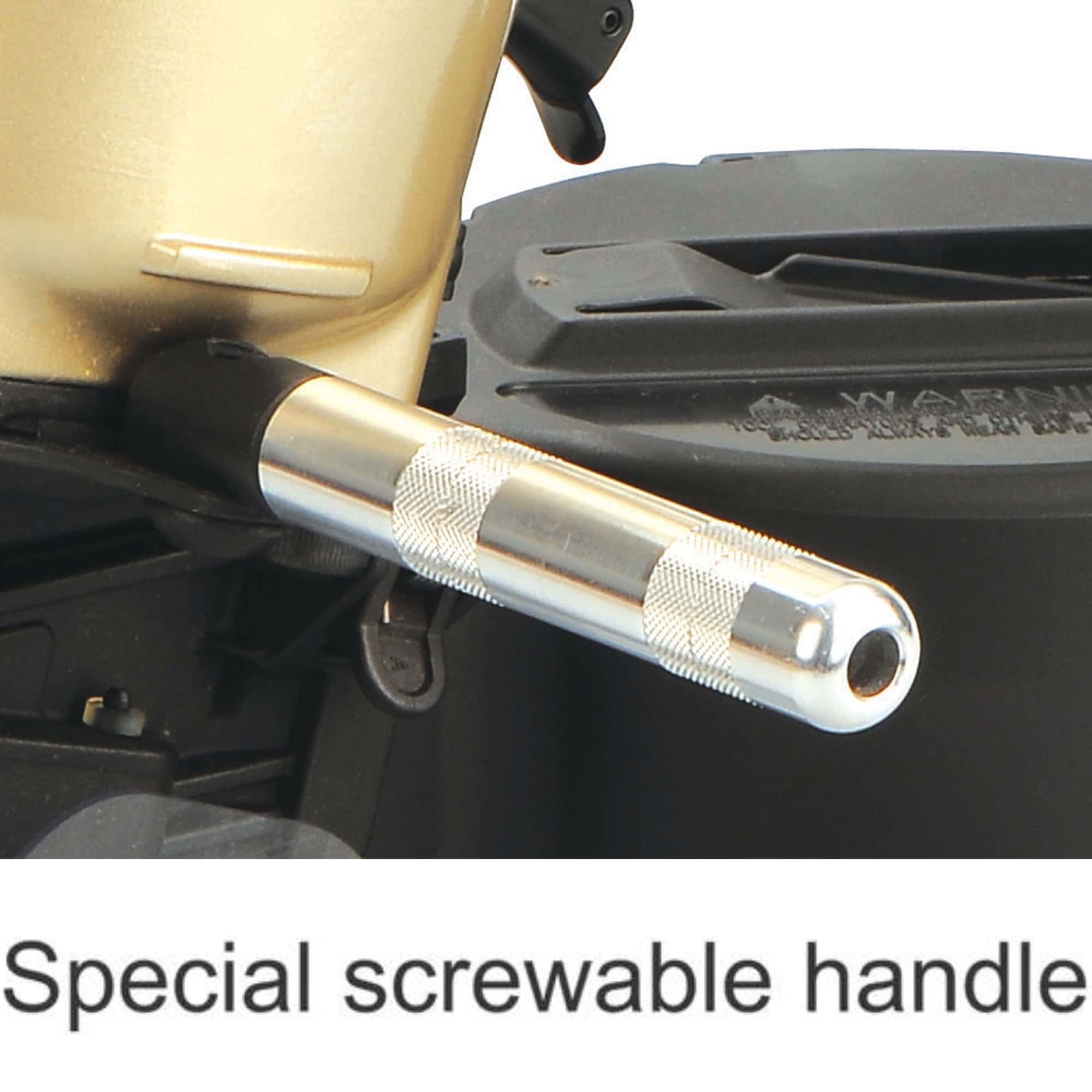

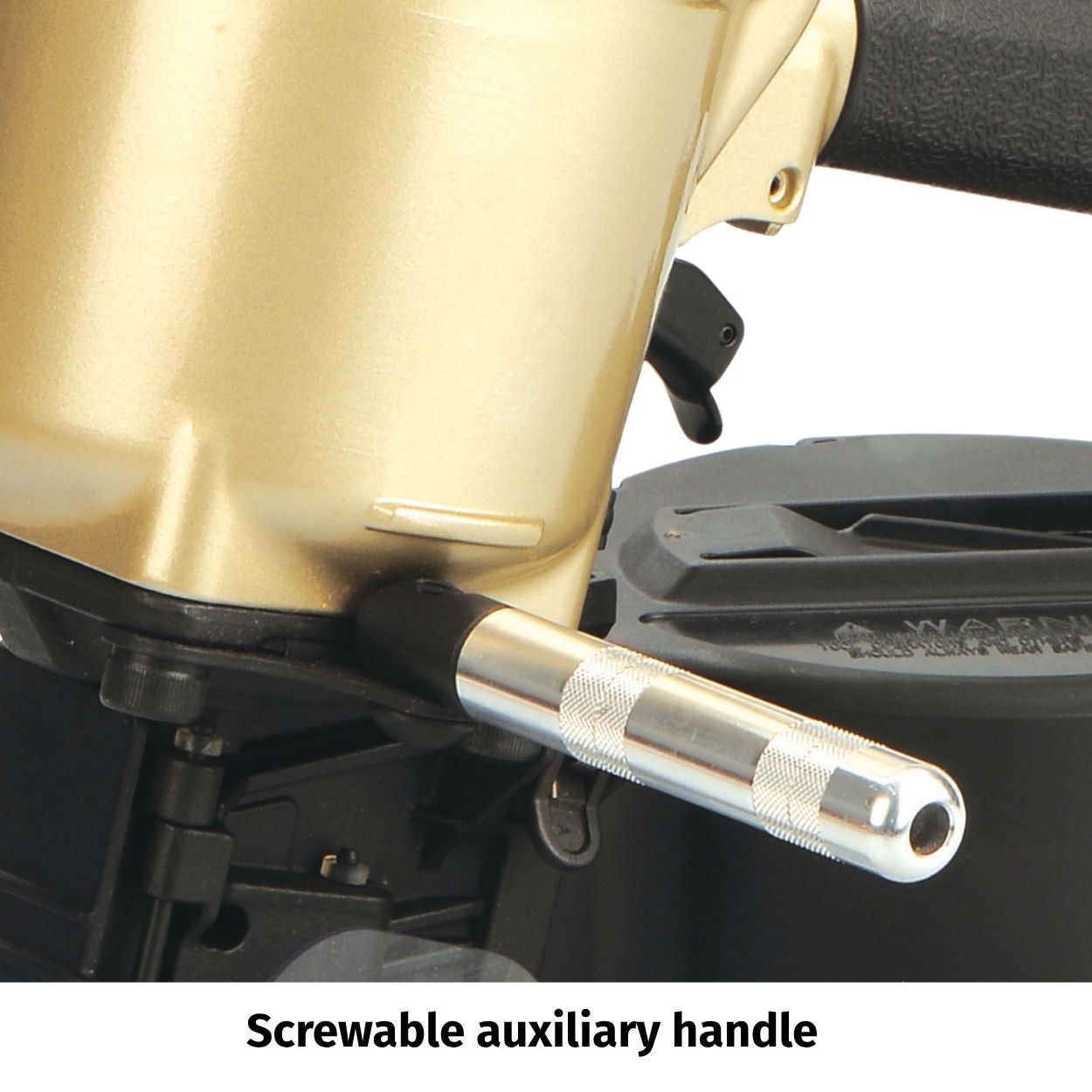

Extra handle for proper tool gripping
.
Fasteners recommended: 50 - 100 mm
.
PRESSURE: 75 - 120 psi
₹ 1/-
Blow Up
Spares
| . | TOOL NAME: | PRO-PN38100 | REV.1ST APRIL 2022 | ||||||
| SR | FMS | PART CODE | PART NAME | ALT CODE | SR | FMS | PART CODE | PART NAME | ALT CODE |
| 101 | 2040101-04121-0 | HEX.SOC.HD.BOLT | KFCBS00388 | 402 | FMS | 11383-1030001-1 | MUZZLE PROTECTOR | KFCBS00614 | |
| 102 | 11369-103C401-1 | KAYMO RED CAP | KFCBS00749 | 403 | 11382-1034705-1 | NOSE PIECE | KFCBS00618 | ||
| 103 | 1135S-0350001-1 | GROMMET | KFCBS00363 | 404 | 2040101-06010-2 | HEX.SOC.HD.BOLT | KFCBS00751 | ||
| 104 | 2040104-03010-0 | HEX.SOC.HD.SCREW | KFCBS00364 | 405 | FMS | 2041100-01091-0 | O - RING | KFCBS00491 | |
| 105 | 11397-1034701-1 | GUIDE COVER | KFCBS00711 | 406 | 11364-1034701-1 | FEED PISTON-B | KFCBS00589 | ||
| 106 | FMS | 11302-1034701-1 | CYLINDER CAP SEAL | KFCBS00630 | 407 | FMS | 2041104-03040-0 | O - RING | KFCBS00590 |
| 107 | FMS | 11370-1030001-1 | SEAL | KFCBS00571 | 408 | FMS | 1134W-0970001-1 | FEED BUMPER | KFCBS00591 |
| 108 | FMS | 11360-1030001-2 | COMPRESSION SPRING | KFCBS00572 | 409 | FMS | 2040100-04080-2 | BOLT ASSY | KFCBS00592 |
| 109 | FMS | 2041108-06050-0 | O - RING | KFCBS00322 | 410 | FMS | 11367-1030001-1 | PUSHER SPRING | KFCBS00593 |
| 110 | 11381-1030001-1 | WASHER | KFCBS00574 | 411 | 11366-0974701-1 | FEED PISTON CAP | KFCBS00594 | ||
| 111 | FMS | 11368-1030001-1 | HD.VALVE PISTON | KFCBS00575 | 412 | FMS | 2040300-08010-0 | C - RING | KFCBS00595 |
| 112 | FMS | 2041108-07050-0 | O - RING | KFCBS00576 | 413 | FMS | 1134B-0864701-1 | DUST SHIELD PLUG | KFCBS00307 |
| 113 | FMS | 2041100-06011-0 | O - RING | KFCBS00577 | 414 | 11310-0254702-2 | DOOR LATCH | KFCBS00596 | |
| 114 | FMS | 11204-1030001-3 | DRIVER UNIT | KFCBS00578 | 415 | FMS | 11311-1030001-1 | LATCH SPRING | KFCBS00597 |
| 115 | FMS | 11399-1030001-1 | COLLAR | KFCBS00579 | 416 | 11361-1034701-4 | DOOR | KFCBS00629 | |
| 116 | 11320-1030003-1 | CYLINDER | KFCBS00580 | 417 | FMS | 1135H-0860001-1 | PU RETAINER | KFCBS00496 | |
| 117 | 11321-1030001-1 | CYLINDER SPACER | KFCBS00581 | 418 | FMS | 1131K-1034701-1 | PIN | KFCBS00598 | |
| 118 | FMS | 2041104-11010-0 | O - RING | KFCBS00582 | 419 | FMS | 1133C-0860001-1 | STOPPER FINGER SPRING | ECO297068 |
| 119 | FMS | 2041108-07060-0 | O - RING | KFCBS00583 | 420 | FMS | 11358-0864701-1 | NAIL STOP | KFCBS00498 |
| 120 | FMS | 11327-1034702-1 | BUMPER-A | KFCBS00584 | 421 | 11359-1034701-1 | PIN-NAIL STOP | KFCBS00599 | |
| 121 | FMS | 2040101-03050-9 | HEX.SOC.HD.BOLT | KFCBS00624 | 422 | FMS | 11362-1034701-1 | DOOR SHAFT PIN | KFCBS00600 |
| 122 | 11371-1034701-1 | DEFLECTOR | KFCBS00585 | 423 | 11330-1034701-1 | SAFETY | KFCBS00601 | ||
| 123 | 1132T-1030001-1 | MUFFLER | KFCBS00573 | 424 | FMS | 11337-1030001-1 | SAFETY SPRING | KFCBS00602 | |
| 124 | FMS | 11327-1034703-1 | BUMPER-B | KFCBS00586 | 425 | FMS | 11338-0864701-2 | SAFETY GUIDE | KFCBS00343 |
| 201 | FMS | 2041104-02060-0 | O - RING | KFCBS00283 | 426 | 11354-1034702-1 | MAGAZINE CASE | KFCBS00739 | |
| 202 | FMS | 11374-0860001-1 | PLUNGER CAP | KFCBS00284 | 427 | 11289-1030001-1 | SPACER NEW | KFCBS00612 | |
| 203 | 2041100-02050-0 | O - RING | KFCBS00400 | 427 | FMS | 11357-1034701-1 | MAGAZINE POST | KFCBS00603 | |
| 204 | FMS | 2041100-01070-0 | O - RING | KFCBS00392 | 428 | 1138Y-0954701-2 | RUBBER RING | KFCBS00311 | |
| 205 | FMS | 1133S-0860001-1 | VALVE PLUNGER | KFCBS00285 | 429 | FMS | 1134M-0864701-1 | SPRING BASE | KFCBS00312 |
| 206 | FMS | 2041100-01030-0 | O - RING | KFCBS00395 | 430 | 11289-1030001-1 | SPACER NEW | KFCBS00612 | |
| 207 | FMS | 11376-0860001-1 | SPRING | KFCBS00287 | 430 | 11289-1030001-1 | SPACER SET NEW | KFCBS00612 | |
| 208 | FMS | 2041108-01020-0 | O - RING | KFCBS00288 | 431 | 1138W-0860001-1 | SPACER | KFCBS00314 | |
| 209 | FMS | 11375-0860002-1 | PLUNGER | KFCBS00289 | 432 | FMS | 11328-0970001-1 | PULL SPRING | KFCBS00627 |
| 210 | 11373-0860001-1 | TRIGGER VALVE HEAD | KFCBS00290 | 433 | 11355-1034701-1 | MAGAZINE COVER | KFCBS00740 | ||
| 211 | 11329-0860001-1 | PIN | KFCBS00291 | 434 | FMS | 11365-0864701-1 | PIN FEED PISTON | KFCBS00353 | |
| 212 | 1137A-0860001-1 | COVER-PLUNGER | KFCBS00292 | 435 | 11306-1034701-1 | FEED FINGER | KFCBS00605 | ||
| 213 | FMS | 2041104-02070-0 | O - RING | KFCBS00293 | 436 | FMS | 11364-0974701-1 | FEED PISTON-A | KFCBS00606 |
| 214 | FMS | 2041100-01050-0 | O - RING | KFCBS00294 | 437 | FMS | 11307-0970001-1 | FEED FINGER SPRING | KFCBS00607 |
| 215 | 2040401-05150-0 | SPIRAL PINS | KFCBS00625 | 438 | 2040101-04131-0 | HEX.SOC.HD.BOLT | KFCBS00493 | ||
| 216 | 11317-0864701-2 | SECONDARY TRIGGER | KFCBS00334 | 439 | 1134R-1034701-1 | SPRING COVER | KFCBS00608 | ||
| 217 | 11316-0864701-2 | TRIGGER | KFCBS00332 | 440 | 2040501-04010-0 | BOLT CAP | KFCBS00088 | ||
| 218 | 2040400-05080-0 | SPRING PIN | KFCBS00403 | 441 | 1136R-1034701-1 | MAGAZINE SHAFT PIN | KFCBS00642 | ||
| 219 | FMS | 2040401-05120-0 | SPIRAL PINS | KFCBS00626 | 442 | 2040202-04010-0 | FLAT WASHER | KFCBS00087 | |
| 301 | 11230-1034601-1 | GUN BODY UNIT | KFCBS00773 | 443 | FMS | 1134N-1014701-1 | SPRING BASE A | KFCBS00619 | |
| 301 | 11230-1037401-1 | GUN BODY UNIT KAYMO | KFCBS00762 | 444 | 1131D-0460001-1 | URETHANE RETAINER | KFCBS00405 | ||
| 302 | 2041101-05020-0 | O - RING | KFCBS00333 | 445 | FMS | 1135U-1010001-1 | PROTECTOR WASHER | KFCBS00503 | |
| 303 | 11346-0861301-1 | END CAP | KFCBS00587 | 447 | 1120K-1034701-1 | SECOND HANDLE BASE UNIT | KFCBS00609 | ||
| 304 | 1132L-0014701-1 | DUSTY COVER | KFCBS00053 | 448 | 1137K-1030001-2 | HANDLE | KFCBS00610 | ||
| 305 | 1135V-0000005-1 | AIR PLUG | ACC016 | 449 | 1135S-1034701-1 | GROMMET | KFCBS00730 | ||
| 401 | FMS | 2041104-08020-0 | O - RING | KFCBS00588 | 450 | 1135G-1114701-1 | RUBBER PAD | KFCBS00611 |
One Sheeter
Application
| WOODEN PALLETS | To make wooden pallets |
