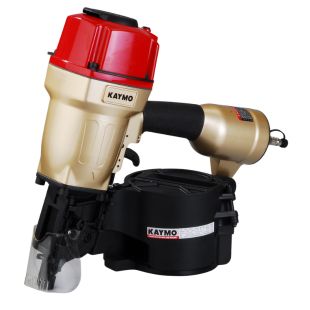

SKU: PRO-PN3390

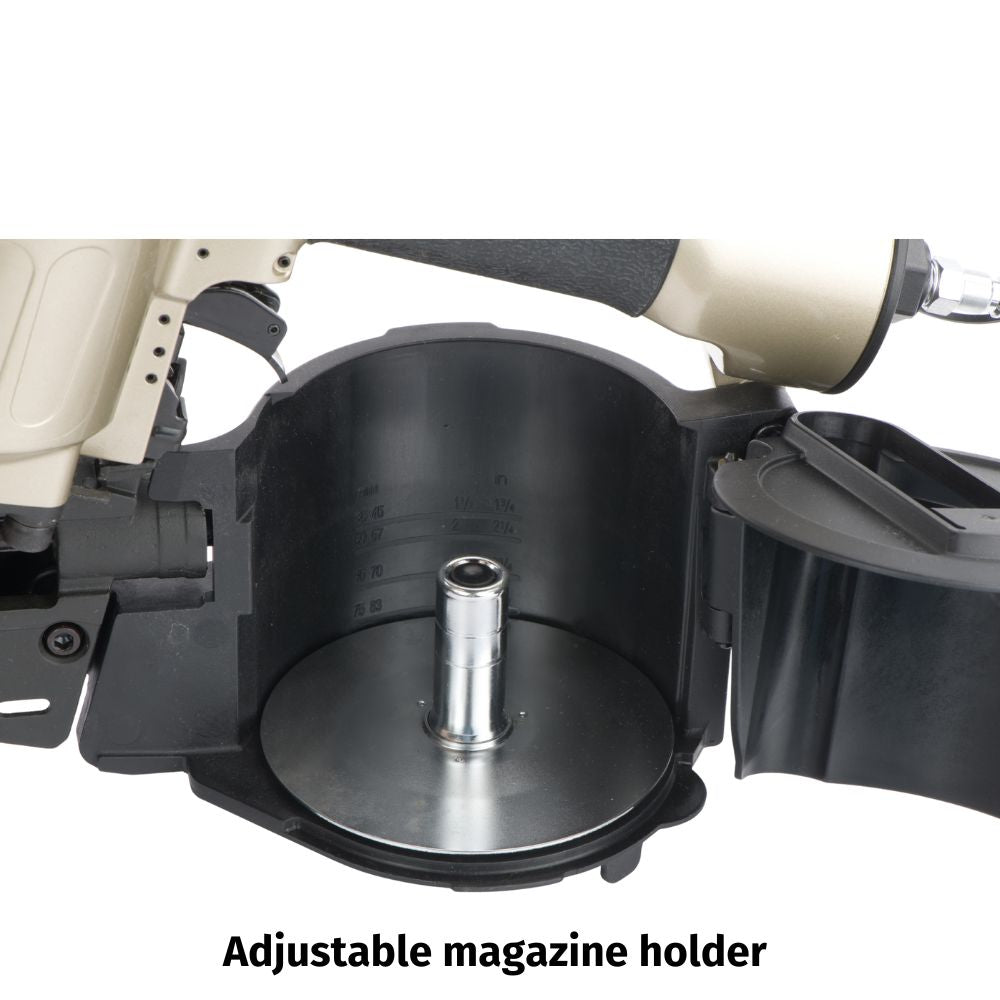

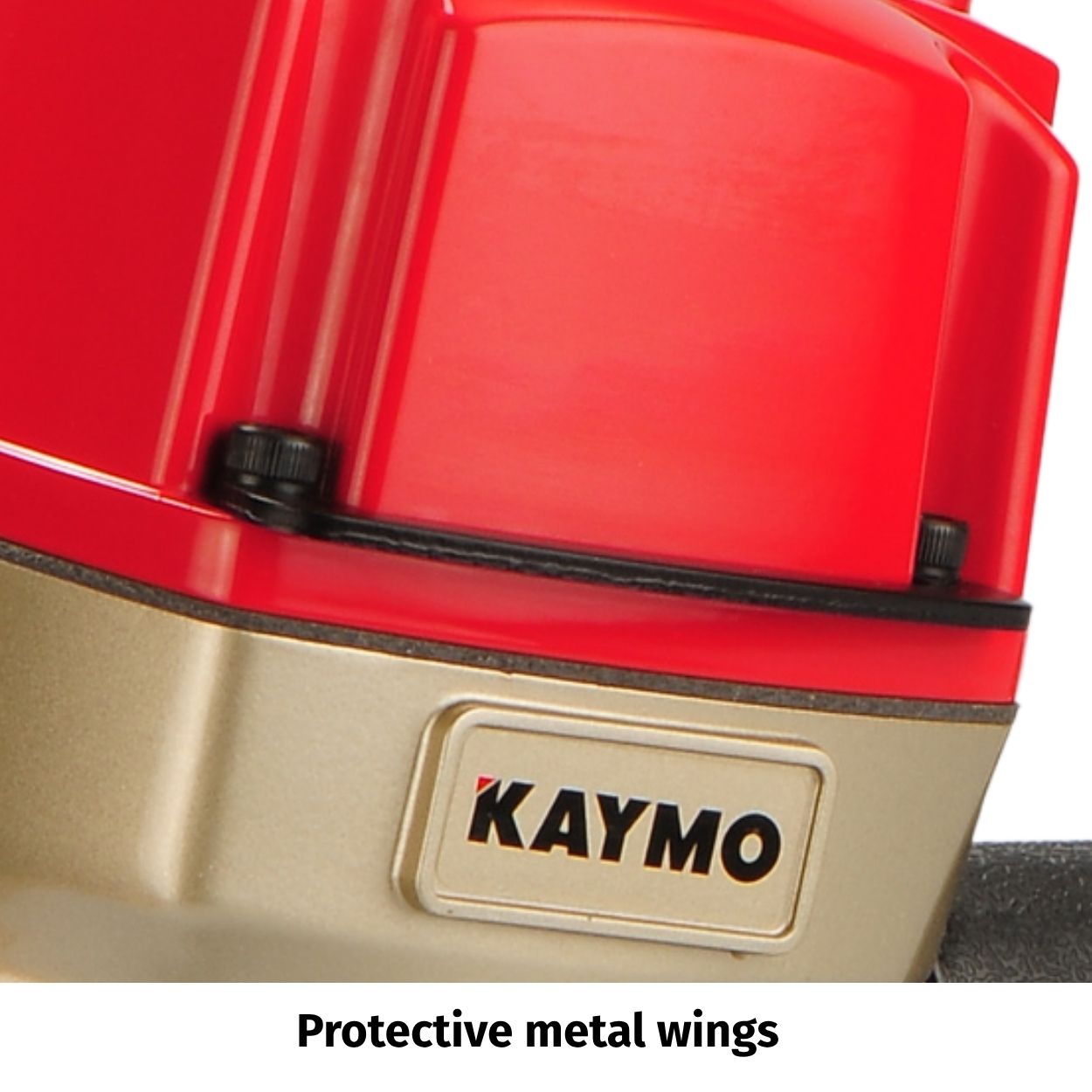

Set of metal guards to prevent tool body damage. Tough nylon magazine. 360 degree exhaust. Fasteners recommended: 50 - 90. PRESSURE: 70 - 110 psi .
₹ 1/-
Blow Up
Spares
| . | TOOL NAME: | PRO-PN3390 | REV.1ST APRIL 2022 | ||||||
| SR | FMS | PART CODE | PART NAME | ALT CODE | SR | FMS | PART CODE | PART NAME | ALT CODE |
| 101 | 2040103-05010-2 | COUNTER SUNK SCREW | 100009 | 306 | 1136U-0794701-1 | FILTER | KFCBS00158 | ||
| 102 | 1136B-0374701-1 | DEFLECTOR PAD | KFCBS00107 | 401 | 2041104-07010-0 | O RING | KFCBS00159 | ||
| 103 | 11371-0374701-2 | DEFLECTOR | KFCBS00108 | 402 | 2041100-01020-0 | O RING | KFCBS00160 | ||
| 104 | 1135G-0374701-1 | RUBBER PAD | KFCBS00109 | 403 | 11382-0794704-1 | NOSE PLATE | KFCBS00161 | ||
| 105 | 1135S-0350001-1 | GROMMET - 103510401 | KFCBS00363 | 403 | 11382-0794705-3 | NOSE PLATE NEW | KFCBS00721 | ||
| 106 | 2040100-04060-0 | BOLT ASSY | KFCBS00111 | 404 | 2040100-05010-2 | BOLT ASSY | 100188 | ||
| 107 | 11369-0371101-3 | CAP - KAYMO RED | KFCBS00112 | 405 | FMS | 1135H-0790001-1 | PU RETAINER | KFCBS00249 | |
| 108 | 2040104-03010-0 | HEX SOC HD SCREW - 20810505C12 | KFCBS00364 | 406 | 11306-0794701-4 | FEED FINGER | KFCBS00628 | ||
| 109 | 1136C-0374701-1 | POSITIONING AXIS | KFCBS00114 | 407 | FMS | 11307-0790001-1 | FEED FINGER SPRING | KFCBS00165 | |
| 110 | FMS | 11376-0254701-1 | SPRING - 102520801 | KFCBS00396 | 408 | 11365-0794701-1 | PIN FEED PISTON | KFCBS00166 | |
| 111 | 2040104-04010-0 | HEX SOC HD SCREW | KFCBS00116 | 409 | FMS | 2041100-01090-0 | O RING | KFCBS00459 | |
| 112 | 11360-0374701-3 | COMPRESSION SPRING | KFCBS00117 | 410 | 11364-0794701-1 | FEED PISTON | KFCBS00168 | ||
| 113 | 11368-0370002-3 | HD VALVE PISTON | KFCBS00118 | 411 | FMS | 2041104-03020-0 | O RING | KFCBS00169 | |
| 114 | FMS | 2041109-05020-0 | O RING | KFCBS00119 | 412 | 1133F-0794701-1 | FEED PISTON SPRING | KFCBS00170 | |
| 115 | FMS | 2041108-07021-0 | O RING | KFCBS00120 | 413 | 1134W-0790001-1 | FEED BUMPER | KFCBS00171 | |
| 116 | FMS | 2041109-05080-0 | O RING | KFCBS00121 | 414 | 11366-0794701-1 | FEED PISTON CAP | KFCBS00172 | |
| 117 | 1136N-0370001-3 | VALVE 1136N-0370001-3 | KFCBS00122 | 415 | FMS | 2040300-04010-0 | C RING | KFCBS00173 | |
| 118 | 11399-0370001-1 | COLLAR | KFCBS00123 | 416 | 1133C-0790001-2 | STOPPER FINGER SPRING | KFCBS00633 | ||
| 119 | 11370-0370002-1 | SEAL | KFCBS00124 | 417 | 11361-0794706-1 | DOOR | KFCBS00176 | ||
| 120 | 2040102-04010-0 | HALF ROUND HD HEX BOLT | KFCBS00125 | 418 | 11358-0794704-1 | NAIL STOP | KFCBS00631 | ||
| 121 | 11302-0374701-3 | CYLINDER CAP SEAL | KFCBS00126 | 419 | 2040401-04060-0 | SPIRAL PINS | KFCBS00632 | ||
| 122 | FMS | 2041107-06010-0 | O RING | KFCBS00506 | 420 | FMS | 1131G-0254701-1 | FIXED RING | KFCBS00266 |
| 123 | FMS | 11204-0790017-3 | DRIVER UNIT | KFCBS00128B | 421 | 11310-0864701-1 | DOOR LATCH | KFCBS00494 | |
| 123 | FMS | 11204-0790017-3 | DRIVER UNIT | KFCBS00128 | 422 | FMS | 11311-0974701-1 | LATCH SPRING | KFCBS00178 |
| 123 | FMS | 11204-0790017-3 | DRIVER UNIT SUPERIOR | KFCBS00128A | 423 | FMS | 11324-0254701-1 | FIXED PIN | KFCBS00267 |
| 124 | 1135J-0370001-2 | PRESS RING | KFCBS00129 | 424 | FMS | 11362-0794704-1 | DOOR SHAFT PIN | KFCBS00180 | |
| 125 | 11320-0370003-1 | CYLINDER | KFCBS00130 | 425 | 11338-0374701-1 | SAFETY GUIDE | KFCBS00181 | ||
| 126 | FMS | 2041101-06010-0 | O RING | KFCBS00131 | 426 | 11337-0794701-1 | SAFETY SPRING | KFCBS00182 | |
| 127 | FMS | 11322-0370002-1 | CYLINDER RING | KFCBS00132 | 427 | 11330-0794703-1 | SAFETY B | KFCBS00621 | |
| 128 | 11321-0370001-2 | CYLINDER SPACER | KFCBS00133 | 428 | 2040101-04180-0 | HEX.SOX.HD.BOLT | KFCBS00201 | ||
| 129 | FMS | 2041101-09010-0 | O RING | KFCBS00134 | 429 | 2040202-04010-0 | FLAT WASHER | KFCBS00087 | |
| 130 | FMS | 11327-0370001-4 | BUMPER | KFCBS00135 | 430 | 1135K-0374701-1 | SCREW FIXING SEAT | ||
| 131 | 1136D-0374701-1 | PRESS RING | KFCBS00136 | 431 | 11331-0794705-1 | SAFETY A | |||
| 133 | 11397-0794701-1 | GUIDE COVER | KFCBS00450 | 432 | 1132V-0794702-1 | PIN | KFCBS00198 | ||
| 201 | FMS | 2041104-02020-0 | O RING | KFCBS00225 | 433 | 11355-0794702-1 | MAGAZINE COVER | KFCBS00731 | |
| 202 | 2041104-02030-0 | O RING | KFCBS00453 | 434 | 1131G-0794702-1 | FIXED RING | KFCBS00202 | ||
| 203 | FMS | 11374-0084701-1 | PLUNGER CAP | KFCBS00226 | 435 | FMS | 1134M-0864701-1 | SPRING BASE A | KFCBS00312 |
| 204 | 1133S-0250001-1 | VALVE PLUNGER-102520601 | KFCBS00394 | 436 | FMS | 11328-0794701-1 | PULL SPRING | KFCBS00195 | |
| 205 | FMS | 2041100-01070-0 | O RING-2152058 | KFCBS00392 | 437 | 11289-0790001-1 | SPACER | KFCBS00634 | |
| 206 | FMS | 2041100-01030-0 | O RING-2152016 | KFCBS00395 | 438 | FMS | 11357-0794701-1 | ADJUST POST | KFCBS00192 |
| 208 | FMS | 11375-0084701-1 | PLUNGER | KFCBS00038 | 438 | 11357-0794701-2 | MAGEING POST (NEW) | KFCBS00720 | |
| 209 | FMS | 2041102-01030-0 | O RING-2152060 | KFCBS00398 | 439 | 11354-0794702-3 | MAGAZINE CASE | KFCBS00559 | |
| 210 | FMS | 11373-0084701-1 | TRIGGER VALVE HEAD | KFCBS00234 | 440 | 11398-0254702-1 | LATCH SPRING BUSHING A | KFCBS00200 | |
| 211 | 2040400-05060-0 | SPRING PIN | KFCBS00041 | 441 | 2040201-04020-0 | FLAT WASHER | KFCBS00767 | ||
| 212 | 2040401-05100-0 | SPRING PIN | KFCBS00331 | 442 | 2040101-04120-0 | HEX SOC HD BOLT | KFCBS00201 | ||
| 213 | 11224-0374701-2 | TRIGGER UNIT | KFCBS00641 | 443 | FMS | 2040301-11010-0 | C RING | KFCBS00194 | |
| 214 | 2040401-05160-0 | SPIRAL PIN | KFCBS00676 | 443 | FMS | 2040301-24010-0 | S RING NEW | KFCBS00732 | |
| 216 | 11318-0374701-1 | TRIGGER PIVOT PIN | KFCBS00152 | 444 | FMS | 1134M-0250002-1 | SPRING BASE | KFCBS00196 | |
| 217 | 1131D-0460001-1 | URETHANE RETAINER-104620201 | KFCBS00405 | 445 | 1134C-0794701-1 | SAFETY COVER | KFCBS00307 | ||
| 301 | 11230-0794607-1 | GUN BODY UNIT | KFCBS00154 | 446 | 2040501-04010-0 | BOLT CAP | KFCBS00088 | ||

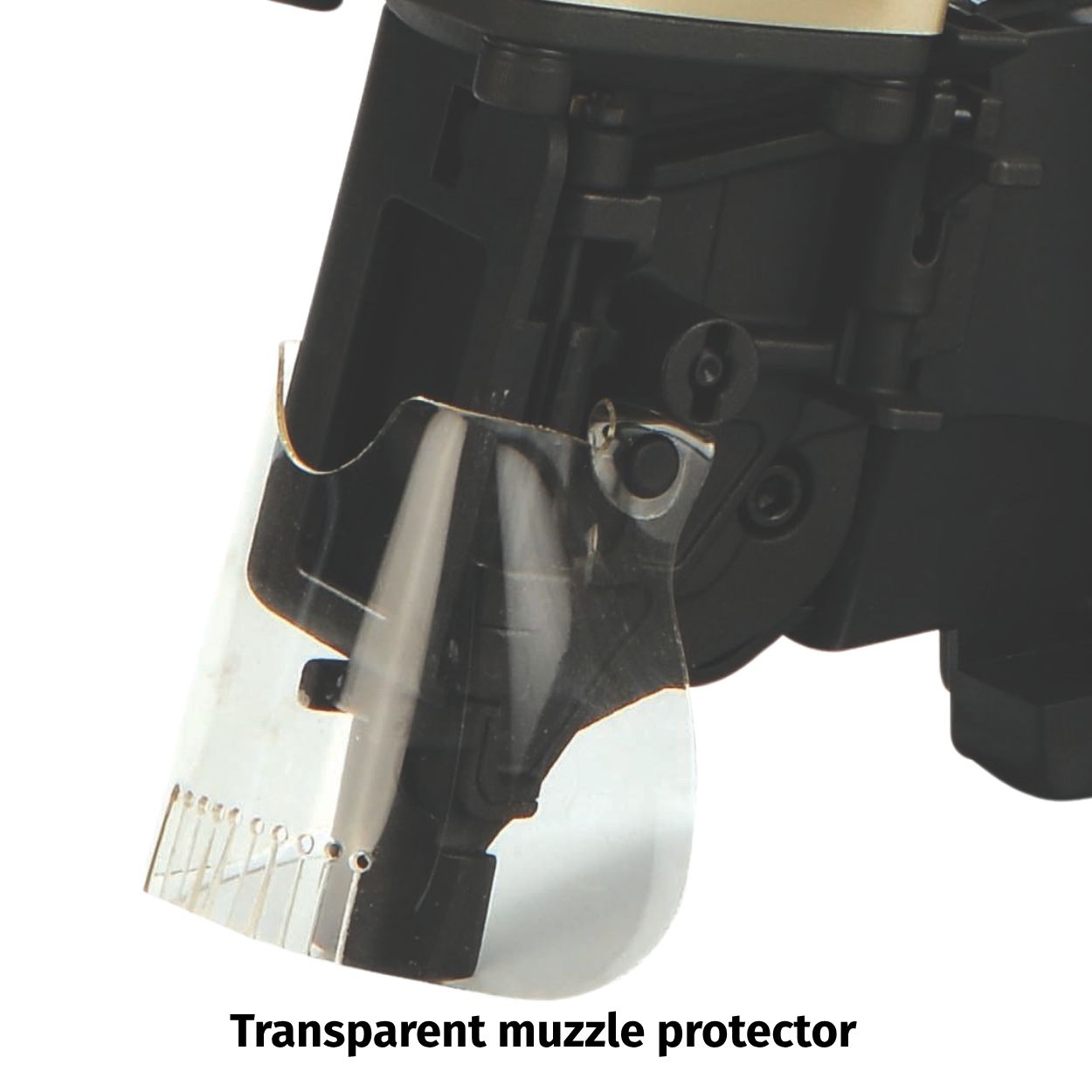

| 301 | 11230-0797402-1 | KAYMO GUN BODY UNIT | KFCBS00733 | 447 | FMS | 11383-0790001-1 | MUZZLE PROTECTION | KFCBS00206 | |
| 302 | 2041106-07010-0 | O RING | KFCBS00155 | 448 | 2040100-04030-0 | BOLT ASSY | |||
| 303 | 11346-0374301-1 | END CAP | KFCBS00156 | 449 | FMS | 1135H-0860001-1 | PU RETAINER | KFCBS00496 | |
| 304 | 1135V-0000003-1 | AIR PLUG | ACC016 | 450 | 11337-1014701-1 | SAFETY SPRING | KFCBS00735 | ||
| 305 | 1132L-0014701-1 | DUSTY COVER | KFCBS00053 | 451 | 11398-1030002-1 | WEAR BUSHING | KFCBS00620 |
One Sheeter
Application
| WOODEN PALLETS | To make wooden pallets |
