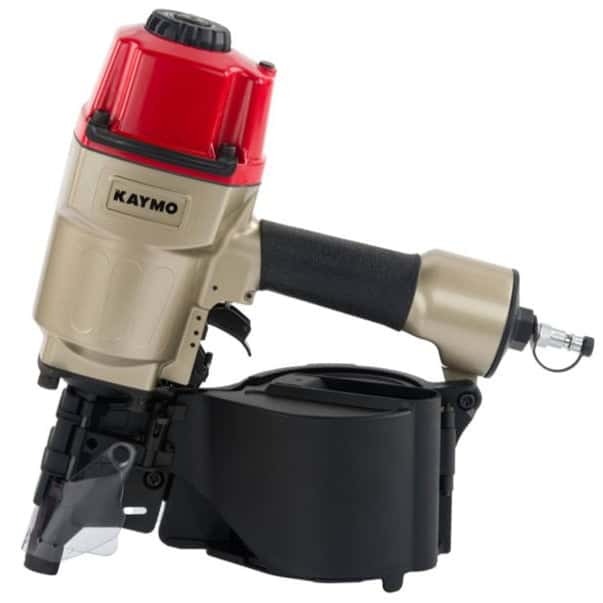

SKU: PRO-PN3383

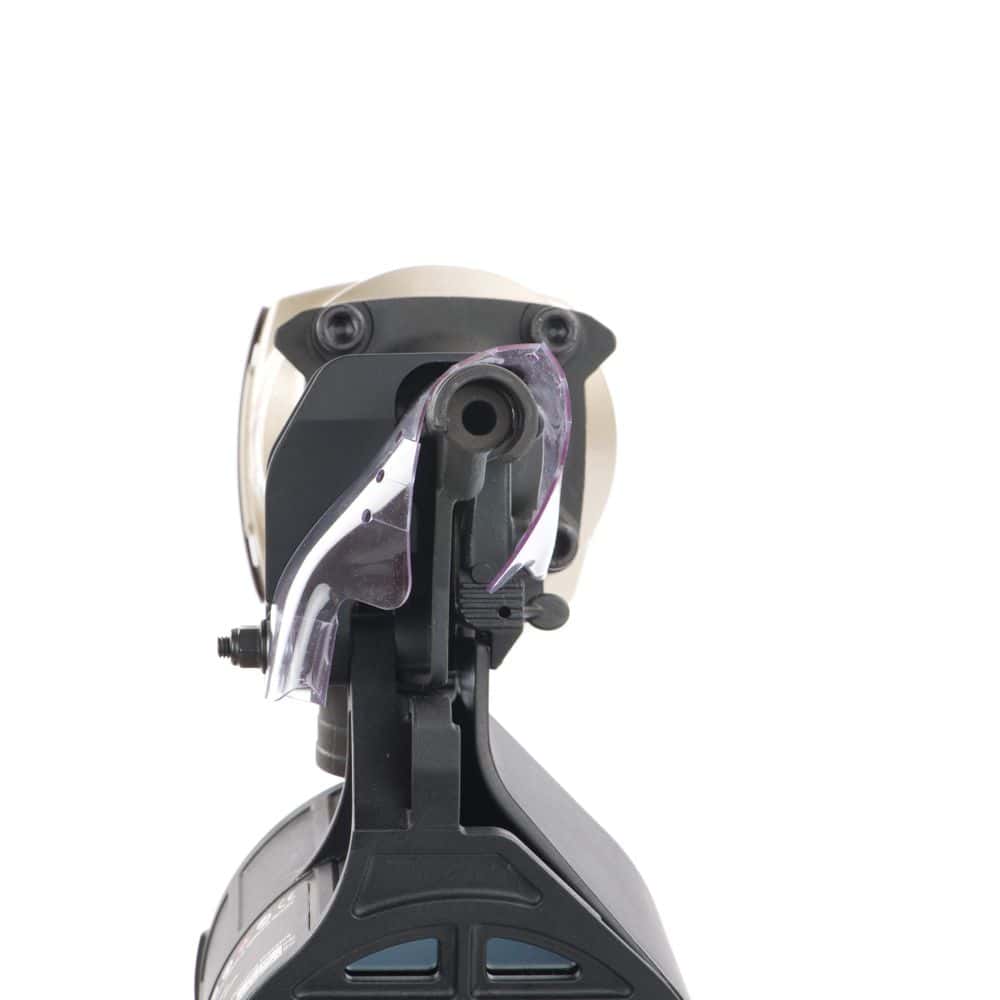

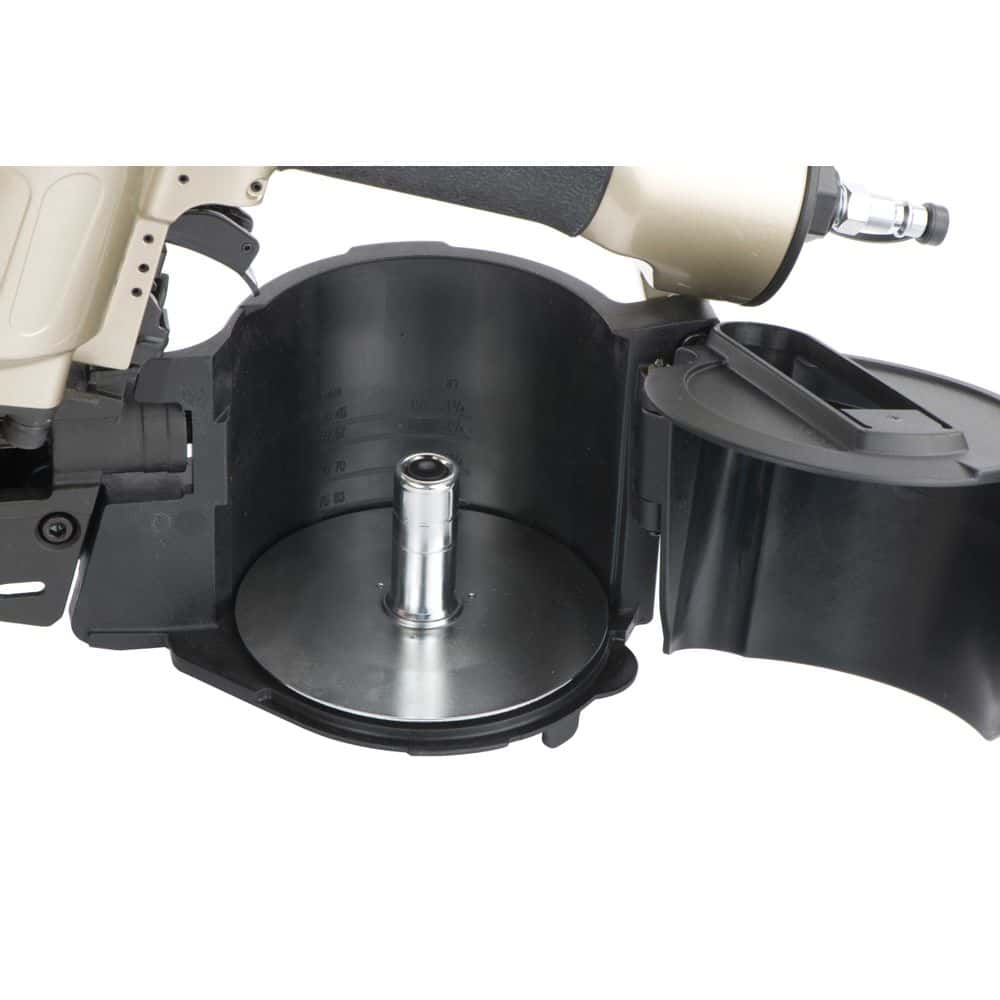

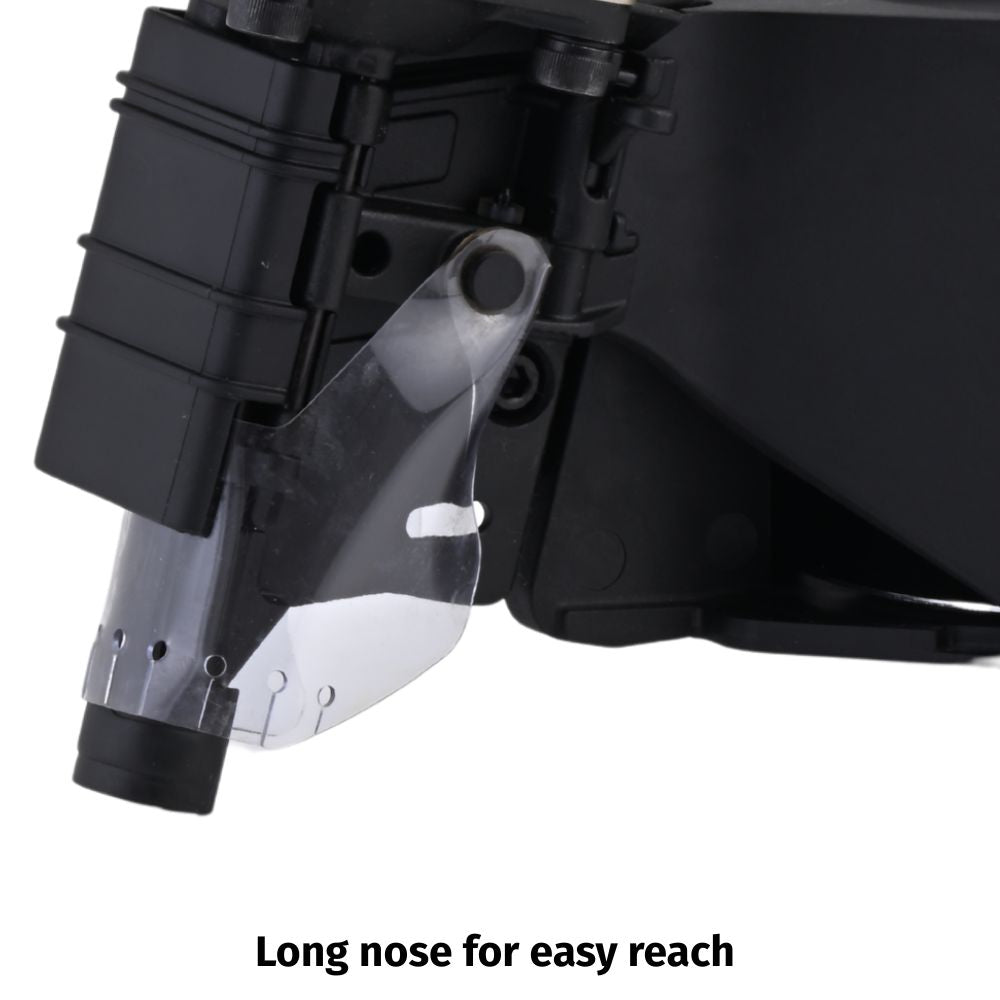

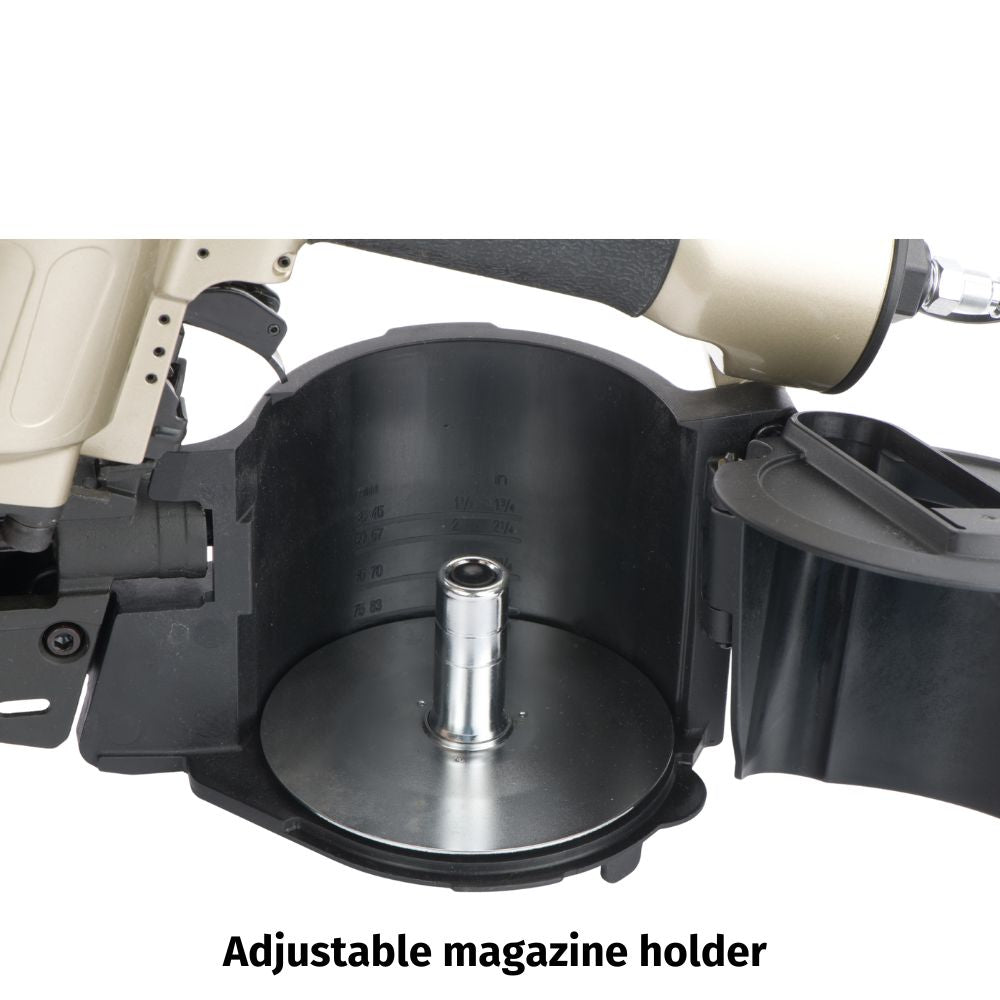

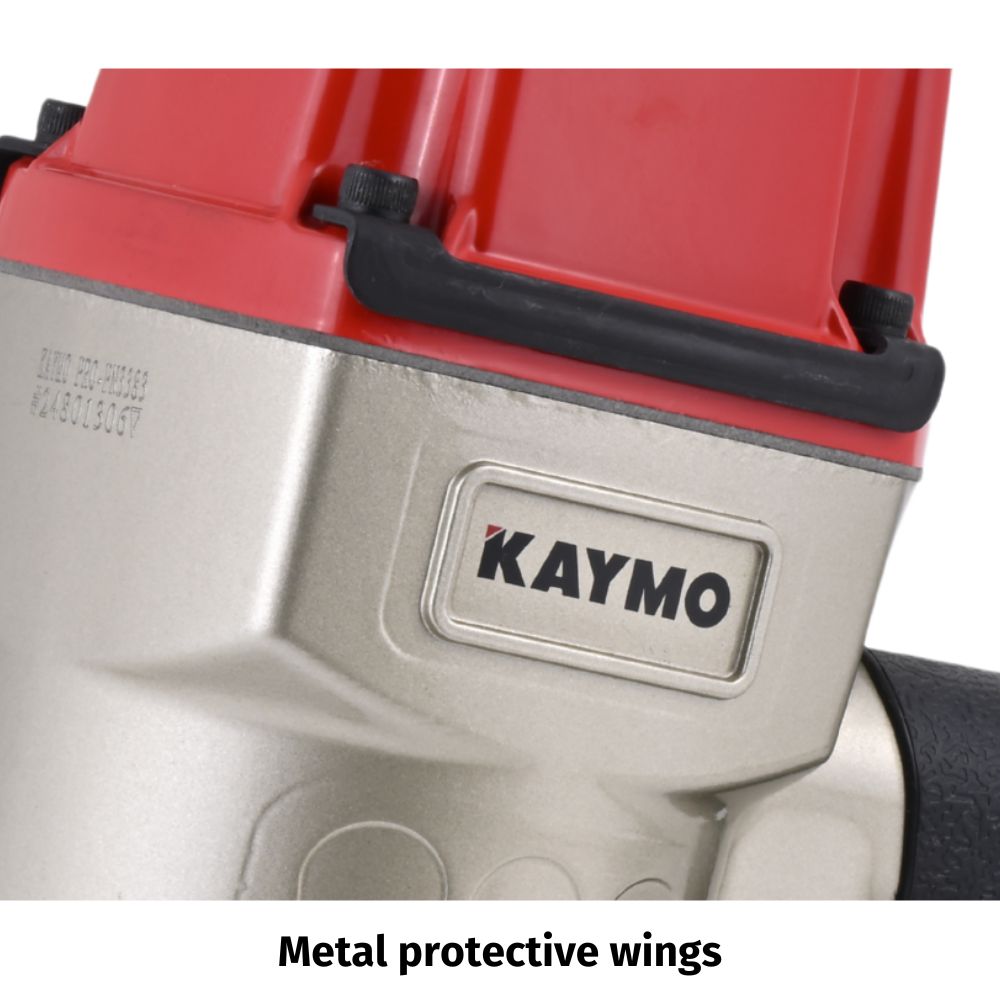

Long nose for easy catch. Adjustable magazine holder. Protective metal wings. Fasteners recommended: 50 - 80 mm.
₹ 0/-
Blow Up
Spares
| TOOL NAME: | PRO-PN3383 | REV.1ST APRIL 2022 | |||||||
| SR | FMS | PART CODE | PART NAME | ALT CODE | SR | FMS | PART CODE | PART NAME | ALT CODE |
| 101 | 2040103-05010-9 | COUNTER SUNK SCREW | 219 | FMS | 2040401-05120-0 | SPIRAL PINS | KFCBS00626 | ||
| 102 | 11381-0954702-1 | WASHER | KFCBS00736 | 301 | 11230-0867401-1 | GUN BODY UNIT | KFCBS00780 | ||
| 103 | 1135G-0460001-1 | RUBBER PAD | KFCBS00359 | 302 | 2041101-05020-0 | O - RING | KFCBS00333 | ||
| 104 | 11371-0954701-1 | DEFLECTOR | KFCBS00560 | 303 | FMS | 11346-0861301-1 | END CAP | KFCBS00587 | |
| 105 | 2041102-05050-0 | O - RING | KFCBS00616 | 304 | 1132L-0014701-1 UPGRADED TO 1132L-0014701-2 |
DUSTY COVER | KFCBS00053 | ||
| 106 | 1135S-0350001-1 | GROMMET | KFCBS00363 | 305 | 1135V-0000005-1 | AIR PLUG | ACC016 | ||
| 107 | 11369-0971101-2 | KAYMO RED CAP | KFCBS00783 | 401 | FMS | 2041108-06060-0 | O - RING | KFCBS00484 | |
| 108 | FMS | 2040104-03010-0 | HEX.SOC.HD.SCREW | KFCBS00364 | 402 | FMS | 2041108-01010-0 | O - RING | KFCBS00295 |
| 109 | 2040101-04110-2 | HEX.SOC.HD.BOLT | KFCBS00485 | 403 | 11382-0974702-1 | NOSE PIECE | KFCBS00787 | ||
| 110 | FMS | 11302-0864701-1 | CYLINDER CAP SEAL | KFCBS00558 | 404 | 2040101-05040-1 | HEX.SOC.HD.BOLT | 100188 | |
| 111 | FMS | 11381-0970001-1 | WASHER SEAL | ECO338310 | 405 | FMS | 2041100-01090-0 | O - RING | KFCBS00459 |
| 112 | FMS | 11370-0970001-1 | SEAL | KFCBS00784 | 406 | FMS | 11364-0974703-1 | FEED PISTON | |
| 113 | FMS | 11360-0354701-3 | COMPRESSION SPRING | KFCBS00319 | 407 | FMS | 2041100-03051-0 | O - RING | KFCBS00296 |
| 114 | FMS | 11381-0864701-1 | WASHER | KFCBS00321 | 408 | FMS | 1134W-0860001-1 | FEED BUMPER | KFCBS00335 |
| 115 | FMS | 2041108-05070-0 | O - RING | KFCBS00320 | 410 | FMS | 11367-0860001-1 | PUSHER SPRING | KFCBS00336 |
| 116 | FMS | 11368-0860001-3 | HD.VALVE PISTON | KFCBS00508 | 411 | FMS | 11366-0864701-1 | FEED PISTON CAP | KFCBS00337 |
| 117 | FMS | 2041108-06050-0 | O - RING | KFCBS00322 | 412 | FMS | 2040300-02010-0 | C - RING | KFCBS00302 |
| 118 | FMS | 2041108-05060-0 | O - RING | KFCBS00323 | 413 | 2040101-04251-0 | HEX.SOC.HD.BOLT | KFCBS00388 | |
| 119 | FMS | 11204-0970003-1 | DRIVER UNIT | KFCBS00785 | 414 | 11310-0954701-1 | DOOR LATCH | KFCBS00788 | |
| 120 | FMS | 11399-0860001-1 | COLLAR | KFCBS00325 | 415 | FMS | 11311-0860001-1 | LATCH SPRING | KFCBS00303 |
| 121 | 11320-0970001-1 | CYLINDER | KFCBS00786 | 416 | 11361-0974702-1 | DOOR | |||
| 122 | FMS | 2041108-06010-0 | O - RING | KFCBS00326 | 417 | FMS | 1135H-0860001-1 | PU RETAINER | KFCBS00496 |
| 123 | FMS | 11321-0860001-1 | CYLINDER SPACER | KFCBS00486 | 418 | FMS | 2040400-05060-0 | SPRING PIN | KFCBS00041 |
| 124 | FMS | 2041101-09020-0 | O - RING | KFCBS00327 | 419 | FMS | 1133C-0860001-1 | STOPPER FINGER SPRING | ECO297068 |
| 125 | FMS | 2041100-06010-0 | O - RING | KFCBS00328 | 420 | FMS | 11358-0864701-1 | NAIL STOP | KFCBS00498 |
| 126 | FMS | 11327-0864701-1 | BUMPER-A | KFCBS00329 | 421 | FMS | 11359-0864701-1 | PIN-NAIL STOP | KFCBS00166 |
| 127 | FMS | 11327-0864702-1 | BUMPER-B | KFCBS00330 | 422 | FMS | 11330-0974703-1 | SAFETY | |
| 128 | FMS | 1135S-0860001-1 | GROMMET A | KFCBS00487 | 423 | FMS | 11337-0864701-1 | SAFETY SPRING | ECO297031 |
| 129 | FMS | 11362-0864701-1 | DOOR SHAFT PIN | KFCBS00488 | 424 | FMS | 11338-0864701-2 | SAFETY GUIDE | KFCBS00343 |
| 130 | 11397-0864701-1 | GUIDE COVER | KFCBS00675 | 425 | 11354-0974702-1 | MAGAZINE CASE | KFCBS00789 | ||
| 201 | FMS | 2041104-02060-0 | O - RING | KFCBS00283 | 426 | FMS | 11357-0954701-1 | MAGAEING POST | KFCBS00310 |
| 202 | FMS | 11374-0860001-1 | PLUNGER CAP | KFCBS00284 | 427 | FMS | 1138Y-0954701-2 | RUBBER RING | KFCBS00311 |
| 203 | FMS | 2041100-02050-0 | O - RING | KFCBS00400 | 428 | FMS | 1134M-0864701-1 | SPRING BASE | KFCBS00312 |
| 204 | FMS | 2041100-01070-0 | O - RING | KFCBS00392 | 429 | 11356-0970001-1 | NAIL HOLDER | KFCBS00790 | |
| 205 | FMS | 1133S-0860001-1 | VALVE PLUNGER | KFCBS00285 | 430 | FMS | 1138W-0860001-1 | SPACER | KFCBS00314 |
| 206 | FMS | 2041100-01030-0 | O - RING | KFCBS00395 | 431 | FMS | 11328-0860001-1 | PULL SPRING | ECO297073 |
| 207 | FMS | 11376-0860001-1 | SPRING | KFCBS00287 | 432 | 11355-0974703-1 | MAGAZINE COVER | ||
| 208 | FMS | 2041108-01020-0 | O - RING | KFCBS00288 | 433 | FMS | 11365-0864701-1 | PIN FEED PISTON | KFCBS00353 |
| 209 | FMS | 11375-0860002-1 | PLUNGER | KFCBS00289 | 434 | FMS | 11306-0974702-1 | FEED FINGER | |
| 210 | FMS | 11373-0860001-1 | TRIGGER VALVE HEAD | KFCBS00290 | 436 | FMS | 11307-0864701-1 | FEED FINGER SPRING | KFCBS00317 |
| 211 | FMS | 11329-0860001-1 | PIN | KFCBS00291 | 437 | 2040101-04121-0 | HEX.SOC.HD.BOLT | KFCBS00502 | |
| 212 | FMS | 1137A-0860001-1 | COVER-PLUNGER | KFCBS00292 | 438 | FMS | 1134R-0974701-1 | SPRING COVER | KFCBS00791 |
| 213 | FMS | 2041104-02070-0 | O - RING | KFCBS00293 | 439 | FMS | 2040501-04010-0 | BOLT CAP | KFCBS00088 |
| 214 | FMS | 2041100-01050-0 | O - RING | KFCBS00294 | 440 | FMS | 1136R-0864701-1 | MAGAZINE SHAFT PIN | KFCBS00505 |
| 215 | FMS | 2040401-05100-0 | SPIRAL PINS | KFCBS00331 | 442 | FMS | 11383-0970001-1 | MUZZLE PROTECTOR | KFCBS00340 |
| 216 | FMS | 11317-0864701-2 | SECONDARY TRIGGER | KFCBS00334 | 443 | FMS | 1135U-1010001-1 | PROTECTOR WASHER | KFCBS00503 |
| 217 | 11316-0864701-3 | TRIGGER | KFCBS00332 | 444 | FMS | 1134B-0864701-1 | DUST SHIELD PLUG | KFCBS00307 | |
| 218 | FMS | 2040401-05080-0 | SPIRAL PINS | KFCBS00403 | 445 | 2040200-06011-0 | SPRING WASHER |
One Sheeter
Applications
| WOODEN CRATES | To close wooden cases |
| WOODEN PALLETS | To make wooden pallets |
