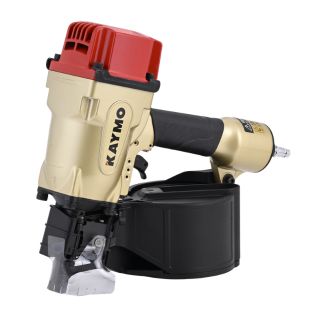

PNEUMATIC NAILER KAYMO PRO-2965

SKU: PRO-PN2965

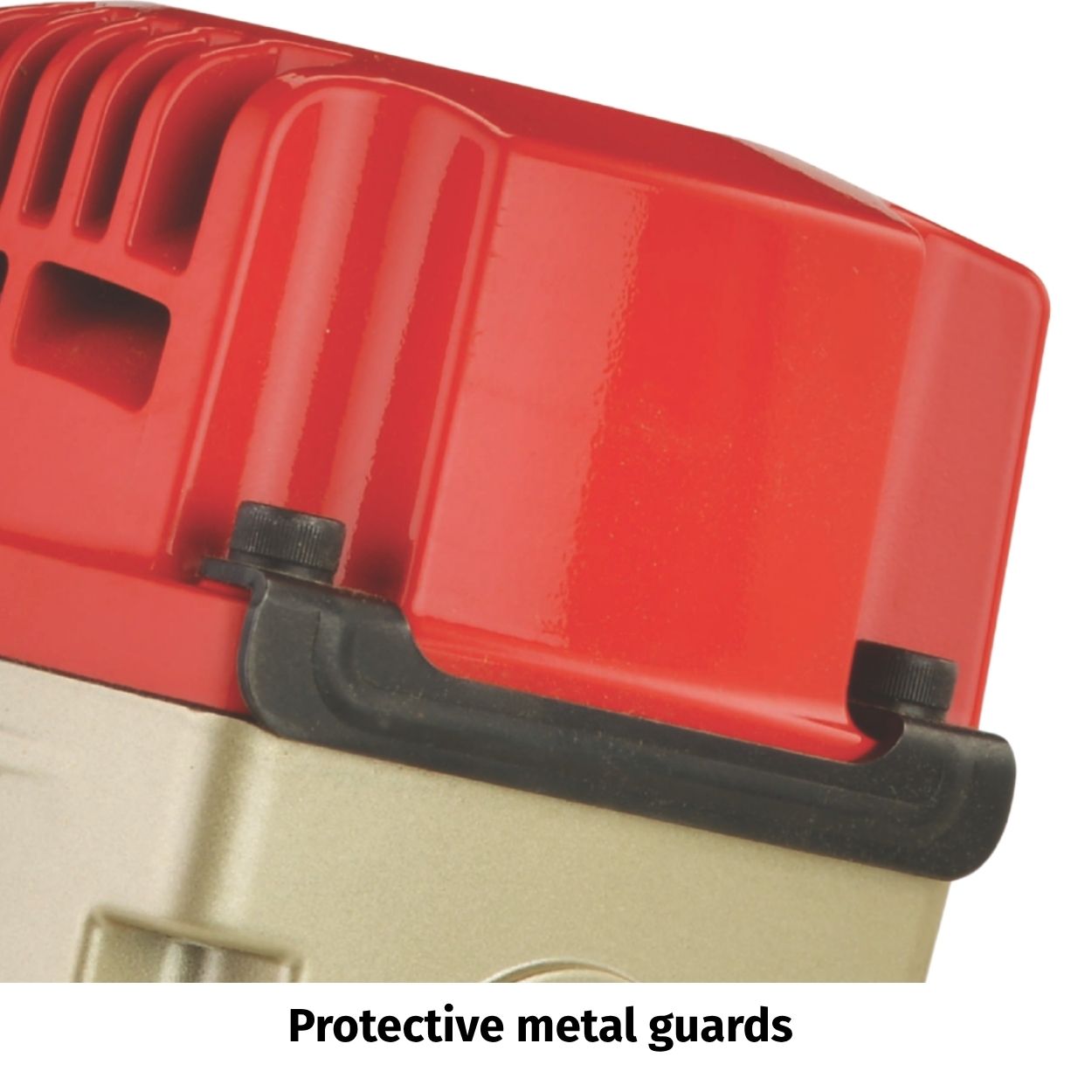

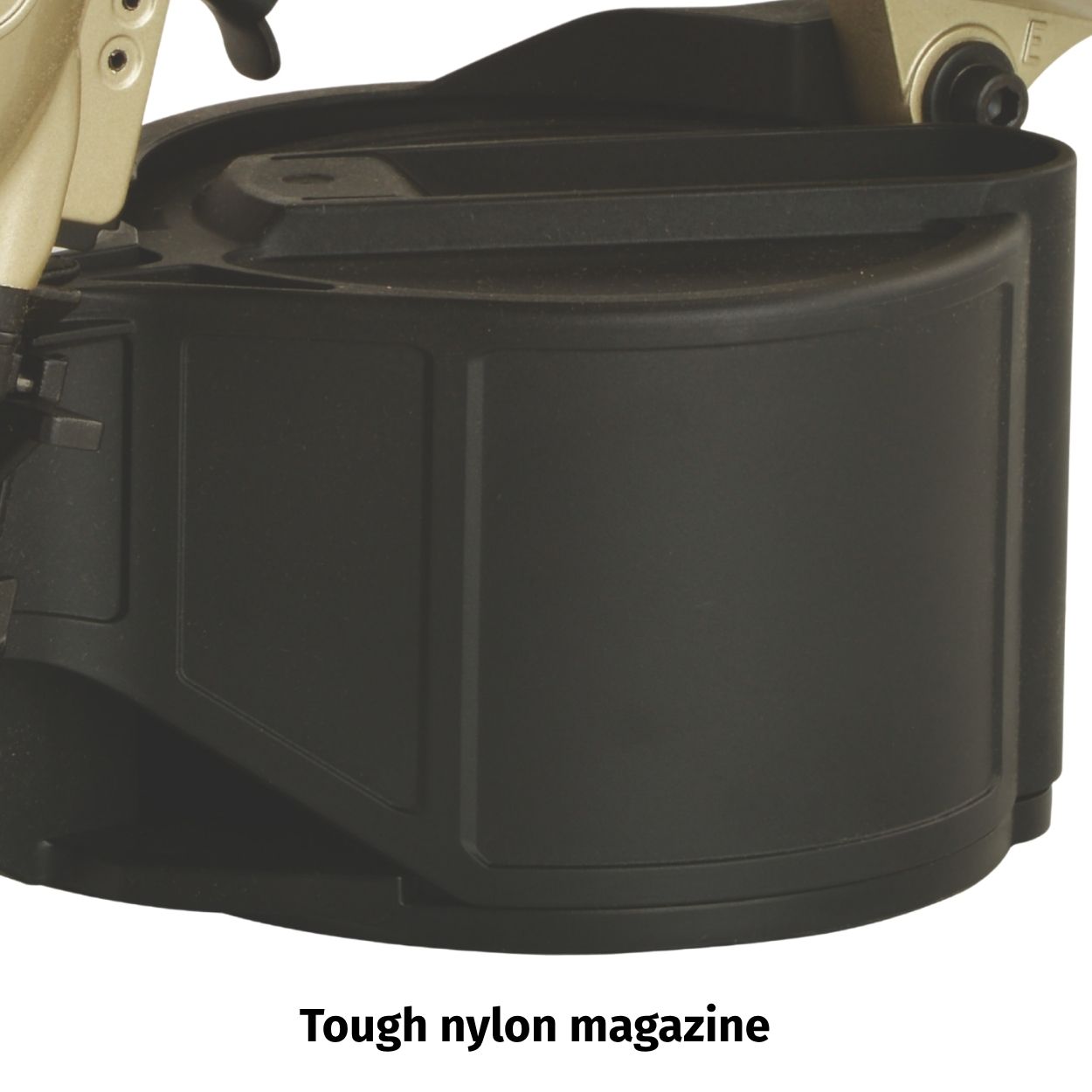

Rubber grip. High impact tool. Tough nylon magazine. Set of metal wings to prevent body damage. Transparent muzzle protector. PRESSURE:70-110 PSI

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

₹ 1/-
Blow Up



Spares
TOOL MODEL: PRO-PN2965 REV.1ST APRIL2023
SR FMS PART CODE PART NAME ALT CODE SR FMS PART CODE PART NAME ALT CODE
1 FMS 100127 Screw M6 X 30 KFCBS00485 39 FMS 100066 Roll Pin KFCBS00403
2   100460 Cylinder Cap Unit KAYMO 101798 40 FMS 100095 Step Pin KFCBS00353
3   100463 Protector   41 FMS 100092 Spring, Feed Pawl KFCBS00317
4 FMS 100464 Cylinder Cap Seal   42 FMS 100078 Rubber Washer KFCBS00496
5   100145 Piston Stop KFCBS00318 43   100522 Feed Pawl
6 FMS 100146 Spring, Head Valve KFCBS00319 44 FMS 100011 O-Ring KFCBS00491
7   100219 Washer, Head Valve Spring KFCBS00321 45   100203 Feed Piston
8 FMS 100147 O-Ring KFCBS00320 46 FMS 100098 O-Ring KFCBS00296
9 FMS 100149 O-Ring KFCBS00322 47 FMS 100206 Spring, Feed Piston KFCBS00336
10 FMS 100148 Head Valve Piston KFCBS00508 48   100205 Stop, Feed Piston  KFCBS00335
11   100468 O-Ring   49   100207 Spring Collar KFCBS00337
12 FMS 100465 Main Piston Unit 103075 50   100104 C-Ring KFCBS00302
12.1   100466 Main Piston   51 FMS 100083 Door Latch KFCBS00494
12.2   100467 Driver     52 FMS 100084 Spring, Door Latch ECO235747
13 FMS 100154 Cylinder Seal   53 FMS 100352 Rubber Washer KFCBS00405
14   100469 Cylinder   54   100489 Door
15 FMS 100470 O-Ring   55 FMS 100080 Hook Dust Cover KFCBS00307
16 FMS 100472 O-Ring   56   100187 Dust Cover KFCBS00340
17   100471 Cylinder Ring   57   100485 Straight Pin
18   100473 Check Valve   58   100492 Step Pin
19   100476 Frame(Mag.) Kaymo color 107726 59 FMS 100090 Roll Pin KFCBS00041
20   100477 Name Label 101794 60   100085 Spring, Check Pawl ECO235749
22   100327 O-Ring KFCBS00333 62   100491 Check Pawl Stop
23   100373 End Cap RED   63 FMS 100045 Screw Socket Hd M6 X 40 ECO235745
24 FMS 100039 Roll Pin ECO235780 64 FMS 100046 Plain Washer
25   100220 Roll Pin   65   100117 Nut, Elastic Stop M6 KFCBS00088
26 FMS 100063 Trigger Valve Unit (C.T)   66   100480 Magazine Cover
27 FMS 100067 Trigger Unit (C.T)   67   100037 Warning Label
28   100175 Contact Arm Guide   68 FMS 100113 Receiver,Spring KFCBS00312
29   100495 Contact Arm Cover-B   69   100110 Spacer KFCBS00314
30 FMS 100070 Spring, Contact Arm KFCBS00309 70 FMS 100111 Tension Spring ECO297073
31   100479 Contact Arm   71   100210 Nail Support
32   101293 Washer   72   100494 Magazine Post
33 FMS 100474 Bumper    73   100483 Magazine
34   100283 Driver Guide    74 FMS 100221 Rubber Washer ECO297074
35 FMS 100180 O-Ring   75   100079 Straight Pin KFCBS00505
36   100487 Nose   76   100482 Contact Arm Cover
37 FMS 100484 O-Ring   77   100119 Collar KFCBS00503
38   100188 Screw Socket Hd M8 X 30
One Sheeter

Application
WOODEN CRATES To close wooden cases
WOODEN PALLETS To make wooden pallets
