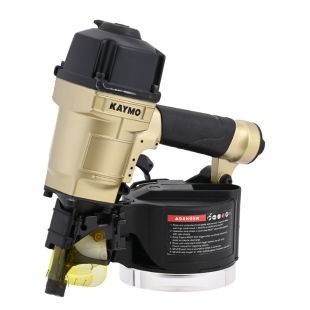

Pneumatic Nailer Kaymo PRO-2357V3

Name: Pneumatic Nailer Kaymo PRO-2357V3
Brand: Kaymo
SKU: PRO-PN2357V3
Availability: InStock

SKU: PRO-PN2357V3

The KAYMO PRO-PN2357V3 is a heavy-duty pneumatic coil nailer designed for high-speed nailing in industrial and construction applications. Its durable build, ergonomic design, and precise Read More...

Features:

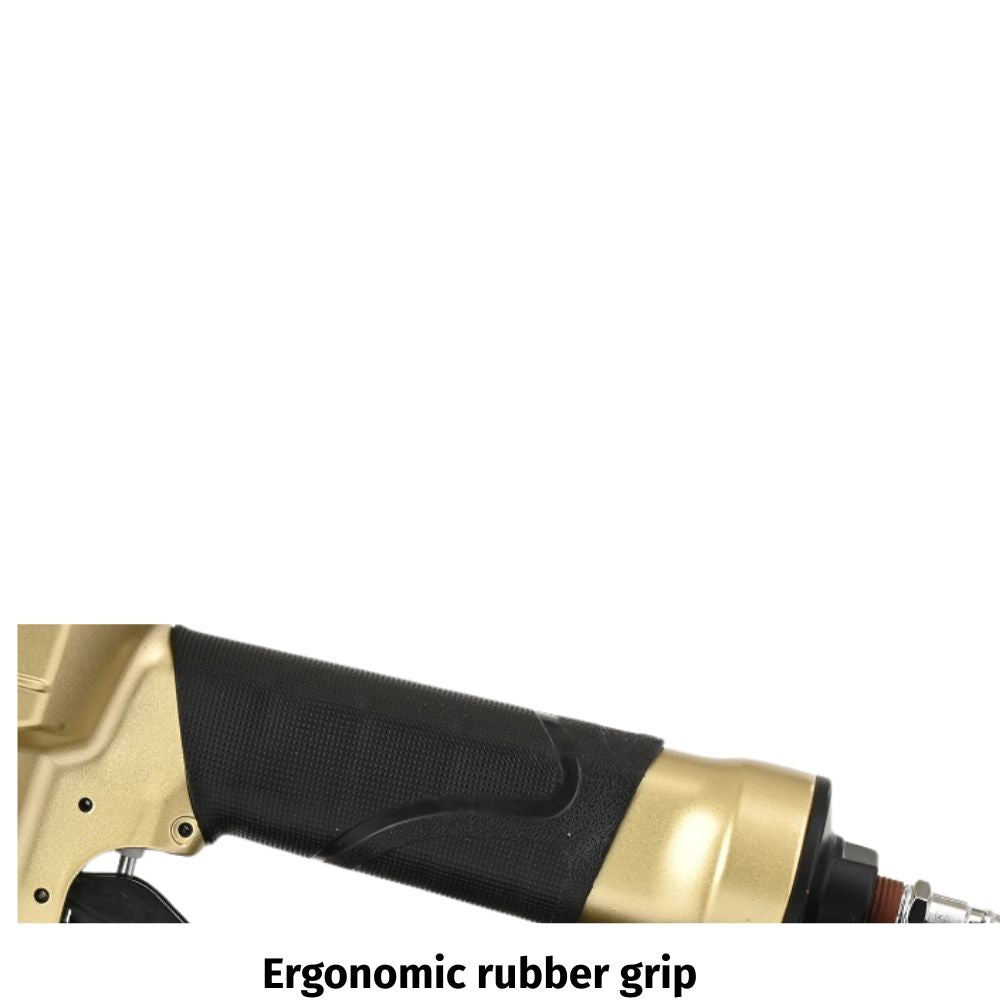

Ergonomic Rubber Grip – Enhances comfort and reduces hand fatigue.

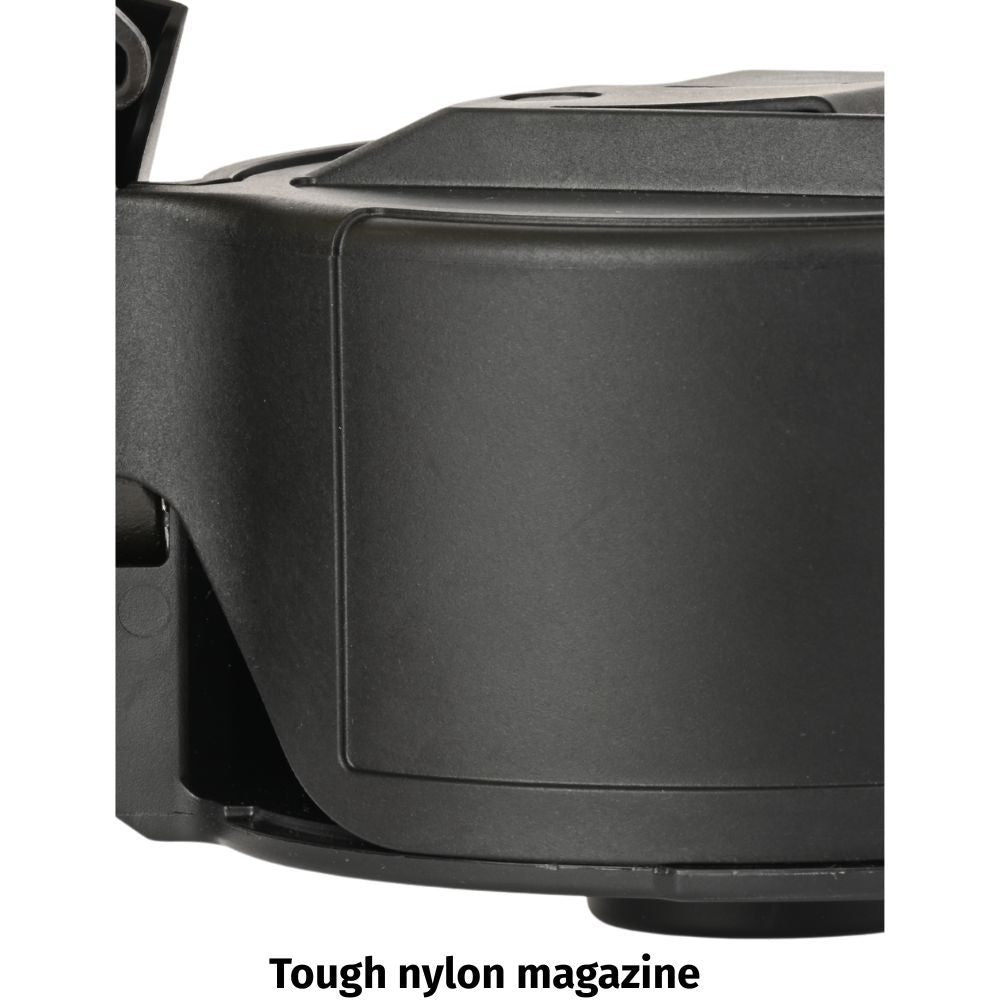

Tough Nylon Magazine – Ensures durability and smooth nail feeding.
Wide Nail Compatibility – Supports 2.3 - 2.9 mm diameter nails.

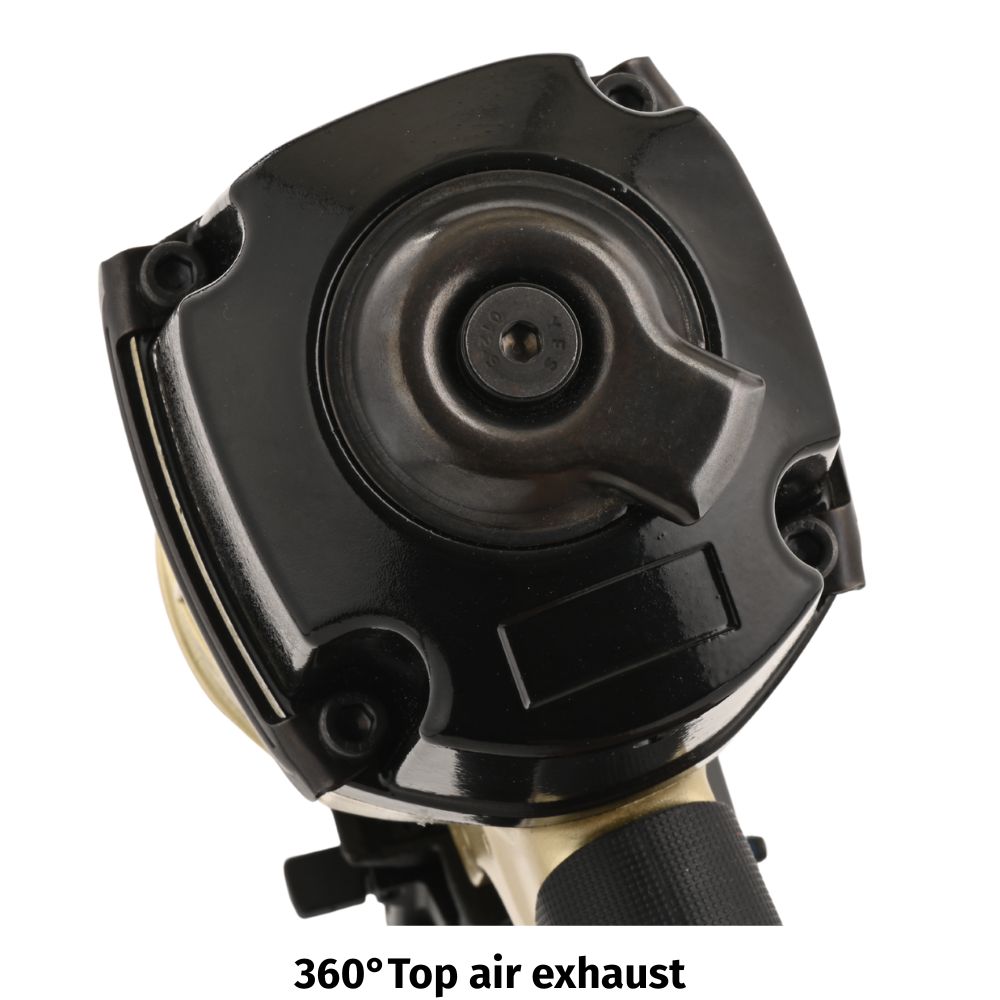

360° Adjustable Air Exhaust – Directs air away from the user for a safer experience.

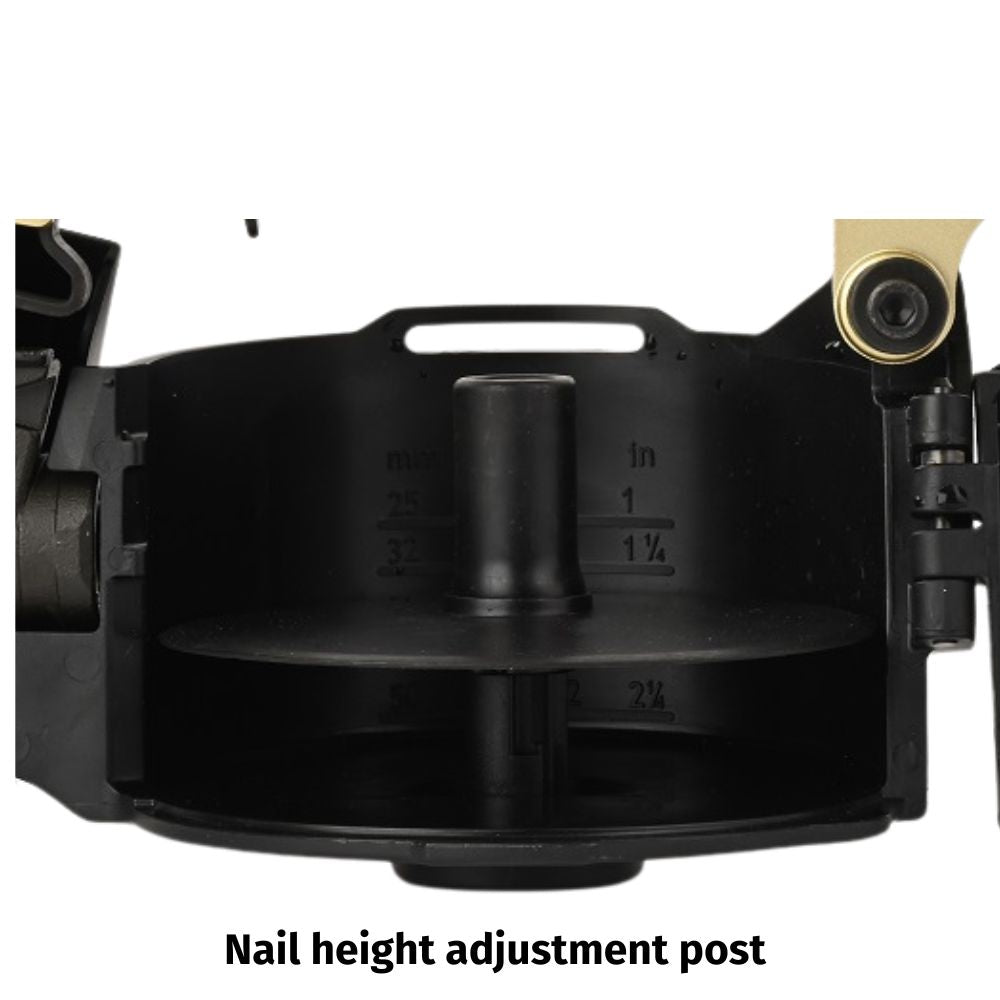

Nail Height Adjustment Post – Allows precise control for different applications.

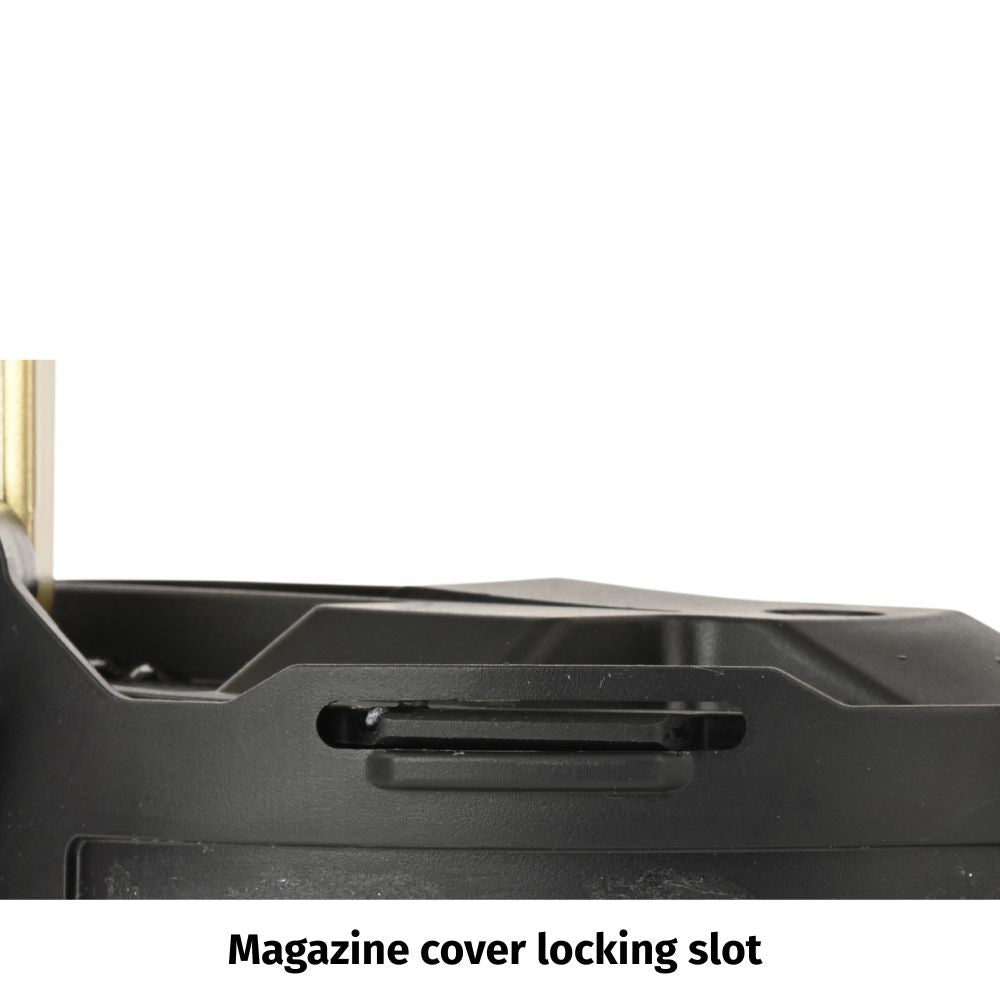

Magazine Cover Locking Slot – Ensures secure nail storage and easy reloading

Applications:

Wooden crates & pallet manufacturing, wooden decking, cladding.

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

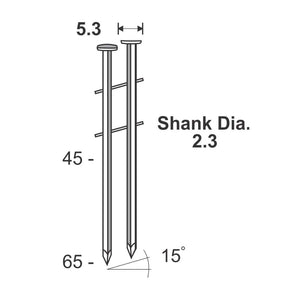

COIL NAILS KAYMO 2.3 SERIES

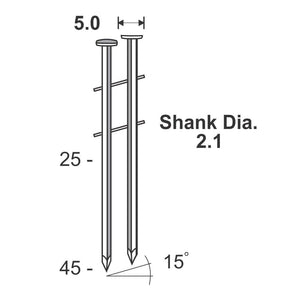

COIL NAILS KAYMO 2.1 SERIES

PU AIR HOSE, 8x12MM, 100M, RED

8x12MM PU SOCKET (STEEL) 40SPA

B80 1/4" PT AIR BLOW GUN WITH 12CM STEEL TUBE

Blow Up

Spares

		TOOL MODEL:	PRO-PN2357V3					REV.6TH JANUARY2023
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1	FMS	100009	Screw, Flat Hd, M8 X 25	100009	44		100109	Nail Support
2	FMS	100010	Exhaust Cover Holder		45		100110	Spacer	KFCBS00314
3	FMS	100011	O-Ring	KFCBS00491	46	FMS	100111	Spring, Tension	ECO297073
4	FMS	100243	Exhaust Cover		47	FMS	100112	Magazine Post
5		100502	Washer		48	FMS	100117	Nut, Elastic Stop M6	KFCBS00088
6	FMS	100014	Exhaust Cover Seal		49	FMS	100118	Contact Arm Cover-A
7	FMS	100015	Screw M6 X 25	NEO1005055N	50	FMS	100119	Collar	KFCBS00503
8	FMS	100016	Protector	ECO235707	51	FMS	100081	Dust Cover	KFCBS00306
9		101963	Cylinder Cap Unit	103307	52	FMS	100078	Rubber Washer	KFCBS00496
10	FMS	100017	Cylinder Cap Seal		53		100114	Magazine
11	FMS	100018	Spacer, Piston Stop	ECO235709	54		100116	Straight Pin	KFCBS00566
12	FMS	100019	Piston Stop	KFCBS00268	55	FMS	100115	Rubber Washer	ECO235777
13	FMS	100020	Spring, Head Valve	KFCBS00269	56	FMS	100072	O-Ring	KFCBS00617
14	FMS	100021	Washer, Head Valve Spring	KFCBS00272	57		104874	Nose
15	FMS	100022	O-Ring	KFCBS00270	58		103925	Screw Socket Hd M6 X 25
16	FMS	100023	O-Ring	KFCBS00271	59	FMS	100084	Spring, Door Latch	ECO235747
17	FMS	100024	Head Valve Piston	KFCBS00273	60	FMS	100085	Spring,Check Pawl	ECO235749
18	FMS	100503	Cylinder Seal		61		100083	Door Latch	KFCBS00494
19	FMS	103175	Main Piston Unit		62	FMS	100091	Step Pin	KFCBS00305
20	FMS	100506	O-Ring		63		100516	Door
21		101992	Cylinder		64	FMS	100073	O-Ring	KFCBS00295
22	FMS	100031	O-Ring		65	FMS	100066	Roll Pin	KFCBS00403
23		100032	Check Valve		66		100095	Step Pin	KFCBS00353
24		100505	Cylinder Ring		67	FMS	100092	Spring, Feed Pawl	KFCBS00317
25	FMS	100034	O-Ring		68	FMS	100094	Feed Pawl
26	FMS	104875	Bumper		69	FMS	100080	Hook Dust Cover	KFCBS00307
27		103131	Frame	101797	70	FMS	100090	Roll Pin	KFCBS00041
31		100039	Roll Pin	ECO235780	71	FMS	100087	Check Pawl
32	FMS	103955	100063 Trigger Valve Unit (C.T)	100063	72	FMS	100079	Step Pin	KFCBS00505
33		100067	Trigger Unit (C.T)		75		100097	Feed Piston	KFCBS00570
34		100068	Contact Arm Guide		76	FMS	100098	O-Ring	KFCBS00296
35	FMS	100069	Contact Arm Cover-B		77	FMS	100099	Spring A Feed Piston	KFCBS00299
36	FMS	100070	Spring, Contact Arm	KFCBS00309	78	FMS	100100	Spring B Feed Piston	KFCBS00297
37		100510	Contact Arm		79		100101	Guide, Spring	KFCBS00300
38		100040	O-Ring		80		100102	Stop, Feed Piston	KFCBS00298
39	FMS	101862	End Cap	100242	81		100103	Spring Collar	KFCBS00301
40	FMS	100045	Screw Socket Hd M6 X 40	ECO235745	82	FMS	100104	C-Ring	KFCBS00302
41		100046	Plain Washer		83		100174	Roll Pin
42		100105	Magazine Cover		87	FMS	102062	Driver Guide
43	FMS	100113	Receiver,Spring	KFCBS00312	88		101855	Washer

One Sheeter

Application

WOODEN CRATES	To close wooden cases
WOODEN PALLETS	To make wooden pallets
