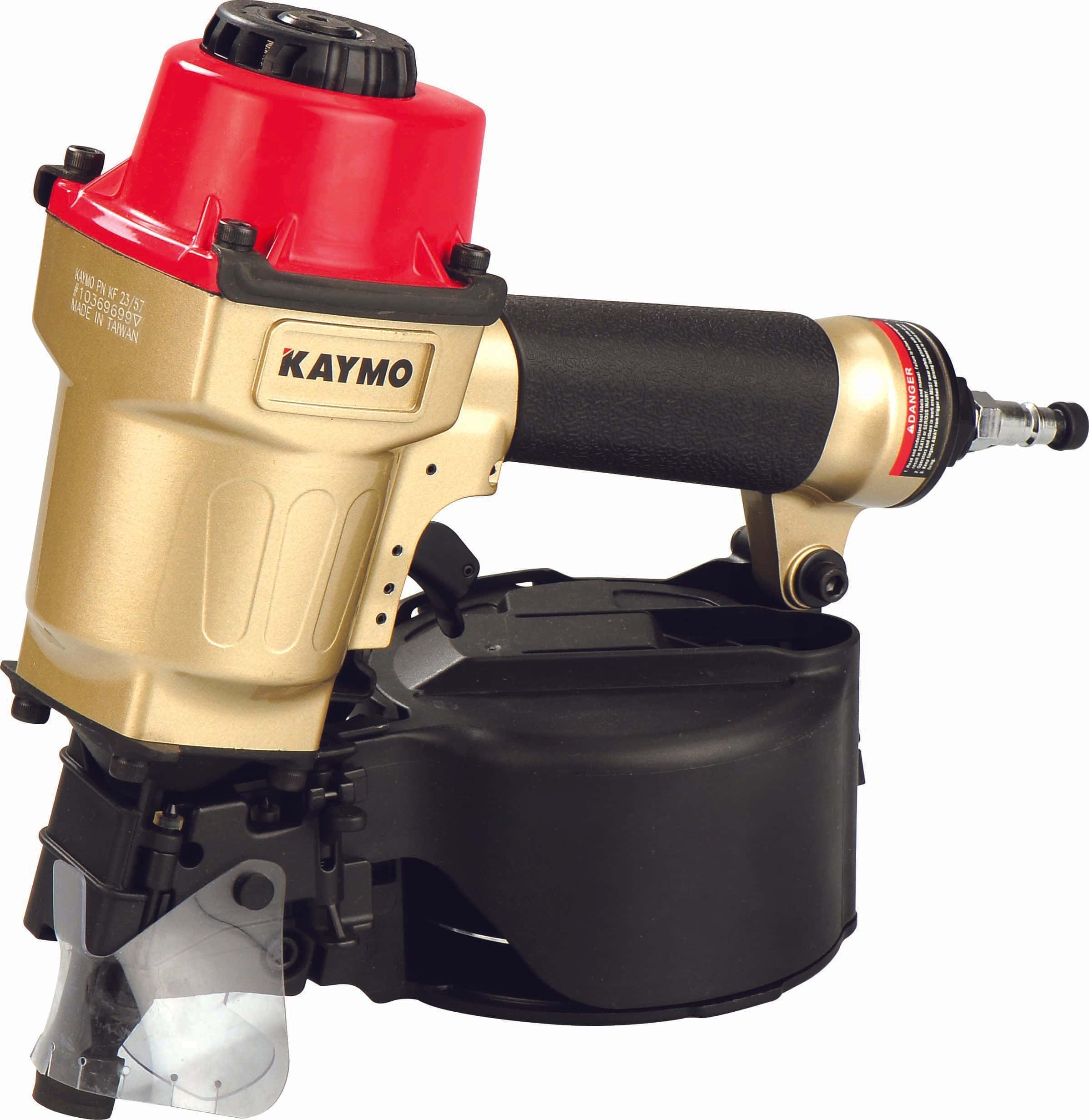

SKU: PRO-PN2357

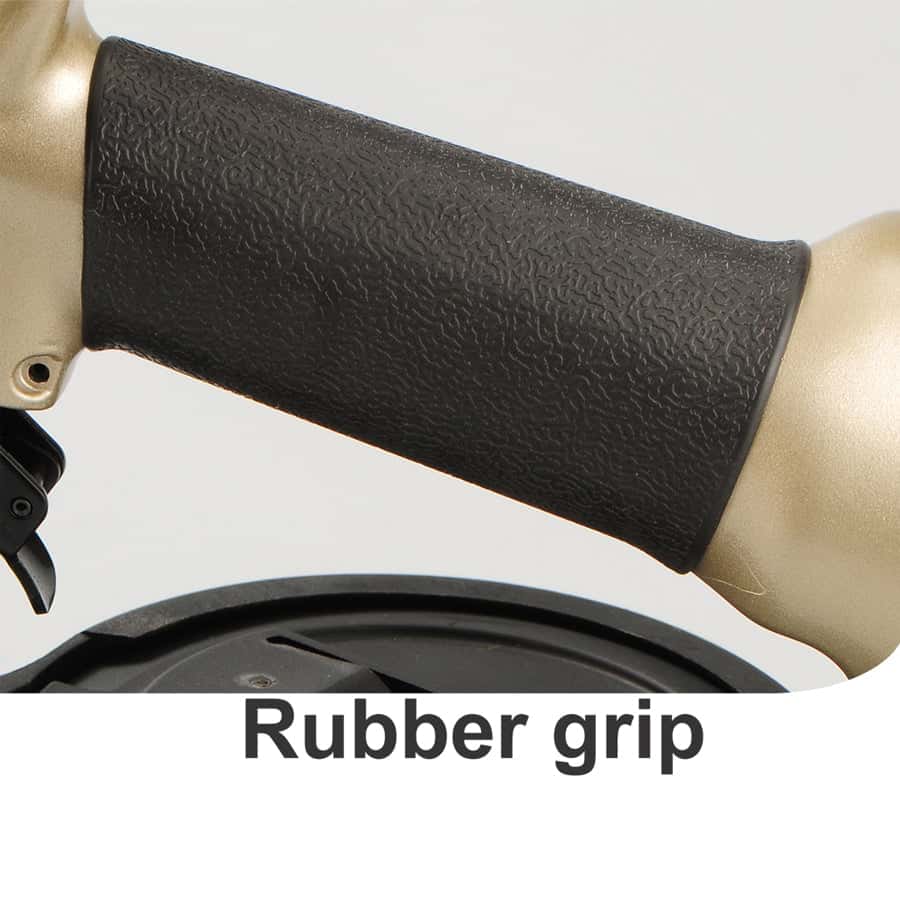

Ergonomic rubber grip
.

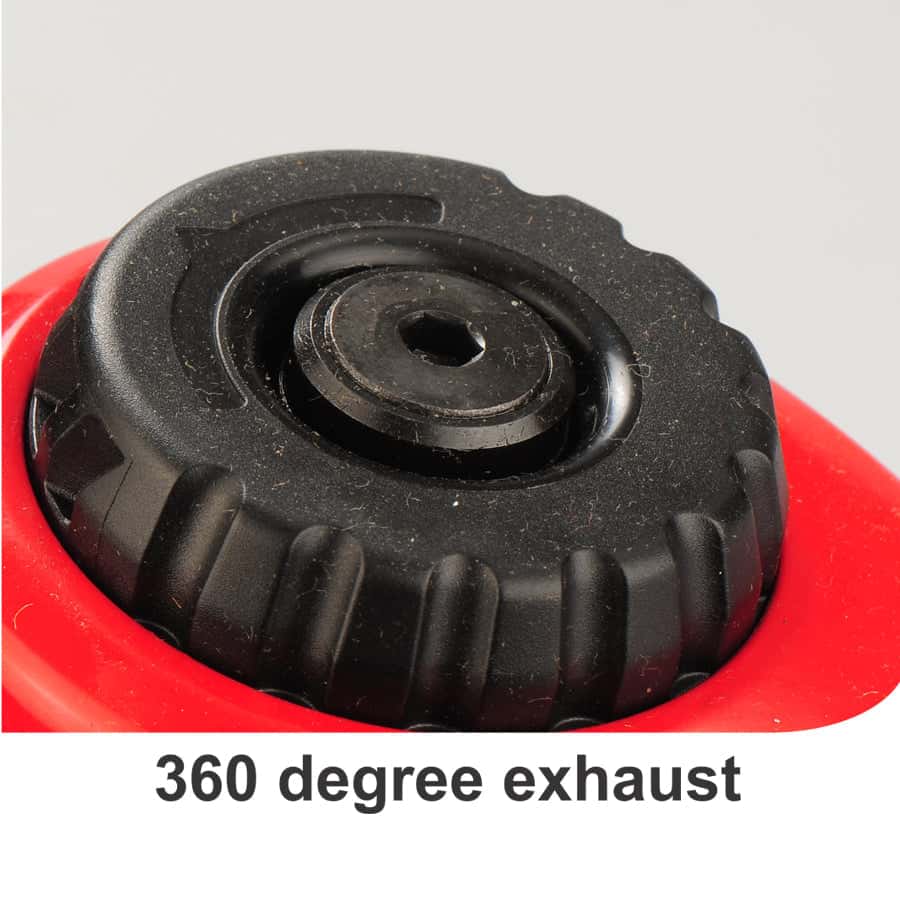

360 degreeexhaust
.

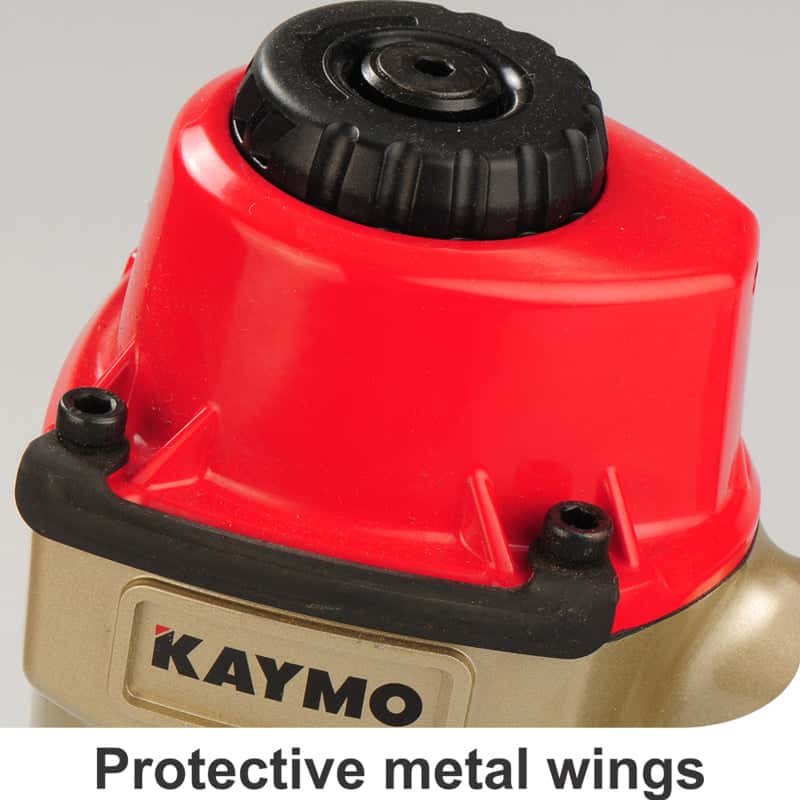

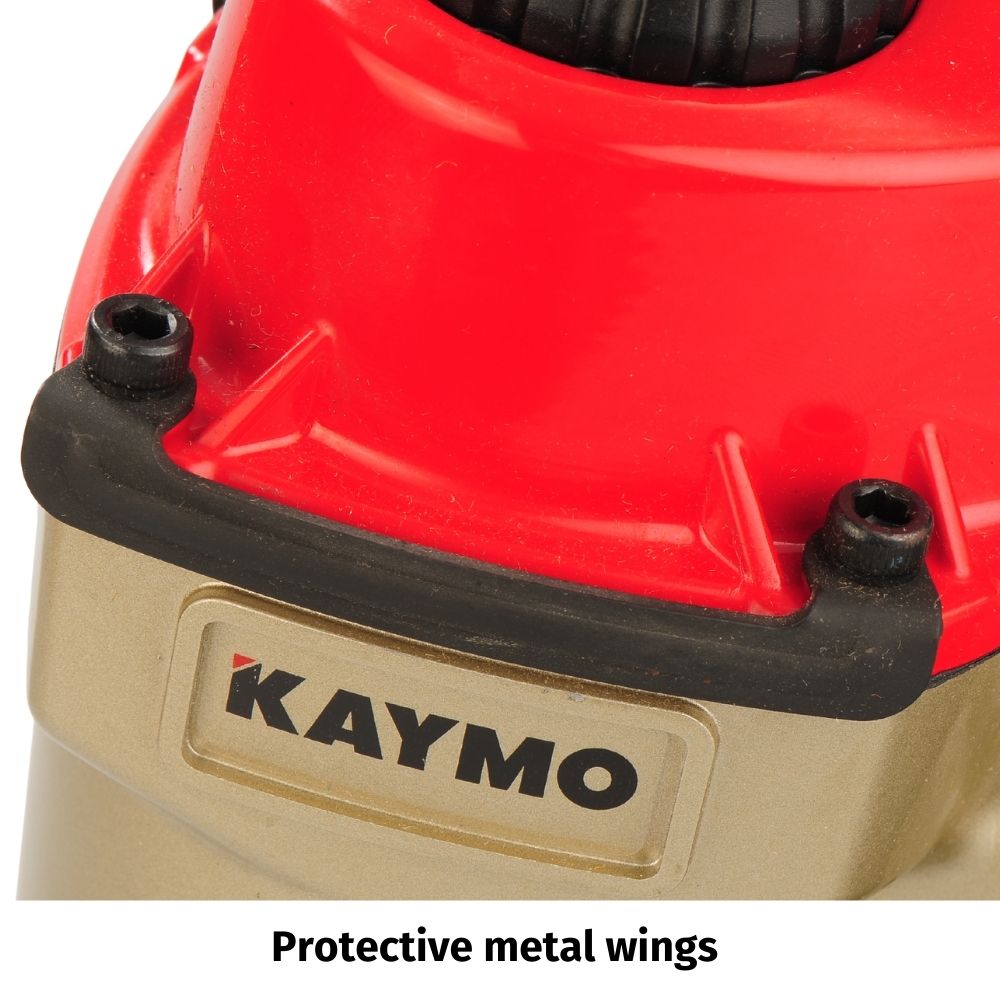

Set of metal guards to prevent tool body damage
.

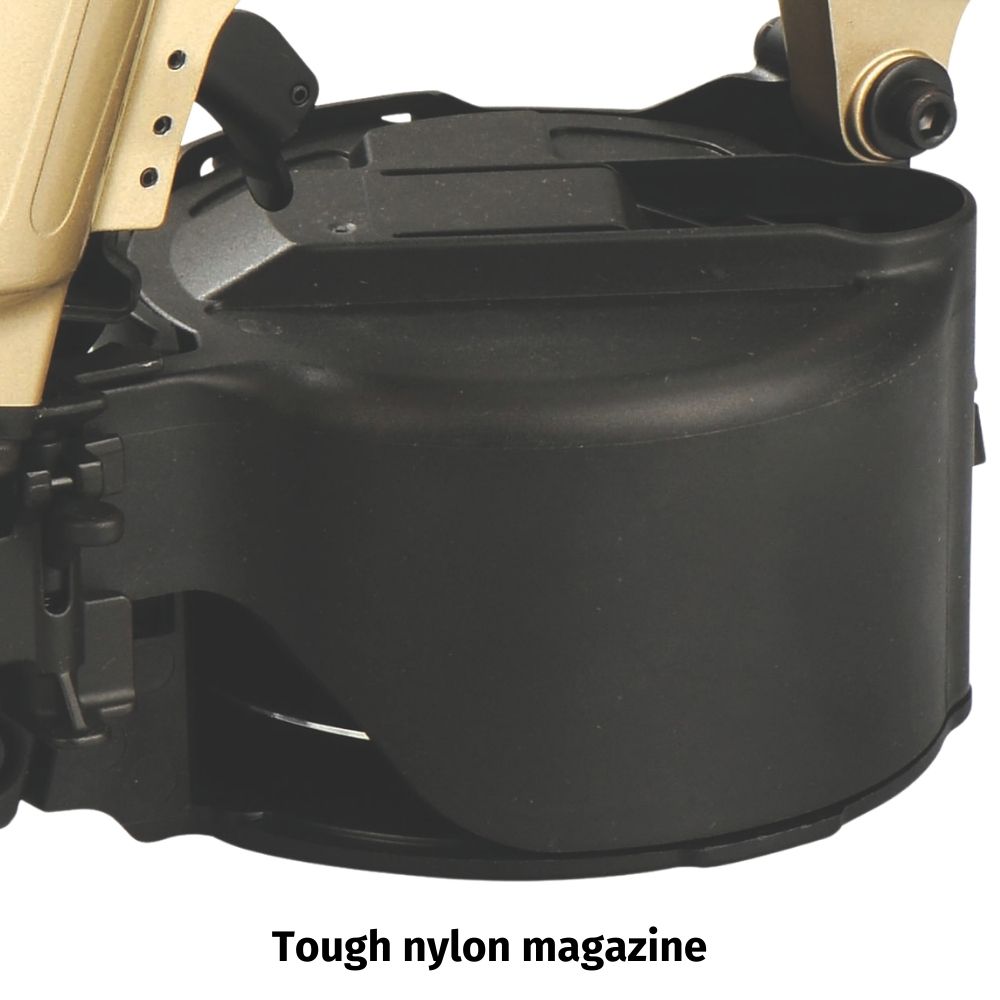

Tough nylon magazine
.
Fasteners recommended: 25 - 57 mm
.
PRESSURE: 70 - 100 psi
.
₹ 1/-

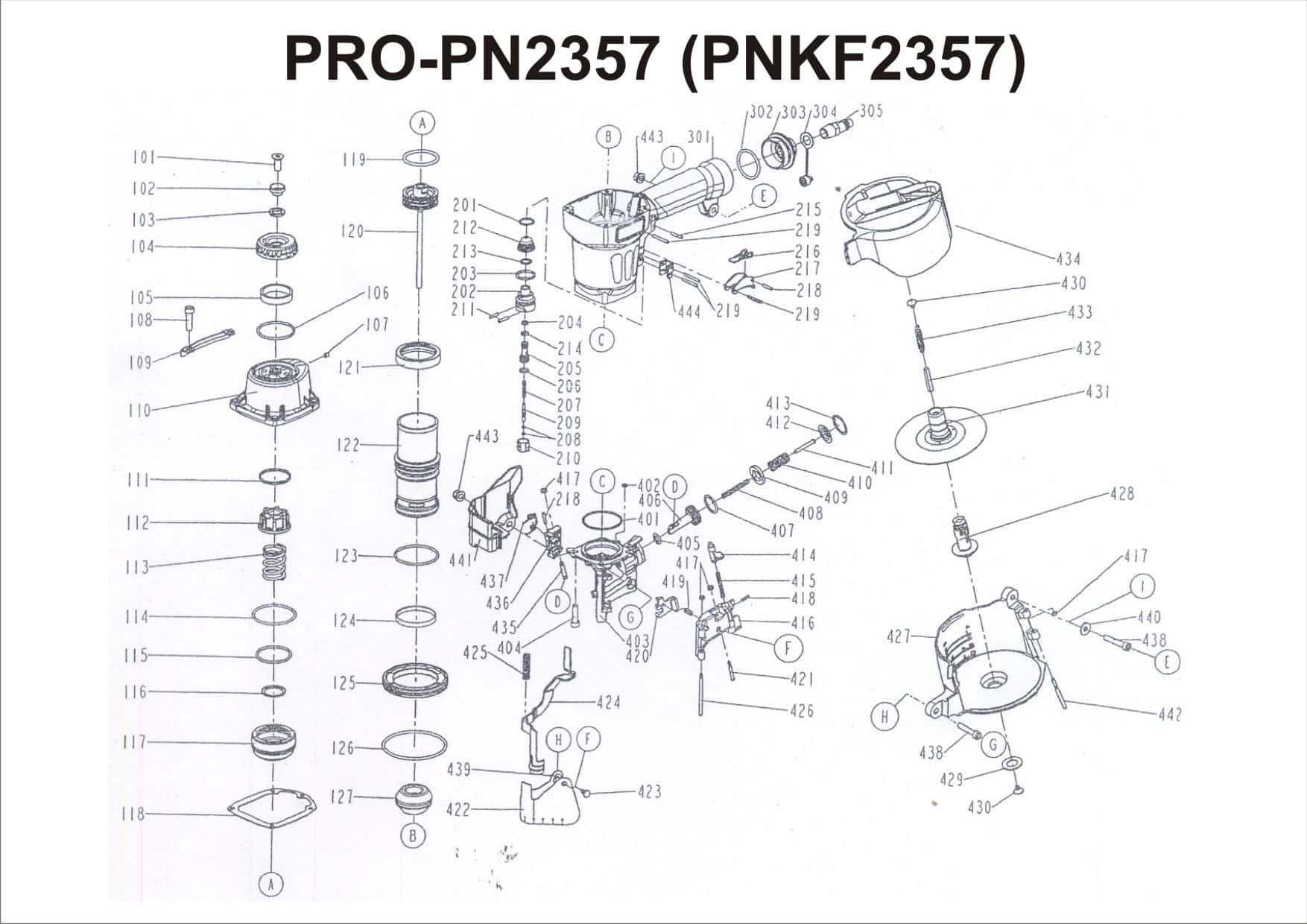

Blow Up
Spares
| TOOL MODEL: | PRO-PN2357 | REV.1ST APRIL2023 | ||||||||
| SR | FMS | PART CODE | PART NAME | ALT CODE | SR | FMS | PART CODE | PART NAME | ALT CODE | |
| 101 | 2040103-05010-2 | COUNTER SUNK SCREW | 100009 | 301 | 11230-0954201-1 | GUN BODY UNIT | ||||
| 102 | 11381-0954702-1 | WASHER | KFCBS00736 | 302 | 2041101-04020-0 | O - RING | KFCBS00692 | |||
| 103 | 1135G-0460001-1 | RUBBER PAD | KFCBS00359 | 303 | 11346-0954301-1 | END CAP | KFCBS00557 | |||
| 104 | 11371-0954701-1 | DEFLECTOR | KFCBS00560 | 304 | 1132L-0014701-1 | DUSTY COVER | KFCBS00053 | |||
| 105 | 1132T-0780001-1 | MUFFLER | KFCBS00561 | 305 | 1135V-0000003-1 | AIR PLUG | S3120PMA | |||
| 106 | 2041102-05050-0 | O - RING | KFCBS00616 | 401 | 2041109-05110-0 | O - RING | KFCBS00617 | |||
| 107 | 2040104-03010-0 | HEX.SOC.HD.SCREW | KFCBS00364 | 402 | FMS | 2041108-01010-0 | O - RING | KFCBS00295 | ||
| 108 | 2040101-04091-0 | HEX.SOC.HD.BOLT | NEO1005055N | 403 | 11382-0954702-1 | NOSE PIECE | KFCBS00745 | |||
| 109 | 11397-0954701-1 | GUIDE COVER | KFCBS00665 | 404 | 2040101-04090-2 | HEX.SOC.HD.BOLT | KFCBS00781 | |||
| 110 | 11369-0951101-1 | KAYMO RED CAP | KFCBS00747 | 405 | FMS | 2041100-01090-0 | O - RING | KFCBS00459 | ||
| 110 | 11369-0954301-1 | CAP | 406 | 11364-0954701-1 | FEED PISTON | KFCBS00570 | ||||
| 111 | 11381-0950001-1 | WASHER SEAL | KFCBS00615 | 407 | FMS | 2041100-03051-0 | O - RING | KFCBS00296 | ||
| 112 | FMS | 11370-0950001-1 | SEAL | KFCBS00268 | 408 | FMS | 11367-0954702-1 | PUSHER SPRING B | KFCBS00297 | |
| 113 | FMS | 11360-0950001-2 | COMPRESSION SPRING | KFCBS00269 | 409 | FMS | 1134W-0950001-1 | FEED BUMPER | KFCBS00298 | |
| 114 | FMS | 2041104-06050-0 | O - RING | KFCBS00270 | 410 | FMS | 11367-0954701-1 | PUSHER SPRING A | KFCBS00299 | |
| 115 | FMS | 2041109-05100-0 | O - RING | KFCBS00271 | 411 | 11395-0954701-1 | ROD | KFCBS00300 | ||
| 116 | FMS | 11381-0950002-1 | WASHER | KFCBS00272 | 412 | 11366-0954701-1 | FEED PISTON CAP | KFCBS00301 | ||
| 117 | FMS | 11368-0950001-2 | HD.VALVE PISTON | KFCBS00273 | 413 | 2040300-02010-0 | C - RING | KFCBS00302 | ||
| 118 | FMS | 11302-0954701-1 | CYLINDER CAP SEAL | KFCBS00274 | 414 | 11310-0864701-1 | DOOR LATCH | KFCBS00494 | ||
| 119 | FMS | 2041100-04031-0 | O - RING | KFCBS00275 | 415 | 11311-0860001-1 | LATCH SPRING | KFCBS00303 | ||
| 120 | FMS | 11204-0950001-3 | DRIVER UNIT | KFCBS00276 | 416 | 11361-0954701-3 | DOOR | KFCBS00763 | ||
| 120 | FMS | 11204-0950001-3 | DRIVER UNIT NEW | KFCBS00276B | 417 | FMS | 1135H-0860001-1 | PU RETAINER | KFCBS00496 | |
| 121 | FMS | 11399-0954701-1 | COLLAR | ECO235719 | 418 | 2040400-05060-0 | SPRING PIN | KFCBS00041 | ||
| 122 | 11320-0950001-1 | CYLINDER | KFCBS00562 | 419 | FMS | 1133C-0860001-1 | STOPPER FINGER SPRING | ECO297068 | ||
| 123 | FMS | 2041104-06060-0 | O - RING | KFCBS00278 | 420 | 11358-0954701-1 | NAIL STOP | KFCBS00304 | ||
| 124 | 11322-0954701-1 | CYLINDER RING | KFCBS00279 | 421 | FMS | 11359-0954701-1 | PIN-NAIL STOP | KFCBS00305 | ||

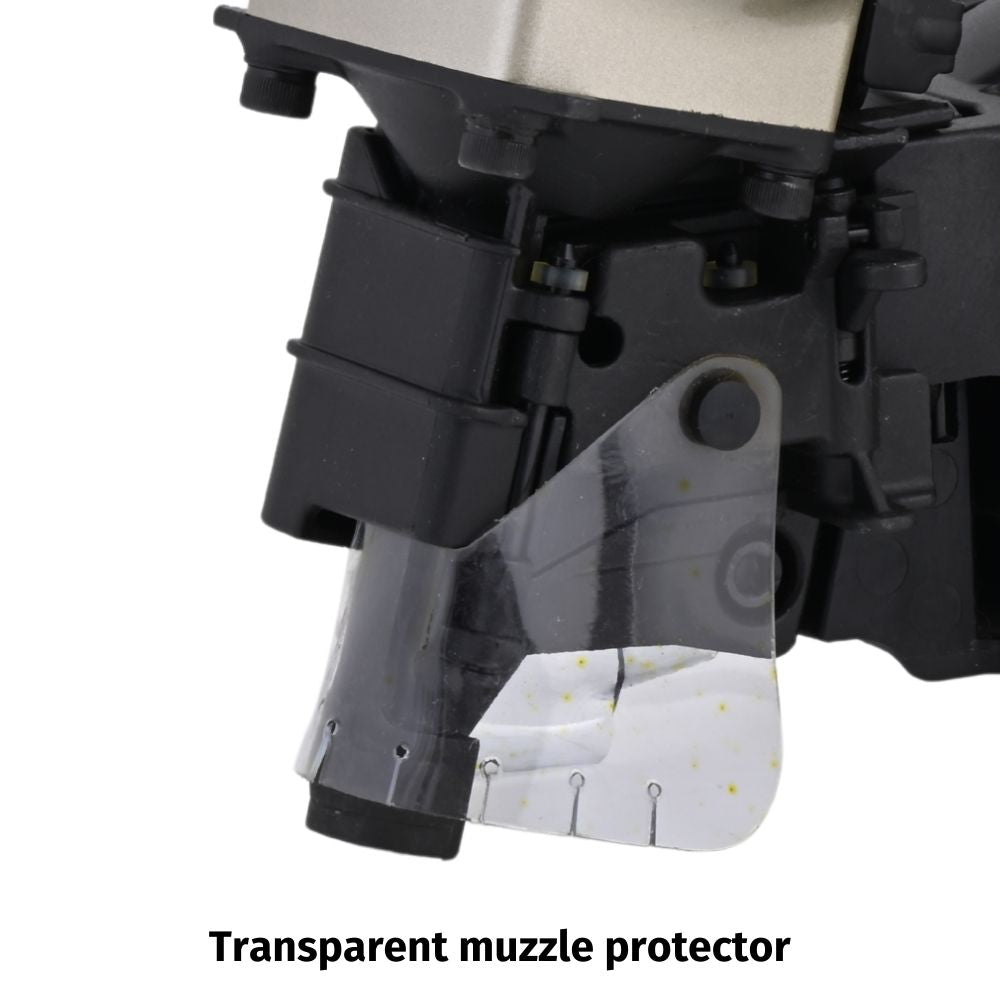

| 125 | 11321-0950001-1 | CYLINDER SPACER | KFCBS00280 | 422 | FMS | 11383-0950001-1 | MUZZLE PROTECTOR | KFCBS00306 | ||
| 126 | FMS | 2041101-08020-0 | O - RING | KFCBS00281 | 423 | FMS | 1134B-0864701-1 | DUST SHIELD PLUG | KFCBS00307 | |
| 127 | FMS | 11327-0954701-1 | BUMPER | KFCBS00282 | 424 | FMS | 11330-0954702-2 | SAFETY | KFCBS00846 | |
| 201 | FMS | 2041104-02060-0 | O - RING | KFCBS00283 | 425 | 11337-0954701-1 | SAFETY SPRING | KFCBS00309 | ||
| 202 | FMS | 11374-0860001-1 | PLUNGER CAP | KFCBS00284 | 426 | 11362-0954701-1 | DOOR SHAFT PIN | KFCBS00564 | ||
| 203 | 2041100-02050-0 | O - RING | KFCBS00400 | 427 | 11354-0954701-5 | MAGAZINE CASE | KFCBS00712 | |||
| 204 | FMS | 2041100-01070-0 | O - RING | KFCBS00392 | 428 | FMS | 11357-0954701-1 | MAGAZINE POST | KFCBS00310 | |
| 205 | FMS | 1133S-0860001-1 | VALVE PLUNGER | KFCBS00285 | 429 | 1138Y-0954701-2 | RUBBER RING | KFCBS00311 | ||
| 206 | FMS | 2041100-01030-0 | O - RING | KFCBS00395 | 430 | FMS | 1134M-0864701-1 | SPRING BASE | KFCBS00312 | |
| 207 | FMS | 11376-0860001-1 | SPRING | KFCBS00287 | 431 | 11356-0950001-1 | SPACER | KFCBS00313 | ||
| 208 | FMS | 2041108-01020-0 | O - RING | KFCBS00288 | 432 | 1138W-0860001-1 | SPACER | KFCBS00314 | ||
| 209 | FMS | 11375-0860002-1 | PLUNGER | KFCBS00289 | 433 | FMS | 11328-0860001-1 | PULL SPRING | ECO297073 | |
| 210 | 11373-0860001-1 | TRIGGER VALVE HEAD | KFCBS00290 | 434 | 11355-0954703-1 | MAGAZINE COVER | KFCBS00696 | |||
| 211 | 11329-0860001-1 | PIN | KFCBS00291 | 435 | FMS | 11365-0864701-1 | PIN FEED PISTON | KFCBS00353 | ||
| 212 | 1137A-0860001-1 | COVER-PLUNGER | KFCBS00292 | 436 | FMS | 11306-0954701-1 | FEED FINGER 2.1/2.3 FLAT | KFCBS00565 | ||
| 213 | FMS | 2041104-02070-0 | O - RING | KFCBS00293 | 437 | FMS | 11307-0864701-1 | FEED FINGER SPRING | KFCBS00317 | |
| 214 | FMS | 2041100-01050-0 | O - RING | KFCBS00294 | 438 | 2040101-04051-0 | HEX.SOC.HD.BOLT | |||
| 215 | 2040401-05100-0 | SPIRAL PINS | KFCBS00331 | 439 | FMS | 1135U-1010001-1 | PROTECTOR WASHER | KFCBS00503 | ||
| 216 | 11317-0864701-2 | SECONDARY TRIGGER | KFCBS00334 | 440 | 2040202-04010-0 | FLAT WASHER | KFCBS00087 | |||
| 217 | 11316-0864701-2 | TRIGGER | KFCBS00332 | 441 | 1134R-0954701-1 | SPRING COVER | KFCBS00695 | |||
| 218 | 2040400-05080-0 | SPRING PIN | KFCBS00403 | 442 | 1136R-0954701-1 | MAGAZINE SHAFT PIN | KFCBS00566 | |||
| 219 | 2040401-05150-0 | SPIRAL PINS | KFCBS00625 | 443 | 2040501-04010-0 | BOLT CAP | KFCBS00088 | |||
| 301 | 11230-0957401-1 | KAYMO GUN BODY | KFCBS00754 | 444 | 11338-0954701-1 | SAFETY GUIDE | KFCBS00343 |
One Sheeter
Application
| WOODEN CRATES | To close wooden cases |
| WOODEN PALLETS | To make wooden pallets |
