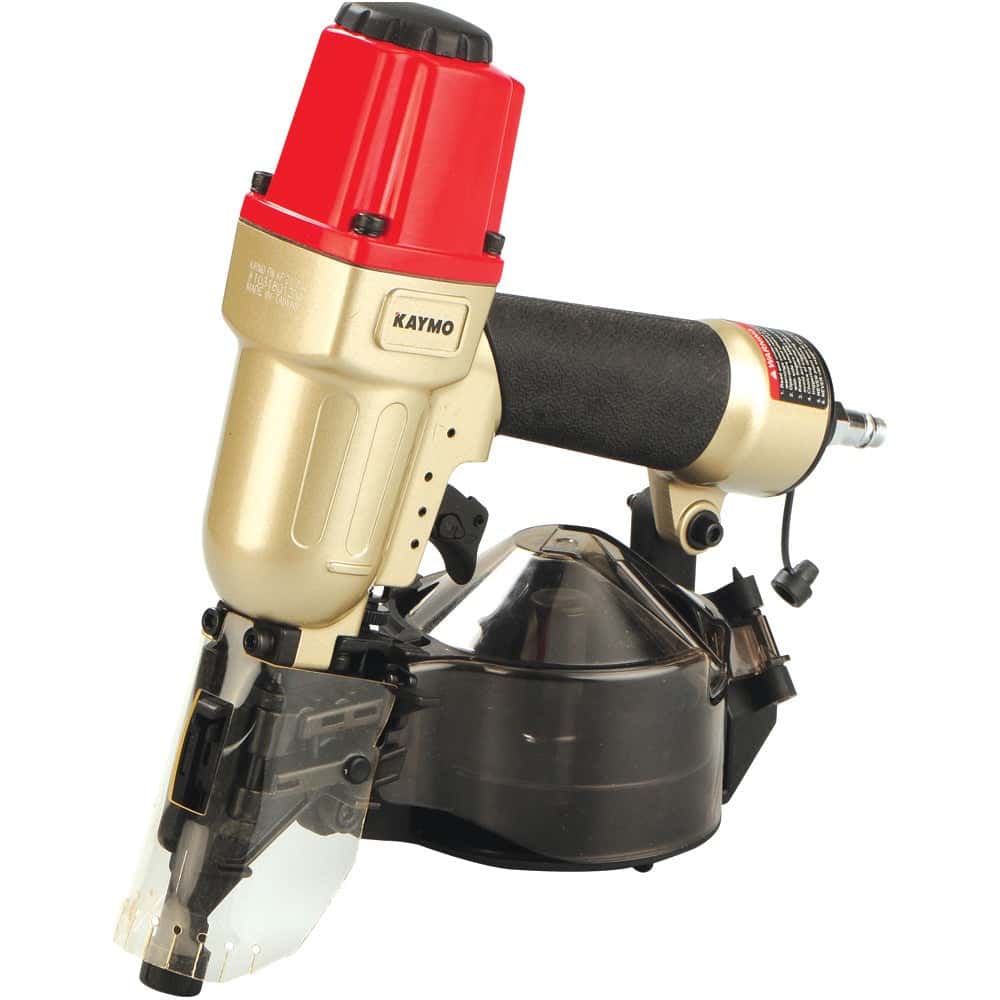

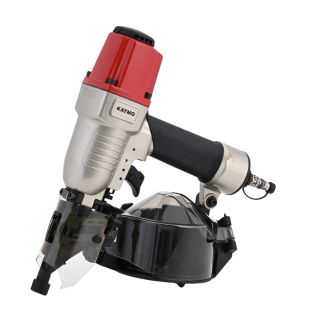

SKU: PRO-PN2150

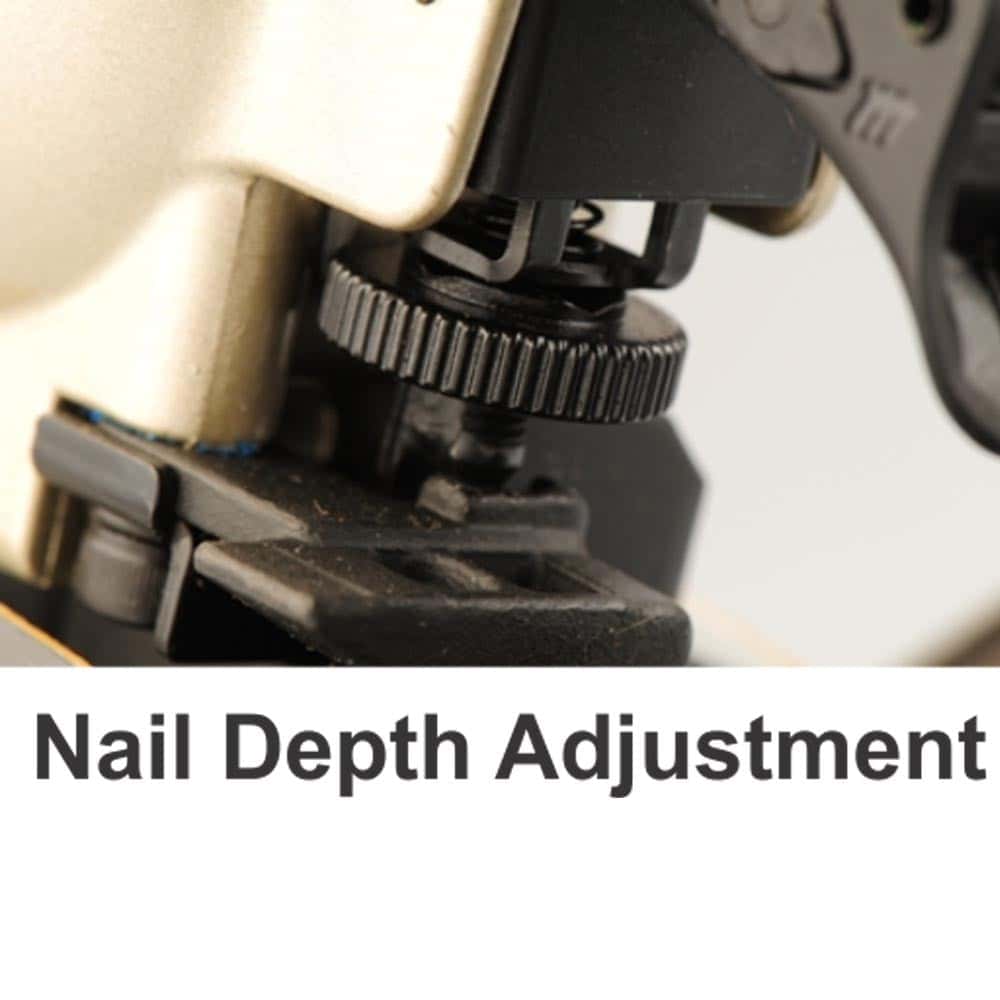

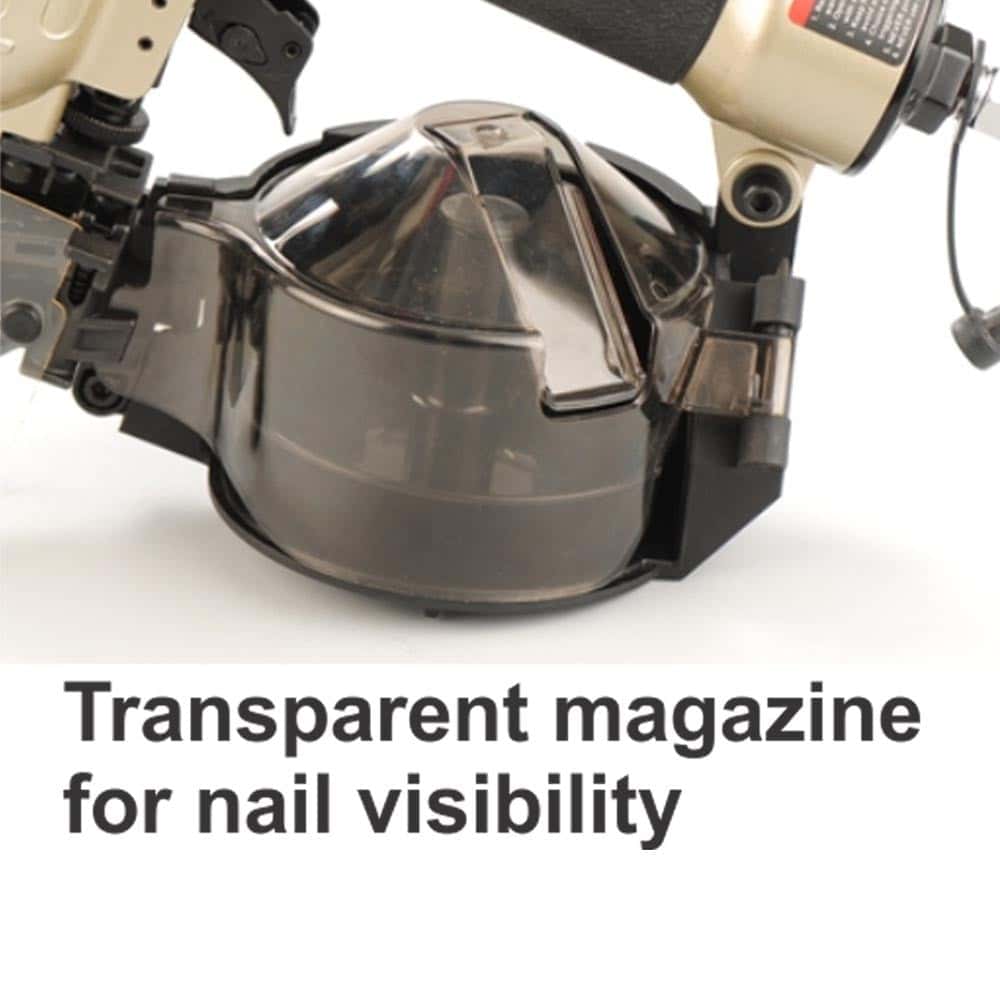

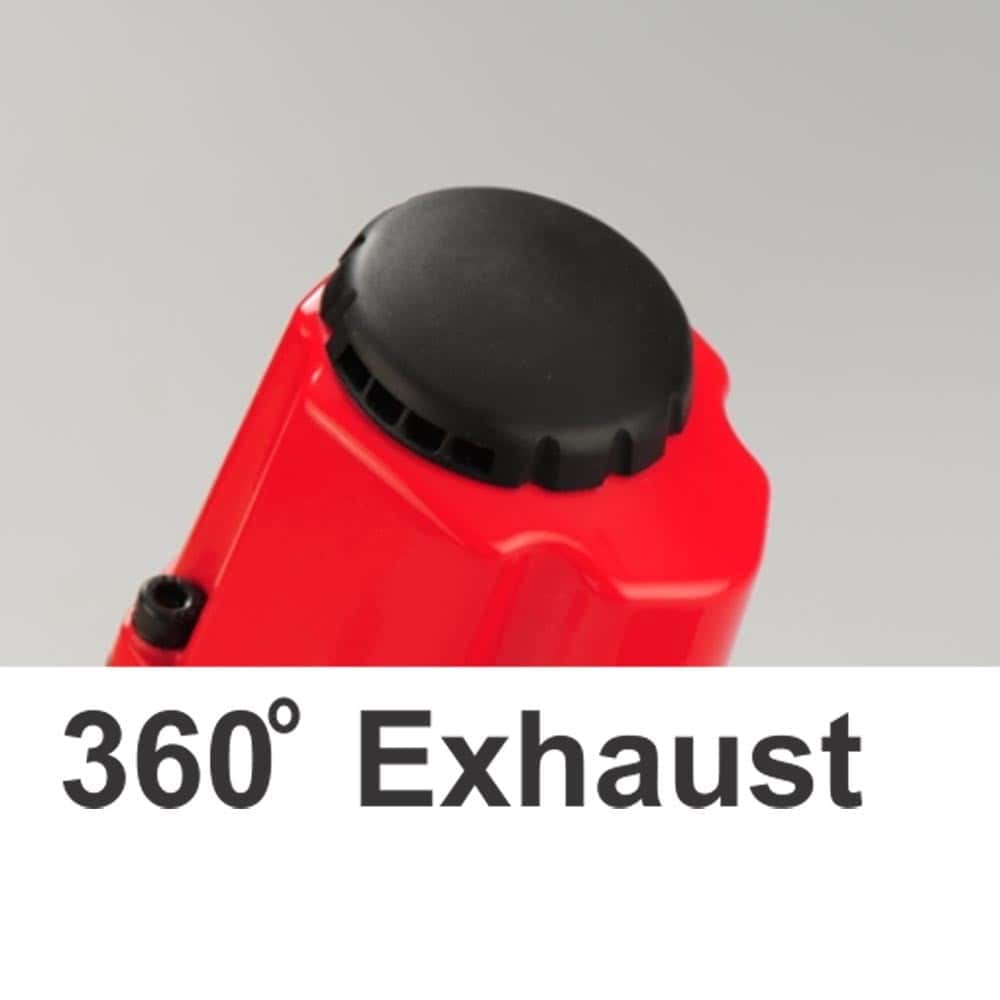

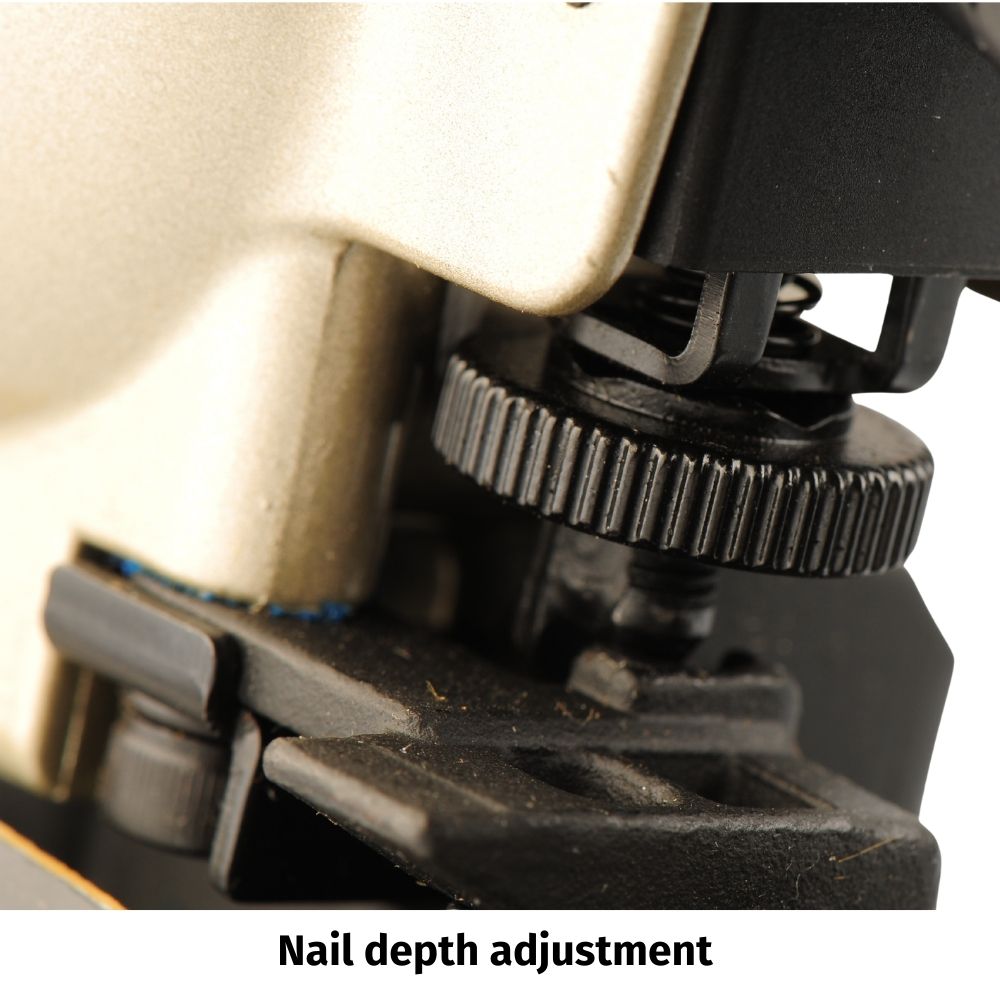

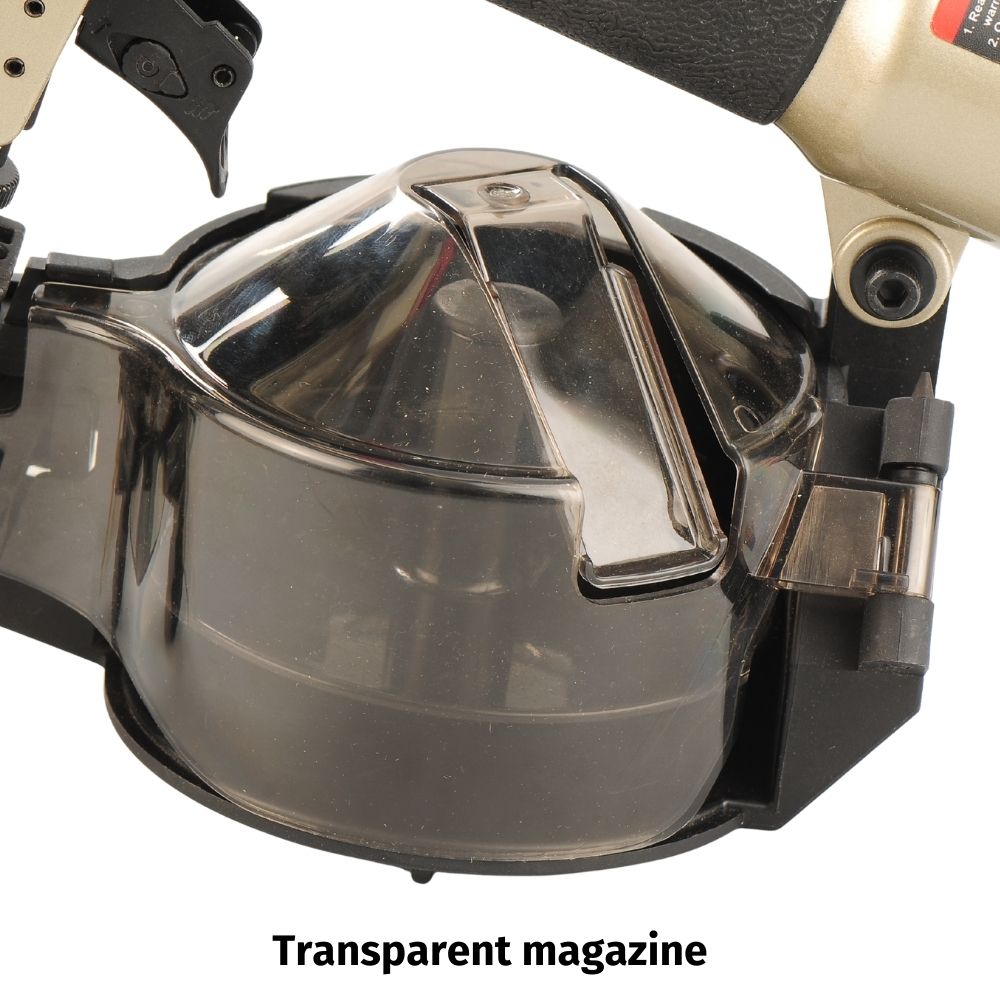

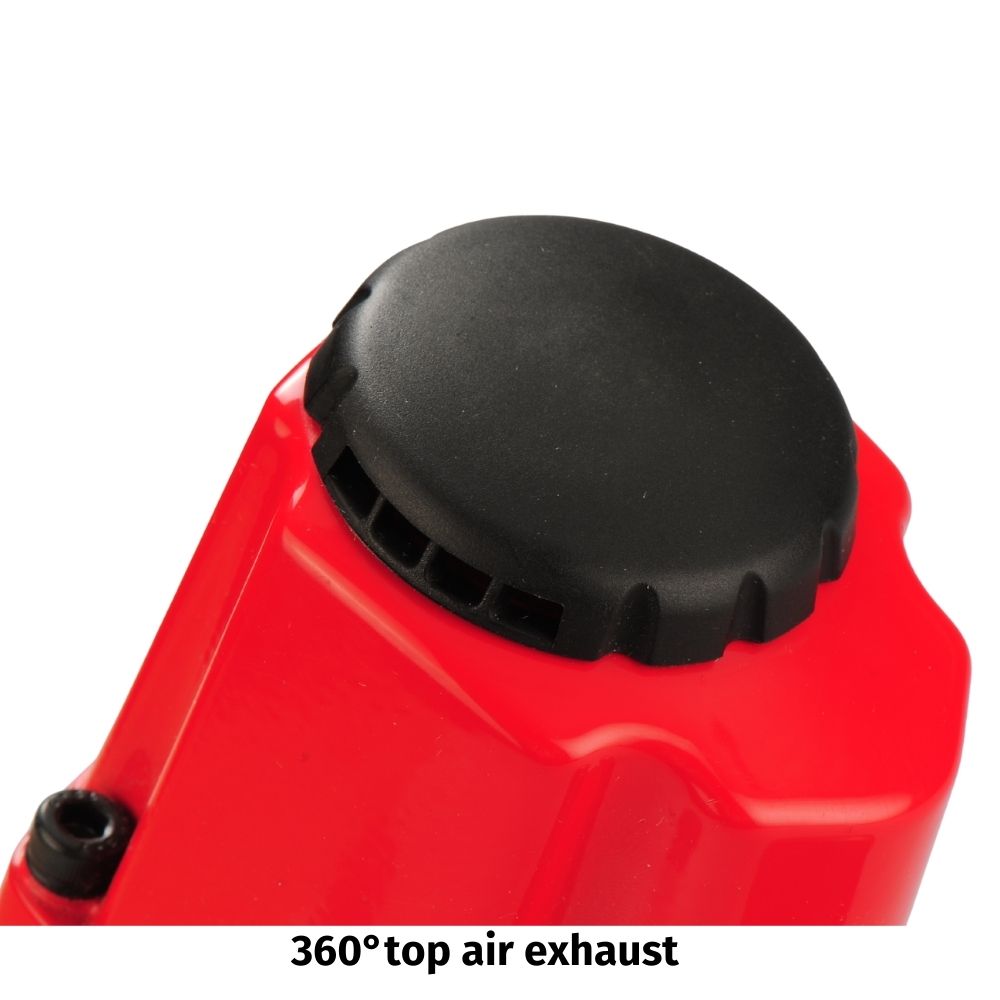

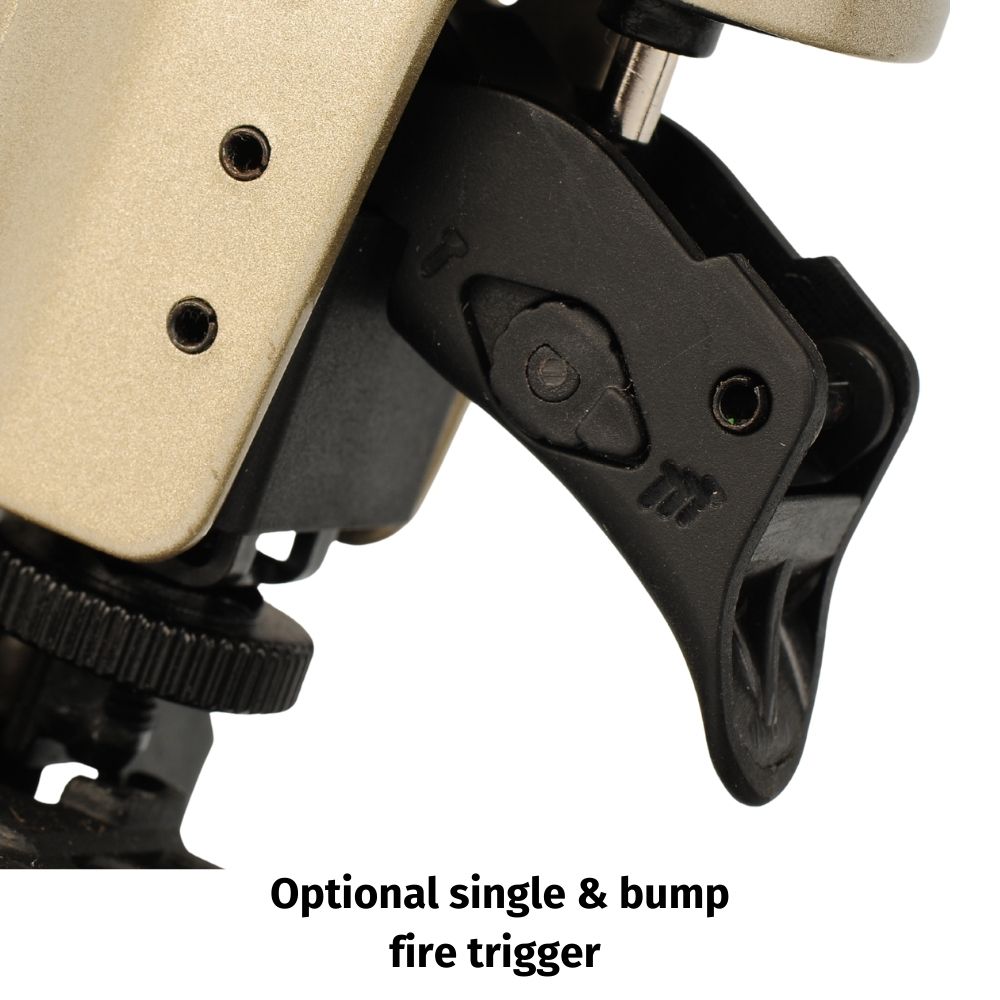

Ergonomic rubber grip . 360 degree exhaust . Scratch free rubber cap . Nail depth adjustment . Transparent magazine to see nail content . Single / bump fire optional trigger Fasteners recommended: 25- 45 mm

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

₹ 1/-

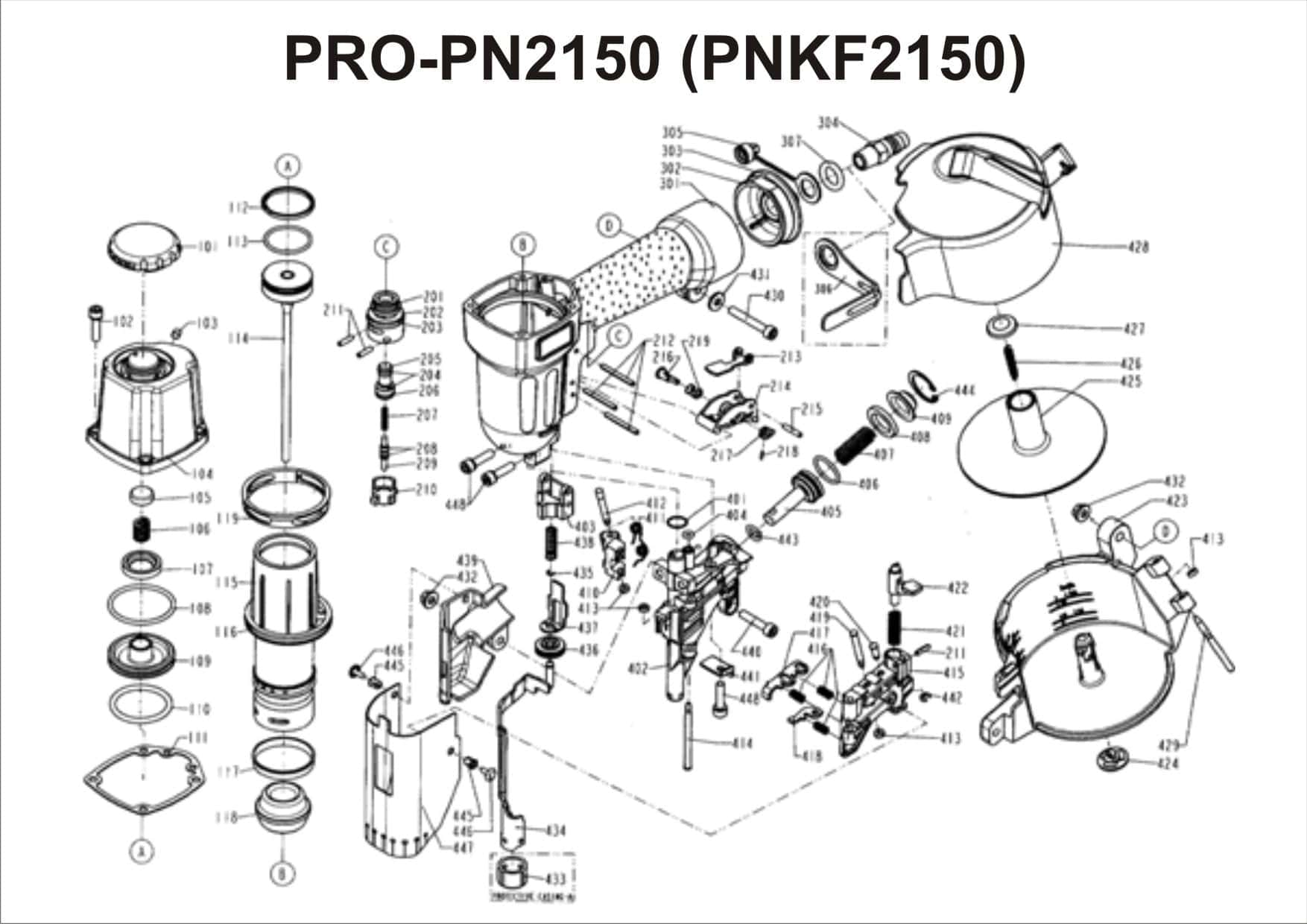

Blow Up
Spares
TOOL NAME: PRO-PN2150 REV.1ST APRIL 2022
SR FMS PART CODE PART NAME ALT CODE SR FMS PART CODE PART NAME ALT CODE
1   11224-0780001-1 TRIGGER UNIT   403   11338-0814701-1 SAFETY GUIDE KFCBS00240
101   11371-0814701-2 DEFLECTOR KFCBS00210 404   2041100-01020-0 O - RING KFCBS00160
102 FMS 2040100-03030-0 BOLT ASSY KM0520 405   11364-0814701-1 FEED PISTON KFCBS00242
103   2040104-03010-0 HEX.SOC.HD.SCREW KFCBS00364 406   2041105-02040-0 O - RING KFCBS00243
104   11369-0814301-1 CAP KFCBS00742 407 FMS 1133J-0524701-1 SPRING A COMPERESSION KFCBS00244
105   11370-0810001-1 SEAL KFCBS00211 408 FMS 1134W-0810001-1 FEED BUMPER KFCBS00245
106   11360-0810001-1 COMPRESSION SPRING KFCBS00212 409   11366-0814701-1 FEED PISTON CAP KFCBS00246
107   1131P-0814701-1 OIL SEAL KFCBS00213 410   11306-0814701-1 FEED FINGER KFCBS00552
108 FMS 2041108-04050-0 O - RING KFCBS00214 411   11307-0810001-1 FEED FINGER SPRING KFCBS00247
109   11368-0810001-1 HD.VALVE PISTON KFCBS00215 412   11365-0814701-1 PIN FEED PISTON KFCBS00248
110   2041108-03140-0 O - RING KFCBS00782 413 FMS 1135H-0790001-1 PU RETAINER KFCBS00249
111 FMS 1132M-0810001-1 PACKING KFCBS00217 414   11362-0814701-1 DOOR SHAFT PIN KFCBS00553
112 FMS 11350-0810001-1 PISTON RING KFCBS00218 415   11361-0814701-1 DOOR
113 FMS 2041102-03010-0 O - RING KFCBS00219 416   1133C-0814701-1 STOPPER FINGER SPRING KFCBS00554
114   11204-0810001-1 DRIVER UNIT KFCBS00220 417 FMS 1130G-0814701-2 FIRST STOPPER FINGER KFCBS00250
115   11320-0810001-1 CYLINDER KFCBS00567 418   1130C-0814701-1 SECOND STOPPER FINGER KFCBS00251
116   2041109-06030-0 O - RING KFCBS00221 419   11359-0814701-1 PIN-NAIL STOP KFCBS00252
117   11322-0814701-1 CYLINDER RING KFCBS00222 420   1131K-0814701-1 PIN KFCBS00253
118 FMS 11327-0814701-1 BUMPER KFCBS00223 421   11311-0794701-1 LATCH SPRING KFCBS00254
119   1131E-0810001-1 CYLINDER PRESS RING KFCBS00224 422   11310-0794701-1 DOOR LATCH KFCBS00071
201 FMS 2041104-02020-0 O - RING KFCBS00225 423   11354-0814701-1 MAGAZINE CASE KFCBS00555
202 FMS 11374-0084701-1 PLUNGER CAP KFCBS00226 424   1134M-0250001-1 SPRING BASE KFCBS00255
203   2041104-02030-0 O - RING KFCBS00453 425   11356-0814701-1 SPACER KFCBS00568
204 FMS 2041100-01070-0 O - RING KFCBS00392 426 FMS 11328-0764701-2 PULL SPRING KFCBS00256
205   1133S-0250001-1 VALVE PLUNGER KFCBS00394 427 FMS 1134N-0250002-1 SPRING BASE A KFCBS00190
206 FMS 2041100-01030-0 O - RING KFCBS00395 428   11355-0810001-1 MAGAZINE COVER KFCBS00481
207 FMS 11376-0254701-1 SPRING KFCBS00396 429   1136R-0814701-1 MAGAZINE SHAFT PIN KFCBS00257
208 FMS 2041102-01030-0 O - RING KFCBS00398 430   2040101-03200-0 HEX.SOC.HD.BOLT
209   11375-0780001-1 PLUNGER KFCBS00233 431   2040202-03010-0 FLAT WASHER KFCBS00437
210 FMS 11373-0084701-1 TRIGGER VALVE HEAD KFCBS00234 432   2040501-03040-0 BOLT CAP
211   2040400-05060-0 SPRING PIN KFCBS00041 433   11339-0814701-1 PROTECTIVE CASING KFCBS00258
212   2040400-05160-0 SPRING PIN   434   11331-0814701-4 SAFETY A KFCBS00259
213   11317-0784701-1 SECONDARY TRIGGER KFCBS00235 435   1131C-0814701-1 RING KFCBS00260
214   11316-0784701-1 TRIGGER KFCBS00236 436   11393-0814701-1 ADJUST AXIE KFCBS00261
215   2040400-05080-0 SPRING PIN KFCBS00403 437   11332-0814701-1 SAFETY B KFCBS00262
216   11393-0784703-1 ADJUST ROD KFCBS00237 438   11337-0814701-1 SAFETY SPRING KFCBS00263
217   11386-0784701-1 ROLLING ELEMENT KFCBS00238 439   1134C-0814701-2 SAFETY COVER KFCBS00264
218   2040400-02030-0 SPRING PIN   440   2040101-03161-0 HEX.SOC.HD.BOLT KFCBS00083
219   1137T-0784701-1 SPRING   441   11305-0814701-2 STOPPER KFCBS00265
301   11230-0814201-1 GUN BODY UNIT   442 FMS 2040302-23010-0 E - RING YE2501
302   11346-0084303-1 END CAP KFCBS00239 443 FMS 2041109-01050-0 O - RING KFCBS00104
303   2041109-05050-0 O - RING KFCBS00726 444   2040300-01010-0 C - RING KFCBS00741
304   1135V-0000003-1 AIR PLUG ACC016 445 FMS 1131G-0254701-1 FIXED RING KFCBS00266
305   1132L-0014701-1 DUSTY COVER KFCBS00053 446 FMS 11324-0254701-1 FIXED PIN KFCBS00267
401   2041108-02020-0 O - RING KFCBS00725 447   11383-0810001-1 MAGAZINE NOZZEL PROTECTOR KFCBS00556
402   11382-0814701-3 NOSE PIECE KFCBS00622 448   2040100-03030-2 BOLT ASSY

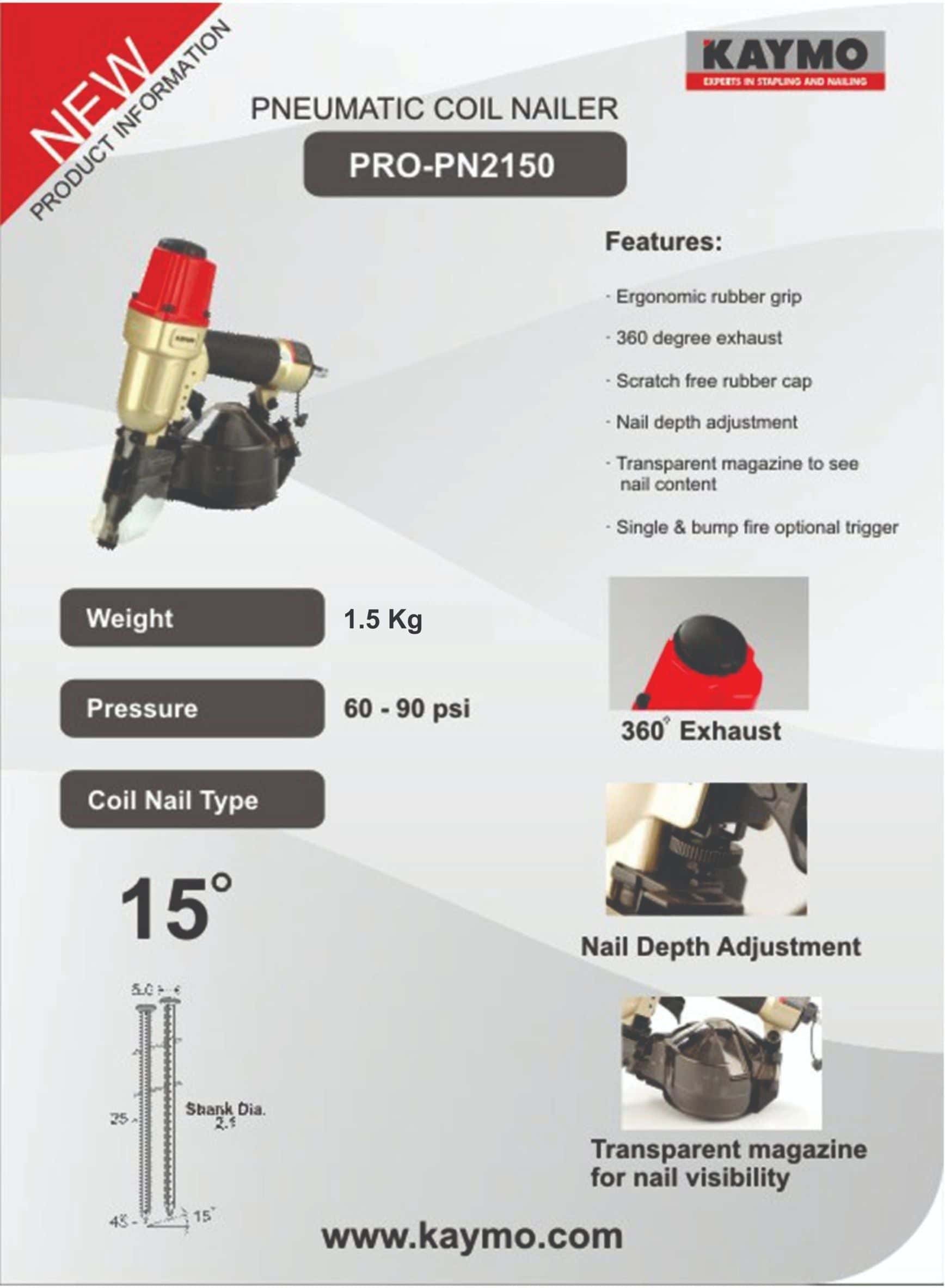

One Sheeter
Application
 MODULAR / KITCHENS To join MDF to MDF, ply & particle board
 WOODEN CRATES To close wooden cases
 WOODEN PALLETS To make wooden pallets
