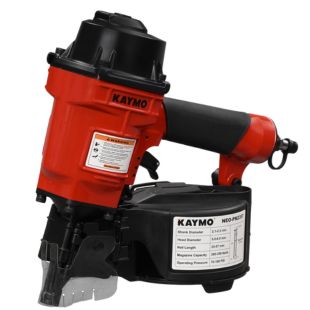

PNEUMATIC NAILER KAYMO NEO-2357

Name: PNEUMATIC NAILER KAYMO NEO-2357
Brand: Kaymo
SKU: NEO-PN2357
Price: 1.0 INR
Availability: InStock

SKU: NEO-PN2357

The KAYMO NEO-PN2357 is the ultimate pneumatic coil nailer designed to meet the demands of high-volume wood fastening. Whether you're building sturdy pallets or assembling Read More...

Features:

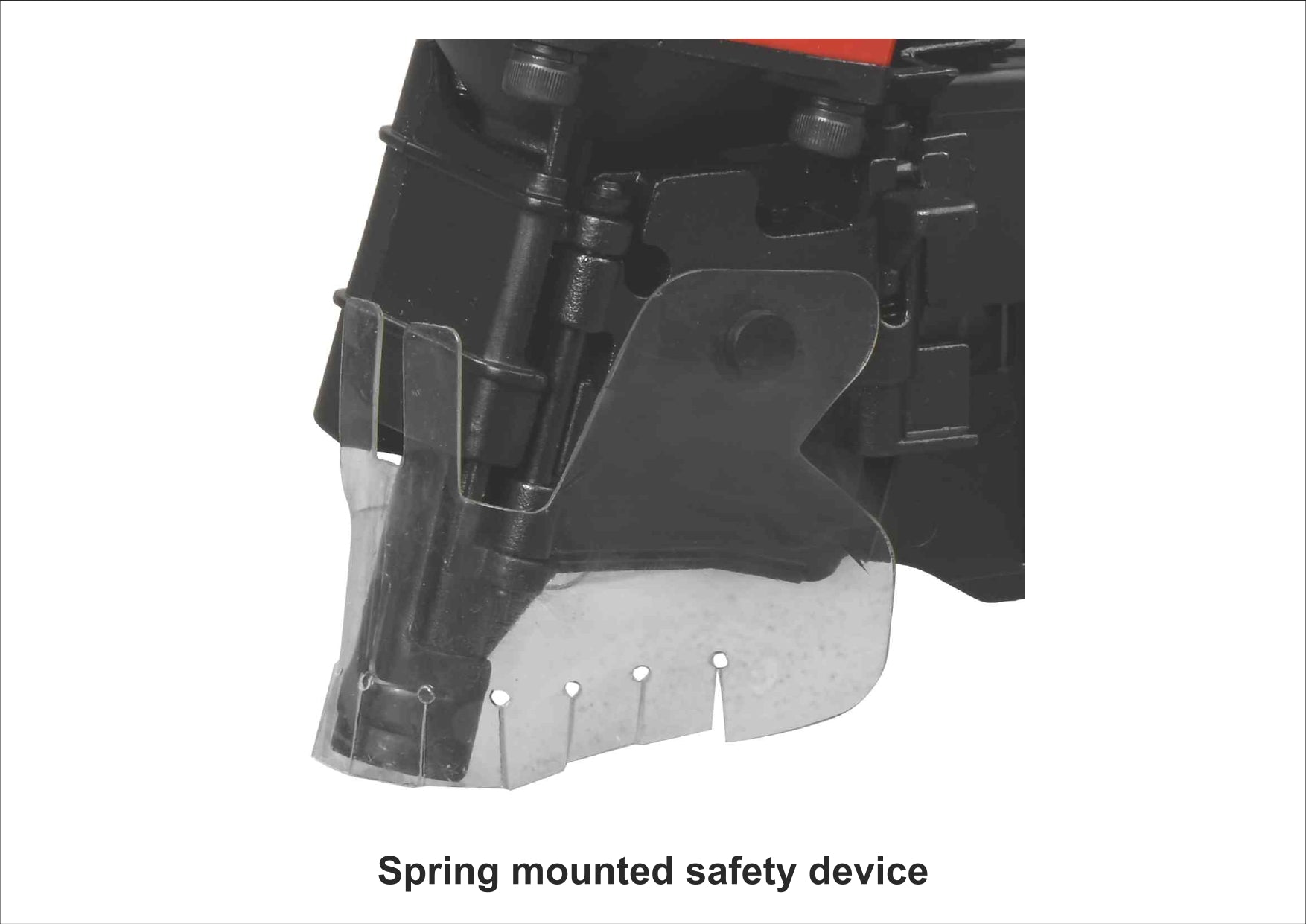

Spring mounted safety device
Magazine stand for tool stability

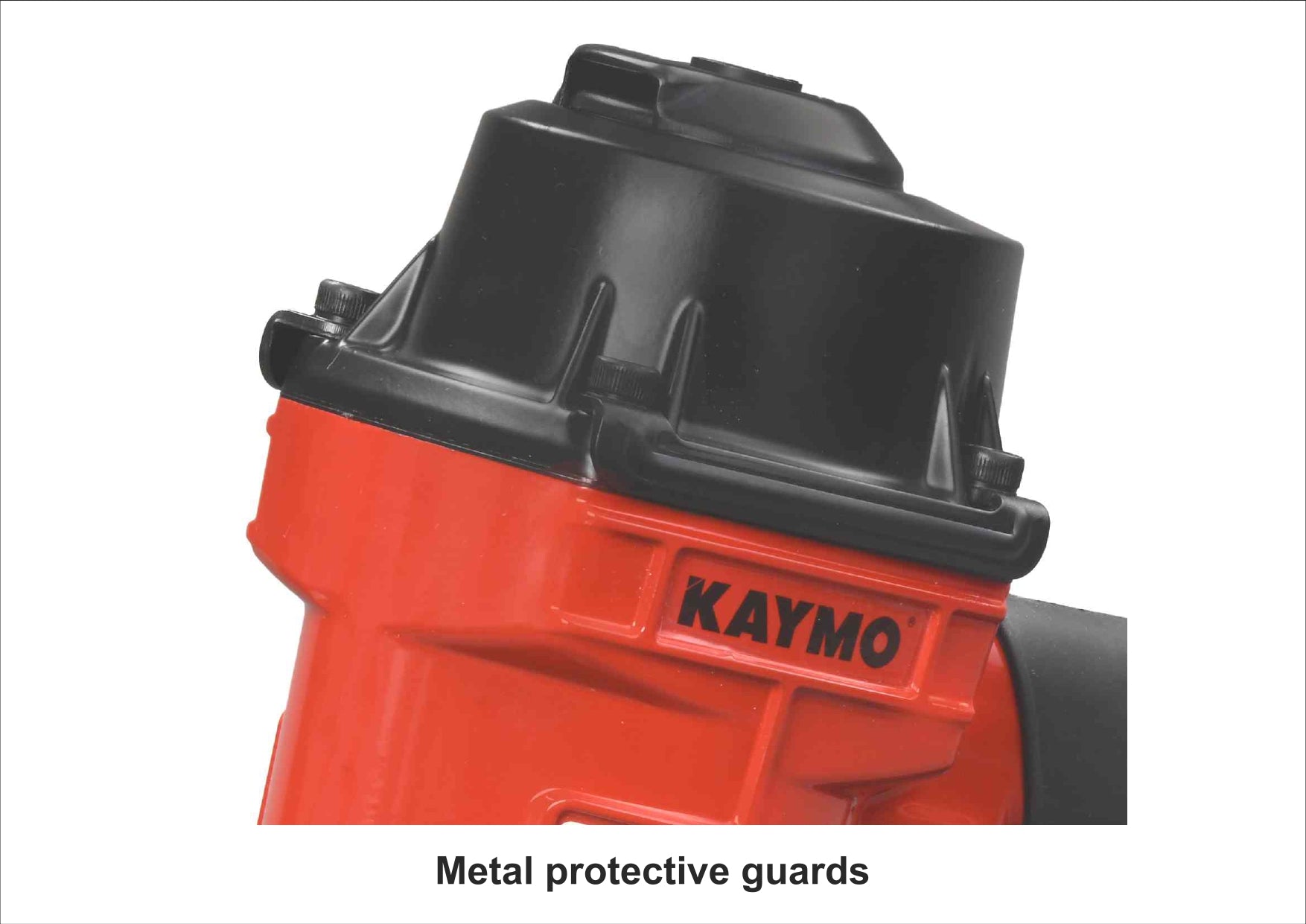

Metal protective guards
Transparent muzzle protector
Multi length nail accommodating magazine
360° top air exhaust

Applications:

Wooden pallets
Wooden crates
Wooden boxes
Wooden fences
Cable drums
General construction

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

COIL NAILS KAYMO 2.3 SERIES

COIL NAILS KAYMO 2.1 SERIES

AIR HOSE KAYMO 8x12 MM PU 100M RED

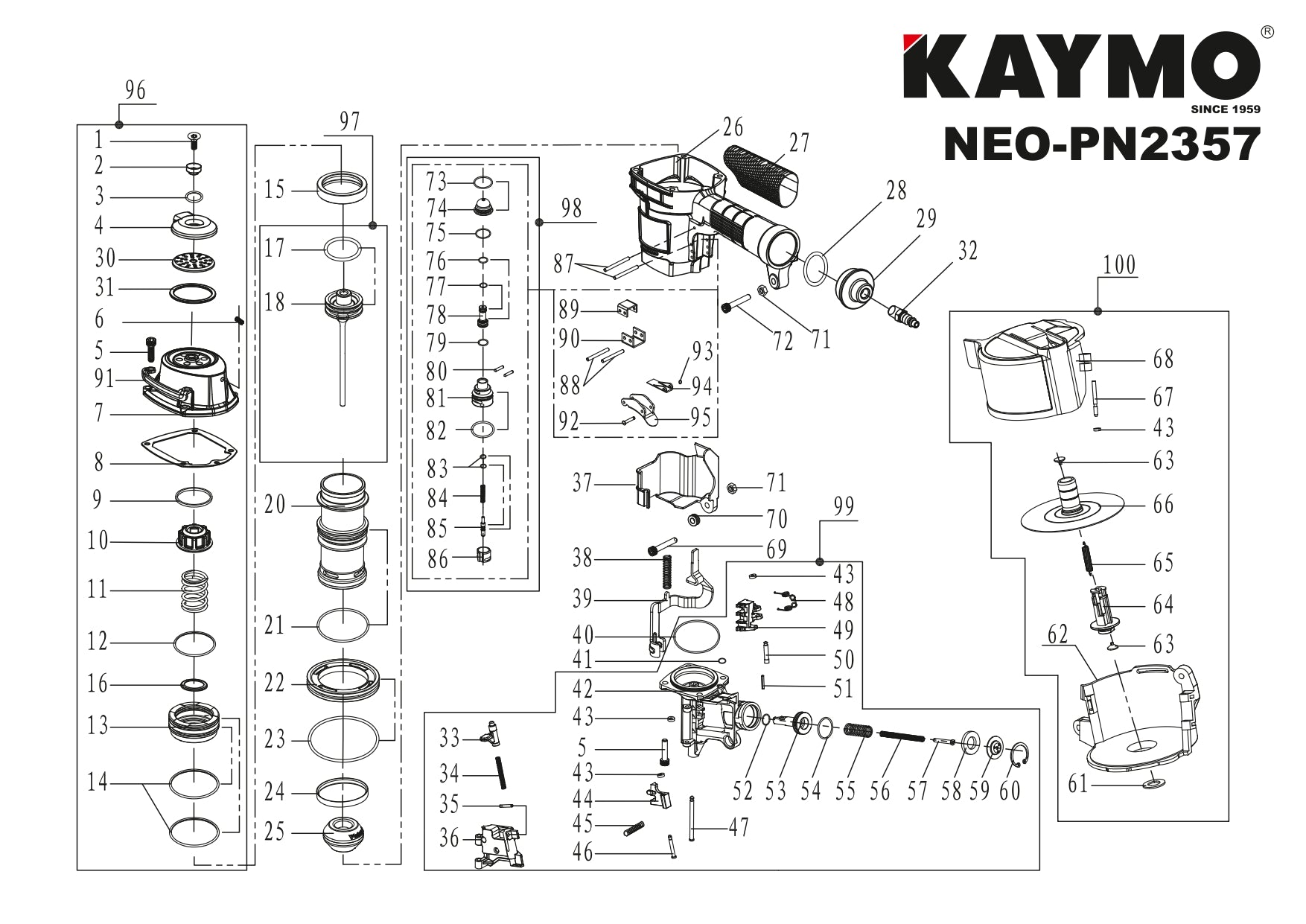

Blow Up

Spares

		TOOL MODEL:	NEO-PN2357
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1	FMS	NEO235701	SCREW M8X20		51	FMS	NEO235751	SPRING STEP PIN 3X16
2	FMS	NEO235702	EXHAUST COVER BUSHING		52	FMS	NEO235752	O-RING 9.8X2.4
3	FMS	NEO235703	O-RING 11.7X2.5		53	FMS	NEO235753	FEED PISTON
4	FMS	NEO235704	EXHAUST COVER		54	FMS	NEO235754	O-RING 20.8X2.4
5	FMS	NEO235705	SCREW M6X25	NEO1005055N	55	FMS	NEO235755	COMPRESSION SPRING	KFCBS00299
6	FMS	NEO235706	SCREW M5X6	ECO235717	56	FMS	NEO235756	COMPRESS SPRING	KFCBS00297
7		NEO235707	CYLINDER CAP UNIT		57	FMS	NEO235757	SPRING GUIDE	KFCBS00300
8	FMS	NEO235708	CYLINDER CAP SEAL		58	FMS	NEO235758	FEED PISTON STOP
9	FMS	NEO235709	SPACER EXHAUST		59	FMS	NEO235759	SPRING COLLAR
10	FMS	NEO235710	PISTON STOP		60	FMS	NEO235760	RETAINING RING C26	KFCBS00302
11	FMS	NEO235711	COMPRESSION SPRING		61	FMS	NEO235761	POST RETAINER
12	FMS	NEO235712	O-RING 41.5X2.6		62	FMS	NEO235762	MAGAZINE
13	FMS	NEO235713	HEAD VALVE PISTON		63	FMS	NEO235763	RECEIVER SPRING
14	FMS	NEO235714	O-RING 52.07X2.62		64	FMS	NEO235764	MAGAZINE POST
15	FMS	NEO235715	CYLINDER SEAL		65	FMS	NEO235765	TENSION SPRING	ECO235778
16	FMS	NEO235716	HEAD VALVE WASHER		66	FMS	NEO235766	NAIL SUPPORT
17	FMS	NEO235717	O-RING 37.7X3.5		67	FMS	NEO235767	STEP PIN
20		NEO235720	CYLINDER		68	FMS	NEO235768	MAGAZINE COVER
21	FMS	NEO235721	O-RING 49.1X2.5		69	FMS	NEO235769	SCREW M6X35
22	FMS	NEO235722	BOTTOM SUPPORT COLLAR		70	FMS	NEO235770	COLLAR
23	FMS	NEO235723	O-RING 54X3.5		71	FMS	NEO235771	ELASTIC STOP NUT M6
24	FMS	NEO235724	CHECK VALVE		72	FMS	NEO235772	SCREW M6X30
25	FMS	NEO235725	BUMPER		73	FMS	NEO235773	O RING 15.2X1.9
26		NEO235726	BODY		74	FMS	NEO235774	SPACER
28		NEO235728	O-RING 32.3X3		75	FMS	NEO235775	O RING 11.2X1.9
29	FMS	NEO235729	END CAP		76	FMS	NEO235776	O RING 6.8X1.9
30	FMS	NEO235730	EXHAUST FILTER		77	FMS	NEO235777	O RING 5.8X1.9
31	FMS	NEO235731	EXHAUST COVER SEAL		78	FMS	NEO235778	PILOT VALVE
32		NEO235732	AIR PLUG	S3120PMA5208	79	FMS	NEO235779	O RING 8.5X2
33	FMS	NEO235733	DOOR LATCH		80	FMS	NEO235780	STRAIGHT PIN
34	FMS	NEO235734	COMPRESSION SPRING		81	FMS	NEO235781	TRIGGER VALVE BUSING
35	FMS	NEO235735	SPRING STEP PIN 3X12		82	FMS	NEO235782	O RING 19.8X1.4
36		NEO235736	DOOR		83	FMS	NEO235783	O RING 2.5X1.4
37	FMS	NEO235737	CONTACT ARM COVER		84	FMS	NEO235784	COMPRESSION SPRING	ECO235764
38	FMS	NEO235738	COMPRESSING SPRING		85	FMS	NEO235785	TRIGGER VALVE STEM
39	FMS	NEO235739	CONTACT ARM		86	FMS	NEO235786	TRIGGER VALVE CAP
40	FMS	NEO235740	O-RING 47X1.9		87	FMS	NEO235787	ROLL PIN 3X30
41	FMS	NEO235741	O-RING 4.2X1.6		88	FMS	NEO235788	ROLL PIN 3X26
42		NEO235742	NOSE		89	FMS	NEO235789	CONTACT ARM 02
43	FMS	NEO235743	RUBBER WASHER 7		90	FMS	NEO235790	CONTACT ARM 01
44	FMS	NEO235744	CHECK PAWL		91	FMS	NEO235791	PROTECTOR
45	FMS	NEO235745	COMPRESSION SPRING	ECO235749	92	FMS	NEO235792	STEP PIN 3X16.3
46	FMS	NEO235746	STEP PIN		93	FMS	NEO235793	O-RING 1.2X1.9	NEO80025
47	FMS	NEO235747	STEP PIN		94	FMS	NEO235794	CONTACT LEVER
48	FMS	NEO235748	TORSION SPRING		95	FMS	NEO235795	TRIGGER
49	FMS	NEO235749	FEED PAWL		97	FMS	NEO235797	PISTON UNIT
50	FMS	NEO235750	STEP PIN

PNEUMATIC NAILER KAYMO NEO-2357

Compatible Products

COIL NAILS KAYMO 2.3 SERIES

COIL NAILS KAYMO 2.1 SERIES

AIR HOSE KAYMO 8x12 MM PU 100M RED

Blow Up

Spares

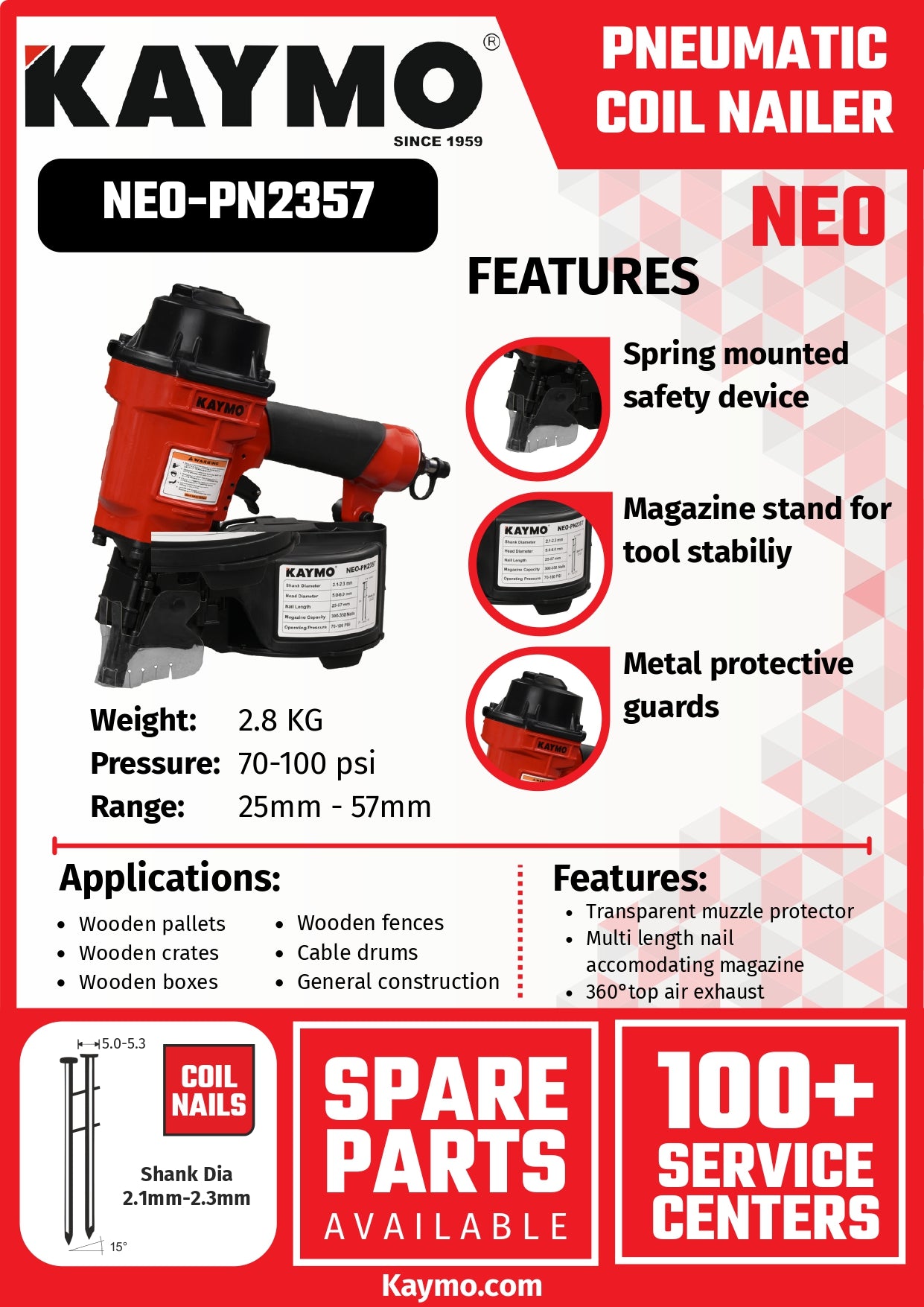

One Sheeter
