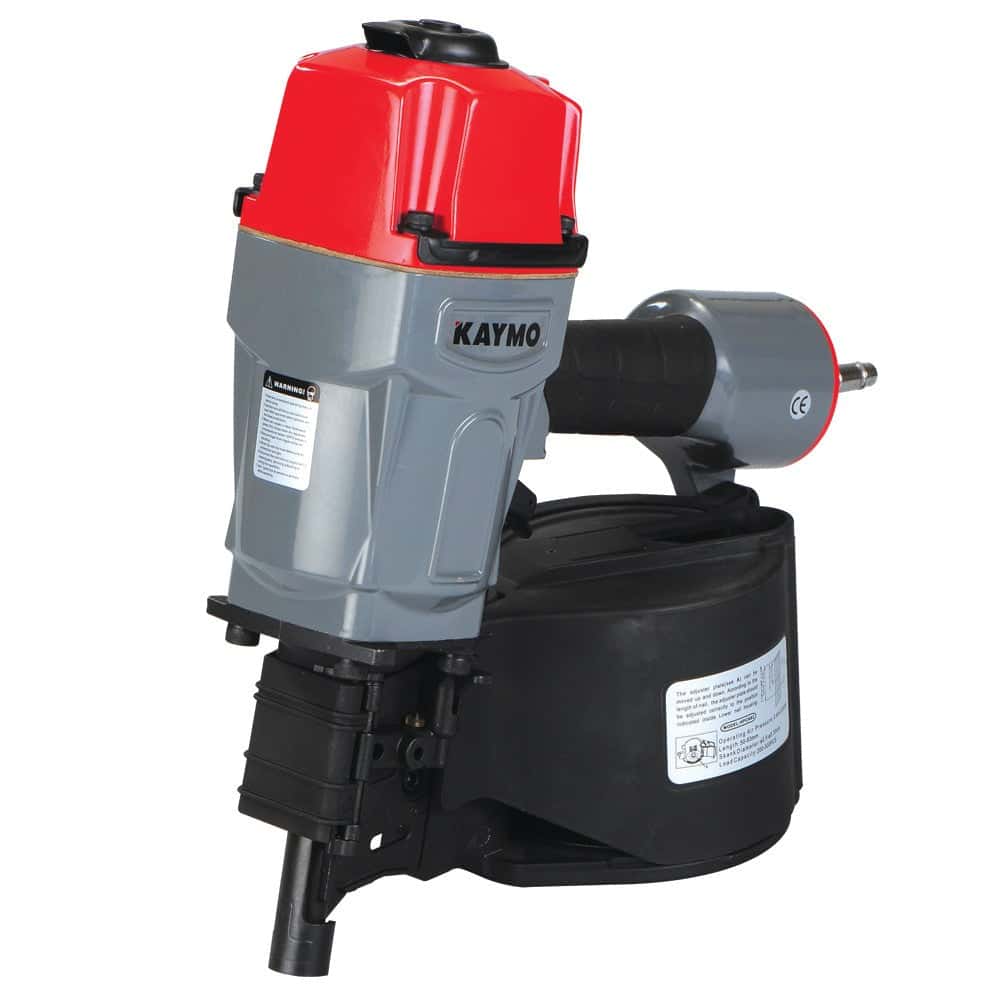

PNEUMATIC NAILER KAYMO ECO-3383

Name: PNEUMATIC NAILER KAYMO ECO-3383
Brand: Kaymo
SKU: ECO-PN3383
Price: 1.0 INR
Availability: InStock

SKU: ECO-PN3383

The KAYMO ECO-PN3383 is a heavy-duty pneumatic coil nailer designed for high-performance fastening in construction, woodworking, and pallet assembly. It features a long nose for Read More...

Features:

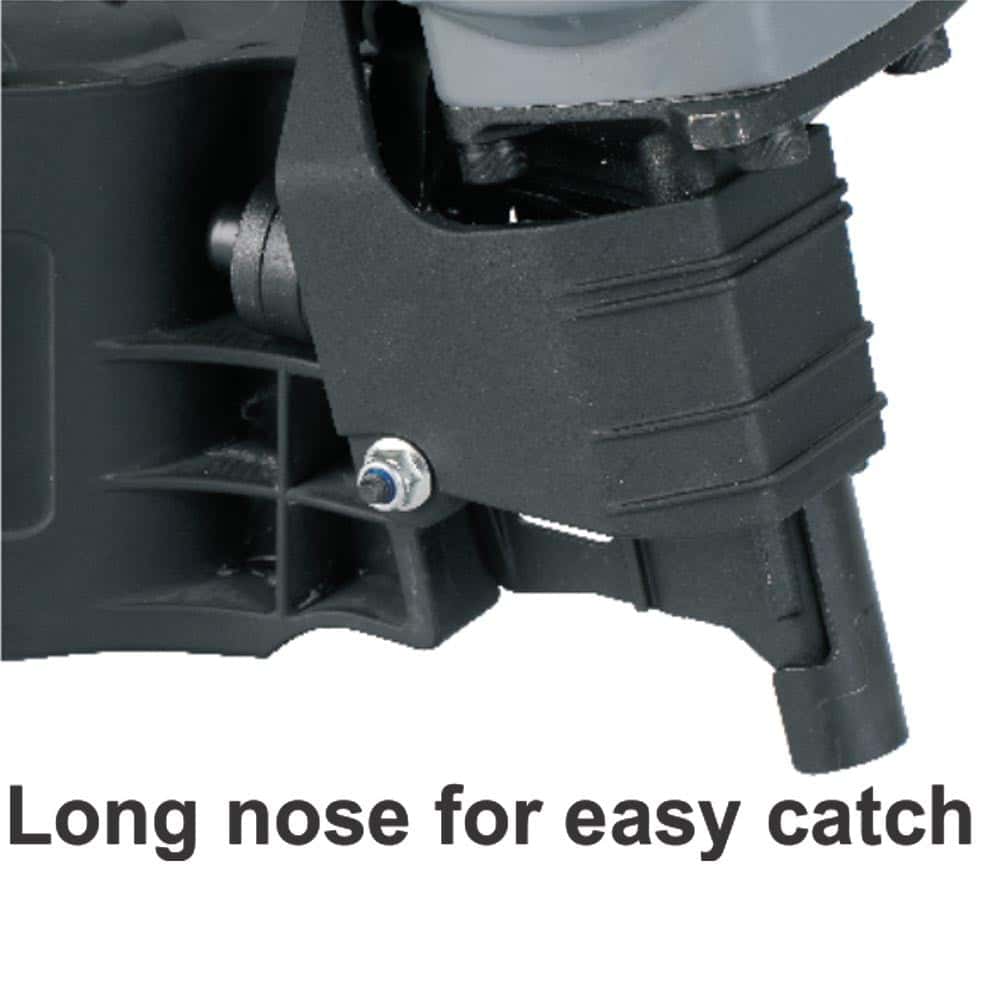

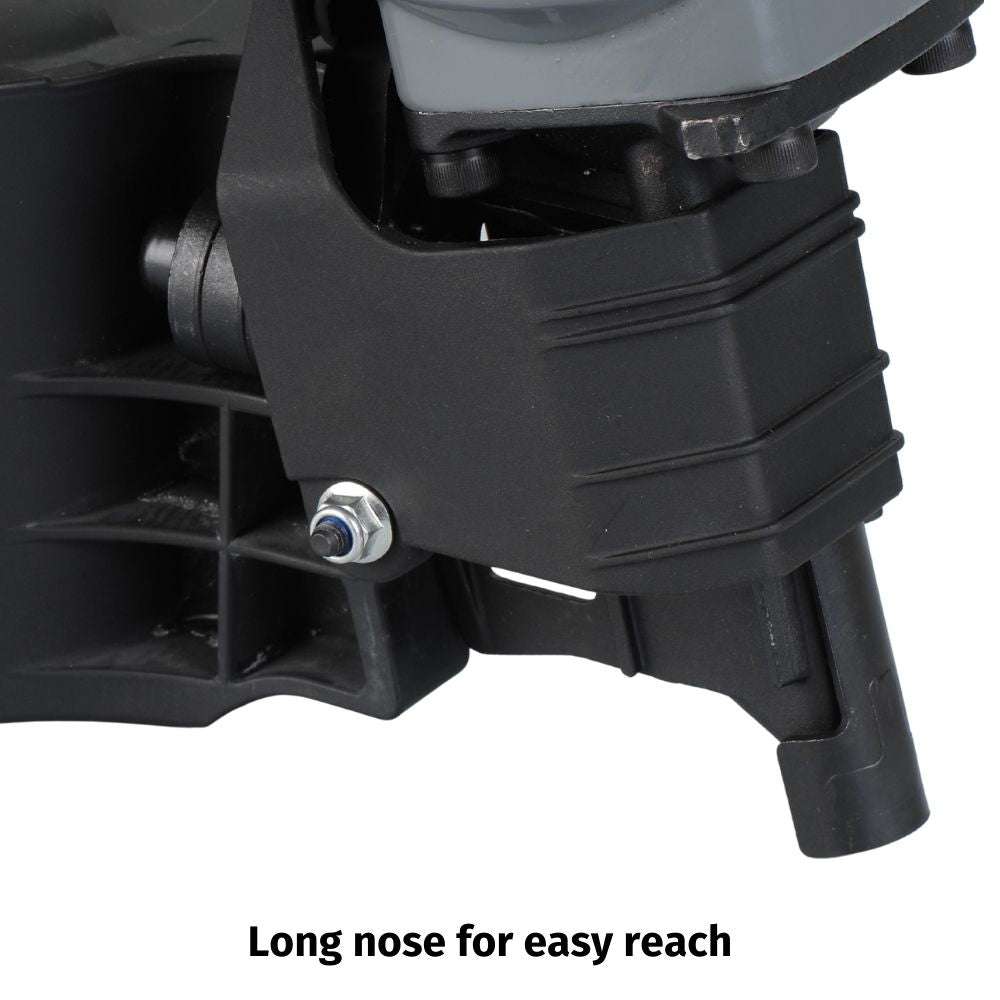

Long nose for easy reach

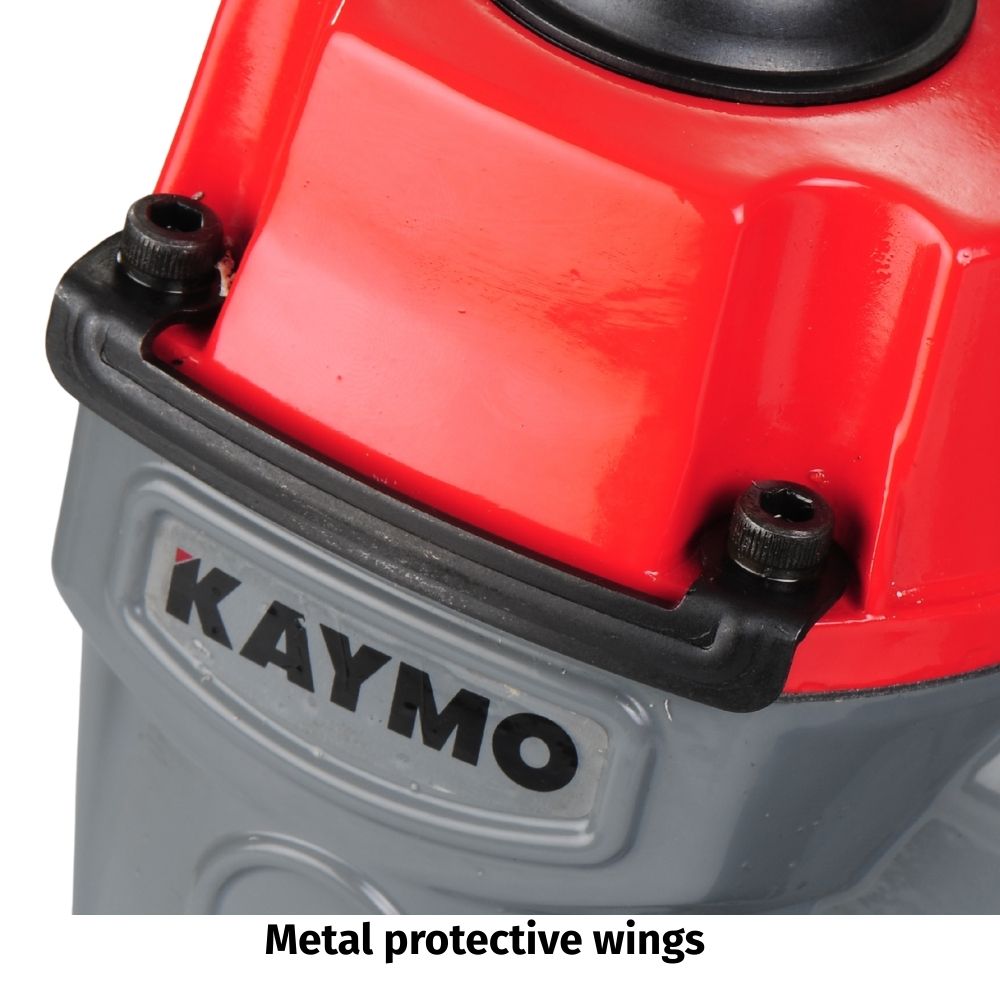

Metal protective wings

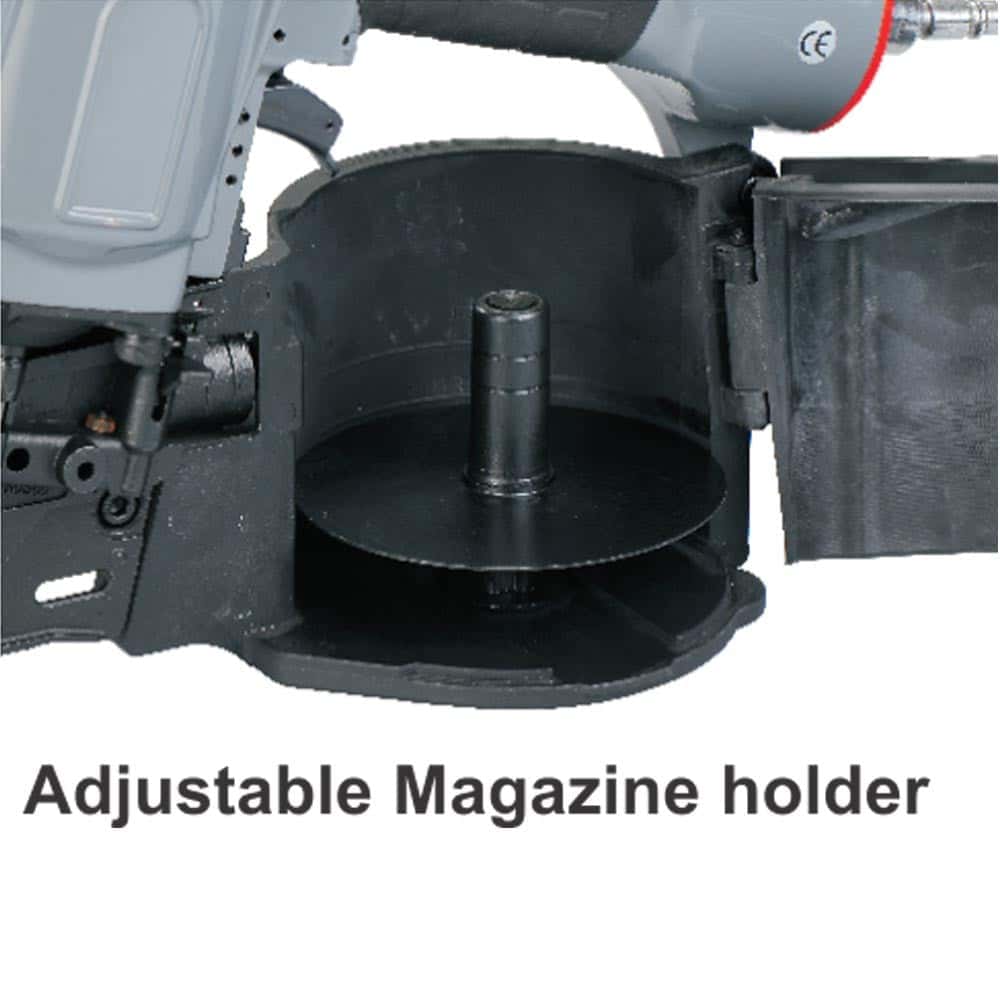

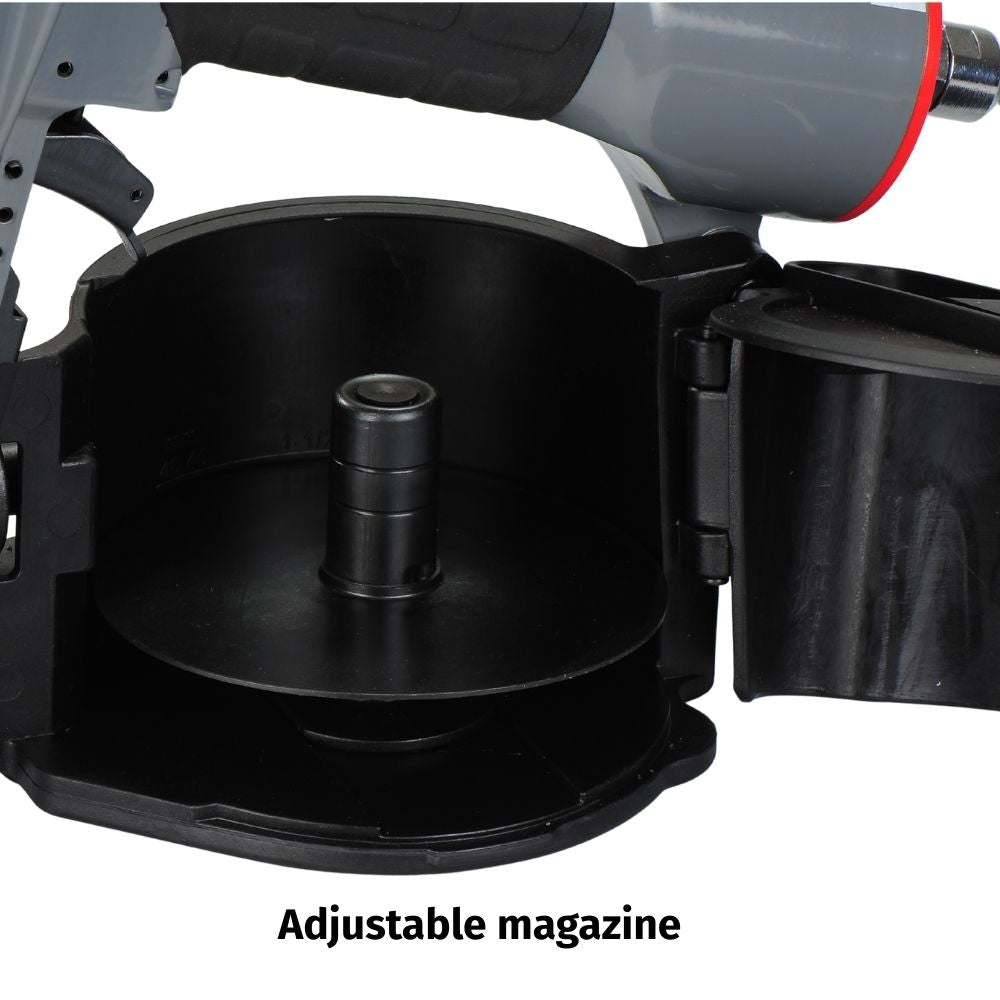

Adjustable magazine

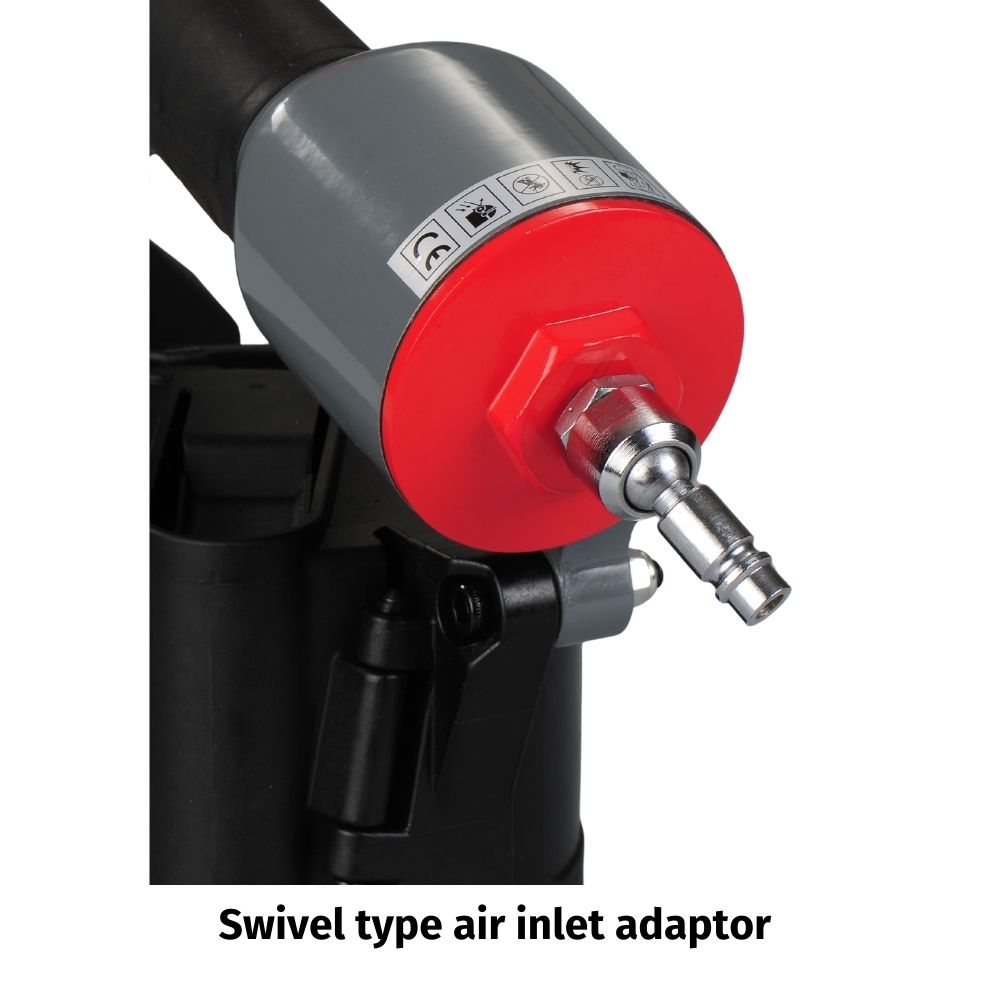

Swivel type air inlet adaptor
360° top air exhaust
Fastener Range: 45mm – 83mm

Applications:

Wooden crates
Construction
General wood working

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

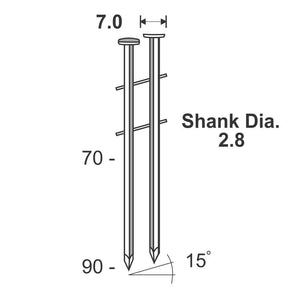

COIL NAILS KAYMO 2.8 SERIES

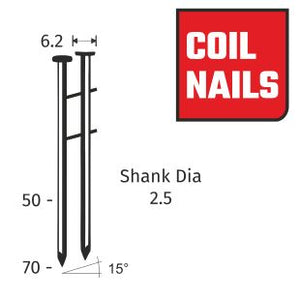

COIL NAILS KAYMO 2.5 SERIES

ADJUSTABLE AIR BLOW GUN KAYMO 1/4" PT WITH 10 cm SS NOZZLE & PLUG

Blow Up

Spares

		TOOL MODEL:	ECO-PN3383					REV.1ST APRIL 2023
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1	FMS	ECO338301	SCREW	100009	47	FMS	ECO338347	PISTON
2	FMS	ECO338302	EXHAUST COVER HOLDER	ECO235702	48	FMS	ECO338348	O-RING 25.6X2.4	ECO297060
3	FMS	ECO338303	O-RING 14.6X2.4	ECO235703	49	FMS	ECO338349	SPRING
4	FMS	ECO338304	EXHAUST COVER	ECO235704	50	FMS	ECO338350	BUMPER
5	FMS	ECO338305	EXHAUST COVER SEAL	ECO235705	51	FMS	ECO338351	COVER	KFCBS00337
6	FMS	ECO338306	PROTECTOR	KFCBS00675	52	FMS	ECO338352	LOCKING WASHER	ECO297064
7		ECO338307	SCREW	KFCBS00485	53		ECO338353	SCREW M6X40
8		ECO338308	GROMMET	ECO297002	54	FMS	ECO338354	DOOR LATCH	ECO297065
9		ECO338309	CYLINDER CAP		55	FMS	ECO338355	SPRING	ECO297066
10		ECO338310	SPACER EXHAUST		56	FMS	ECO338356	STOPPED HOOK	ECO297067
11	FMS	ECO338311	PISTON STOP		57	FMS	ECO338357	SPRING	ECO297068
12	FMS	ECO338312	SPRING		58		ECO338358	LATCH
13	FMS	ECO338313	HEAD VALVE WASHER		59		ECO338359	PIN
14	FMS	ECO338314	O-RING 47.6X3	KFCBS00320	60	FMS	ECO338360	ROLL PIN 3X12	KFCBS00041
15	FMS	ECO338315	O-RING 62.8X3	KFCBS00322	61	FMS	ECO338361	O-RING 19.2X1.8	ECO297037
16	FMS	ECO338316	VALVE	ECO297010	62	FMS	ECO338362	VALVE GUIDE
17	FMS	ECO338317	O-RING 52.8X4.9		63	FMS	ECO338363	O-RING 22.8X2.5
18	FMS	ECO338318	PISTON ASSEMBLY		64	FMS	ECO338364	O-RING 9.5X1.9	ECO297040
19	FMS	ECO338319	CYLINDER SEAL	ECO297013	65	FMS	ECO338365	O-RING 10.6X1.9	ECO297041
20		ECO338320	CYLINDER		66	FMS	ECO338366	TRIGGER VALVE HEAD
21	FMS	ECO338321	O-RING 62.7X3.1	ECO297015	67	FMS	ECO338367	O-RING 12.8X1.9
22		ECO338322	CYLINDER RING		68	FMS	ECO338368	SPRING	ECO297044
23	FMS	ECO338323	O-RING 67X5.7	ECO297018	69	FMS	ECO338369	TRIGGER VALVE STEM
24	FMS	ECO338324	O-RING 90.6X3.1	ECO297017	70	FMS	ECO338370	O-RING 5.3X1.4
25	FMS	ECO338325	GASKET	ECO297019	71	FMS	ECO338371	TRIGGER VALVE GUIDE
26		ECO338326	SCREW	ECO297012	72		ECO338372	CONTACT LEVER	ECO297048
27		ECO338327	BODY	ECO297020	73		ECO338373	TRIGGER	ECO297049
28	FMS	ECO338328	BUMPER（A）	ECO297021	74	FMS	ECO338374	ROLL PIN 3X25	ECO297036
29	FMS	ECO338329	BUMPER（B）	ECO297022	75	FMS	ECO338375	ROLL PIN 2.5X16	ECO297050
30	FMS	ECO338330	O-RING 56.5X1.5	KFCBS00484	76		ECO338376	MAGAZINE COVER
31	FMS	ECO338331	PIN CAP	ECO297024	77	FMS	ECO338377	RECEIVER COVER
32	FMS	ECO338332	STRAIGHT PIN		78		ECO338378	ADJUSTMENT PLATE
33	FMS	ECO338333	NUT	KFCBS00088	79	FMS	ECO338379	MAGAZINE POST
34	FMS	ECO338334	CONTACT ARM COVER	ECO297027	80		ECO338380	LOWER NAIL HOUSE
35	FMS	ECO338335	WASHER	KFCBS00503	81	FMS	ECO338381	RUBBER WASHER	ECO297074
36		ECO338336	NOSE		82	FMS	ECO338382	TENSION SPRING
37	FMS	ECO338337	SCREW	100188	83	FMS	ECO338383	STEP PIN
38		ECO338338	SPRING	ECO297031	84		ECO338384	SCREW M6X35	KFCBS00502
39	FMS	ECO338339	SAFE BRACKET		85	FMS	ECO338385	ROLL PIN 3X20
40	FMS	ECO338340	O-RING 7.4X1.6	ECO297051	86	FMS	ECO338386	ROLL PIN 3X30
41	FMS	ECO338341	TORSION SPRING	ECO297052	87	FMS	ECO338387	SAFE GUIDER	KFCBS00343
42	FMS	ECO338342	ROLL PIN 3X16	ECO297053	88		ECO338388	SOFT GRIP SLEEVE	ECO297081
43	FMS	ECO338343	RUBBER WASHER	ECO297054	89		ECO338389	O-RING 65.4X2.5	ECO297082
44	FMS	ECO338344	FEED HOOK		90	FMS	ECO338390	END CAP	ECO297083
45	FMS	ECO338345	PIN		91		ECO338391	AIR PLUG	ECO297084
46	FMS	ECO338346	O-RING 13.6X1.9

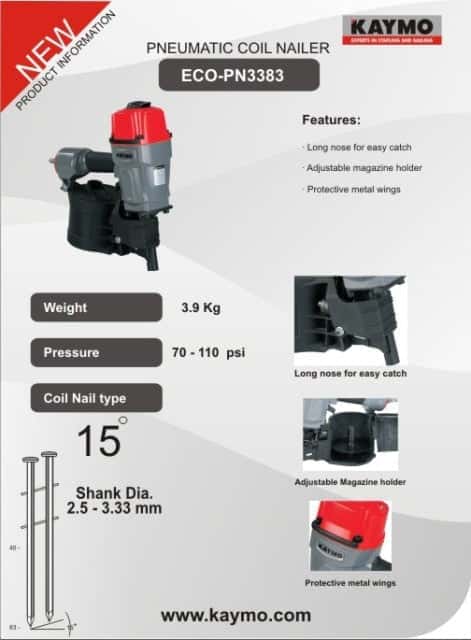

One Sheeter

Application

WOODEN PALLETS

To make wooden pallets

PNEUMATIC NAILER KAYMO ECO-3383
