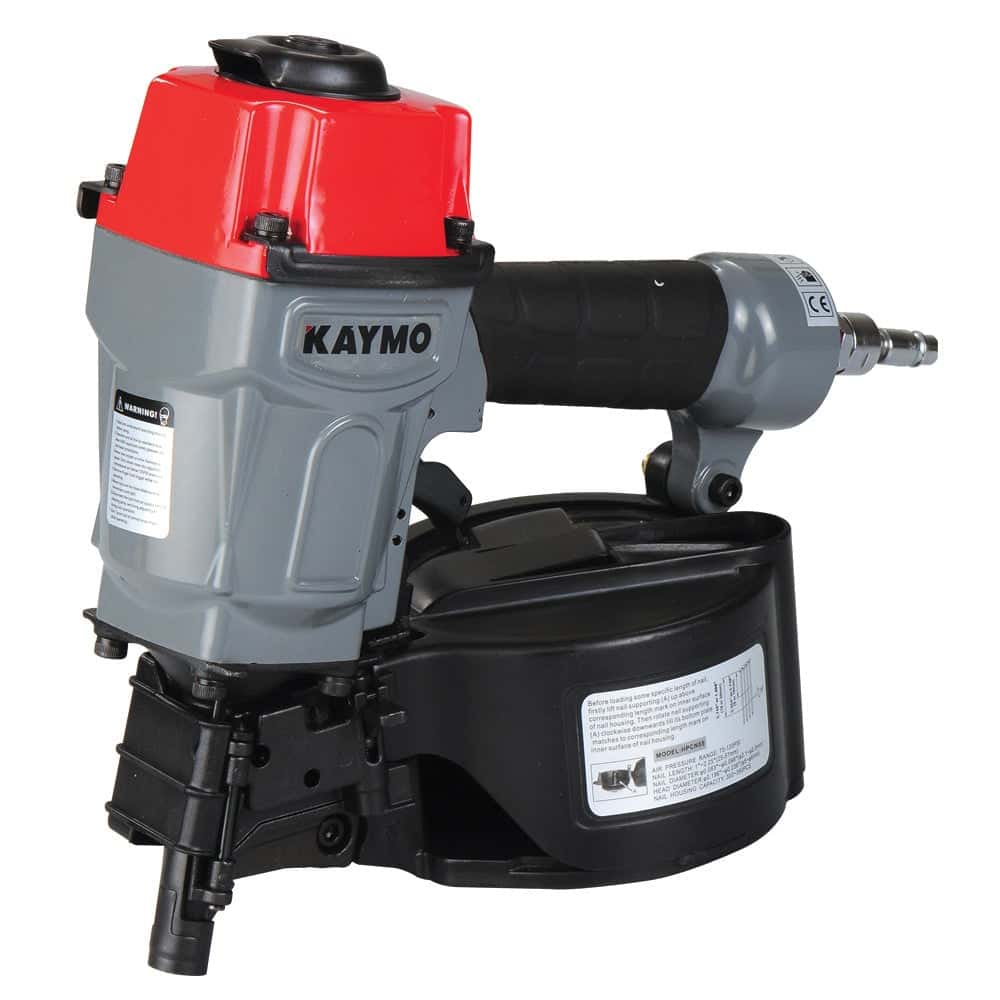

PNEUMATIC NAILER KAYMO ECO-2357

SKU: ECO-PN2357

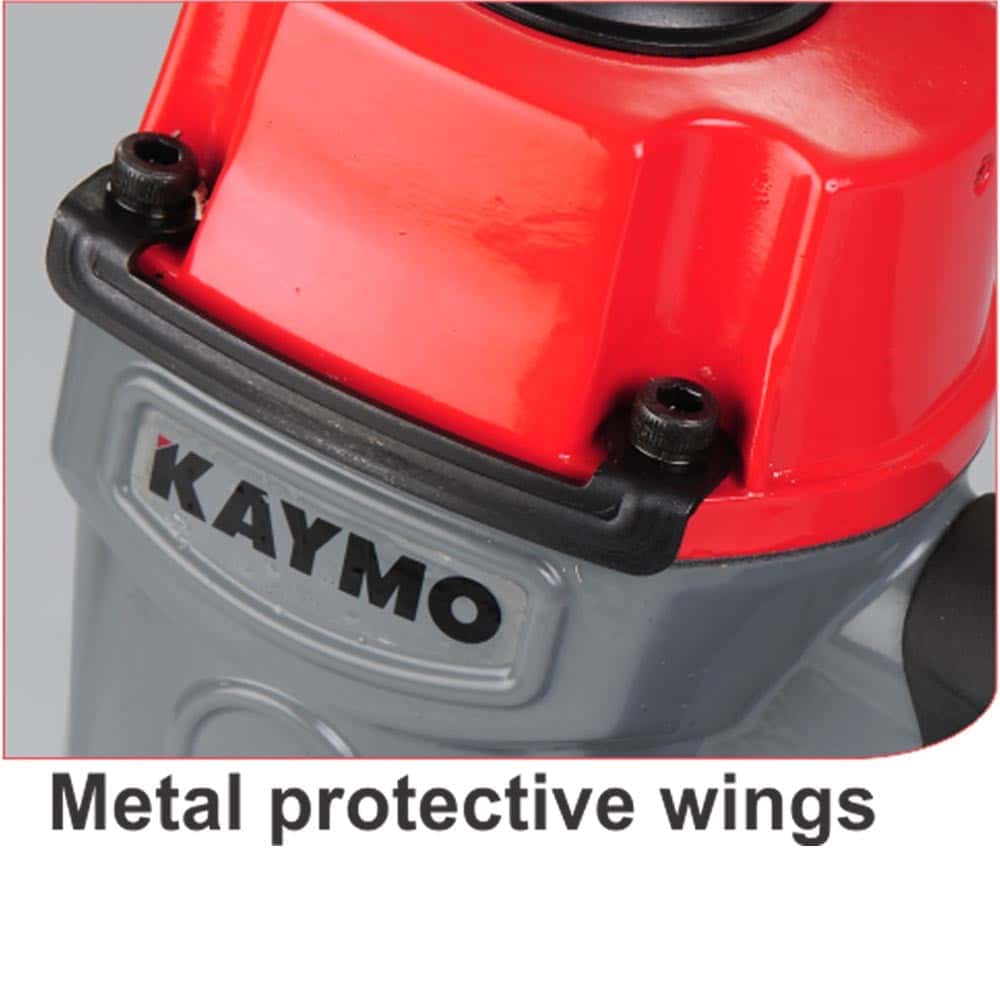

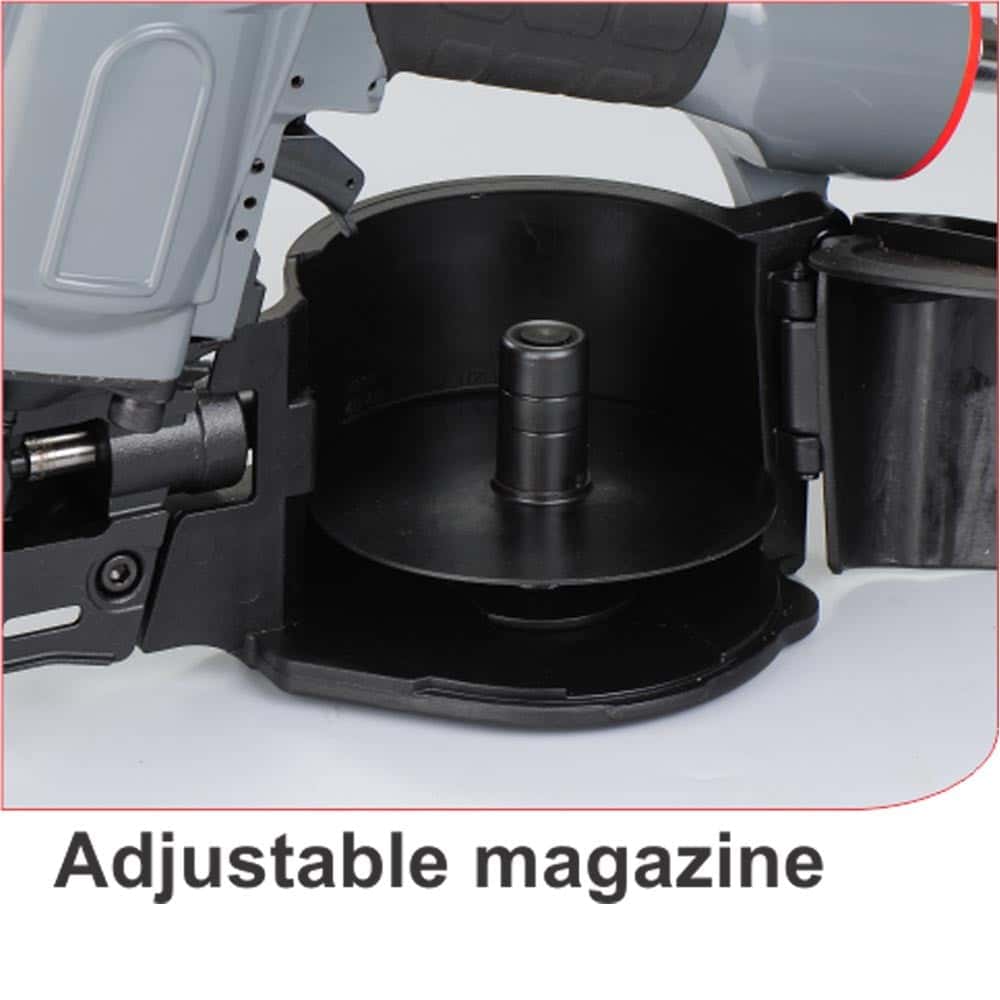

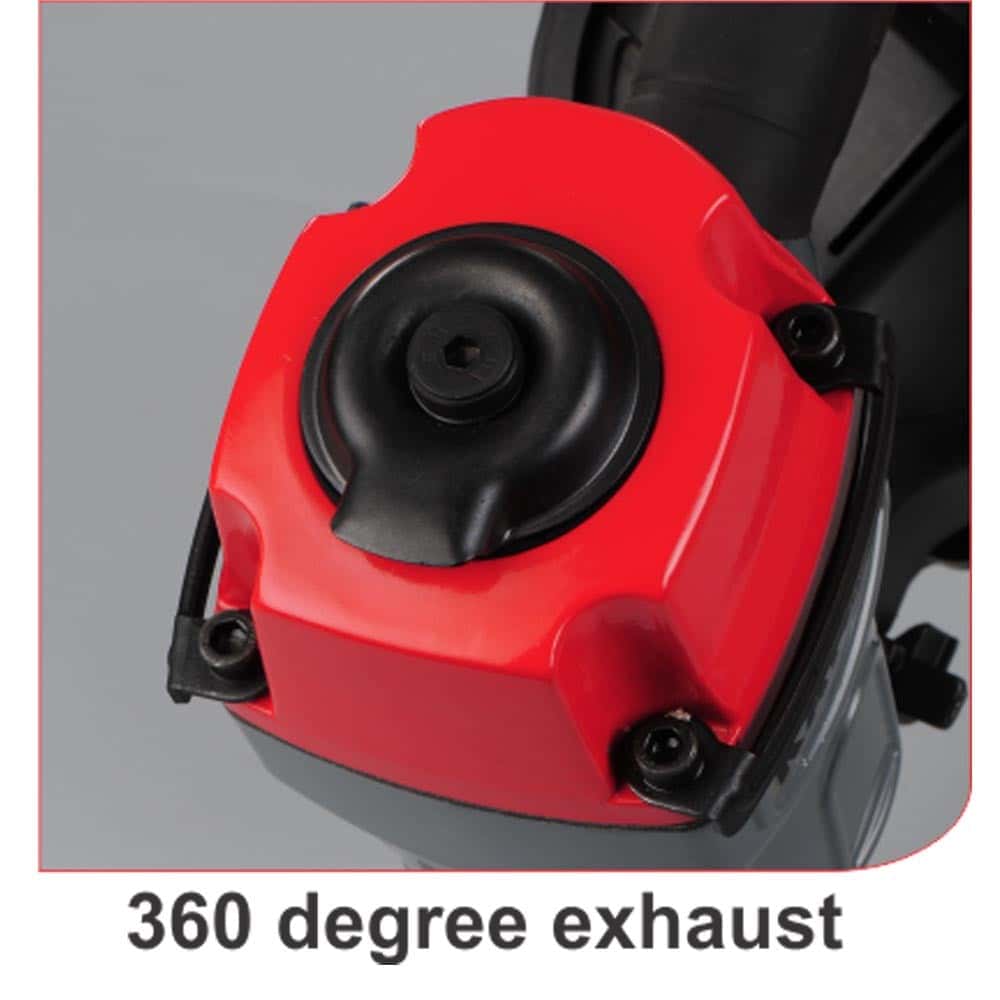

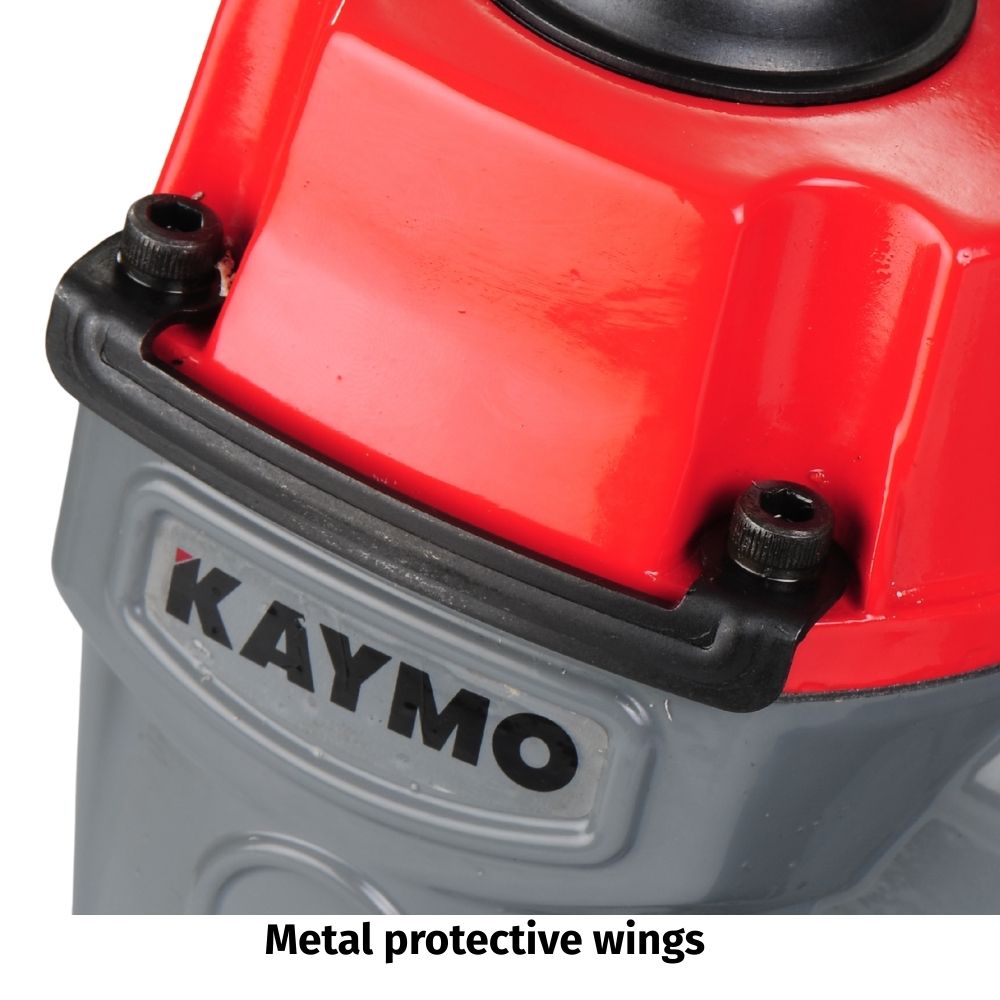

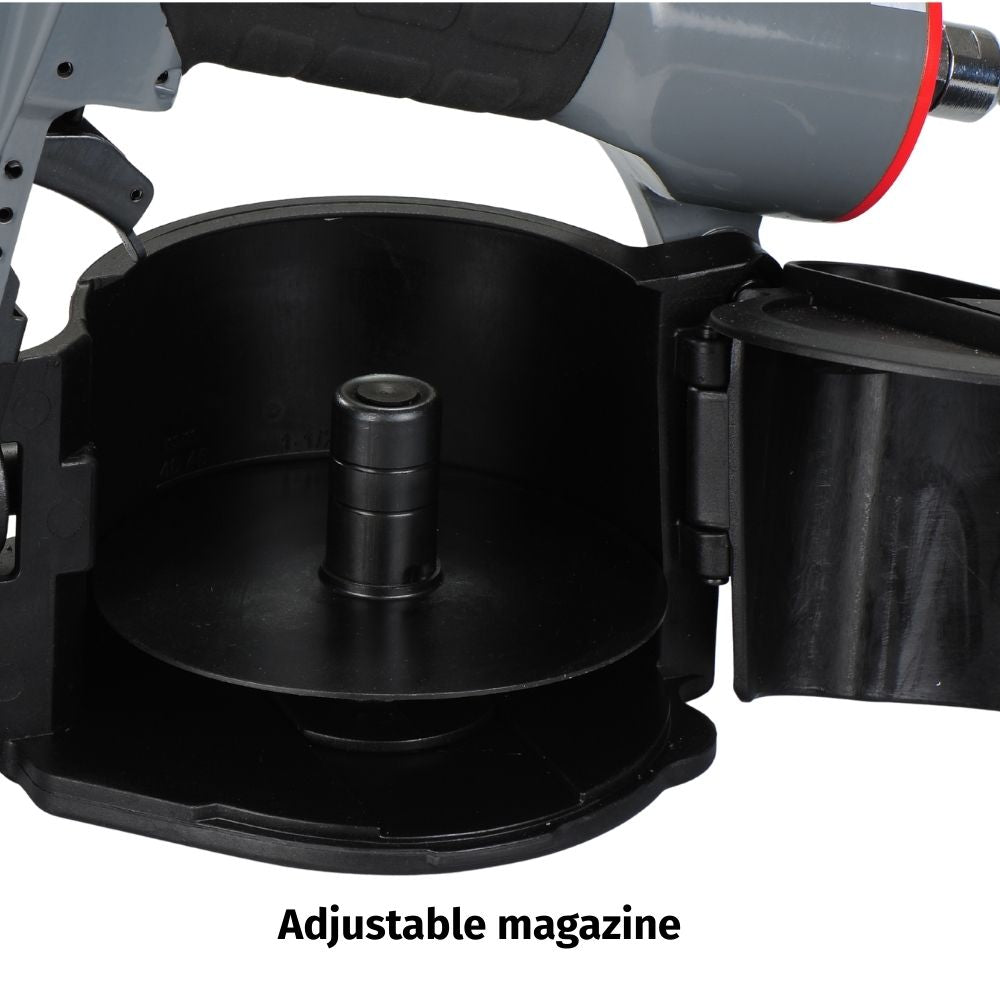

Ergonomic rubber grip. 360 degree exhaust. Set of metal guards to prevent tool body damage. Tough nylon magazine. Fasteners recommended: 25 - 57 mm. PRESSURE: 70- 110 psi

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

₹ 1/-

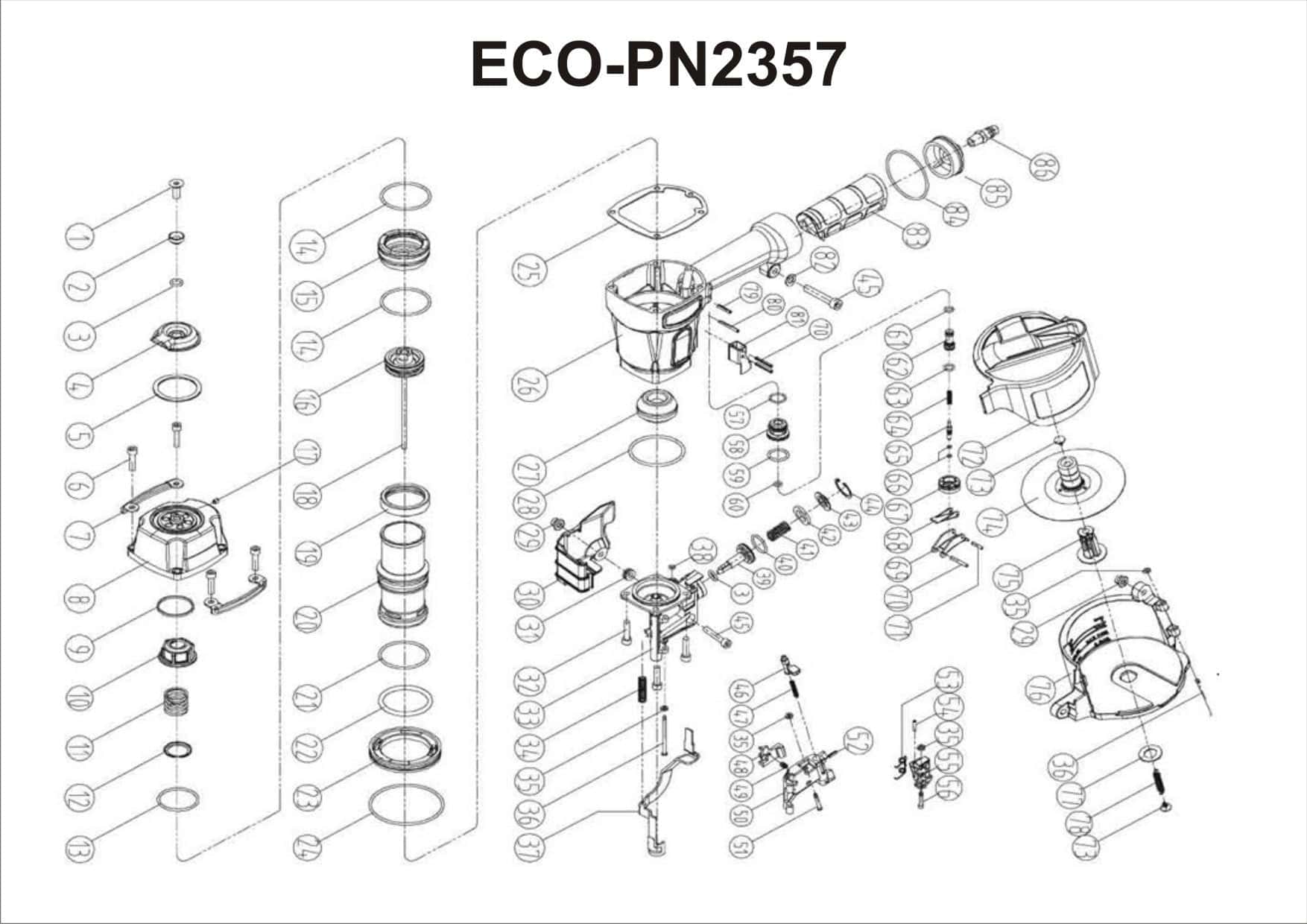

Blow Up

Spares
. TOOL MODEL: ECO-PN2357 REV.1ST APRIL 2022
SR FMS PART CODE PART NAME ALT CODE SR FMS PART CODE PART NAME ALT CODE
1 FMS ECO235701 Screw M8*25 100009 44 FMS ECO235744 Retaining ring c26
2 FMS ECO235702 Exhaust cover holder   45   ECO235745 Screw M6*35
3 FMS ECO235703 O-ring 14.6*2.4   46 FMS ECO235746 Door latch
4 FMS ECO235704 Exhaust cover   47 FMS ECO235747 Compression spring 3123
5 FMS ECO235705 Exaust cover seal   48 FMS ECO235748 Check pawl
6 FMS ECO235706 Screw M6*25 NEO1005055N 49   ECO235749 Comperession ring3109
7 FMS ECO235707 Protector   50   ECO235750 Door
8   ECO235708 Cylinder cap unit   51 FMS ECO235751 Step pin 1263
9 FMS ECO235709 Spacer exhauxt   52   ECO235752 roll pin 3*12
10 FMS ECO235710 Piston stop   53 FMS ECO235753 Torsion spring 3058
11 FMS ECO235711 Compression spring 3578   54 FMS ECO235754 roll pin 3*16
12 FMS ECO235712 Head valve washer   55 FMS ECO235755 Feed pawl
13 FMS ECO235713 O-ring 46.7*2.6   56 FMS ECO235756 step pin 1263
14 FMS ECO235714 O-ring 57.5*2.6   57 FMS ECO235757 O-ring 19.2*1.8
15 FMS ECO235715 Head valve piston   58 FMS ECO235758 Trigger valve cap
16 FMS ECO235716 O-ring 44.7*3.5   59 FMS ECO235759 Oring 22.8*2.5
17   ECO235717 Screw M5*6   60 FMS ECO235760 O-ring 9.5*1.9
18 FMS ECO235718 Main piston unt   61 FMS ECO235761 O-ring 10.6*1.9
19 FMS ECO235719 Cylinder seal   62 FMS ECO235762 Pilot valve
20   ECO235720 Cylinder   63 FMS ECO235763 O-ring 12.8*1.9
21 FMS ECO235721 O-ring 56.4*2.5   64 FMS ECO235764 Compression spring 4123
22 FMS ECO235722 Oring 54.2*3.5   65 FMS ECO235765 Trigger valve stem
23 FMS ECO235723 Cylinder ring   66 FMS ECO235766 O-ring 5.3*1.4
24 FMS ECO235724 O-ring 80*3.1   67   ECO235767 Trigger valve cap
25 FMS ECO235725 Cylinder cap seal   68   ECO235768 Contact lever
26   ECO235726 Body   69   ECO235769 Trigger
27 FMS ECO235727 Bumper   70 FMS ECO235770 Roll pin 3*25
28 FMS ECO235728 O-ring 52*1.8   71   ECO235771 Roll pin 2.5*16
29 FMS ECO235729 Elastic stop unt M6*1   72   ECO235772 Magazine cover
30 FMS ECO235730 Contact arm cover   73   ECO235773 Receiver spring
31 FMS ECO235731 Collar   74 FMS ECO235774 Nail support unit
32   ECO235732 Screw M6*22   75 FMS ECO235775 Magazine post
33   ECO235733 Nose   76 FMS ECO235776 Magazine
34 FMS ECO235734 Compression spring 3225   77   ECO235777 Post retainer
35 FMS ECO235735 Rubber washer 7   78 FMS ECO235778 Tension spring 3144
36 FMS ECO235736 Step pin 1501   79 FMS ECO235779 Roll pin 3*20
37 FMS ECO235737 Contact arm   80 FMS ECO235780 Roll pin 3*30
38 FMS ECO235738 O-ring 7.4*1.6   81 FMS ECO235781 Contact armguide
39 FMS ECO235739 Feed piston   82   ECO235782 Plain washer 138
40 FMS ECO235740 O-ring 25.6*2.4   83   ECO235783 Grip
41 FMS ECO235741 Comppession spring 3225   84   ECO235784 O-ring 48.8*2.5
42 FMS ECO235742 Feed piston stop   85 FMS ECO235785 End cap
43 FMS ECO235743 Spring collar   86   ECO235786 Air plug pmk-22

One Sheeter

Application
 WOODEN CRATES To close wooden cases
 WOODEN PALLETS To make wooden pallets
