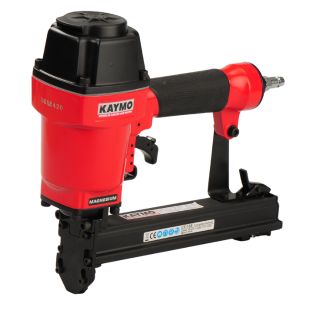

PNEUMATIC CORRUGATED FASTENER KAYMO PRO-2515

PNEUMATIC CORRUGATED FASTENER KAYMO PRO-2515

Name: PNEUMATIC CORRUGATED FASTENER KAYMO PRO-2515
Brand: Kaymo
SKU: PRO-PC2515
Availability: InStock

SKU: PRO-PC2515

The KAYMO PRO-PC2515 is a powerful pneumatic corrugated fastener designed for high-strength wood-to-wood jointing. With an ergonomic rubber grip, 360° exhaust, and easy unjamming system, Read More...

Features:

Spring mounted safety device

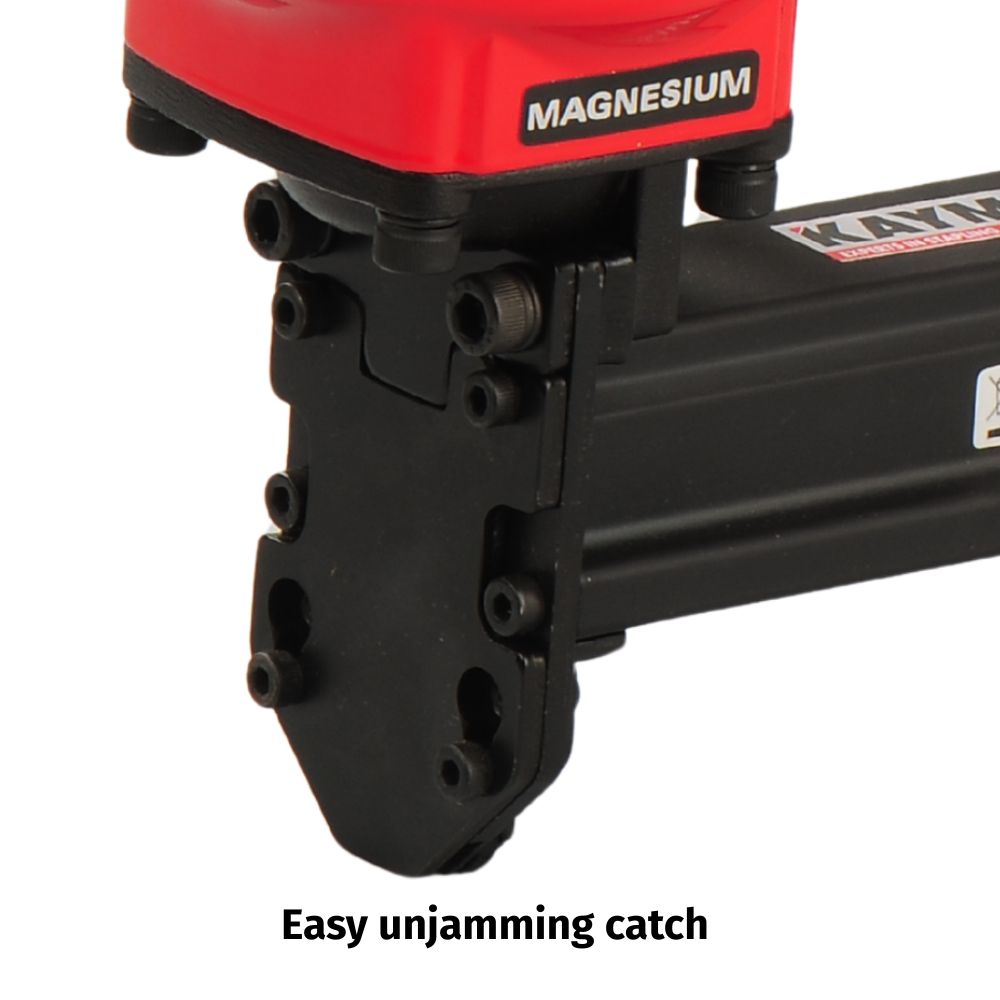

Easy unjamming catch

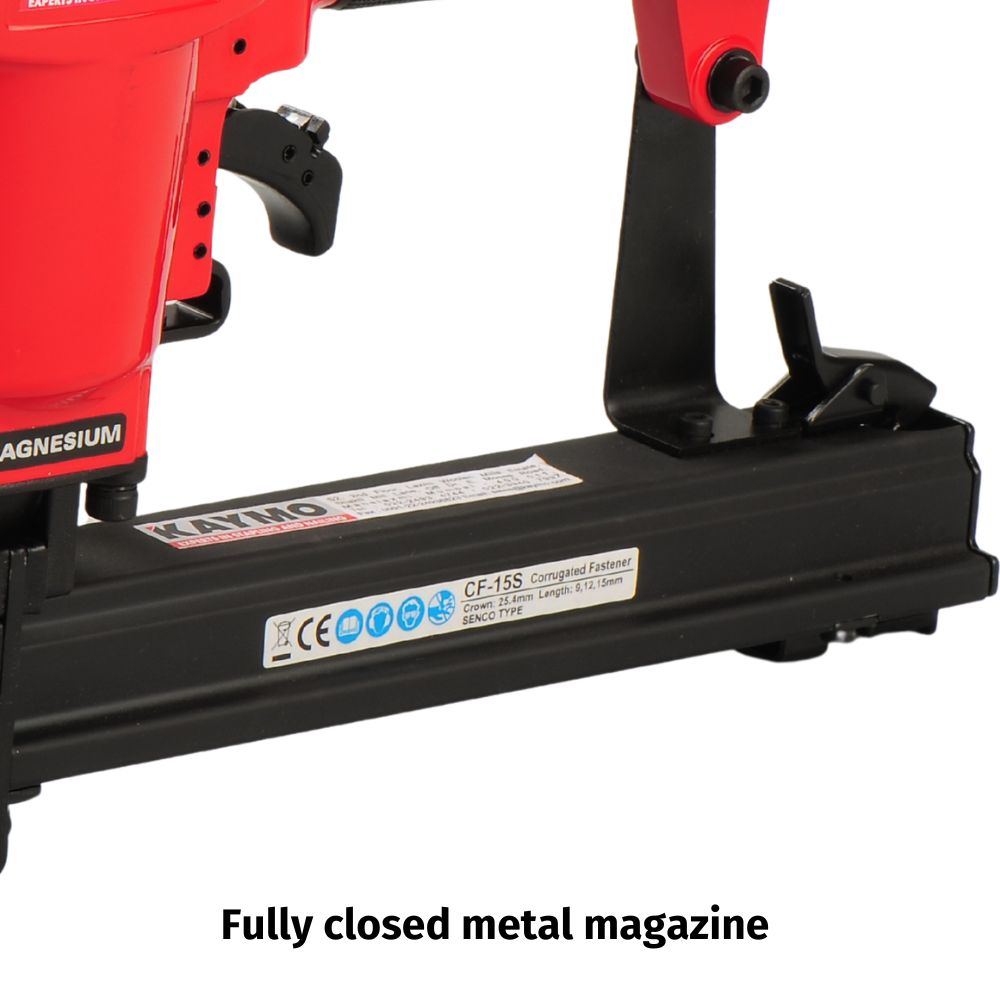

Fully closed metal magazine

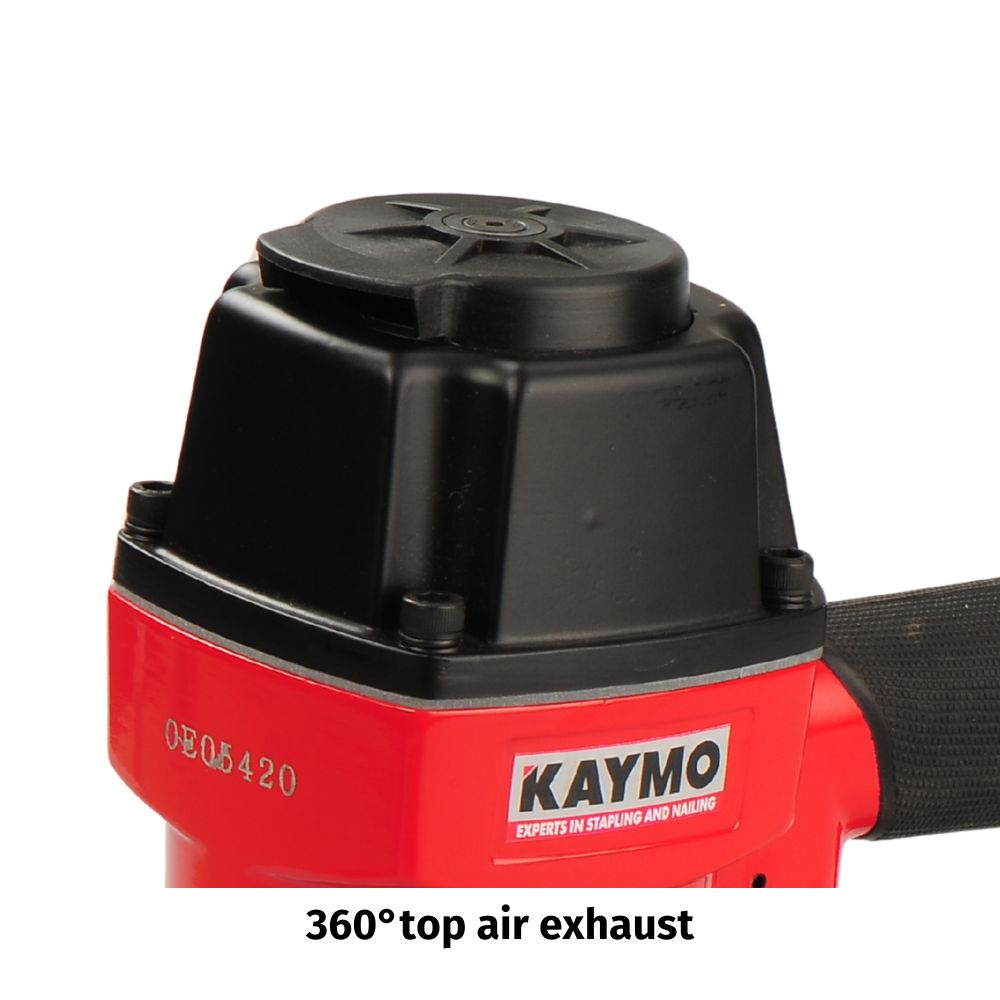

360° top air exhaust

Heavy duty tool

Fastener Range: 6mm – 15mm

Applications:

Carrom boards

Flush doors

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

AIR FILTER + REGULATOR LUBRICATOR SET KAYMO 1/4" WITH GAUGE

AIR RECOIL HOSE KAYMO 8x12 MM PU 15M BRAIDED BLUE

ADJUSTABLE AIR BLOW GUN KAYMO 1/4" PT WITH 10 cm SS NOZZLE & PLUG

Blow Up

Spares

		TOOL MODEL:	PRO-PC2515 NEW					REV.1ST APRIL 2023
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1		CB0401	COMPRESSION SPRING		44	FMS	OP038A	O-RING
2		CB0502	CYLINDER RING		45		OP042A	O-RING
3		CB0603	HEAD VALVE PISTON		46		OS050A	O-RING
4		CB0702	CAP SEAL		47		PA3901	PIN
5		CB0802	CYLINDER		48		SA1003W	RESTRICTIVE TRIGGER ASSY.
6	FMS	CB0902	CYLINDER RING		49	FMS	SA1602W	TRIGGER ASSY.
7		CB1001	CHECK SEAL		50	FMS	SA2301	PILOT VALVE
8		CB1101	MAIN PISTON		51		SA2403	TRIGGER VALVE STEM
9		CB1201	COLLAR		52	FMS	SA2501	TRIGGER VALVE SEAT
10		CB1401	CYLINDER CAP		53	FMS	SA2601	TRIGGER VALVE SEAT
11		CC0801	END CAP		54		SA3001	COMPRESSION SPRING
12		CC5301	COMPRESSION SPRING		55		UL0103	BODY
13		CC5501	PISTON STOP		56	FMS	UL1801	TRIGGER
14		CC5701	SPACER		57	FMS	UL1901	CONTACT LEVER
15		FA1401	LATCH		58		UL2001	STOP PLATE
16		FA2001	SPRING		59	FMS	UL2101	SPRING
17		FB2501	PISTON STOP		60	FMS	UL2201	SPRING
18	FMS	FC2501	PUSHER SPRING		61		UL3101	SIDE PLATE(L.H.)
19		FD1501	SPACER		62		WA0101	DRIVER
20		FD2501	COVER PLATE(A)		63	FMS	WA0201	NOZZLE
21		FE1101	EXHAUST CAP		64		WA0301	BUMPER
22		FE1201	EXHAUST CAP RING		65		WA0303W	DRIVER ASSY.
23	FMS	KF0408	FLAT HD.BOLT		66		WA0401	COVER PLATE(B)
24		KF0412	FLAT HD.BOLT		67		WA0501	GUIDE PLATE
25		KF0516	FLAT HD.BOLT		68		WA1501	SUPPORT
26		KM0408	HEX.SOC.HD.BOLT		69		WA1602	SAFETY
27		KM0414	HEX.SOC.HD.BOLT		70		WA1701	SAFETY GUIDE
28		KM0620	HEX.SOC.HD.BOLT		71		WA1801	SAFETY GUIDE
29		KM0625	HEX.SOC.HD.BOLT		72		WA3001	MAGAZINE SEAT
30		KP3015	PARALLEL PIN		73		WA3401	FRONT PLATE
31		KR0406	BUTTON HD.BOLT		74		WA3502	MAGAZINE CAP
32		KS2516	SPRING PIN		75	FMS	WA3601	STOP PLATE
33	FMS	KS3016	SPRING PIN		76		WA3801	PUSHER
34		KS3024	SPRING PIN		77		WA4002	ADJUSTMENT RAIL
35		KS3028	SPRING PIN		78	FMS	WC1001	PUSHER STOP	ECO101538
36	FMS	OA016A	O-RING		79	FMS	WC1101	SPRING	ECO101537
37		OA127A	O-RING		80	FMS	WC1301	SCREW SEAT	ECO101539
38	FMS	OA136A	O-RING		81		YE2501	E-RING
39	FMS	OB032A	O-RING		82		NEO1005006N	SPRING WASHER
40		OG075A	O-RING		83		YL0610	LOCK NUT
41	FMS	OP006A	O-RING		84		YW0601	FLAT WASHER
42	FMS	OP009A	O-RING				WA0601	MAGAZINE CAP
43		OP020A	O-RING
