PNEUMATIC COMPOSITE PINNER OM XPRO-RIP25

PNEUMATIC COMPOSITE PINNER OM XPRO-RIP25

Name: PNEUMATIC COMPOSITE PINNER OM XPRO-RIP25
Brand: Kaymo
SKU: XPRO-PPRIP25
Price: 1.0 INR
Availability: InStock

SKU: XPRO-PPRIP25

The RAPTOR® P/18 Composite 18-Gauge Pin is a non-metal fastener that offers superior bonding and seamless finishing. Perfect for woodworking, molding, and decorative trim applications, Read More...

Features:

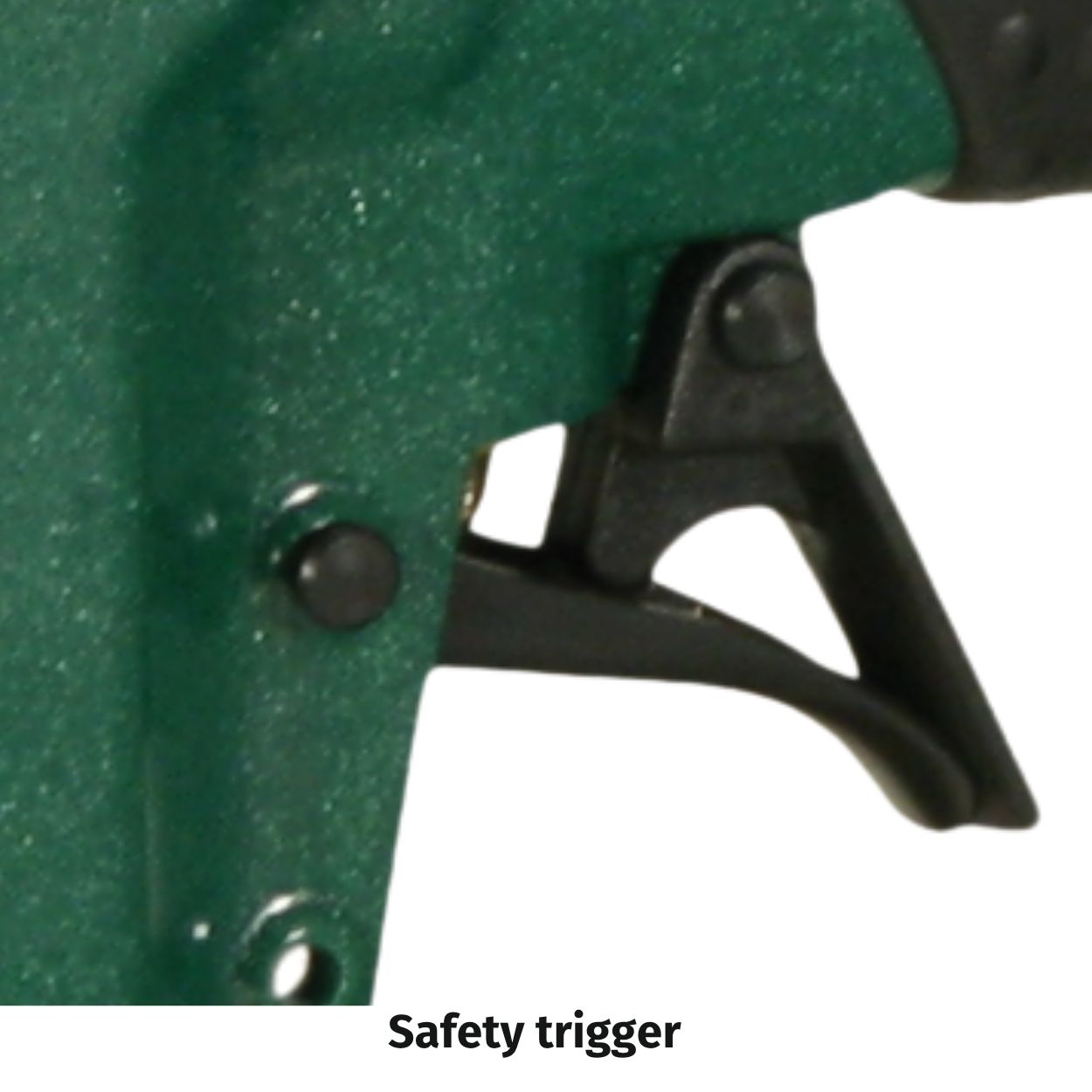

Safety trigger
Rear exhaust with silencer

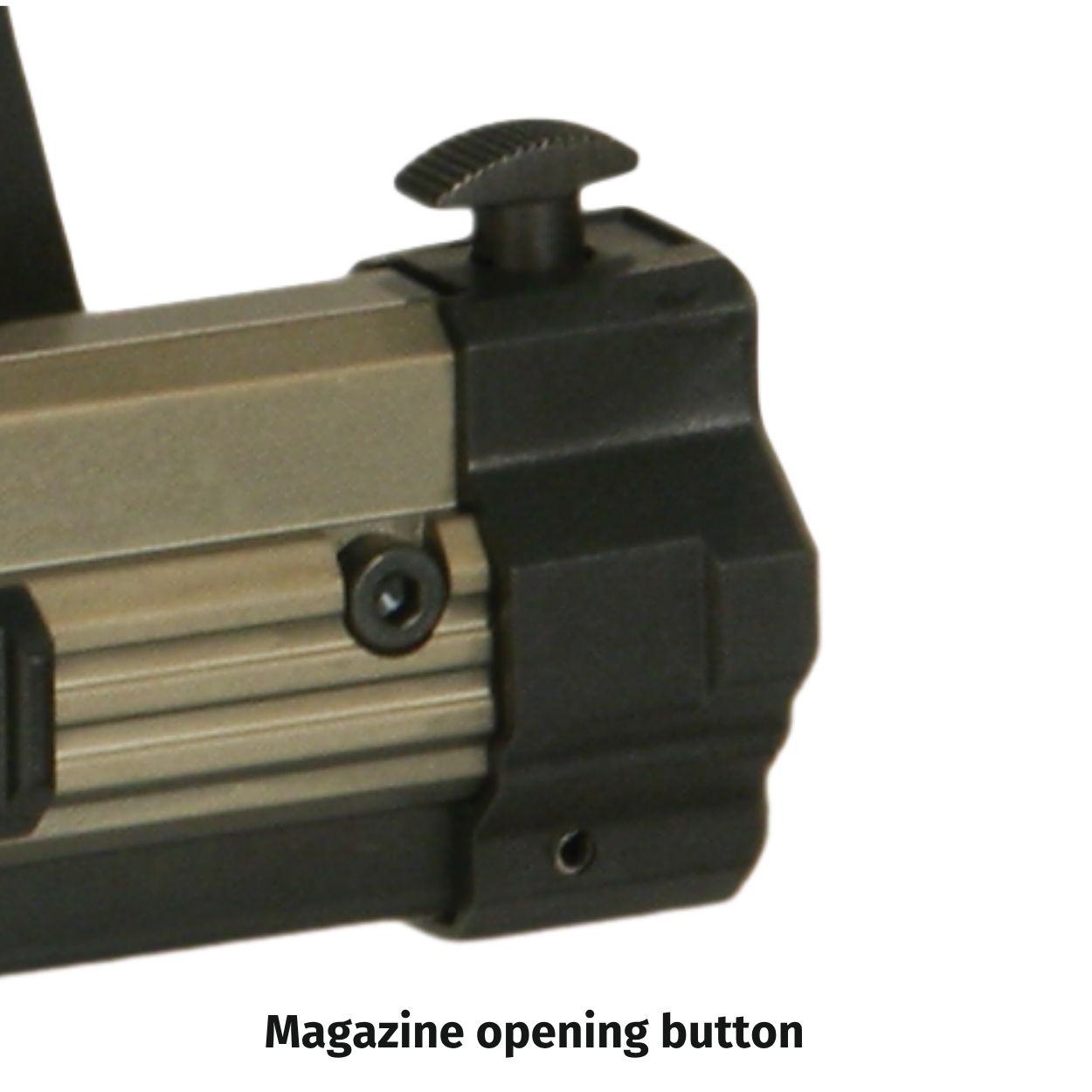

Magazine opening catch

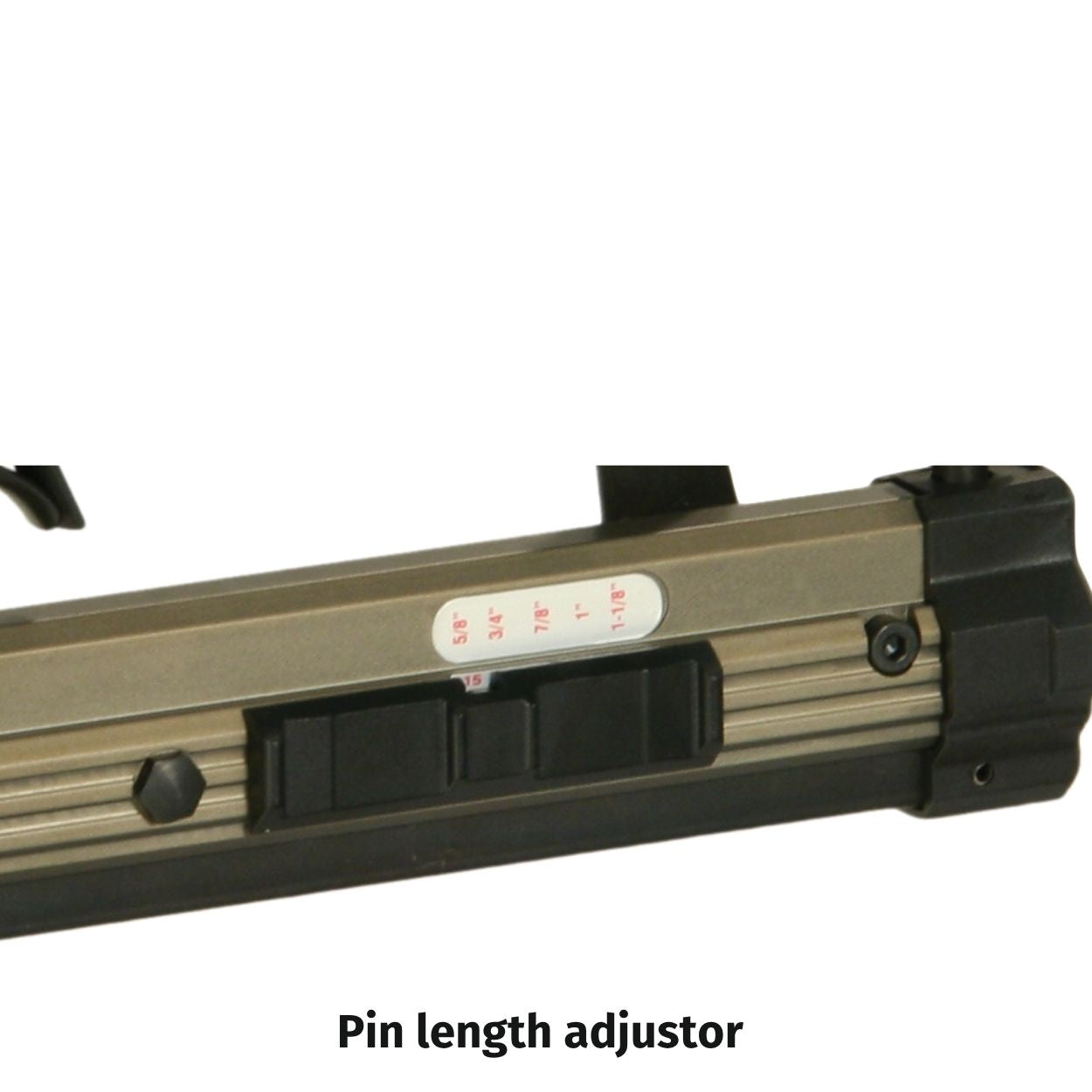

Pin length adjuster

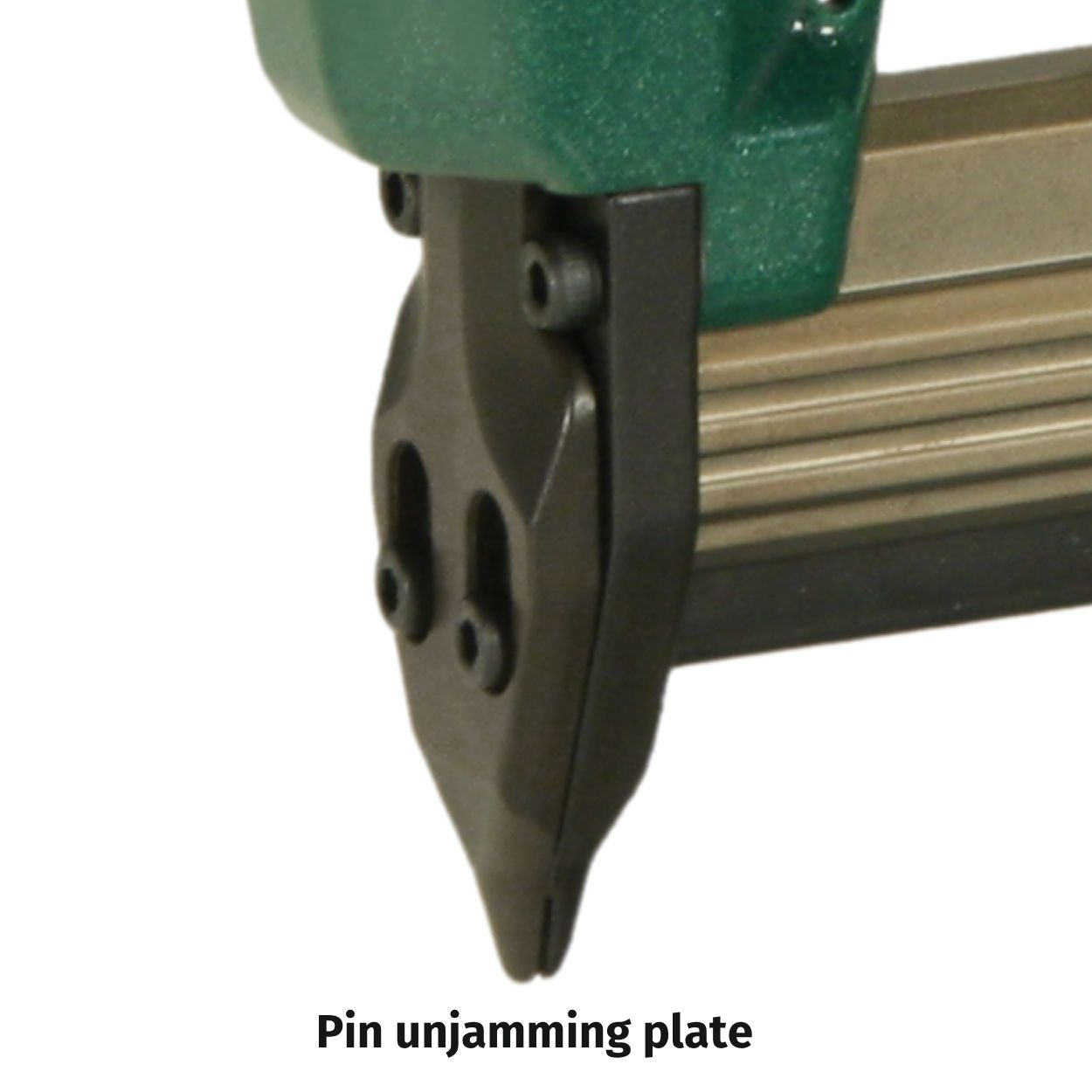

Pin unjamming plate
Fully closed metal magazine plate

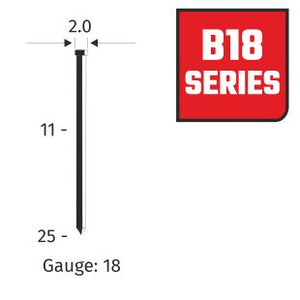

Fastener Range: 11mm – 25mm

Applications:

Plywood manufacturing
Wooden doors
Ship & boat building

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

COMPOSITE BRAD NAILS 18G SERIES

AIR FILTER + REGULATOR LUBRICATOR SET KAYMO 1/2" WITH GAUGE

ADJUSTABLE AIR BLOW GUN KAYMO 1/4" PT WITH 10 cm SS NOZZLE & PLUG

Blow Up

Spares

		TOOL NAME:	XPRO-PPRIP25					REV.1ST APRIL 2022
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
0.06	FMS	2000006	O-RING		68.04		2006804	SPACER
0.12	FMS	2000012	O-RING		72.07		2007207	SUPPORT
0.13	FMS	2000013	O-RING		76.04	FMS	2007604	PIN
0.14	FMS	2000014	O-RING		76.14		2007614	PIN
0.26	FMS	2000026	O-RING		80.07	FMS	2008007	TRIGGER LOCK
0.27	FMS	2000027	O-RING		81.09	FMS	2008109	TRIGGER
0.35	FMS	2000035	O-RING		81.15	FMS	2008115	TRIGGER
1.29	FMS	2000129	O-RING		81.35		2008135	ADJUSTING LEVER
1.33	FMS	2000133	O-RING		86.57		2008657	SCREW
4.1	FMS	2000410	SCREW	KM0406	90.1	FMS	2009010	SPRING	P1115203362
4.12	FMS	2000412	SCREW	KM0412	90.11		2009011	SPRING
4.14		2000414	SCREW		91.02	FMS	2009102	SPRING
4.18		2000418	SCREW		93.02	FMS	2009302	SPRING	UH0901
4.22		2000422	SCREW		01.21.1	FMS	20001211	GASKET
4.5		2000450	SCREW		01.21.3	FMS	20001213	O-RING 01.21.3
7.03		2000703	BALL		03.06.3		20003063	SCREW
7.05	FMS	2000705	BALL		04.08.2		20004082	SCREW
7.25		2000725	HEX BAR WRENCH		05.08.1		20005081	SCREW
7.3		2000730	HEX BAR WRENCH		12.16.1	FMS	20012161	PIN
9.02	FMS	2000902	ELASTIC RING	YE2501	14.18.1	FMS	20014181	PIN
20.01		2002001	BODY		20.09.15		2200915	DRIVER
22.07		2002207	HEAD		30.07.3	FMS	20030073	PISTON
23.02		2002302	EXTENSION		40.04.1		20040041	VALVE ASSY
24	FMS	2002400	SILENCER	971004	53.00.17		2530017	MAGAZINE
25.04		2002504	EXHAUST DEFLECTOR		59.02.2		20059022	ADJUSTING
26.08		2002608	CYLINDER		63.00.08		2630008	SLIDER
28	FMS	2002800	GASKET		71.01.15		2710115	PUSHER
32.05	FMS	2003205	BUMPER		81.09.15		2810915	NOSE
39	FMS	2003900	EXHAUST GASKET		91.00.15		2910015	NOSE PLATE
45.04	FMS	2004504	RING		91.03X	FMS	2009103X	SPRING
54.03	FMS	2005403	TRIGGER VALVE		92.01X	FMS	2009201X	SPRING
55.06	FMS	2005506	BUSH		94.02.2		20094022	CONNECTING ROD
61.03		2006103	DX GUIDE

One Sheeter

Application

BOAT BUILDING

To fix layered veneer to strip planking
