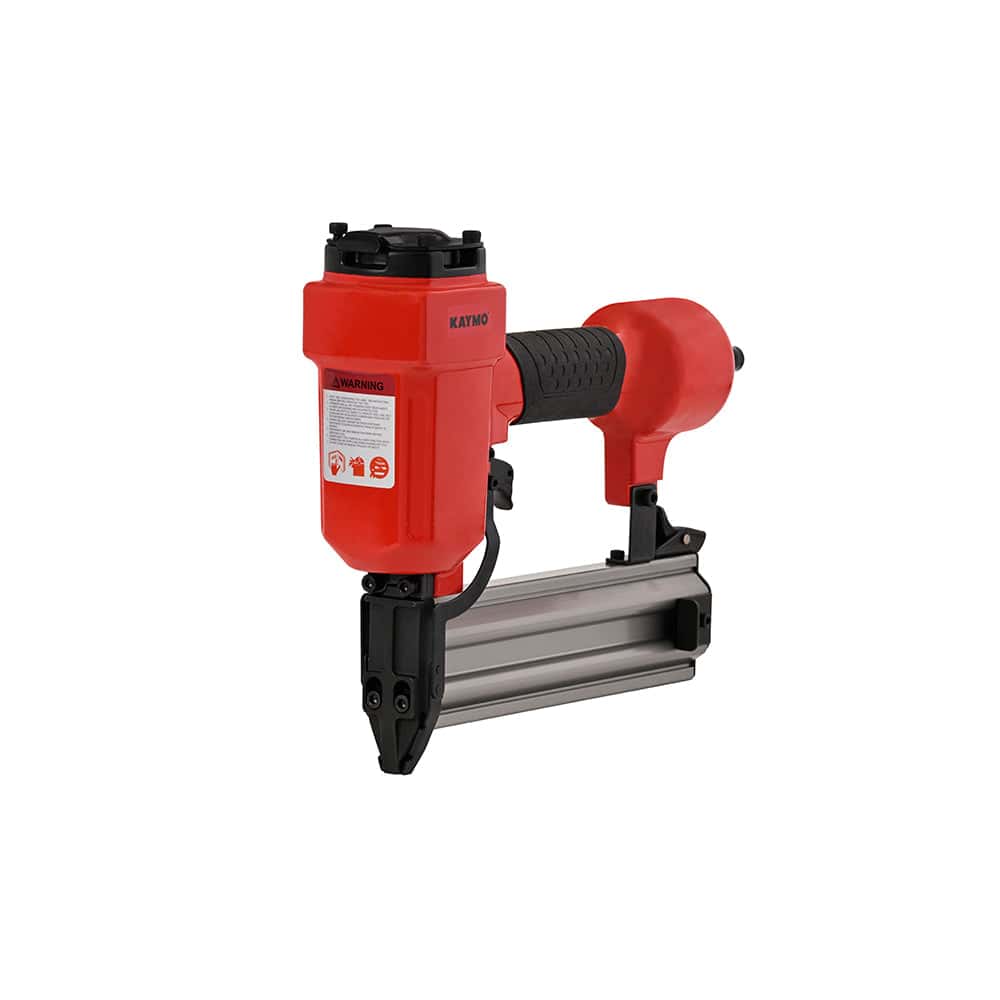

PNEUMATIC BRAD NAILER KAYMO NEO-T50

Name: PNEUMATIC BRAD NAILER KAYMO NEO-T50
Brand: Kaymo Company
SKU: NEO-T50
Price: 1.0 INR
Availability: InStock

SKU: NEO-T50

Blow Up Spares TOOL MODEL: NEO-T50 SR FMS PART CODE PART NAME ALT CODE...

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

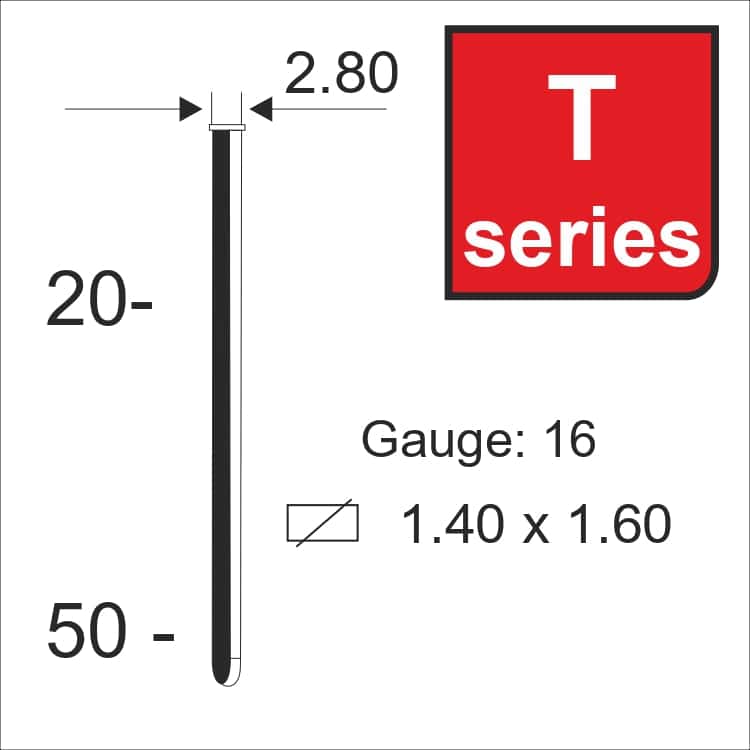

BRAD NAILS KAYMO 16G SERIES

Blow Up

Spares

		TOOL MODEL:	NEO-T50
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1	FMS	NEOT50001	HEX BOLT M5X25	ECO16G6405	30	FMS	NEOT50030	O-RING 11.2X1.9	NEOF50045
2	FMS	NEOT50002	SPRING WASHER 5	S0410500	31	FMS	NEOT50031	TRIGGER PLATE	NEOT50060

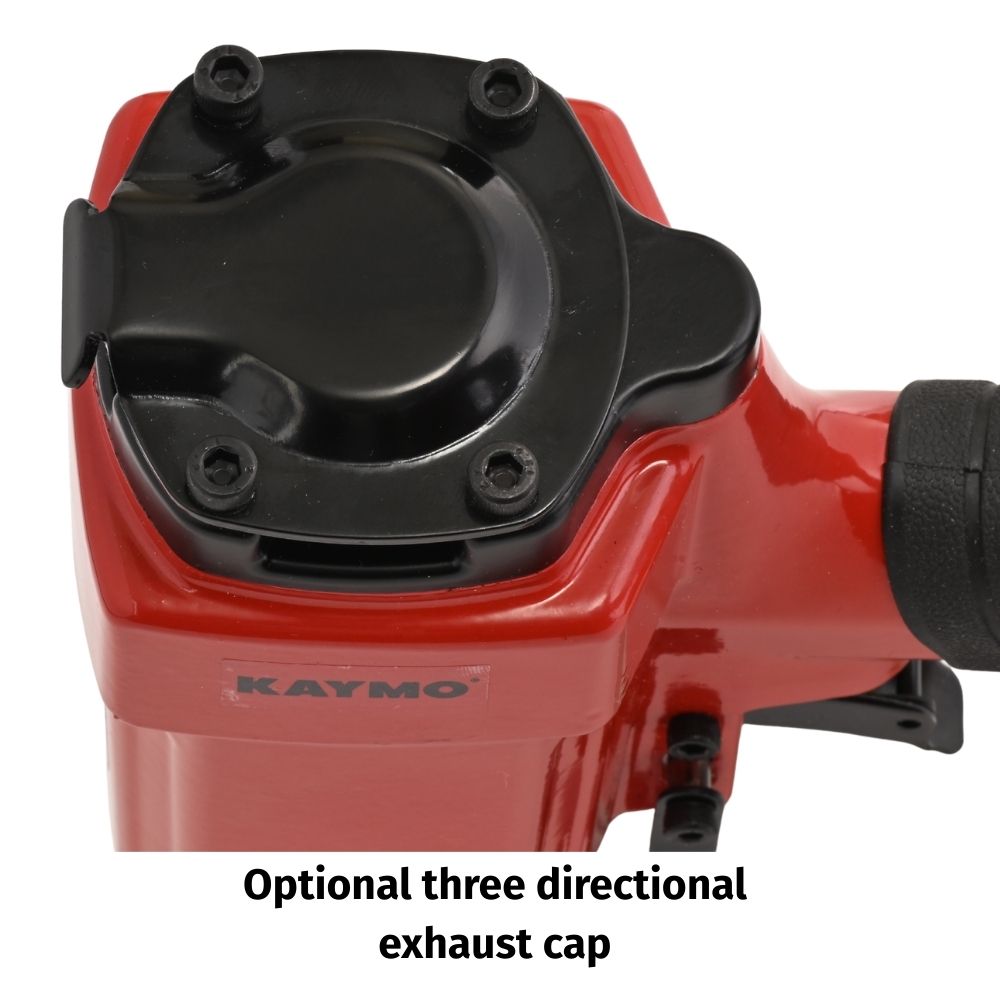

3	FMS	NEOT50003	EXHAUST COVER		32	FMS	NEOT50032	NUT M4	NEO80029
4	FMS	NEOT50004	SEAL		33	FMS	NEOT50033	TRIGGER	NEOT50060
5	FMS	NEOT50005	COMPRESSION SPRING		34	FMS	NEOT50034	SPRING PIN 2.5X16	NEOT50060
6	FMS	NEOT50006	CYLINDER CAP		35	FMS	NEOT50035	HEX BOLT M4X32
7	FMS	NEOT50007	O-RING 42.2X1.4	NEO1005053N	36	FMS	NEOT50036	BUSHING
8	FMS	NEOT50008	O-RING 11.8X2.5		37	FMS	NEOT50037	HEX BOLT M4X45

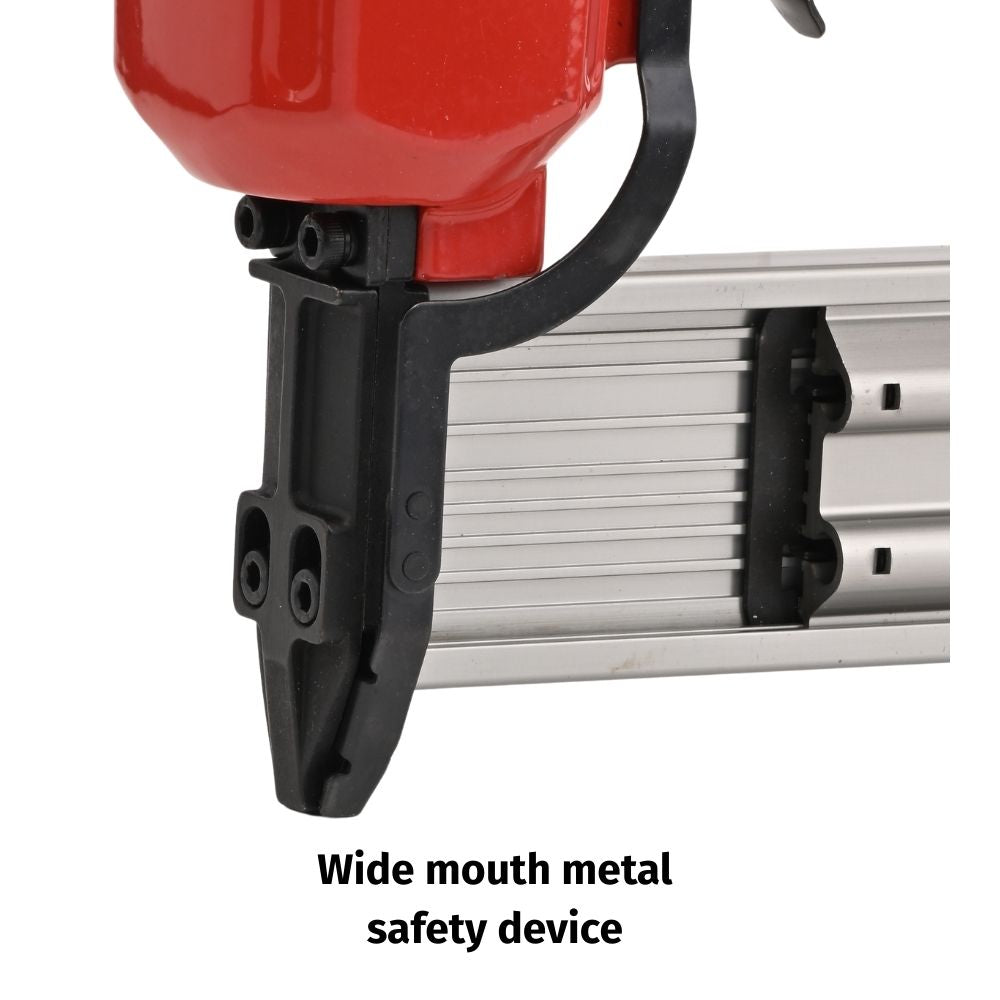

9	FMS	NEOT50009	O-RING 40.3X2.5	NEOF50015	39	FMS	NEOT50039	SAFETY GUIDE FRAME
10	FMS	NEOT50010	HEAD VALVE PISTON		40	FMS	NEOT50040	HEX BOLT M5X10	KM0510
11	FMS	NEOT50011	O-RING 34X3.5		41	FMS	NEOT50041	DRIVER GUIDE COVER
12	FMS	NEOT50012	O-RING 25X3.5		42	FMS	NEOT50042	HEX BOLT M4X14
13	FMS	NEOT50013	SUPPORT COLLAR		43	FMS	NEOT50043	SPACER
14	FMS	NEOT50014	O-RING 29.3X2.5		44	FMS	NEOT50044	DRIVER GUIDE
15	FMS	NEOT50015	PISTON DRIVER		45		NEOT50045	FIXED MAGAZINE
16	FMS	NEOT50016	O-RING 39.3X2.5		46	FMS	NEOT50046	MOBILE MAGAZINE
17	FMS	NEOT50017	CYLINDER		47	FMS	NEOT50047	SPRING PIN 2.5X12
18	FMS	NEOT50018	O-RING 39X2		48	FMS	NEOT50048	SPRING HOLDER
19	FMS	NEOT50019	BUMPER		49	FMS	NEOT50049	NAIL PUSHER
20	FMS	NEOT50020	NOZZLE		50	FMS	NEOT50050	COMPRESSION SPRING
21	FMS	NEOT50021	SEAL (7.5-4.5-3)		51	FMS	NEOT50051	MAGAZINE END STOPPER

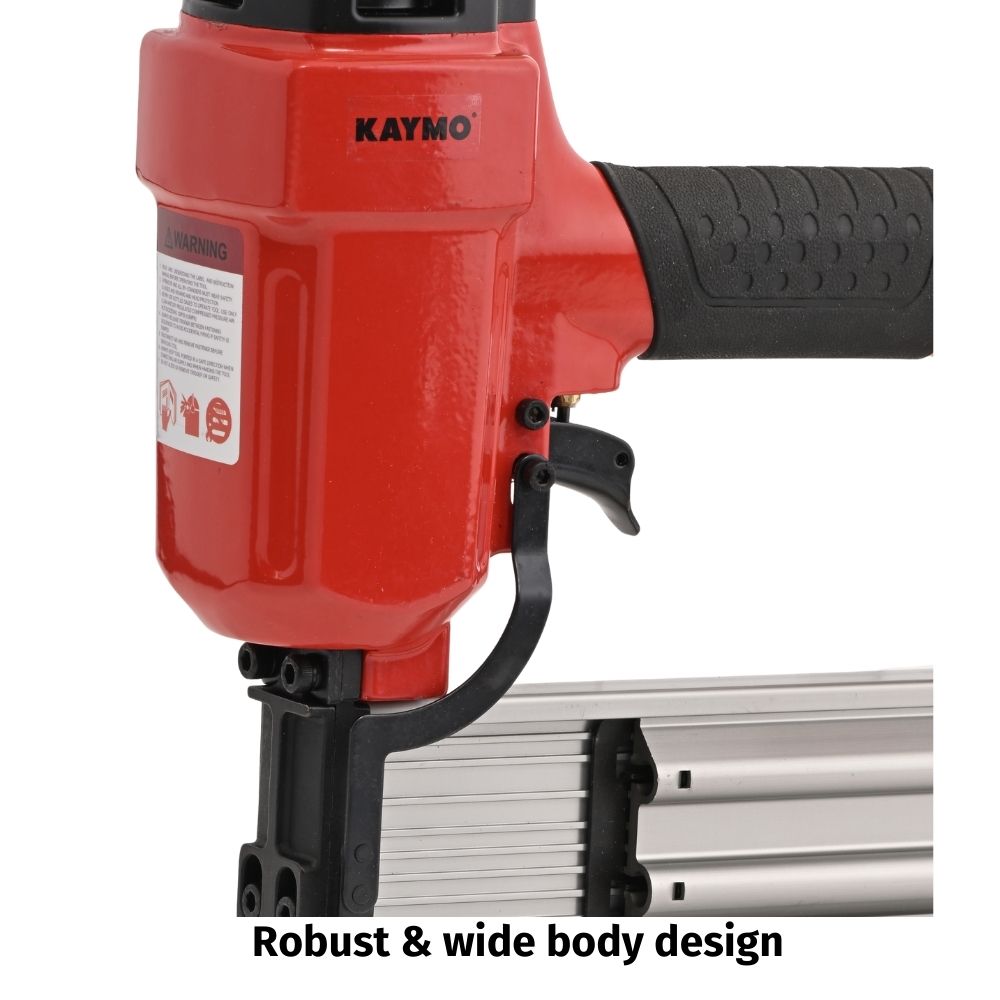

22		NEOT50022	BODY		52	FMS	NEOT50052	INLAID STRIP
23		NEOT50023	AIR PLUG	S3120PMA5208	53	FMS	NEOT50053	HEX BOLT M4X8	KM0408
24	FMS	NEOT50024	SEAL (12.5-8-1.5)	NEOF50039	54	FMS	NEOT50054	STEP PIN 3X13.3	NEOF50052
25	FMS	NEOT50025	TRIGGER VALVE HEAD		55		NEOT50055	CLICK FIXER SUPPORT
26	FMS	NEOT50026	COMPRESSION SPRING	NEOF50041	56	FMS	NEOT50056	O-RING 1.2X1.9	NEOF50034
27	FMS	NEOT50027	O-RING 2.2X1.5	NEOF50042	57	FMS	NEOT50057	TORSION SPRING	NEOF50069
28	FMS	NEOT50028	TRIGGER VALVE STEM	NEOF50043	58	FMS	NEOT50058	CLICK FIXER	NEOF50049
29	FMS	NEOT50029	TRIGGER VALVE GUIDE	NEOF50044	59	FMS	NEOT50059	HEX BOLT M5X14
					31.33.34	FMS	NEOT50060	FULL METAL TRIGGER

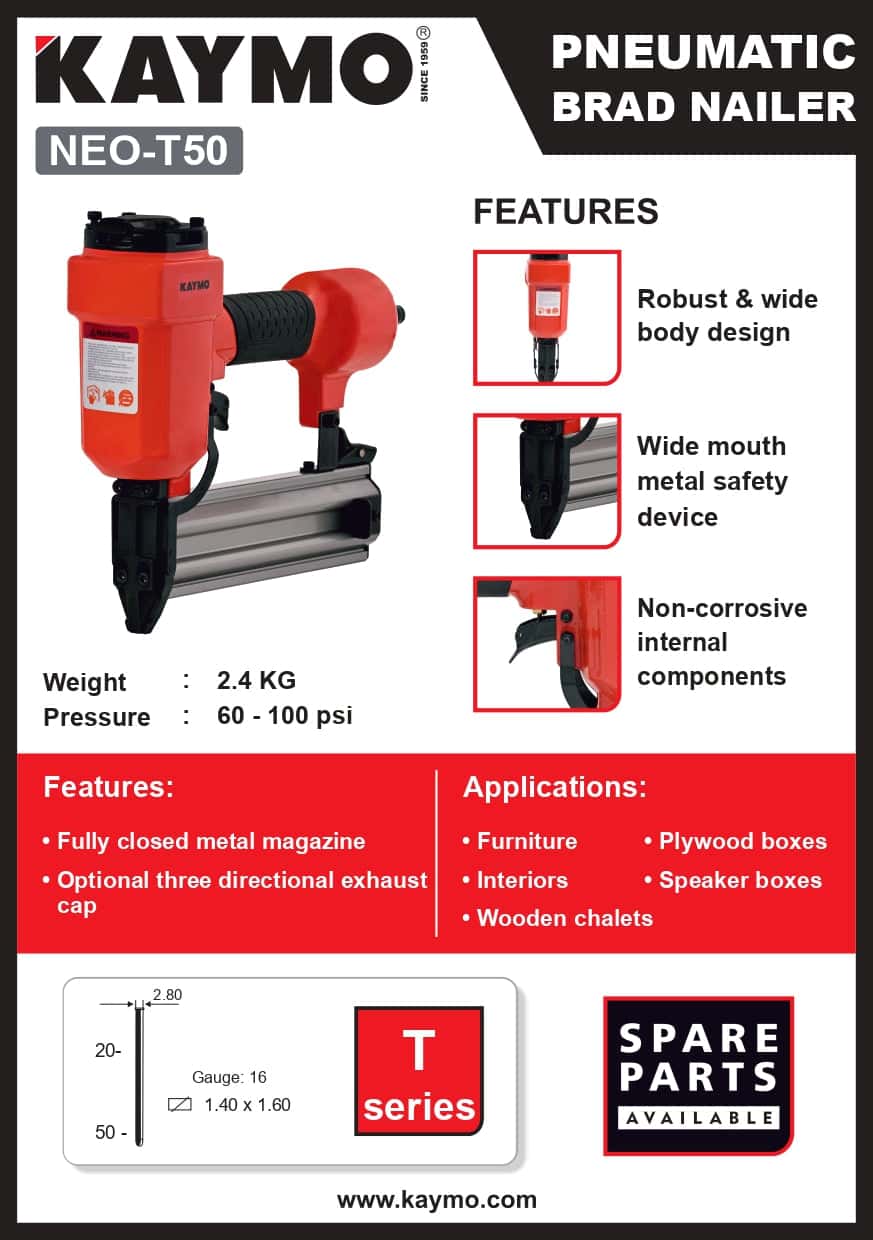

One Sheeter

Application

FURNITURE	Wood to wood joining
INTERIORS	Wood to wood joining
WOODEN CHALETS	Wood to wood joining
PLYWOOD BOXES	Wood to wood joining
SPEAKER BOXES	Wood to wood joining

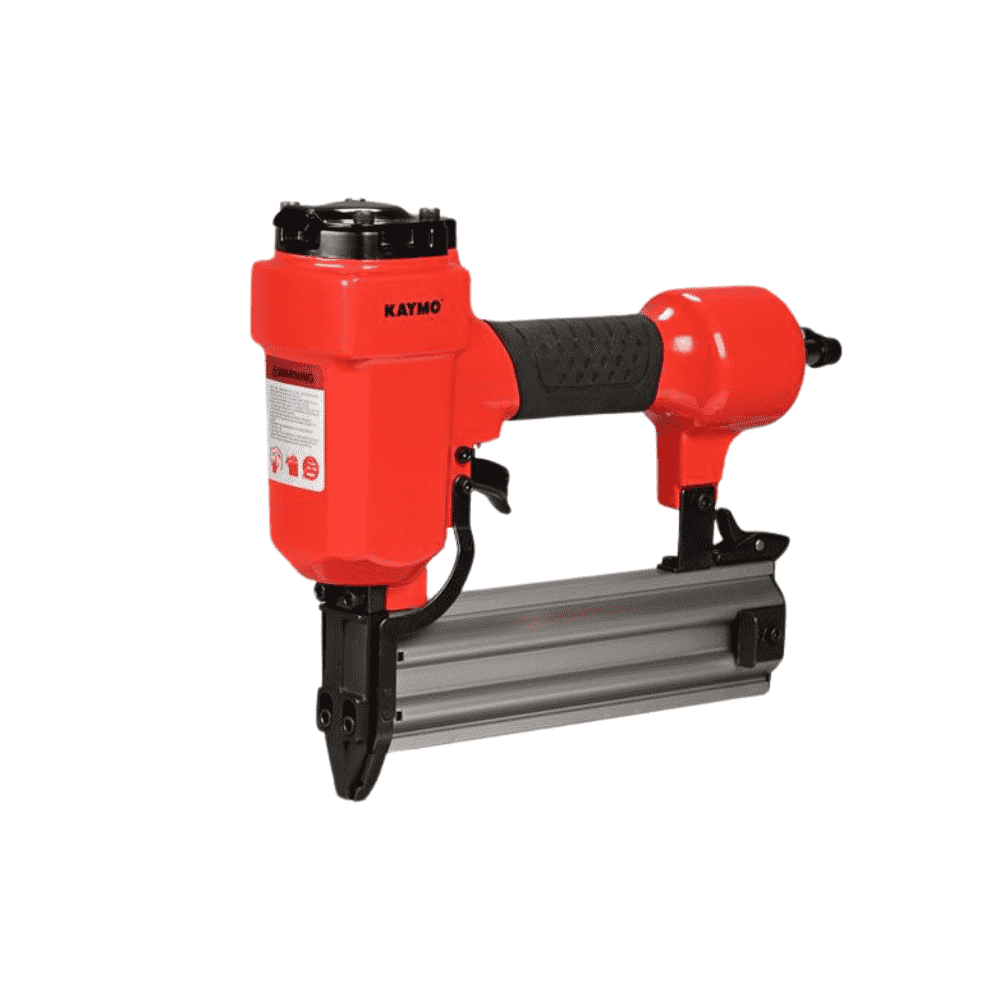

PNEUMATIC BRAD NAILER KAYMO NEO-T50

Compatible Products

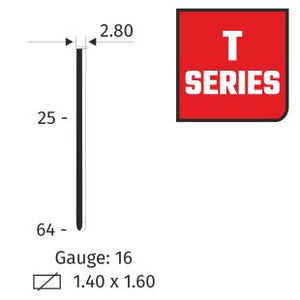

BRAD NAILS KAYMO 16G SERIES

Blow Up

Spares

One Sheeter

Application
