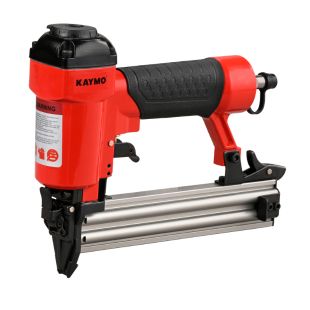

PNEUMATIC BRAD NAILER KAYMO NEO-F32

Name: PNEUMATIC BRAD NAILER KAYMO NEO-F32
Brand: Kaymo
SKU: NEO-F32
Price: 1.0 INR
Availability: InStock

SKU: NEO-F32

The KAYMO NEO-F32 is a high-performance pneumatic brad Nailer built for precision and durability. Weighing just 1.2 kg, it is ideal for professional use in Read More...

Features:

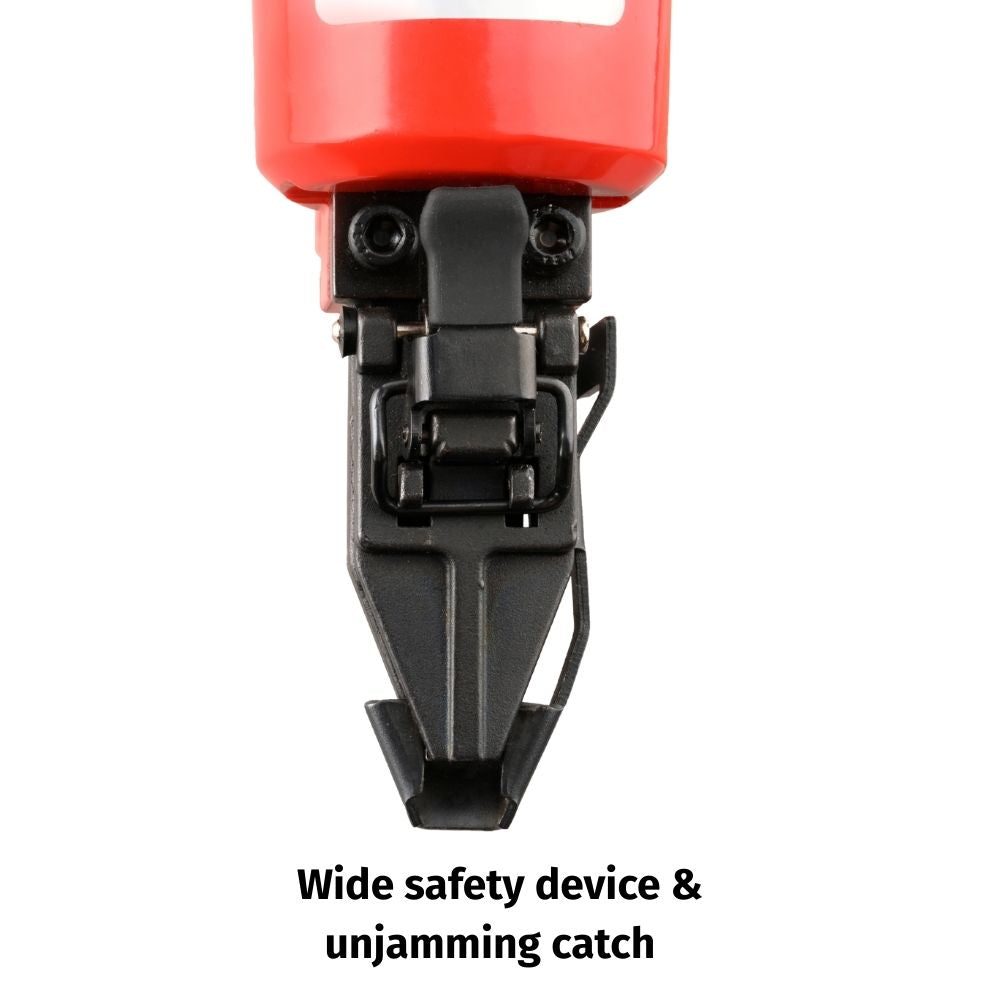

Wide safety device with unjamming catch for enhanced operator protection.

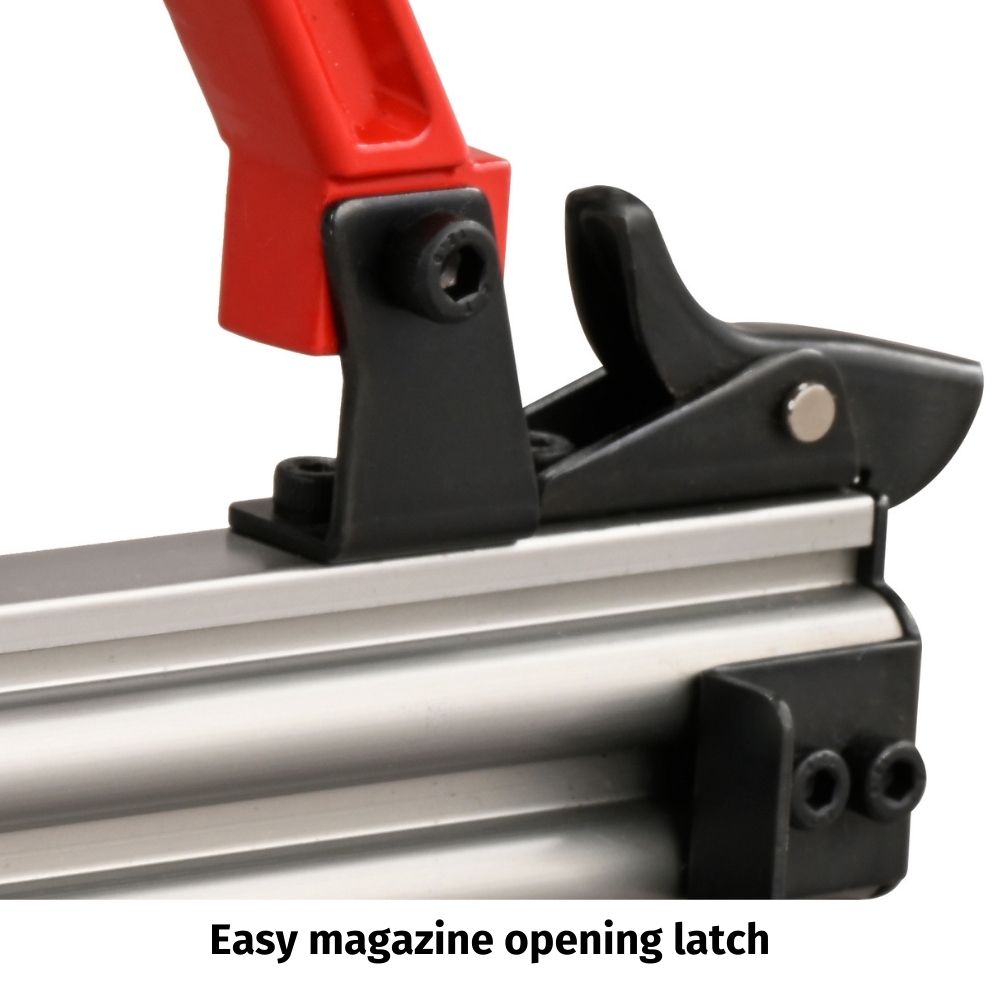

Easy opening latch for fast reloading and maintenance.

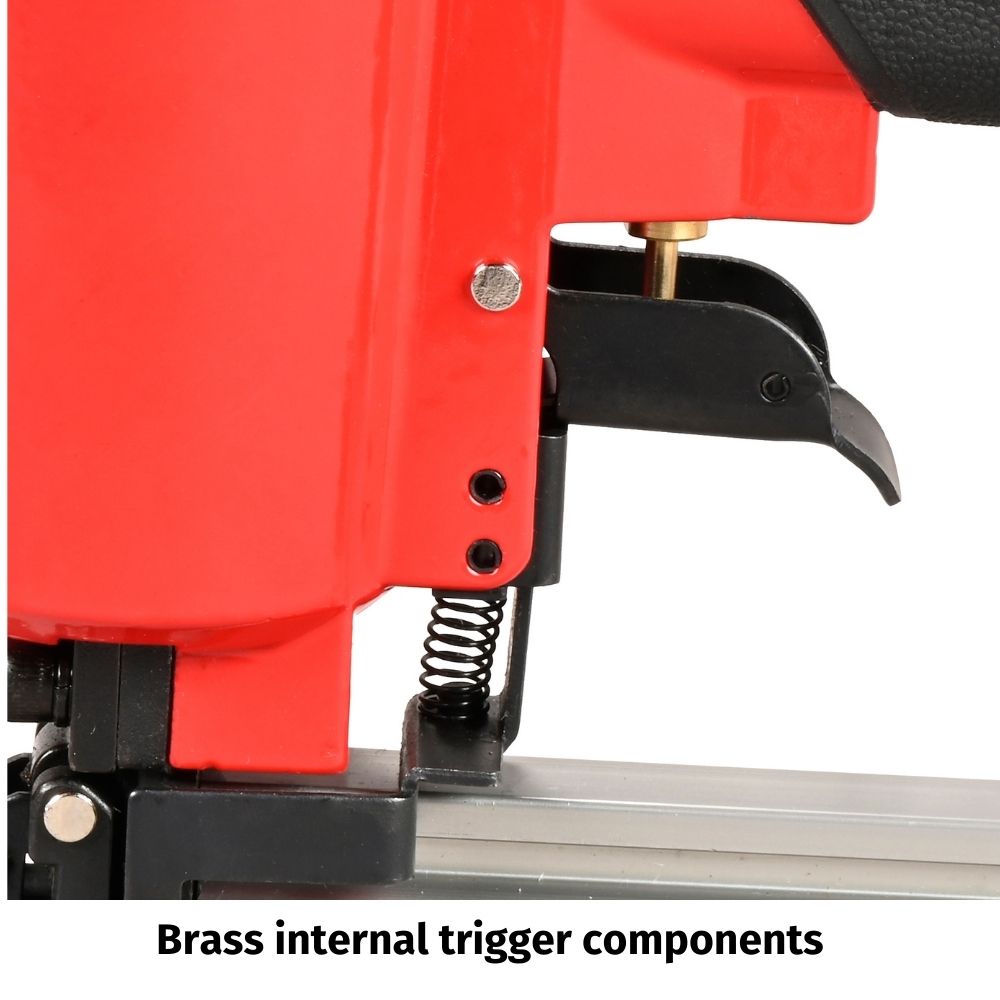

Brass internal trigger components for longer tool life.

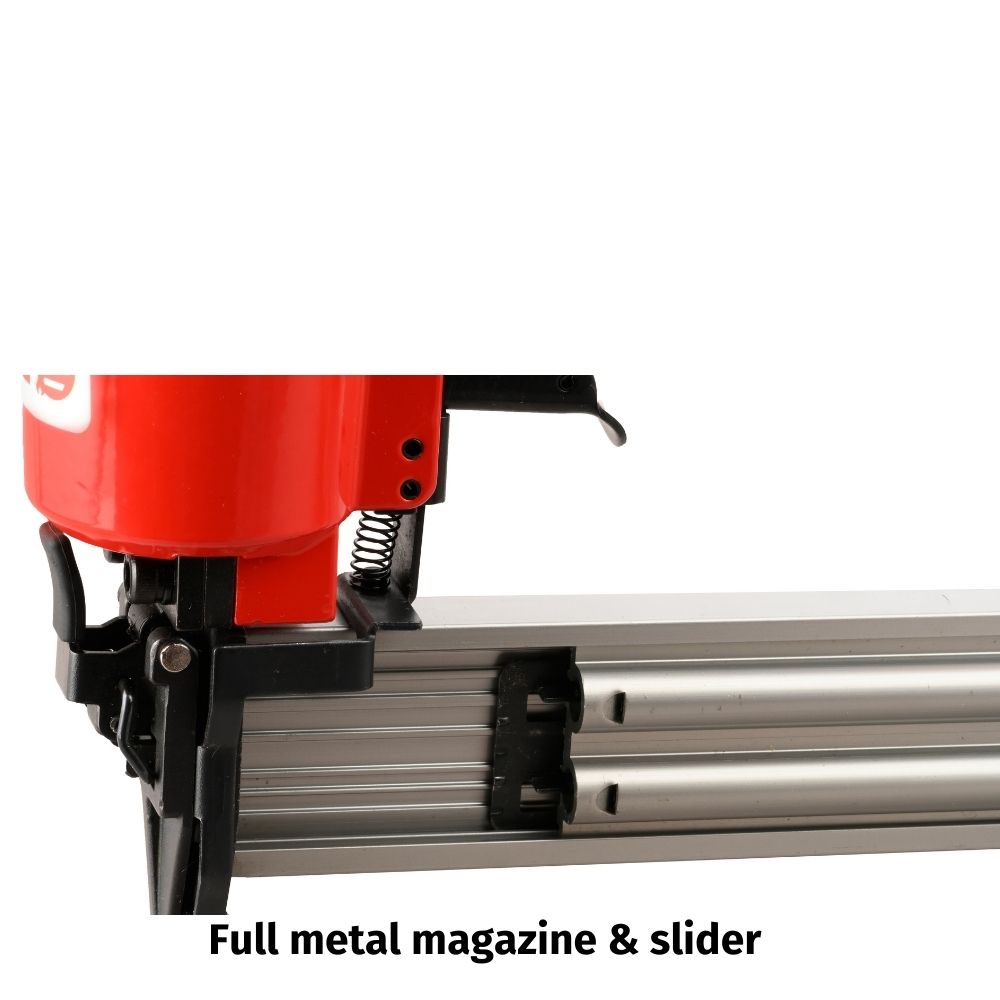

Full metal magazine for rugged use.
360° adjustable top air exhaust to direct air away from the user

Applications:

Sofas & chairs
Modular kitchens
Paint brushes & gift articles
Carrom boards
Kite spindles

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

BRAD NAILS KAYMO 18G SERIES

1/2" F/RL AIR CONTROL UNIT, PT FRL884

B80 1/4" PT AIR BLOW GUN WITH 12CM STEEL TUBE

Blow Up

Spares

		TOOL MODEL:	NEO-F32					REV.1ST APRIL 23
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1		NEOF32001	Hex Bolt M4X12	30504120166	35		NEOF32035	O-ring 1.2X1.9	NEOF50034
2		NEOF32002	Bush	NEOF50002	36		NEOF32036	Step Pin 3X26.3
3		NEOF32003	Exhaust Cover	NEOF50003	37		NEOF32037	Spring pin 3X26
4		NEOF32004	O-ring 7.8X1.9	NEOF50005	38		NEOF32038	Trigger Plate
5		NEOF32005	Hex Bolt M5X20	KM0520	39		NEOF32039	Spring Pin 2.5X17
6		NEOF32006	Cylinder Cap		40		NEOF32040	Trigger Body
7		NEOF32007	Cylinder Cap Gasket		41		NEOF32041	Click Fixer	NEOF50049
8		NEOF32008	Hex Nut M5	NEOF50047	42		NEOF32042	Torsion spring	NEOF50050
9		NEOF32009	Shim	NEOF50007	43		NEOF32043	Hex Bolt M4X6	KM0406
10		NEOF32010	Compression spring	NEOF50010	44		NEOF32044	Step Pin 3X13.5	NEOF50052
11		NEOF32011	O-ring 13.6X2.4	NEOF50008	45		NEOF32045	Tall Magazine Holder	NEOF50051
12		NEOF32012	Head valve piston		46		NEOF32046	Washer 4	S0410400
13		NEOF32013	O-ring 31.3X2.5		47		NEOF32047	Fixed magazine
14		NEOF32014	Cylinder Seal		48		NEOF32048	Inlaid Strip	NEOF50054
15		NEOF32015	O ring 43.3X2.5		49		NEOF32049	Magazine end stopper
16		NEOF32016	Support Collar		50		NEOF32050	Hex Bolt M4X12	KM0412
17		NEOF32017	O-ring 28X1.8		51		NEOF32051	Compression Spring	NEOF50057
18		NEOF32018	Cylinder		52		NEOF32052	Mobile magazine
19		NEOF32019	O-ring 22.3X3		53		NEOF32053	Torsion Spring
20		NEOF32020	Piston Driver		54		NEOF32054	Hex Bolt M5X22	KM0520
21		NEOF32021	Bumper		55		NEOF32055	Washer 5	S0410500
22		NEOF32022	Nozzle	NEOF50027	56		NEOF32056	Washer	NEOF50068
23		NEOF32023	Body		57		NEOF32057	Spacer
24		NEOF32024	Rubber Grip	NEOF50022	58		NEOF32058	Hex Bolt M4X14	KM0414
25		NEOF32025	O-ring 34X3.5	NEOF50024	59		NEOF32059	Driver Guide
26		NEOF32026	End Cap	NEOF50025	60		NEOF32060	Step Pin 3X28
27		NEOF32027	Air Plug	S3120PMA5208	61		NEOF32061	Spring Pin 2.5X14
28		NEOF32028	Seal (12.5-78-1.5)	NEOF50039	62		NEOF32062	Driver Guide Cover
29		NEOF32029	Trigger valve head	NEOF50040	63		NEOF32063	Quick Release Latch
30		NEOF32030	Compression Spring	NEOF50041	64		NEOF32064	Nail pusher Unit
31		NEOF32031	O ring 2.2X1.5	NEOF50042	65		NEOF32066	Safety Guide
32		NEOF32032	Trigger valve stem	NEOF50043	66		NEOF32067	Compression spring	NEOF50029
33		NEOF32033	Trigger valve guide	NEOF50044	67		NEOF32069	Safety Tip
34		NEOF32034	O-ring 11.2X1.9	NEOF50045

One Sheeter

Application

SOFAS	To fix 3mm / 4mm veneer to wooden frame
CHAIRS	To fix upholstery to chair / stool base
MODULAR / KITCHENS	To join MDF to MDF, ply & particle board
CARROM BOARDS	To fix the back reinforcement to the frame
CARROM BOARDS	To make the board frame
PAINT BRUSHES	To fix the tin furrel onto the wooden handle
GIFT ARTICLES	To join MDF to MDF to make gift articles
GIFT ARTICLES	To join wood to wood to make gift articles
KITE SPINDLES	To join PVC reel to wooden rod to form a spindle
