PNEUMATIC BRAD NAILER KAYMO ECO-18G50 NARROW NOSE

PNEUMATIC BRAD NAILER KAYMO ECO-18G50 NARROW NOSE

Name: PNEUMATIC BRAD NAILER KAYMO ECO-18G50 NARROW NOSE
Brand: Kaymo
SKU: ECO-PB18G50NN
Price: 1.0 INR
Availability: InStock

SKU: ECO-PB18G50NN

The KAYMO ECO-PB18G50NN is a high-performance pneumatic brad nailer built for precision fastening in furniture, interior work, and wooden flooring. With an ergonomic rubber grip Read More...

Features:

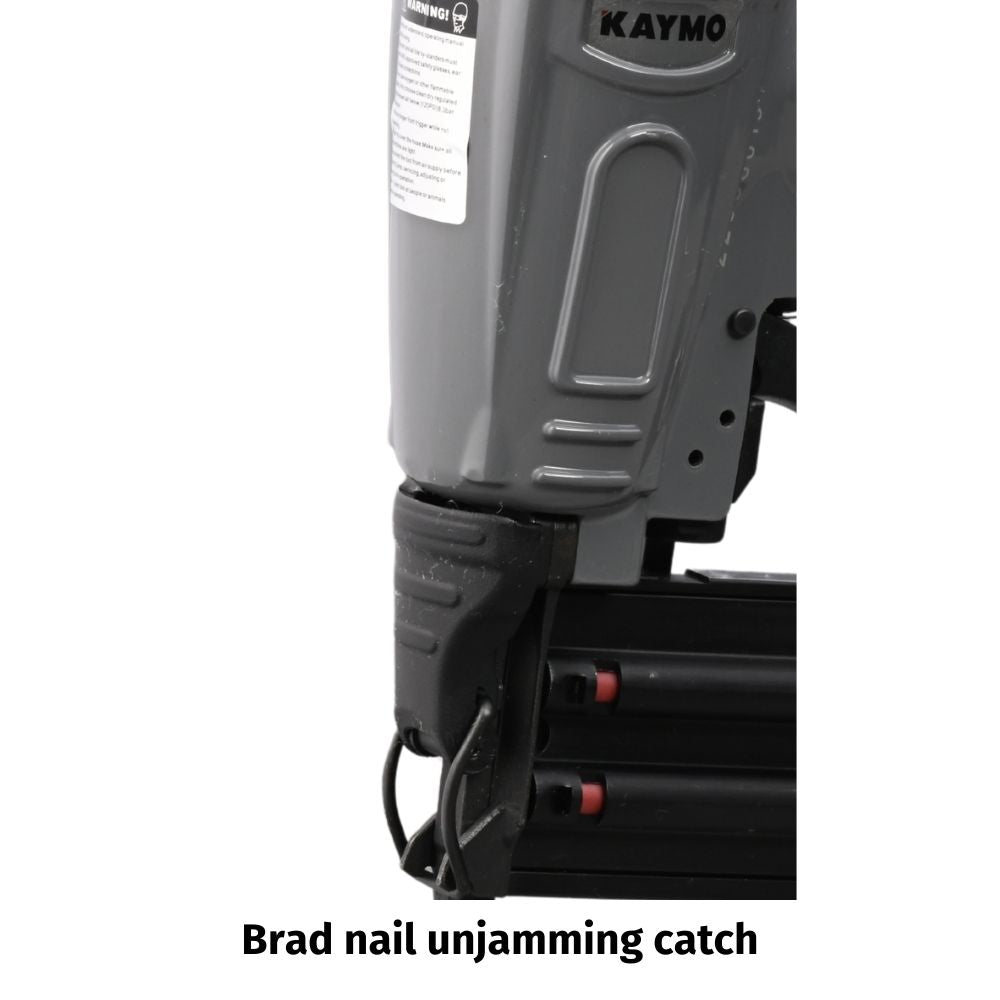

Brad nail unjamming catch
Brad nail depth adjustment

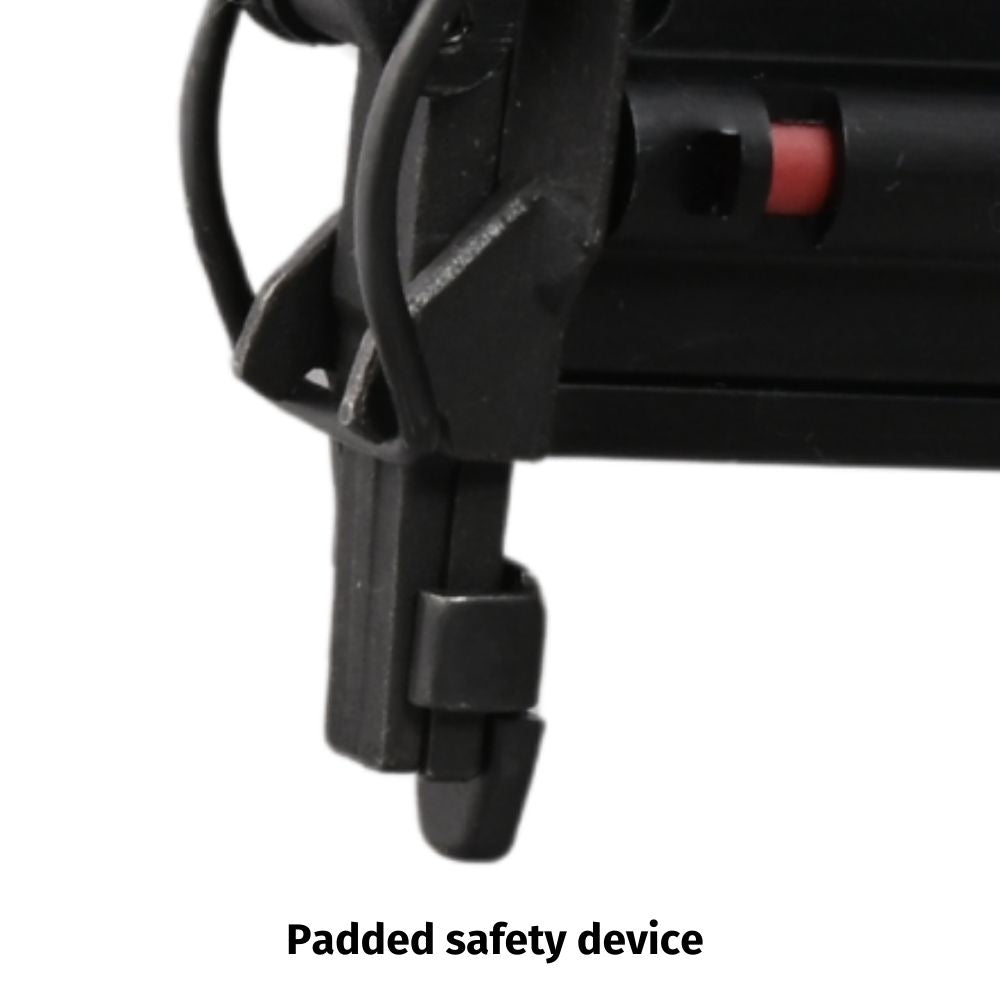

Padded safety device

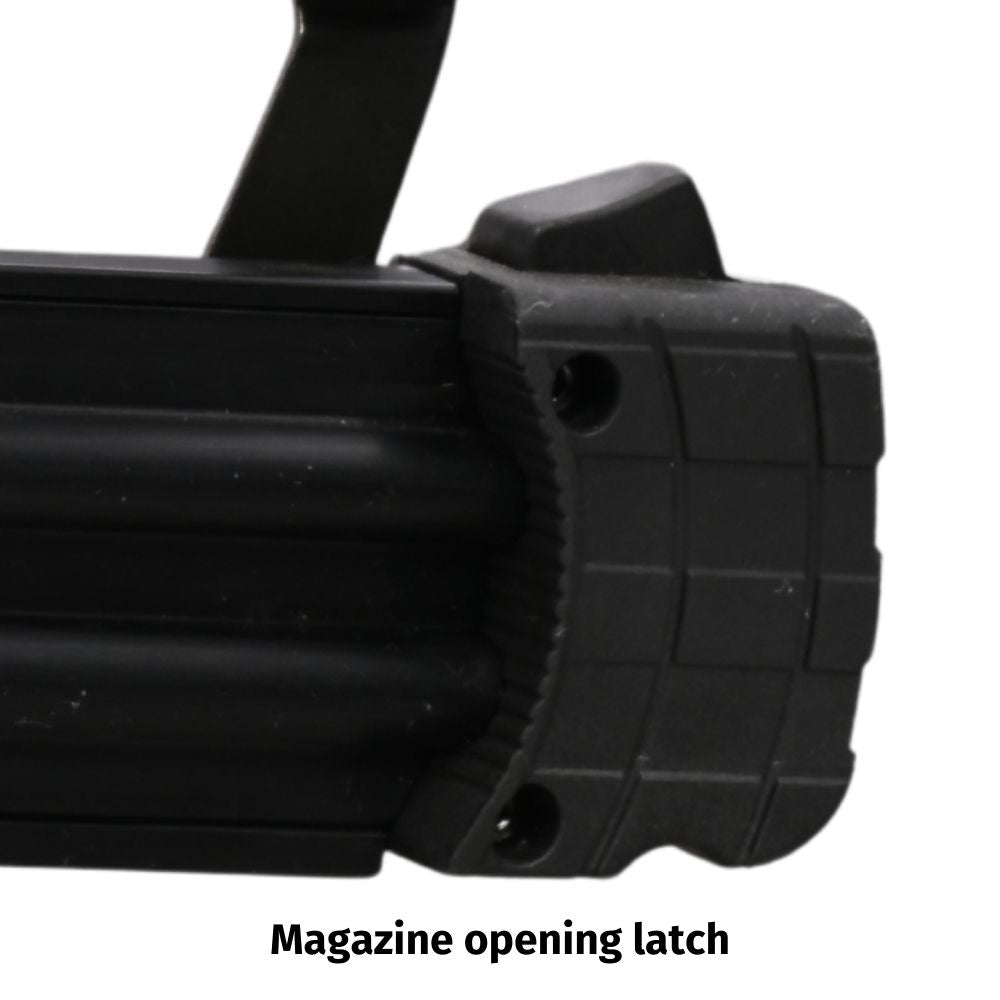

Magazine opening catch
Narrow nose for easy access
Fastener Range: 15mm - 50mm

Applications:

Chairs
Interiors
Modular kitchens
Door & window frames
Handicrafts
Wooden flooring
Carrom boards
Wooden decking

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

BRAD NAILS KAYMO 18G (F TYPE)

AIR FILTER + REGULATOR LUBRICATOR SET KAYMO 1/2" WITH GAUGE

ADJUSTABLE AIR BLOW GUN KAYMO 1/4" PT WITH 10 cm SS NOZZLE & PLUG

Blow Up

Spares

		TOOL NAME:	ECO-PB18G50NN					REV.1ST APRIL 2022
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1	FMS	ECOF50NN01	SCREW	ECO9040C01	40	FMS	ECOF50NN40	TRIGGER VALVE GUIDE	ECO9040C37
2	FMS	ECOF50NN02	BUSHING	ECO9040C02	41		ECOF50NN41	SPRING	ECO18G32037N
3	FMS	ECOF50NN03	WASHER	ECO9040C04	42	FMS	ECOF50NN42	WASHER	ECO9040C41
4	FMS	ECOF50NN04	EXHAUST COVER	ECO9040C03	43	FMS	ECOF50NN43	TRIGGER
5	FMS	ECOF50NN05	SCREW	ECO9040C05	44		ECOF50NN44	PIN	ECO9040C43
6		ECOF50NN06	WASHER	ECO9040C06	45	FMS	ECOF50NN45	TRIGGER SPRING
7		ECOF50NN07	CYLINDER CAP		46		ECOF50NN46	SPRING PIN
8		ECOF50NN08	GASKET		47		ECOF50NN47	FRONT PLATE
9	FMS	ECOF50NN09	VALVE SEAL	ECO9040C09	48		ECOF50NN48	PIN
10	FMS	ECOF50NN10	SPRING	HY18G32009	49	FMS	ECOF50NN49	SPRING PIN	ECO9040C32
11	FMS	ECOF50NN11	O-RING 15.7*2	ECO9040C10	50		ECOF50NN50	LATCH COVER
12	FMS	ECOF50NN12	VALVE	HY18G32012	51		ECOF50NN51	LATCH ASSEMBLY
13	FMS	ECOF50NN13	O-RING 38.8*3	ECO9040C11	52		ECOF50NN52	SCREW	KM0520
14	FMS	ECOF50NN14	O-RING 33.5*3.5	ECO9040C13	53		ECOF50NN53	PLATE
15	FMS	ECOF50NN15	STOPPED WASHER	ECO9040C14	54		ECOF50NN54	DRIVE GUIDE
16	FMS	ECOF50NN16	COLLAR	ECO9040C15	55	FMS	ECOF50NN55	SCREW	KM0412
17	FMS	ECOF50NN17	O-RING 50.5X2.5	ECO9040C16	56	FMS	ECOF50NN56	RAIL	HY18G50039
18	FMS	ECOF50NN18	CYLINDER	ECO9040C19	57	FMS	ECOF50NN57	FEEDER SHOE
19	FMS	ECOF50NN19	O-RING 36.3*2.5	ECO9040C20	58		ECOF50NN58	FEEDER SHOE SEAT
20	FMS	ECOF50NN20	O-RING 35.3*2.5	ECO9040C21	59	FMS	ECOF50NN59	SPRING	HY18G32050
21	FMS	ECOF50NN21	O-RING 28.3*3	ECO9040C17	60		ECOF50NN60	MOVABLE MAGAZINE
22	FMS	ECOF50NN22	PISTON ASSEMBLY		61	FMS	ECOF50NN61	SCREW M4*16	KM0412
23	FMS	ECOF50NN23	BUMPER	ECO9040C22	62		ECOF50NN62	MAGAZINE PLATE
24		ECOF50NN24	BODY		63		ECOF50NN63	COVER
25	FMS	ECOF50NN25	JOINT GUIDE		64		ECOF50NN64	SPRING
26	FMS	ECOF50NN26	SAFE GUIDE		65		ECOF50NN65	BUSHING
27		ECOF50NN27	SPRING		66		ECOF50NN66	LOCK
28		ECOF50NN28	SAFE BRACKET A		67		ECOF50NN67	NUT	30604070001
29		ECOF50NN29	SAFE BRACKET B		68		ECOF50NN68	FIXED MAGAZINE
30		ECOF50NN30	BUSHING		69		ECOF50NN69	WASHER
31		ECOF50NN31	SCREW		70		ECOF50NN70	SCREW
32		ECOF50NN32	SAFE RUBBER		71	FMS	ECOF50NN71	SCREW	KM0520
33	FMS	ECOF50NN33	SPRING PIN	ECO9040C33	72		ECOF50NN72	SUPPORT
34	FMS	ECOF50NN34	SEAL	ECO9040C34	73		ECOF50NN73	NUT	ECO9040C70
35	FMS	ECOF50NN35	TRIGGER VALVE HEAD	HY18G50031	74		ECOF50NN74	SOFT GRIP SLEEVE	ECO9040C72
36	FMS	ECOF50NN36	SPRING	ECO9040C39	75	FMS	ECOF50NN75	GASKET	ECO9040C73
37	FMS	ECOF50NN37	TRIGGER VALVE STEM	ECO9040C40	76	FMS	ECOF50NN76	END CAP	ECO9040C74
38	FMS	ECOF50NN38	O-RING 5.5*1.5	ECO9040C38	77		ECOF50NN77	SCREW	ECO9040C75
39	FMS	ECOF50NN39	O-RING 15*1.9	ECO9040C36	78		ECOF50NN78	AIR PLUG	ACC016

One Sheeter

Application

MODULAR / KITCHENS	Onsite / Repair work for Modular / Kitchens
	To join MDF to MDF, ply & particle board
WOODEN FLOORING	Onsite / Repair work for Wooden Flooring
	Wooden skirting
CARROM BOARDS	To fix the back reinforcement to the frame
	To make the board frame
