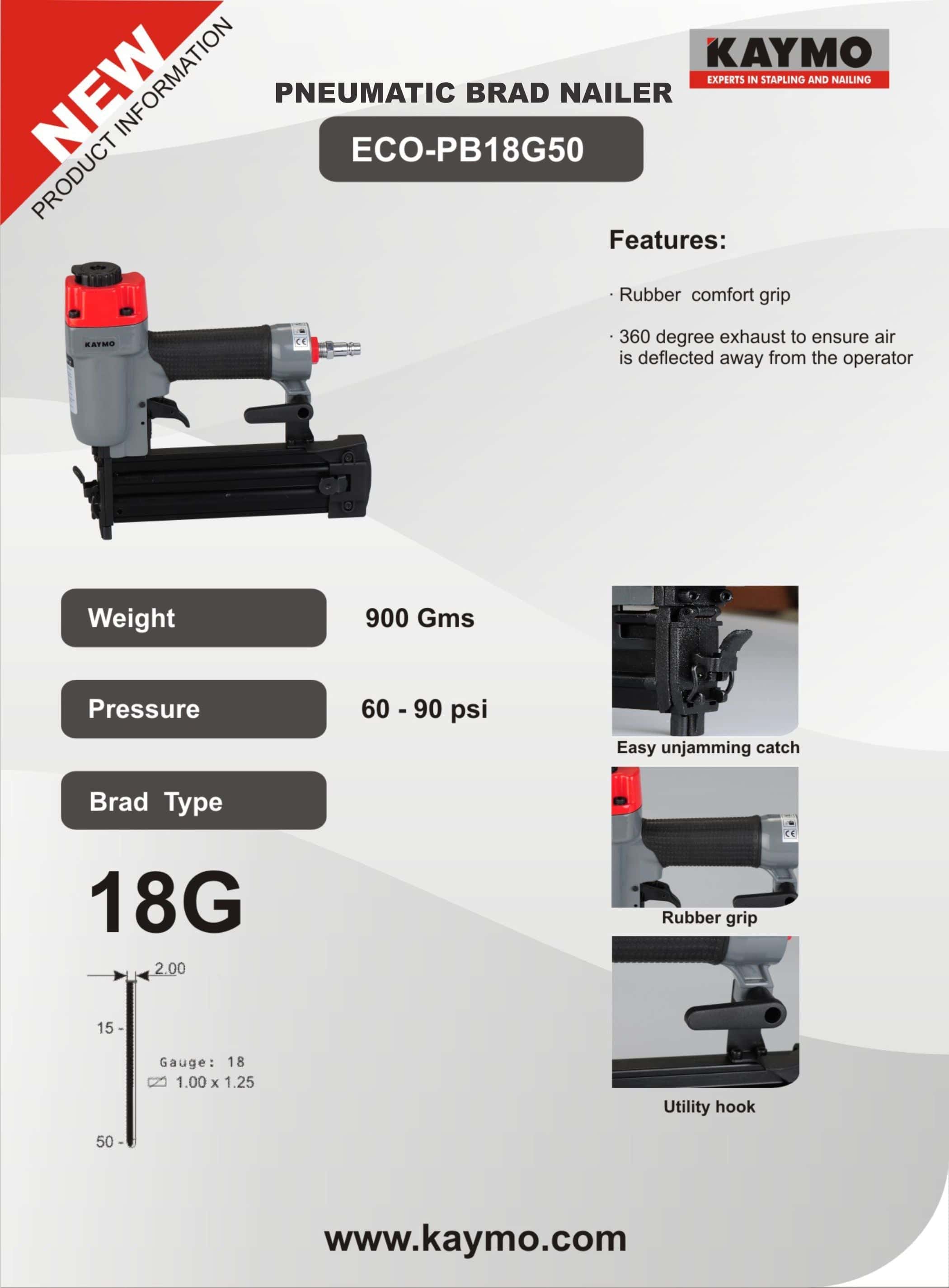

PNEUMATIC BRAD NAILER KAYMO ECO-18G50

Name: PNEUMATIC BRAD NAILER KAYMO ECO-18G50
Brand: Kaymo
SKU: ECO-PB18G50
Price: 1.0 INR
Availability: InStock

SKU: ECO-PB18G50

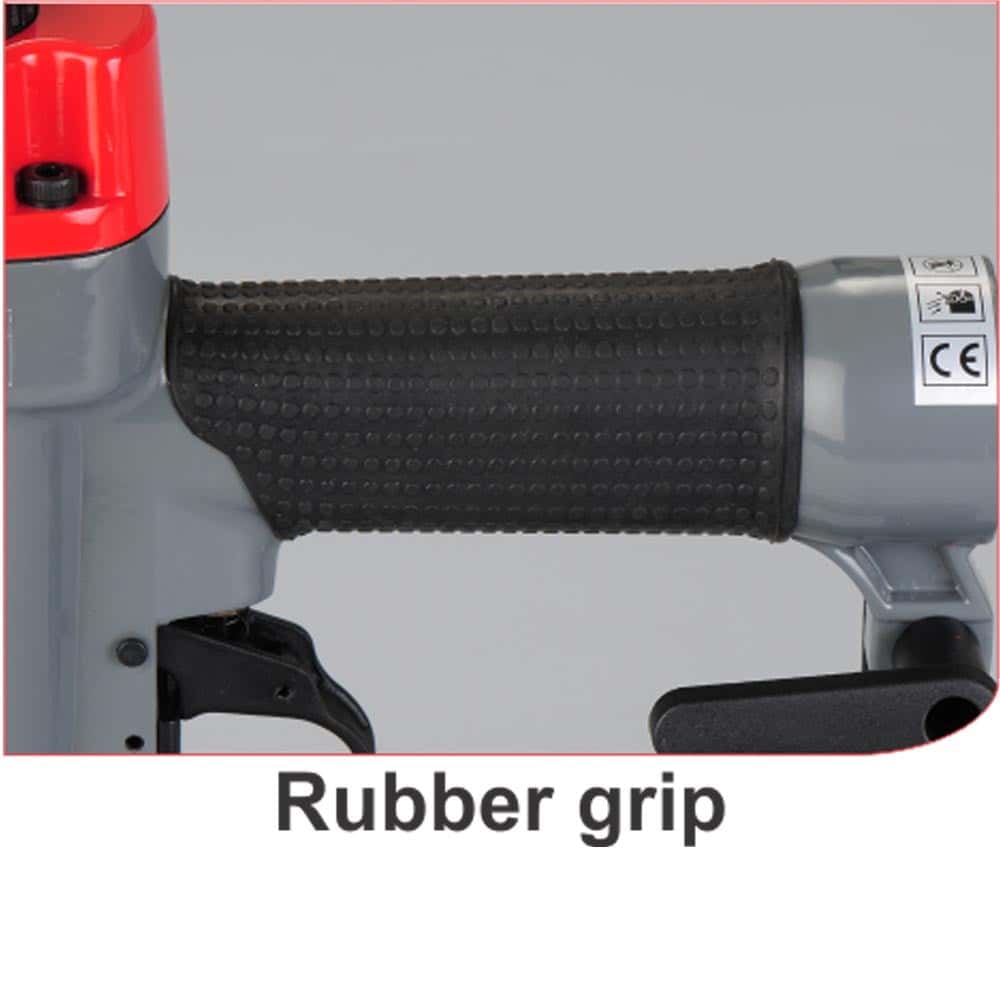

The KAYMO ECO-PB18G50 is a lightweight and durable pneumatic brad nailer designed for precision fastening in woodworking and industrial applications. Built with features like rubber Read More...

Features:

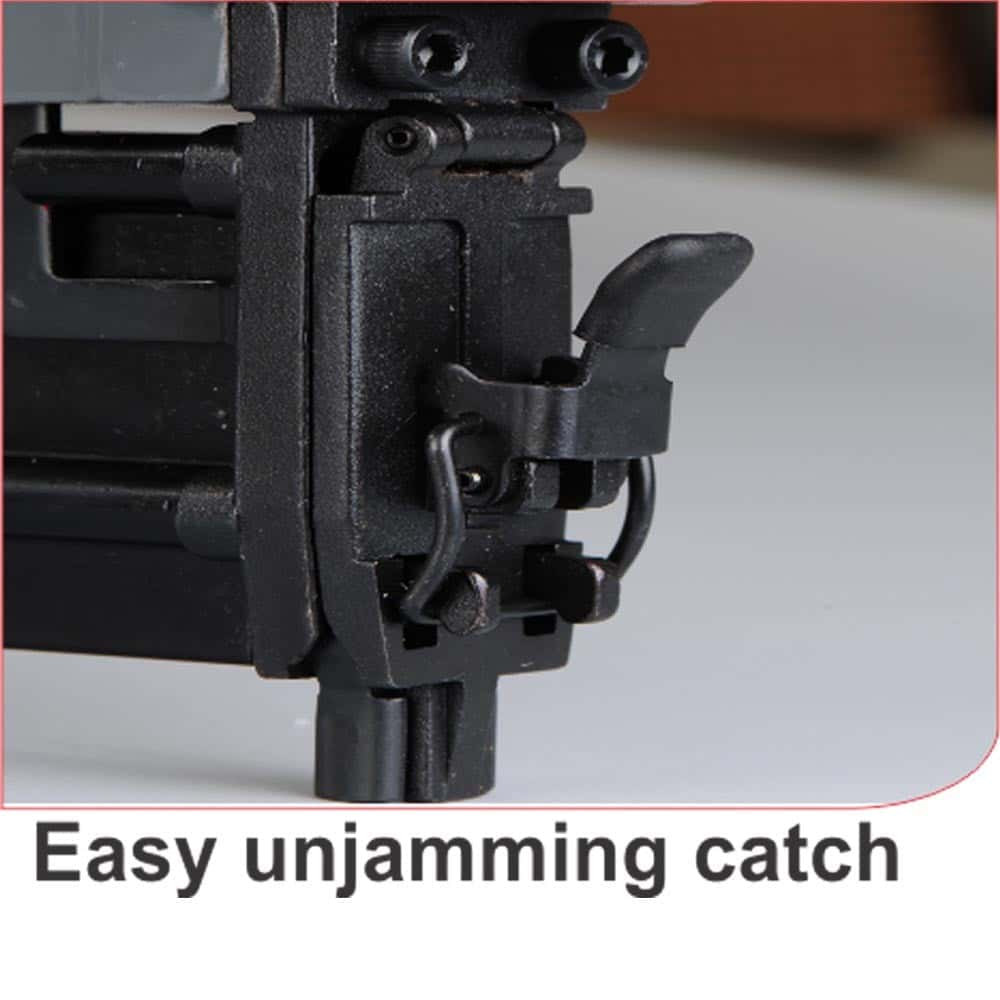

Brad nail unjamming catch

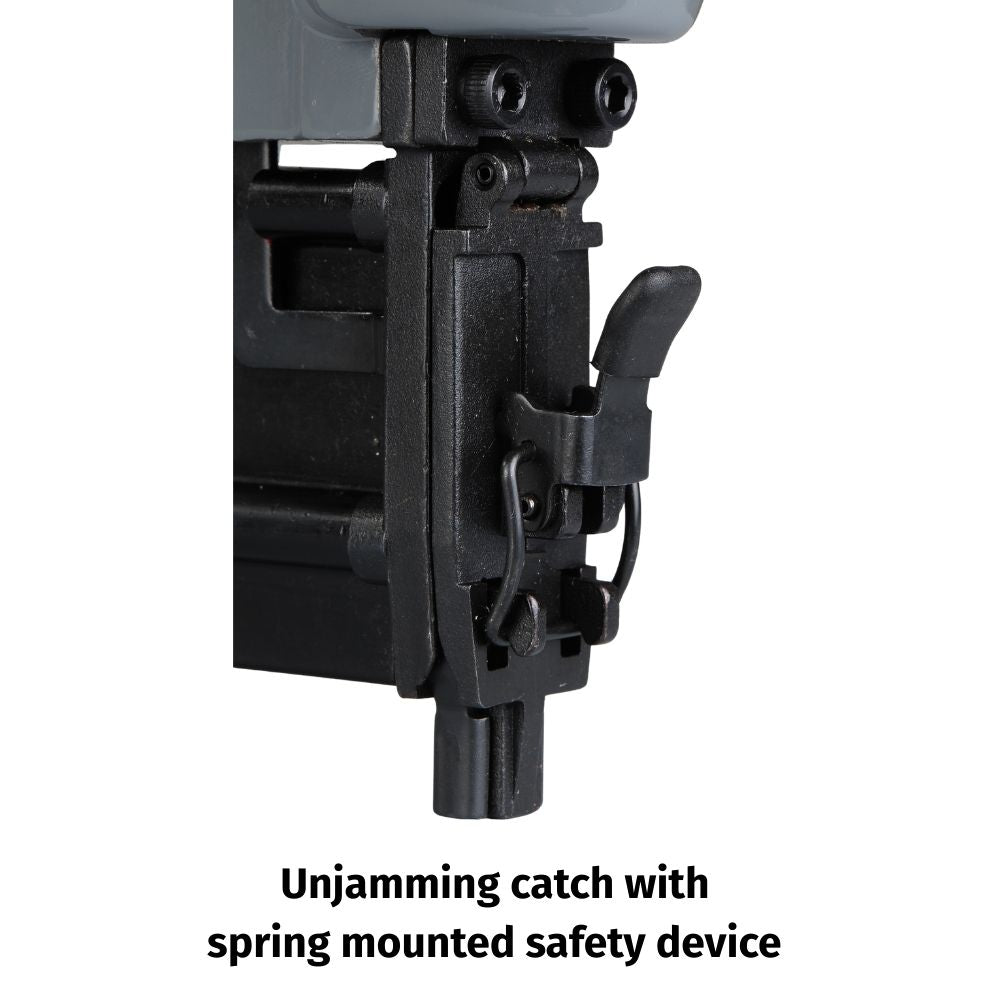

Spring mounted safety device

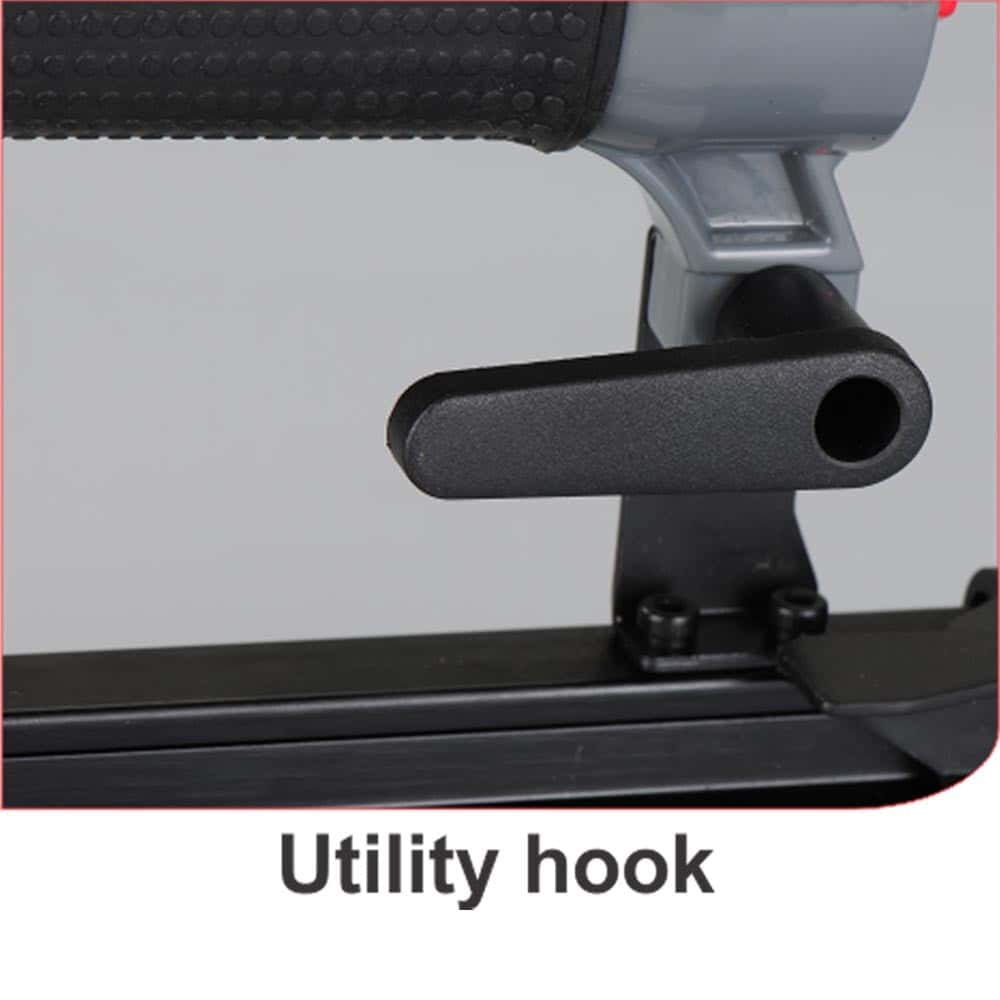

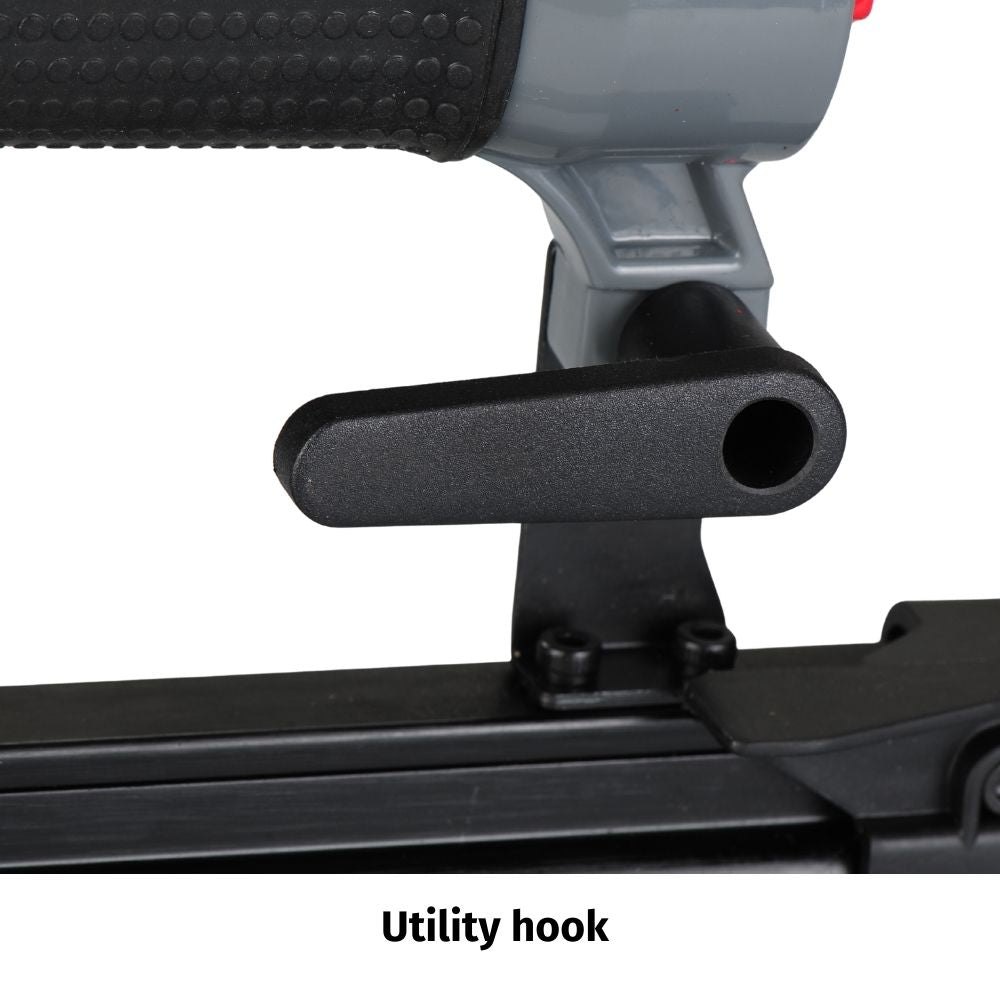

Utility hook

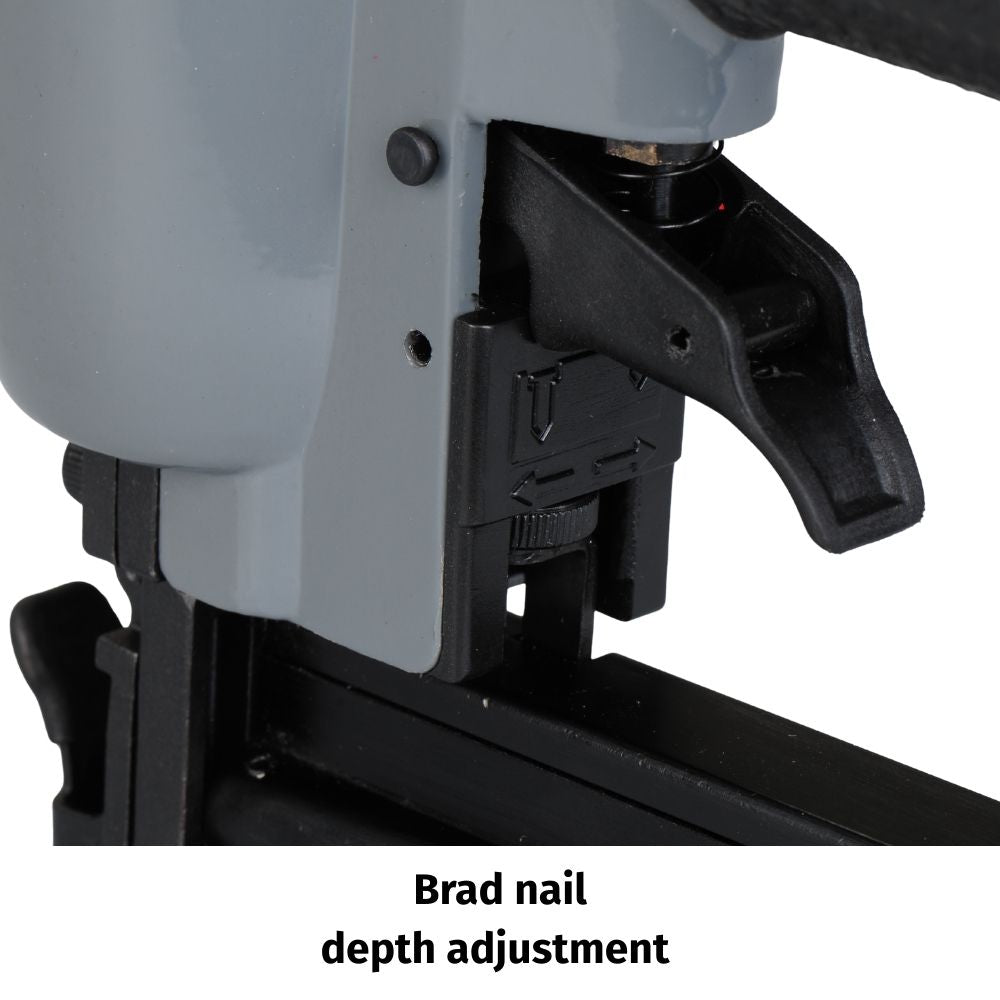

Brad nail depth adjustment

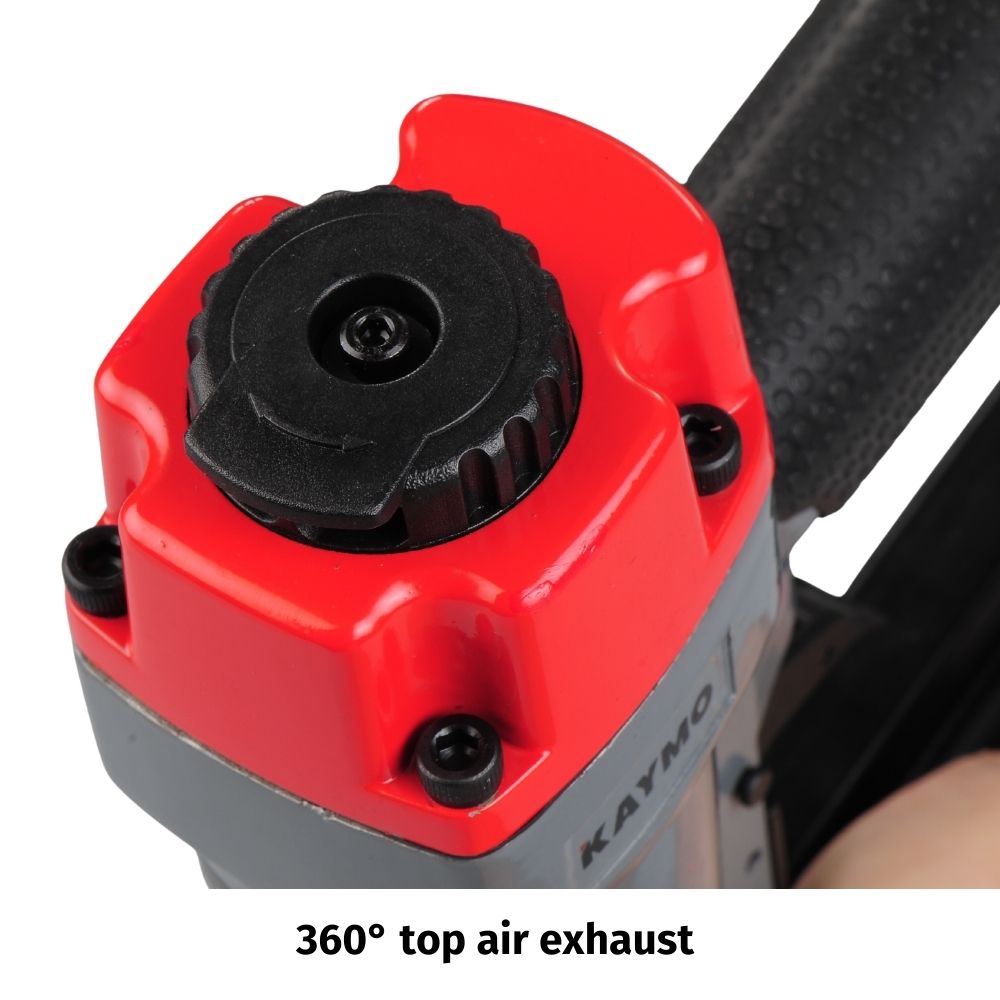

360° top air exhaust
Fastener Range: 15mm - 50mm

Applications:

Furniture
Wooden toys
Banner frames
Artist's canvas
Exhibition booths
Interiors

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

BRAD NAILS KAYMO 18G (F TYPE)

AIR FILTER + REGULATOR LUBRICATOR SET KAYMO 1/2" WITH GAUGE

ADJUSTABLE AIR BLOW GUN KAYMO 1/4" PT WITH 10 cm SS NOZZLE & PLUG

Blow Up

Spares

		TOOL MODEL:	ECO-PB18G50 NEW 2					REV.1ST APRIL 23
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1		ECOF5001	SCREW	HY18G32001	38		ECOF5038	TRIGGER VALVE GUIDE	HY18G50035
2	FMS	ECOF5002	BUSHING	HY18G32002	39	FMS	ECOF5039	TRIGGER SPRING	HY18G50037
3	FMS	ECOF5003	EXHAUST COVER	HY18G32003	40	FMS	ECOF5040	TRIGGER	HY18G50041
4		ECOF5004	WASHER	HY18G32004	41	FMS	ECOF5041	SPRING PIN	HY18G50038
5		ECOF5005	SCREW	KM0520	42	FMS	ECOF5042	WASHER	ECO9040C41
6		ECOF5006	CYLINDER CAP	HY18G32006	43	FMS	ECOF5043	PIN	HY18G50040
7	FMS	ECOF5007	GASKET	HY18G32007	44	FMS	ECOF5044	LATCH SLEEVE	HY18G50045
8	FMS	ECOF5008	VALVE SEAL	HY18G32008	45	FMS	ECOF5045	LATCH ASSEMBLY	HY18G50046
9	FMS	ECOF5009	VALVE SPRING	HY18G32009	46		ECOF5046	SPRING PIN	HY18G50047
10	FMS	ECOF5010	O-RING	HY18G32010	47	FMS	ECOF5047	FRONT PLATE	HY18G50044
11	FMS	ECOF5011	O-RING	HY18G32011	48		ECOF5048	SPRING PIN	HY18G50048
12	FMS	ECOF5012	VALVE	HY18G32012	49	FMS	ECOF5049	PLATE	HY18G50043
13		ECOF5013	STOPPED WASHER	HY18G32014	50		ECOF5050	SCREW	KM0412
14	FMS	ECOF5014	O-RING	HY18G32013	51	FMS	ECOF5051	MOVABLE MAGAZINE	HY18G50052
15	FMS	ECOF5015	O-RING	HY18G32016	52		ECOF5052	LOCK SPRING	HY18G50053
16	FMS	ECOF5016	COLLAR	HY18G50015	53	FMS	ECOF5053	LOCK	HY18G50054
17	FMS	ECOF5017	O-RING	HY18G50017	54		ECOF5054	PIN	HY18G50055
18	FMS	ECOF5018	PISTON ASSEMBLY	HY18G50018	55	FMS	ECOF5055	FEEDER SHOE	HY18G50056
19	FMS	ECOF5019	O-RING 40.2X2.3	HY1013J045	56		ECOF5056	FEEDER SEAT
20	FMS	ECOF5020	CYLINDER	HY18G50020	57	FMS	ECOF5057	SPRING	HY18G32050
21	FMS	ECOF5021	BUMPER	HY18G50021	58	FMS	ECOF5058	SPRING SEAT	HY18G32051
22		ECOF5022	BODY		59	FMS	ECOF5059	MAGAZINE PLATE	HY18G50060
23	FMS	ECOF5023	JOINT GUIDE	HY18G32023	60		ECOF5060	SCREW	NEO1005075N
24	FMS	ECOF5024	SAFE GUIDE	HY18G50024	61	FMS	ECOF5061	DRIVE GUIDE	HY18G50050
25	FMS	ECOF5025	SPRING	HY18G50025	62		ECOF5062	SPRING PIN	HY18G50051
26	FMS	ECOF5026	SAFE BRACKET A	HY18G50026	63		ECOF5063	RAIL	HY18G50039
27		ECOF5027	SAFE BRACKET B		64		ECOF5064	FIXED MAGAZINE	HY18G50062
28		ECOF5028	SCREW		65	FMS	ECOF5065	STOPPED PIECE	HY18G32056
29		ECOF5029	SAFE BRACKET C		66		ECOF5066	HOOK	HY18G50064
30		ECOF5030	RUBBER COVER		67		ECOF5067	SUPPORT	HY18G50065
31	FMS	ECOF5031	PIN	HY18G50029	68		ECOF5068	SCREW	KM0408
32	FMS	ECOF5032	SEAL	HY18G50030	69	FMS	ECOF5069	NUT	NEO1005075N
33		ECOF5033	TRIGGER VALVE HEAD	HY18G50031	70		ECOF5070	SCREW	HY18G32055
34	FMS	ECOF5034	STEM SPRING	HY18G50032	71		ECOF5071	SCREW	KM0520
35	FMS	ECOF5035	O-RING 5.5X1.5	HY18G50034	72		ECOF5072	SOFT GRIP SLEEVE	HY18G32060
36		ECOF5036	TRIGGER VALVE STEM	HY18G50033	73		ECOF5073	END CAP	HY18G32062
37		ECOF5037	O-RING	HY18G50036	74	FMS	ECOF5074	AIR PLUG	S3120PMA5208
