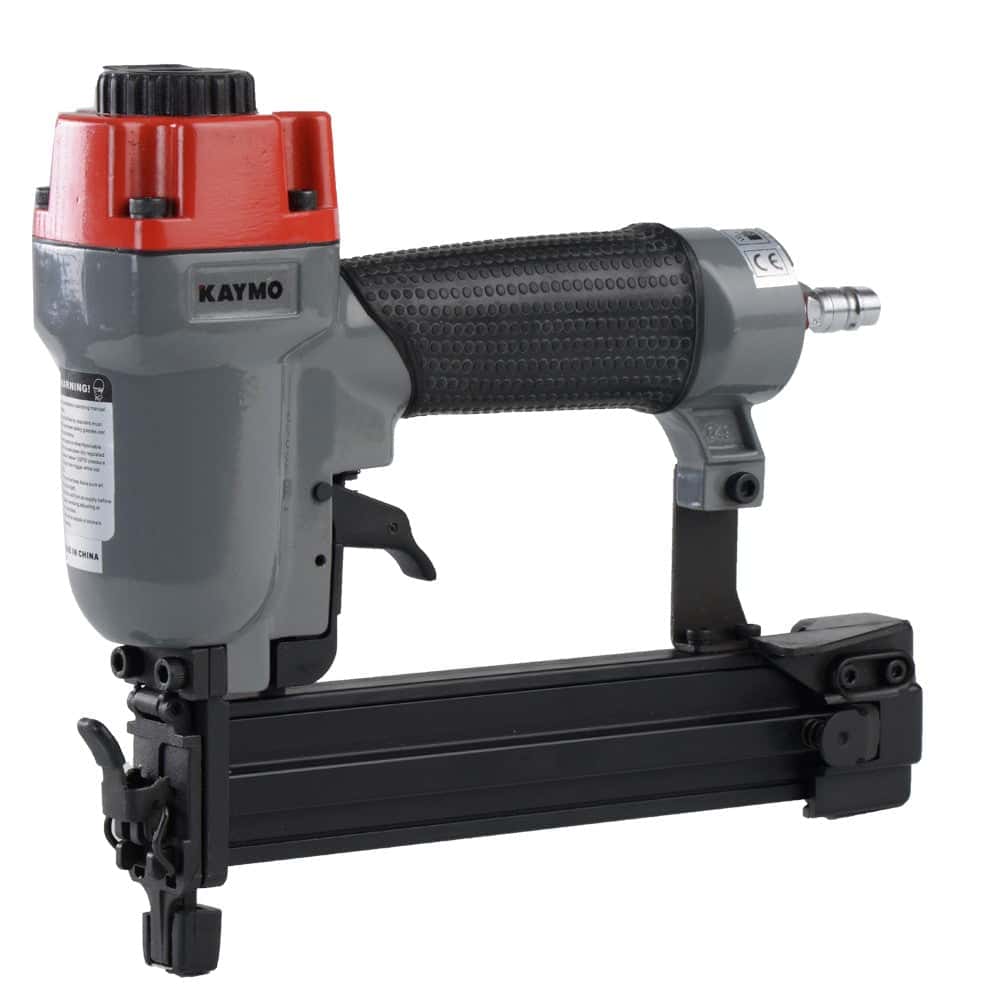

SKU: ECO-PB18G32

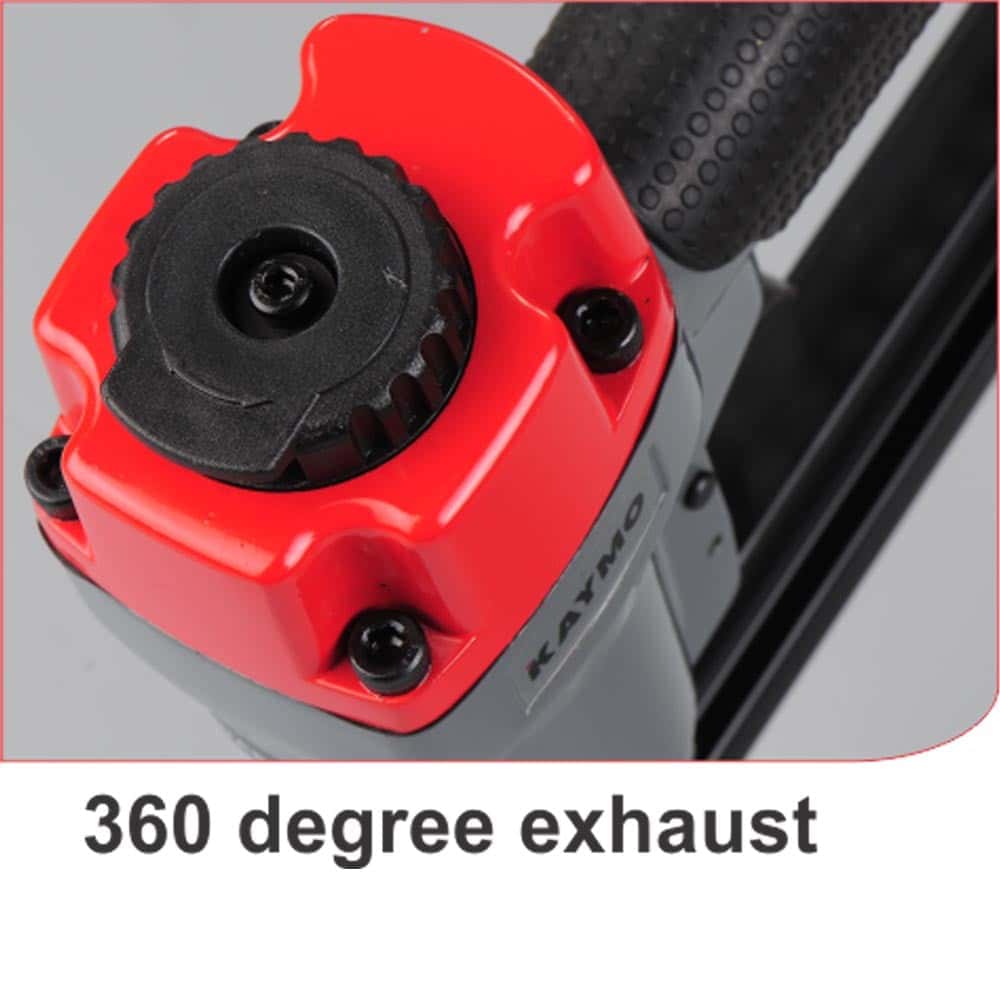

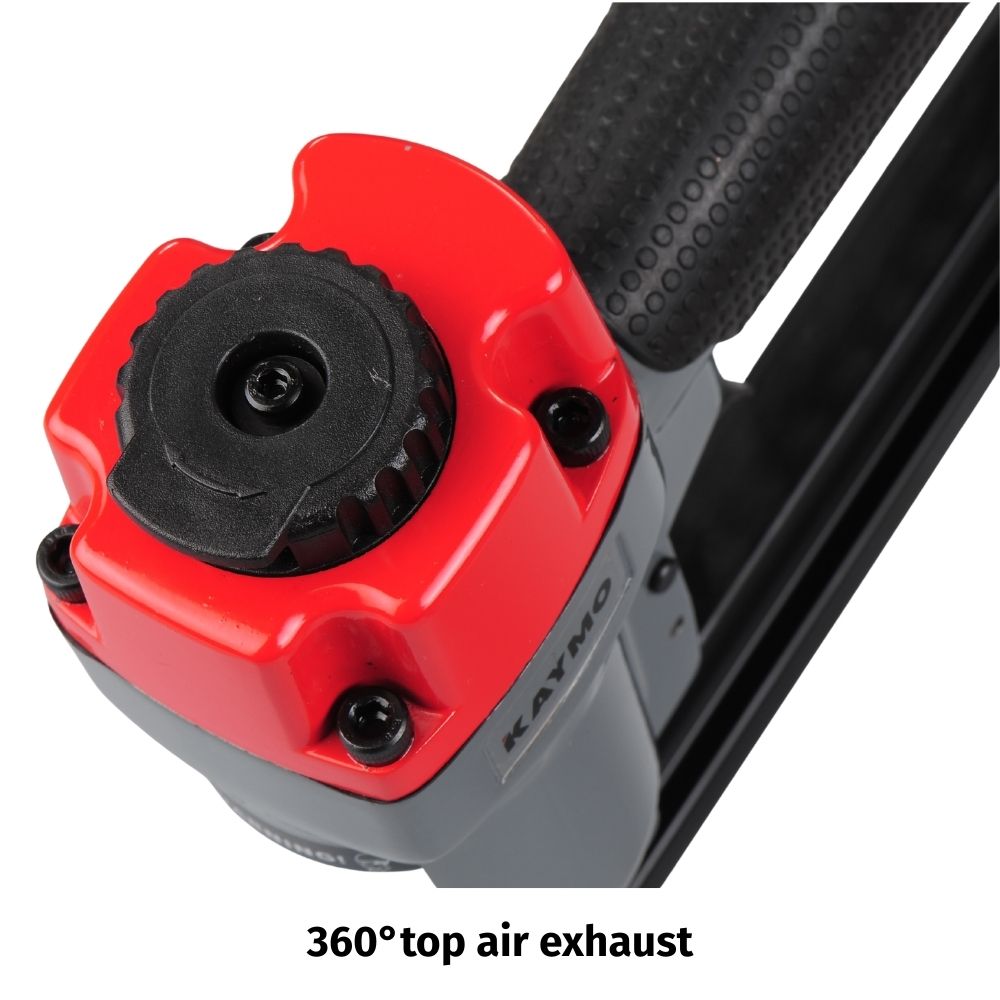

Rubber comfort grip. 360 degree exhaust. Fasteners recommended: 10 - 32 mm. PRESSURE: 60- 90 psi.
₹ 1/-

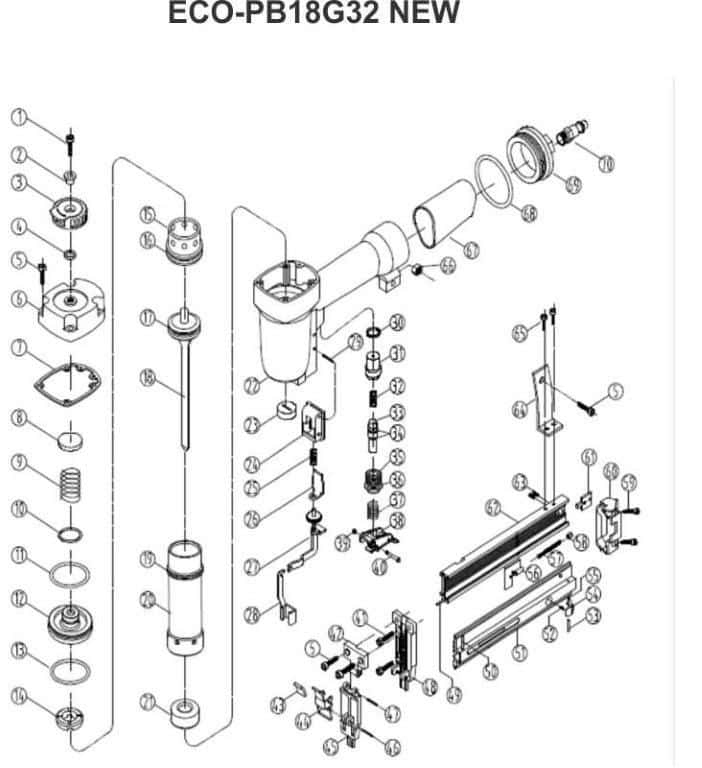

Blow Up
Spares
| . | TOOL MODEL: | ECO-PB18G32 NEW | . | REV.1ST APRIL 2022 | |||||
| SR | FMS | PART CODE | PART NAME | ALT CODE | SR | FMS | PART CODE | PART NAME | ALT CODE |
| 1 | HY18G32001 | SCREW | 36 | ECO18G32036N | O-RING 15×1.9 | ||||
| 2 | FMS | HY18G32002 | BUSHING | 37 | ECO18G32037N | SPRING | |||
| 3 | FMS | HY18G32003 | EXHAUST COVER | 38 | ECO18G32038N | TRIGGER | |||
| 4 | HY18G32004 | SEAL | 39 | FMS | HY18G32032 | WASHER | YE2501 | ||
| 5 | FMS | HY18G32005 | SCREW | KM0520 | 40 | HY18G32033 | PIN | ||
| 6 | HY18G32006 | CYLINDER CAP | 41 | HY18G32035 | SCREW | ||||
| 7 | FMS | HY18G32007 | GASKET | 42 | HY18G32036 | PLATE | |||

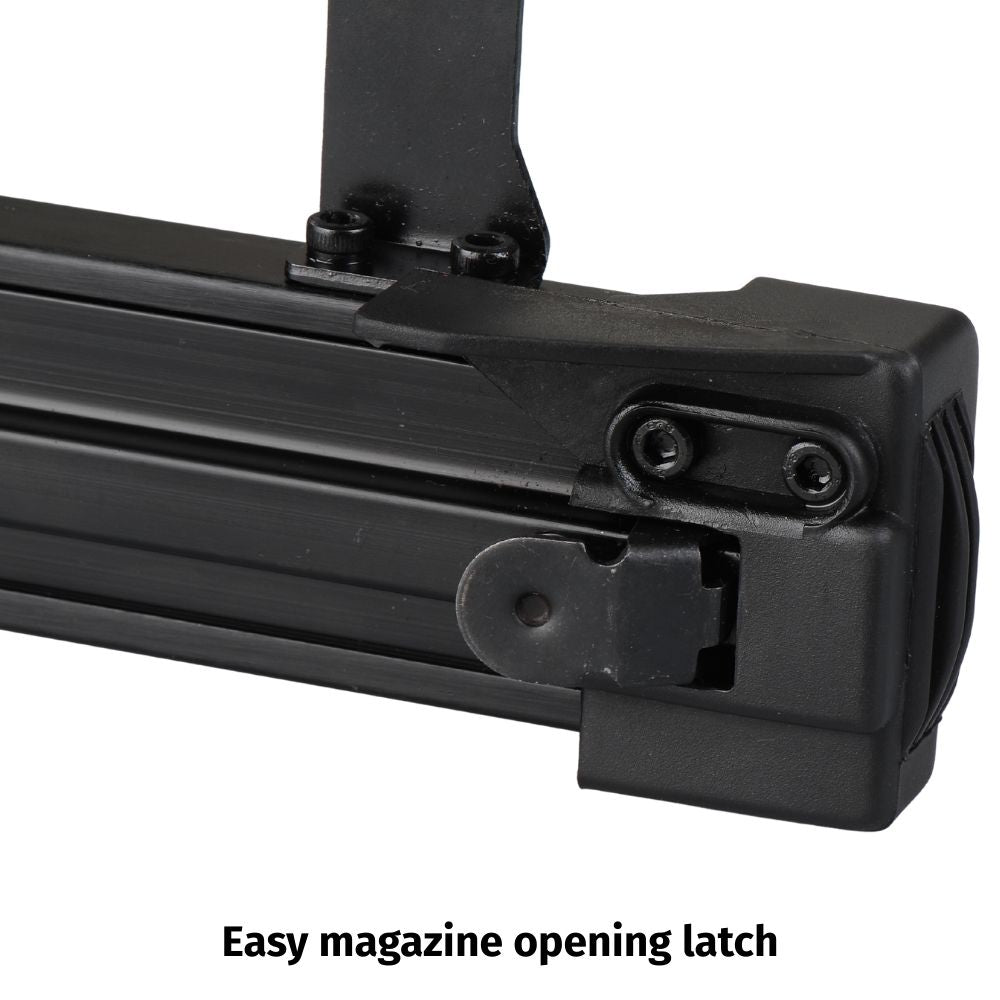

| 8 | FMS | HY18G32008 | SEAL | 43 | FMS | ECO18G32043N | LATCH SLEEVE | HY18G50045 | |
| 9 | FMS | HY18G32009 | SPRING | 44 | HY18G32038 | LATCH ASSEMBLY | |||
| 10 | FMS | HY18G32010 | O-RING 15.7×2 | 45 | HY18G32039 | FRONT PLATE | |||
| 11 | FMS | HY18G32011 | O-RING 38.8×3 | 46 | HY18G32040 | SPRING PIN | |||
| 12 | FMS | HY18G32012 | VALVE | 47 | HY18G32041 | SPRING PIN | |||
| 13 | FMS | HY18G32013 | O-RING 33.5×3.5 | 48 | FMS | HY18G32042 | DRIVE GUIDE | ||
| 14 | HY18G32014 | STOPPED WASHER | 49 | HY18G32034 | RAIL | ||||
| 15 | FMS | HY18G32015 | COLLAR | 50 | HY18G32043 | SPRING PIN | |||
| 16 | FMS | HY18G32016 | O-RING 50.5×2.5 | 51 | HY18G32044 | MOVABLE MAGAZINE | |||
| 17 | FMS | HY18G32017 | O-RING 28.3×3 | 52 | HY18G32045 | SPRING | |||
| 18 | FMS | HY18G32018 | PISTON ASSEMBLY | 53 | FMS | HY18G32046 | PIN | ||
| 19 | HY18G32019 | O-RING 36.3×2.5 | 54 | HY18G32047 | LOCK | ||||
| 20 | FMS | HY18G32020 | CYLINDER | 55 | FMS | HY18G32048 | LOCKING WASHER | YE2501 | |
| 21 | FMS | HY18G32021 | BUMPER | 56 | FMS | HY18G32049 | FEEDER SHOE | ||
| 22 | HY18G32022 | BODY | 57 | FMS | HY18G32050 | SPRING | |||
| 23 | FMS | HY18G32023 | JOINT GUIDE | 58 | FMS | HY18G32051 | SPRING SEAT | ||
| 24 | ECO18G32024N | SAFE GUIDER | ECO9040C25 | 59 | HY18G32052 | SCREW | |||
| 25 | ECO18G32025N | SPRING | 60 | HY18G32053 | STOPPED PLATE | ||||
| 26 | ECO18G32026N | SAFE BRACKET A | HY18G50026 | 61 | FMS | HY18G32056 | STOPPED PIECE | ||
| 27 | ECO18G32027N | SAFE BRACKET B | 62 | HY18G32054 | FIXED MAGAZINE | ||||
| 28 | ECO18G32028N | SAFE BRACKET C | 63 | HY18G32055 | SCREW | ||||
| 29 | ECO18G32029N | SPRING PIN | 64 | HY18G32057 | SUPPORT | ||||
| 30 | ECO18G32030N | SEAL | 65 | HY18G32058 | SCREW | KM0408 | |||
| 31 | ECO18G32031N | TRIGGER VALVE HEAD | 66 | FMS | HY18G32059 | NUT | NEO1005079N | ||
| 32 | ECO18G32032N | SPRING | 67 | HY18G32060 | SOFT GRIP SLEEVE | ||||
| 33 | ECO18G32033N | TRIGGER VALVE STEM | 68 | FMS | HY18G32061 | O-RING 40.2×2.3 | HY1013J045 | ||
| 34 | ECO18G32034N | O-RING 5.5×1.5 | 69 | HY18G32062 | END CAP | ||||
| 35 | ECO18G32035N | TRIGGER VALVE GUIDE | 70 | HY18G32063 | AIR PLUG | ACC016 | |||
One Sheeter
Application
| SOFAS | To fix 3mm / 4mm veneer to wooden frame |
| CHAIRS | To fix upholstery to chair / stool base |
| MODULAR / KITCHENS | To join MDF to MDF, ply & particle board |
| CARROM BOARDS | To fix the back reinforcement to the frame |
| To make the board frame | |
| PAINT BRUSHES | To fix the tin furrel onto the wooden handle |
| GIFT ARTICLES | To join MDF to MDF to make gift articles |
| To join wood to wood to make gift articles | |
| KITE SPINDLES | To join PVC reel to wooden rod to form a spindle |
