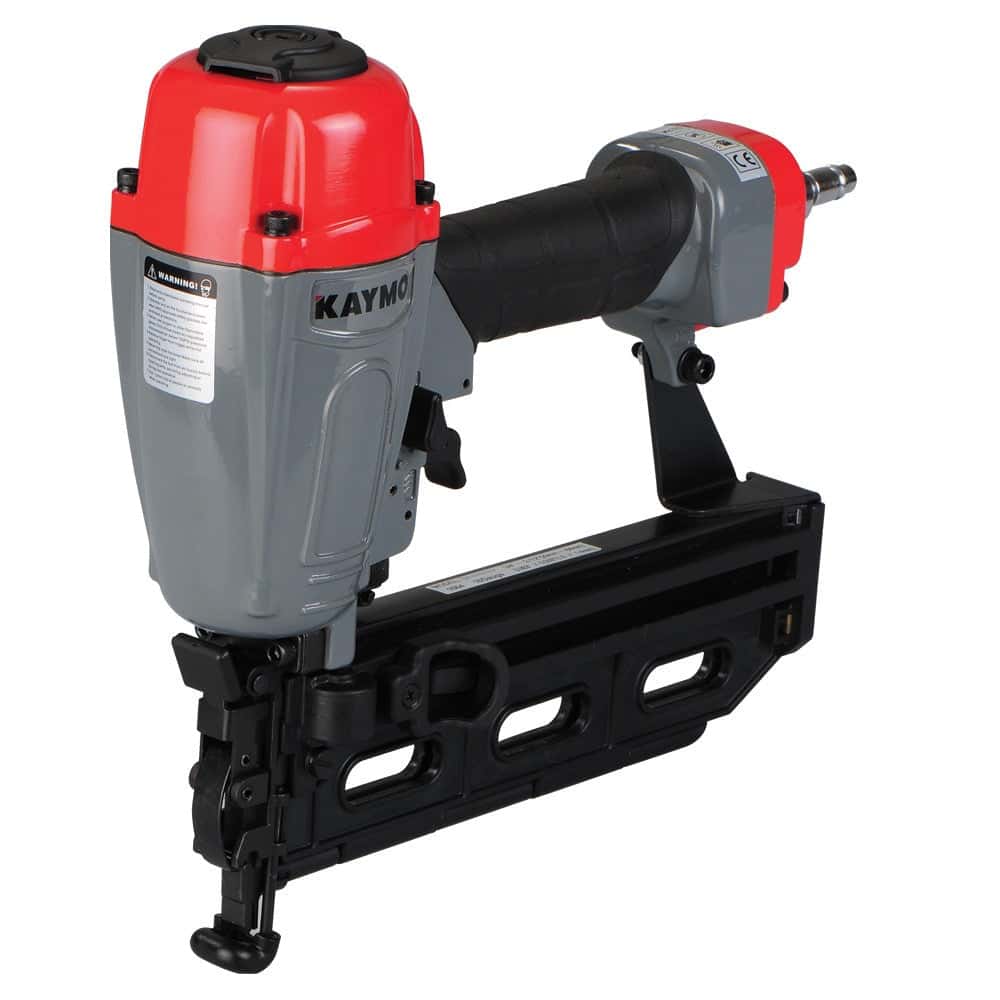

SKU: ECO-PB16G64

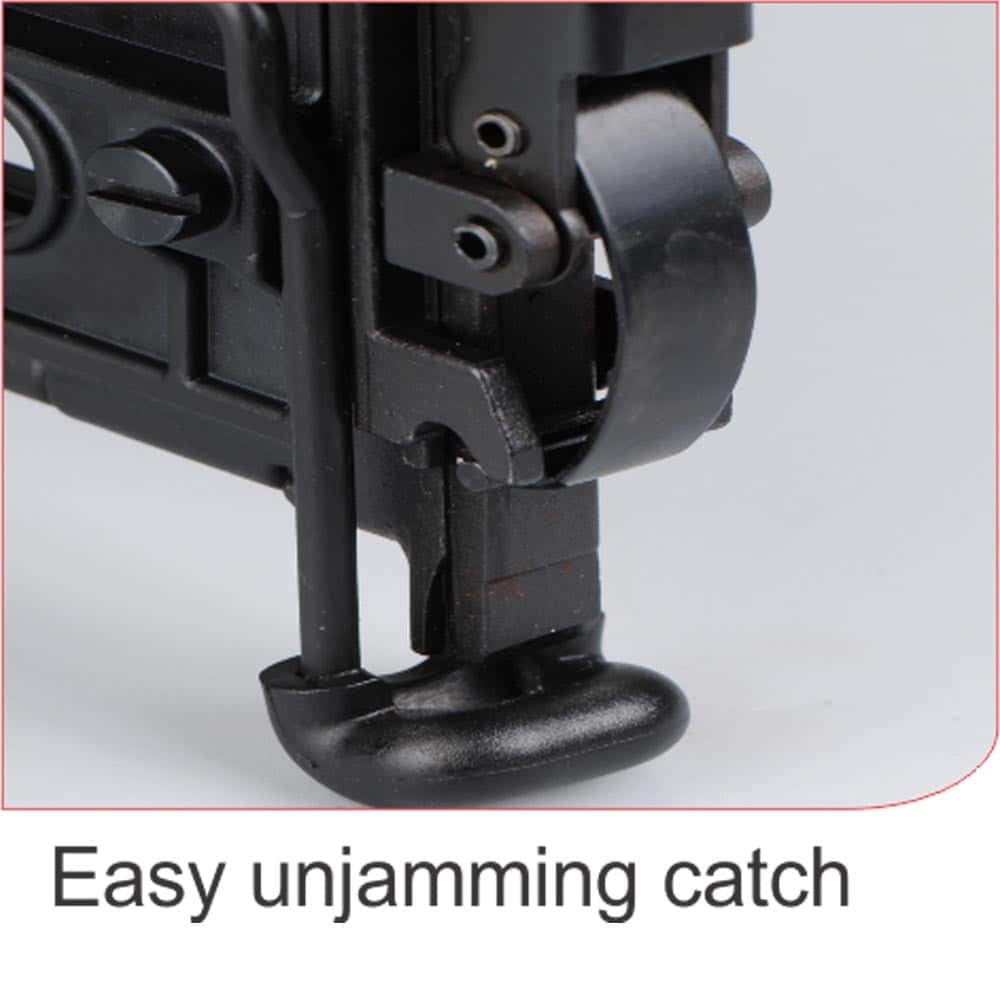

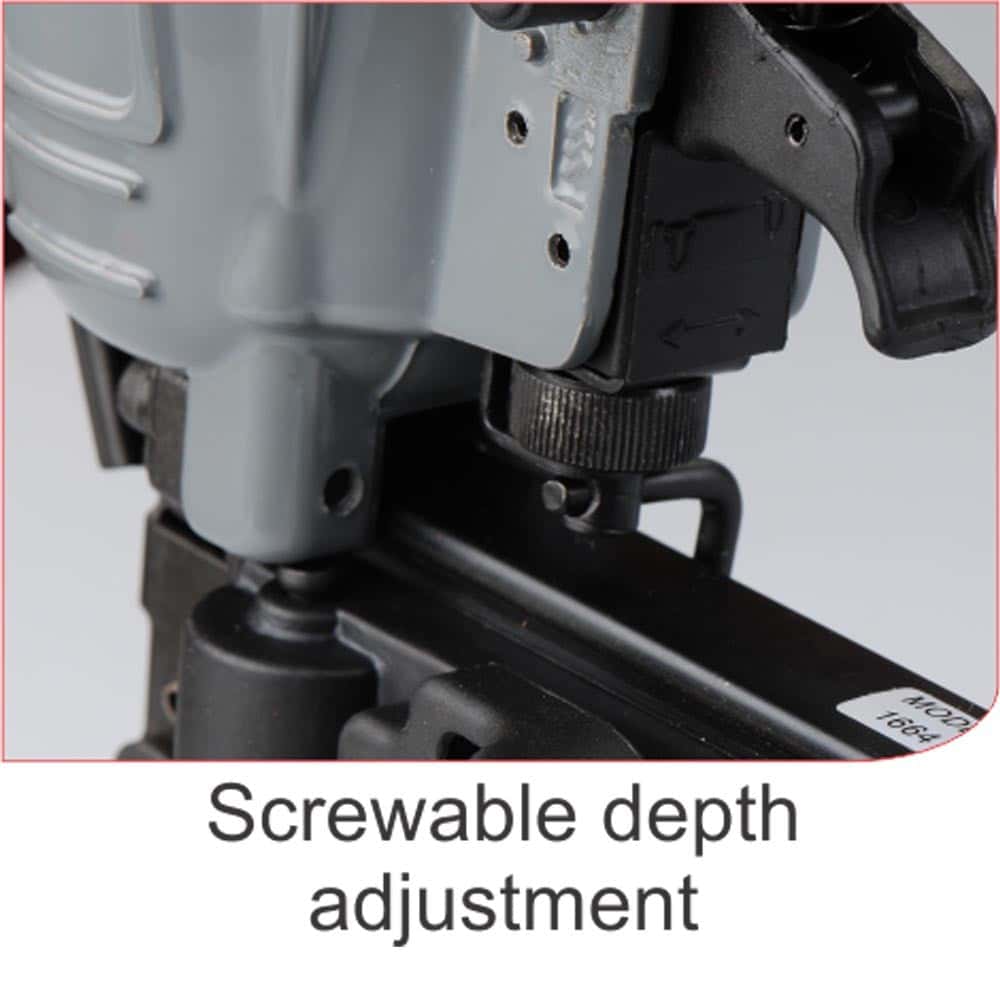

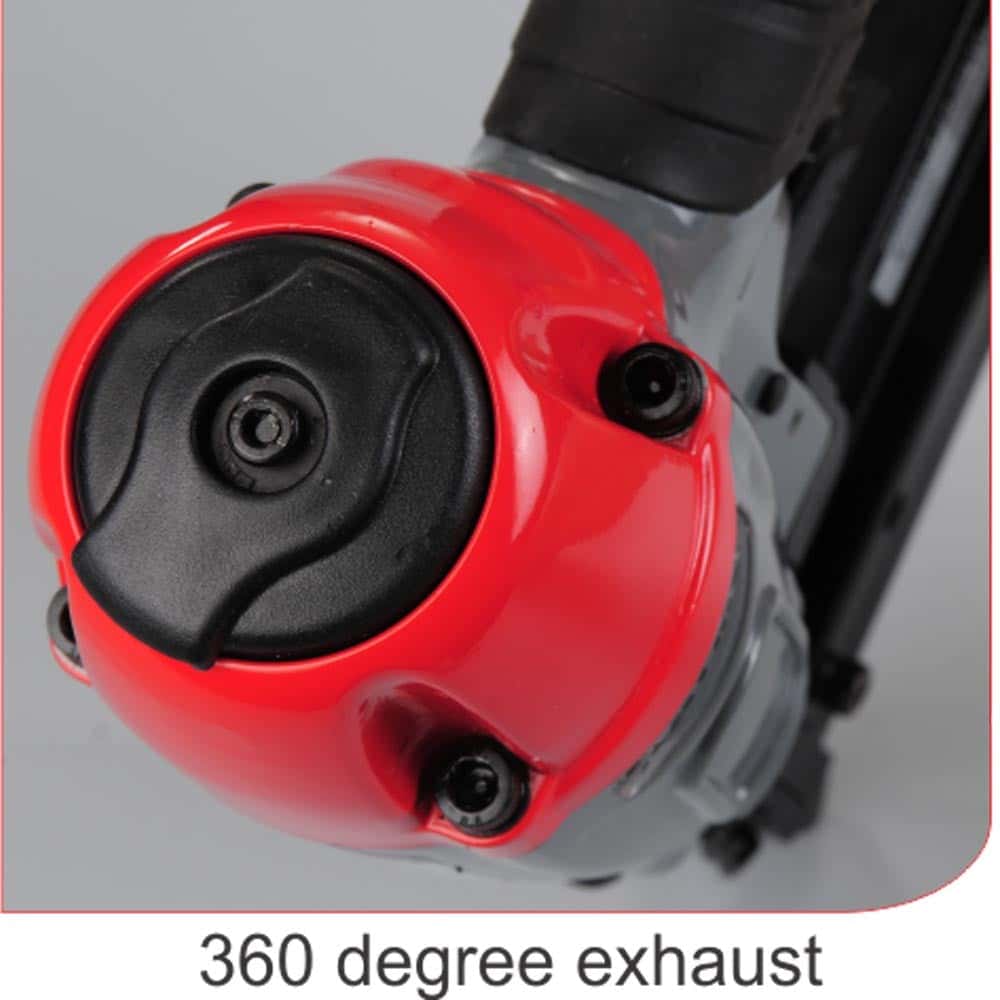

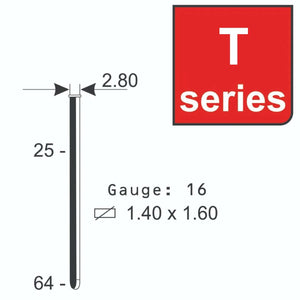

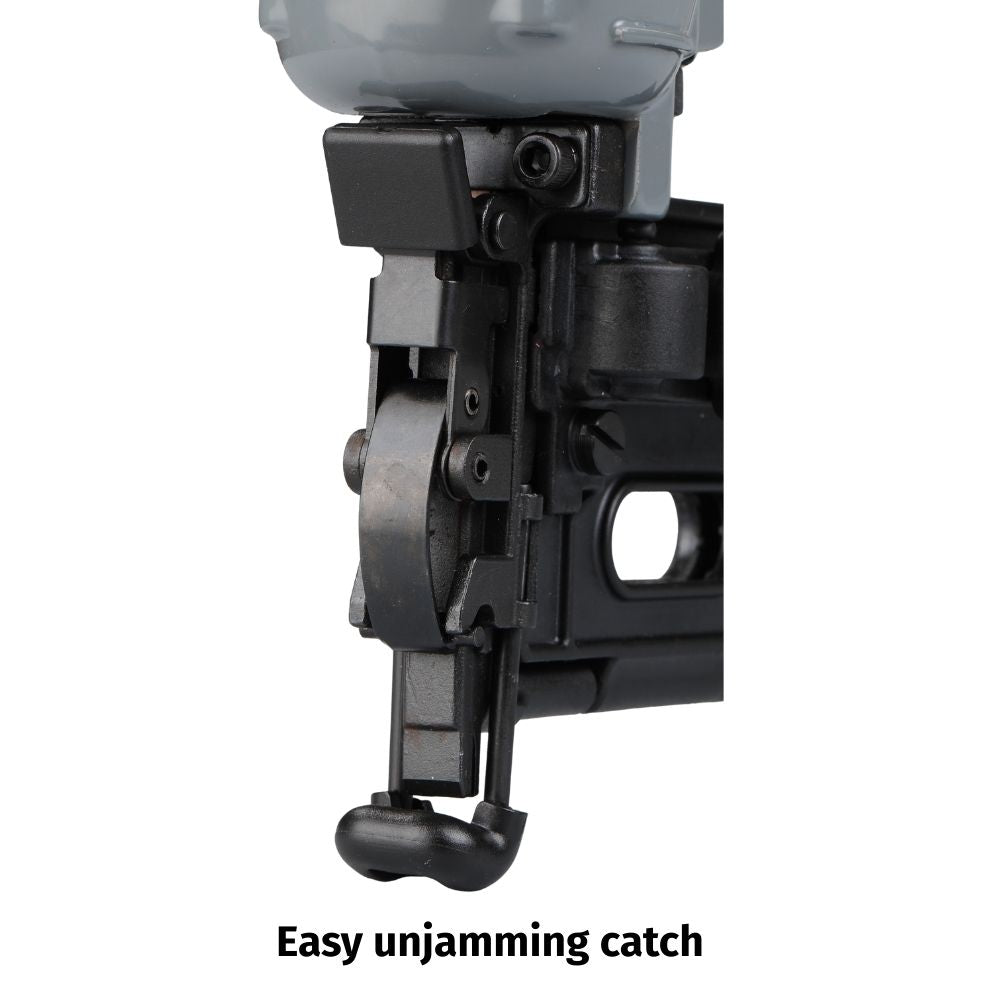

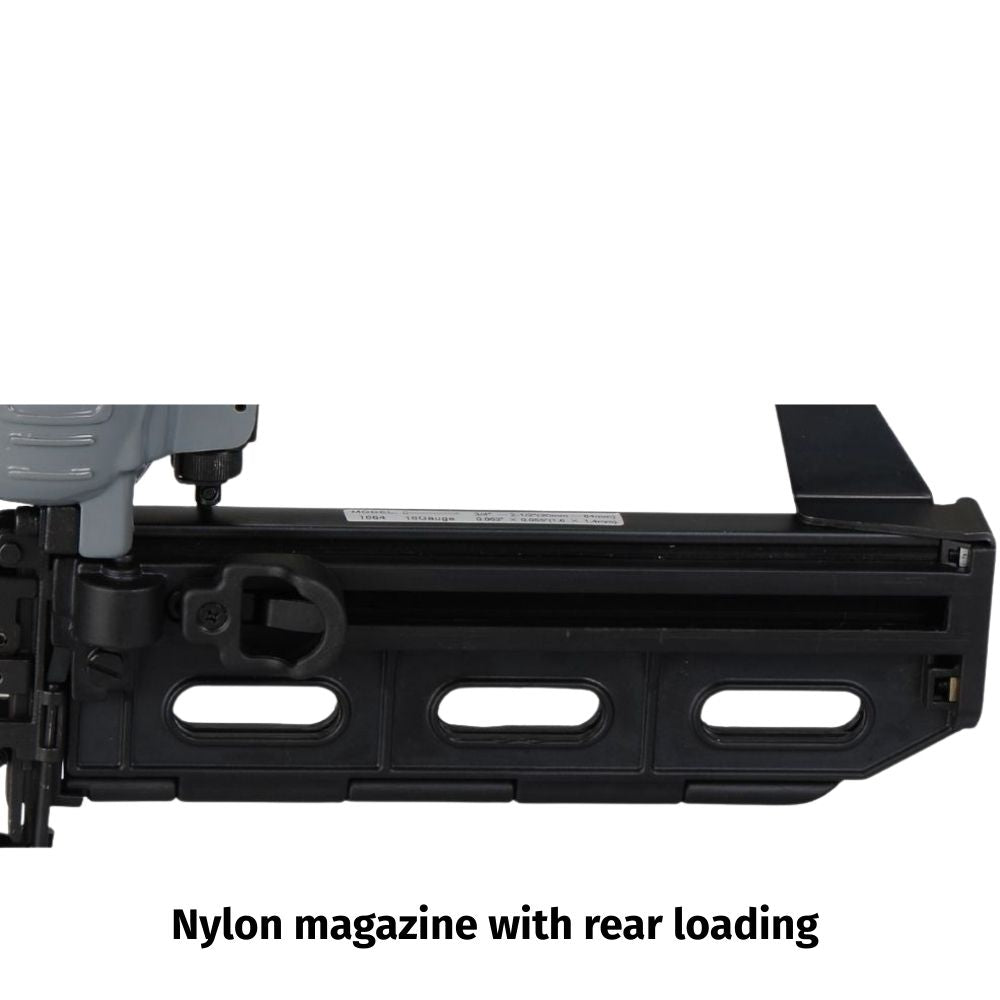

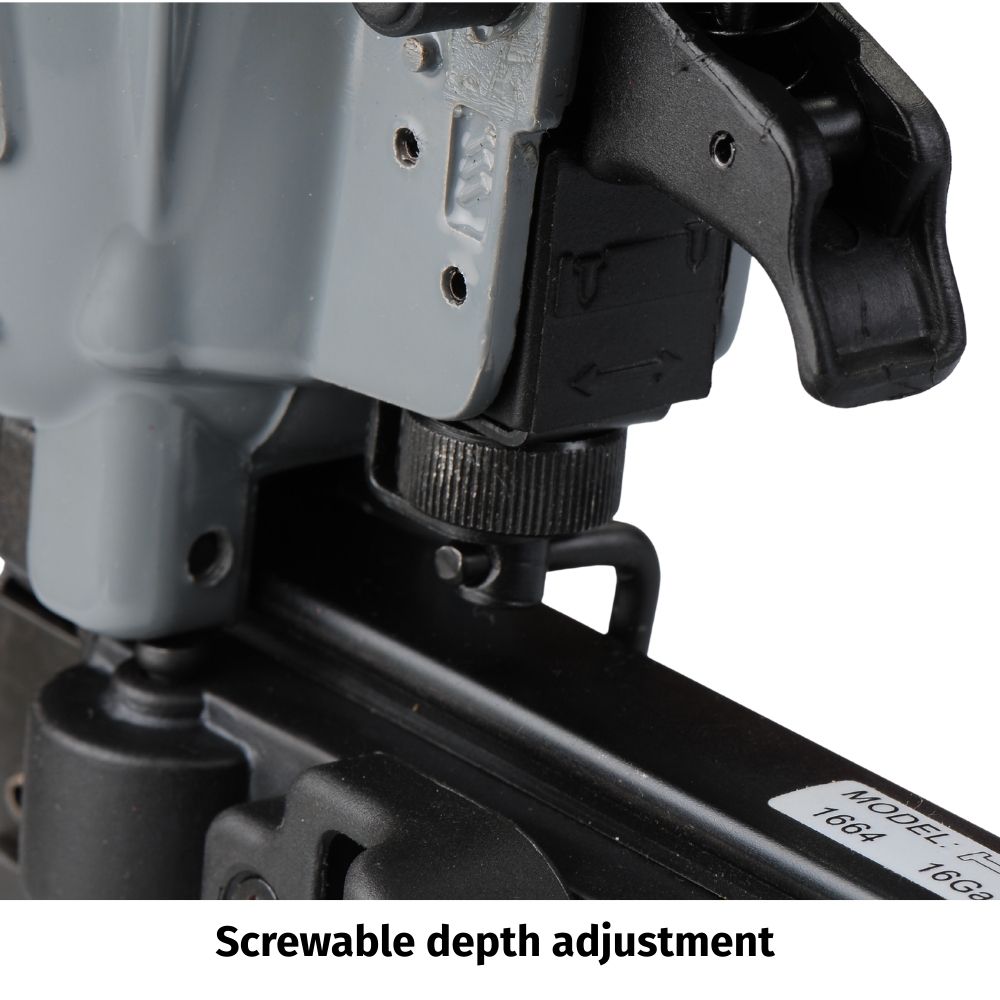

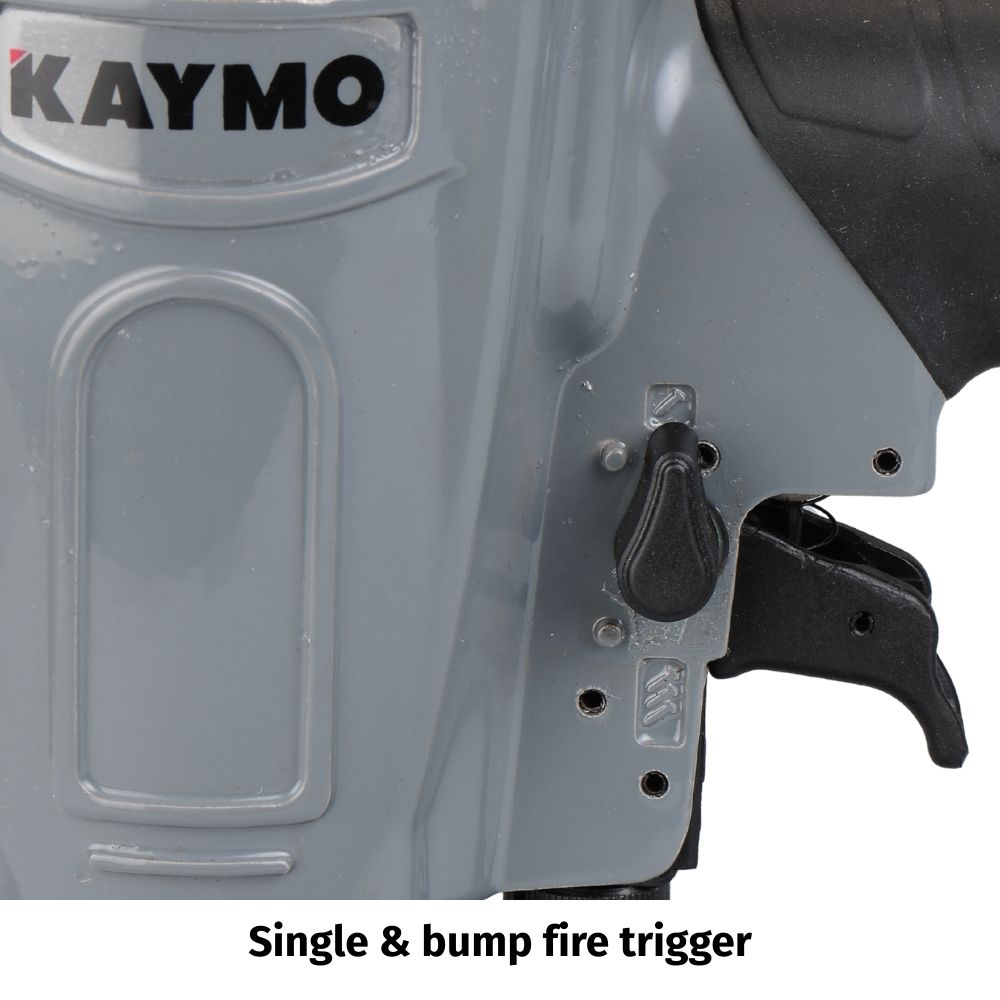

360 degree adjustable exhaust . Screwable depth adjustment . Nylon magazine with rear loading . Easy unjamming catch . Scratch free rubber tip . Single & bump fire trigger . Auto stop for low brad content . Fasteners recommended: 25 - 64 mm. PRESSURE: 60 - 100 psi .

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

₹ 1/-

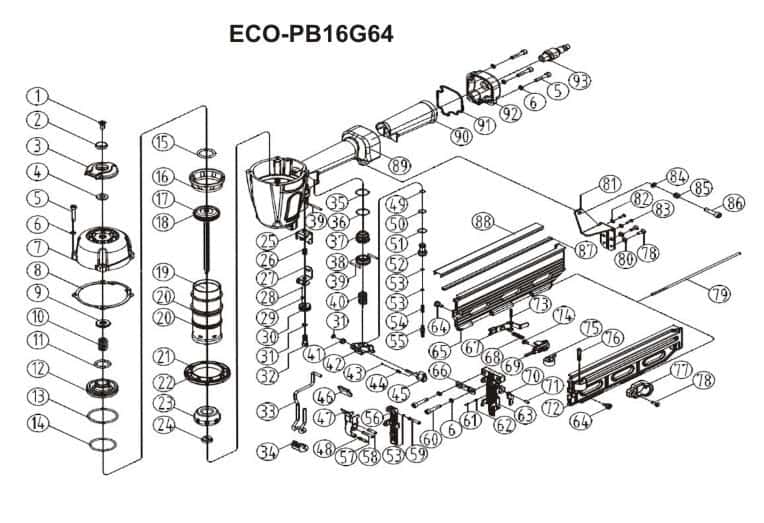

Blow Up

Spares
. TOOL CODE: ECO-PB16G64 REV.1ST APRIL 2022
SR FMS PART CODE PART NAME ALT CODE SR FMS PART CODE PART NAME ALT CODE
1   ECO16G6401 SCREW   49 FMS ECO16G6449 O-RING 9.5*1.9
2   ECO16G6402 BUSHING   50 FMS ECO16G6450 O-RING 10.3*1.9 HY1005041
3   ECO16G6403 EXHAUST COVER   51 FMS ECO16G6451 O-RING 12.8*1.9 HY1005042
4   ECO16G6404 SEAL   52 FMS ECO16G6452 TRIGGER VALVE HEAD
5   ECO16G6405 SCREW   53 FMS ECO16G6453 O-RING 5.5*1.5 HY1005044
6   ECO16G6406 SPRING WASHER S0410500 54 FMS ECO16G6454 SPRING
7   ECO16G6407 CYLINDER CAP   55 FMS ECO16G6455 TRIGGER VALVE STEM
8 FMS ECO16G6408 GASKET   56   ECO16G6456 FRONT PLATE
9 FMS ECO16G6409 VALVE SEAL   57 FMS ECO16G6457 SPRING PIN
10 FMS ECO16G6410 SPRING   58 FMS ECO16G6458 SPRING PIN
11 FMS ECO16G6411 O-RING 22.8*2.5   59 FMS ECO16G6459 PIN
12 FMS ECO16G6412 VALVE   60 FMS ECO16G6460 SCREW
13 FMS ECO16G6413 O-RING 49.2*3.5   61 FMS ECO16G6461 SPRING PIN
14 FMS ECO16G6414 O-RING 43.3*3.5   62 FMS ECO16G6462 SPRING
15 FMS ECO16G6415 O-RING 28.3*2.3   63 FMS ECO16G6463 DRIVE GUIDE
16 FMS ECO16G6416 COLLAR   64 FMS ECO16G6464 STOPPED SCREW
17 FMS ECO16G6417 PISTON ASSEMBLY   65 FMS ECO16G6465 NAIL CASKET (RIGHT)
18 FMS ECO16G6418 O-RING 40.3*3.5   66 FMS ECO16G6466 PLATE
19 FMS ECO16G6419 CYLINDER   67 FMS ECO16G6467 FEEDER SHOE
20 FMS ECO16G6420 O-RING 47*2.5   68 FMS ECO16G6468 SPRING
21 FMS ECO16G6421 RESTRICTIVE PLATE   69 FMS ECO16G6469 FEEDER GUIDER
22 FMS ECO16G6422 O-RING 66.6*2.6   70 FMS ECO16G6470 SAFE PLATE
23 FMS ECO16G6423 BUMPER   71 FMS ECO16G6471 PIN
24 FMS ECO16G6424 JOINT GUIDE   72 FMS ECO16G6472 NAIL CASKET (LEFT)
25 FMS ECO16G6425 SAFE GUIDER   73 FMS ECO16G6473 PIN
26 FMS ECO16G6426 SPRING   74 FMS ECO16G6474 SCREW
27 FMS ECO16G6427 SAFE BRACKET   75 FMS ECO16G6475 COIL SPRING
28 FMS ECO16G6428 STEEL BALL   76 FMS ECO16G6476 PIN
29 FMS ECO16G6429 SPRING   77 FMS ECO16G6477 FEEDER LOCK
30 FMS ECO16G6430 NUT   78 FMS ECO16G6478 SCREW
31 FMS ECO16G6431 LOCKING WASHER HY1005054 79 FMS ECO16G6479 CLAMP SCREW
32 FMS ECO16G6432 SAFE JOINING   80 FMS ECO16G6480 NUT
33 FMS ECO16G6433 SAFE BRACKET   81 FMS ECO16G6481 SUPPORT
34 FMS ECO16G6434 BRACKET SLEEVE   82   ECO16G6482 NUT
35 FMS ECO16G6435 O-RING 20.3*2.5   83   ECO16G6483 SCREW
36 FMS ECO16G6436 O-RING 20.3*1.5   84   ECO16G6484 WASHER
37 FMS ECO16G6437 VALVE GUIDE   85   ECO16G6485 NUT
38 FMS ECO16G6438 TRIGGER VALVE GUIDE   86   ECO16G6486 SCREW
39 FMS ECO16G6439 SPRING PIN   87 FMS ECO16G6487 RAIL
40 FMS ECO16G6440 TRIGGER SPRING HY1005052 88 FMS ECO16G6488 CASKET PLATE
41 FMS ECO16G6441 ROTATING SHAFT BUSHING   89   ECO16G6489 BODY
42 FMS ECO16G6442 TRIGGER ASSEMBLY HY1005056 90   ECO16G6490 SOFT GRIP SLEEVE
43 FMS ECO16G6443 STEEL BALL HY1005038 91 FMS ECO16G6491 GASKET
44 FMS ECO16G6444 SPRING   92 FMS ECO16G6492 END CAP
45 FMS ECO16G6445 ROTATING SHAFT PIN   93   ECO16G6493 AIR PLUG
46   ECO16G6446 LATCH SLEEVE
47 FMS ECO16G6447 LATCH ASSEMBLY
48 FMS ECO16G6448 PIN

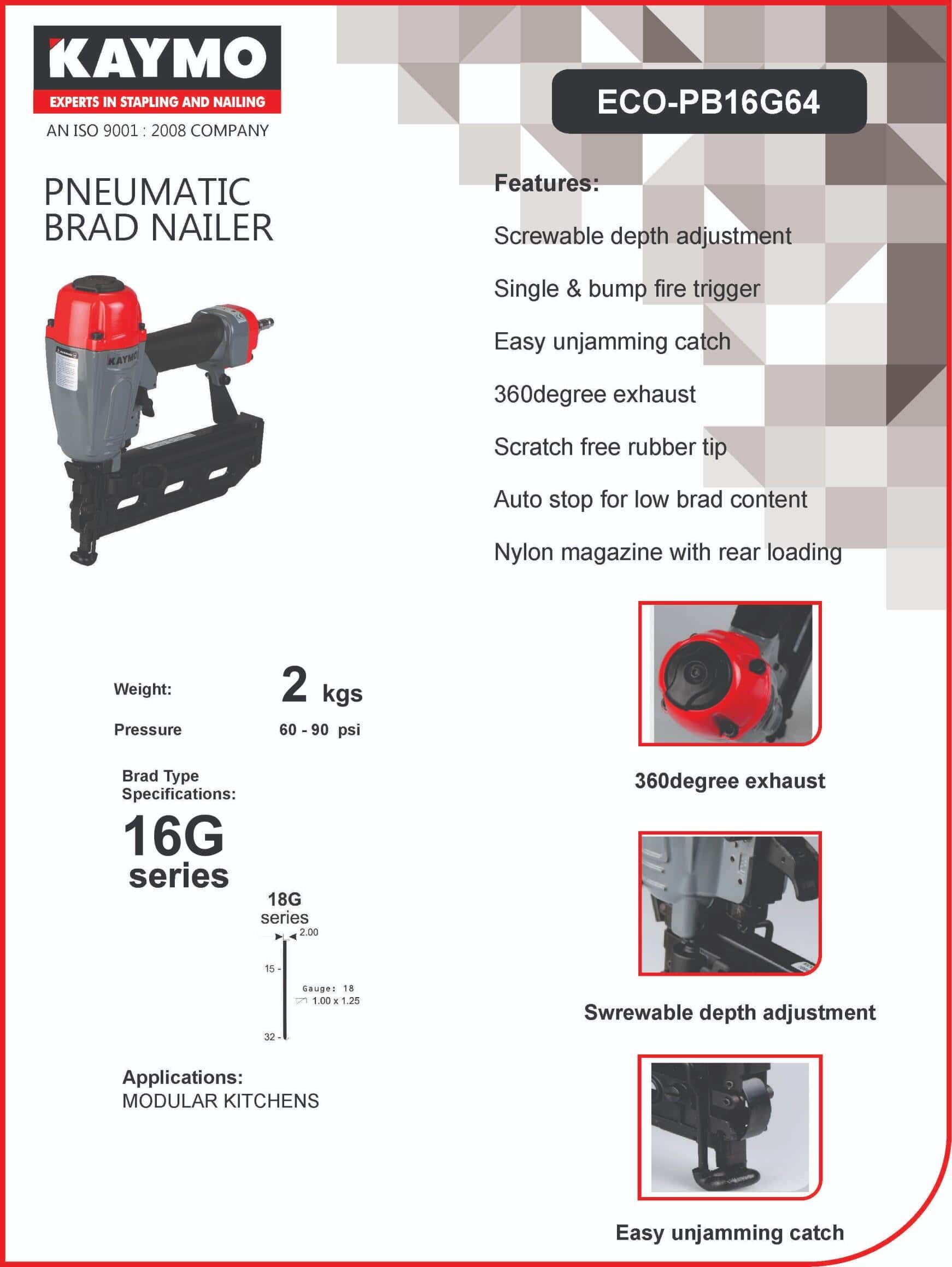

One Sheeter

Application
 MODULAR / KITCHENS To join MDF to MDF, ply & particle board
