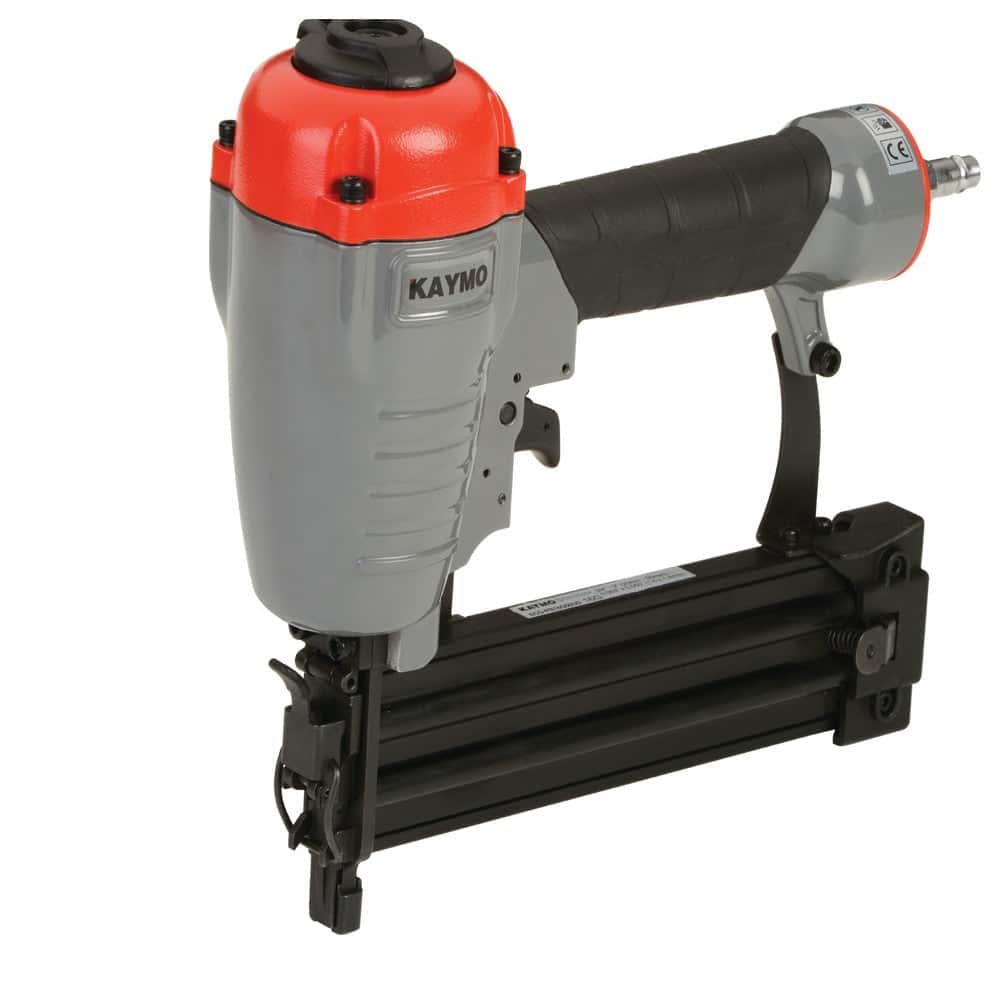

PNEUMATIC BRAD NAILER KAYMO ECO-16G50UD

Name: PNEUMATIC BRAD NAILER KAYMO ECO-16G50UD
Brand: Kaymo
SKU: ECO-PB16G50UD
Price: 1.0 INR
Availability: InStock

SKU: ECO-PB16G50UD

The KAYMO ECO-PB16G50UD is a high-precision pneumatic brad nailer designed for furniture, interiors, wooden flooring, and handicrafts. It features a brad nail unjamming device and Read More...

Features:

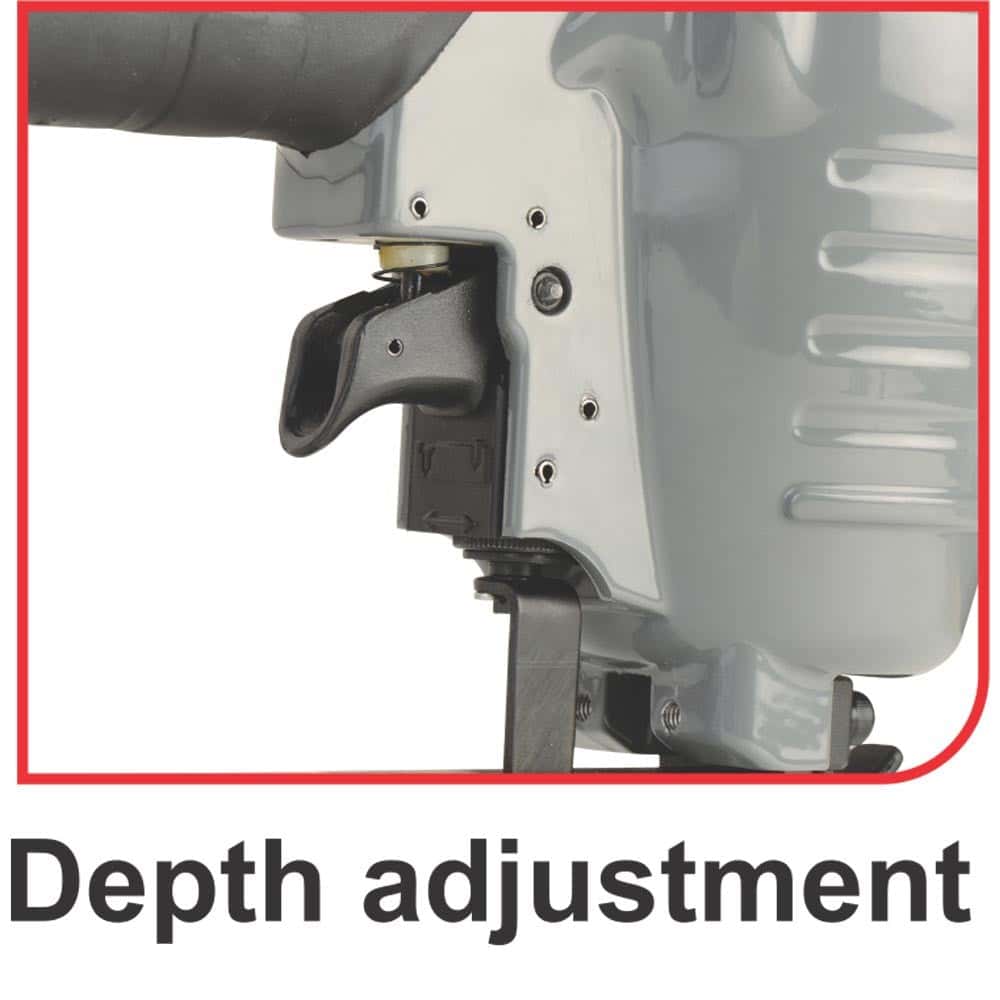

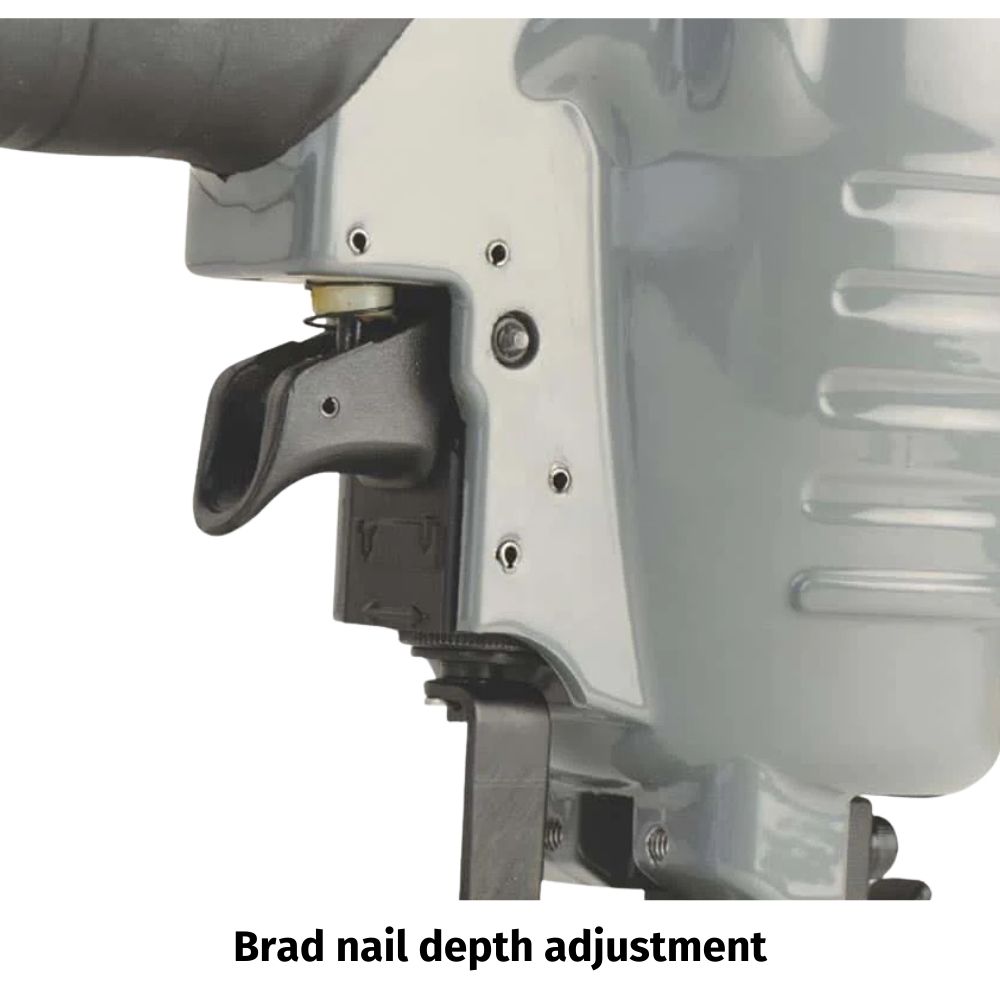

Brad nail depth adjustment

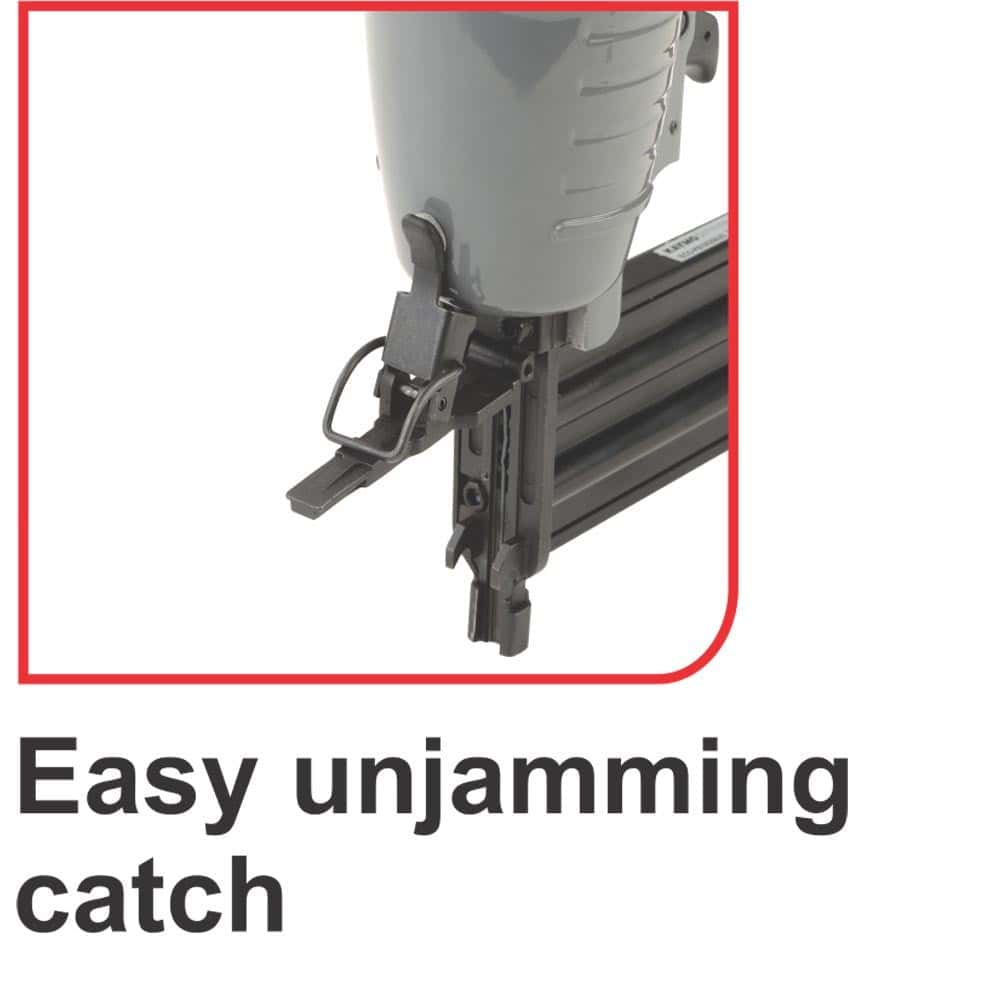

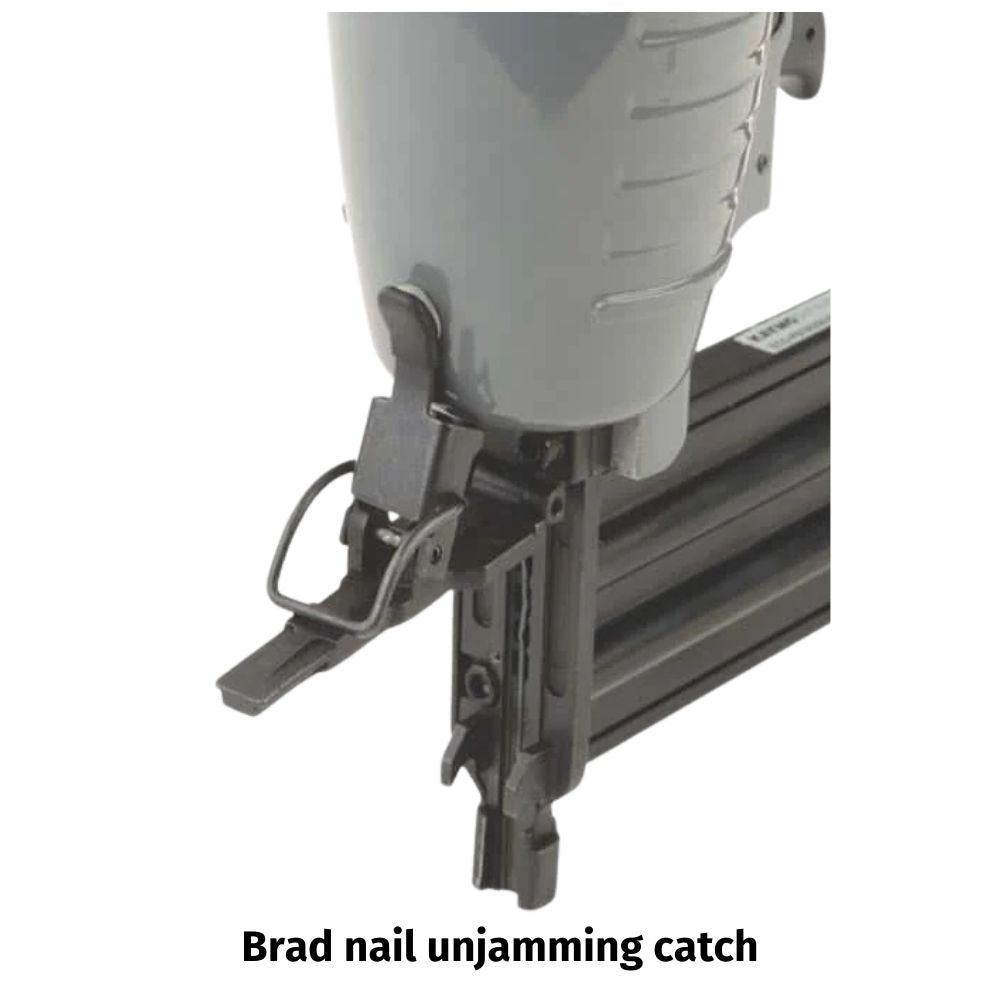

Brad nail unjamming catch

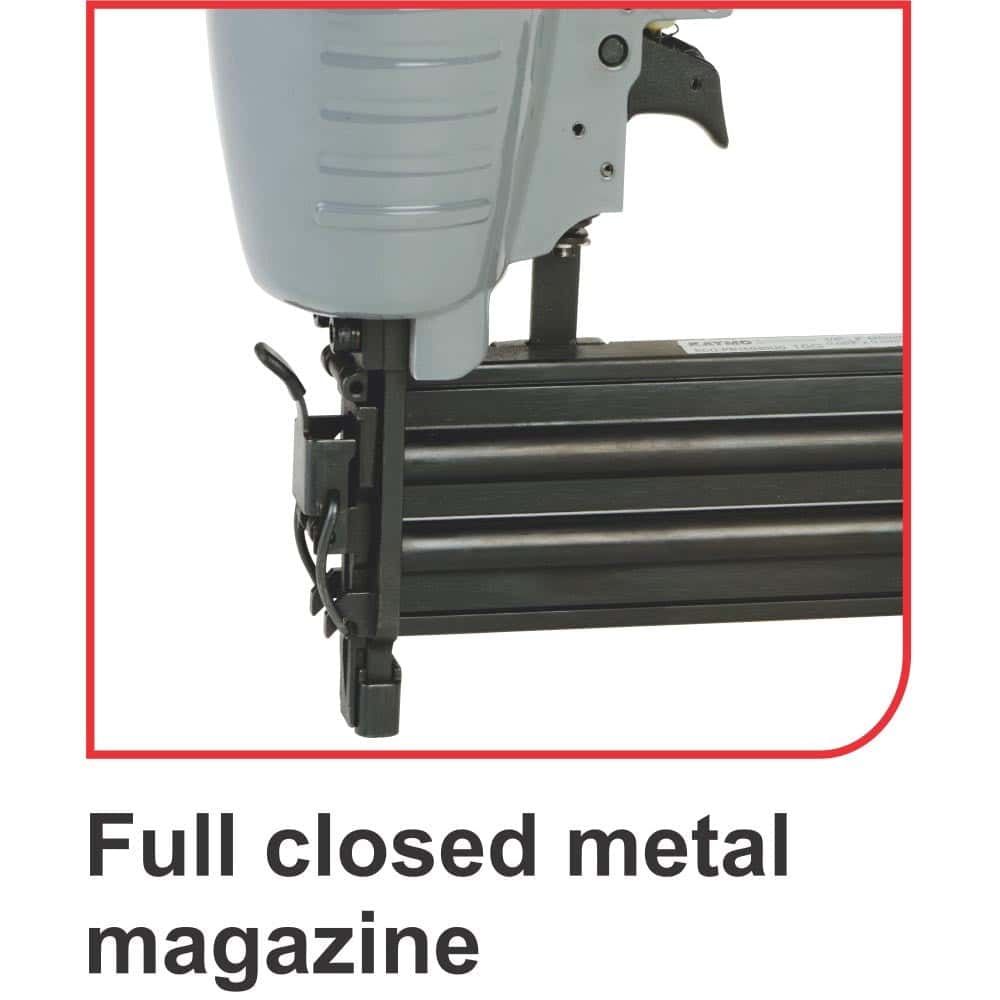

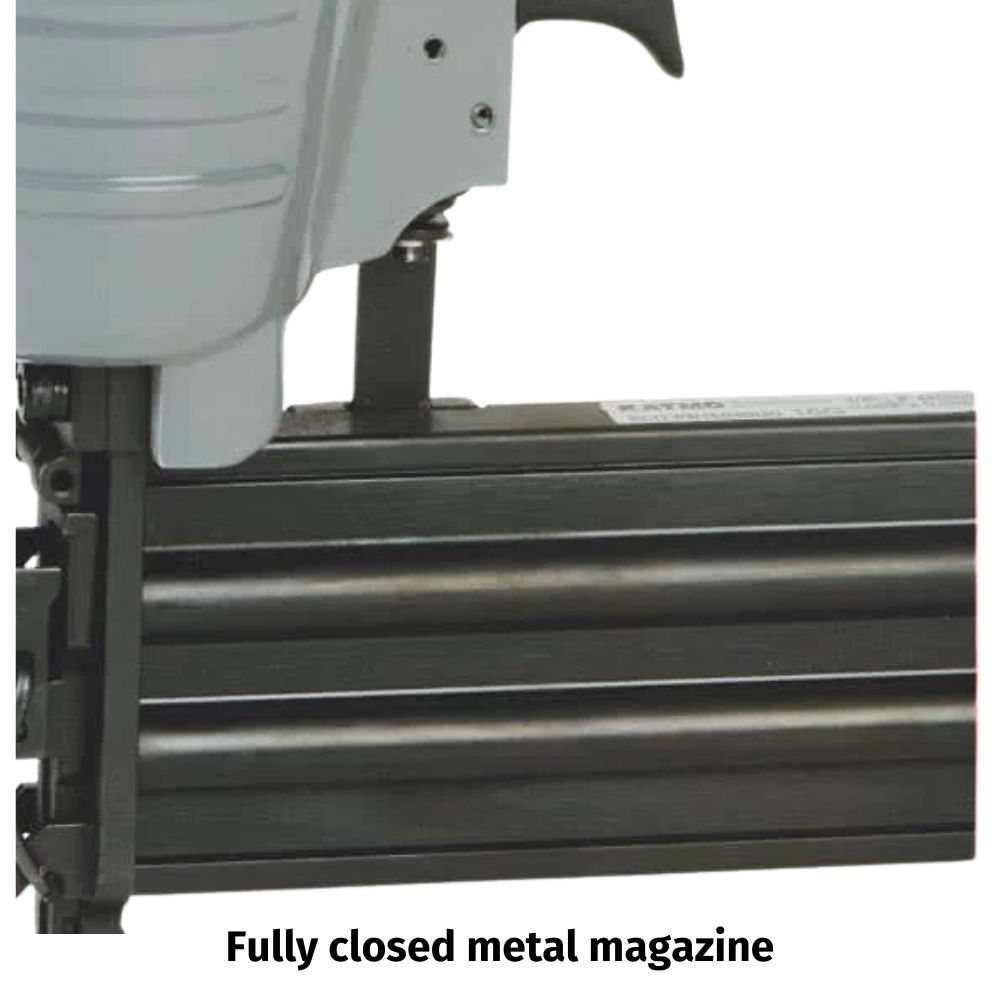

Fully closed metal magazine
Ergonomic rubber grip

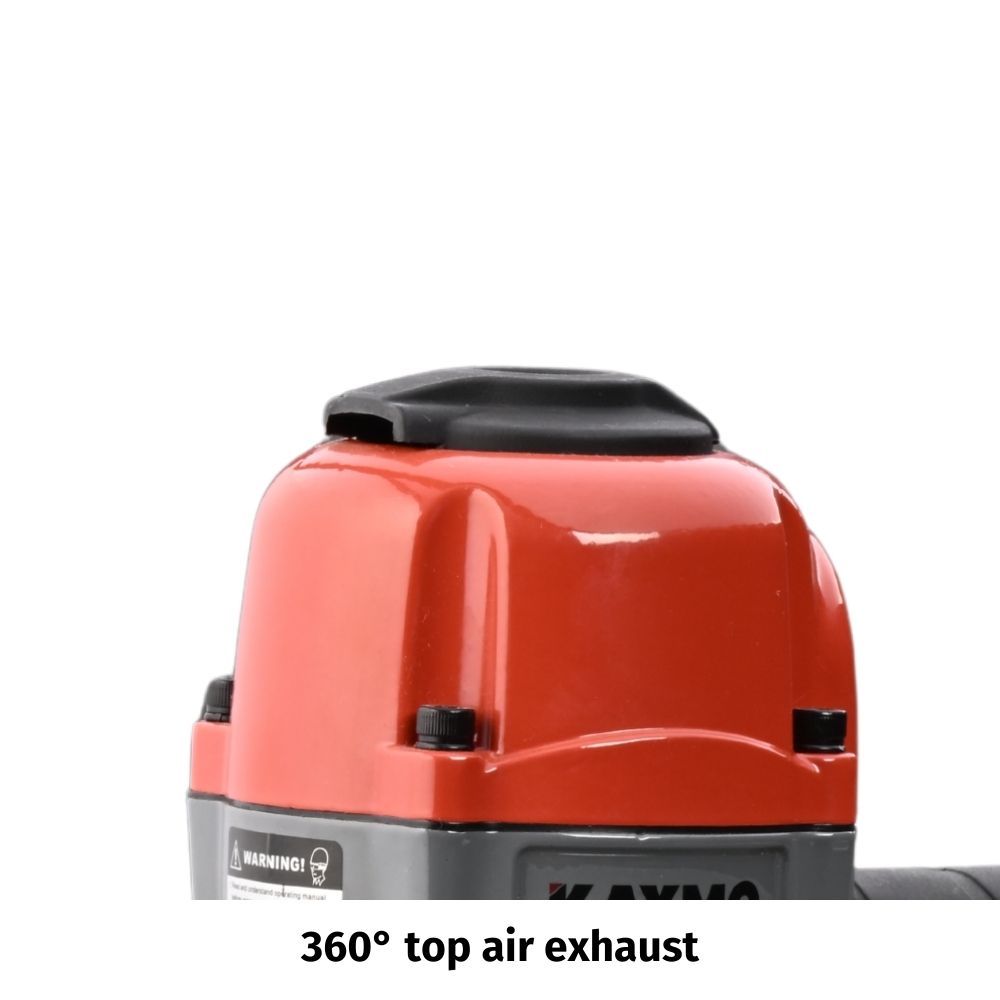

360° top air exhaust
Fastener Range: 20mm - 50mm

Applications:

Furniture
Interiors
Wooden crates
Handicrafts
Wooden flooring
Speaker boxes

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

BRAD NAILS KAYMO 1G (T TYPE)

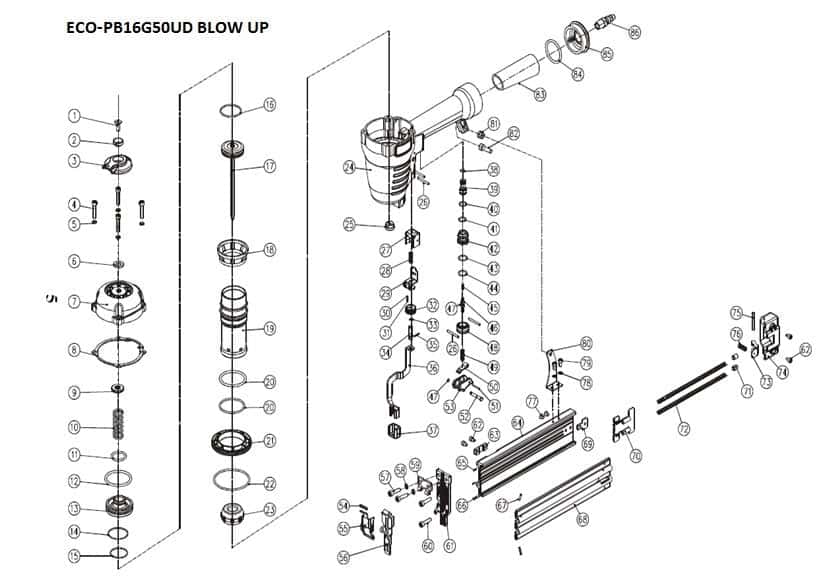

Blow Up

Spares

		TOOL MODEL:	ECO-PB16G50UD					REV .1ST APRIL 23
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1	FMS	ECOT50UD01	SCREW	ECO16G6401	44		ECOT50UD44	O-RING 20.3*1.5	ECO16G6436
2		ECOT50UD02	BUSHING	ECO16G6402	45	FMS	ECOT50UD45	SPRING	ECO16G6454
3		ECOT50UD03	EXHAUST COVER	ECO16G6403	46	FMS	ECOT50UD46	TRIGGER VALVE STEM	ECO16G6455
4		ECOT50UD04	SCREW	ECO16G6405	47	FMS	ECOT50UD47	O-RING 5.5*1.5	HY1005044
5	FMS	ECOT50UD05	WASHER	S0410500	48	FMS	ECOT50UD48	TRIGGER VALVE GUIDE	ECO16G6438
6		ECOT50UD06	SEAL	ECO16G6404	49		ECOT50UD49	SPRING	ECO18G32037N
7		ECOT50UD07	CYLINDER CAP		50		ECOT50UD50	TRIGGER SPRING
8	FMS	ECOT50UD08	GASKET	ECO16G6408	51		ECOT50UD51	SPRING PIN
9	FMS	ECOT50UD09	VALVE SEAL	ECO16G6410	52		ECOT50UD52	PIN
10	FMS	ECOT50UD10	SPRING	ECO16G6409	53		ECOT50UD53	TRIGGER
11	FMS	ECOT50UD11	O-RING 22.8*2.5	ECO16G6411	54		ECOT50UD54	RUBBER SLEEVE
12	FMS	ECOT50UD12	O-RING 49.2*3.5	ECO16G6413	55	FMS	ECOT50UD55	LATCH ASSEMBLy	HY1005034
13	FMS	ECOT50UD13	VALVE	ECO3FT9011	56		ECOT50UD56	FRONT PLATE
14	FMS	ECOT50UD14	O-RING 43.3*3.5	ECO16G6414	57	FMS	ECOT50UD57	SCREW	KM0520
15	FMS	ECOT50UD15	O-RING 28.3*3	ECO16G6415	58	FMS	ECOT50UD58	SPRING WASHER	S0410500
16	FMS	ECOT50UD16	O-RING 40.3*3.5	ECO16G6418	59		ECOT50UD59	SPACER
17	FMS	ECOT50UD17	PISTON ASSEMBLY		60	FMS	ECOT50UD60	SCREW	KM0520
18		ECOT50UD18	COLLER	ECO16G6416	61		ECOT50UD61	DRIVE GUIDE
19		ECOT50UD19	CYLINDER		62	FMS	ECOT50UD62	SCREW	KM0406
20		ECOT50UD20	O-RING 47*2.5	ECO16G6420	63		ECOT50UD63	BLOCK
21	FMS	ECOT50UD21	RESTRICTIVE PLATE	ECO16G6421	64		ECOT50UD64	FIXED MAGAZINE
22	FMS	ECOT50UD22	O-RING 66.6*2.6	ECO16G6422	65		ECOT50UD65	PIN
23	FMS	ECOT50UD23	BUMPER	ECO3FT9022	66		ECOT50UD66	RAIL	ECOT5051
24		ECOT50UD24	BODY		67		ECOT50UD67	PIN	ECOT5052
25		ECOT50UD25	JOINT GUIDE		68		ECOT50UD68	MOVABLE MAGAZINE
26	FMS	ECOT50UD26	SPRING PIN 3*28	ECO16G6439	69	FMS	ECOT50UD69	STOPPER	HY18G32056
27		ECOT50UD27	SAFE GUIDE		70	FMS	ECOT50UD70	FEEDER SHOE	ECOT5057
28		ECOT50UD28	SPRING		71		ECOT50UD71	SPRING SEAT
29		ECOT50UD29	SAFE BRACKET A		72	FMS	ECOT50UD72	SPRING	HY18G32050
30		ECOT50UD30	STEEL BALL	ECO3FT9051	73	FMS	ECOT50UD73	LOCK	HY18G50054
31		ECOT50UD31	SPRING		74	FMS	ECOT50UD74	MAGAZINE PLATE	HY18G50060
32		ECOT50UD32	ADJUSTING SCREW		75	FMS	ECOT50UD75	PIN	HY18G50055
33		ECOT50UD33	LOCK WASHER		76	FMS	ECOT50UD76	SPRING	HY18G50053
34		ECOT50UD34	COUPING BAR		77	FMS	ECOT50UD77	SCREW	HY18G32055
35		ECOT50UD35	PIN		78		ECOT50UD78	SPRING WASHER	S0410400
36		ECOT50UD36	SAFE BRACKET B		79	FMS	ECOT50UD79	SCREW	KM0408
37		ECOT50UD37	RUBBER SLEEVE		80		ECOT50UD80	SUPPORT
38	FMS	ECOT50UD38	O-RING 9.5*1.9	ECO16G6449	81	FMS	ECOT50UD81	NUT	ECO16G6480
39	FMS	ECOT50UD39	TRIGGER VALVE HEAD	ECO3FT9039	82		ECOT50UD82	SCREW	ECO16G6486
40	FMS	ECOT50UD40	O-RING 10.3*1.9	HY1005041	83		ECOT50UD83	SOFT GRIP SLEEVE	ECO16G6490
41	FMS	ECOT50UD41	O-RING 12.8*1.9	HY1005042	84	FMS	ECOT50UD84	O-RING 48.8*2.5	ECO235784
42	FMS	ECOT50UD42	VALVE SET	ECO16G6437	85	FMS	ECOT50UD85	END CAP	ECO3FT9028
43	FMS	ECOT50UD43	O-RING 20.3*2.5	ECO16G6435	86		ECOT50UD86	AIR PLUG	S3120PMA5208

One Sheeter

Application

Furniture & Interiors	Perfect for assembling furniture and detailed woodwork.
Wooden Flooring	Provides secure fastening for flooring applications.
Handicrafts & DIY	Ideal for creative woodworking and decorative projects
