PNEUMATIC BRAD NAILER KAYMO ECO-16G50

Name: PNEUMATIC BRAD NAILER KAYMO ECO-16G50
Brand: Kaymo
SKU: ECO-PB16G50
Price: 1.0 INR
Availability: InStock

SKU: ECO-PB16G50

The KAYMO ECO-PB16G50 is a high-performance pneumatic brad nailer, designed for precision fastening in furniture, interiors, wooden flooring, and handicrafts. With a full metal magazine Read More...

Features:

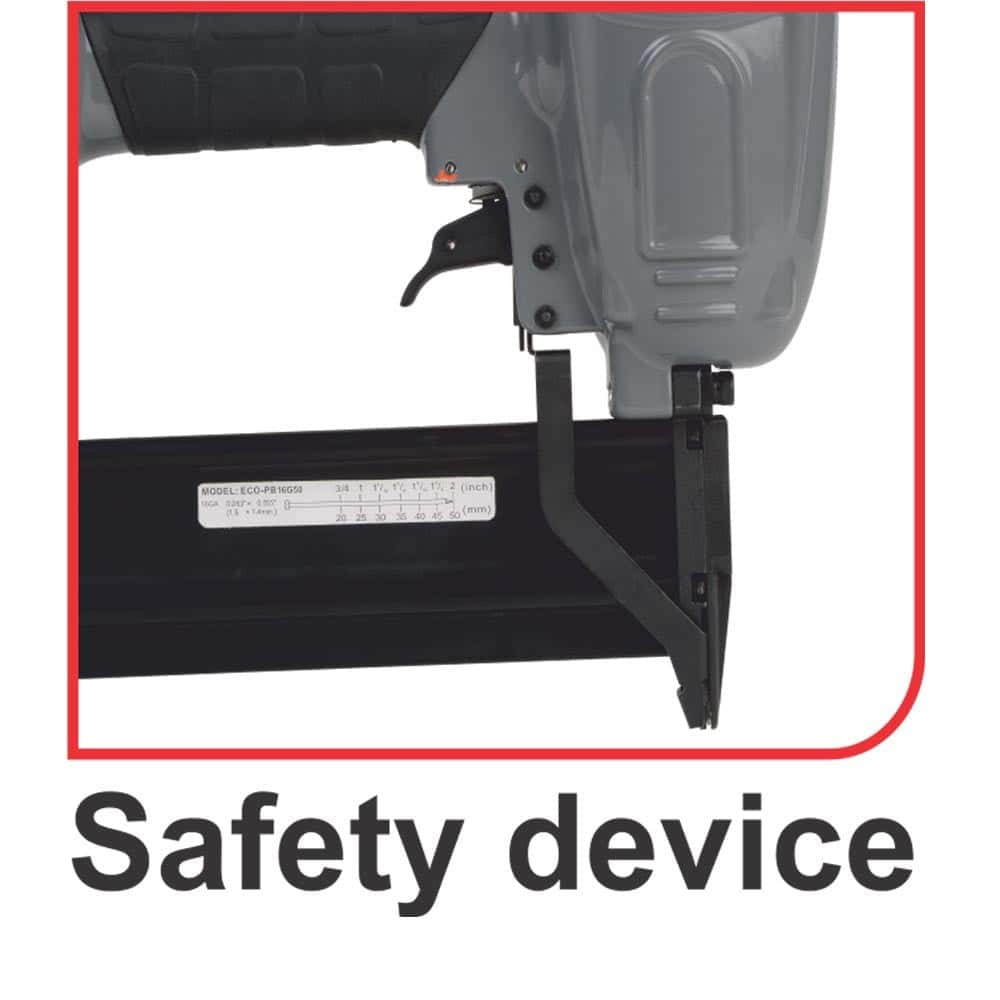

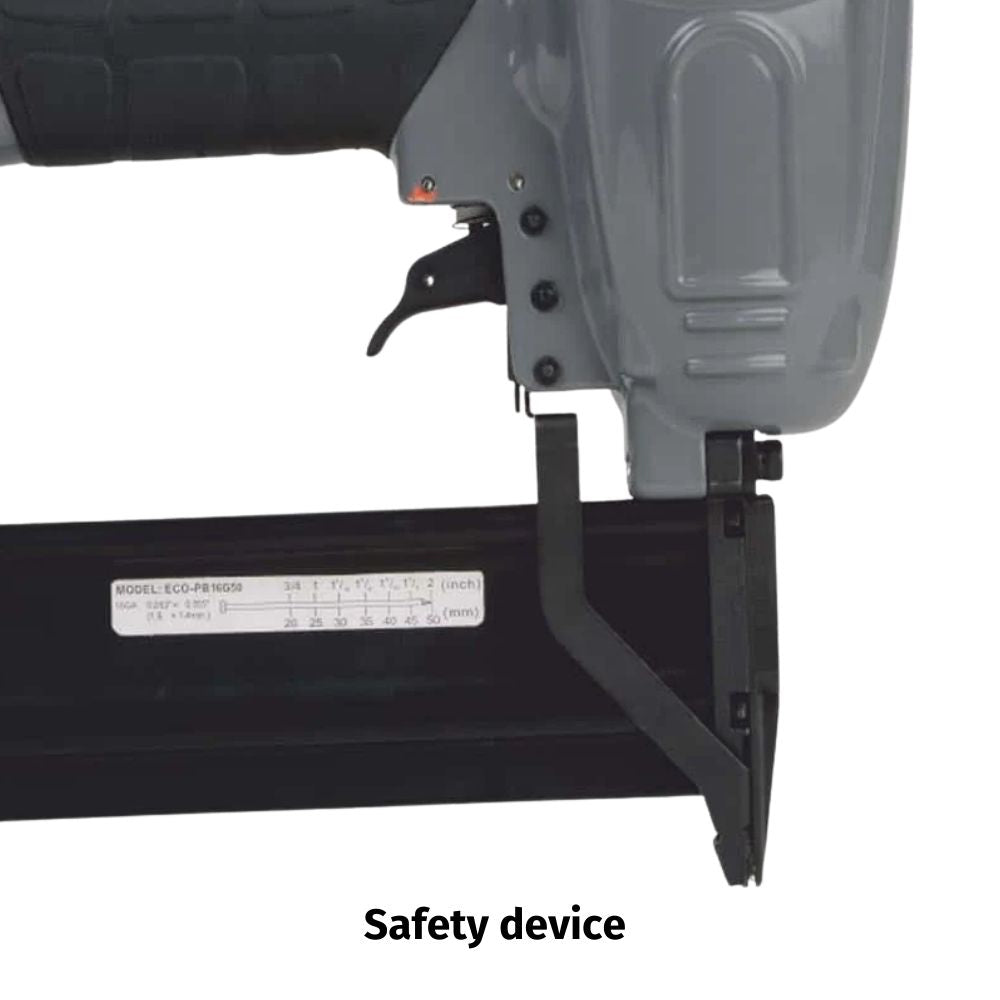

Safety device

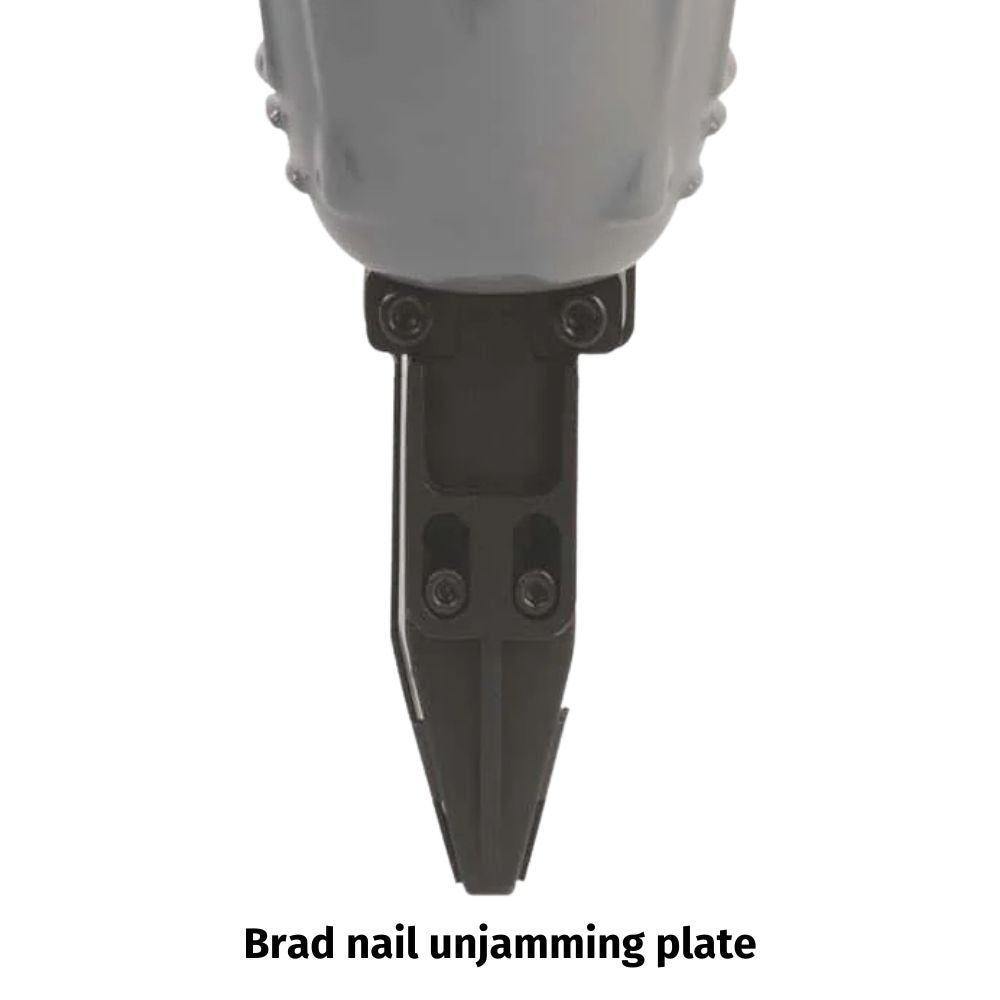

Brad nails unjamming plate

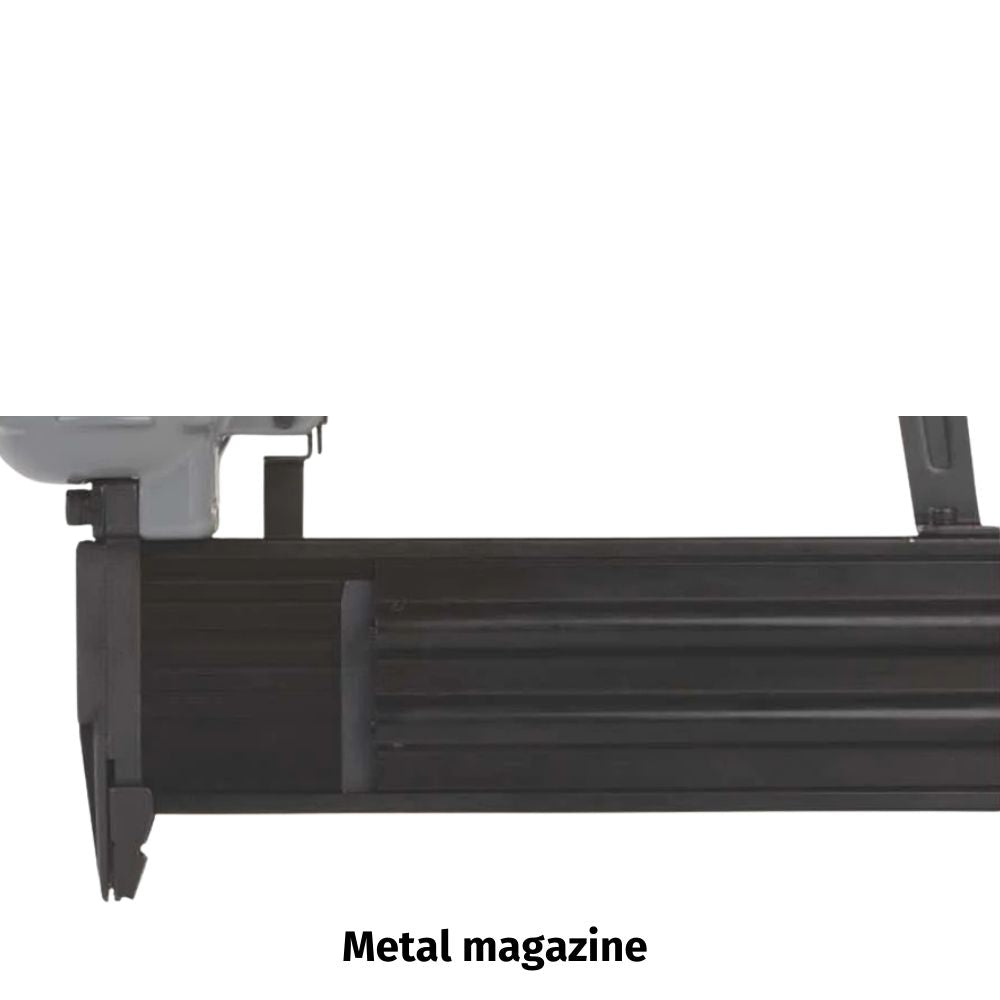

Metal magazine
360° top air exhaust
Recommended for wooden floors
Fastener Range: 20mm - 50mm

Applications:

Furniture

Interiors

Wooden crates

Handicrafts

Wooden flooring

Speaker boxes

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

BRAD NAILS KAYMO 16G (T TYPE)

AIR FILTER + REGULATOR LUBRICATOR SET KAYMO 1/2" WITH GAUGE

ADJUSTABLE AIR BLOW GUN KAYMO 1/4" PT WITH 10 cm SS NOZZLE & PLUG

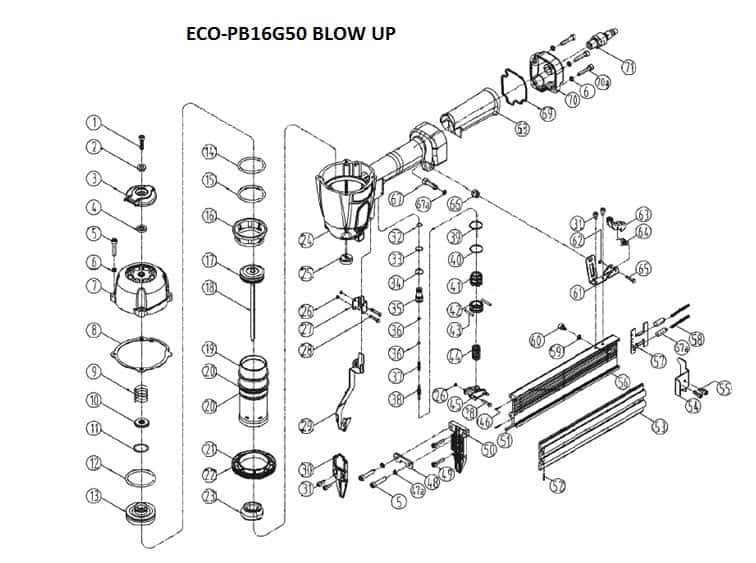

Blow Up

Spares

		TOOL MODEL:	ECO-PB16G50					REV .1ST APRIL 23
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1	FMS	ECOT5001	SCREW	ECO16G6401	39	FMS	ECOT5039	O-RING 20.3*2.5	ECO16G6435
2		ECOT5002	BUSHING	ECO16G6402	40	FMS	ECOT5040	O-RING 20.3*1.5	ECO16G6436
3		ECOT5003	EXHAUST COVER	ECO16G6403	41	FMS	ECOT5041	VALVE SET	ECO16G6437
4		ECOT5004	SEAL	ECO16G6404	42	FMS	ECOT5042	TRIGGER VALVE GUIDE	ECO16G6438
5		ECOT5005	SCREW	ECO16G6405	43	FMS	ECOT5043	SPRING PIN	ECO16G6439
6	FMS	ECOT5006	WASHER	S0410500	44	FMS	ECOT5044	TRIGGER SPRING	ECO16G6444
7	FMS	ECOT5007	CYLINDER CAP	ECO16G6407	45		ECOT5045	TRIGGER ASSEMBLY
8	FMS	ECOT5008	GASKET	ECO16G6408	46	FMS	ECOT5046	SPRING PIN	HY1005069
9	FMS	ECOT5009	SPRING	ECO16G6410	47		ECOT5047	SCREW
10	FMS	ECOT5010	VALVE SEAL	ECO16G6409	48		ECOT5048	PLATE
11	FMS	ECOT5011	O-RING 22.8*2.5	ECO16G6411	49	FMS	ECOT5049	SCREW	KM0520
12	FMS	ECOT5012	O-RING 49.2*3.5	ECO16G6413	50		ECOT5050	DRIVE GUIDE
13	FMS	ECOT5013	VALVE	ECO3FT9011	51		ECOT5051	RAIL
14	FMS	ECOT5014	O-RING 43.3*3.5	ECO16G6414	52		ECOT5052	SPRING PIN
15	FMS	ECOT5015	O-RING 28.3*3	ECO16G6415	53		ECOT5053	MOVABLE MAGAZINE
16	FMS	ECOT5016	COLLER	ECO16G6416	54		ECOT5054	STOPPED PLATE
17	FMS	ECOT5017	O-RING 40.3*3.5	ECO16G6418	55	FMS	ECOT5055	SCREW	KM0412
18	FMS	ECOT5018	PISTON ASSEMBLY		56		ECOT5056	FIXED MAGAZINE
19		ECOT5019	CYLINDER		57	FMS	ECOT5057	FEEDER SHOE
20	FMS	ECOT5020	O-RING 47*2.5	ECO16G6420	58	FMS	ECOT5058	SPRING	HY18G32050
21	FMS	ECOT5021	RESTRICTIVE PLATE	ECO16G6421	59	FMS	ECOT5059	WASHER	S0410500
22	FMS	ECOT5022	O-RING 66.6*2.6	ECO16G6422	60	FMS	ECOT5060	STOPPED SCREW	KM0520
23	FMS	ECOT5023	BUMPER	ECO3FT9022	61		ECOT5061	SUPPORT
24		ECOT5024	BODY		62	FMS	ECOT5062	LOCKING WASHER	YE2501
25		ECOT5025	RESTRICTIVE SHIM		63		ECOT5063	LOCK
26	FMS	ECOT5026	WASHER	HY1005044	64		ECOT5064	TORSION SPRING
27		ECOT5027	SAFE GUIDE		65		ECOT5065	PIN
28		ECOT5028	TRIGGER PIN		66	FMS	ECOT5066	NUT	ECO16G6480
29		ECOT5029	SAFE BRACKET		67	FMS	ECOT5067	SCREW	ECO16G6486
30		ECOT5030	FRONT PLATE		68	FMS	ECOT5068	SOFT GRIP SLEEVE	ECO16G6490
31	FMS	ECOT5031	SCREW	KM0412	69	FMS	ECOT5069	GASKET	ECO16G6491
32	FMS	ECOT5032	O-RING 9.5*1.9	ECO16G6449	70	FMS	ECOT5070	END CAP	ECO16G6492
33	FMS	ECOT5033	O-RING 10.3*1.9	HY1005041	71		ECOT5071	AIR PLUG	J702G
34	FMS	ECOT5034	O-RING 12.8*1.9	HY1005042	47a		ECOT5047A	SPRING WASHER
35	FMS	ECOT5035	TRIGGER VALVE HEAD	ECO3FT9039	57a		ECOT5057A	SPRING SEAT
36	FMS	ECOT5036	O-RING 5.5*1.5	HY1005044	67a		ECOT5067A	WASHER	ECO16G6405
37	FMS	ECOT5037	SPRING	ECO16G6454	70a		ECOT5070A	SCREW	ECO16G6405
38	FMS	ECOT5038	TRIGGER VALVE STEM	ECO16G6455
