PNEUMATIC BRAD NAILER 3-IN-1 F+T+90 SERIES COMBI

PNEUMATIC BRAD NAILER 3-IN-1 F+T+90 SERIES COMBI

Name: PNEUMATIC BRAD NAILER 3-IN-1 F+T+90 SERIES COMBI
Brand: Kaymo
SKU: ECO-3FT90
Price: 1.0 INR
Availability: InStock

SKU: ECO-3FT90

The Kaymo ECO-3FT90 3-in-1 Pneumatic Brad Nailer – Combi is a powerful and versatile fastening tool designed to handle a wide range of applications with Read More...

Features:

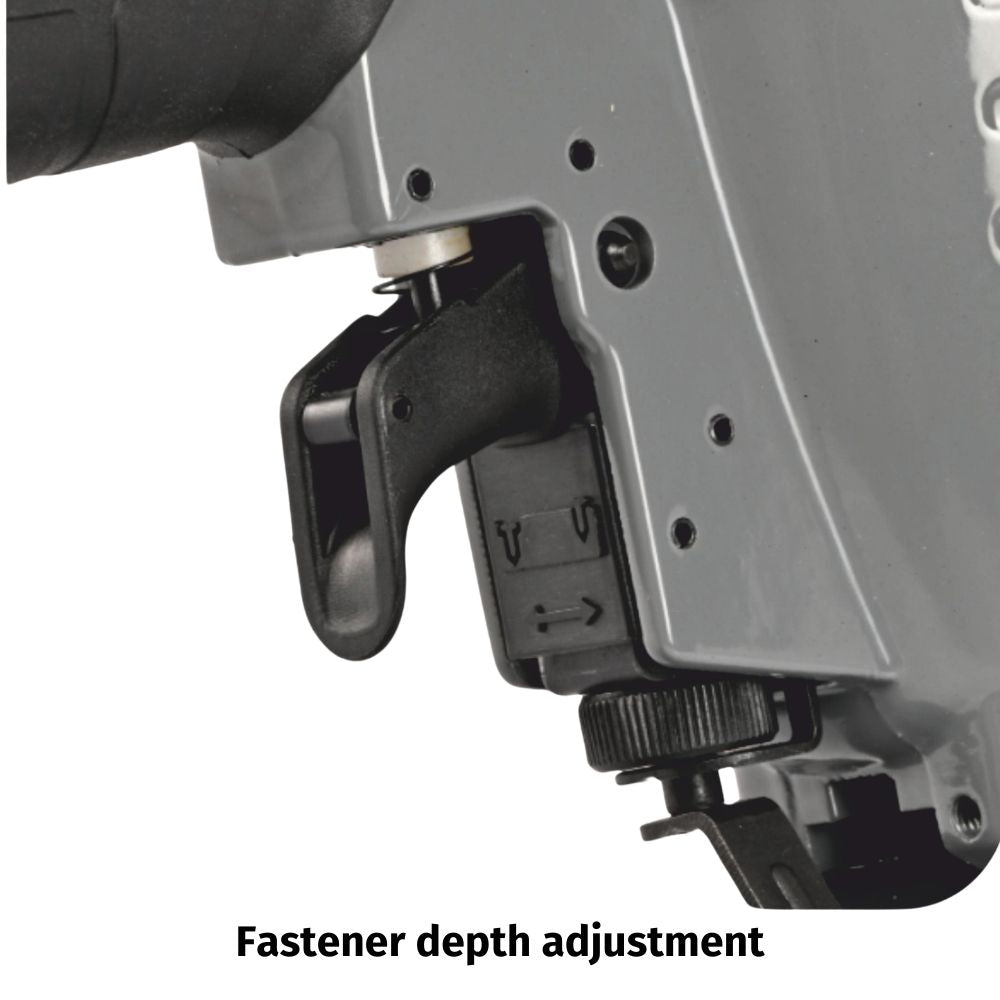

Fastener depth adjustment

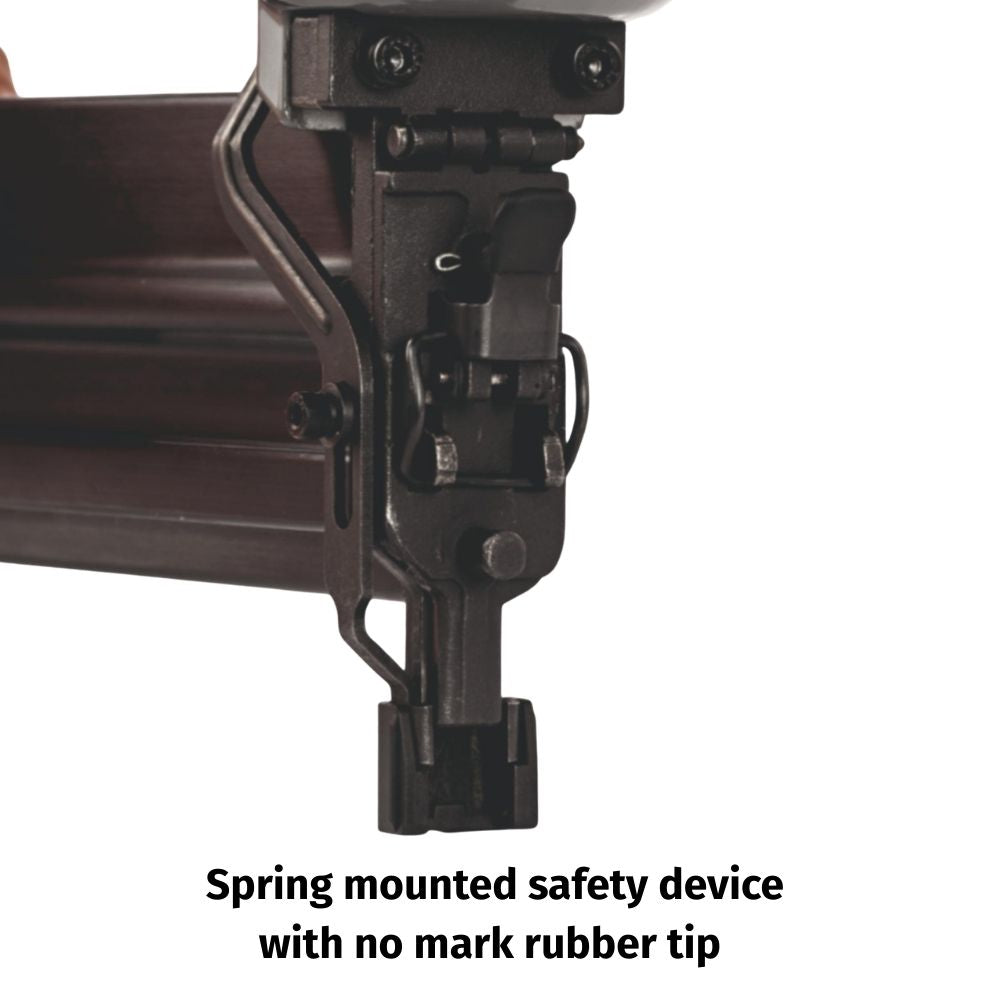

Spring mounted safety device with no mark rubber tip

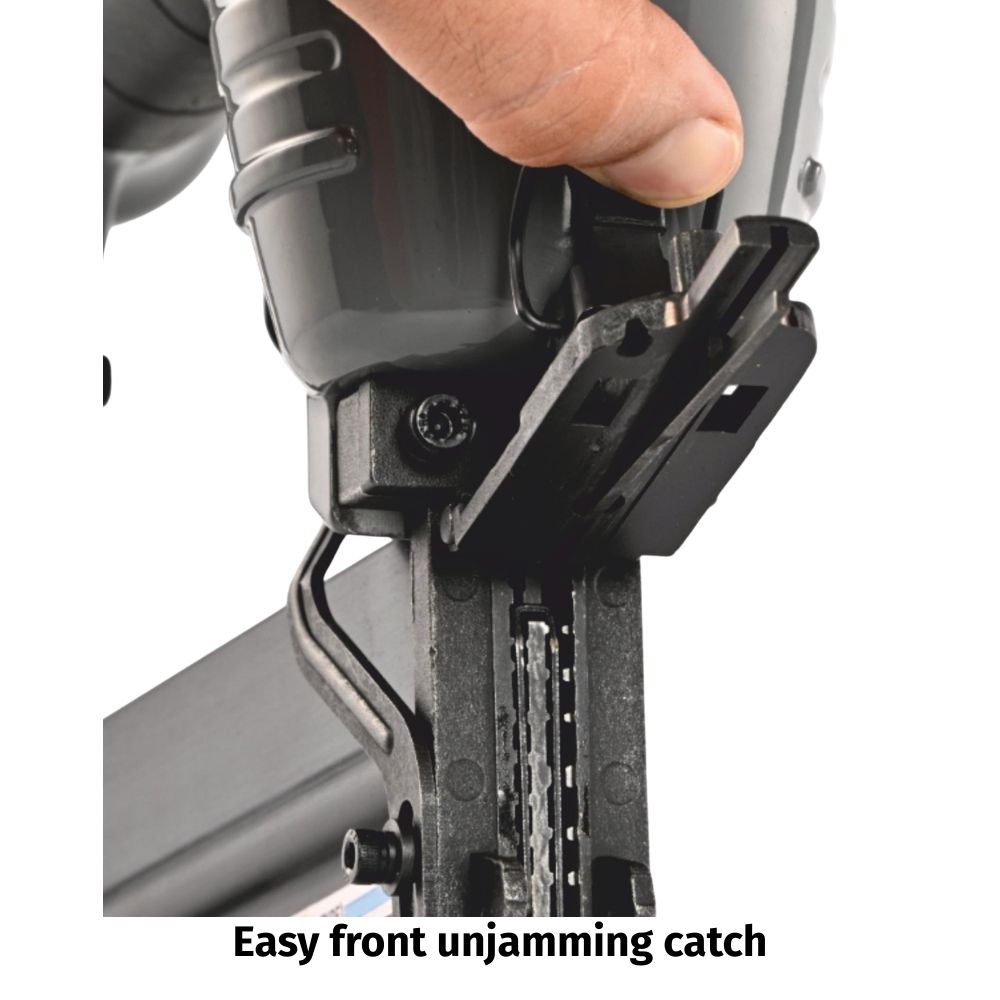

Easy front unjamming catch
Also accommodates T brads 20-64mm, 90 series staples 16-40mm
Fastener Range: 20mm - 50mm

Applications:

Interiors
Cabinets
Speaker boxes
Furniture

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

BRAD NAILS KAYMO 18G (F TYPE)

BRAD NAILS KAYMO 16G (T TYPE)

Blow Up

Spares

		TOOL MODEL:	ECO-3FT90
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1	FMS	ECO3FT9001	Screw M6*14	ECO16G6401	45	FMS	ECO3FT9045	Spring pin
2		ECO3FT9002	Bushing	ECO16G6402	46		ECO3FT9046	Body
3		ECO3FT9003	Exhaust cover	ECO16G6403	47	FMS	ECO3FT9047	Joint guide	ECOT50UD25
4		ECO3FT9004	Gasket	ECO16G6404	48		ECO3FT9048	Guide piece
5		ECO3FT9005	Screw M5*25	ECO16G6405	49	FMS	ECO3FT9049	Compression spring	ECOT50UD28
6	FMS	ECO3FT9006	Cylinder cap	ECOT50UD07	50	FMS	ECO3FT9050	Upper bracket	ECOT50UD29
7	FMS	ECO3FT9007	Seal	ECO16G6408	51	FMS	ECO3FT9051	Steel ball
8	FMS	ECO3FT9008	Gasket	ECO16G6410	52	FMS	ECO3FT9052	Compression spring	ECOT50UD31
9	FMS	ECO3FT9009	Compression spring	ECO16G6409	53	FMS	ECO3FT9053	Adjusting nut	ECOT50UD32
10	FMS	ECO3FT9010	O-ring 22.8*2.5	ECO16G6411	54	FMS	ECO3FT9054	Split washer	ECOT50UD33
11		ECO3FT9011	Valve		55	FMS	ECO3FT9055	Safety bracket
12	FMS	ECO3FT9012	O-ring 49.2*3.5	ECO16G6413	56	FMS	ECO3FT9056	Screw M4*10	KM0410
13	FMS	ECO3FT9013	O-ring 43.3*3.5	ECO16G6414	57		ECO3FT9057	Bushing
14	FMS	ECO3FT9014	O-ring 28.3*3	ECO16G6415	58		ECO3FT9058	Rubber cover
15	FMS	ECO3FT9015	O-ring 40.3*3.5	ECO16G6418	59		ECO3FT9059	Driver guide
16	FMS	ECO3FT9016	Piston assembly		60	FMS	ECO3FT9060	Plate
17		ECO3FT9017	Collar	ECO16G6416	61		ECO3FT9061	Washer	HY1005044
18	FMS	ECO3FT9018	O-ring 47*2.5	ECO16G6420	62		ECO3FT9062	Screw M5*25	ECO16G6405
19		ECO3FT9019	Cylinder	ECOT50UD19	63	FMS	ECO3FT9063	Latch cover	ECOT50UD54
20		ECO3FT9020	Limiting plate	ECO16G6421	64	FMS	ECO3FT9064	Pin
21	FMS	ECO3FT9021	O-ring 66.6*2.6	ECO16G6422	65	FMS	ECO3FT9065	Latch assembly
22	FMS	ECO3FT9022	Bumper		66		ECO3FT9066	Door
23	FMS	ECO3FT9023	O-ring 5.5*1.5	HY1005044	67		ECO3FT9067	Spring
24	FMS	ECO3FT9024	Locknut	ECO16G6480	68		ECO3FT9068	Spring
25		ECO3FT9025	Screw M5*20	KM0520	69		ECO3FT9069	Guide piece
26		ECO3FT9026	Handle grip		70	FMS	ECO3FT9070	Pin
27		ECO3FT9027	O-ring 48.8*2.5	ECO235784	71		ECO3FT9071	Screw M4*16	KM0416
28	FMS	ECO3FT9028	End cap		72		ECO3FT9072	Pin
29		ECO3FT9029	Air plug	S3120PMA5208	73	FMS	ECO3FT9073	Screw M4*8	KM0408
30	FMS	ECO3FT9030	Trigger valve stem	ECO16G6455	74		ECO3FT9074	Support plate
31		ECO3FT9031	Trigger valve case	ECO16G6438	75	FMS	ECO3FT9075	Rail
32	FMS	ECO3FT9032	Compression spring	ECO18G32037N	76		ECO3FT9076	Magazine
33	FMS	ECO3FT9033	O-ring 12.8*1.9	HY1005042	77	FMS	ECO3FT9077	Pin	ECO9040C61
34	FMS	ECO3FT9034	O-ring 10.3*1.9	HY1005041	78	FMS	ECO3FT9078	Magazine plate
35	FMS	ECO3FT9035	O-ring 9.5*1.9	ECO16G6449	79	FMS	ECO3FT9079	Spring	ECO9040C57
36	FMS	ECO3FT9036	O-ring 20.3*1.5	ECO16G6436	80	FMS	ECO3FT9080	Lock	ECO9040C58
37	FMS	ECO3FT9037	O-ring 20.3*2.5	ECO16G6435	81	FMS	ECO3FT9081	Magazine cover
38		ECO3FT9038	Trigger valve guide	ECO16G6437	82	FMS	ECO3FT9082	Spring
39	FMS	ECO3FT9039	Trigger valve head		83	FMS	ECO3FT9083	Pin
40	FMS	ECO3FT9040	Compression spring	ECO16G6454	84	FMS	ECO3FT9084	Feeder seat
41	FMS	ECO3FT9041	Spring pin	ECOT50UD51	85	FMS	ECO3FT9085	Feeder shoe
42	FMS	ECO3FT9042	Trigger spring	ECOT50UD50	86	FMS	ECO3FT9086	Screw M4*6	KF0408
43	FMS	ECO3FT9043	Pin	ECOT50UD52	87	FMS	ECO3FT9087	Insert piece
44	FMS	ECO3FT9044	Trigger	ECOT50UD53

One Sheeter

Application

INTERIORS	To join wood to wood
CABINET MAKING	To join wood to wood
SPEAKER BOXES	To join wood to wood
FURNITURE	To join wood to wood
DIY HOBBIES	To join wood to wood
