SKU: PRO-FPFLEX15
Introducing the Kaymo PRO-FPFLEX15 Pneumatic Framing Tool, designed for professionals.
| Made in Italy | Original One (European Quality Certification) | Lightweight tool |
Features:
High Capacity Loading Magazine (Loads 200 Tabs)

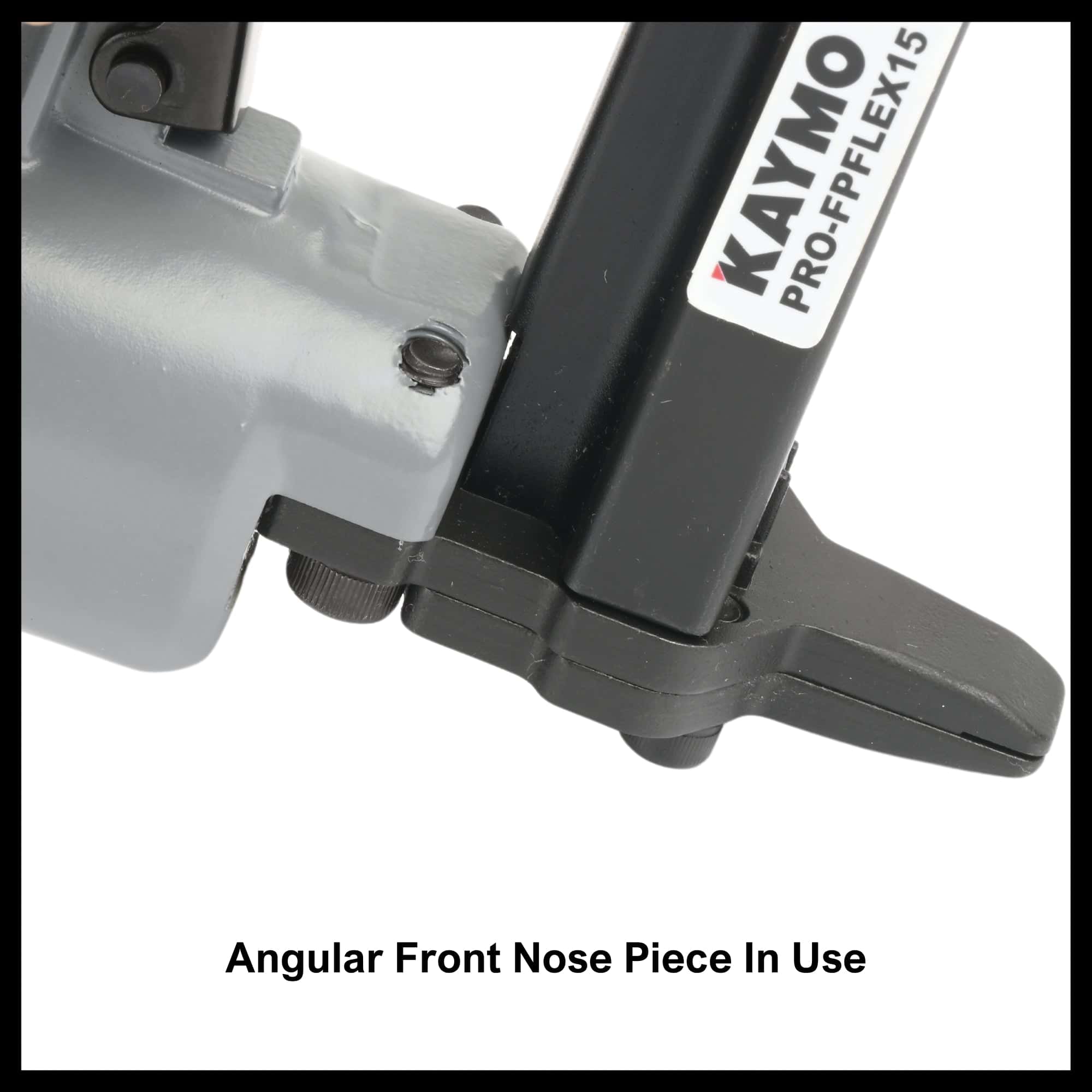

Angular Nose for Easy Reach
360 Degree Air Exhaust
Operating Trigger with Safety Lock
Set of Twin Pusher Springs
Applications:
Perfect for securing backboards to photo frames.
Note: Use only Kaymo Flexi Tabs. Spare parts available.
Order now for reliable, high-performance framing!
| Made in Italy | Original One (European Quality Certification) | Lightweight tool |
Features:
High Capacity Loading Magazine (Loads 200 Tabs)
Angular Nose for Easy Reach
360 Degree Air Exhaust
Operating Trigger with Safety Lock
Set of Twin Pusher Springs
Applications:
Perfect for securing backboards to photo frames.
Note: Use only Kaymo Flexi Tabs. Spare parts available.
Order now for reliable, high-performance framing!
₹ 0/-
Blow Up
Spares
| TOOL MODEL: | PRO-FPFLEX15 | |||||||||
| SR | FMS | PART CODE | PART NAME | ALT CODE | SR | FMS | PART CODE | PART NAME | ALT CODE | |
| 0 | FA2002 | SPRING | PF1601 | SPRING | ||||||
| 0 | FB2501 | PISTON STOP | PF1701 | SAFETY LEVER | ||||||
| 0 | FE1201 | EXHAUST CAP RING | PF1801 | PIN | ||||||
| 0 | KF0510 | FLAT HD.BOLT | UE0101 | BODY | ||||||
| 0 | KM0406 | HEX.SOC.HD.BOLT | UE0303 | HEAD VALVE PISTON | ||||||
| 0 | KM0408 | HEX.SOC.HD.BOLT | UE0401 | CAP SEAL | ||||||
| 0 | KM0408A | HEX.SOC.HD.BOLT | UE0702 | COMPRESSION SPRING | ||||||
| 0 | KM0412A | HEX.SOC.HD.BOLT | UE1101W | TRIGGER VALVE ASSY. | ||||||
| 0 | KM0516 | HEX.SOC.HD.BOLT | UE1201 | COLLAR | HY1013J011 | |||||
| 0 | KM0520 | HEX.SOC.HD.BOLT | UE1301 | COMPRESSION SPRING | NEO80028 | |||||
| 0 | KM0522 | HEX.SOC.HD.BOLT | UE1401 | TRIGGER VALVE STEM | ||||||
| 0 | KS1612 | SPRING PIN | UE1501 | SEAL | HY1013J019 | |||||
| 0 | OA004A | O-RING | UE1601 | TRIGGER VALVE GUIDE | ||||||
| 0 | OA126A | O-RING | UE1701 | TRIGGER VALVE SEAT | ||||||
| 0 | OA204B | O-RING | UE1801 | TRIGGER | ||||||
| 0 | OB221A | O-RING | HY1013J009 | UE3201 | CYLINDER CAP | |||||
| 0 | OB271A | O-RING | UE3301 | EXHAUST CAP | ||||||
| 0 | OP010A | O-RING | UG3501 | PISTON STOP | ||||||
| 0 | OP012A | O-RING | UH1001 | LATCH | ||||||
| 0 | OP016H | O-RING | WR0302 | COVER PLATE | ||||||
| 0 | OS030A | O-RING | WR0302W | DRIVER ASSY. | ||||||
| 0 | PA1602 | NOZZLE | WR0401 | MAGAZINE CAP | ||||||
| 0 | PA1901 | PIN | HY1013J039 | WR0501 | PUSHER | |||||
| 0 | PA2001 | END CAP | WR1001 | MAGAZINE SEAT SET | ||||||
| 0 | PA3202 | SUPPORT | WR1102 | GUIDE PLATE | ||||||
| 0 | PA3501 | GUIDE STEM | WR1202 | DRIVER SET | ||||||
| 0 | PA3601 | PUSHER SPRING | YE2501 | E-RING | ||||||
| 0 | PA3901 | PIN | YG0501 | SPRING WASHER | S0410500 | |||||
| 0 | PE0801 | CYLINDER | YL0508 | LOCK NUT | NEO1005079N | |||||
| 0 | PE0901 | BUMPER |
One Sheeter
Application
|
PHOTO & PAINTING FRAMES |
To fix 15mm flexi tabs at the back of photo frames. The flexi tabs MUST be bent each time to replace or change photos/ pictures |
