SKU: XPRO-HT8016

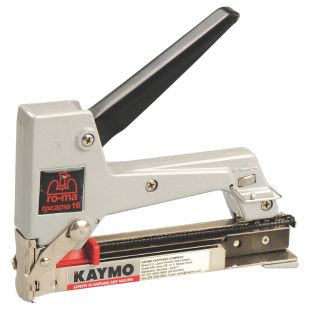

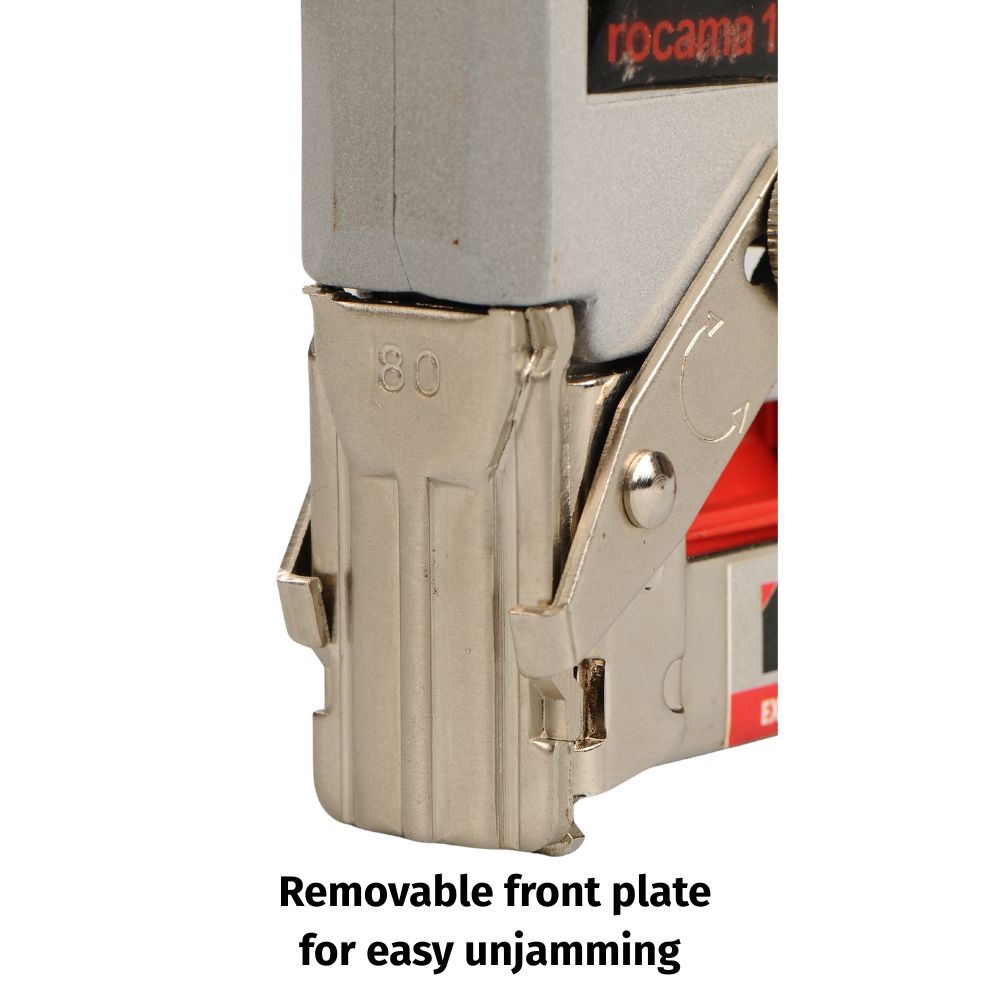

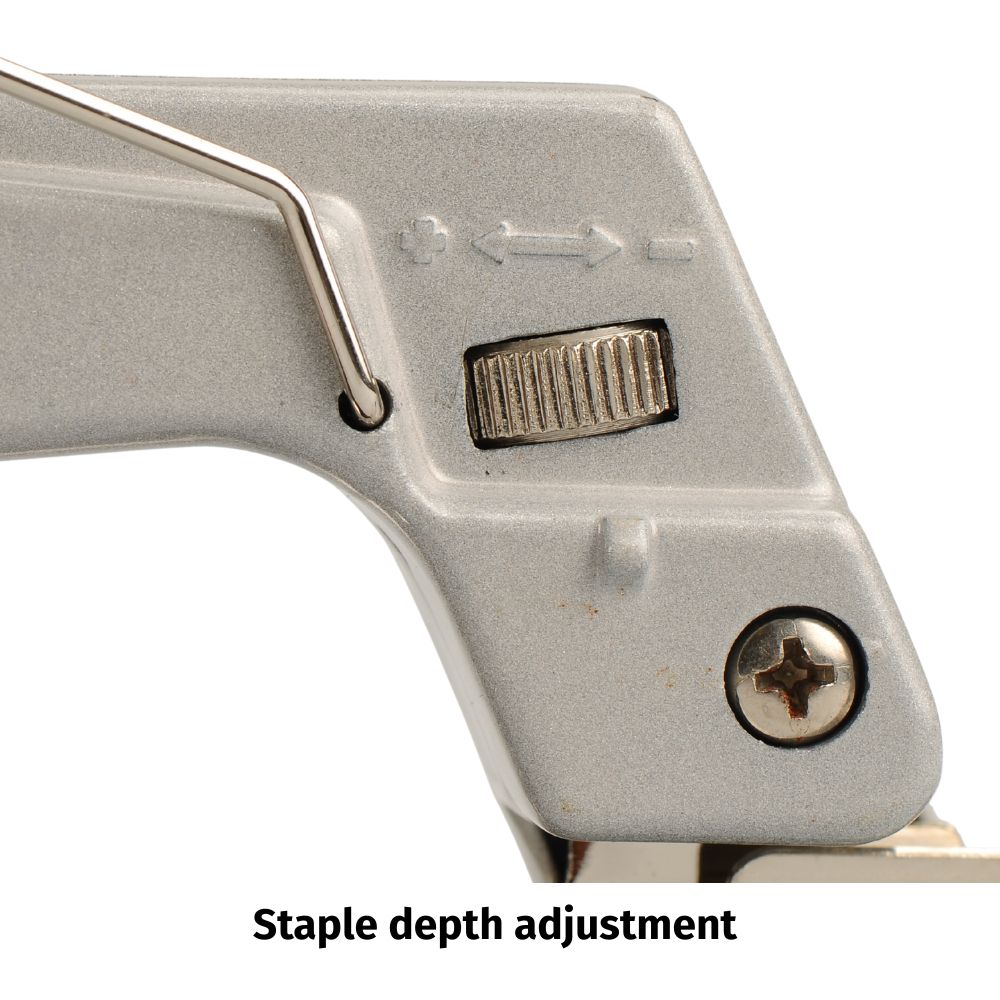

Depth adjustment for different hardness and varieties of wood. Heavy duty European tool. Only 80 series hand tacker which takes staple leg length upto 16mm. Removable front plate for easy unjamming of staples. Can be used where there is a power shortage. Fasteners recommended 6 - 16 mm.
₹ 0/-
Blow Up
Spares
| TOOL NAME: | XPRO-HT8016 | REV.1ST APRIL 2022 | |||||||
| SR | FMS | PART CODE | PART NAME | ALT CODE | SR | FMS | PART CODE | PART NAME | ALT CODE |
| 1 | FMS | 54005 | E RING | YE2501 | 15 | 70797 | HANDLE PIN | ||
| 2 | FMS | 70816 | SPRING BLADE | 17 | 71469 | PIN | |||
| 3 | 72005 | HANDLE SPRING | 18 | FMS | 61021 | BUMPER | |||
| 4 | 70805 | PIN | 19 | 62579 | PACKING | ||||
| 5 | FMS | 70809 | PLATE HOLDER R | 20 | 71048 | HANDLE | |||
| 6 | 71940 | PIN | 21 | 54002 | E RING | ||||
| 7 | FMS | C | DRIVER BLADE | 71613 | 22 | 70790 | PIN | ||
| 8 | FMS | 70800 | SPRING | 23 | 70791 | TENSIONER | |||
| 9 | 70798 | TENSION HOLDER | 24 | 70792 | PIN | ||||
| 10 | E | BODY | 71374 | 25 | FMS | 70793 | ROUND DIAL | ||
| 11 | F | BODY | 71375 | 26 | 70794 | HANDLE SPRNG | |||
| 12 | FMS | 50019 | SPECIAL SCREW | 27 | FMS | 53414 | O RING | ||
| 13 | 70810 | PLATE HOLDER L | 28 | 62283 | PUSHER | ||||
| 14 | 71612 | NOSE PLATE | |||||||
One Sheeter
Application
| MOSQUITO NETS | To fix mosquito nets onto wooden frames |
| ARTIST'S CANVAS | To fix canvas to wooden frame |
| SCREEN PRINTING | To fix screens onto the wooden frame |
