SKU: PRO-HTTGA

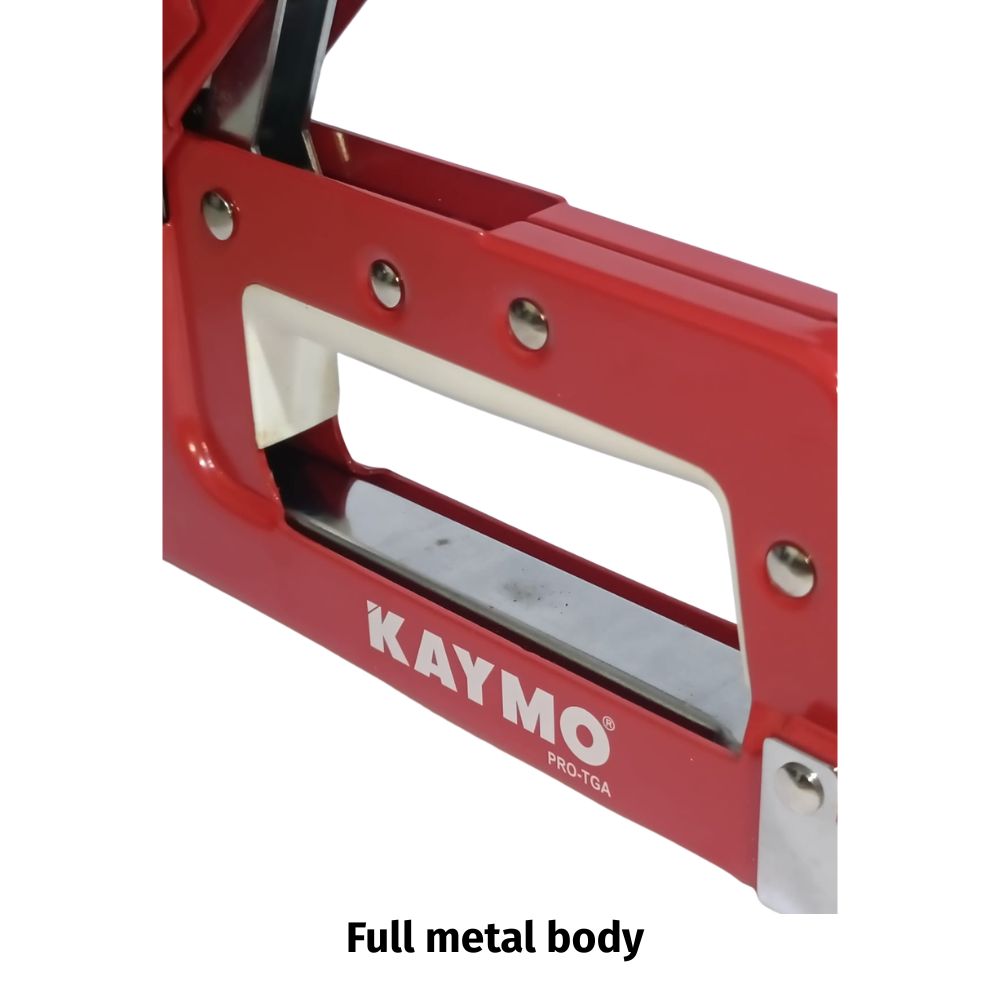

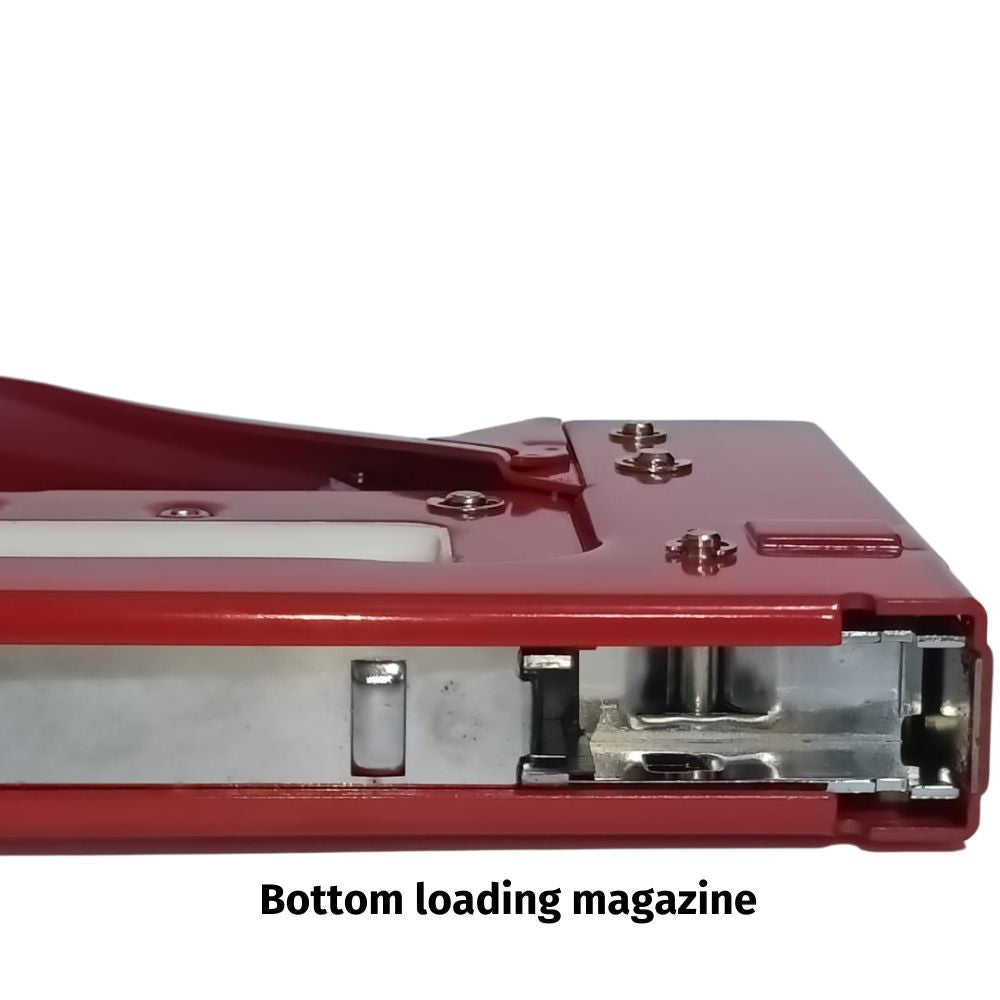

All steel body. Hardened steel working partsEasy compression action. Comfortable plastic moulded grip. Convenient bottom loading.
₹ 0/-
Blow Up
Spares
| TOOL NAME: | PRO-HTTGA | (HTAXTGA) | ||
| SR | FMS | PART CODE | PART NAME | ALT CODE |
| 1 | 38 | BUMPER,CAP | ||
| 2 | 39 | E RING | ||
| 3 | 40 | E RING | ||
| 4 | 1 | FRAME | ||
| 5 | 2 | CAP | ||
| 6 | 3 | PIN,COMPRESSION SPING | ||
| 7 | FMS | 4 | OUTER COMP. SPRING | |
| 8 | FMS | 5 | INNER COMP.SPRING | |
| 9 | FMS | 6 | DRIVER BLOCK(A) | |
| 10 | FMS | 7 | DRIVER BLOCK(B) | |
| 11 | FMS | 8 | DRIVER BLADE | |
| 12 | 9 | RIVET,DRIVER BLOCK | ||
| 13 | 10 | RUBBER BUMPER | ||
| 14 | 11 | IMPACT LEDGE | ||
| 15 | 12 | MAGAZINE | ||
| 16 | 13 | CORE MAG. | ||
| 17 | 14 | CORE PLATE ,MAG. | ||
| 18 | 15 | CLIP,MAG. | ||
| 19 | 16 | SPRING.MAG. CLIP | ||
| 20 | 17 | RIVET,MAG. CLIP (SLIDER) | ||
| 21 | 18 | PUSHER | ||
| 22 | 19 | PUSHER SPRING | ||
| 23 | 20 | ROLLER, MAG. | ||
| 24 | 21 | PIN,MAG. | ||
| 25 | 22 | BRACKET,PLUNGER | ||
| 26 | 23 | PLUNGER | ||
| 27 | 24 | COMPRESSION SPRING | ||
| 28 | 25 | RIVET,PLUNGER BRACKET | ||
| 29 | 26 | ROLLER,PLUNGER BRACKET | ||
| 30 | 27 | SPRING,PLUNGER BRACKET | ||
| 31 | 28 | HANDLE | ||
| 32 | 29 | STOP,HANDLE | ||
| 33 | 30 | PIN,HANDLE | ||
| 34 | 31 | RUBER STRIP,HANDLE | ||
| 35 | 32 | RIVET,FRAME | ||
| 36 | 33 | PIN,PLUNGER BRACKET | ||
| 37 | 34 | PIN,FRAME | ||
| 38 | 35 | BRACKET | ||
| 39 | 36 | BRACKET,DRIVER BLOCK | ||
| 40 | 37 | PIN,HANDLE STOP |
One Sheeter
Application
|
Onsite / Repair work for Sofas |
|
|
To fix upholstery & elastic band |
||
|
To make double back chairs |
|
|
|
To fix labels / plastic lining to wooden cases |
|
|
Repair work of 2 wheeler seats |
|
|
To fix rexine & foam to moulded plastic base |
||
|
|
To fix core veneer layers to make plywood |
|
|
Onsite / Repair work for wooden frame |
||
|
To fix screens onto the wooden frame |
||
|
To fix mosquito nets onto wooden frames |
