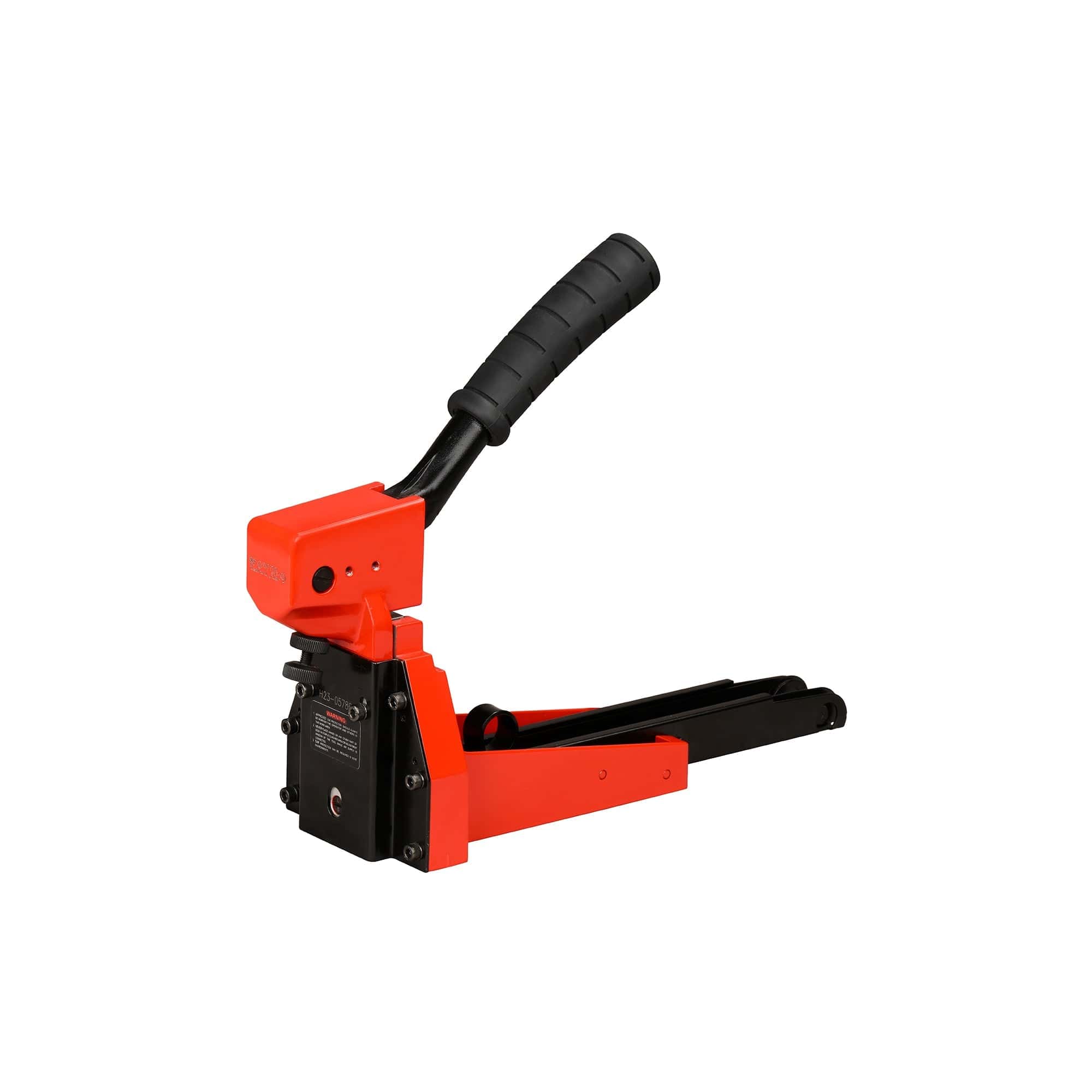

SKU: PRO-HB3518COMBI
Full metal body
.

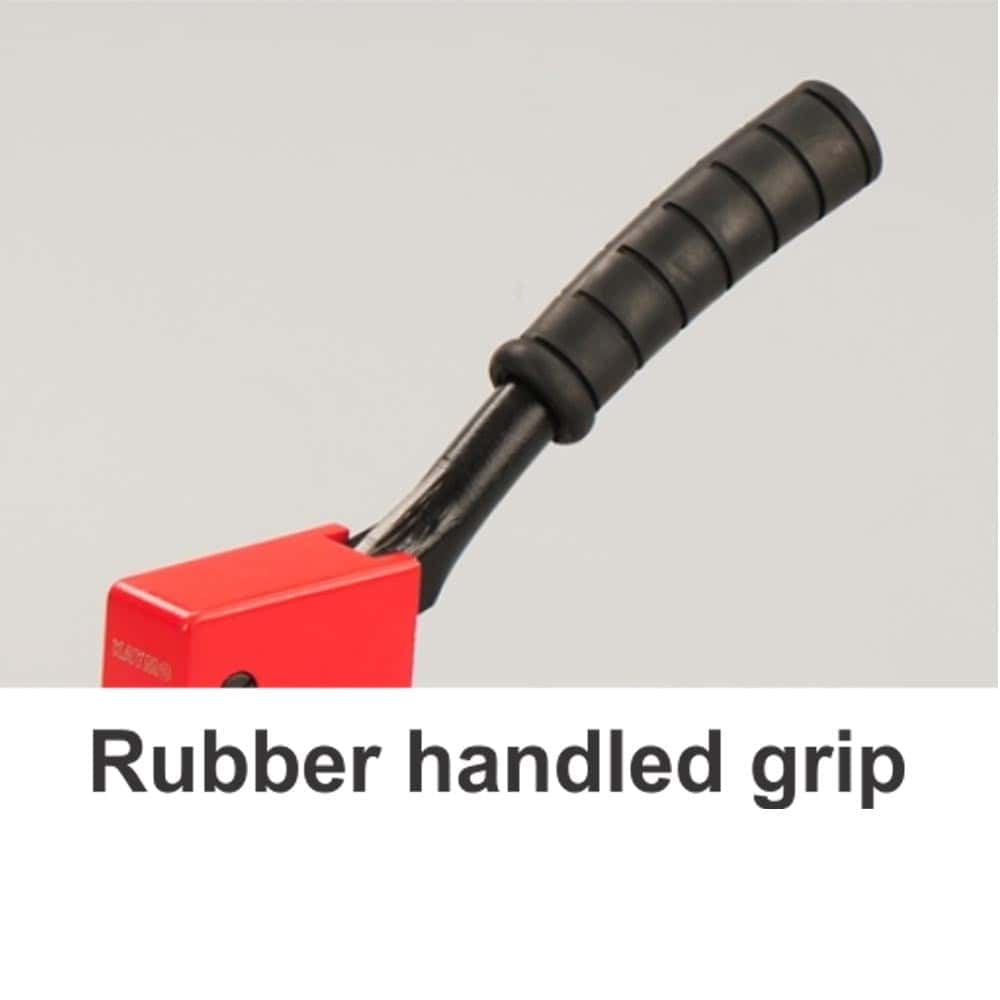

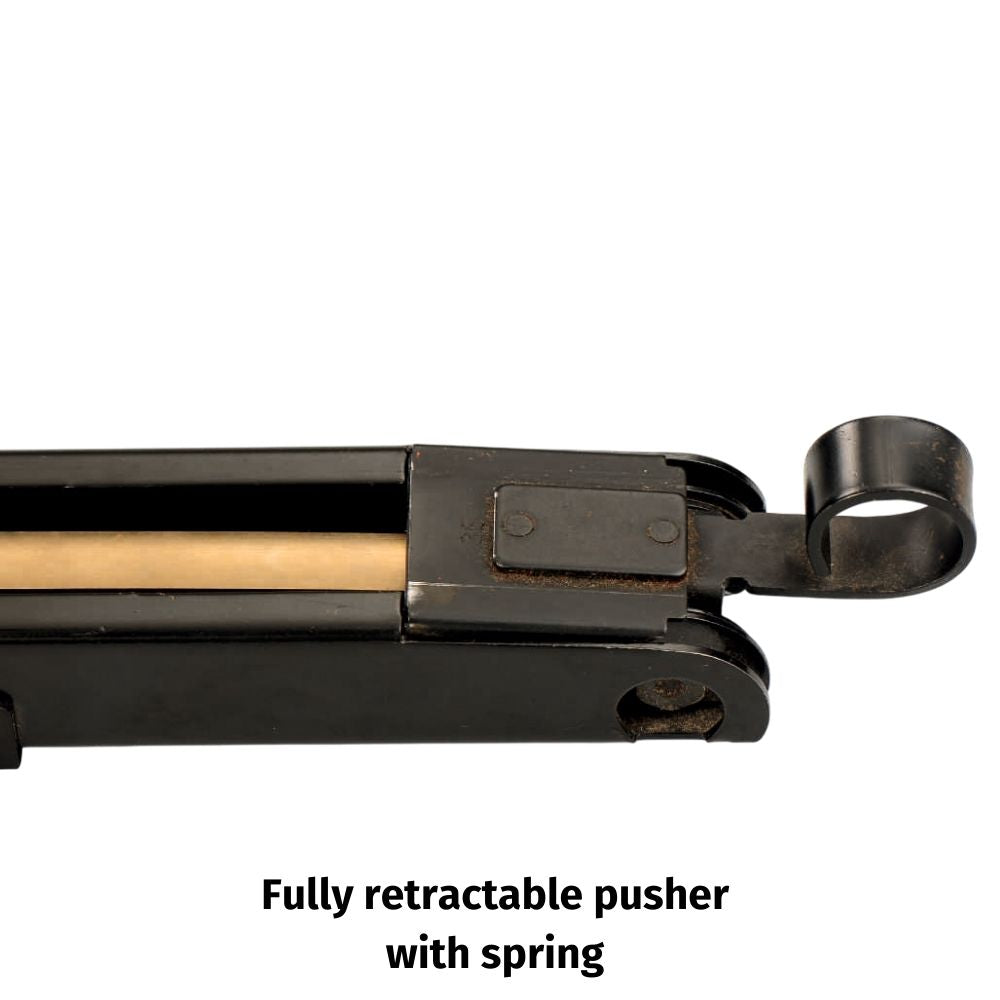

Spring steel pusher spring
.
Manual tool, no pneumatic air required
.

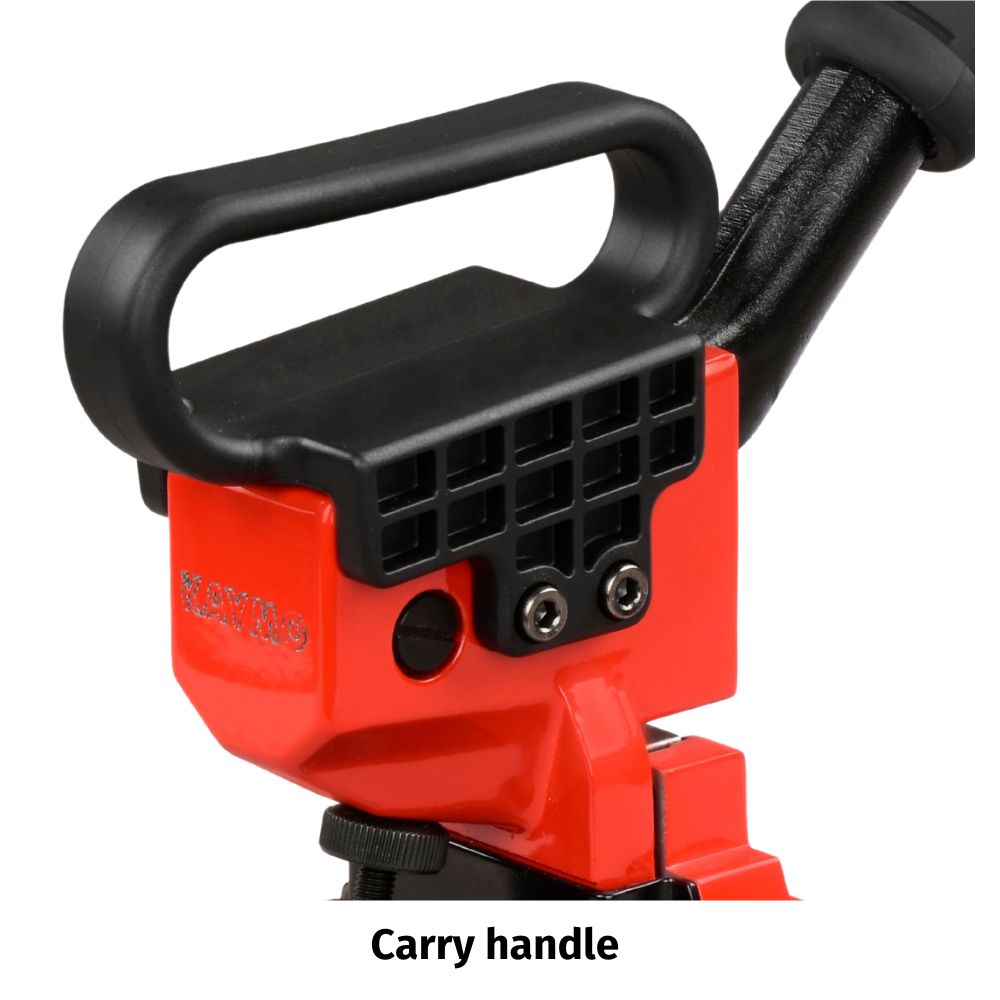

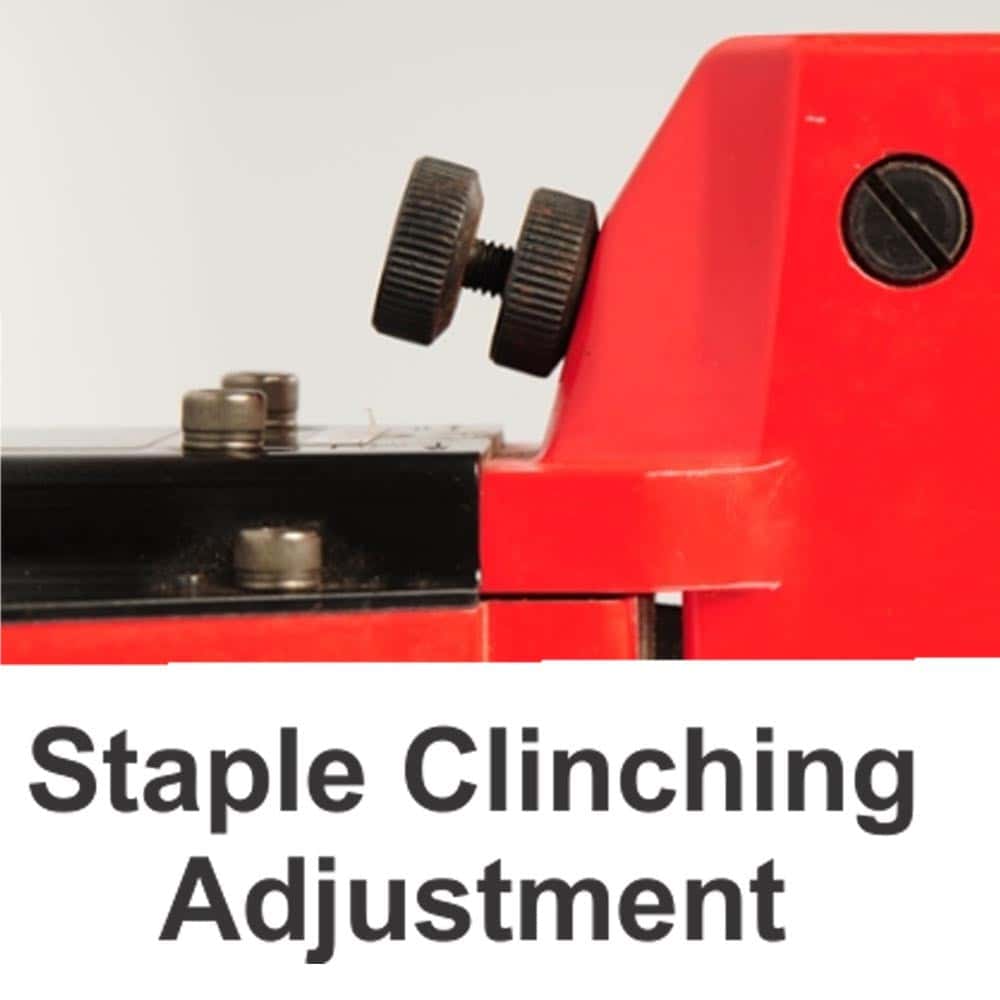

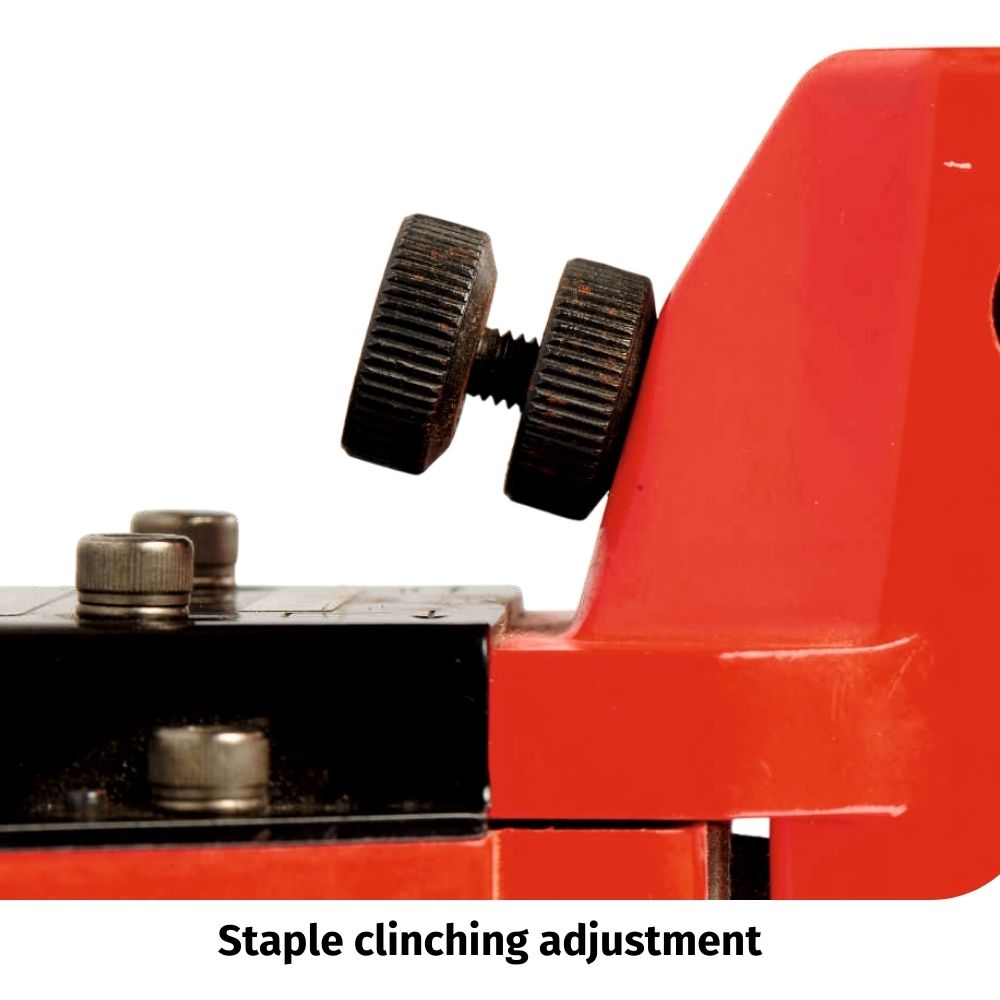

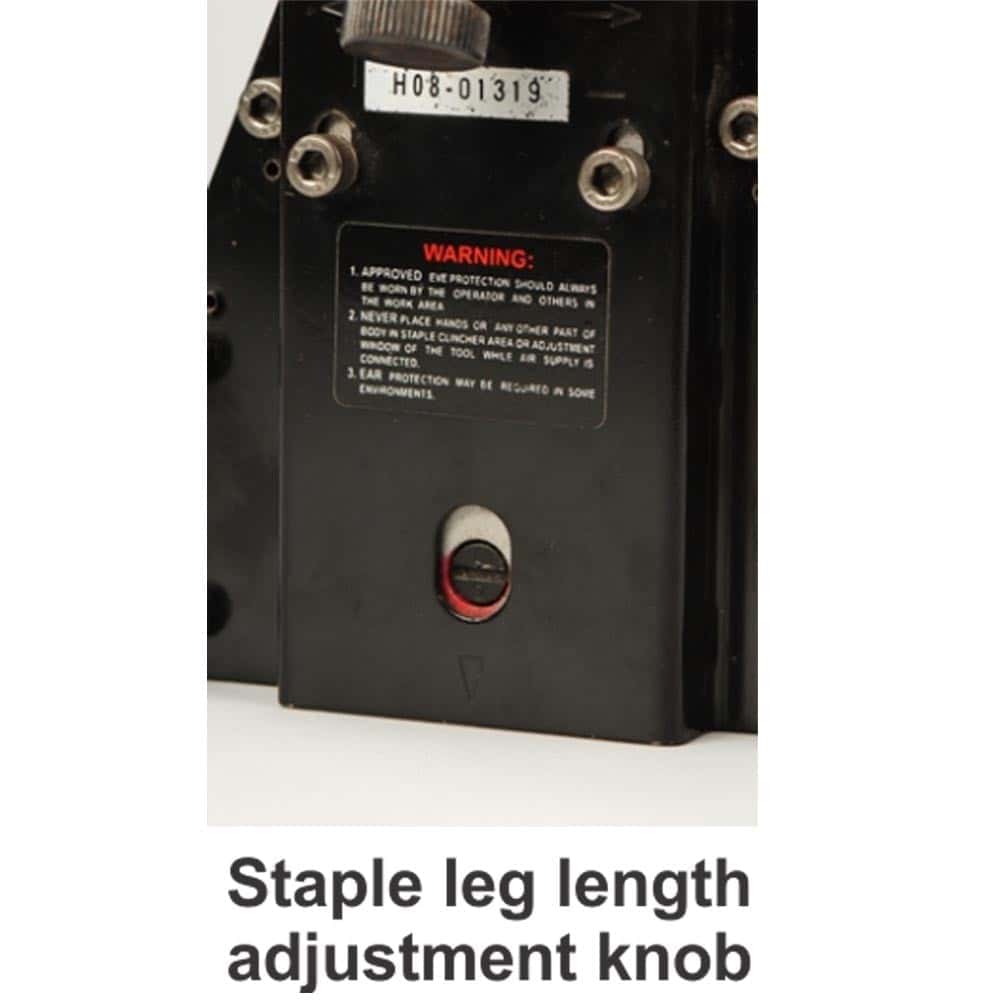

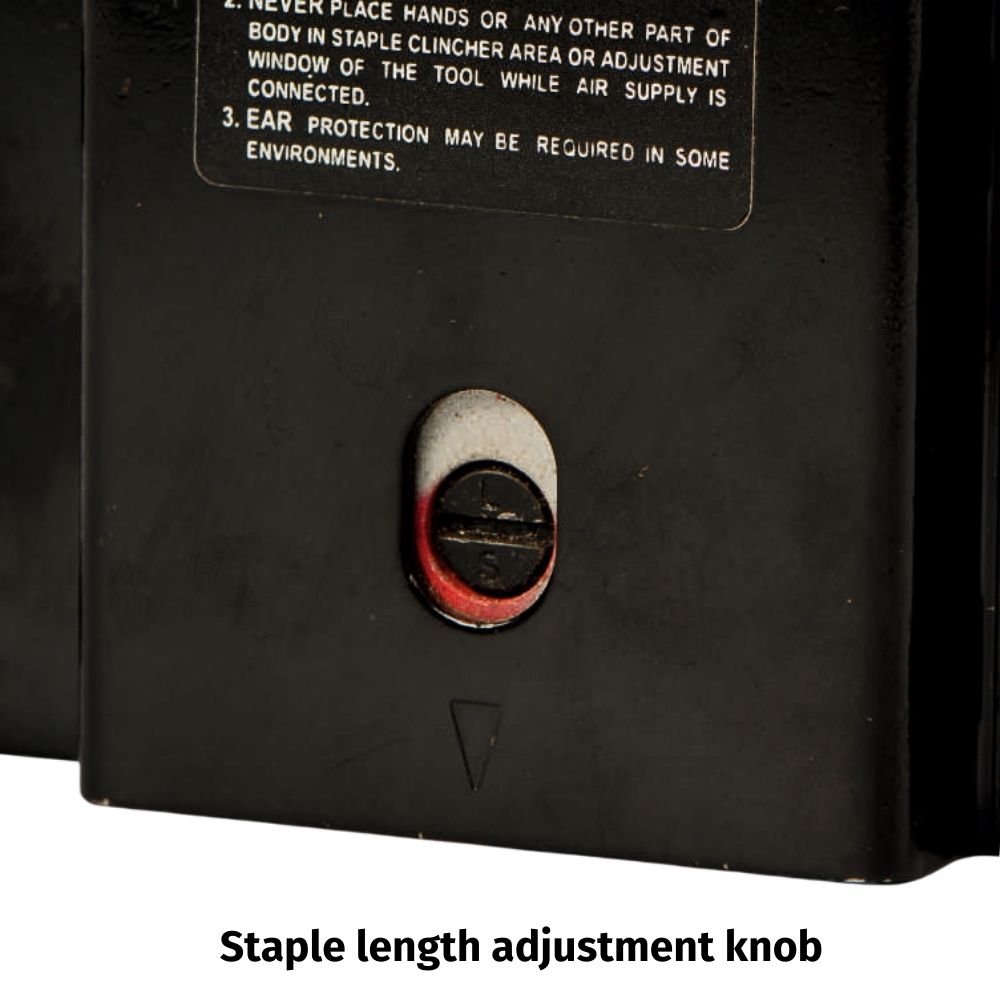

Clinching adjustment for different carton ply thickness
.
Fasteners recommended: 15 - 18 mm
.
₹ 0/-

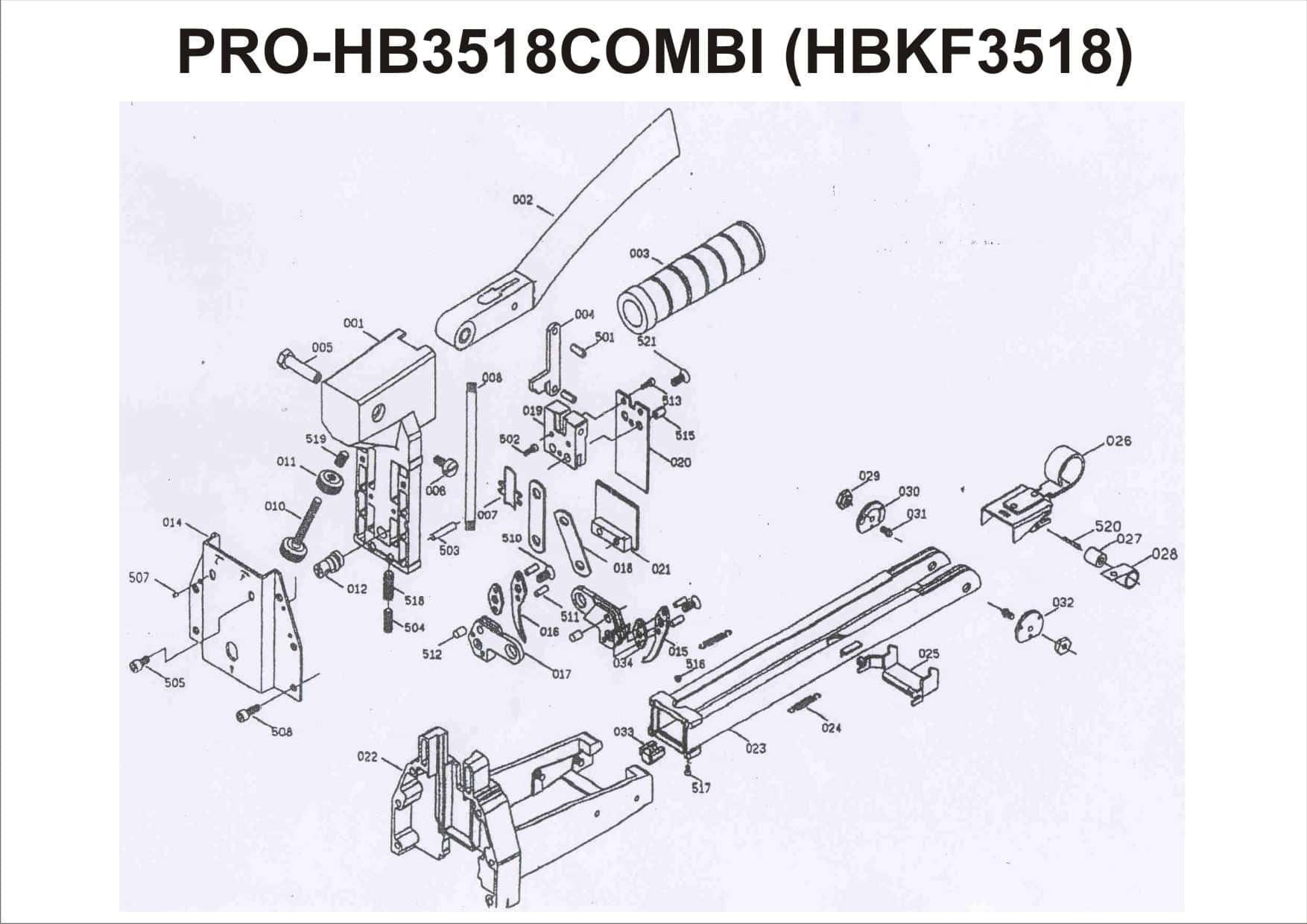

Blow Up
Spares
TOOL MODEL: | PRO-HB3518COMBI | |||||||||
SR | FMS | PART CODE | PART NAME | ALT CODE | SR | FMS | PART CODE | PART NAME | ALT CODE | |
1 | A01101205 | BODY | A01101208 | 28 | FMS | A00103401 | SPRING | A00103403 | ||
2 | A01102701 | HANDLE | 29 | A00607101 | ROD UNIT | |||||
3 | A00300301 | HANDLE SLEEVE | 30 | A00103903@ | RIGHHT PUSHER GUIDE | |||||
4 | A01103001 | LINK | 31 | A00103203 | ROD UNIT | |||||
5 | A00300501 | PIVOT PIN | 32 | A00103904@ | LEFT PUSHER GUIDE | |||||
6 | A00300601 | PIVOT SCREW | 33 | A00105601 | BRACKET | |||||
7 | A01102801 | COVER | 34 | A00105001 | WASHER | |||||
8 | A01102901 | SPRING | 501 | BAA050020 | SPRING PIN | |||||
10 | A00301001 | ADJUSTMENT SCREW | A00301002 | 502 | FMS | BAC0404062 | HEX.SOC.HD.BOLT | KM0406 | ||
11 | A00301101 | ADJUSTMENT NUT | 503 | A00104701 | ROD | |||||
12 | A00101801 | ADJUSTING ROD | 504 | BAC0306142 | HEX.SOC.HDLESS.BOLT | |||||
14 | A01102502 | FRONT PLATE | 505 | FMS | BAC0605142 | HEX.SOC.HD.BOLT | KM0520 | |||
15 | A00102102 | RIGHT TEETH | 507 | BAA030010 | SPRING PIN | |||||
16 | A00102202 | LEFT TEETH | 508 | FMS | BAC0605142 | HEX.SOC.HD.BOLT | KM0520 | |||
17 | A00102301 | TEETH SEAT | 510 | FMS | BAC0205122 | HEX.SOC.FLAT COUNTER SUNK HD.SCREW | ||||
18 | A00102401 | PLATE | 511 | FMS | A00104501 | PIN | ||||
19 | A00301902 | BLOCK | 512 | A00104602 | PIN | |||||
20 | A00102605 | DRIVER | 513 | BAC0604102 | HEX.SOC.HD.BOLT | |||||
21 | A00102702@ | COVER UNIT | 515 | BAA060016 | SPRING PIN | |||||
22 | A02100403@ | MAGAZINE SEAT | A02100407@ | 516 | BAD01041 | LOCK NUT | ||||
23 | FMS | HAA-19-35-P7-S | MAGAZINE | KFCMP00001 | 517 | BAC0404202 | HEX.SOC.HD.BOLT | |||
24 | FMS | A01102403 | SPRING | 518 | BAG010602 | HELI-COIL | ||||
25 | A01102201 | BRACKET | 519 | BAG010601 | HELI-COIL | |||||
26 | FMS | A00103709@ | PUSHER UNIT | 520 | BAA040016 | SPRING PIN | ||||
27 | A00103501 | ROLLER | 521 | BAC0204062 | HEX.SOC.FLAT COUNTER SUNK HD.SCREW |

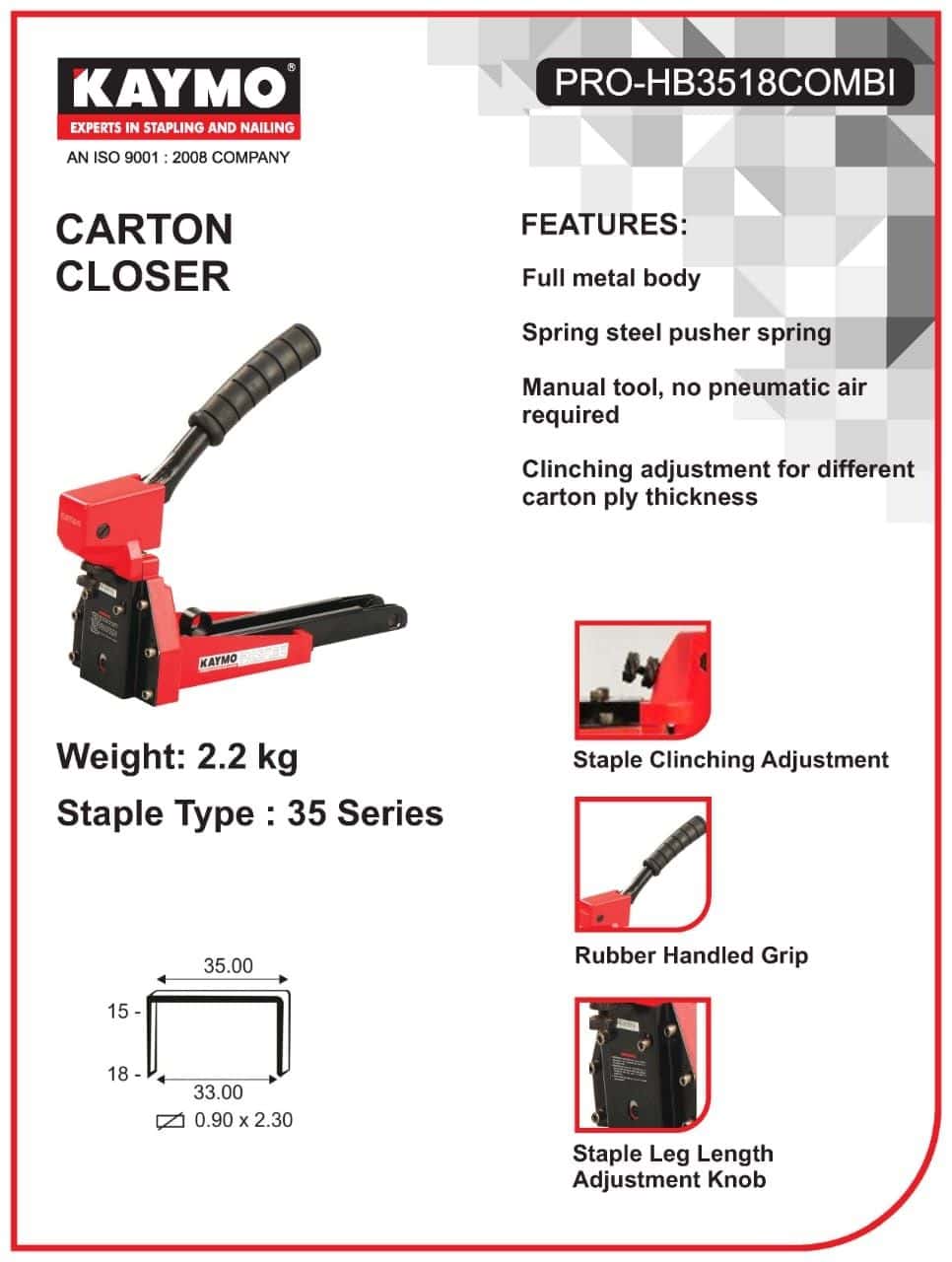

One Sheeter
Application
CORRUGATED BOXES- TOP CLOSING | To close top of corrugated cartons |
