HAND BOXER KAYMO PRO-3218 COMBI 15/18

Name: HAND BOXER KAYMO PRO-3218 COMBI 15/18
Brand: Kaymo Company
SKU: PRO-HB3218COMBI
Price: 1.0 INR
Availability: InStock

SKU: PRO-HB3218COMBI

The KAYMO PRO-HB3218COMBI is a manual carton closer designed for secure and efficient top-closing of corrugated boxes. With a full metal body and adjustable staple Read More...

Features:

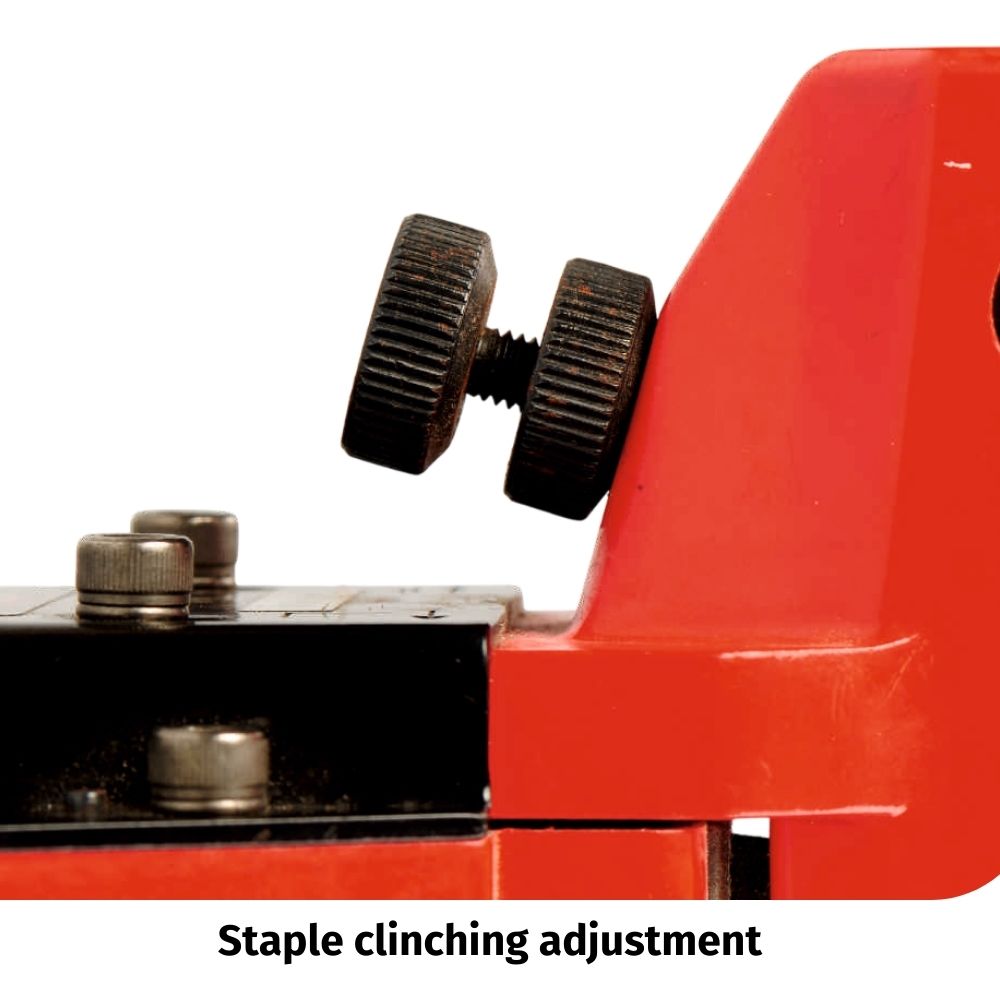

Staple clinching adjustment

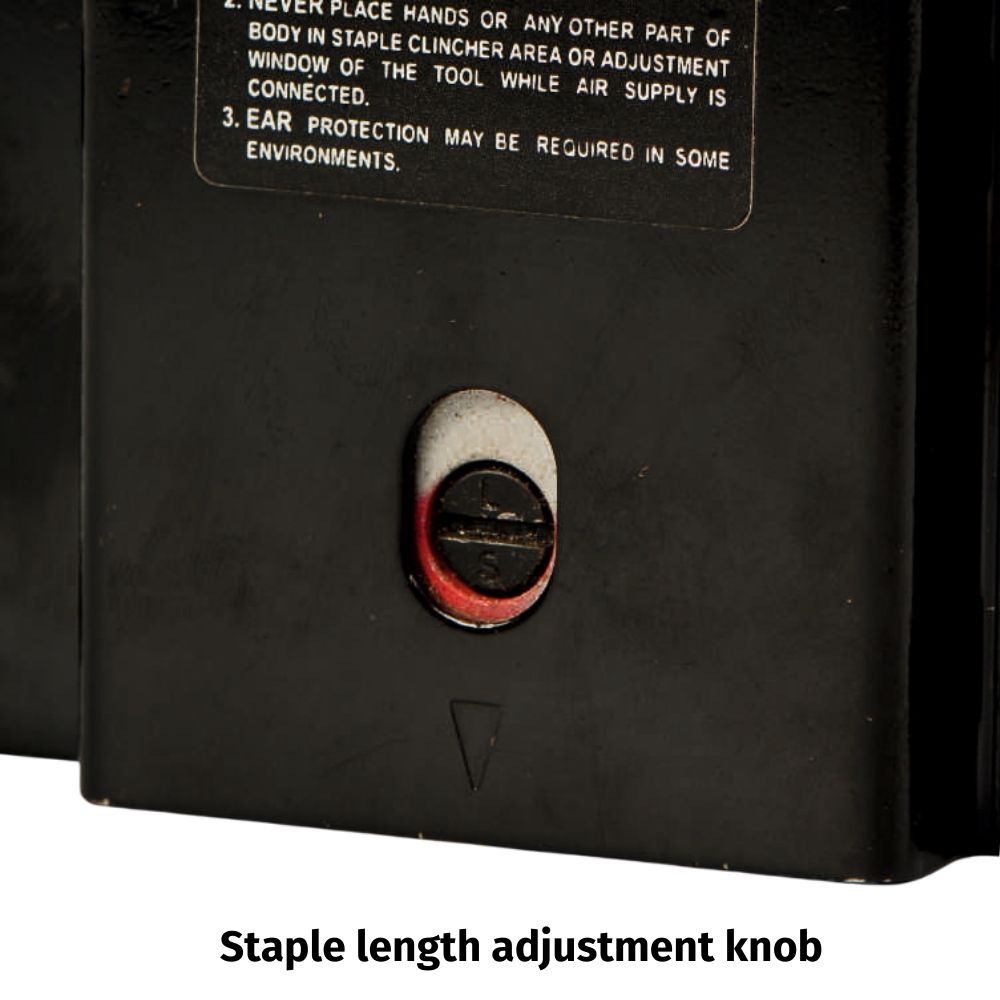

Staple length adjustment knob

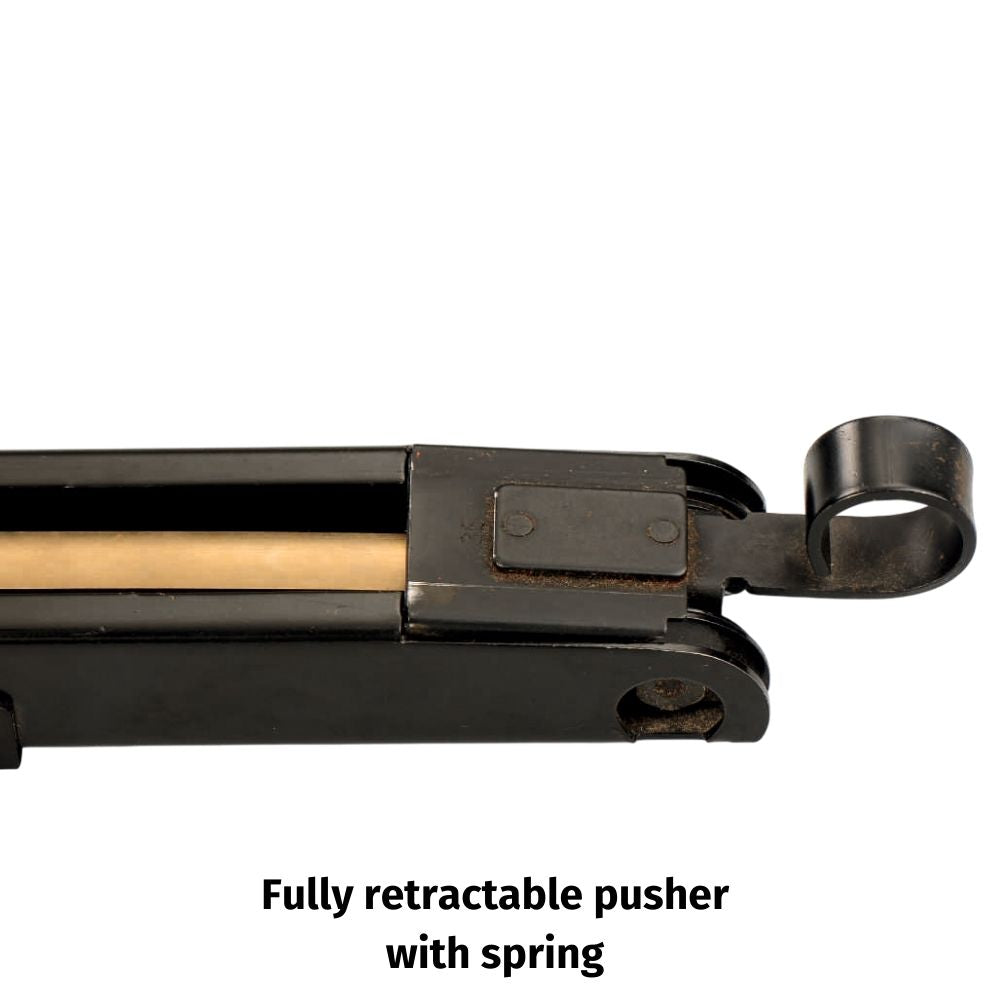

Fully retractable pusher with spring

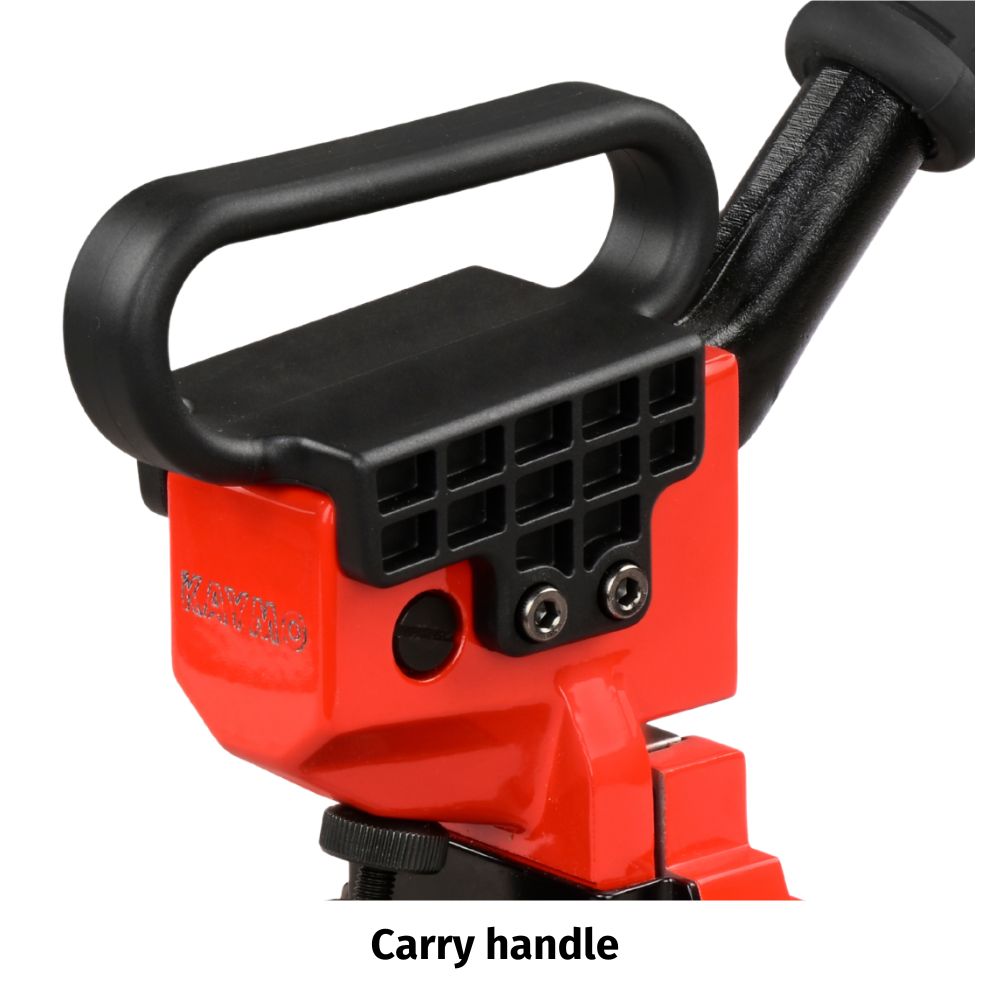

Carry handle
Rubber handle grip
Full metal body
Fastener Range: 15mm – 18mm

Applications:

Corrugated boxes – top closing

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

STAPLES KAYMO 35 SERIES

Blow Up

Spares

		TOOL MODEL:	PRO-HB3218COMBI					REV.1 ST APRIL 2023
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
002		A01102701	HANDLE		028	FMS	A00103401	SPRING	A00103403
003	FMS	A00300301	HANDLE GLEEVE		029		A00607101	ROD UNIT
004	FMS	A01103001	LINK		030	FMS	A00103903A	RIGHHT PUSHER GUIDE	A00103903@
005	FMS	A00300501	PIVOT PIN		031	FMS	A00103203	ROD UNIT
006	FMS	A00300601	PIVOT SCREW		032	FMS	A00103904A	LEFT PUSHER GUIDE	A00103904@
007	FMS	A01102801	COVER		033	FMS	A00607502	BRACKET
008	FMS	A01102901	SPRING		034	FMS	A00105001	WASHER
009		A02100501	HANDLE		501	FMS	BAA050020	SPRING PIN
010	FMS	A00301002	ADJUSTMENT SCREW		502	FMS	BAC0404062	HEX.SOC.HD.BOLT	KM0406
011	FMS	A00301101	ADJUSTMENT NUT		503	FMS	A00104701	ROD	A00104703
012	FMS	A00101801	ADJUSTING ROD		504	FMS	BAC0306142	HEX.SOC.HDLESS.BOLT
014		A01102502	FRONT PLATE		505	FMS	BAC0605142	HEX.SOC.HD.BOLT	KM0520
015	FMS	A00102102	RIGHT TEETH		506	FMS	BAC0605122	HEX.SOC.HD.BOLT
016	FMS	A00102202	LEFT TEETH		507	FMS	BAA030010	SPRING PIN
017	FMS	A00102301	TEETH SEAT		508	FMS	BAC0605142	HEX.SOC.HD.BOLT	KM0520
018		A00102401	PLATE		510	FMS	A00106201	HEX.SOC.FLAT COUNTER SUNK HD.SCREW
019		A00301902	BLOCK		511	FMS	A00104501	PIN
020	FMS	A01201706	DRIVER		512	FMS	A00104602	PIN
021	FMS	A00102702A	COVER UNIT		513	FMS	BAC0604102	HEX.SOC.HD.BOLT
022	FMS	A02100407A	MAGAZINE SEAT		515	FMS	BAA060016-R	SPRING PIN	BAA060016
023		HAA-19-32-P7-SD	MAGAZINE		516	FMS	BAD01041	LOCK NUT
024	FMS	A01102403	SPRING		517	FMS	BAC0404202	HEX.SOC.HD.BOLT
025	FMS	A01102201	BRACKET		520	FMS	BAA040016	SPRING PIN
026	FMS	A00103710A	PUSHER UNIT		521	FMS	BAC0204062	HEX.SOC.FLAT COUNTER SUNK HD.SCREW	HYE2084
027		A00103501	ROLLER

One Sheeter

Application

CORRUGATED BOXES- TOP CLOSING

To close top of empty corrugated cartons

HAND BOXER KAYMO PRO-3218 COMBI 15/18

Compatible Products

STAPLES KAYMO 35 SERIES

Blow Up

Spares

One Sheeter

Application
