FRAMING PNEUMATIC KAYMO PRO-FLEX 15

Name: FRAMING PNEUMATIC KAYMO PRO-FLEX 15
Brand: Kaymo Fastener Company
SKU: PRO-FPFLEX15
Availability: InStock

SKU: PRO-FPFLEX15

The KAYMO PRO-FPFLEX15 is a high-performance pneumatic framing tool designed specifically for photo frame assembly, ensuring secure backboard fixation. Its ergonomic design, angular nose for Read More...

Features:

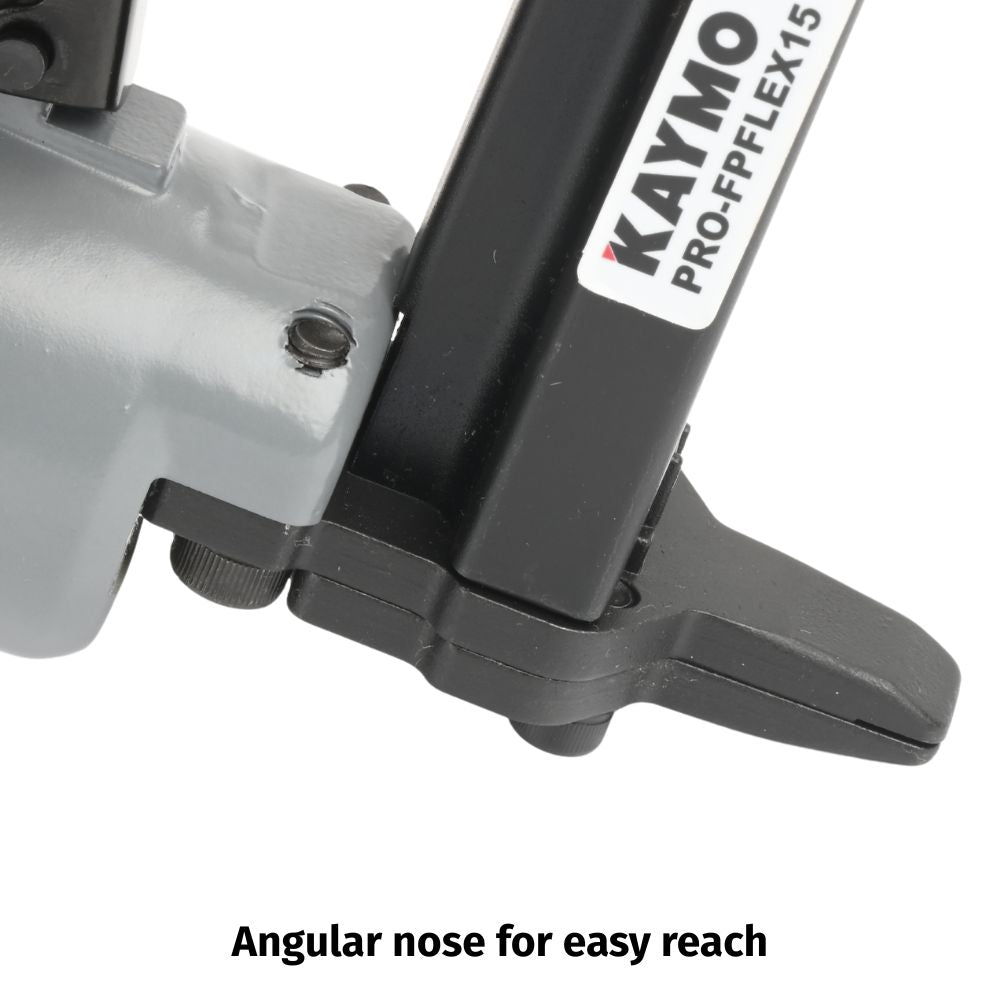

Angular nose for easy reach

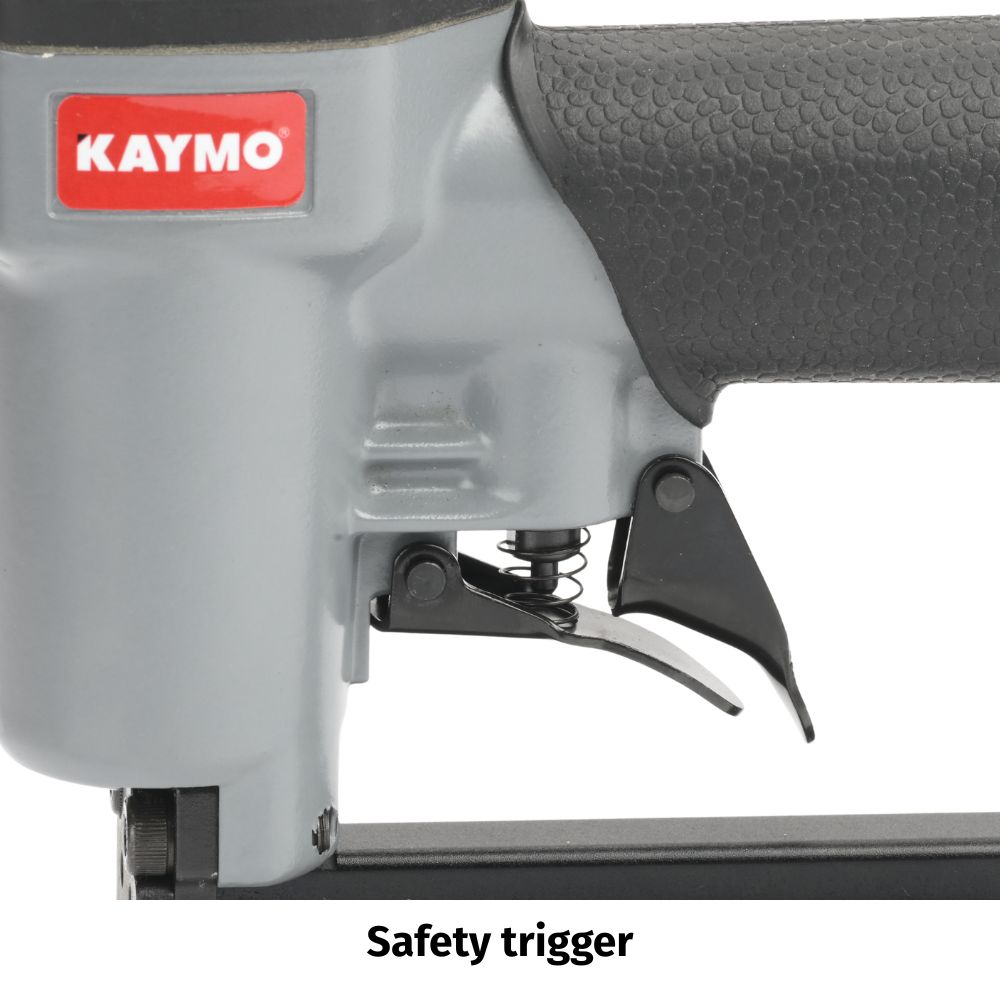

Safety trigger

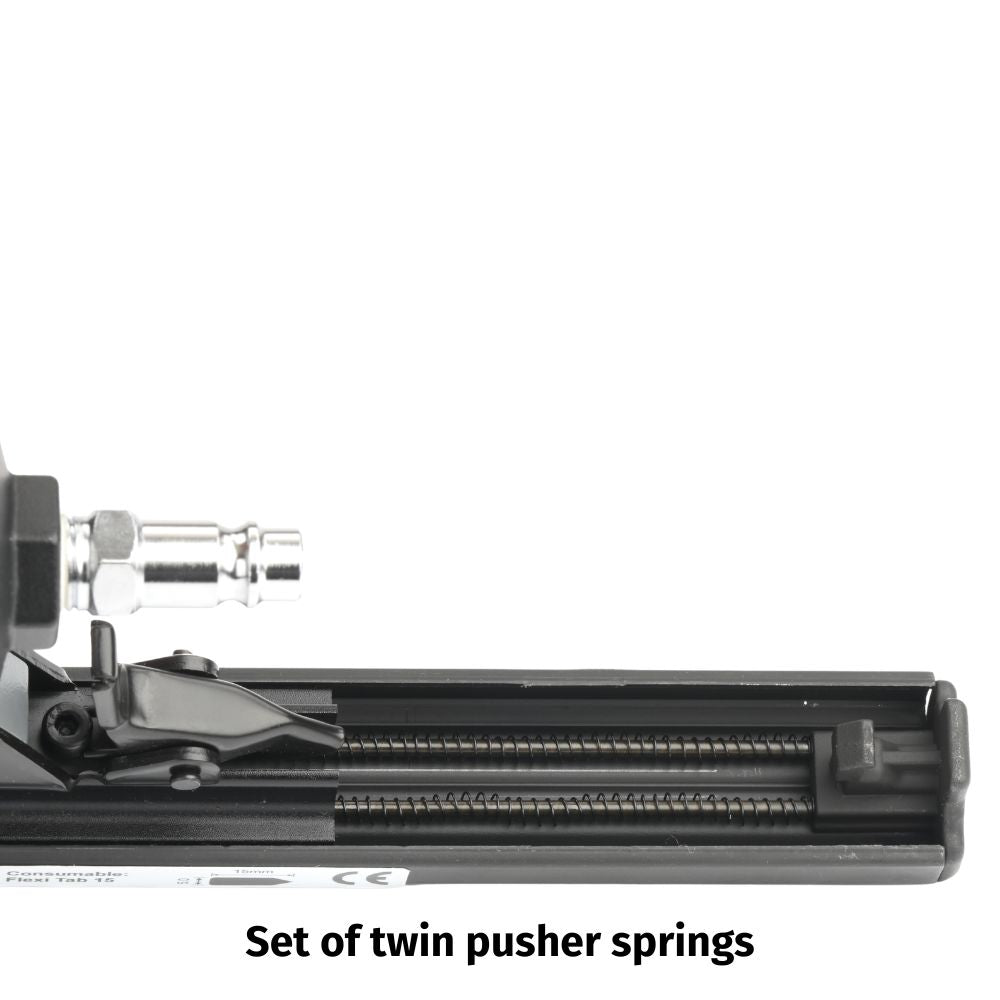

Set of twin pusher springs
Magazine capacity – up to 200 tabs

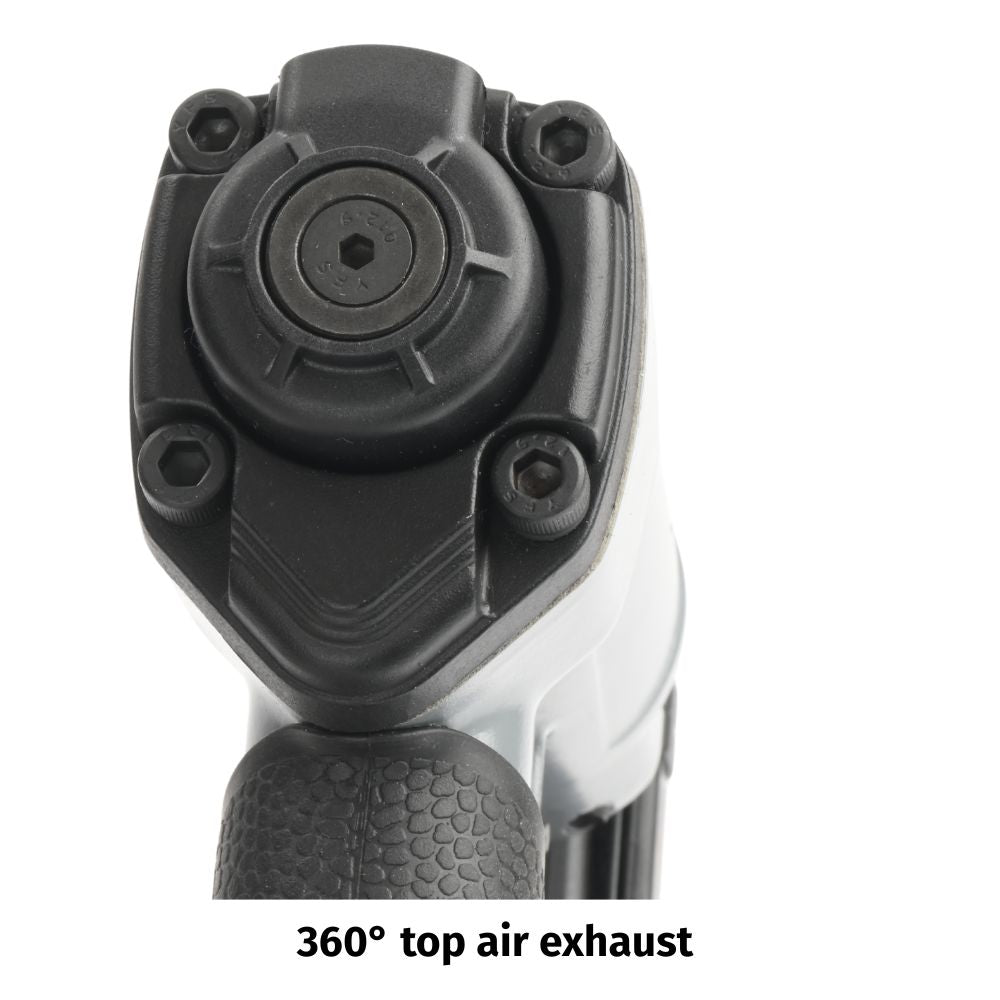

360° top air exhaust
Fastener Range: 15mm

Applications:

Photo frames
Painting frames

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

FRAMING TABS KAYMO FLEX15

Blow Up

Spares

		TOOL MODEL:	PRO-FPFLEX15
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
0		FA2002	SPRING				PF1601	SPRING
0		FB2501	PISTON STOP				PF1701	SAFETY LEVER
0		FE1201	EXHAUST CAP RING				PF1801	PIN
0		KF0510	FLAT HD.BOLT				UE0101	BODY
0		KM0406	HEX.SOC.HD.BOLT				UE0303	HEAD VALVE PISTON
0		KM0408	HEX.SOC.HD.BOLT				UE0401	CAP SEAL
0		KM0408A	HEX.SOC.HD.BOLT				UE0702	COMPRESSION SPRING
0		KM0412A	HEX.SOC.HD.BOLT				UE1101W	TRIGGER VALVE ASSY.
0		KM0516	HEX.SOC.HD.BOLT				UE1201	COLLAR	HY1013J011
0		KM0520	HEX.SOC.HD.BOLT				UE1301	COMPRESSION SPRING	NEO80028
0		KM0522	HEX.SOC.HD.BOLT				UE1401	TRIGGER VALVE STEM
0		KS1612	SPRING PIN				UE1501	SEAL	HY1013J019
0		OA004A	O-RING				UE1601	TRIGGER VALVE GUIDE
0		OA126A	O-RING				UE1701	TRIGGER VALVE SEAT
0		OA204B	O-RING				UE1801	TRIGGER
0		OB221A	O-RING	HY1013J009			UE3201	CYLINDER CAP
0		OB271A	O-RING				UE3301	EXHAUST CAP
0		OP010A	O-RING				UG3501	PISTON STOP
0		OP012A	O-RING				UH1001	LATCH
0		OP016H	O-RING				WR0302	COVER PLATE
0		OS030A	O-RING				WR0302W	DRIVER ASSY.
0		PA1602	NOZZLE				WR0401	MAGAZINE CAP
0		PA1901	PIN	HY1013J039			WR0501	PUSHER
0		PA2001	END CAP				WR1001	MAGAZINE SEAT SET
0		PA3202	SUPPORT				WR1102	GUIDE PLATE
0		PA3501	GUIDE STEM				WR1202	DRIVER SET
0		PA3601	PUSHER SPRING				YE2501	E-RING
0		PA3901	PIN				YG0501	SPRING WASHER	S0410500
0		PE0801	CYLINDER				YL0508	LOCK NUT	NEO1005079N
0		PE0901	BUMPER

One Sheeter

Application

PHOTO & PAINTING FRAMES

To fix 15mm flexi tabs at the back of photo frames.

The flexi tabs MUST be bent each time to replace or change photos/ pictures
