SKU: XPRO-FN1838 Q500
High speed action and minimal moving parts result in a powerful yet soft stroke, a shorter air-saving cycle and increased precision.Striking system that regulates the depth of penetration independently from the mallet impact.Finely threaded screw-in cartridge assembly for precision, easy dismantling and durability.Ergonomically designed for efficient handling.Heavy duty cast aluminum body.Safety mechanism embedded in baseplate.Highest grade steel piston and driving blade will last longer under repeated impacts.Low center of gravity and perfect balance provide stability.On-site maintenance. An allen wrench is supplied for essential adjustments.Comfort grip.Wood friendly composite shoe.Extruded aluminum nail channel.Accepts18ga L cleat nails 32- 45mm

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

₹ 0/-

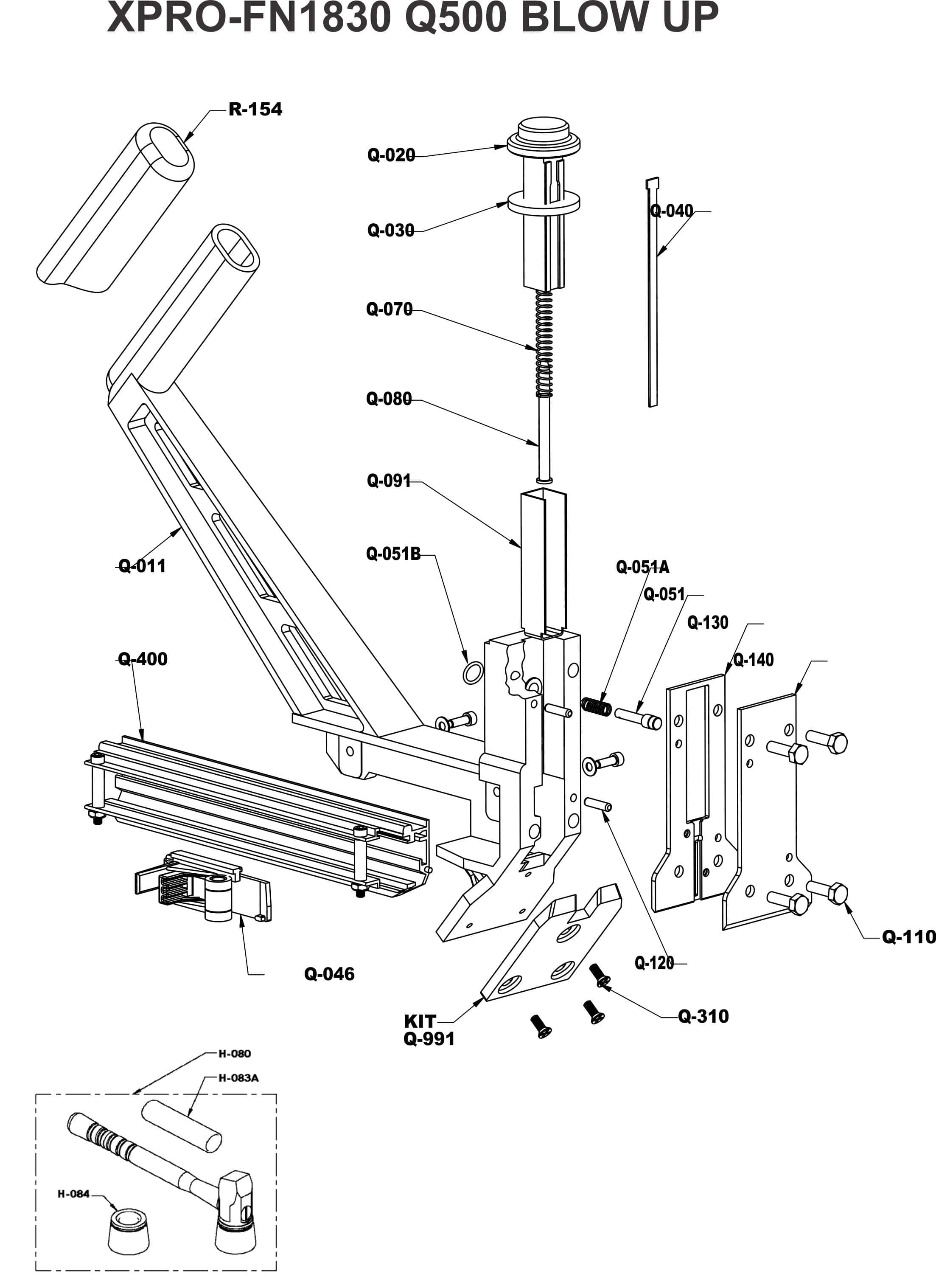

Blow Up
Spares
TOOL NAME: XPRO-FN1838 Q500 REV.1ST APRIL 2022
SR FMS PART CODE PART NAME ALT CODE
1   Q-011 BODY
2   Q-020 PLUNGER
3 FMS Q-030 BLADE RETAINER
4 FMS Q-040 DRIVING BLADE
5   Q-046 SPRING & CLIP
6   Q-051 PIN Q-951
7   Q-051A SPRING & CLIP Q-951
8   Q-051B RING Q-951
9 FMS Q-070 SPRING
10 FMS Q-080 CLIP
11   Q-091 PLUNGER SPRING PIN
12   Q-110 BOLTS P-128
13   Q-120 DOWEL PINS
14   Q-130 GATE
15   Q-140 FOOT
16   Q-154 GRIP HANDLE
17   Q-310 SCREWS P-034
18   Q-400 NAIL CHANNEL
19   Q-991 PLASTIC BASE KIT
20 FMS Q-951 PARTS KIT

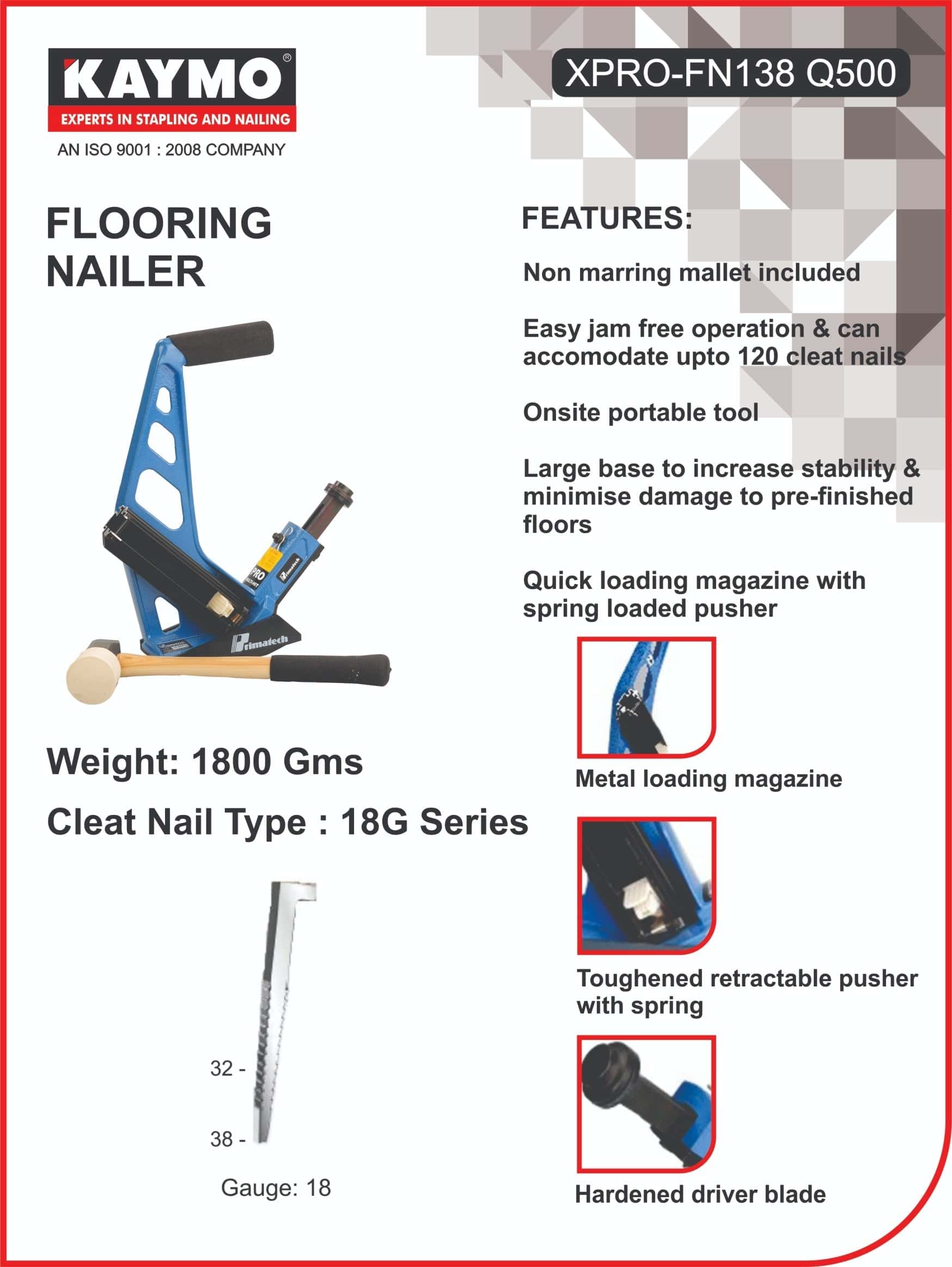

One Sheeter
Application
WOODEN FLOORING To join top layer tongue & groove strips to the wooden runner
