SKU: XPRO-FN1650 H330

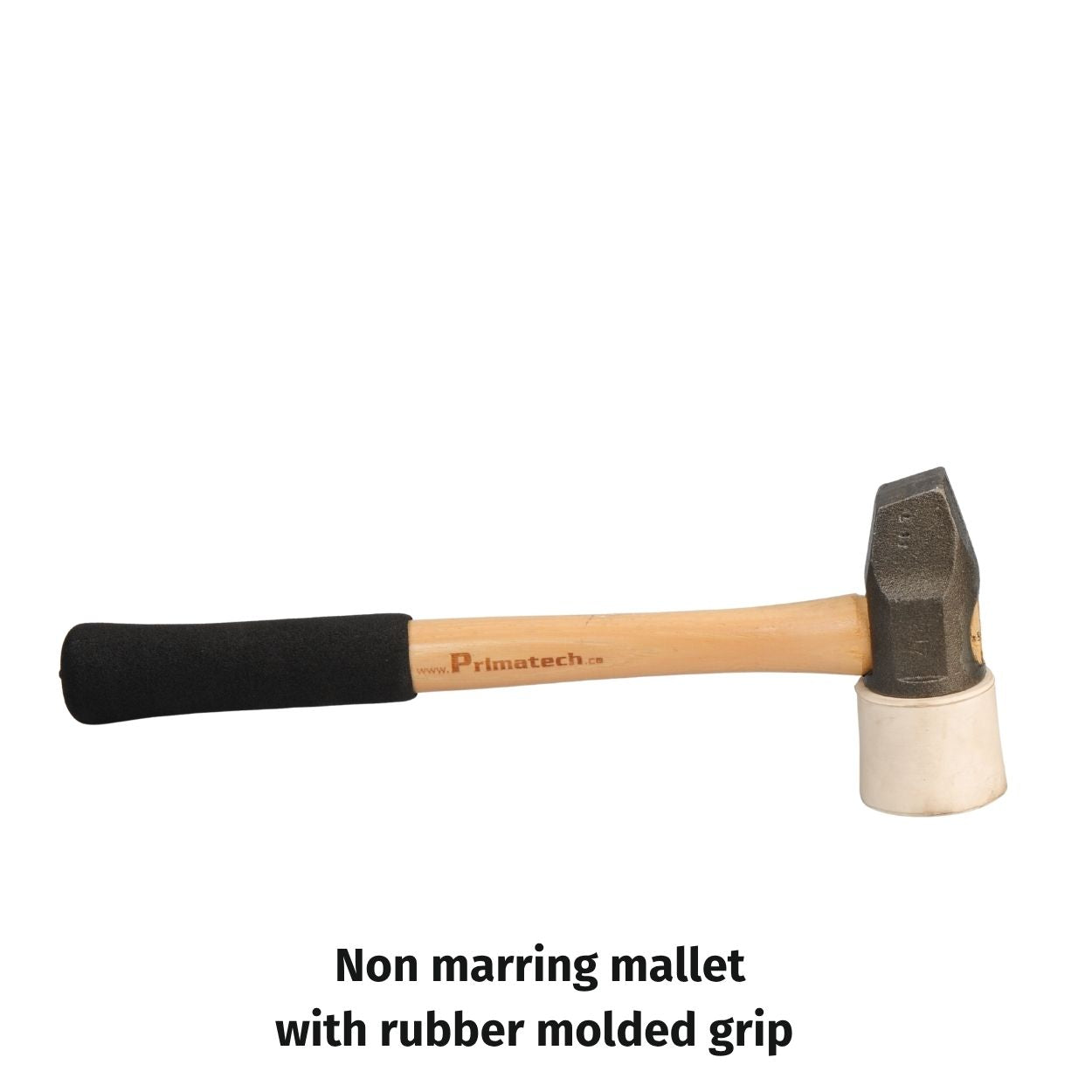

Non marring mallet (1.6kg) included
.
Easy jam free operation and can accommodate up to 110 cleat nails
.
Onsite portable tool
.
Large base to increase stability and minimize damage to pre-finished floors
.

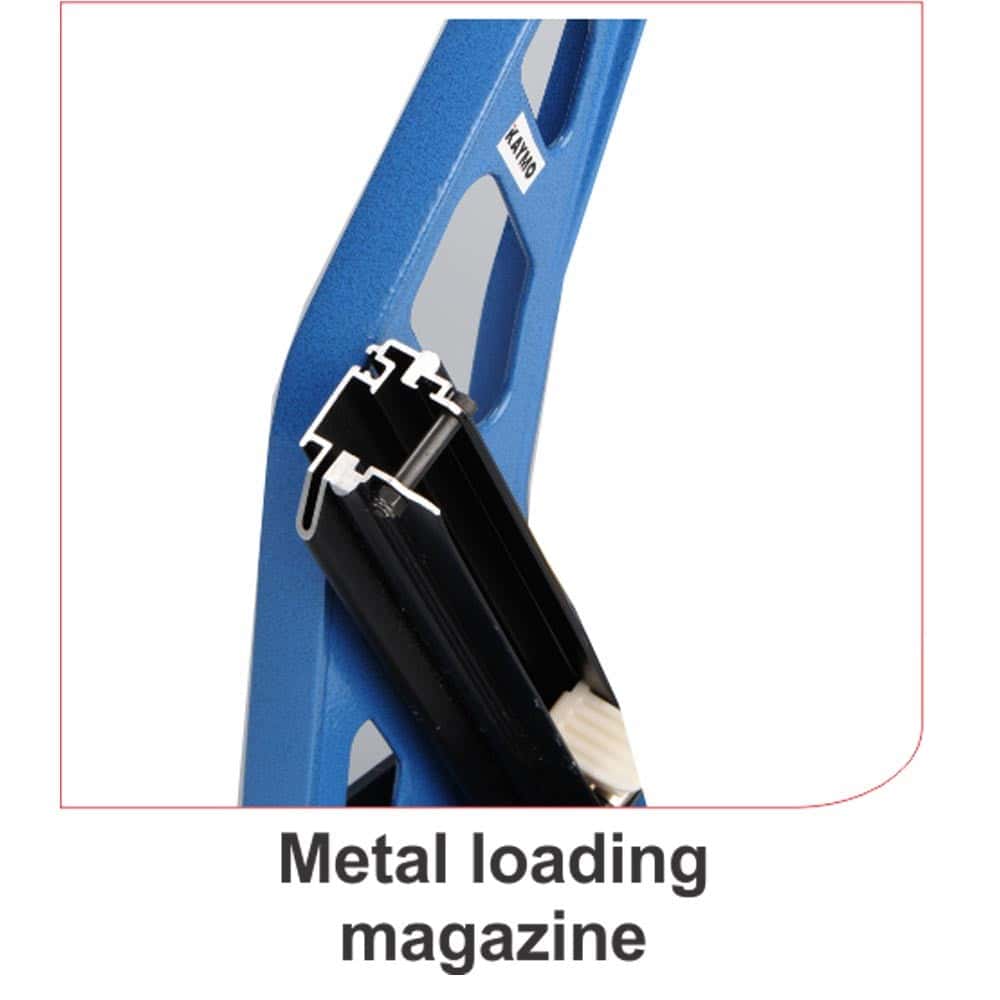

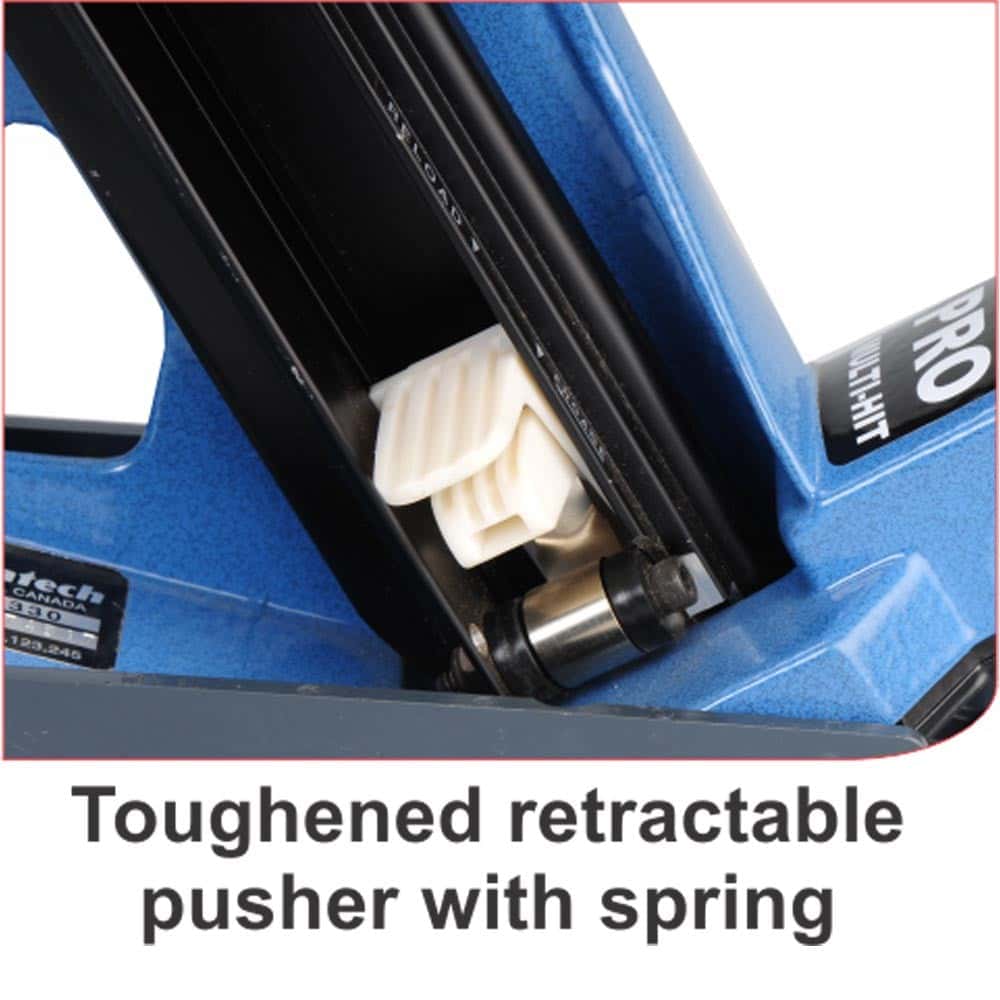

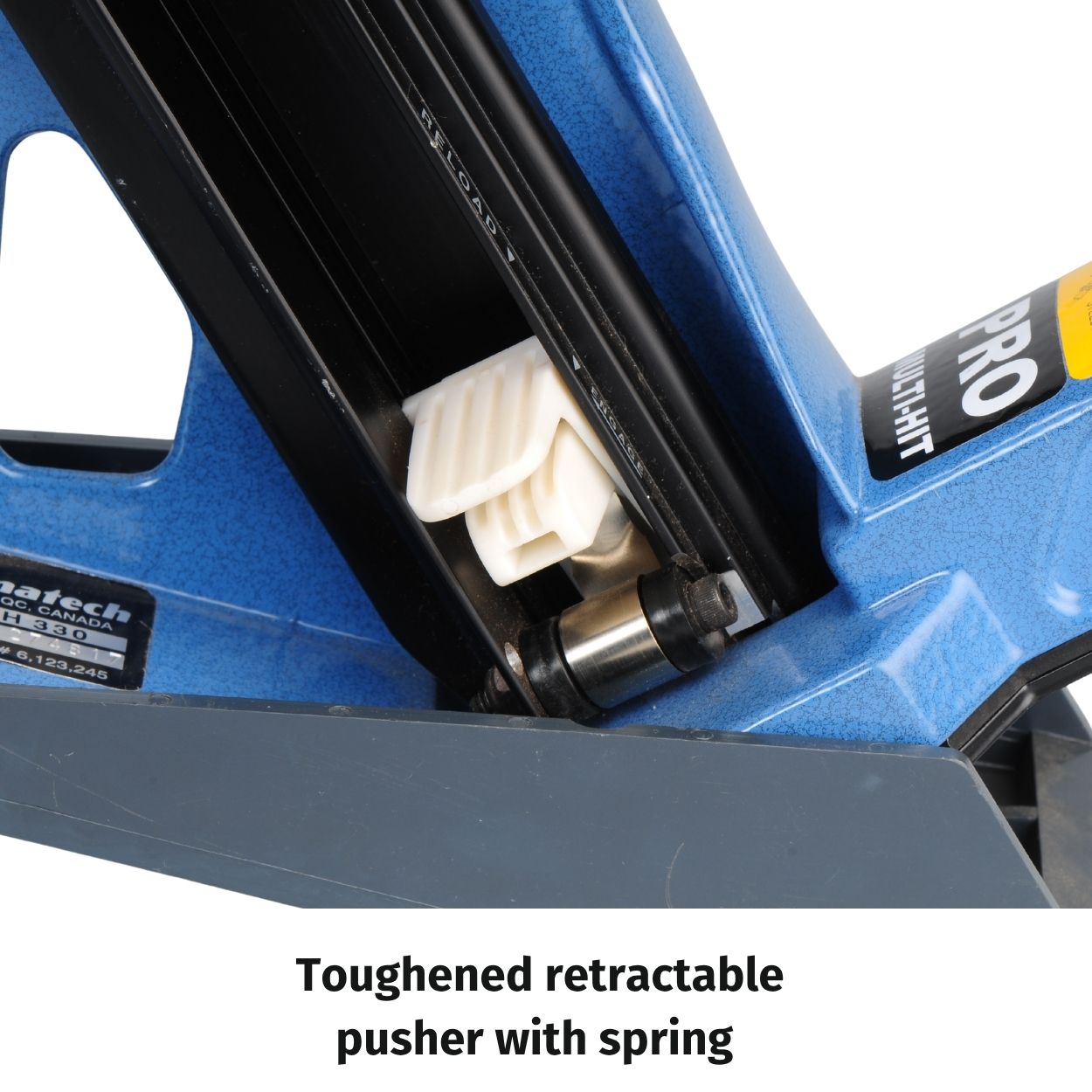

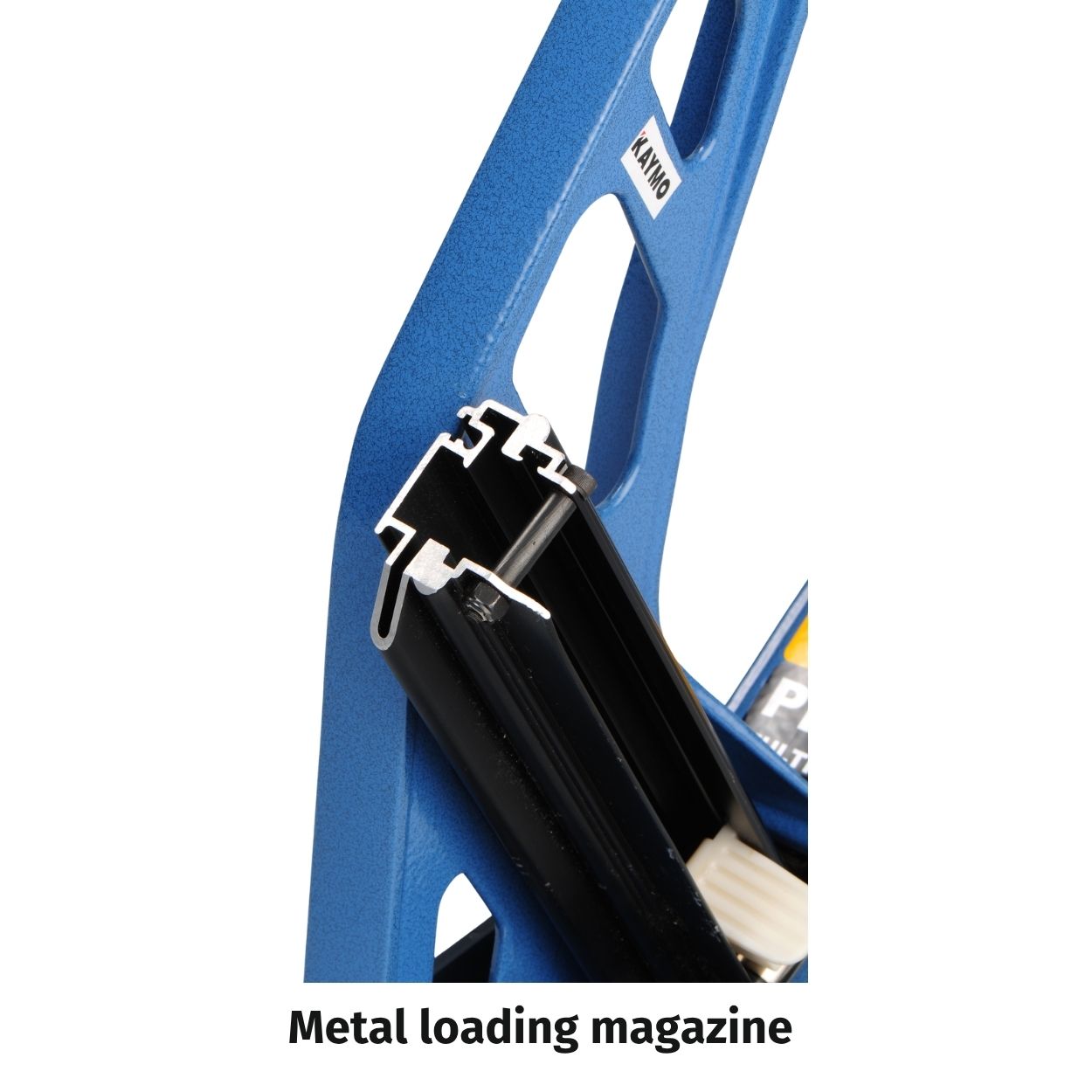

Quick loading magazine with spring loaded pusher
.
Accepts 16G cleat nails38 - 50mm
.
₹ 0/-
Blow Up
Spares
| . | TOOL NAME: | XPRO-FN1650 H330 | REV.1ST APRIL 2022 | |
| SR | FMS | PART CODE | PART NAME | ALT CODE |
| 1 | H-002 | BODY | ||
| 2 | H-013 | SCREWS/WASHERRS | ||
| 3 | H-020 | RATCHET ASSY | ||
| 4 | FMS | H-033 | PIN | |
| 5 | FMS | H-034 | HITCH PIN | |
| 6 | H-036 | DOWEL PINS | ||
| 7 | H-037 | BOLTS | ||

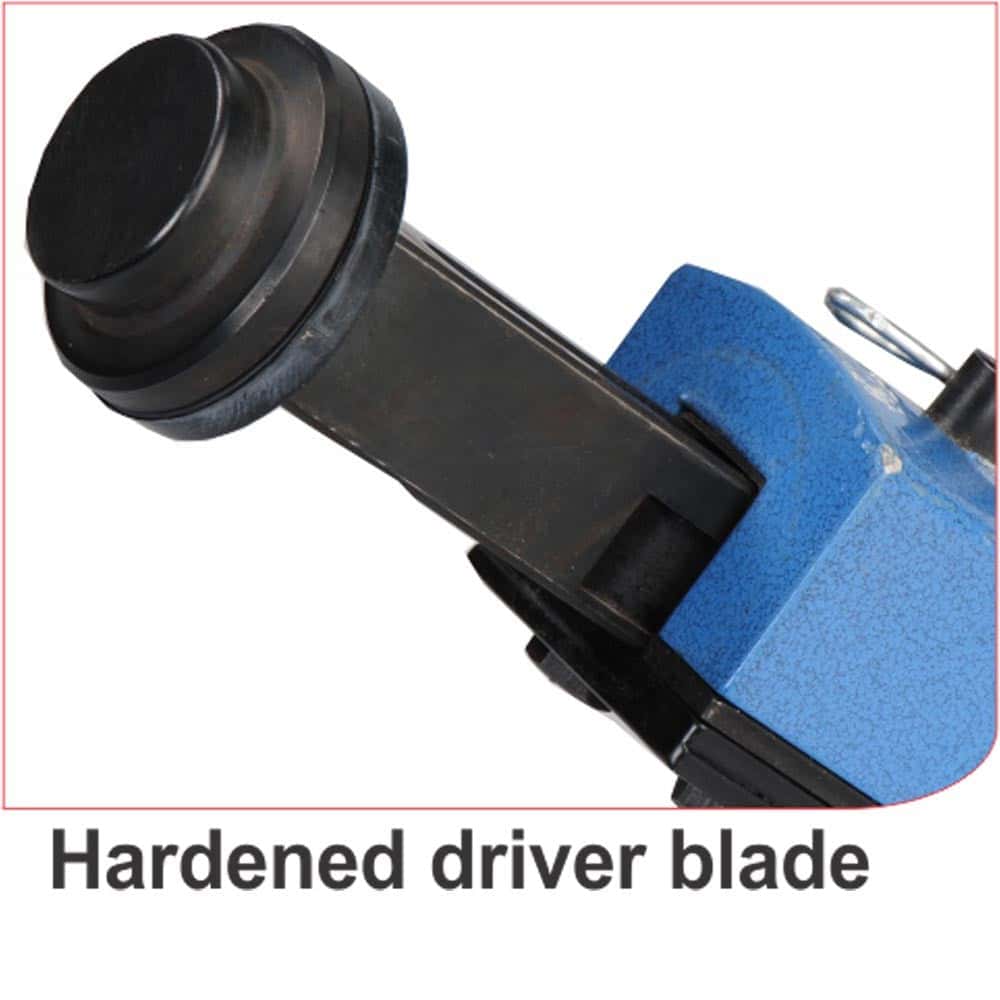

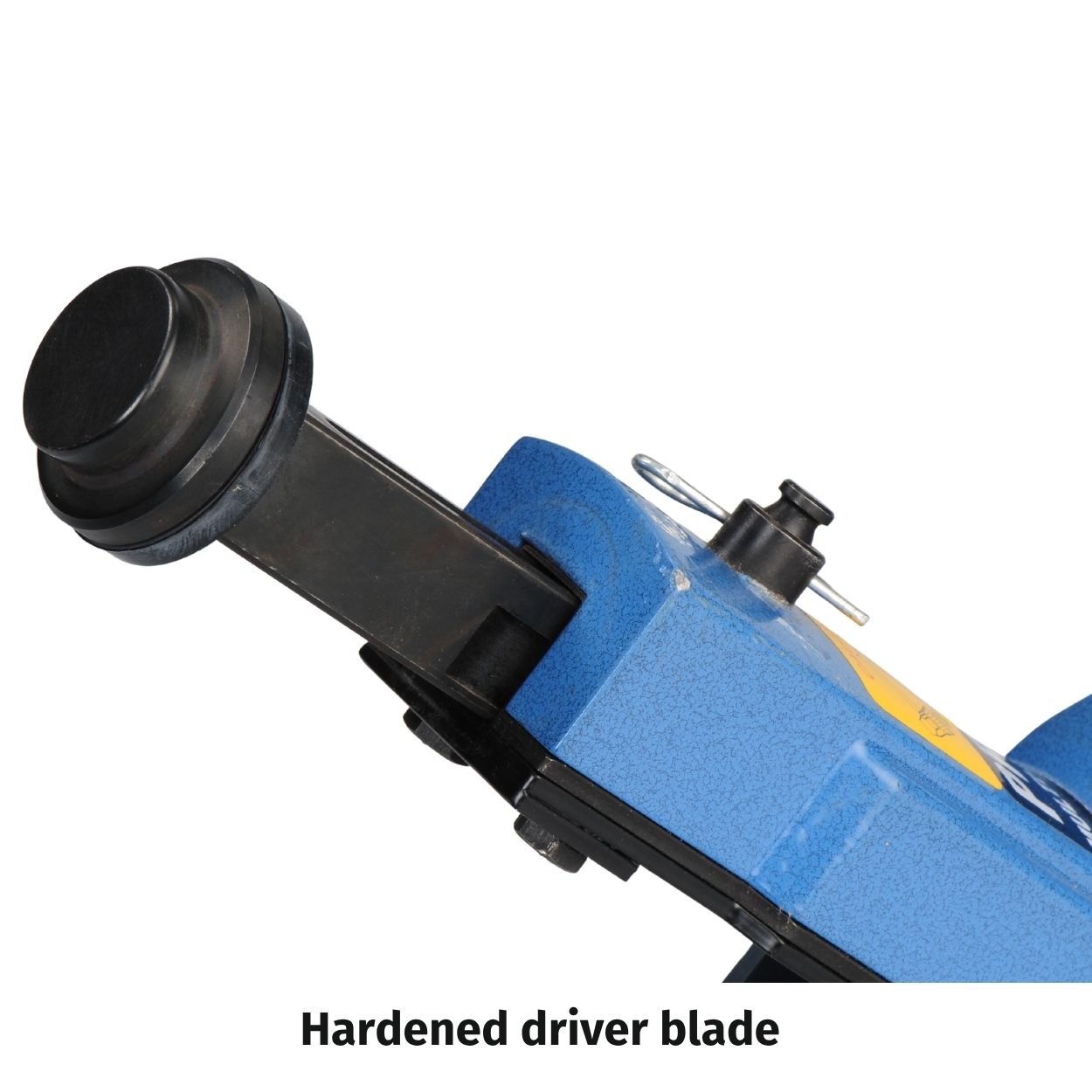

| 8 | FMS | H-038 | DRIVING BLADE | |
| 9 | FMS | H-045 | SPRING | |
| 10 | H-049 | T FEEDER CHANNEL | ||
| 11 | H-054 | GRIP | H-154 | |
| 12 | H-055 | SPRING/CLIP | Q-046 | |
| 13 | FMS | H-085 | REPLACEMENT BAND | |
| 14 | H-087 | REINFORCEMENT BLOCK | ||
| 15 | H-108 | PLASTIC BASE | ||
| 16 | FMS | H-119 | PLUNGER | |
| 17 | H-130 | CHANNEL ASSY | ||
| 18 | H-144 | FOOT | ||
| 19 | H-150 | *"L" FEEDER CHANNEL | ||
| 20 | FMS | H-158 | BLADE RETAINER | |
| 21 | H-241 | T GATE | ||
| 22 | H-343 | *"L" GATE | ||
| 23 | FMS | H-922 | RATCHET PIN ASSY | |
| 24 | H-084 | WHITE RUBBER CAP | ||
| 100 | H-080 | HAMMER |

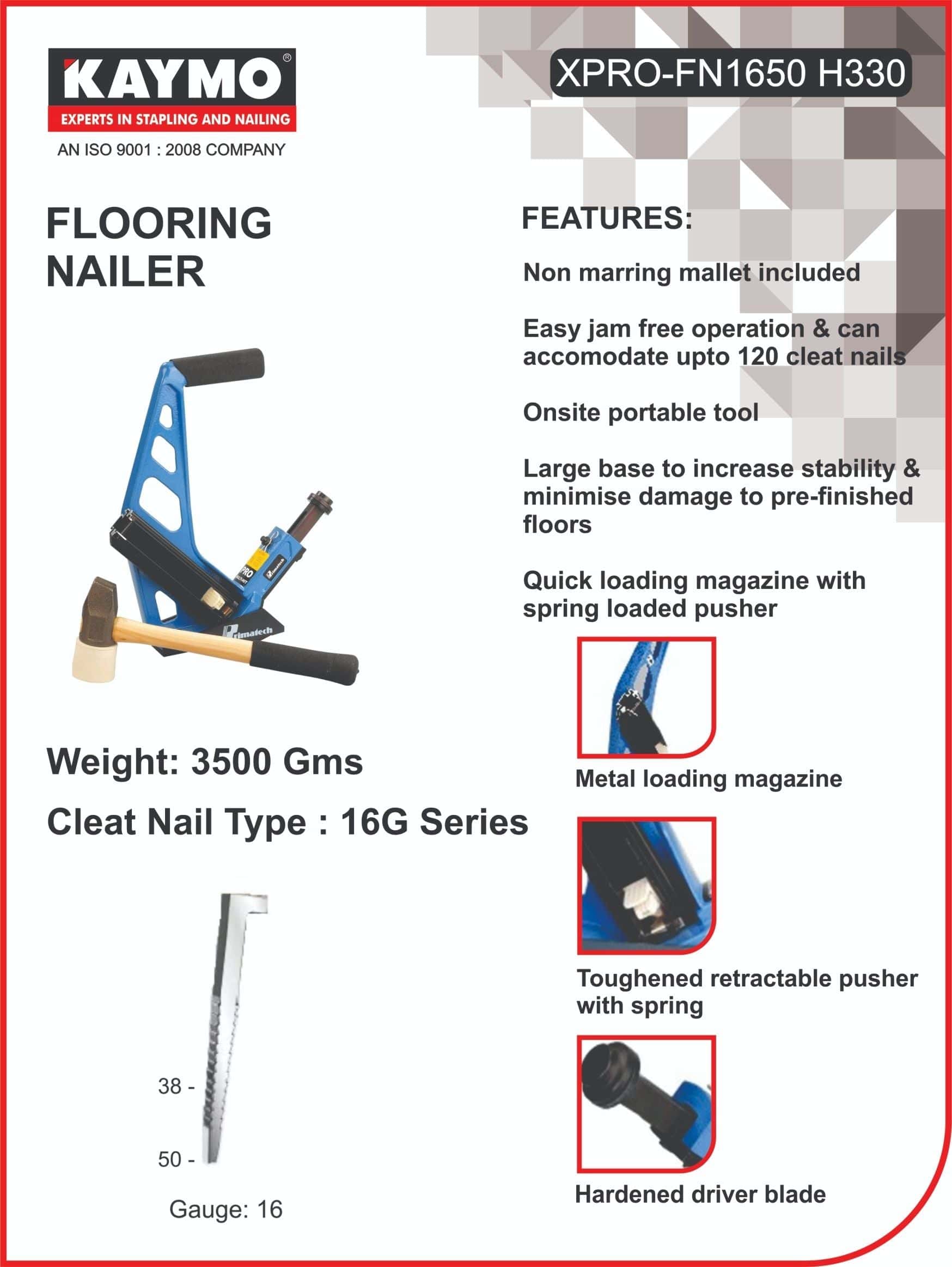

One Sheeter
Application
| WOODEN FLOORING | To join top layer tongue & groove strips to the wooden runner |
