ELECTRIC BRAD NAILER XPRO-ME30

Name: ELECTRIC BRAD NAILER XPRO-ME30
Brand: Kaymo
SKU: XPRO-EB18G30
Availability: InStock

SKU: XPRO-EB18G30

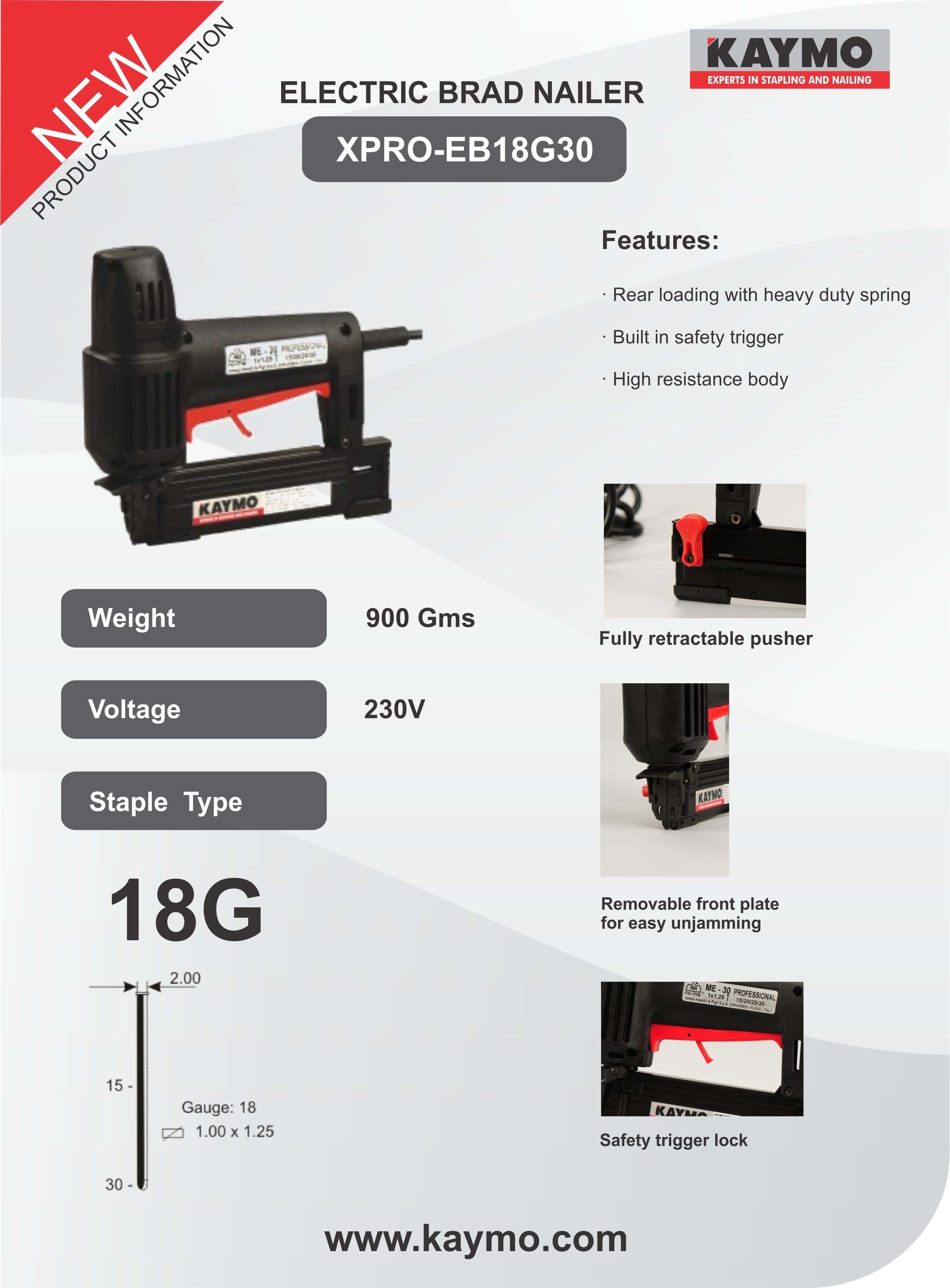

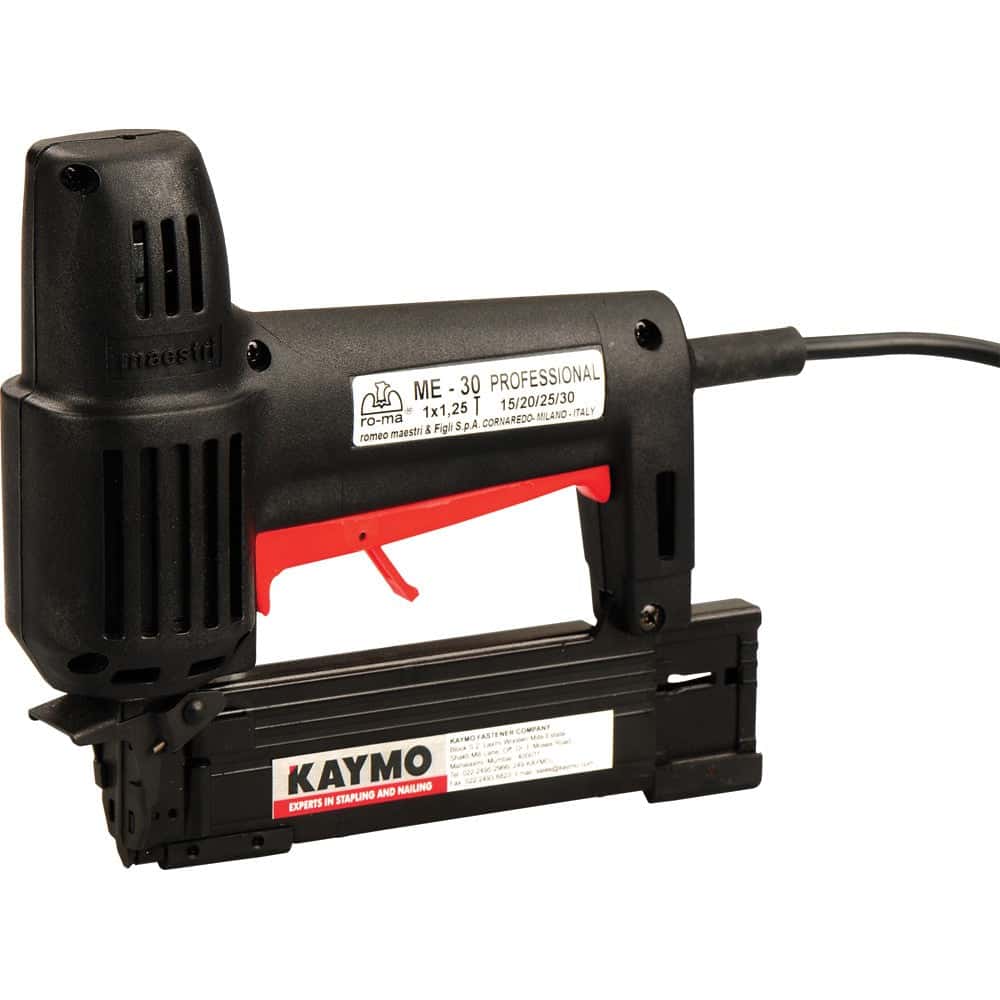

The KAYMO XPRO-EB18G30 is a lightweight and powerful electric brad nailer designed specially for on site repair work. With a heavy-duty spring for rear loading, Read More...

Features:

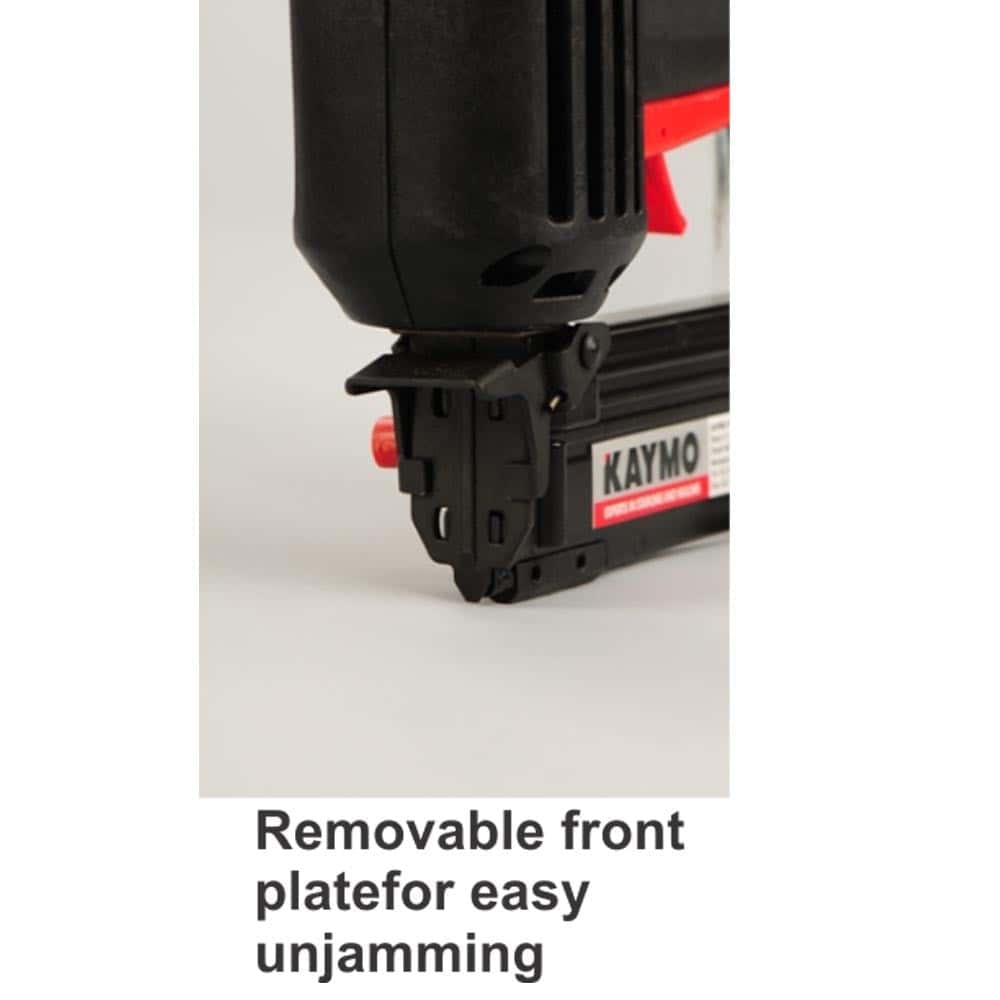

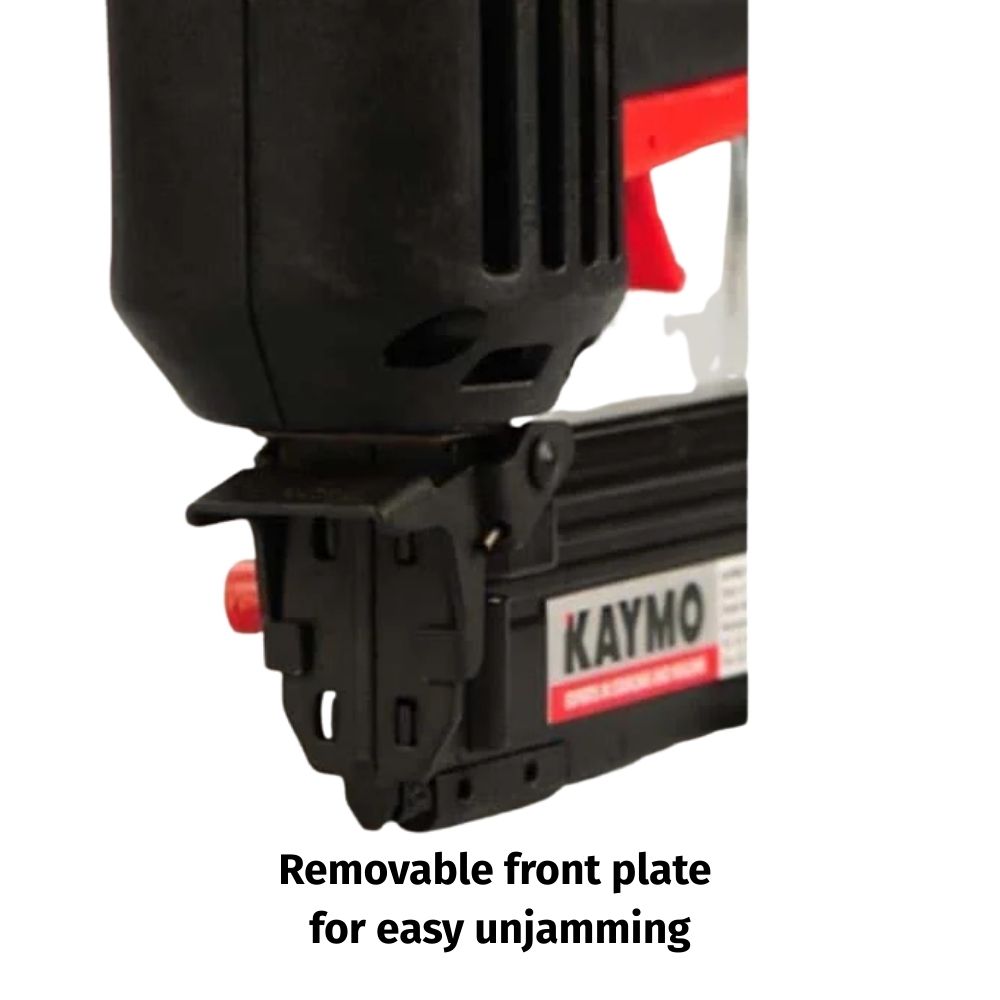

Removable front plate for easy unjamming

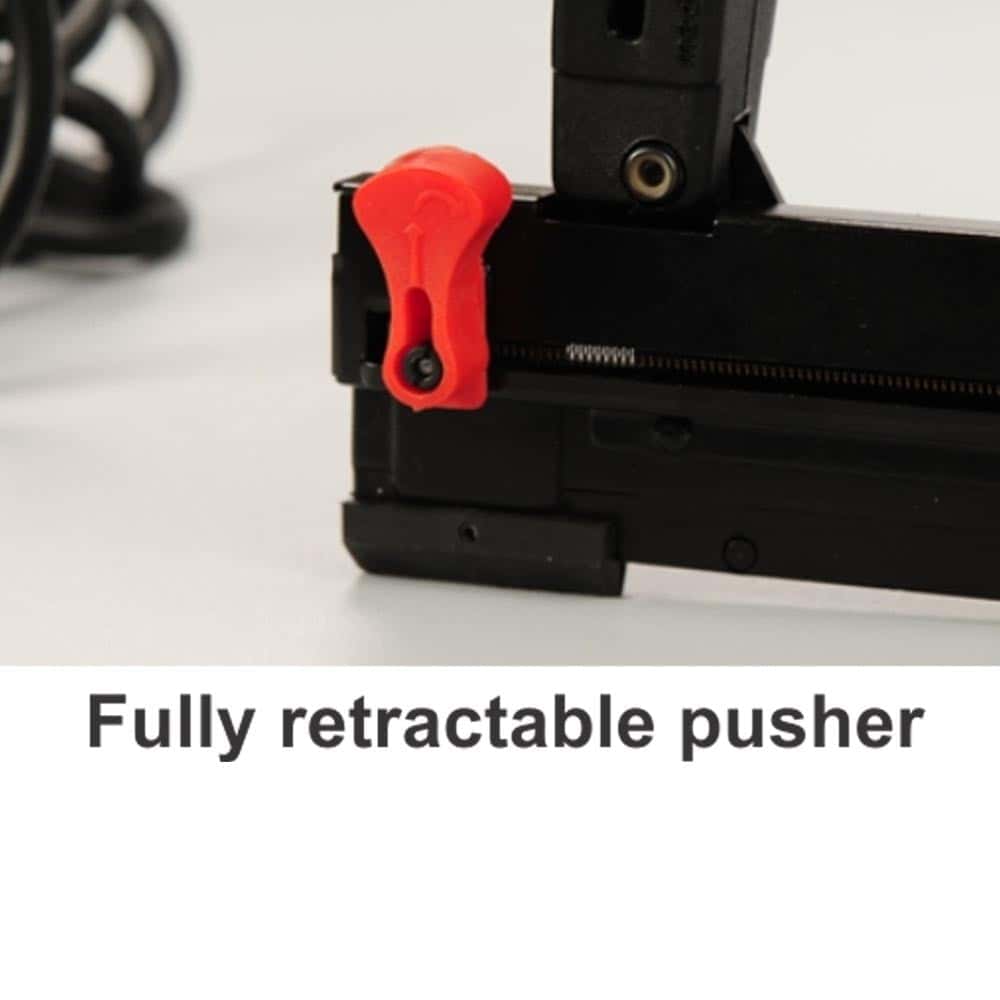

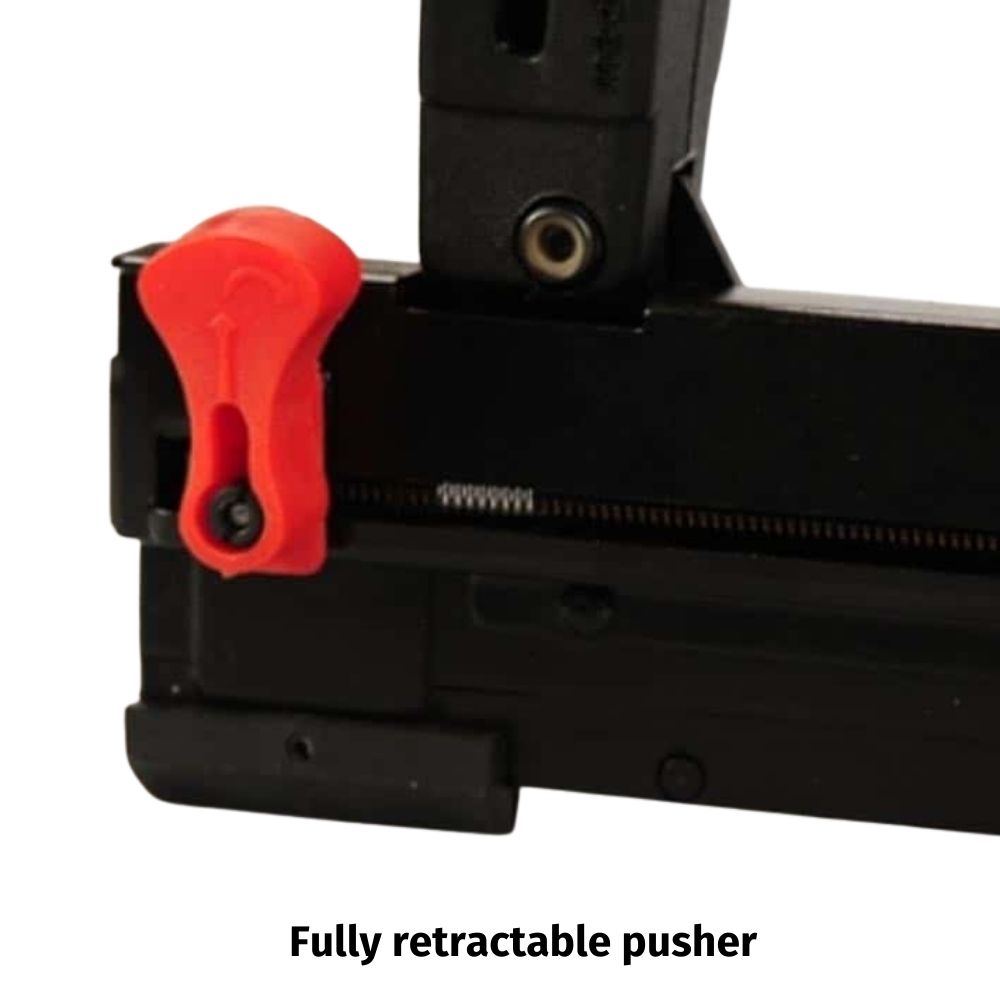

Fully retractable pusher

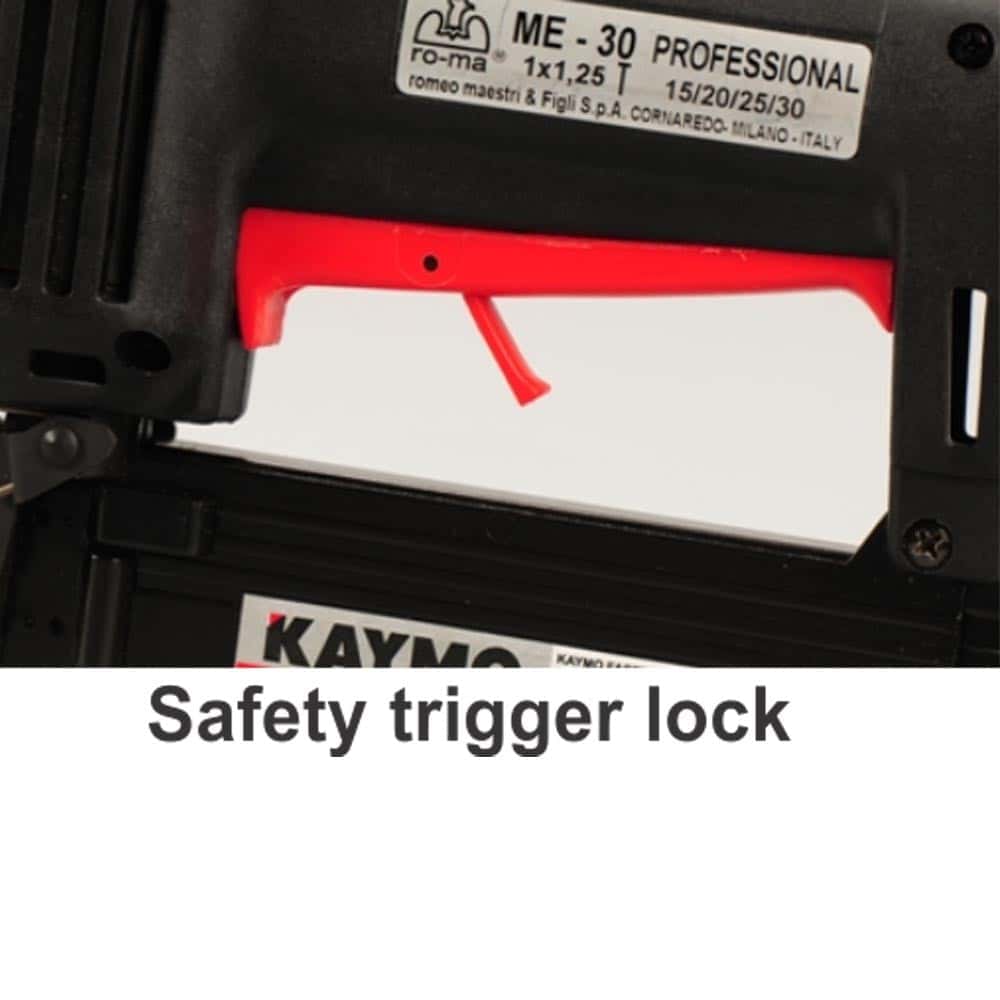

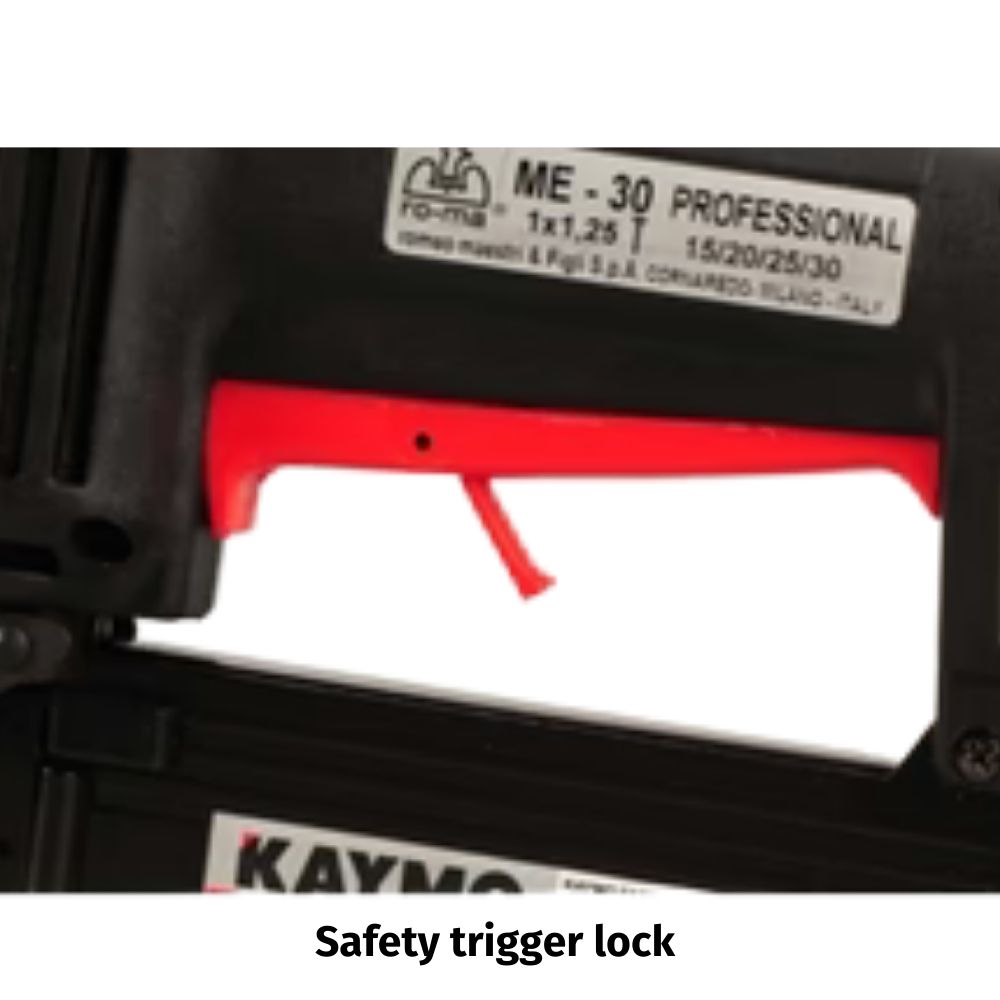

Safety trigger lock
High resistance body
Rear loading with heavy duty spring
Fastener Range: 15mm - 30mm

Applications:

Sofas
Chairs
Interiors
Site/repair work
DIY/hobbies

ENQUIRE NOW DOWNLOAD BROCHURE

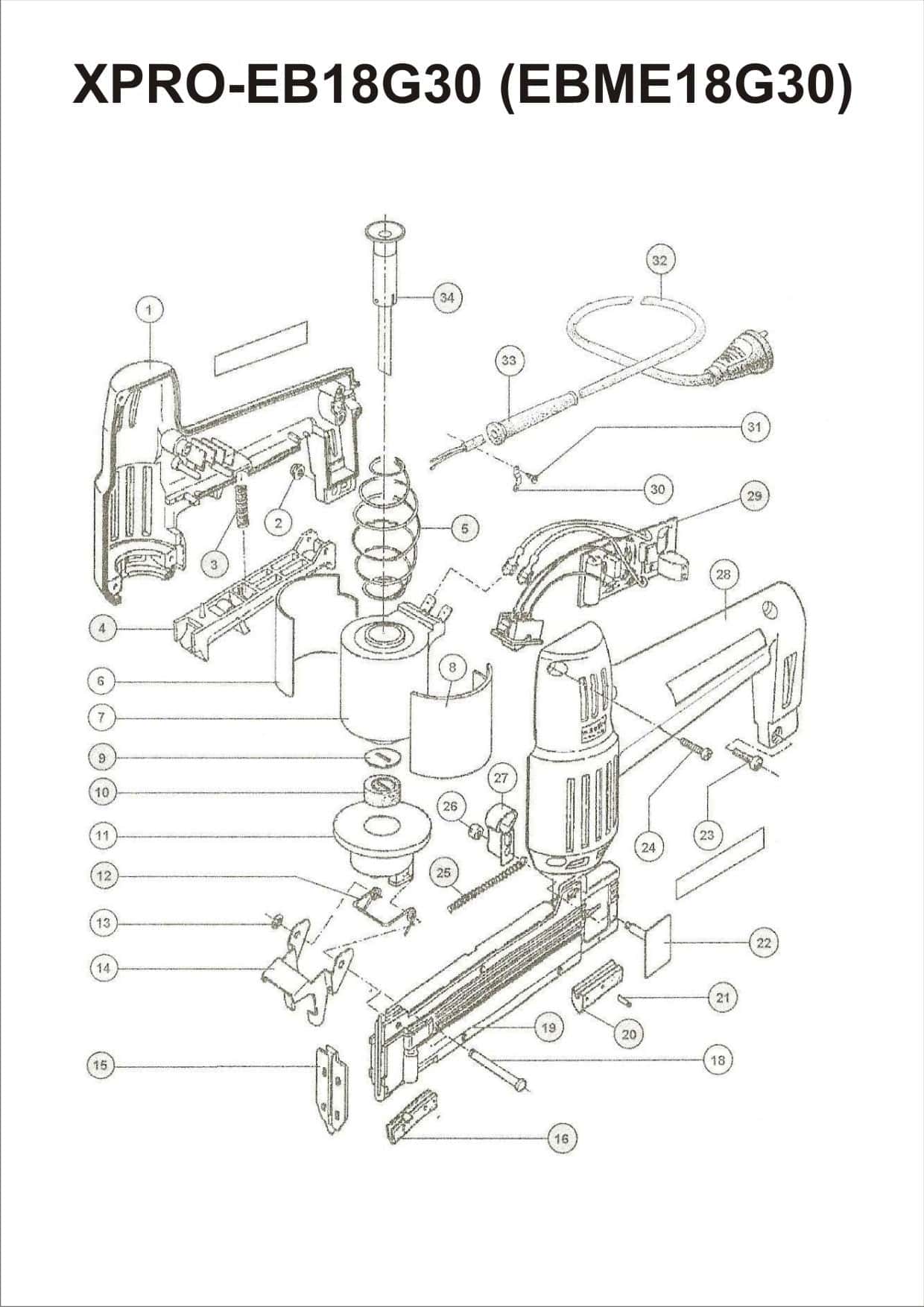

		TOOL NAME:	XPRO-EB18G30					REV.1ST APRIL 2022
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1		62093	BODY A	49061	19		42677	MAGAZINE	43617
2		51002	NUT		20		62097	RUBBER PART
3		70354	TRIGGER SPRING		21		55009	PIN
4		42178	TRIGGER		22	FMS	42769	PUSHER
5	FMS	70356	RETURN SPRING		23	FMS	50004	SCREW
6		70350	SHELL		24	FMS	50203	SCREW
7		40002	SOLENOID COIL		25	FMS	70360	SPRING
8		70351	SHELL		26		70357	NUT
9	FMS	70355	WASHER DAMPER		27		62095	PLASTIC PUSHER COVER
10		61008	DAMPER		28		62094	BODY B
11		70353	HOLDER		29	FMS	40011	CIRCUIT	40012
12		70342	CATCH SPRING		30		70352	WIRE HOLDER
13	FMS	54005	E RING	YE2501	31		50208	SCREW
14		70341	CATCH		32	FMS	40049	CORD
15		70344	NOSE PLATE		33		61006	WIRE HOLDER
16		62098	RUBBER PART		33	FMS	KFCME00002	RUBBER PISTON
17		55008	PIN	55009	34		42177	DRIVER UNIT
18	FMS	70343	PIN		35	FMS	40130	SWITCH

SOFAS	Onsite / Repair work for Sofas
	To fix 3mm / 4mm veneer to wooden frame
MODULAR / KITCHENS	Onsite / Repair work for Modular / Kitchens
	To join MDF to MDF, ply & particle board
WOODEN FLOORING	Onsite / Repair work for Wooden Flooring
	Wooden skirting
