ELECTRIC BRAD NAILER KAYMO PRO-EB1835V2 - Kaymo Fastener

ELECTRIC BRAD NAILER KAYMO PRO-EB1835V2

Name: ELECTRIC BRAD NAILER KAYMO PRO-EB1835V2
Brand: Kaymo
SKU: PRO-EB1835V2
Availability: InStock

SKU: PRO-EB1835V2

The KAYMO PRO-EB18G35V2 is a powerful electric brad nailer designed for furniture applications, site/repair work, sofas, chairs, interiors, and DIY hobbies. With a lightweight 1.5kg Read More...

Features:

Electric-Powered Convenience – No air compressor needed.

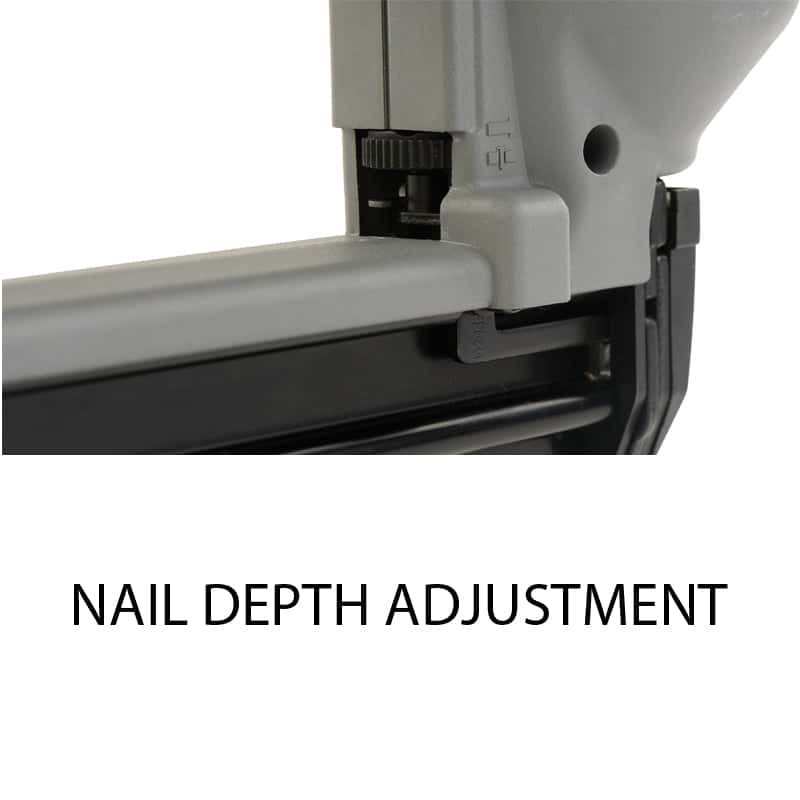

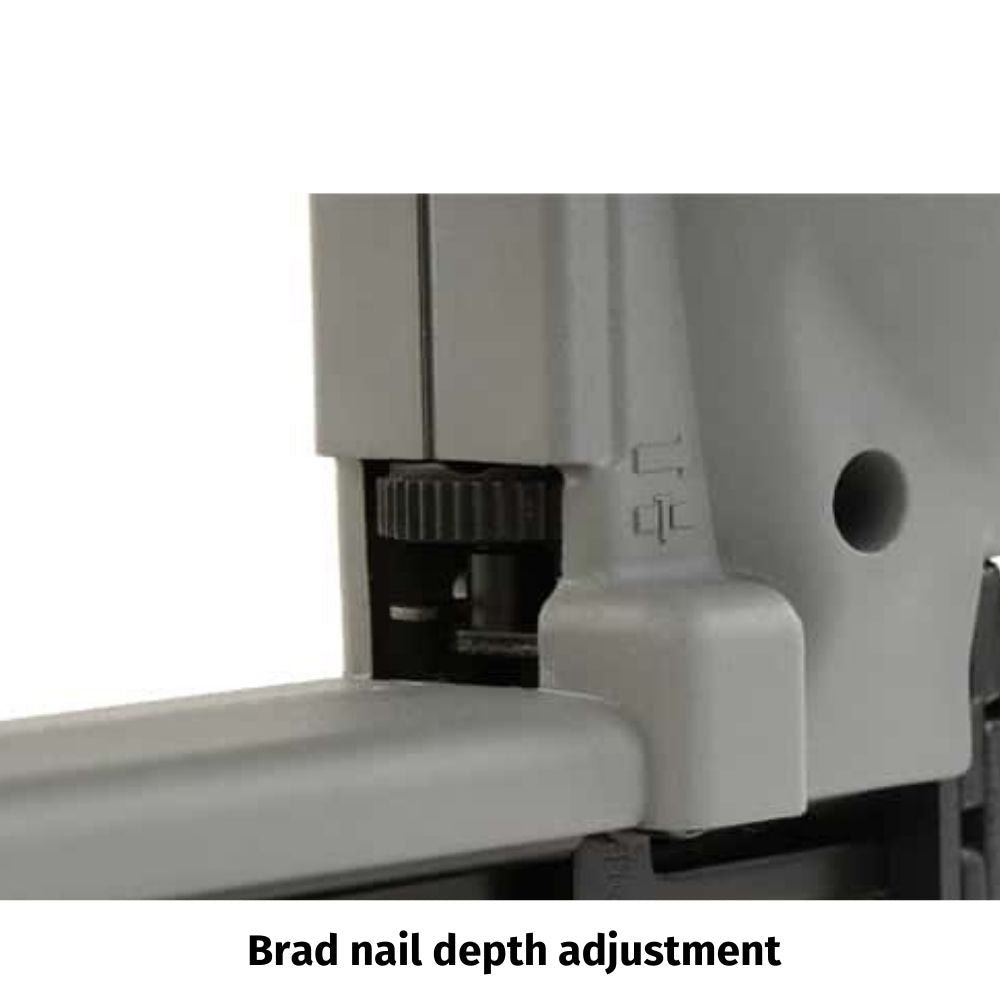

Nail Depth Adjustment – Customizable for various materials.
Closed Metal Magazine – Durable and jam-resistant.

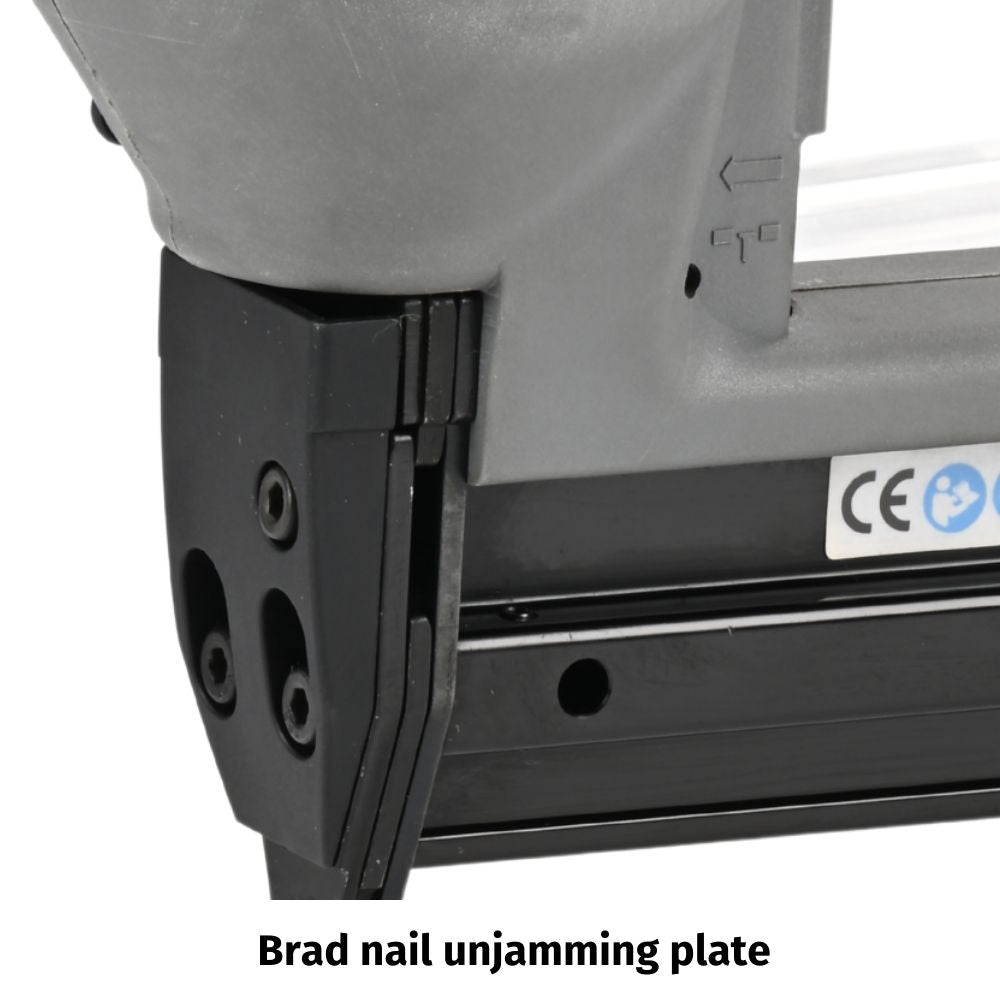

Nail Unjamming Plate – Quick & easy jam removal.
Safety Device – Enhanced user protection.
No Mar Rubber Tip – Prevents surface damage

Applications:

On site repairs, furniture, sofas, chairs, interiors, and DIY hobbies

ENQUIRE NOW DOWNLOAD BROCHURE

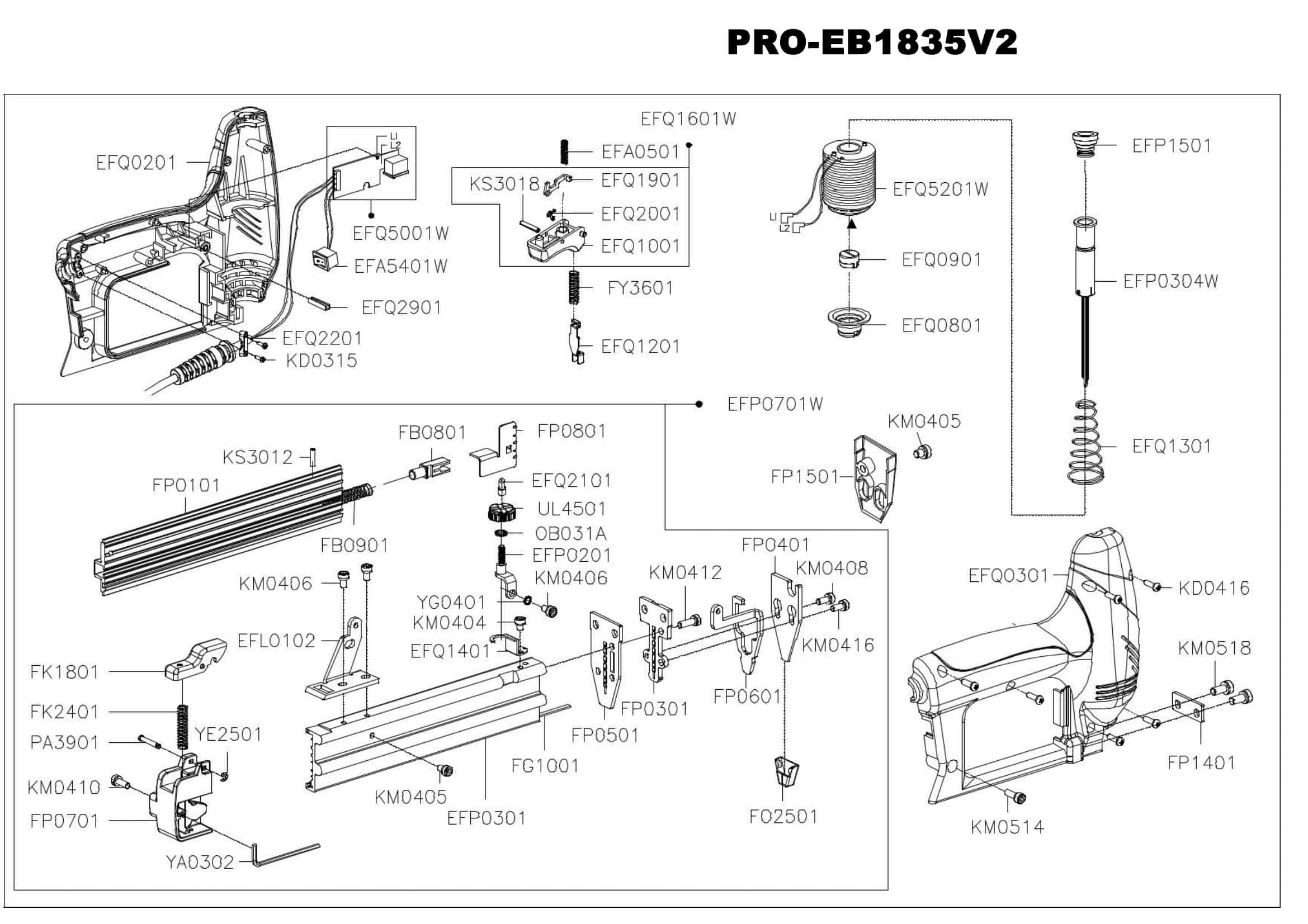

Blow Up

Spares

.		TOOL NAME:	PRO-EB1835V2				REV.1ST APRIL 2022
SR	FMS	PART CODE	PART NAME	SR	FMS	PART CODE	PART NAME	ALT CODE
1	FMS	EFA0501	SPRING	31		FP0101	MAGAZINE CAP
2		EFA5401W	POWER SWITCH ASSY.	32		FP0301	GUIDE PLATE
3		EFL0102	SUPPORT	33		FP0401	COVER PLATE(B)
4		EFP0201	WORK CONTACTING ELEMENT(B)	34		FP0501	GUIDE PLATE SPACER
5		EFP0301	MAGAZINE SEAT	35		FP0601	WORK CONTACTING ELEMENT(A)
6		EFP0304W	DRIVER ASSY.	36		FP0701	COVER
7		EFP0701W	MAGAZINE ASSY.	37		FP0801	PUSHER
8		EFP1501	PISTON STOP	38		FP1401	SPACER
9		EFQ0201	FRONT BODY	39		FP1501	PLATE
10		EFQ0301	REAR BODY	40		FY3601	COMPRESSION SPRING
11		EFQ0801	BUMPER COVER	41		KD0315	SCREW
12	FMS	EFQ0901	BUMPER	42		KD0416	SCREW
13	FMS	EFQ1001	TRIGGER	43		KM0404	HEX.SOC.HD.BOLT
14		EFQ1201	SAFETY	44		KM0405	HEX.SOC.HD.BOLT
15	FMS	EFQ1301	COMPRESSION SPRING	45	FMS	KM0406	HEX.SOC.HD.BOLT
16		EFQ1401	FIXED PLATE	46	FMS	KM0408	HEX.SOC.HD.BOLT
17		EFQ1601W	TRIGGER ASSY.	47		KM0410	HEX.SOC.HD.BOLT
18		EFQ1901	CONTACT LEVER	48	FMS	KM0412	HEX.SOC.HD.BOLT
19		EFQ2001	SPRING	49		KM0416	HEX.SOC.HD.BOLT
20		EFQ2101	FIXED	50	FMS	KM0514	HEX.SOC.HD.BOLT
21		EFQ2201	FIXTURE	51		KM0518	HEX.SOC.HD.BOLT
22		EFQ2901	STOP PLATE	52		KS3012	SPRING PIN
23		EFQ5001W	PCB ASSY.	53		KS3018	SPRING PIN
24		EFQ5201W	COIL ASSY.	54		OB031A	O-RING
25		FB0801	PUSHER PIN	55	FMS	PA3901	PIN
26		FB0901	PUSHER SPRING	0		TOOL NAME:	PRO-EB1835V2
27		FG1001	BAR	56		UL4501	ADJUSTING WHEEL
28		FK1801	LATCH	57		YA0302	HEX BAR WRENCH
29		FK2401	COMPRESSION SPRING	58	FMS	YE2501	E-RING
30		FO2501	SAFETY CUSHION	59	FMS	YG0401	SPRING WASHER	S0410400

One Sheeter

Application

SOFAS	To fix 3mm / 4mm veneer to wooden frame
CHAIRS	To fix upholstery to chair / stool base
MODULAR / KITCHENS	To join MDF to MDF, ply & particle board
CARROM BOARDS	To fix the back reinforcement to the frame
CARROM BOARDS	To make the board frame
GIFT ARTICLES	To join MDF to MDF to make gift articles
GIFT ARTICLES	To join wood to wood to make gift articles
KITE SPINDLES	To join PVC reel to wooden rod to form a spindle
