CORDLESS PINNER KAYMO PRO-6430

Name: CORDLESS PINNER KAYMO PRO-6430
Brand: Kaymo
SKU: PRO-CDP6430
Availability: InStock

SKU: PRO-CDP6430

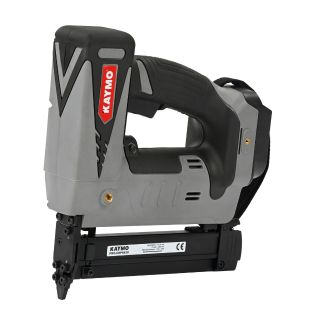

The KAYMO PRO-CDP6430 is a lightweight, high-performance cordless pinner, perfect for exhibition booth installations, interiors, and DIY projects. Designed for precision fastening, it uses 64-Series Read More...

Features:

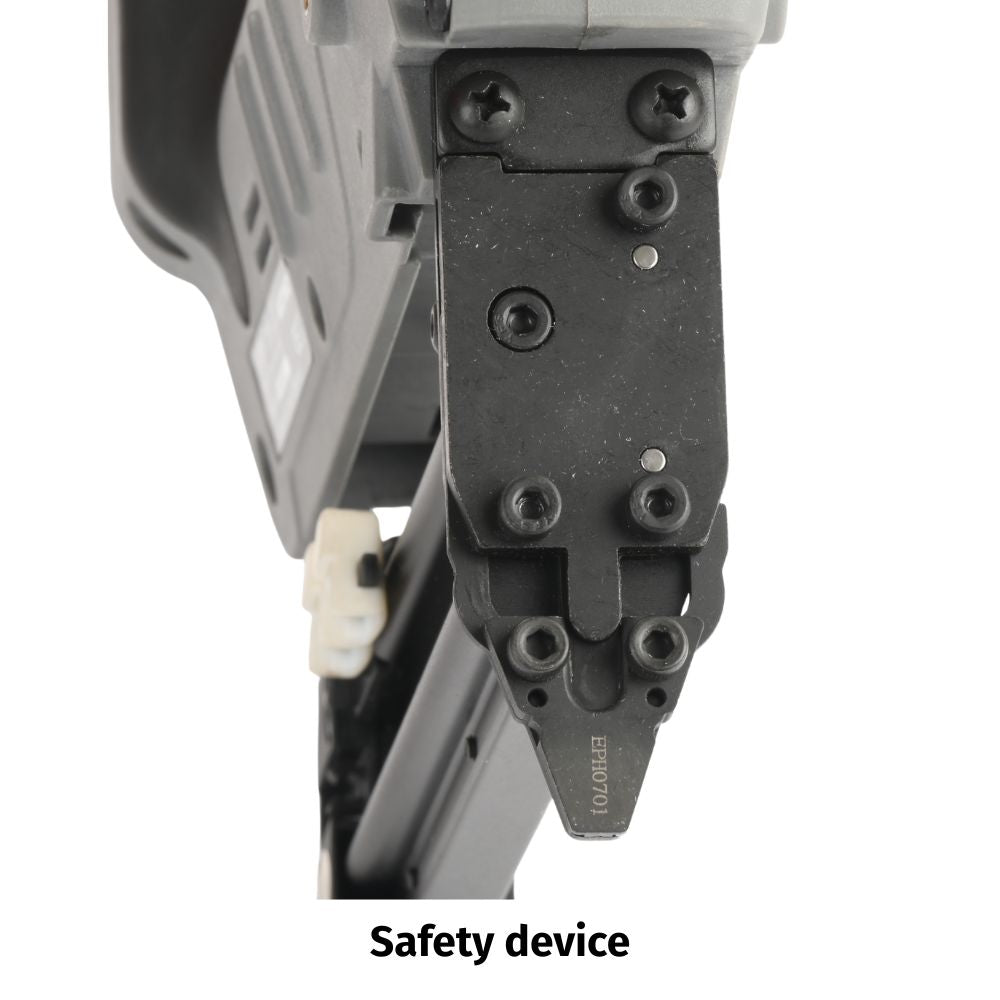

Safety device

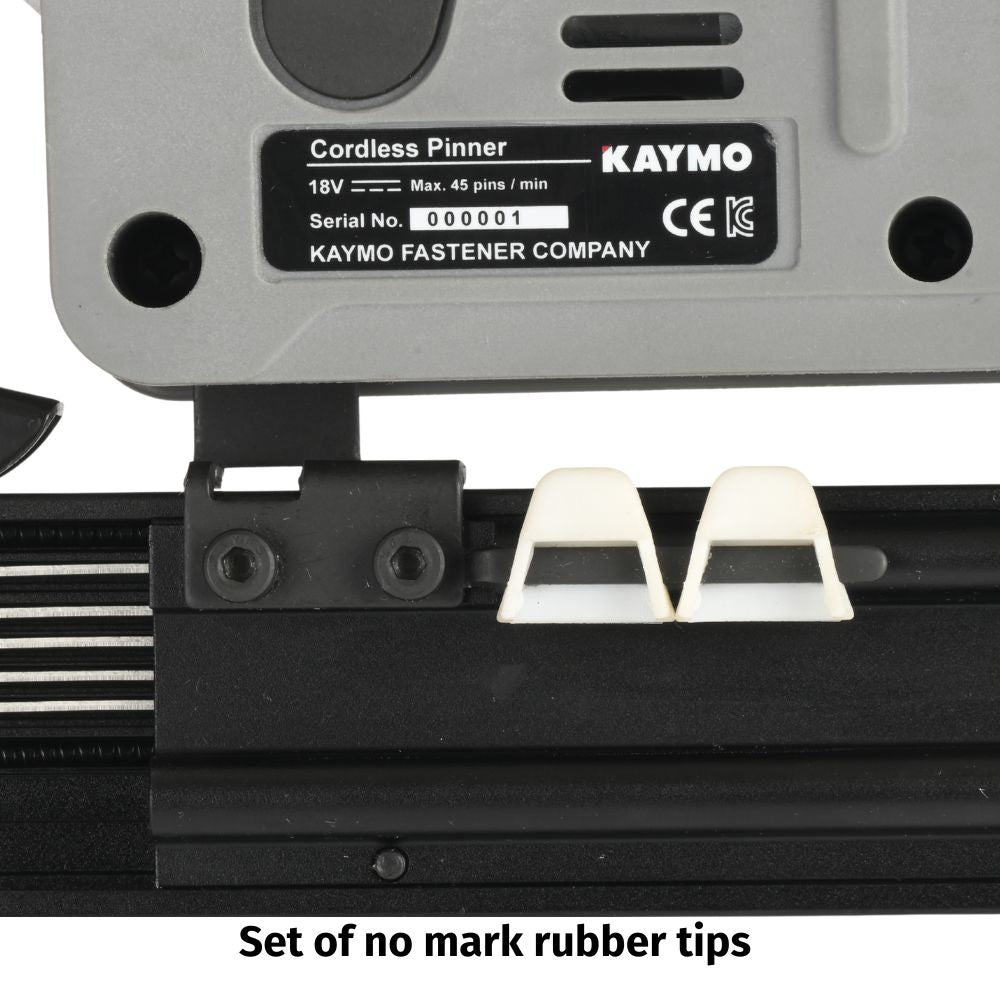

Set of no mark rubber tip

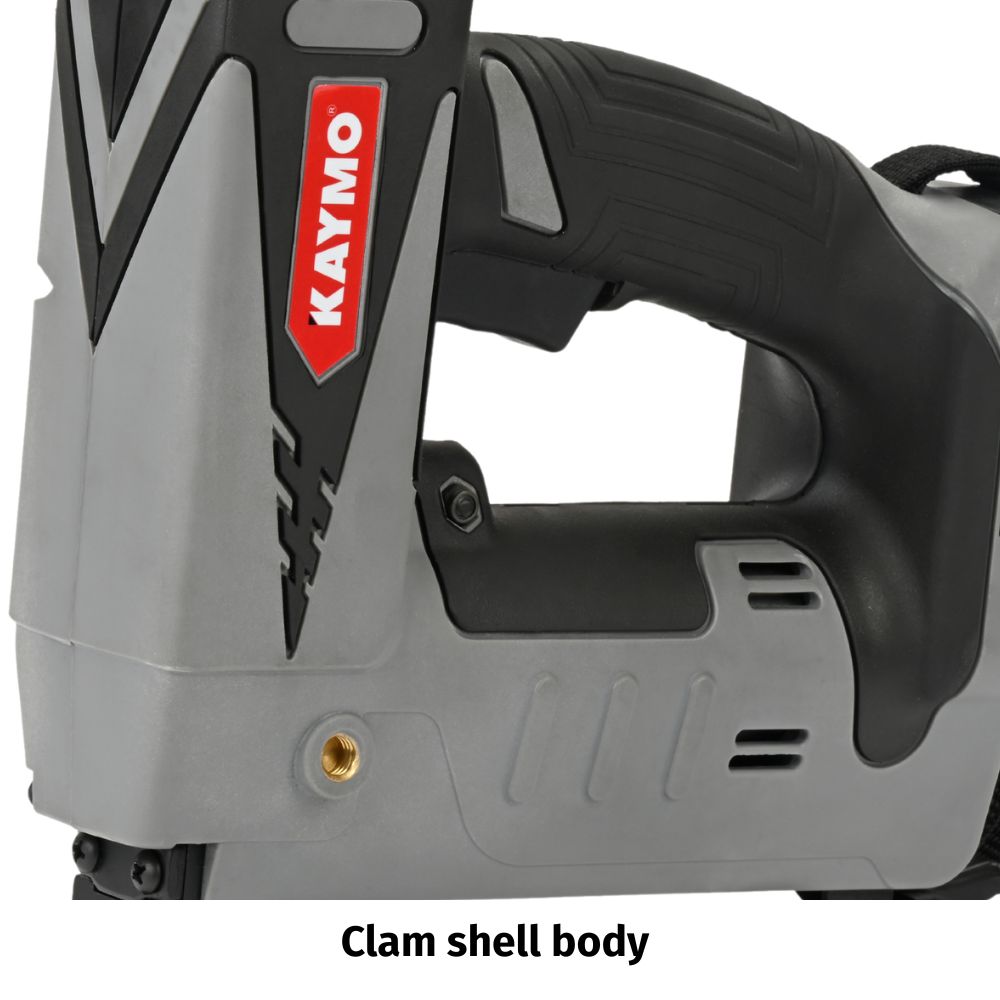

Clam shell body

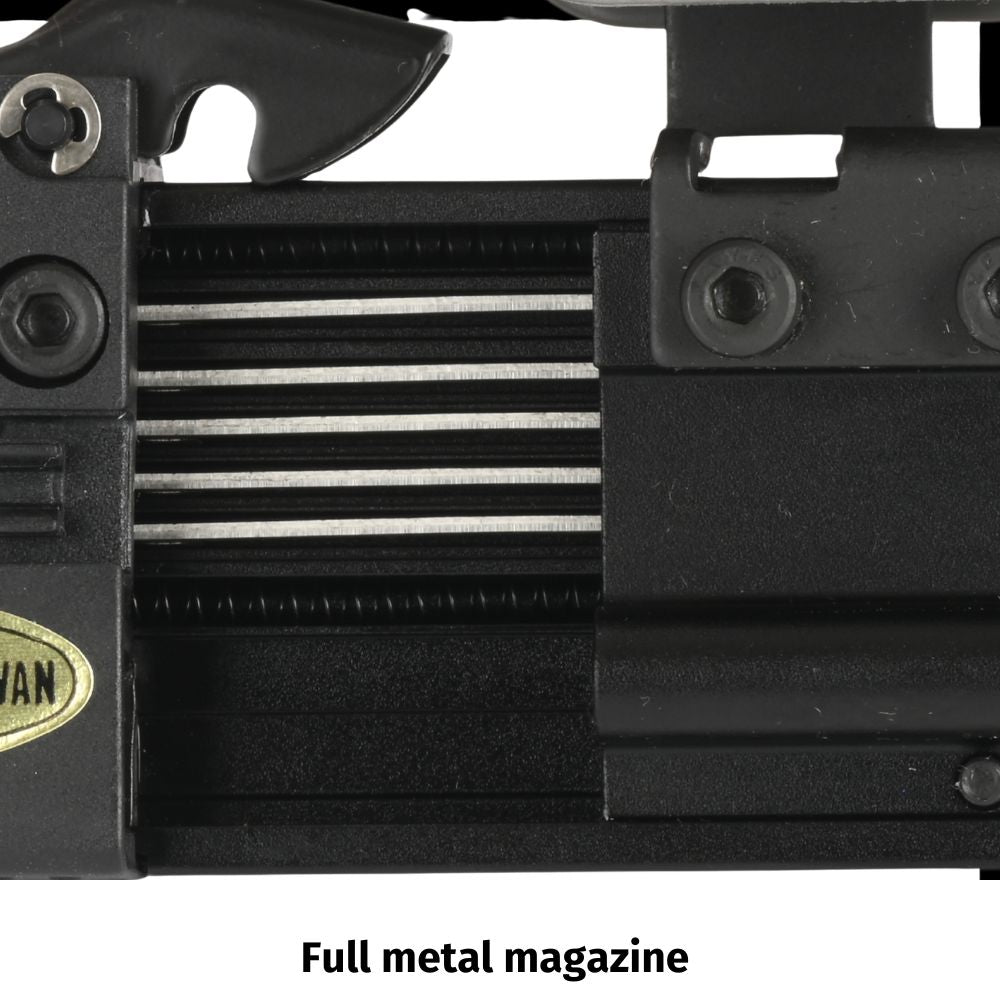

Full metal magazine
Portable tool – ideal for remote locations
No electricity or compressed air needed
Compatible with Makita battery and charger (not included with tool)
Fastener Range: 12mm – 30mm

Applications:

Exhibition site installers
Furniture & interiors
DIY projects

ENQUIRE NOW DOWNLOAD BROCHURE

Blow Up

Spares

	TOOL MODEL:	PRO-CDP6430
FMS	PART CODE	PART NAME	ALT CODE	FMS	PART CODE	PART NAME	ALT CODE
FMS	CC5301	COMPRESSION SPRING		FMS	EPH0901	SAFETY CUSHION
FMS	DFP0201	WORK CONTACTING ELEMENT(B)		FMS	FA2401	PIN
	DFQ0501	INTERNAL GEAR		FMS	FK1801	LATCH
	DFQ0601	GEARWHEEL		FMS	FK2401	COMPRESSION SPRING
	DFQ0901	SPRING		FMS	KD0410	SCREW
	DFQ1001	SPACER		FMS	KD0416	SCREW
	DFQ1101	SPACER		FMS	KD0420	SCREW
	DFQ1201	OIL IMPREGNATED BEARINGS		FMS	KD0425	SCREW
FMS	DFQ1601W	TRIGGER VALVE ASSY.		FMS	KF0308	FLAT HD.BOLT
FMS	DFQ1802	SHAFT		FMS	KM0405	HEX.SOC.HD.BOLT
FMS	DFQ1901	SPACER		FMS	KM0406	HEX.SOC.HD.BOLT
	DFQ2101	UPPER RAIL		FMS	KM0408	HEX.SOC.HD.BOLT
	DFQ2201	SLIDING SET		FMS	KM0412	HEX.SOC.HD.BOLT
	DFQ2501	SIDE PLATE(L.H.)		FMS	KM0414	HEX.SOC.HD.BOLT
FMS	DFQ2602	BUMPER		FMS	KP3008	PARALLEL PIN
FMS	DFQ2901	COMPRESSION SPRING		FMS	KR0404	BUTTON HD.BOLT
FMS	DFQ3102	SAFETY(B)		FMS	KR0406	BUTTON HD.BOLT
FMS	DFQ3201	COMPRESSION SPRING		FMS	KS3008	SPRING PIN
	DFQ3201W	GEAR ASSY.		FMS	KS3018	SPRING PIN
	DFQ3202W	GEAR ASSY.		FMS	KS4010	SPRING PIN
	DFQ3301	SUPPORT		FMS	KX0410	CAP HD.BOLT
FMS	DFQ3402	ROD		FMS	KX0422	CAP HD.BOLT
FMS	DFQ3501	CONTACT LEVER(1)		FMS	KX0518	CAP HD.BOLT
FMS	DFQ3601	CONTACT LEVER(2)		FMS	PH0402	COVER PLATE(A)
FMS	DFQ3701	SPRING			PH1601	MAGAZINE CAP
FMS	DFQ4101	TRIGGER		FMS	PH1701	SPACER
FMS	DFQ5701	FLAT WASHER			PH1801	DISTANCE SET
	DFQ6001	SUPPORTER		FMS	PH1901	PUSHER
	DFQ6202	MOTOR ASSY.		FMS	PH2001	MAGAZINE RETAINER
FMS	DFQ6302	PARALLEL PIN SET			PH2101	FIXED PLATE
FMS	DFQ6501	HOOK			PH2301	COVER
FMS	DFQ6601	FRONT BODY		FMS	PH2401	COMPRESSION SPRING
	DFQ6701	REAR BODY		FMS	PH2601	PUSHER PIN
	DFQ6801	MOTOR MOUNT		FMS	PH2701	PUSHER SPRING
	DFQ7001	BATTERY HOLDER			PH2801	PIVOT
	DPH0201	SUPPORT		FMS	PH3801	NUT PLATE
FMS	DPH0301W	DRIVER ASSY.			TOOL NAME:	PRO-CDP6430
	DPH0701W	MAGAZINE ASSY.			XC0017	CONDUCTOR
FMS	EFM0501	WORK CONTACTING ELEMENT(A)			XC0018	CONDUCTOR
	EPH0301	MAGAZINE SEAT			XC0019	CONDUCTOR
FMS	EPH0401	GUIDE PLATE(A)		FMS	XE0105	MICRO SWITCH
FMS	EPH0501	GUIDE PLATE(B)		FMS	YE2501	E-RING
FMS	EPH0601	COVER PLATE(B)		FMS	YG0401	SPRING WASHER	S0410400
	EPH0701	ADJUSTABLE PLATE		FMS	YL0407	LOCK NUT

One Sheeter

Application

EXHIBITION BOOTH INSTALLTION	To install exhibition booths to make partitions.
INTERIORS	To fix leather /veneer onto the wooden frames
DIY	Turnkey Projects - woodworking, hobbies for home wood applications
