SKU: PRO-CDB1835C
COMING SOON!!!

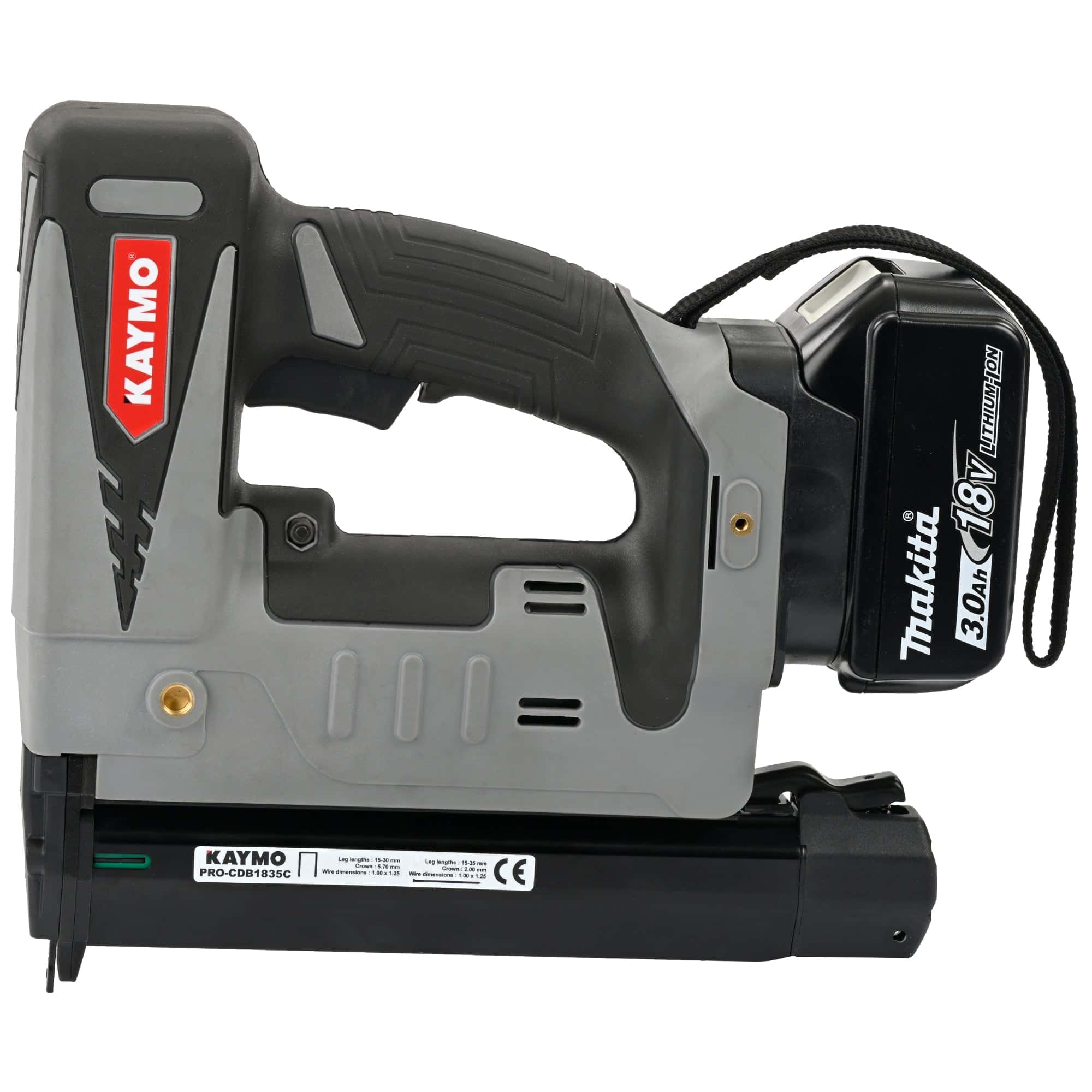

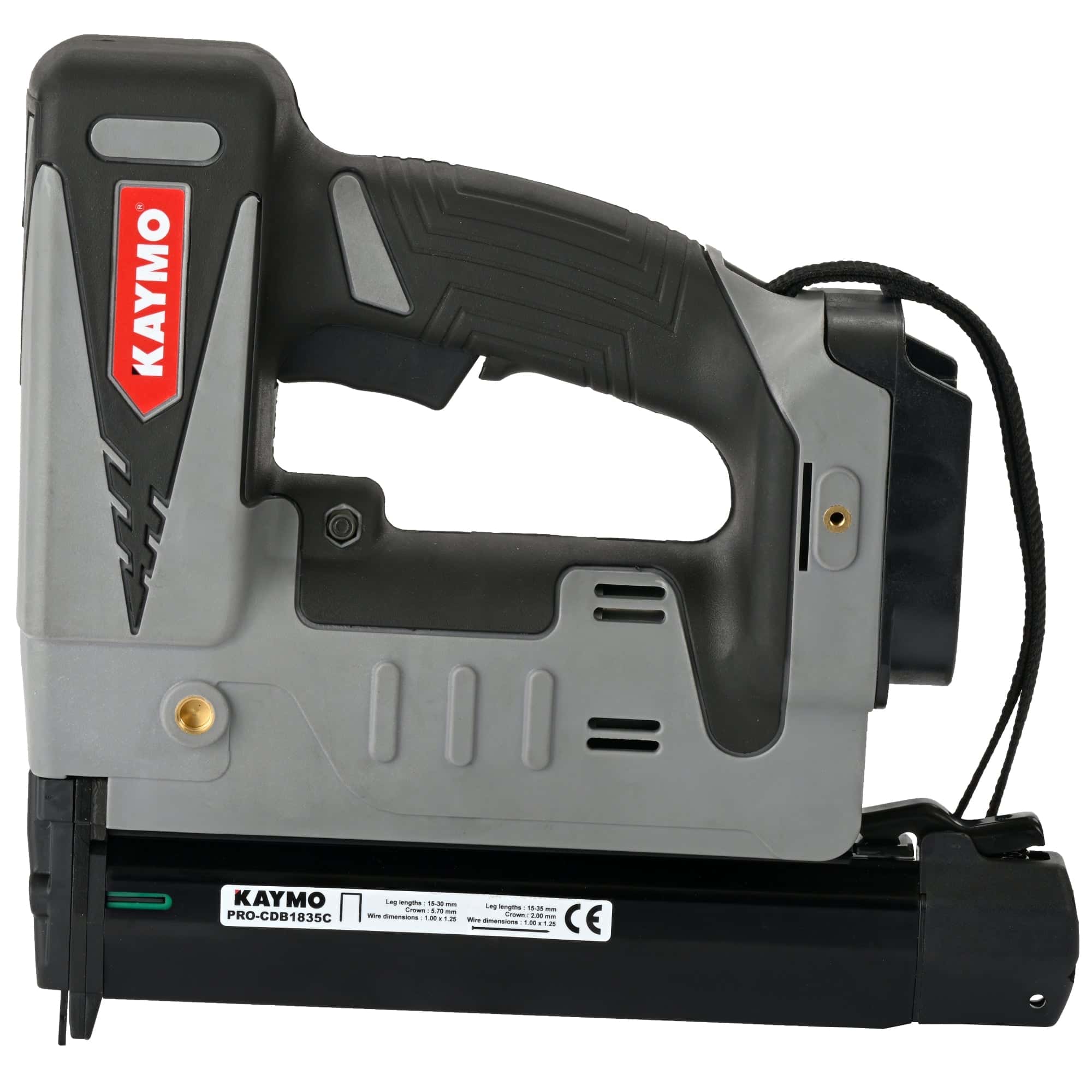

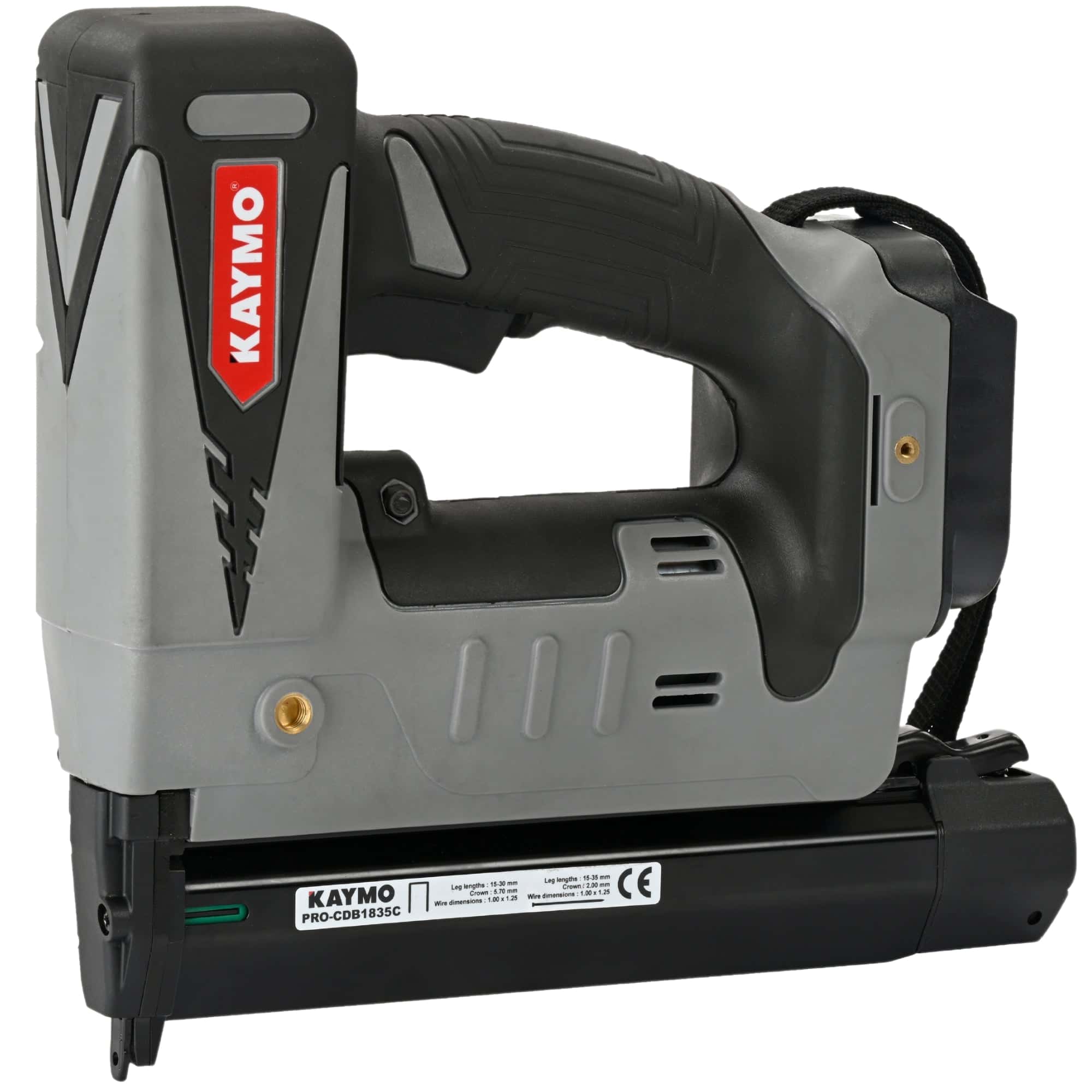

Introducing a revolution in carpentry versatility: the Kaymo PRO-CDB1835C Cordless Combi Brad Nailer, the first of its kind in India, designed for both brad nailing and stapling!
Here's why the PRO-CDB1835C is a game-changer for your projects:

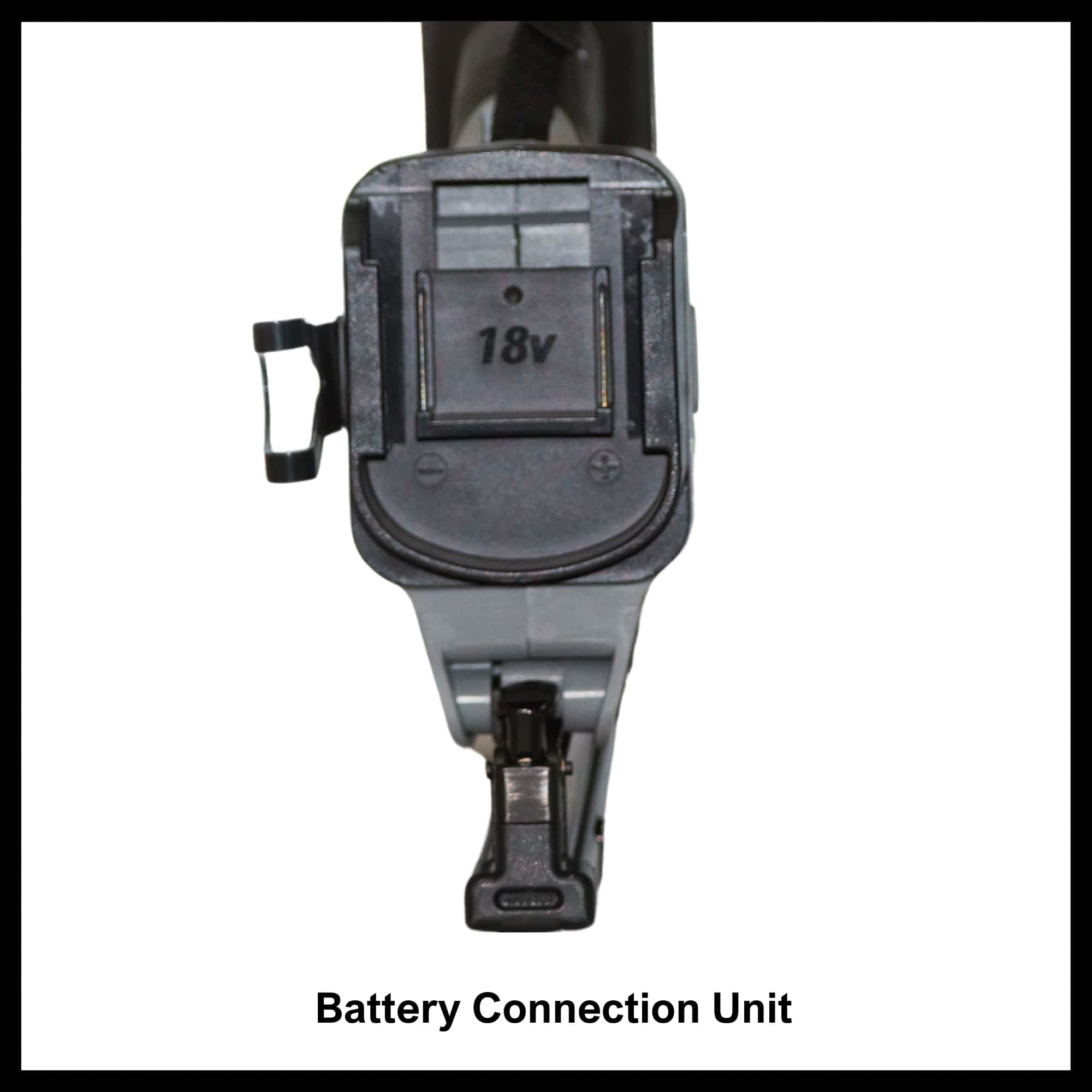

Compatible with Makita battery(3Ah,18V) & chargers
Battery weight- 645 gms, Charger weight – 900 gms
Lithium Ion Technology – allows battery to charge faster
High performance – 1000 shots per full charge
Portable – ideal for remote locations
Introducing a revolution in carpentry versatility: the Kaymo PRO-CDB1835C Cordless Combi Brad Nailer, the first of its kind in India, designed for both brad nailing and stapling!
Here's why the PRO-CDB1835C is a game-changer for your projects:
Compatible with Makita battery(3Ah,18V) & chargers
Battery weight- 645 gms, Charger weight – 900 gms
Lithium Ion Technology – allows battery to charge faster
High performance – 1000 shots per full charge
Portable – ideal for remote locations
₹ 0/-
Blow Up
Spares
| TOOL MODEL: | PRO-CDB1835C | |||||||
| FMS | PART CODE | PART NAME | ALT CODE | FMS | PART CODE | PART NAME | ALT CODE | |
| FMS | CC5301 | COMPRESSION SPRING | FMS | FK1201 | SPRING | |||
| FMS | DFQ0301W | DRIVER ASSY. | FMS | FK1401 | SAFETY CUSHION | |||
| DFQ0501 | INTERNAL GEAR | FMS | FK1801 | LATCH | ||||
| DFQ0601 | GEARWHEEL | FMS | FK2401 | COMPRESSION SPRING | ||||
| DFQ0701W | MAGAZINE ASSY. | FMS | FL3501 | COVER PLATE | ||||
| FMS | DFQ0901 | SPRING | FMS | FL3601 | GUIDE PLATE | |||
| FMS | DFQ1001 | SPACER | FMS | FL3801 | COVER | |||
| FMS | DFQ1101 | SPACER | FMS | FL4101 | STOP PLATE | |||
| DFQ1201 | OIL IMPREGNATED BEARINGS | FMS | FL4201 | PLATE | ||||
| FMS | DFQ1601W | TRIGGER VALVE ASSY. | FQ0101-1 | MAGAZINE CAP(1) | ||||
| DFQ1802 | SHAFT | FQ0101-2 | MAGAZINE CAP(2) | |||||
| FMS | DFQ1901 | SPACER | FQ0201 | MAGAZINE SEAT | ||||
| DFQ2101 | UPPER RAIL | FMS | FQ0301 | FRONT PLATE | ||||
| DFQ2201 | SLIDING SET | FMS | FQ0401 | GUIDE PLATE | ||||
| DFQ2501 | SIDE PLATE(L.H.) | FMS | FQ0501 | PUSHER | ||||
| FMS | DFQ2602 | BUMPER | FMS | KD0410 | SCREW | |||
| FMS | DFQ2901 | COMPRESSION SPRING | FMS | KD0416 | SCREW | |||
| FMS | DFQ3001 | COMPRESSION SPRING | FMS | KD0420 | SCREW | |||
| FMS | DFQ3102 | SAFETY(B) | FMS | KD0425 | SCREW | |||
| FMS | DFQ3201 | COMPRESSION SPRING | FMS | KM0405 | HEX.SOC.HD.BOLT | |||
| DFQ3201W | GEAR ASSY. | FMS | KM0406 | HEX.SOC.HD.BOLT | ||||
| DFQ3202W | GEAR ASSY. | FMS | KM0412 | HEX.SOC.HD.BOLT | ||||
| DFQ3301 | SUPPORT | FMS | KM0420 | HEX.SOC.HD.BOLT | ||||
| FMS | DFQ3402 | ROD | FMS | KP3008 | PARALLEL PIN | |||
| FMS | DFQ3501 | CONTACT LEVER(1) | FMS | KR0406 | BUTTON HD.BOLT | |||
| FMS | DFQ3601 | CONTACT LEVER(2) | FMS | KS1606 | SPRING PIN | |||
| FMS | DFQ3701 | SPRING | FMS | KS2512 | SPRING PIN | |||
| FMS | DFQ3901 | SAFETY(A) | FMS | KS3008 | SPRING PIN | |||
| DFQ4001 | SUPPORT | FMS | KS3010 | SPRING PIN | ||||
| FMS | DFQ4101 | TRIGGER | FMS | KS3014 | SPRING PIN | |||
| DFQ5701 | FLAT WASHER | FMS | KS3018 | SPRING PIN | ||||
| DFQ6001 | SUPPORTER | FMS | KS4010 | SPRING PIN | ||||
| DFQ6202 | MOTOR ASSY. | FMS | KX0410 | CAP HD.BOLT | ||||
| FMS | DFQ6302 | PARALLEL PIN SET | FMS | KX0422 | CAP HD.BOLT | |||
| FMS | DFQ6501 | HOOK | FMS | KX0518 | CAP HD.BOLT | |||
| DFQ6601 | FRONT BODY | XC0017 | CONDUCTOR | |||||
| DFQ6701 | REAR BODY | XC0018 | CONDUCTOR | |||||
| DFQ6801 | MOTOR MOUNT | XC0019 | CONDUCTOR | |||||
| DFQ7001 | BATTERY HOLDER | FMS | XE0105 | MICRO SWITCH | ||||
| FMS | FB0801 | PUSHER PIN | FMS | YG0401 | SPRING WASHER | S0410400 | ||
| FMS | FB0901 | PUSHER SPRING | FMS | YL0407 | LOCK NUT | |||
| FMS | FG1001 | BAR |
One Sheeter
Application
| EXHIBITION BOOTH INSTALLTION | To install exhibition booths to make partitions. |
| INTERIORS | To fix leather /veneer onto the wooden frames |
| DIY | Turnkey Projects - woodworking, hobbies for home wood applications |
| CONTRACTORS | Site Work, Repair work of furniture in showroom and Flex outdoor banner fixing. |
| PHOTO FRAMES | Fix frames |
