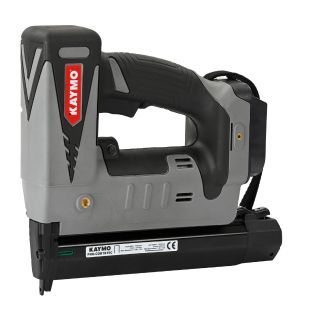

CORDLESS BRAD NAILER KAYMO PRO-1835 COMBI

CORDLESS BRAD NAILER KAYMO PRO-1835 COMBI

Name: CORDLESS BRAD NAILER KAYMO PRO-1835 COMBI
Brand: Kaymo
SKU: PRO-CDB1835C
Availability: InStock

SKU: PRO-CDB1835C

The KAYMO PRO-CDB1835C is a versatile cordless brad nailer and stapler, ideal for contractors, DIY projects, interiors, and photo frame work. Powered by Makita-compatible Lithium-Ion Read More...

Features:

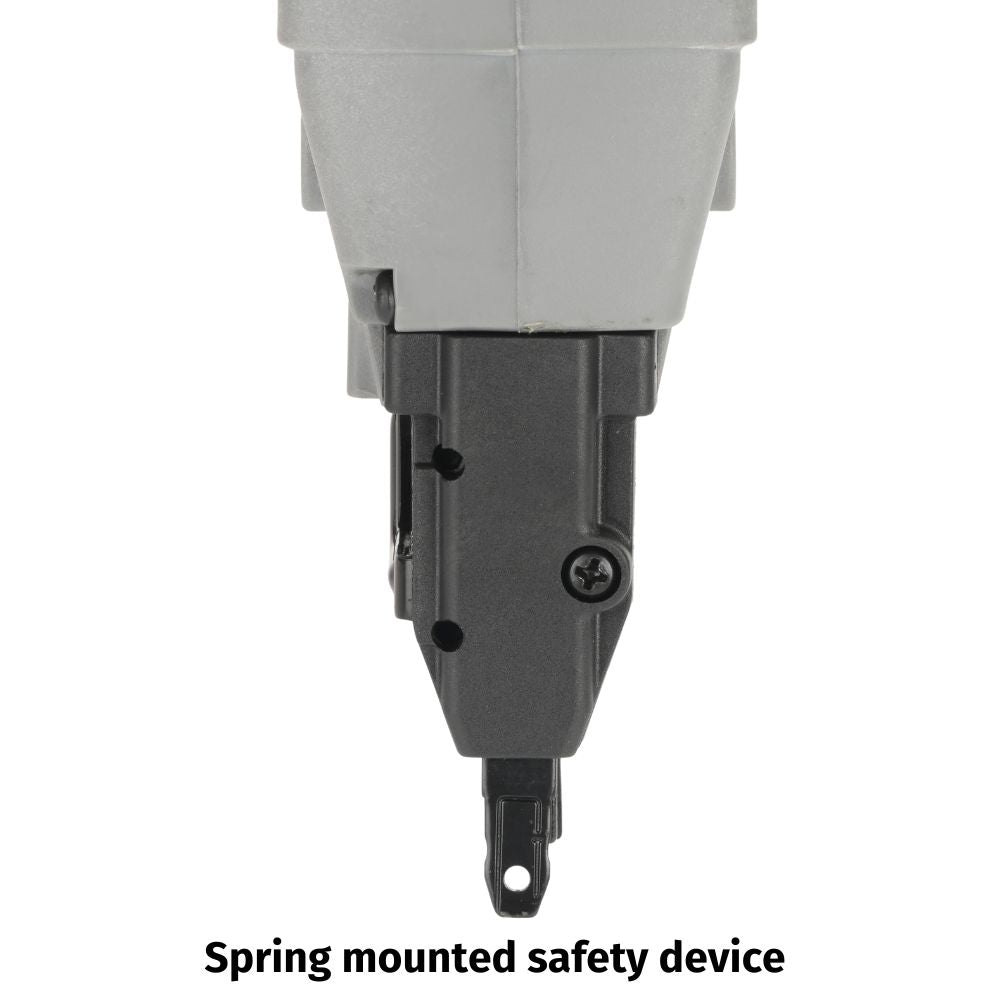

Spring mounted safety device

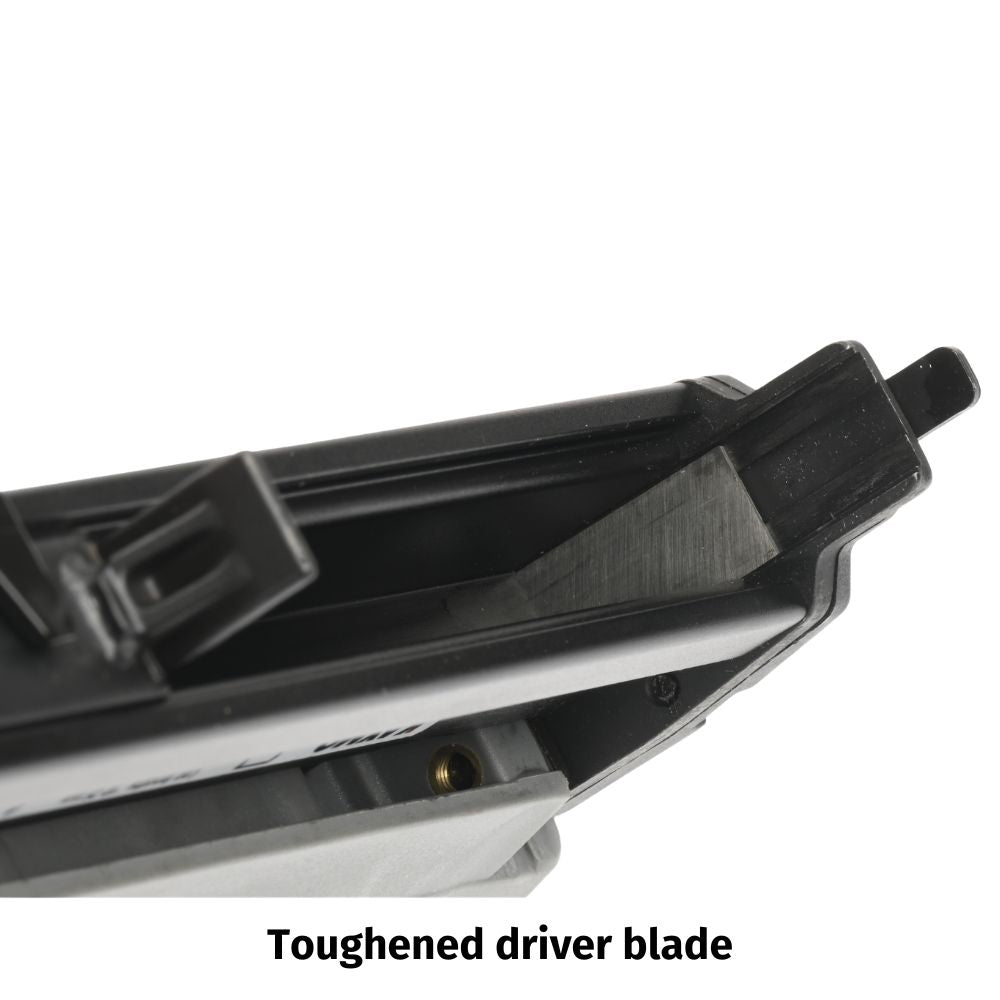

Toughened driver blade

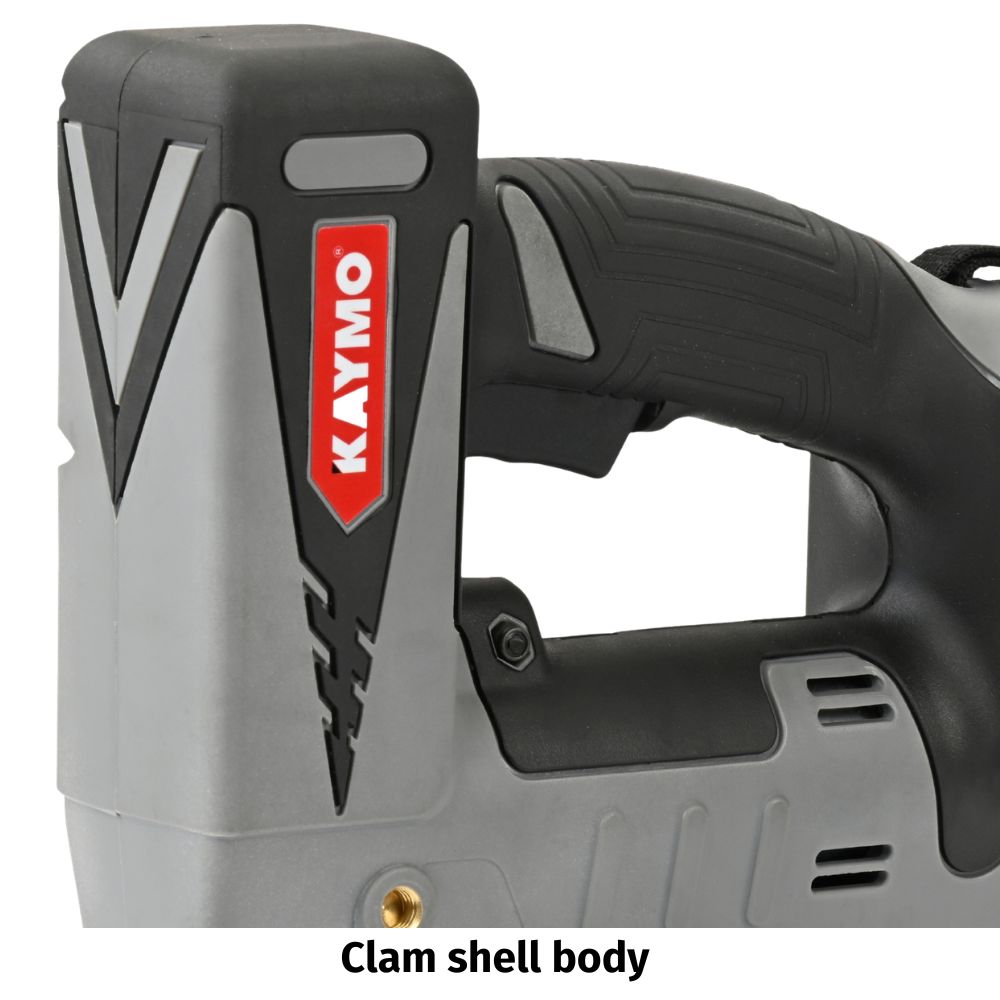

Clam shell body

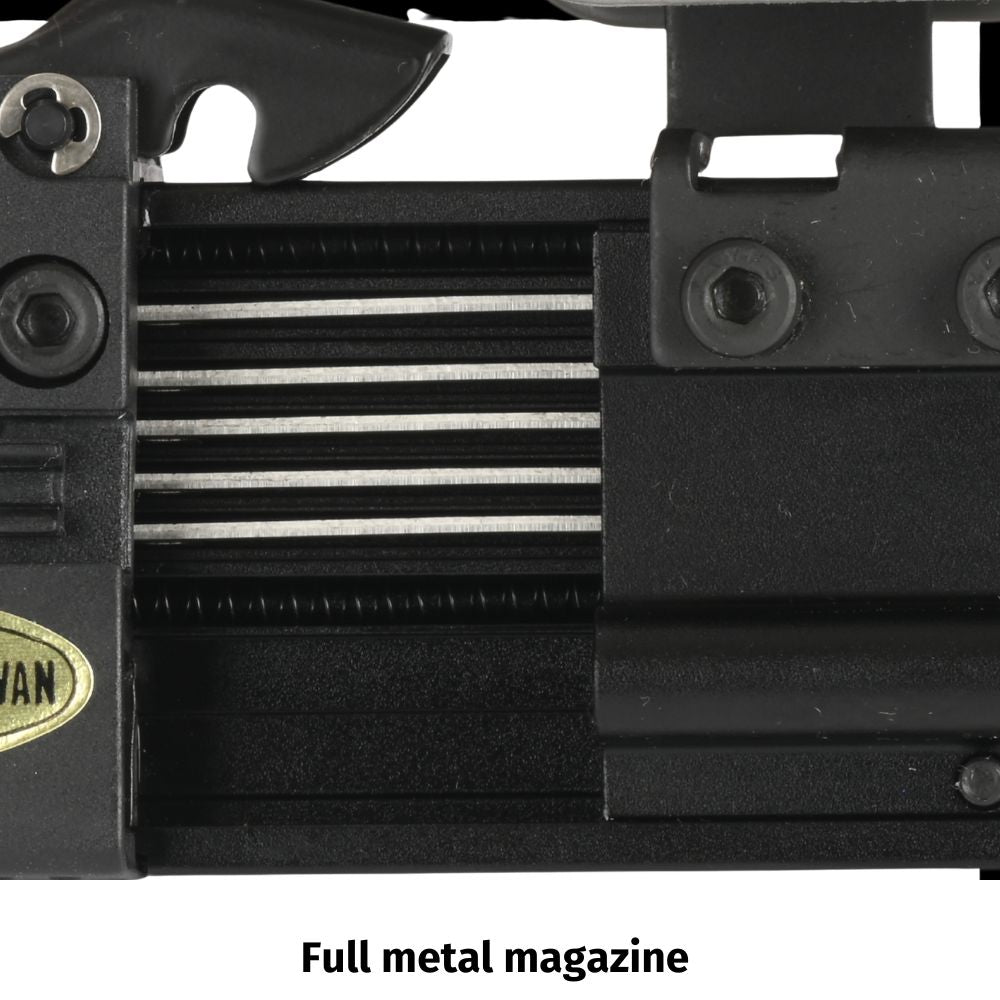

Full metal magazine
Portable tool – ideal for remote locations
No electricity or compressed air needed
Compatible with Makita battery and charger (not included with tool)
Also accommodates 90 series staples 15mm – 30mm
Fastener Range: 10mm – 32mm

Applications:

Exhibition site installers
Furniture & interiors
Contractors
Photo frames

ENQUIRE NOW DOWNLOAD BROCHURE

Blow Up

Spares

	TOOL MODEL:	PRO-CDB1835C
FMS	PART CODE	PART NAME	ALT CODE	FMS	PART CODE	PART NAME	ALT CODE
FMS	CC5301	COMPRESSION SPRING		FMS	FK1201	SPRING
FMS	DFQ0301W	DRIVER ASSY.		FMS	FK1401	SAFETY CUSHION
	DFQ0501	INTERNAL GEAR		FMS	FK1801	LATCH
	DFQ0601	GEARWHEEL		FMS	FK2401	COMPRESSION SPRING
	DFQ0701W	MAGAZINE ASSY.		FMS	FL3501	COVER PLATE
FMS	DFQ0901	SPRING		FMS	FL3601	GUIDE PLATE
FMS	DFQ1001	SPACER		FMS	FL3801	COVER
FMS	DFQ1101	SPACER		FMS	FL4101	STOP PLATE
	DFQ1201	OIL IMPREGNATED BEARINGS		FMS	FL4201	PLATE
FMS	DFQ1601W	TRIGGER VALVE ASSY.			FQ0101-1	MAGAZINE CAP(1)
	DFQ1802	SHAFT			FQ0101-2	MAGAZINE CAP(2)
FMS	DFQ1901	SPACER			FQ0201	MAGAZINE SEAT
	DFQ2101	UPPER RAIL		FMS	FQ0301	FRONT PLATE
	DFQ2201	SLIDING SET		FMS	FQ0401	GUIDE PLATE
	DFQ2501	SIDE PLATE(L.H.)		FMS	FQ0501	PUSHER
FMS	DFQ2602	BUMPER		FMS	KD0410	SCREW
FMS	DFQ2901	COMPRESSION SPRING		FMS	KD0416	SCREW
FMS	DFQ3001	COMPRESSION SPRING		FMS	KD0420	SCREW
FMS	DFQ3102	SAFETY(B)		FMS	KD0425	SCREW
FMS	DFQ3201	COMPRESSION SPRING		FMS	KM0405	HEX.SOC.HD.BOLT
	DFQ3201W	GEAR ASSY.		FMS	KM0406	HEX.SOC.HD.BOLT
	DFQ3202W	GEAR ASSY.		FMS	KM0412	HEX.SOC.HD.BOLT
	DFQ3301	SUPPORT		FMS	KM0420	HEX.SOC.HD.BOLT
FMS	DFQ3402	ROD		FMS	KP3008	PARALLEL PIN
FMS	DFQ3501	CONTACT LEVER(1)		FMS	KR0406	BUTTON HD.BOLT
FMS	DFQ3601	CONTACT LEVER(2)		FMS	KS1606	SPRING PIN
FMS	DFQ3701	SPRING		FMS	KS2512	SPRING PIN
FMS	DFQ3901	SAFETY(A)		FMS	KS3008	SPRING PIN
	DFQ4001	SUPPORT		FMS	KS3010	SPRING PIN
FMS	DFQ4101	TRIGGER		FMS	KS3014	SPRING PIN
	DFQ5701	FLAT WASHER		FMS	KS3018	SPRING PIN
	DFQ6001	SUPPORTER		FMS	KS4010	SPRING PIN
	DFQ6202	MOTOR ASSY.		FMS	KX0410	CAP HD.BOLT
FMS	DFQ6302	PARALLEL PIN SET		FMS	KX0422	CAP HD.BOLT
FMS	DFQ6501	HOOK		FMS	KX0518	CAP HD.BOLT
	DFQ6601	FRONT BODY			XC0017	CONDUCTOR
	DFQ6701	REAR BODY			XC0018	CONDUCTOR
	DFQ6801	MOTOR MOUNT			XC0019	CONDUCTOR
	DFQ7001	BATTERY HOLDER		FMS	XE0105	MICRO SWITCH
FMS	FB0801	PUSHER PIN		FMS	YG0401	SPRING WASHER	S0410400
FMS	FB0901	PUSHER SPRING		FMS	YL0407	LOCK NUT
FMS	FG1001	BAR

One Sheeter

Application

EXHIBITION BOOTH INSTALLTION	To install exhibition booths to make partitions.
INTERIORS	To fix leather /veneer onto the wooden frames
DIY	Turnkey Projects - woodworking, hobbies for home wood applications
CONTRACTORS	Site Work, Repair work of furniture in showroom and Flex outdoor banner fixing.

PHOTO FRAMES	Fix frames
