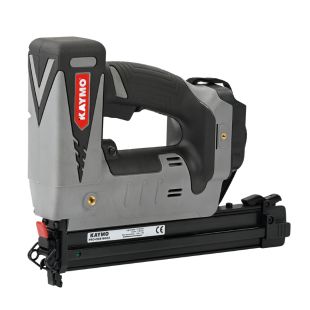

CORDLESS BRAD NAILER KAYMO PRO-1632

Name: CORDLESS BRAD NAILER KAYMO PRO-1632
Brand: Kaymo
SKU: PRO-CDB16G32
Availability: InStock

SKU: PRO-CDB16G32

The KAYMO PRO-CDB16G32 is a high-performance cordless brad nailer designed for professional and DIY applications. With Makita battery compatibility and Lithium-Ion technology, it delivers 1000 Read More...

Features:

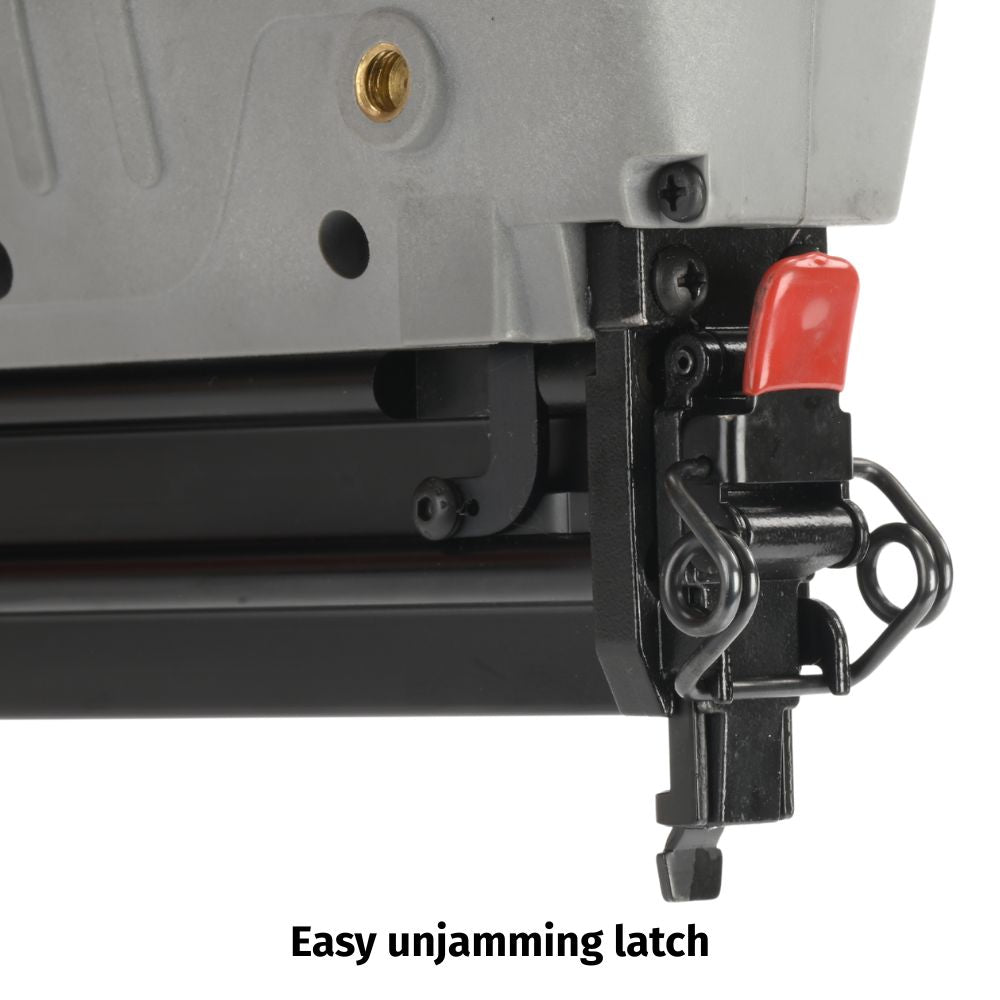

Easy unjamming latch

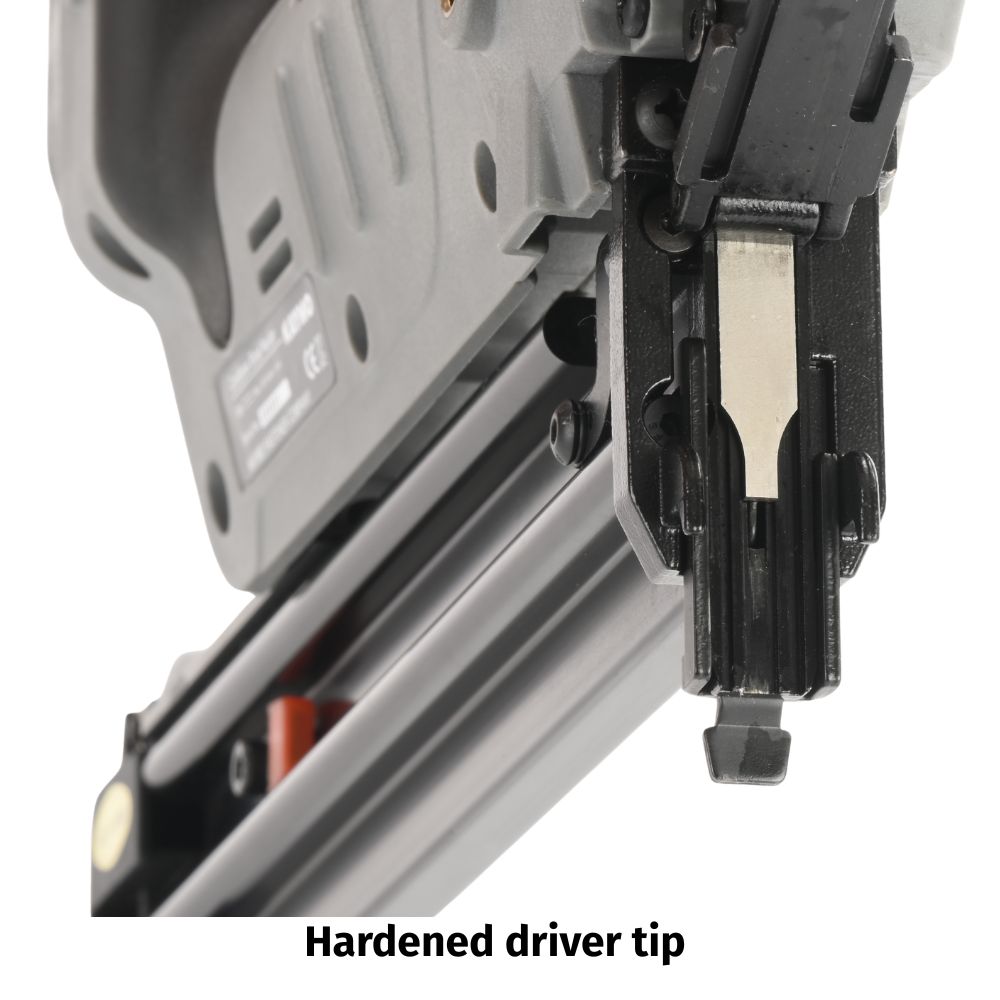

Hardened driver tip

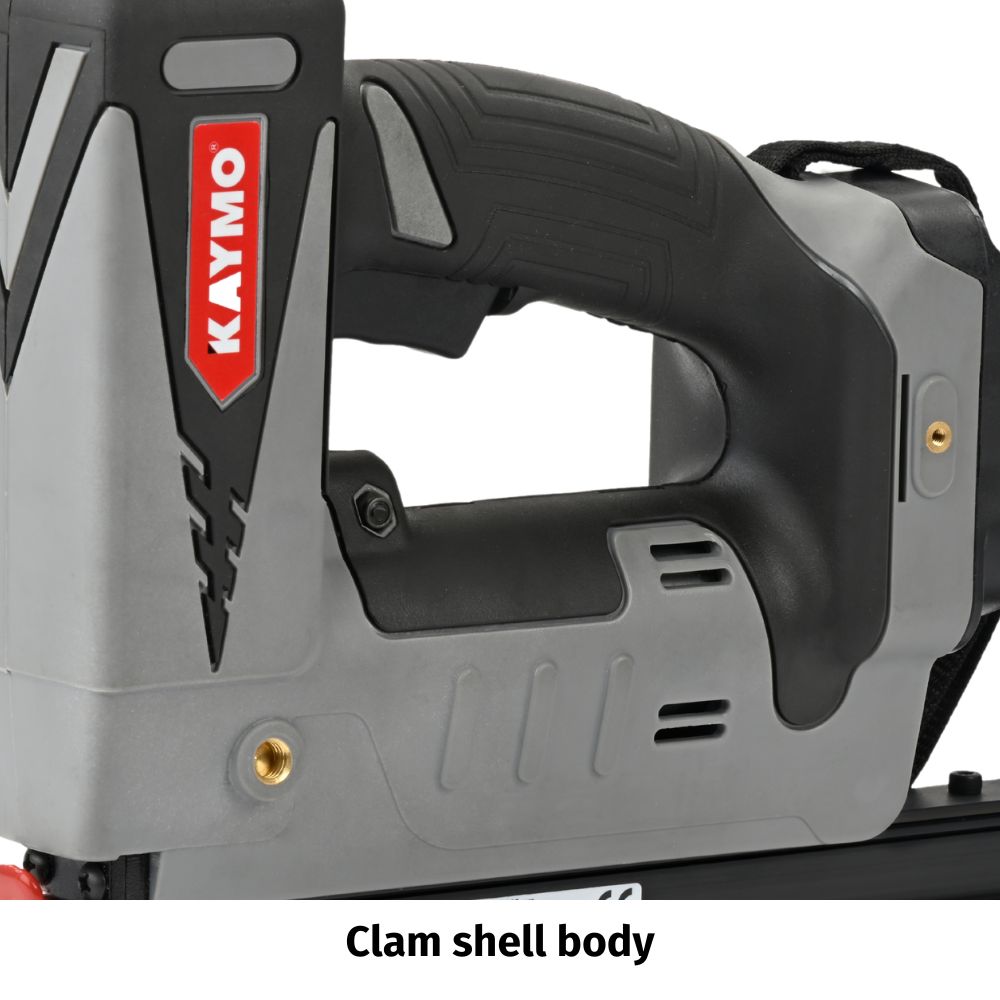

Clam shell body

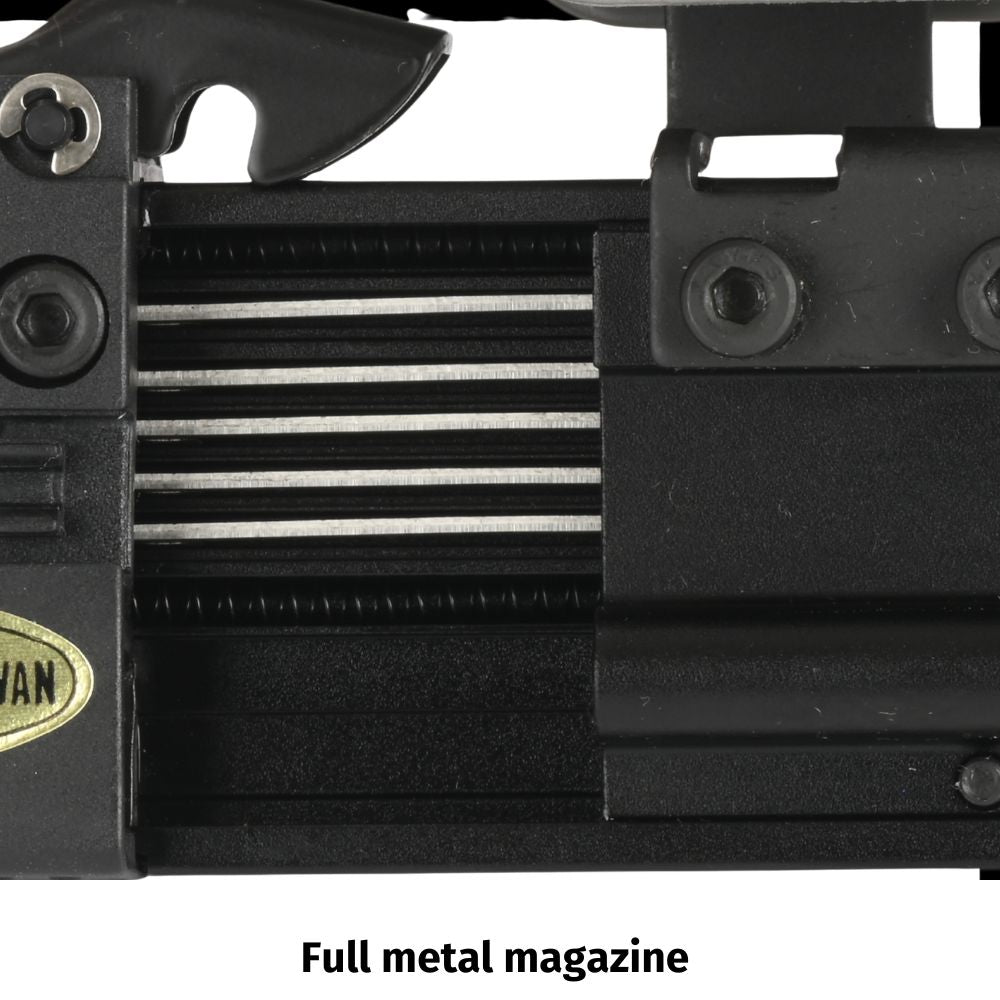

Full metal magazine
Portable tool – ideal for remote locations
No electricity or compressed air needed
Compatible with Makita battery and charger (not included with tool)
Fastener Range: 15mm – 32mm

Applications:

Exhibition site installers
Furniture & interiors
Contractors
DIY projects

ENQUIRE NOW DOWNLOAD BROCHURE

Blow Up

Spares

	TOOL MODEL:	PRO-CDB16G32
FMS	PART CODE	PART NAME	ALT CODE	FMS	PART CODE	PART NAME	ALT CODE
FMS	CC5301	COMPRESSION SPRING		FMS	FK1801	LATCH
	DFQ0501	INTERNAL GEAR		FMS	FK2401	COMPRESSION SPRING
	DFQ0601	GEARWHEEL			FP0701	COVER
FMS	DFQ0901	SPRING		FMS	FP2201	WORK CONTACTING ELEMENT(A)
FMS	DFQ1001	SPACER		FMS	FP2301	ADJUSTABLE PLATE(B)
FMS	DFQ1101	SPACER		FMS	FP2401	ADJUSTABLE PLATE(A)
	DFQ1201	OIL IMPREGNATED BEARINGS		FMS	FP2501	FIXED PIN ASSY.
FMS	DFQ1601W	TRIGGER VALVE ASSY.		FMS	FP2601	SAFETY CUSHION
	DFQ1802	SHAFT		FMS	FP2701	SAFETY CUSHION SEAT
FMS	DFQ1901	SPACER		FMS	KD0410	SCREW
	DFQ2101	UPPER RAIL		FMS	KD0416	SCREW
FMS	DFQ2201	SLIDING SET		FMS	KD0420	SCREW
	DFQ2501	SIDE PLATE(L.H.)		FMS	KD0425	SCREW
FMS	DFQ2602	BUMPER		FMS	KM0406	HEX.SOC.HD.BOLT
FMS	DFQ2901	COMPRESSION SPRING		FMS	KM0408	HEX.SOC.HD.BOLT
FMS	DFQ3001	COMPRESSION SPRING		FMS	KM0410	HEX.SOC.HD.BOLT
FMS	DFQ3102	SAFETY(B)		FMS	KM0412A	HEX.SOC.HD.BOLT
FMS	DFQ3201	COMPRESSION SPRING		FMS	KP3008	PARALLEL PIN
	DFQ3201W	GEAR ASSY.		FMS	KQ3018	SPRING PIN
	DFQ3202W	GEAR ASSY.		FMS	KQ3022	SPRING PIN
	DFQ3301	SUPPORT		FMS	KR0406	BUTTON HD.BOLT
	DFQ3402	ROD		FMS	KS3008	SPRING PIN
FMS	DFQ3501	CONTACT LEVER(1)		FMS	KS3012	SPRING PIN
FMS	DFQ3601	CONTACT LEVER(2)		FMS	KS3018	SPRING PIN
FMS	DFQ3701	SPRING		FMS	KS4010	SPRING PIN
FMS	DFQ4101	TRIGGER		FMS	KX0410	CAP HD.BOLT
FMS	DFQ5701	FLAT WASHER		FMS	KX0422	CAP HD.BOLT
	DFQ6001	SUPPORTER		FMS	KX0518	CAP HD.BOLT
	DFQ6202	MOTOR ASSY.		FMS	PA3901	PIN
FMS	DFQ6302	PARALLEL PIN SET			TB0101	GUIDE PLATE
FMS	DFQ6501	HOOK			TB0201	MAGAZINE CAP
	DFQ6601	FRONT BODY			TB0301	MAGAZINE SEAT
	DFQ6701	REAR BODY		FMS	TB0601	PUSHER
	DFQ6801	MOTOR MOUNT			XC0017	CONDUCTOR
	DFQ7001	BATTERY HOLDER			XC0018	CONDUCTOR
	DTB0201	SUPPORT			XC0019	CONDUCTOR
FMS	DTB0301	WORK CONTACTING ELEMENT(B)		FMS	XE0105	MICRO SWITCH
FMS	DTB0301W	DRIVER ASSY.			YA0302	HEX BAR WRENCH
	DTB0701W	MAGAZINE ASSY.		FMS	YE2501	E-RING
FMS	FB0801	PUSHER PIN		FMS	YG0401	SPRING WASHER	S0410400
FMS	FC2501	PUSHER SPRING		FMS	YL0407	LOCK NUT
FMS	FG1001	BAR
