PNEUMATIC PLIER PRO-59032L

Name: PNEUMATIC PLIER PRO-59032L
Brand: Kaymo
SKU: PRO-PL59032L
Availability: InStock

SKU: PRO-PL59032L

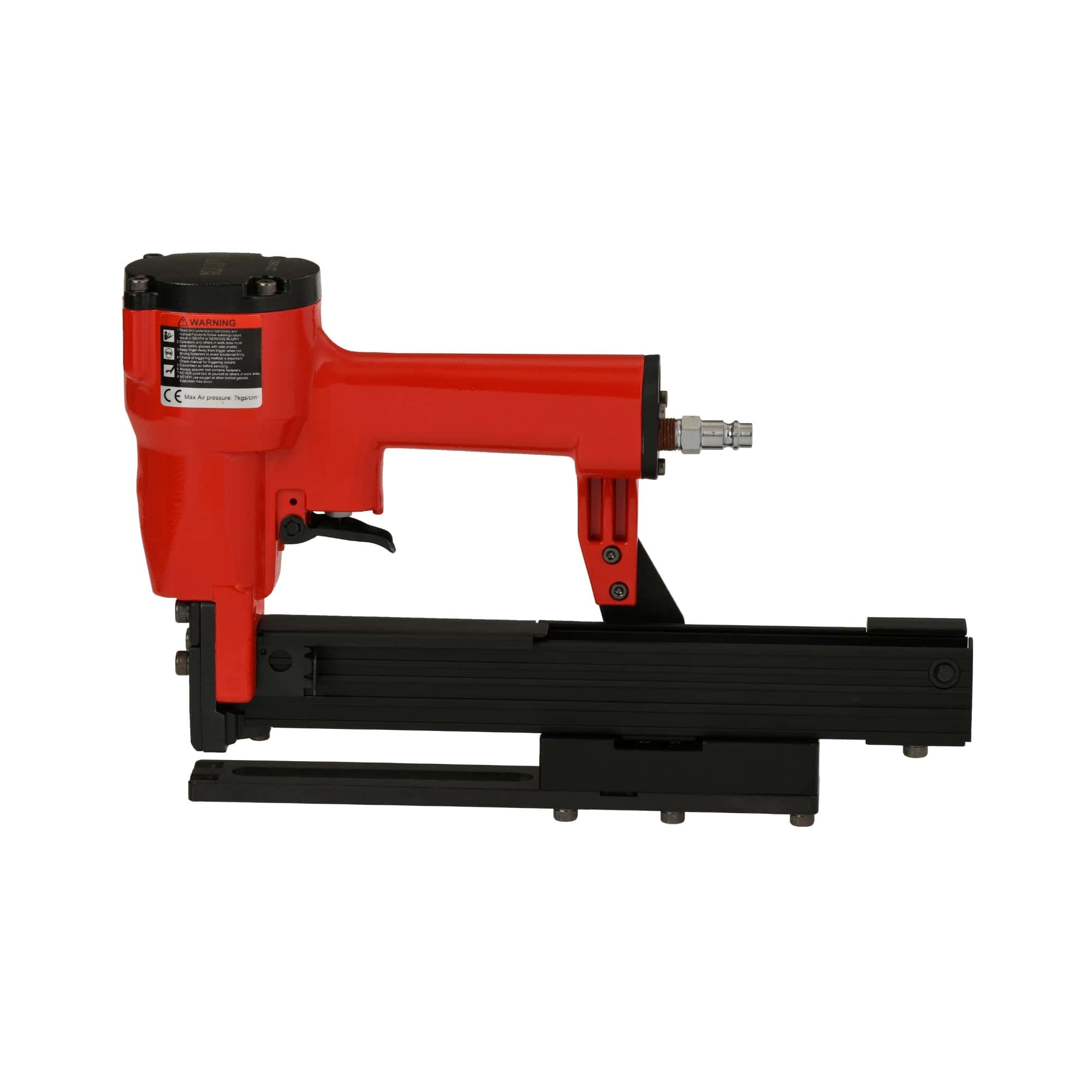

The KAYMO PRO-PL59032L is a high-performance pneumatic plier engineered for heavy-duty industrial stapling. Designed for making angle & edge boards trays and securing corrugated boxes Read More...

Features:

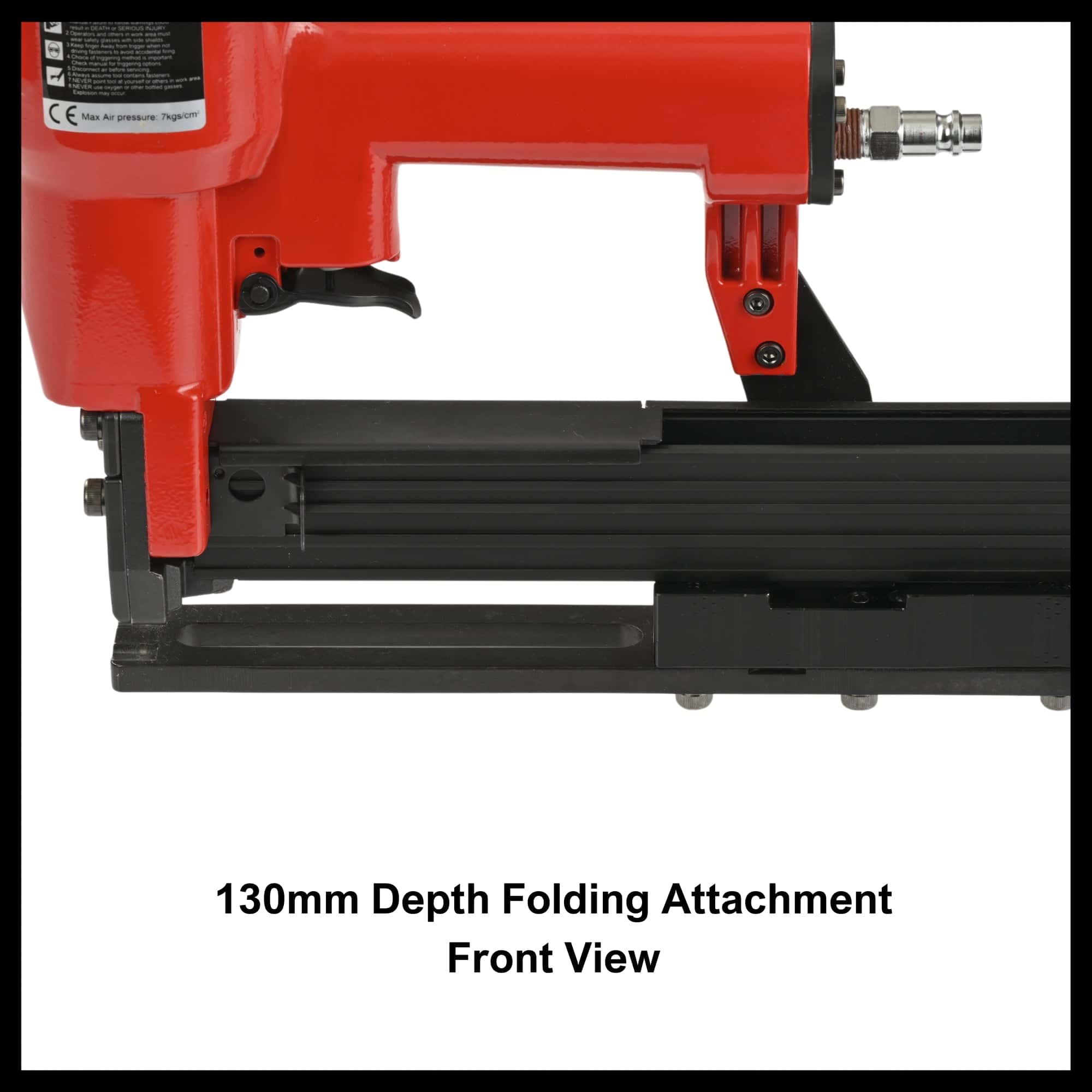

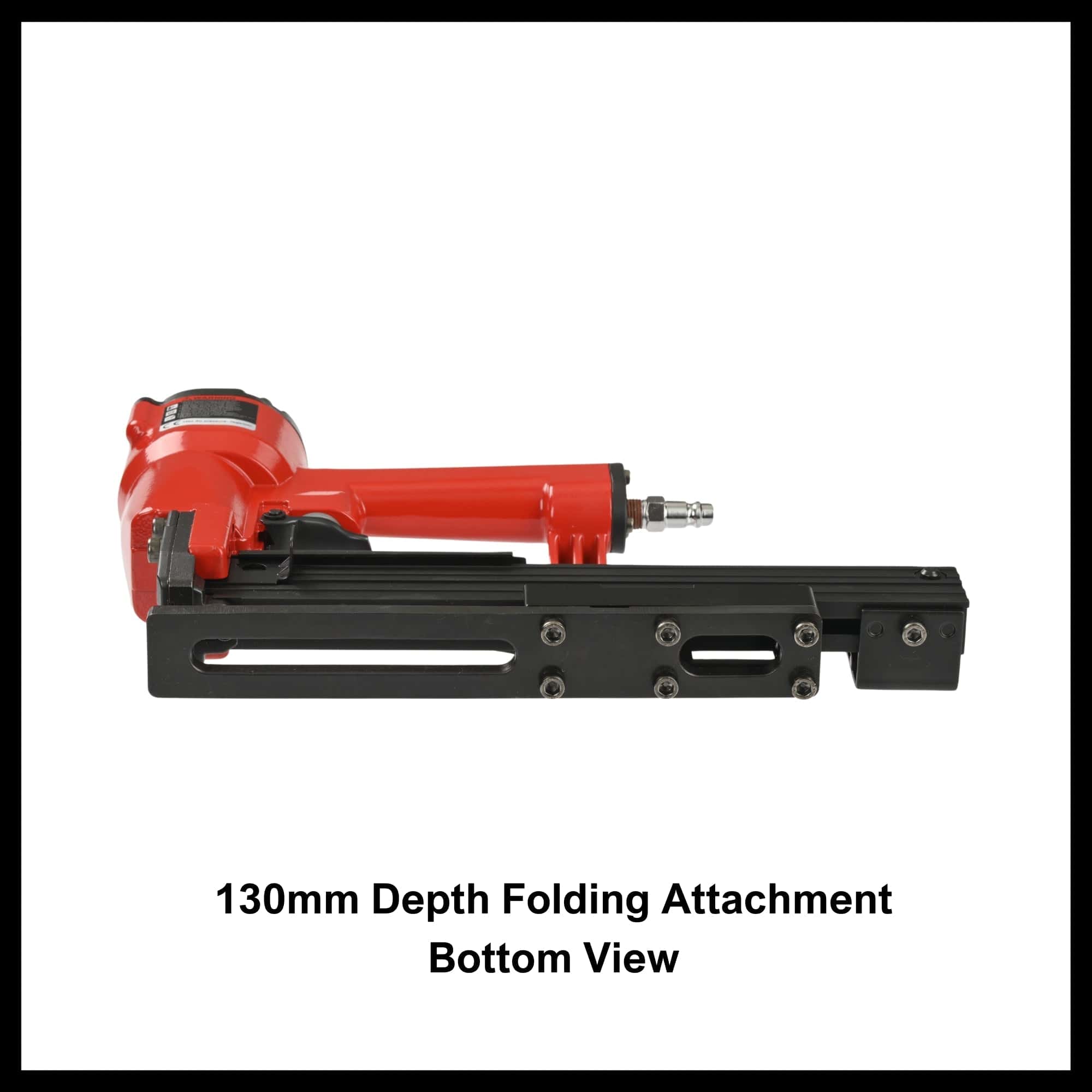

Deep Stapling Reach – Penetrates up to 130mm for secure fastening.
Lightweight & Professional – Ensures ease of handling and efficiency.
Adjustable Height – Supports varied board thicknesses.

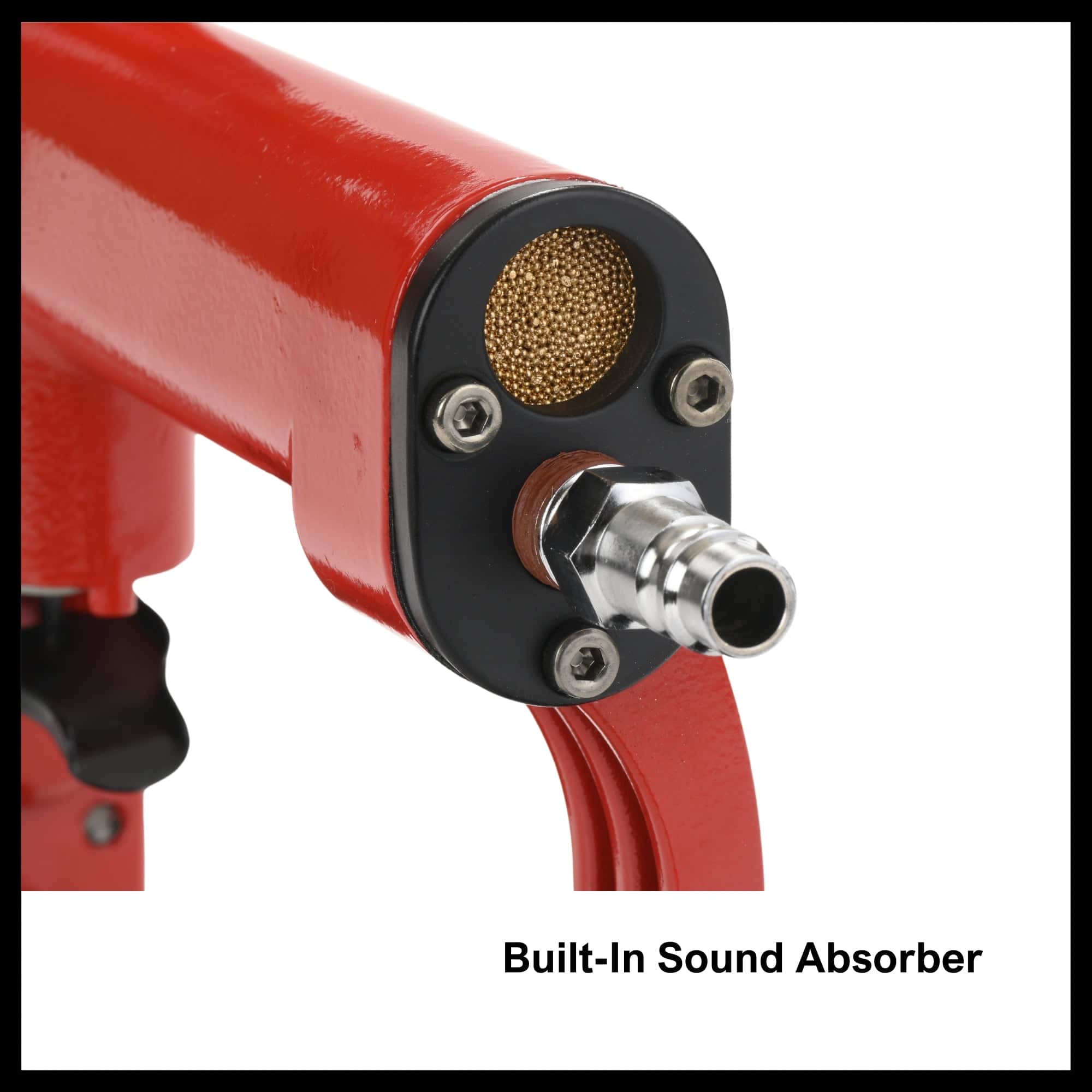

Built-in Sound Absorber – Reduces operational noise for user comfort

Applications:

Angle & Edge Board Assembly – Ideal for tray-making
Corrugated Box Fixing – Securely attaches boxes to wooden pallets.

ENQUIRE NOW DOWNLOAD BROCHURE

ITEM	PARTS NO.	DESCRIPTION	ITEM	PARTS NO.	DESCRIPTION

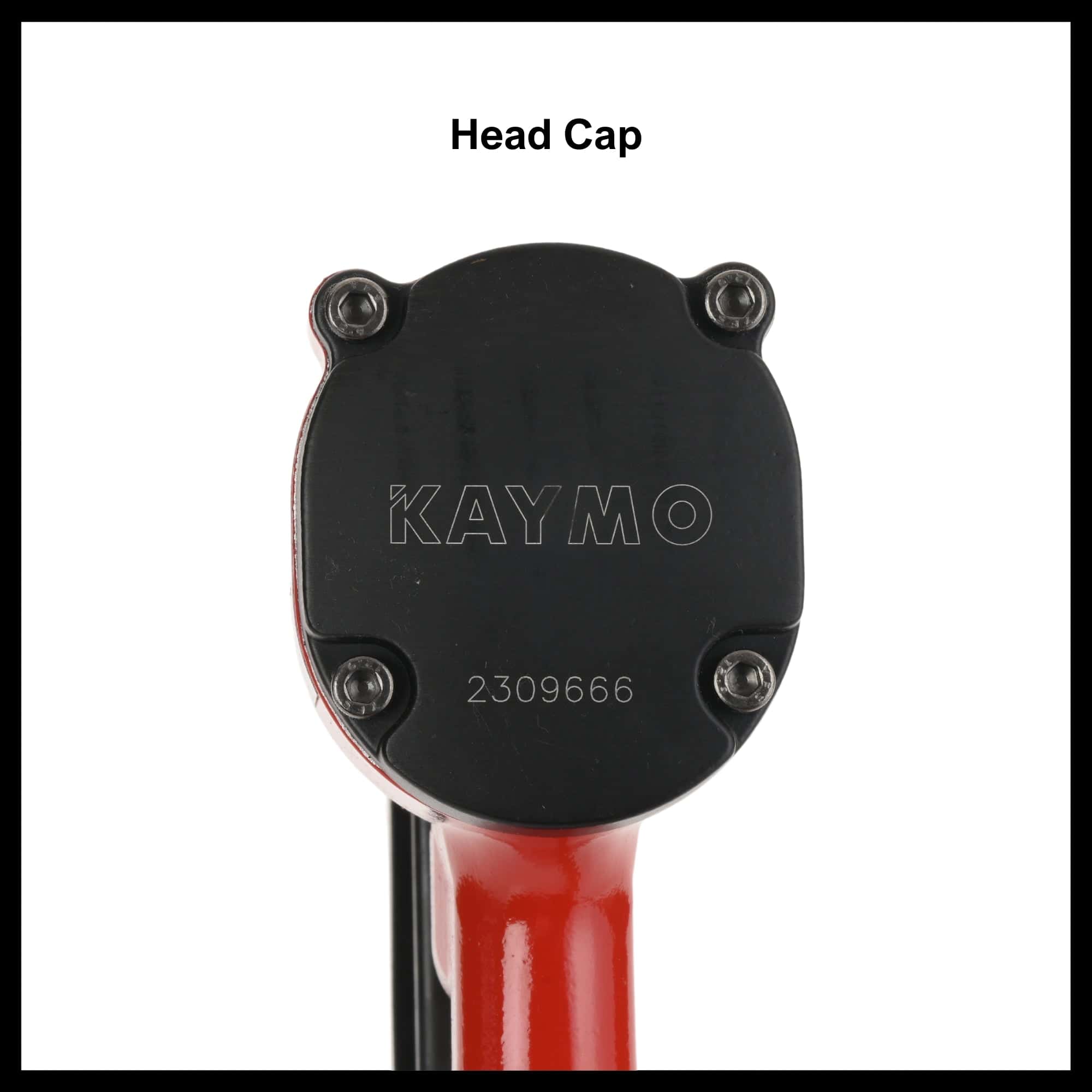

1	A15800101	Cap	38	A19000301	Anvil
2	A15800201	Packing	39	A19000201	Holder
3	A15800301	Spacer	40	A19000101	Block B
4	A15800401	Cylinder cap	41	A15804401	Block D
5	A15800501	Seal	42	A15803701	Spring
6	A15800703	Piston	43	A15803901	Tube
9	A15805401A	Driver	44	A15803801	Shaft
10	A15800601	Glide ring	45	A15804001	Cover
11	A15801101	Cylinder	46	A15803001A	Cover A unit
12	A15805001	Seal	47	A15803301A	Cover B unit
13	A15800903	Bumper	48	A15803601	Spring
14	A15801301	Cage	49	A15803501A	Cover C unit
15	A15801401	Cylinder ring	50	A19000401	Spacer A
16	A15801501	Bottom washer	51	A19000501	Spacer B
17	A15801901	Valve cage	501	BAC0405252	HEX.SOC.HD.BOLT
18	A15802301	Spring	502	BAB015250	O-RING
19	A15802001	Valve	503	BAB030436	O-RING
20	A15802101	Nut	504	BAB030420	O-RING
21	A15804901A	Body set unit	505	BAB020520	O-RING
22	A15801701	Driver guide	506	BAB020400	O-RING
23	A15801601	Driver guide cover B	507	BAB025550	O-RING
24	A15801801	Driver guide cover A	508	BAB017124	O-RING
25	A05501101	Trigger	509	BAB015175	O-RING
26	A05501201	Rod	510	BAB012021	O-RING
27	A00106001	Washer	511	BAC0406252	HEX.SOC.HD.BOLT
28	A00105803	Cover	512	BAF10402	E-RING
29	A00100803	AIR PLUG	513	BAC0604102	HEX.SOC.HD.BOLT
30	A15802501	Spring	514	BAI1401	Silencer
31	A15802601	Roller	515	BAC0204102	HEX.SOC.FLAT COUNTER SUNK HD. SCREW
32	A15802701	Blacket	516	BAC0405102	HEX.SOC.HD.BOLT
33	A15802801	Shaft	517	BAC0406102	HEX.SOC.HD.BOLT
34	A15802901	Pusher	518	BAC0406102	HEX.SOC.HD.BOLT
35	A15802401	Block	519	BAC0406202	HEX.SOC.HD.BOLT
36	A15802201	Magazine	520	BAC0406252	HEX.SOC.HD.BOLT
37	A15804101	Block A	521	BAC0406302	HEX.SOC.HD.BOLT
			522	BAC0604102	HEX.SOC.HD.BOLT

PNEUMATIC PLIER PRO-59032L

Compatible Products

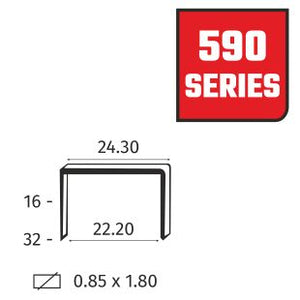

STAPLES KAYMO 590 SERIES HEAVY DUTY
