CONCRETE NAILER KAYMO PRO-2264

SKU: PRO-CC2264

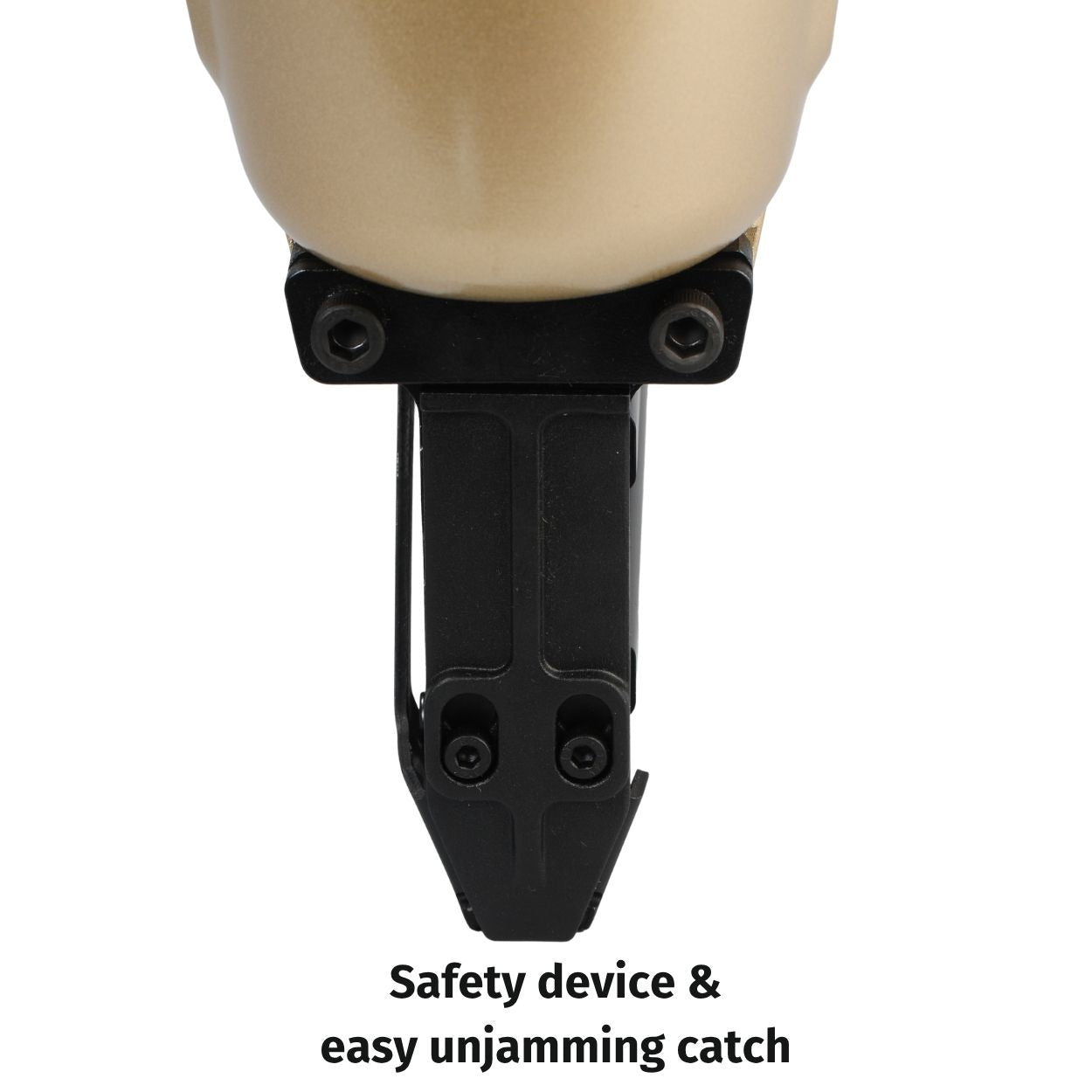

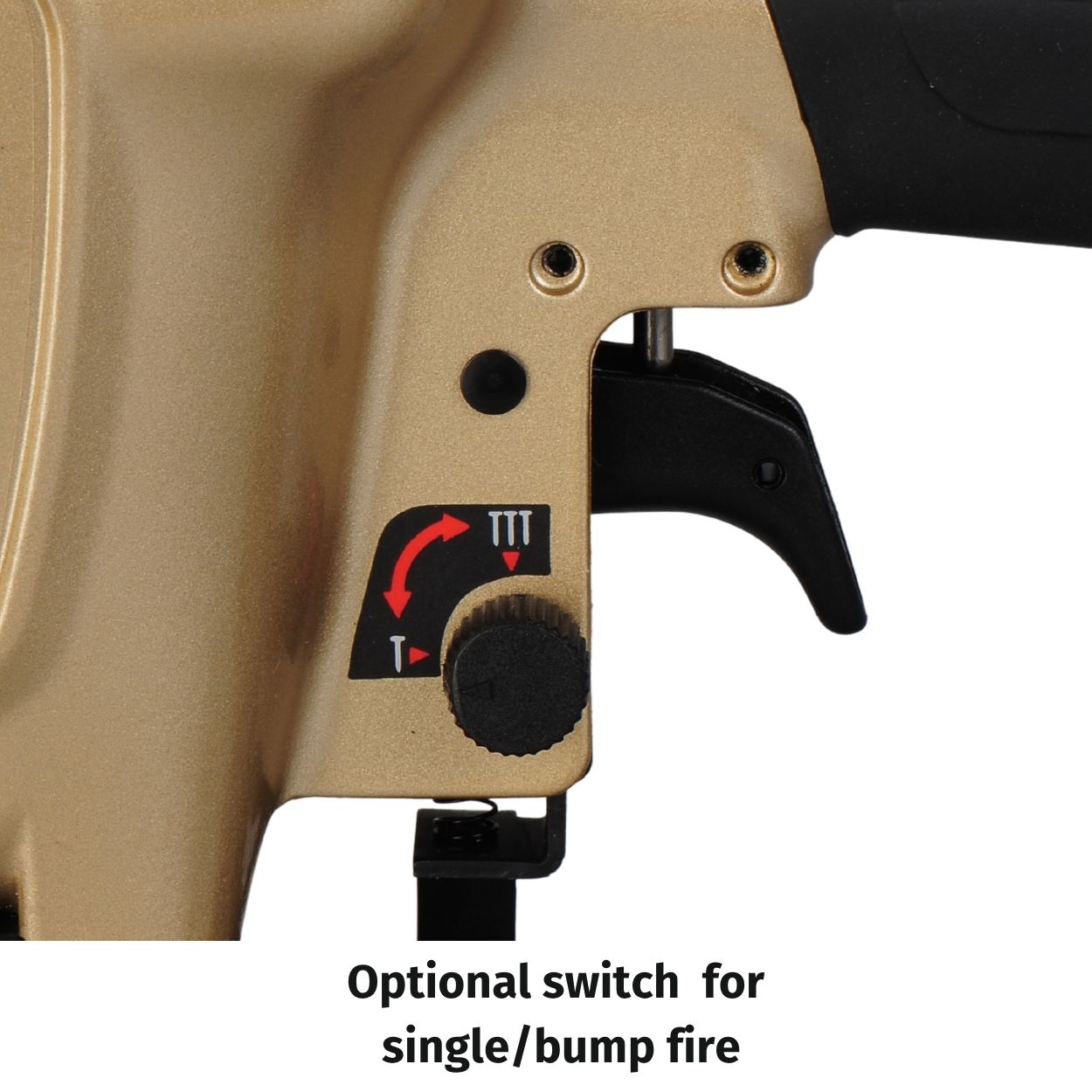

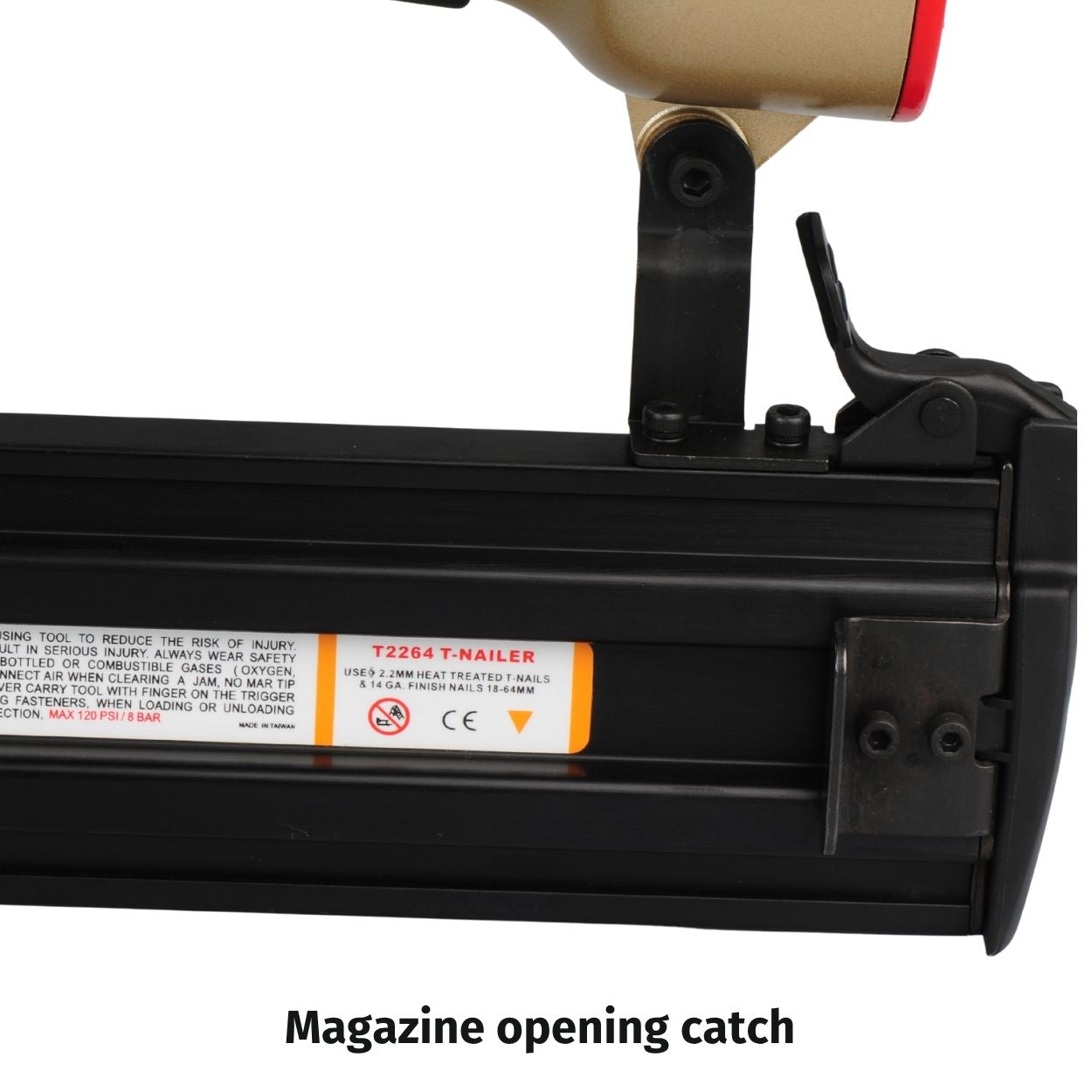

Safety device . 360 degree top exhaust. switchable trigger unit for single/bump fire. full metal magazine unit. tool suitable for RCC/Brick walls. detachable nail unjamming plate .

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

₹ 1/-
Blow Up

Spares
TOOL MODEL: PRO-CC2264 REV.1ST APRIL2023
SR FMS PART CODE PART NAME ALT CODE SR FMS PART CODE PART NAME ALT CODE
1   30106080166 HEX BOLT 30106080766 40 FMS 20942840115 CONTACT TRIP GUIDE
2 FMS 20790000001 DEFLECTOR BUSHING   41 FMS 20770890001 TRIGGER PIN 20770890101
3 FMS 20790010115 DEFLECTOR    42 FMS 30700078000 GROMMET
4   30106250866 HEX BOLT   43   30106350266 HEX BOLT 30106350866
5   209400201XX CAP 209400202XX 44   30104080166 HEX BOLT
6 FMS 20940130000 GASKET 20940130100 45 FMS 20941350066 NOSE
7 FMS 20940190015 SEAL 22610190017 46 FMS 20941340166 DOOR 20941340366
8 FMS 20940140116 PISTON STOPPER 22570140000 47 FMS 20941330066 DRIVER GUIDE COVER 20941330266
9 FMS 30700040000 O-RING   48 FMS 21031490101 SPRING, SAFETY
10 FMS 30700008000 O-RING   49   20941480066 UPPER SAFETY LEVER 20941480166
11 FMS 20940160000 SPRING   51 FMS 20941010001 ADJUSTING SPRING
12 FMS 20940150016 PISTON , HEAD VALVE   52 FMS 31304000001 E-RING
13 FMS 30700102000 O-RING   53   30505120166 HEX BOLT
14 FMS 30700075000 O-RING   55   31604080166 HEX BOLT
15 FMS 30700117000 O-RING   56 FMS 20942430015 TAIL COVER
16 FMS 20940340016 RETAINING RING   57 FMS 20942180001 MAGAZINE CAP 20942180101
17 FMS 30700104000 O-RING   58   30604070001 LOCKNUT
18 FMS 30700019000 O-RING   59   30104180266 HEX BOLT
20 FMS 30700103000 O-RING   60   20942200008 MAGAZINE COVER
21 FMS 20940350000 CYLINDER   61 FMS 20942210001 PUSHER SPRING
22 FMS 20940470115 BUMPER   62 FMS 20942240016 SPRING LOCK
23 FMS 20940480001 DRIVER GUIDE   63 FMS 20942130001 PUSHER 20942130066
25   30700118000 O-RING   64   30803450001 SPRING PIN
26 FMS 209407X00XX END CAP 209407X01XX 65 FMS 30104080266 HEX BOLT
27 FMS 30700079000 O-RING   66 FMS 20942170066 BRACKET 20942170166
28 FMS 30700081000 O-RING   67 FMS 20942290001 TORSION SPRING
29 FMS 20770900016 VALVE   68   20942280066 LATCH 20942280166
30   30700002000 O-RING   69   20942250001 PIN
31 FMS 30700201000 O-RING   70   30105200166 HEX BOLT
32 FMS 30700071000 O-RING   71   30900005001 FLAT WASHER
33 FMS 20770910016 VALVE PLUNGER   72   30605080001 LOCKNUT
34 FMS 20770960001 SPRING   19A FMS 20940462201 DRIVER ASSEMBLY 20940462300
35 FMS 30700080000 O-RING KFCBS00398 24A   209406020XX BODY ASSEMBLY
36   20770920000 PLUNGER 20770920100 39A   20750952115 TRIGGER ASSEMBLY BUMP 23521052115
37 FMS 20770930016 PLUNGER CAP   50A FMS 20940992015 ADJUSTING BUTTON ASSY.
38 FMS 30803240001 SPRING PIN   54A   20942052008 MAGAZINE ASSEMBLY
One Sheeter

Application
WOODEN FLOORING To fix wooden runner & skirting to concrete floor & wall
