BOTTOM CLOSER PNEUMATIC KAYMO PRO-3522

Name: BOTTOM CLOSER PNEUMATIC KAYMO PRO-3522
Brand: Kaymo Company
SKU: PRO-BCP3522
Availability: InStock

SKU: PRO-BCP3522

The KAYMO PRO-BCP3522 is a high-performance pneumatic bottom stapler, designed for securing the bottoms of empty corrugated cartons. Featuring a foot pedal operation and staple Read More...

Features:

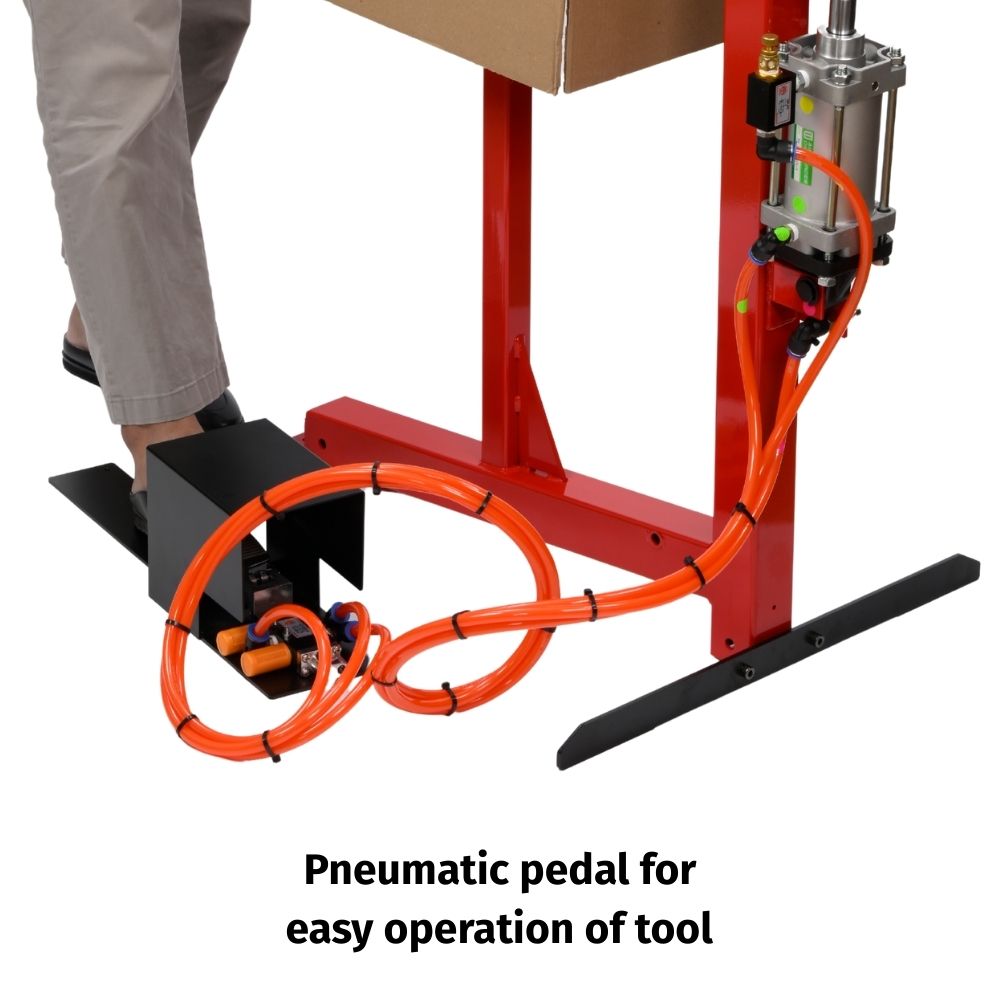

Pneumatic Foot Pedal–Ensures effortless operation and hands-free stapling.

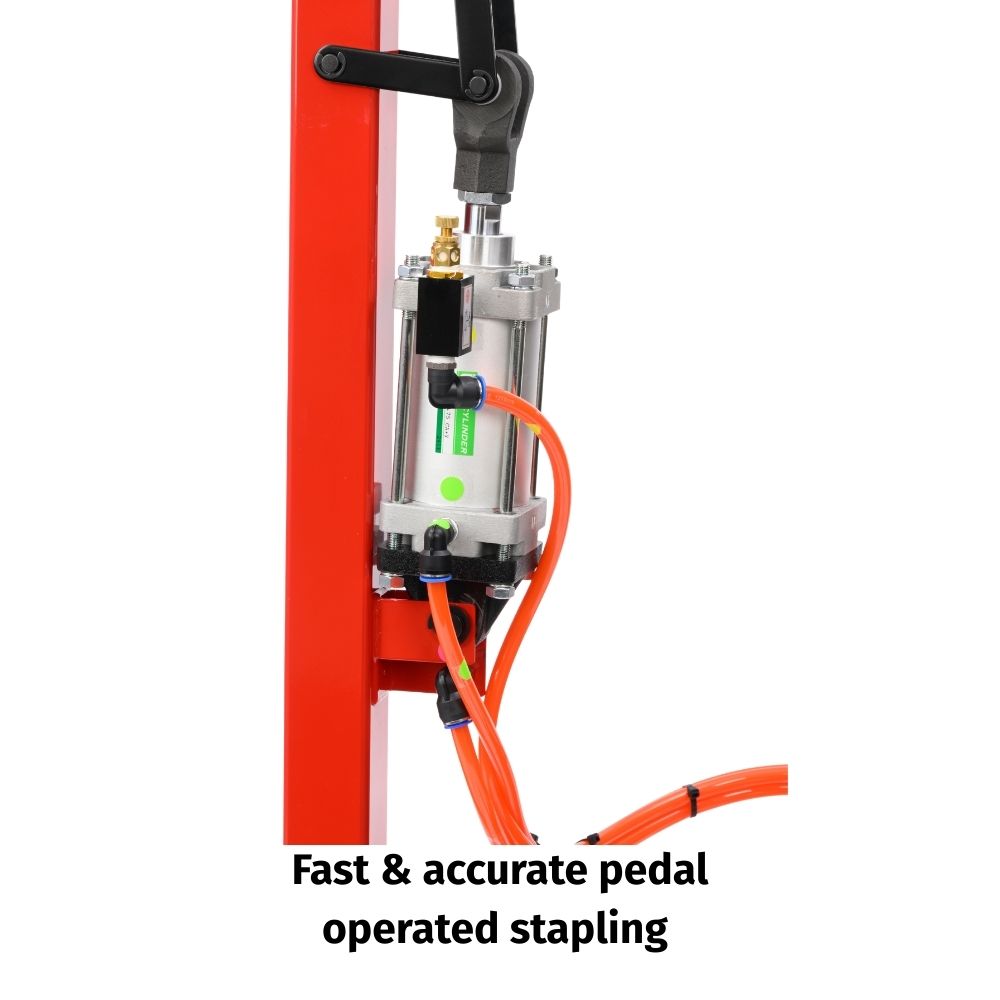

Fast & Accurate Stapling–Ideal for high-volume packaging applications.

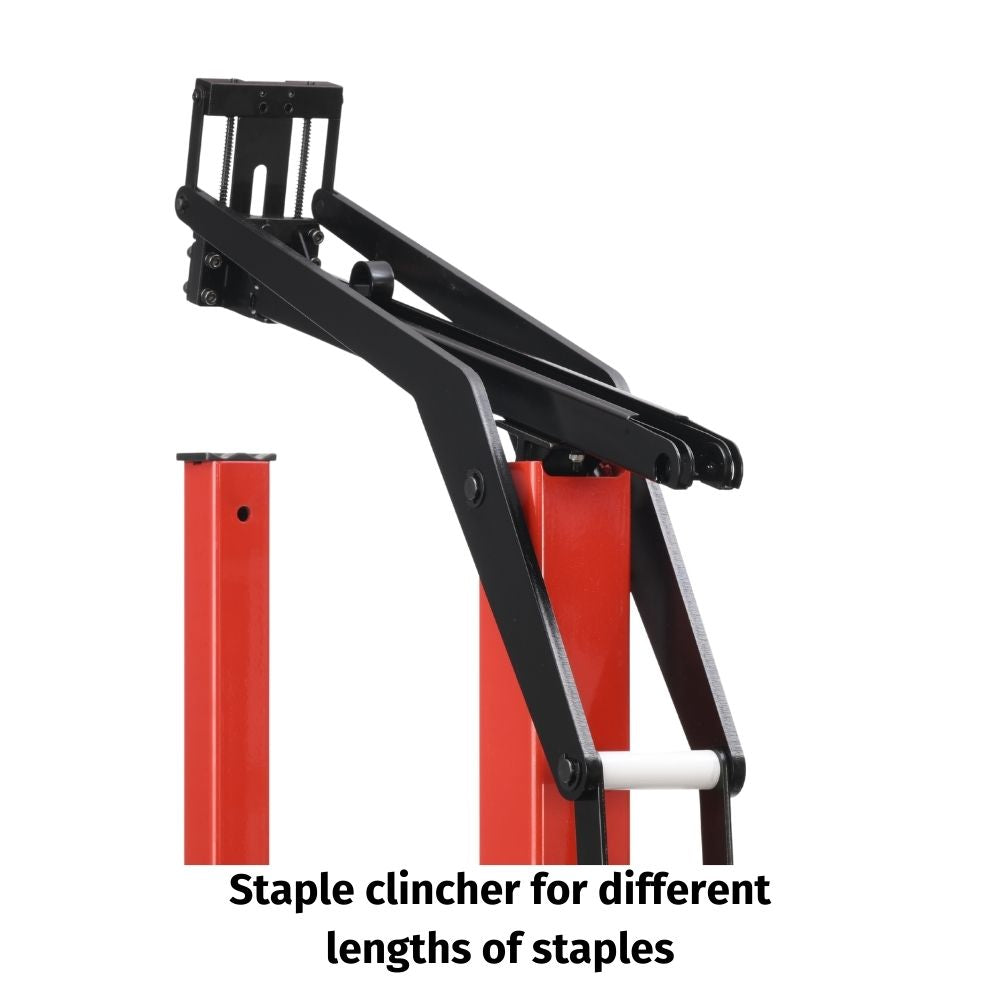

Adjustable Staple Clincher–Accommodates different staple lengths.

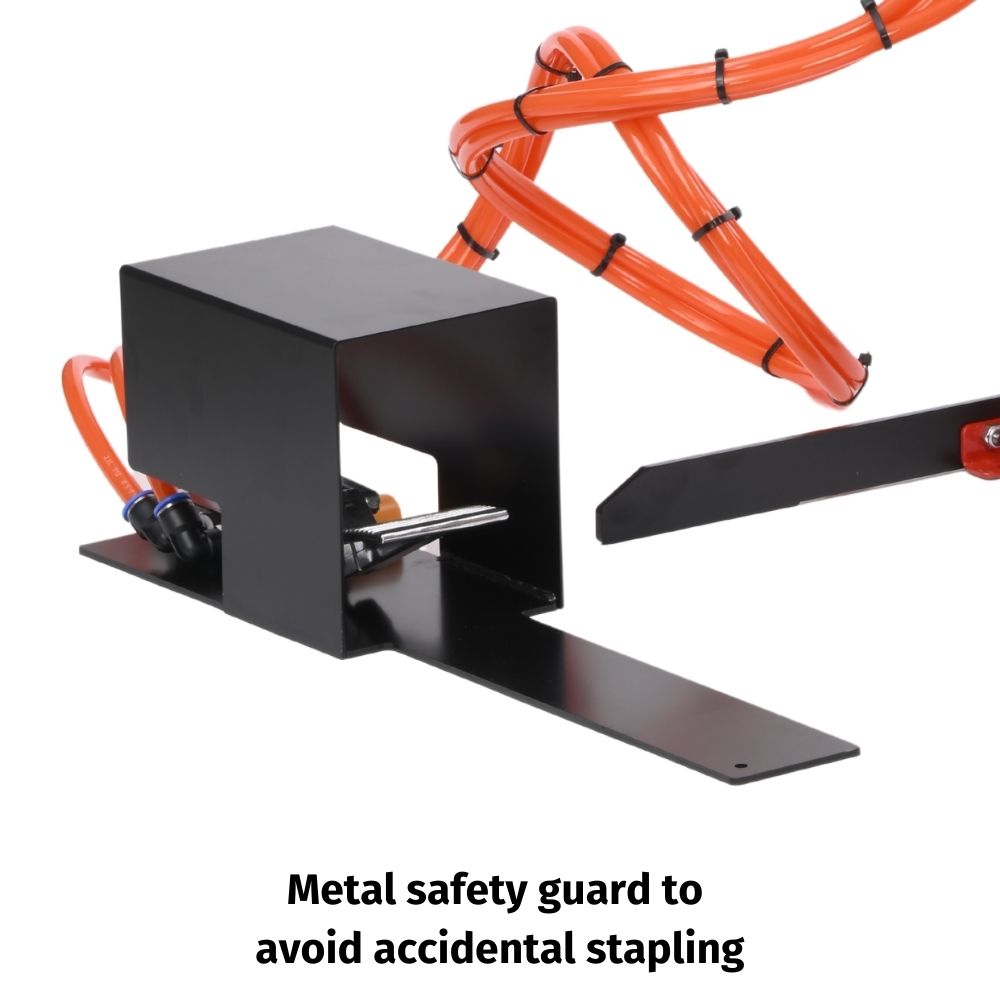

Metal Safety Guard– Prevents accidental stapling for enhanced safety.

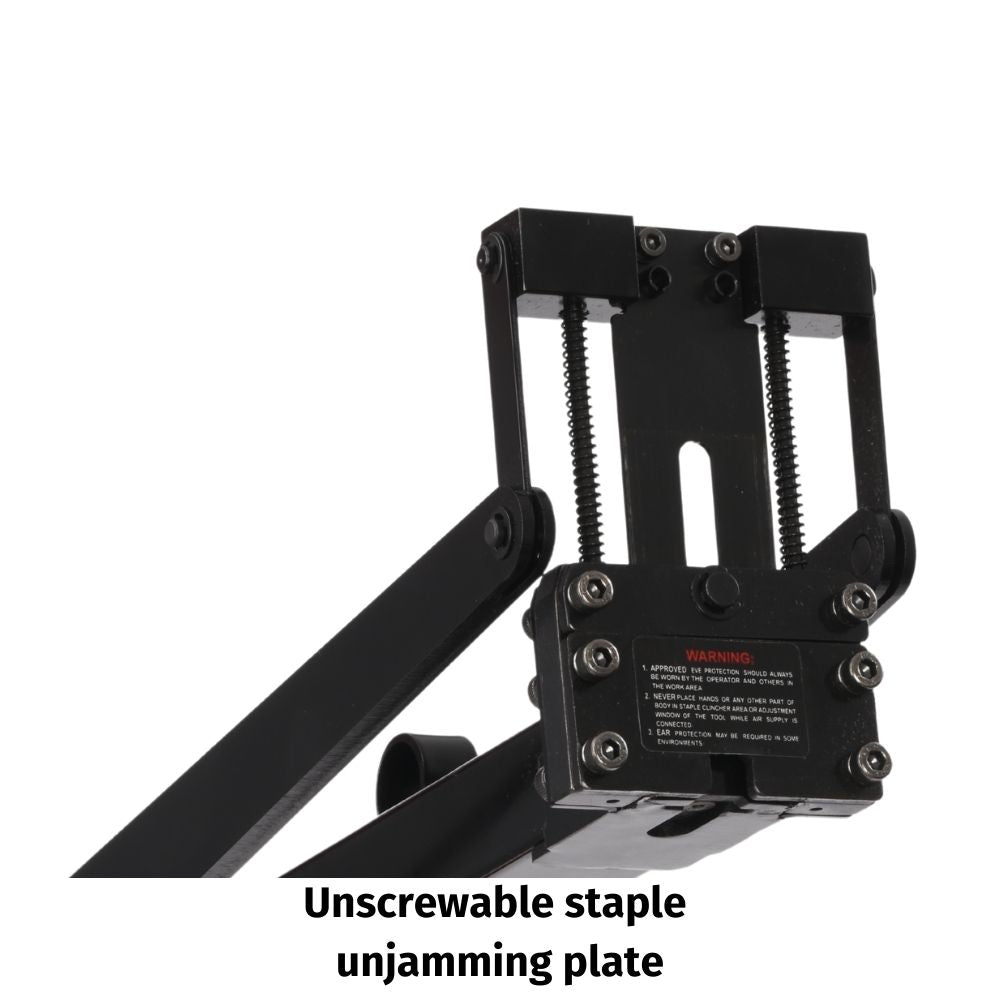

Unscrewable Unjamming Plate–Allows easy removal of jammed staples.

Applications:

Carton bottom closing in warehouses, packaging units, and shipping industries

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

STAPLES KAYMO 35 SERIES

AIR FILTER + REGULATOR LUBRICATOR SET KAYMO 1/4" WITH GAUGE

AIR HOSE KAYMO 8x12 MM PU 100M RED

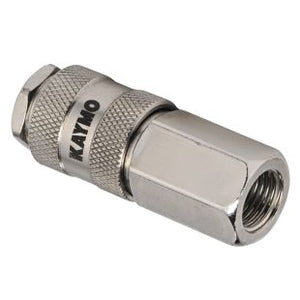

QRC KAYMO 1/4" FEMALE EUROPEAN STEEL

PUSH FITTING 12MM-1/4" MALE ELBOW

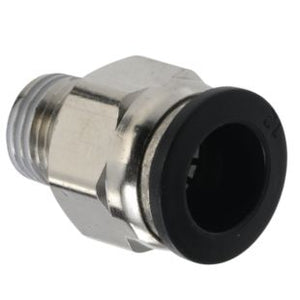

FITTING KAYMO 1/4"x12 mm PUSH TO CONNECT MALE STRAIGHT

Blow Up

Spares

SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1		A00600102	LINK 1		501	FMS	BAF11002	E-RING
2	FMS	A00603401	TUBE		502	FMS	BAF10502	E-RING
3		A00603201	SHAFT E		503	FMS	BAF10502	E-RING
4		A00600401	LINK 2		504	FMS	BAC0604102	HEX.SOC.HD.BOLT
7	FMS	A00600703	DRIVER SEAT		506	FMS	BAA060016	SPRING PIN
8	FMS	A00600801	SHAFT C		507	FMS	BAF10602	E-RING
9	FMS	A00600904	DRIVER		508		BAC0605102	HEX.SOC.HD.BOLT
10	FMS	A00601002	SPRING		511		BAC0605082	HEX.SOC.HD.BOLT
11	FMS	A00601103A	SPRING SHAFT		512		BAD01041	LOCK NUT
12	FMS	A00601202	MAGAZINE SEAT		513		BAC0204222	HEX.SOC.FLAT COUNTER SUNK HD. SCREW
14	FMS	A00601405	COVER B		516		BAC0205202	HEX.SOC.FLAT COUNTER SUNK HD. SCREW
15	FMS	A00601502	SHAFT D		517		BAD02051	LOCK NUT
16	FMS	A00601605	COVER A		518		BAA040016	SPRING PIN
17	FMS	A00607502	BRACKET		519	FMS	BAF11002	E-RING
20	FMS	CMB-S-35-P3-S	MAGAZINE UNIT		520	FMS	BAF11002	E-RING
21		A00602101	BRACKET SET		521	FMS	BAF11002	E-RING
22	FMS	A00607101	NUT		523	FMS	BAI0703	PU PLUG
23	FMS	A00103903A	RIGHT PUSHER GUIDE	A00103903@	524	FMS	BAI0703	PU PLUG
24	FMS	A00103203	ROD		525		BAI1002	DOUBLE SCREW TUBE
25	FMS	A00103904A	LEFT PUSHER GUIDE	A00103904@	526		BAC0408202	HEX.SOC.HD.BOLT
26	FMS	A00103709A	PUSHER SET	A00103709@	528		BAD01081	LOCK NUT
27	FMS	A00103501	ROLLER		529		BAI1102A	QUICK EXHAUST
28	FMS	A00602801	SPRING		530	FMS	A00100801	AIR PLUG
29		A00602901	LINK 3 -A		531	FMS	BAE01122	SPRING WASHER
30		A00603002	TUBE		532	FMS	BAI1203	PU PLUG
31		A00700704	TUBE		534	FMS	BAE01052	SPRING WASHER
32		A00700206	SHAFT K		535		BAC050012	FLAT HEAD SCREW
33		A00603302	SHAFT F		536		BAI0503	DEFLECTOR
34		A00603402	TUBE		537		BAD03012	NUT
35		BAI0104A	CYLINDER SET		538		BAI0703	PU PLUG
36		A00700601	SHAFT M		539		BAC0904082	HEX.SOC.ROUND.HD.SCREW
37		A00700302A	SWITCH COVER UNIT		540		BAE03142	WAVE WASHER
38		BAI0302	SWITCH		541		BAI0803-01	TUBE
39		A00603908A	BODY SET		542		BAI0804-01	TUBE
46		A00604607	MOLD		543		BAI0805-01	TUBE
49		A00604901	BALANCER		544		BAA040008	SPRING PIN
50		A00602903	LINK 3 -C		545	FMS	BAF11502	E-RING

One Sheeter

Application

CORRUGATED BOXES- BOTTOM CLOSING

To close the bottom of corrugated cartons
