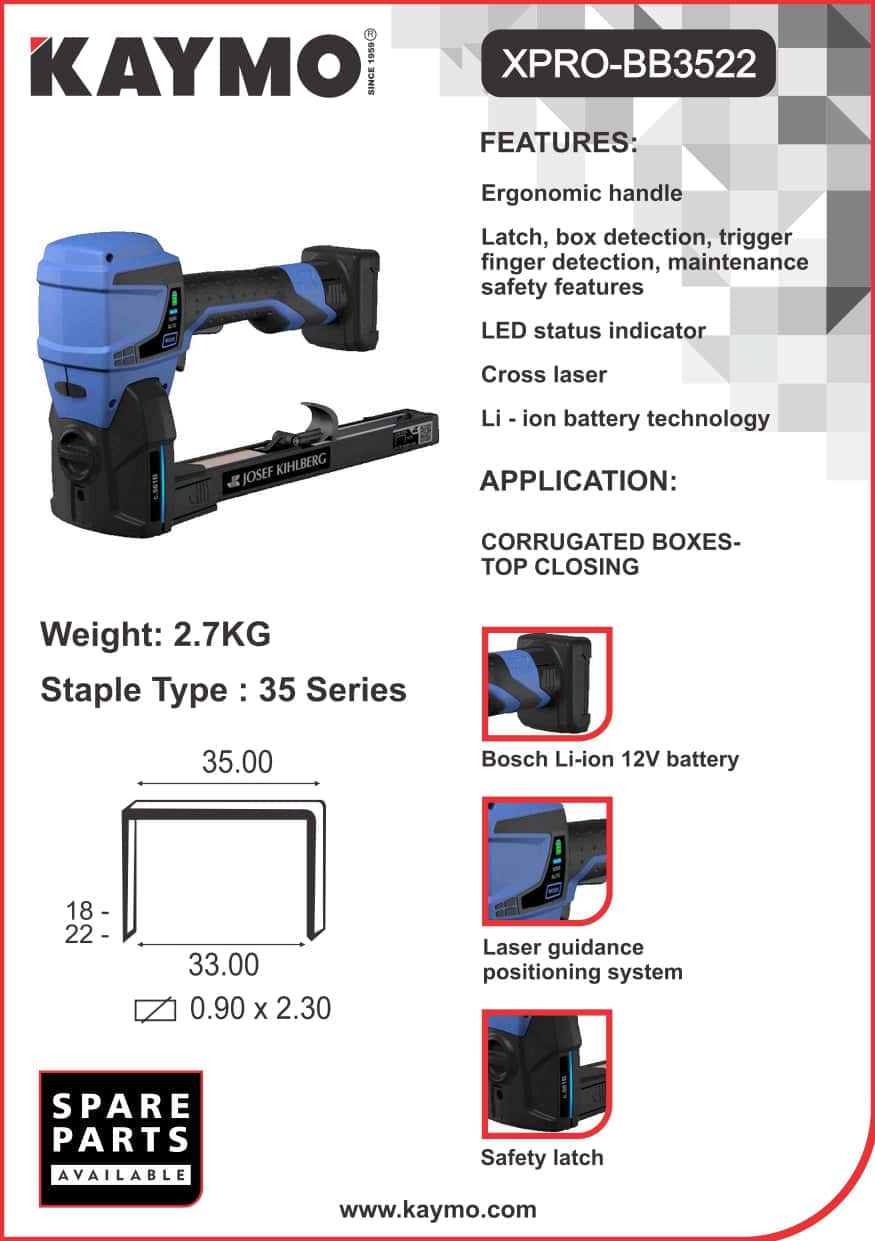

TOOL CODE : XPRO-BB3522 |
|
|
|
|
|
| Sr. No. |
Part name |
Qty |
|
Sr. No. |
Part name |
Qty
|
| 1 |
Support |
1 |
|
129 |
Cable guide above |
1 |
| 2 |
Shaft, Ø8mm |
1 |
|
130 |
Cable guide L |
1 |
| 3 |
Clamp |
1 |
|
131 |
Pan head screw, M3X8 |
2 |
| 4 |
Cylinder head screw, M3X10 |
2 |
|
132 |
Cylinder head screw Torx, M5X35 |
4 |
| 5 |
Adjustment sleeve |
1 |
|
133 |
Counter sunk screw, M3x6 |
1 |
| 6 |
Spring |
1 |
|
137 |
Power PCB cpl. |
1 |
| 7 |
Eccentric knob |
1 |
|
138 |
PCB retainer |
1 |
| 8 |
Set screw |
1 |
|
145 |
Lock cpl. |
1 |
| 9 |
Adjusting bush |
1 |
|
149 |
Shaft |
1 |
| 10 |
Eccentric axis |
1 |
|
150 |
Retaining ring |
2 |
| 11 |
Front plate |
1 |
|
153 |
Trigger cabling |
1 |
| 12 |
Counter sunk screw, M4X20 |
2 |
|
156 |
Torsion spring |
1 |
| 13 |
Support clamp |
2 |
|
157 |
Trigger axis |
1 |
| 14 |
Pan head screw, M4X8 |
4 |
|
158 |
Shim ring, Ø4/8X0.3 |
2 |
| 16 |
Logic PCB cpl. |
1 |
|
159 |
Cylinder pin, Ø4m6x34 |
1 |
| 17 |
Pan head screw, M3X5 |
3 |
|
160 |
Pressure point spring |
1 |
| 18 |
8-Pole FFC Cable Type A |
1 |
|
161 |
Roll pin, Ø5X16 |
2 |
| 19 |
Cable tie |
2 |
|
163 |
Upper housing part cpl. |
1 |
| 25 |
Sledge 22mm cpl. c.561B22, a.560B22 |
1 |
|
169 |
Hook |
1 |
| 31 |
Adjusting nut |
1 |
|
170 |
Housing part clamp |
1 |
| 32 |
Lock ring |
1 |
|
171 |
Blocking lever |
1 |
| 33 |
Linear ball bearing |
1 |
|
172 |
Torsion spring |
1 |
| 34 |
Locking plate |
1 |
|
173 |
Cylinder pin, Ø 2h6x12 |
1 |
| 35 |
Pan head PT-screw Torx, KA 30X10 |
2 |
|
174 |
Housing plug |
1 |
| 42 |
Claw mechanics cpl. a.560B |
1 |
|
180 |
Magazine cpl. a.560B
|
1 |
| 50 |
Spacer |
2 |
|
181 |
Magazine sheeting cpl. |
1 |
| 51 |
Clincher 22mm cpl. c.561B22, a.560B22
|
2 |
|
182 |
Magazine lid |
1 |
| 60 |
Front Housing |
1 |
|
183 |
Roll spring |
1 |
| 61 |
LED L |
1 |
|
184 |
Roller |
1 |
| 62 |
LED R |
1 |
|
185 |
Pusher c.561B, c.561B22, a.560B |
1 |
| 63 |
Lightguide |
2 |
|
185 |
Pusher a.560B22 |
1 |
| 64 |
LED mount |
2 |
|
186 |
Retaining ring, Ø3.2 |
2 |
| 65 |
Pan head PT-screw Torx, KA 30x12 |
2 |
|
187 |
Shaft |
1 |
| 66 |
Type label a.560B |
1 |
|
188 |
Finger grip |
1 |
| 67 |
Name plate |
1 |
|
189 |
Magazine plate a.560B |
1 |
| 68 |
Protection plate cpl. |
1 |
|
190 |
Counter sunk screw, M4X10 |
1 |
| 70 |
Warning sticker clinch |
1 |
|
191 |
Counter sunk screw, M4X8 |
1 |
| 72 |
Pan head PT-screw Torx, KA 30x5 |
2 |
|
192 |
Staple type sticker a.560B |
1 |
| 74 |
Driverblade, a.560B |
1 |
|
193 |
Name plate |
1 |
| 80 |
Rear housing |
1 |
|
194 |
Countersunk PT-screw Torx, KA 35x12 |
1 |
| 81 |
Quick release clamp L |
1 |
|
197 |
Battery package 12V 4.0Ah EU |
1 |
| 82 |
Quick release clamp R |
1 |
|
197 |
Battery package 12V 4.0Ah US |
1 |
| 83 |
Cylinder pin, Ø5M6X28 |
2 |
|
200 |
Battery charger 230V EU |
1 |
| 84 |
Spring |
2 |
|
200 |
Battery charger 115V US |
1 |
| 85 |
Locking pawl spring |
1 |
|
204 |
Allen key Torx T10 |
1 |
| 86 |
Ball, Ø6 |
1 |
|
205 |
Allen key Torx T20 |
1 |
| 87 |
Locking pawl |
1 |
|
208 |
Frontlaser Set |
|
| 88 |
Cylinder pin, Ø4H6X22 |
1 |
|
209 |
Frontlaser |
1 |
| 89 |
Cylinder head screw |
6 |
|
210 |
Laser mount front |
1 |
| 90 |
Reload sticker R |
1 |
|
211 |
Pan head screw |
2 |
| 91 |
Reload sticker L |
1 |
|
212 |
Set screw, M3X5 |
1 |
| 92 |
Company label |
1 |
|
213 |
Insulating ring |
4 |
| 93 |
Mandatory sign |
1 |
|
215 |
3x Laser Set |
|
| 94 |
Warning label |
2 |
|
216 |
Laser L |
1 |
| 95 |
Pan head PT-screw Torx, KA 30X8 |
1 |
|
217 |
Laser R |
1 |
| 99 |
Drive unit cpl. |
1 |
|
218 |
Laser mount sideways |
2 |
| 104 |
Counter sunk screw, M3X5 |
4 |
|
212 |
Set screw |
2 |
| 105 |
Pan head screw, M3X10 |
7 |
|
90 |
Laser warning sign |
1 |
| 125 |
Shaft |
1 |
|
221 |
Service |
|
| 126 |
Supporting disk |
1 |
|
223 |
Rotation drive, lock unit |
1 |
| 127 |
Ring |
1 |
|
224 |
Disassambly aid, magazine |
1 |
| 128 |
Washer ring |
1 |
|
225 |
Assembly aid, trigger |
1 |
