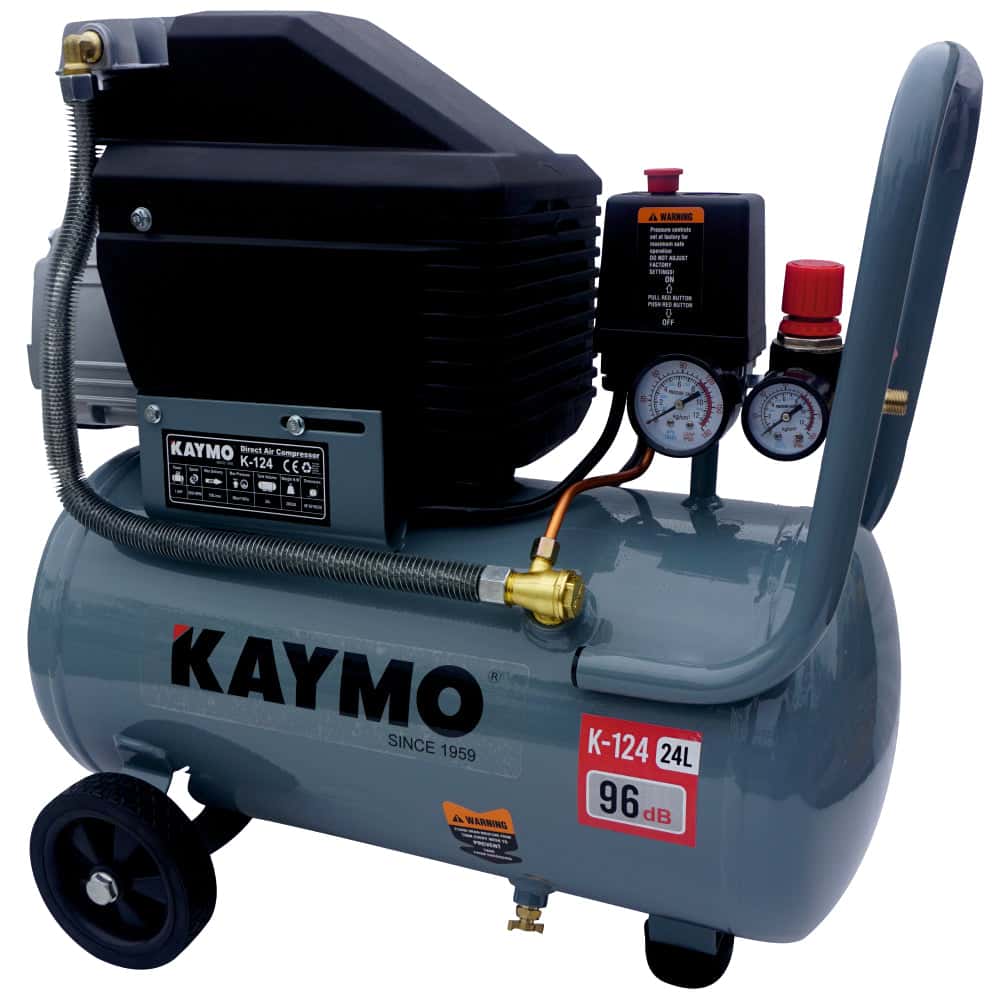

SKU: K-124
Copper wire motor. Horse power: 1.5HP. Speed: 2850RPM. Tank: 24 Litres. Gauge for tank pressure. Max Delivery: 150L/min. Max Pressure: 8Bar/16Psi, Reset button. Pressure reducer with gauge. Rubber grip handle. Vulcanized rubber feet for stable position. Weight: 20 kgs.
₹ 0/-
Blow Up
Spares
| . | TOOL MODEL | K-124 | REV.1ST APRIL 23 | |||||||
| SR | FMS | PART CODE | PART NAME | ALT CODE | SR | FMS | PART CODE | PART NAME | ALT CODE | |
| 1 | K124001 | BoltM6x55 | 40 | K124040 | spring waher 5 | |||||
| 2 | K124002 | spring washer | 41 | K124041 | bolt M5*105 | |||||
| 3 | K124003 | washer | 42 | K124042 | spring waher 14 | |||||
| 4 | K124004 | Air filter | 43 | K124043 | Fan cover | |||||
| 5 | K124005 | cylinder cover | 44 | K124044 | bolt M4*6 | |||||
| 6 | K124006 | elbow | 45 | K124045 | washer 4 | |||||
| 7 | K124007 | cylinder gasket | 46 | K124046 | bolt M3*6 | |||||
| 8 | K124008 | valve plate | 47 | K124047 | spring washer 3 | |||||
| 9 | K124009 | valve clack pin | 48 | K124048 | washer 3 | |||||
| 10 | K124010 | valve plate gasket | 49 | K124049 | washer 5 | |||||
| 11 | K124011 | cylinder upper gasket | 50 | K124050 | bolt M5*16 | |||||
| 12 | K124012 | cylinder | 51 | K124051 | handle cover | |||||
| 13 | K124013 | cylinder under gasket | 52 | K124052 | one way valve | |||||
| 14 | K124014 | piston ring | 53 | K124053 | tank | |||||
| 15 | K124015 | oil ring | 54 | K124054 | bolt M8 | |||||
| 16 | K124016 | piston | 55 | K124055 | foot cushion | K124FC040 | ||||
| 17 | K124017 | piston pin | 56 | K124056 | washer 8 | K350FC042 | ||||
| 18 | K124018 | spring washer 12 | 57 | K124057 | bolt M8*25 | K350FC043 | ||||
| 19 | K124019 | conncting rod | 58 | K124058 | drain valve | K110FC051 | ||||
| 20 | K124020 | bolt M8x25 | 59 | K124059 | wheel bolt | K124FC044 | ||||
| 21 | K124021 | spring washer 8 | 60 | K124060 | wheel | |||||
| 22 | K124022 | breather | 61 | K124061 | spring washer 10 | |||||
| 23 | K124023 | oil leveler | 62 | K124062 | bolt M10 | |||||
| 24 | K124024 | wahser | 63 | K124063 | discharge pipe | |||||
| 25 | K124025 | bolt M6*16 | 64 | K124064 | release pipe | |||||
| 26 | K124026 | crankcase cover | 65 | K124065 | gasket | |||||
| 27 | K124027 | crankcase gasket | 66 | K124066 | pressure switch connector | |||||
| 28 | K124028 | bolt M8*22 | 67 | K124067 | screw nut | |||||
| 29 | K124029 | crank shaft | 68 | K124068 | safety valve | K110FC037 | ||||
| 30 | K124030 | crank case | 69 | K124069 | pressure switch | |||||
| 31 | K124031 | stator | 70 | K124070 | regulator valve | |||||
| 32 | K124032 | capacitance | 71 | K124071 | coupler | K110FC043 | ||||
| 33 | K124033 | seal | 72 | K124072 | pressure gauge Y40 | |||||
| 34 | K124034 | brearing 6204 | 73 | K124073 | double connector | K110FC040 | ||||
| 35 | K124035 | rotor | 74 | K124074 | pressure gauge Y50 | K110FC039 | ||||
| 36 | K124036 | brearing 6202 | 75 | K124075 | power cord with plug | K124FC063 | ||||
| 37 | K124037 | washer 202 | 76 | K124076 | stem Rp1/2 |
|||||
| 38 | K124038 | motor cover | 77 | K124077 | Handle cap | |||||
| 39 | K124039 | fan |
