AIR BOXER KAYMO PRO-3522 COMBI 18/22

Name: AIR BOXER KAYMO PRO-3522 COMBI 18/22
Brand: Kaymo Company
SKU: PRO-AB3522COMBI
Availability: InStock

SKU: PRO-AB3522COMBI

The KAYMO PRO-AB3522COMBI is a pneumatic carton closer designed for seamless and secure packaging. With a full metal body and magazine, this tool offers superior Read More...

Features:

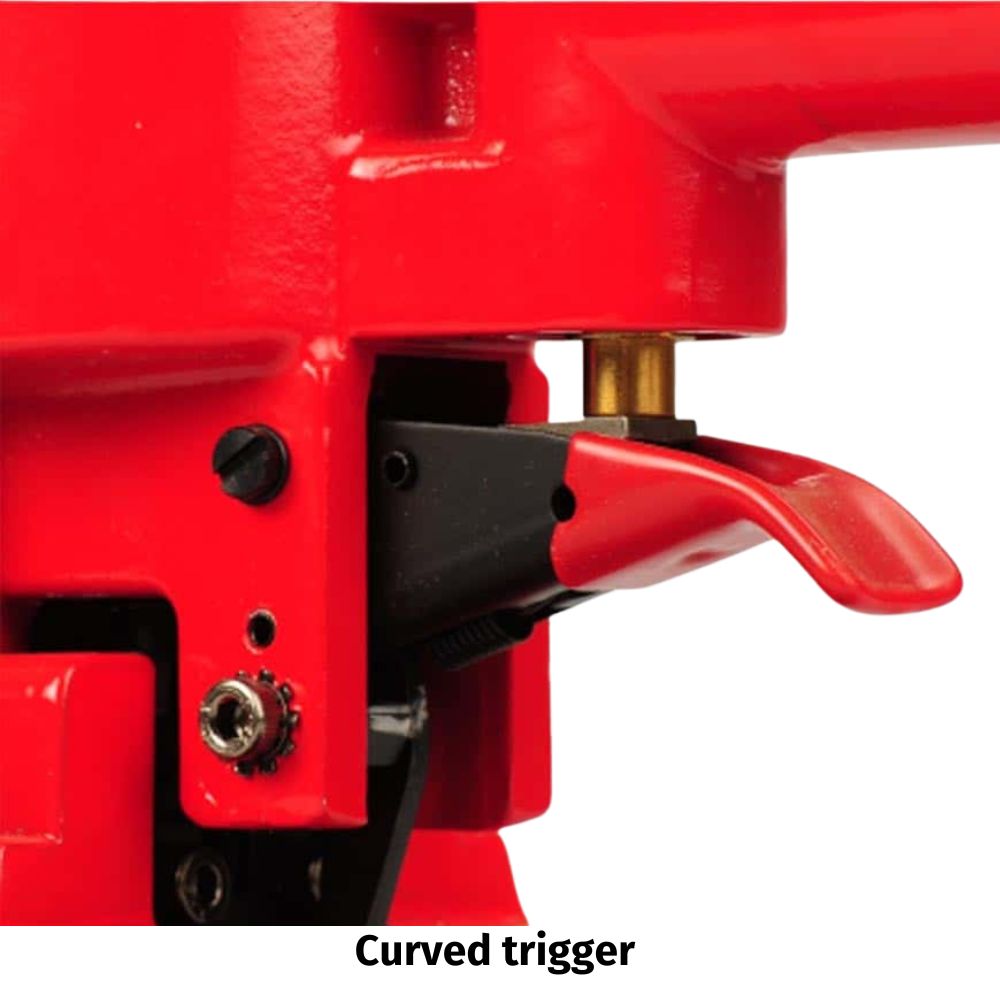

Curved trigger

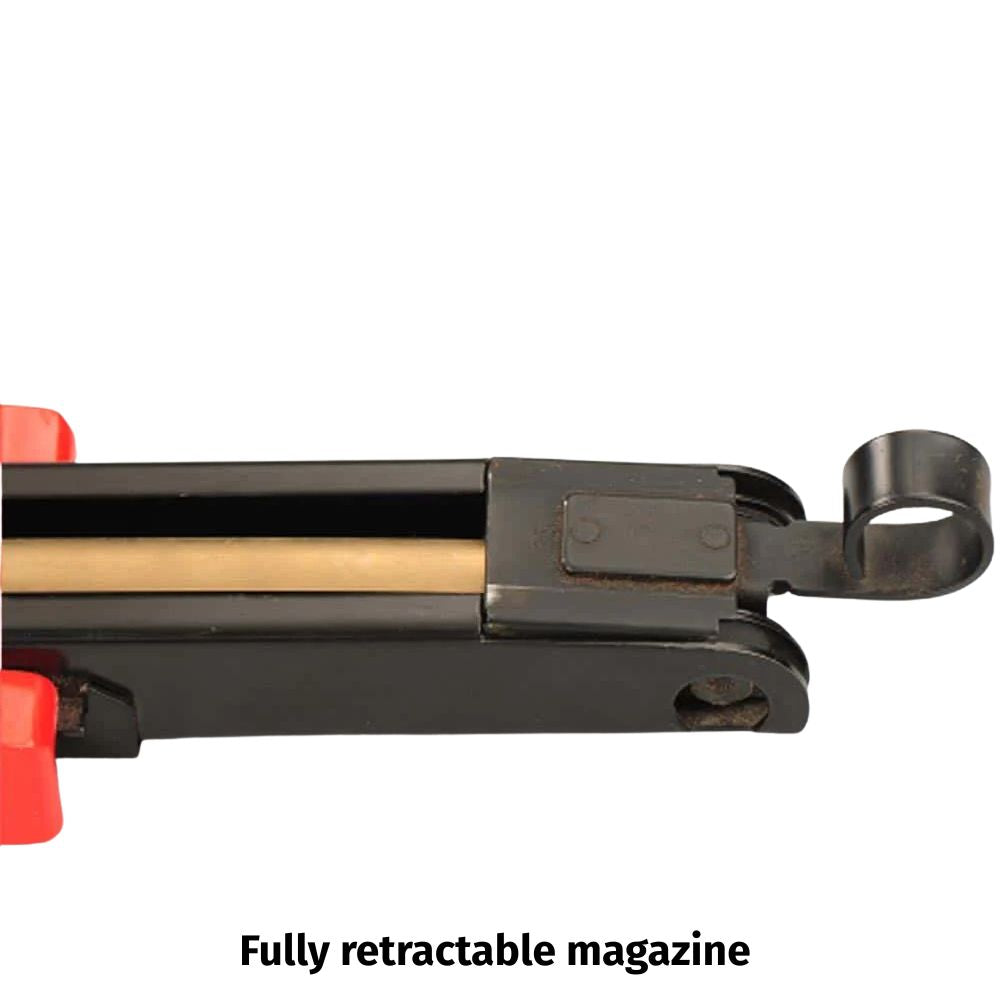

Fully retractable magazine

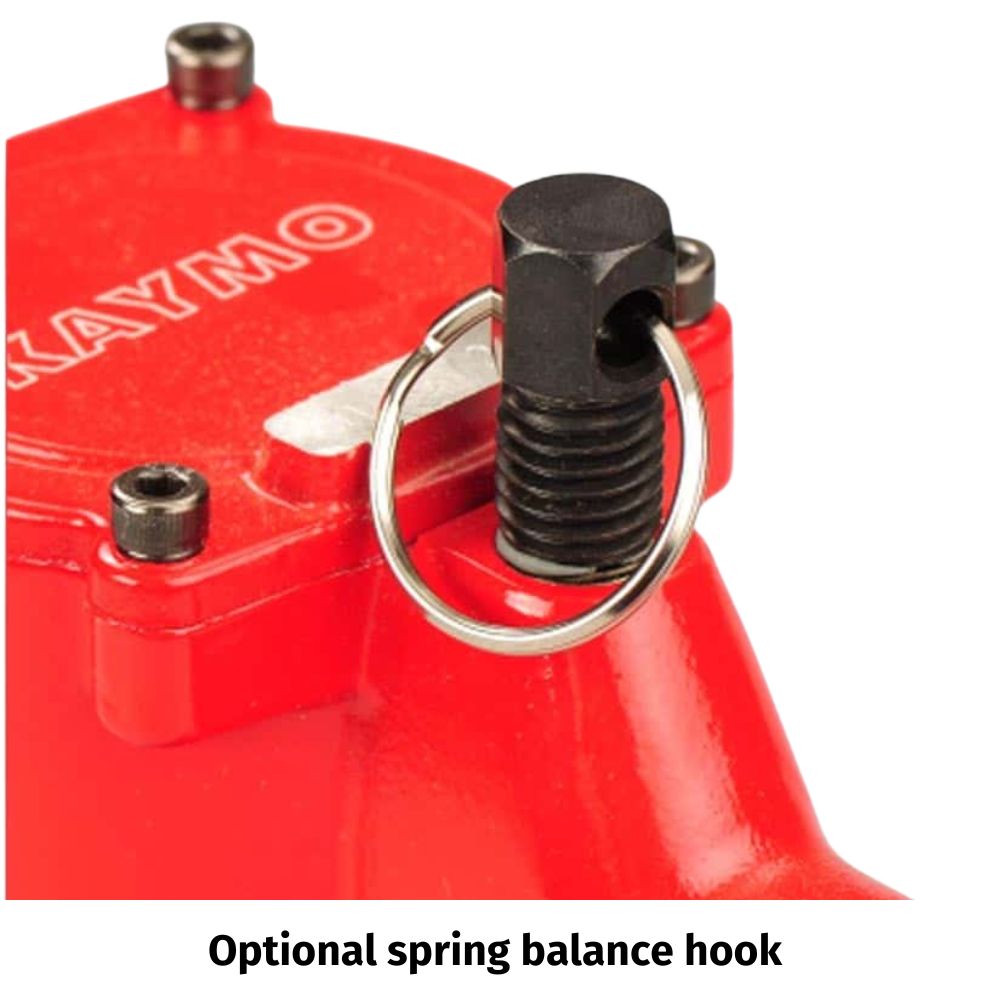

Optional spring balance hook
Full metal body
Clinching adjustment for different ply thickness of cartons
Fastener Range: 18mm – 22mm

Applications:

Corrugated boxes – top closing

ENQUIRE NOW DOWNLOAD BROCHURE

Compatible Products

STAPLES KAYMO 35 SERIES

AIR FILTER + REGULATOR LUBRICATOR SET KAYMO 1/4" WITH GAUGE

ADJUSTABLE AIR BLOW GUN KAYMO 1/4" PT WITH 10 cm SS NOZZLE & PLUG

FITTING KAYMO 6.35mmx8mm(1/4"x8 mm) PUSH TO CONNECT STRAIGHT

Blow Up

Spares

		TOOL MODEL:	PRO-AB3522COMBI					REV.1ST APRIL2023
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1		A0100110-37	KAYMO CAP	A01200114-37	503	FMS	BAB017537	O-RING
2		A02800201	PISTON		504		BAD02061	HEX.NUT
3		A02800301	PISTON ROD	A02800302	505	FMS	BAT03061	WASHER	BAE06094
4		A00100401	BLOCK		506	FMS	BAB017076	O-RING
5		A00100501	SPRING		507	FMS	BAB057476	O-RING
6		A00100601	COLLAR		508		A00104101	WASHER
7		A01200403	BODY		509		BAE01042	SPRING WASHER
8		A00100803	AIR PLUG	S3120PMA	510	FMS	BAC0404062	HEX.SOC.HD.BOLT	KM0406
9		A00100902	BLOCK		511		BAA025014	SPRING PIN
10		A00101001	SPRING		512		BAC0312122	HEX.SOC.HDLESS.BOLT
11		A00101101-03	KAYMO TRIGGER		513		A00104401	TRIGGER SCREW
12	FMS	A00101201	SPRING		514		BAE01042	SPRING WASHER
13		A00101301	ROD	A00101302	515		BAA030020	SPRING PIN
14		A00101402	TRIGGER'S CONTROL		516		BAE02042	OUTSIDE TEETH WASHER
15		A00101501	SPRING		517		BAC0404102	HEX.SOC.HD.BOLT
16		A00101601	VALVE	A00101603	518		BAA030010	SPRING PIN
17		A00101702	TUBE		519	FMS	BAB017124	O-RING
18		A00101801	ADJUSTING ROD		520	FMS	BAB017076	O-RING
19		A00101901	ADJUSTING PLATE		521	FMS	BAB016145	O-RING
20		A01102501	FRONT PLATE		522	FMS	BAB016150	O-RING
21		A01200501	RIGHT TEETH		523	FMS	BAB016155	O-RING
22	FMS	A01200601	LEFT TEETH		524	FMS	BAB016160	O-RING
23		A00102301	TEETH SEAT		525		A00104701	ROD	A00104703
24		A00102401	PLATE		526		BAC0306142	HEX.SOC.HDLESS.BOLT
25		A00102502	BLOCK		527		BAC0408162	HEX.SOC.HD.BOLT
26		A01201708	DRIVER		529		BAA030010	SPRING PIN
27		A00102703@	COVER UNIT		530	FMS	BAC0605142	HEX.SOC.HD.BOLT	KM0520
28		A02100403@	MAGAZINE SEAT	A02100407@	532	FMS	BAC0205122	HEX.SOC.FLAT COUNTER SUNK HD.SCREW
29	FMS	HAA-19-35-P7-S	MAGAZINE	KFCMP00001	533	FMS	A00104501	PIN
30	FMS	A01102403	SPRING		534		A00104602	PIN
31		A01102201	BRACKET		535		BAC0604102	HEX.SOC.HD.BOLT
32	FMS	A00103709@	PUSHER UNIT		537		BAA060016	SPRING PIN
33		A00103501	ROLLER		538		BAD01041	LOCK NUT
34	FMS	A00103401	SPRING	A00103403	539		BAC0404202	HEX.SOC.HD.BOLT
35		A00607101	ROD UNIT		540		BAA040016	SPRING PIN
36		A00103903@	RIGHT PUSHER GUIDE		541		BAF10252	E-RING
37		A00103203	ROD		542		BAF22002	C-RING
38		A00103904@	LEFT PUSHER GUIDE		543		BAG010602	HELI-COIL
39		A00105601	BRACKET		544		A00104901	PLASTIC PIN
40		A00105001	WASHER		545		C0011201	COUNTER BALANCE HANGE
42	FMS	BAI1401	SILENCER		546		BAF22002	C-RING
501	FMS	BAC0604142	HEX.SOC.HD.BOLT	KM0412	547		BAC0204062	HEX.SOC.FLAT COUNTER SUNK HD.SCREW	HYE2084
