AIR BOXER KAYMO PRO-3518 COMBI 15/18

SKU: PRO-AB3518COMBI
Full metal body. Spring steel pusher spring . Clinching adjustment for different carton ply thickness . Optional spring balance hook .

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

₹ 0/-
Blow Up
Spares
. TOOL NAME PRO-AB3518COMBI REV.1ST APRIL 2022
SR FMS PART CODE PART NAME ALT CODE   SR FMS PART CODE PART NAME ALT CODE
1   A0100110-37 KAYMO CAP A01200110-37 503 FMS BAB017537 O-RING
2   A02800201 PISTON   504   BAD02061 HEX.NUT
3   A02800301 PISTON ROD   505 FMS BAT03061 WASHER BAE06094
4   A00100401 BLOCK   506 FMS BAB017076 O-RING
5   A00100501 SPRING   507 FMS BAB057476 O-RING
6   A00100601 COLLAR   508   A00104101 WASHER
7   A01200403 BODY   509   BAE01042 SPRING WASHER
8   A00100803 AIR PLUG S3120PMA 510 FMS BAC0404062 HEX.SOC.HD.BOLT KM0406
9   A00100902 BLOCK   511   BAA025014 SPRING PIN
10   A00101001 SPRING   512   BAC0312122 HEX.SOC.HDLESS.BOLT
11   A00101101-03 KAYMO TRIGGER   513   A00104401 TRIGGER SCREW
12 FMS A00101201 SPRING   514   BAE01042 SPRING WASHER
13   A00101301 ROD   515   BAA030020 SPRING PIN
14   A00101402 TRIGGER'S CONTROL   516   BAE02042 OUTSIDE TEETH WASHER
15   A00101501 SPRING   517   BAC0404102 HEX.SOC.HD.BOLT
16   A00101601 VALVE A00101603 518   BAA030010 SPRING PIN
17   A00101702 TUBE   519 FMS BAB017124 O-RING
18   A00101801 ADJUSTING ROD   520 FMS BAB017076 O-RING
19   A00101901 ADJUSTING PLATE   521 FMS BAB016145 O-RING
20   A01102501 FRONT PLATE   522 FMS BAB016150 O-RING
21   A00102102 RIGHT TEETH   523 FMS BAB016155 O-RING
22   A00102202 LEFT TEETH   524 FMS BAB016160 O-RING
23   A00102301 TEETH SEAT   525   A00104701 ROD
24   A00102401 PLATE   526   BAC0306142 HEX.SOC.HDLESS.BOLT
25   A00102502 BLOCK   527   BAC0408162 HEX.SOC.HD.BOLT
26   A00102605 DRIVER   529   BAA030010 SPRING PIN
27   A00102703@ COVER UNIT   530 FMS BAC0605142 HEX.SOC.HD.BOLT KM0520
28   A02100403@ MAGAZINE SEAT A02100407@  532 FMS BAC0205122 HEX.SOC.FLAT COUNTER SUNK HD.SCREW
29 FMS HAA-19-35-P7-S MAGAZINE KFCMP00001 533 FMS A00104501 PIN
30 FMS A01102403 SPRING   534   A00104602 PIN
31   A01102201 BRACKET   535   BAC0604102 HEX.SOC.HD.BOLT
32 FMS A00103709@ PUSHER UNIT   537   BAA060016 SPRING PIN
33   A00103501 ROLLER   538   BAD01041 LOCK NUT
34 FMS A00103401 SPRING A00103403 539   BAC0404202 HEX.SOC.HD.BOLT
35   A00607101 ROD UNIT   540   BAA040016 SPRING PIN
36   A00103903@ RIGHT PUSHER GUIDE   541   BAF10252 E-RING
37   A00103203 ROD   542   BAF22002 C-RING
38   A00103904@ LEFT PUSHER GUIDE   543   BAG010602 HELI-COIL
39   A00105601 BRACKET   544   A00104901 PLASTIC PIN
40   A00105001 WASHER   545   C0011201 COUNTER BALANCE HANGE
42 FMS BAI1401 SILENCER   546   BAF22002 C-RING
501 FMS BAC0604142 HEX.SOC.HD.BOLT KM0412 547   BAC0204062 HEX.SOC.FLAT COUNTER SUNK HD.SCREW

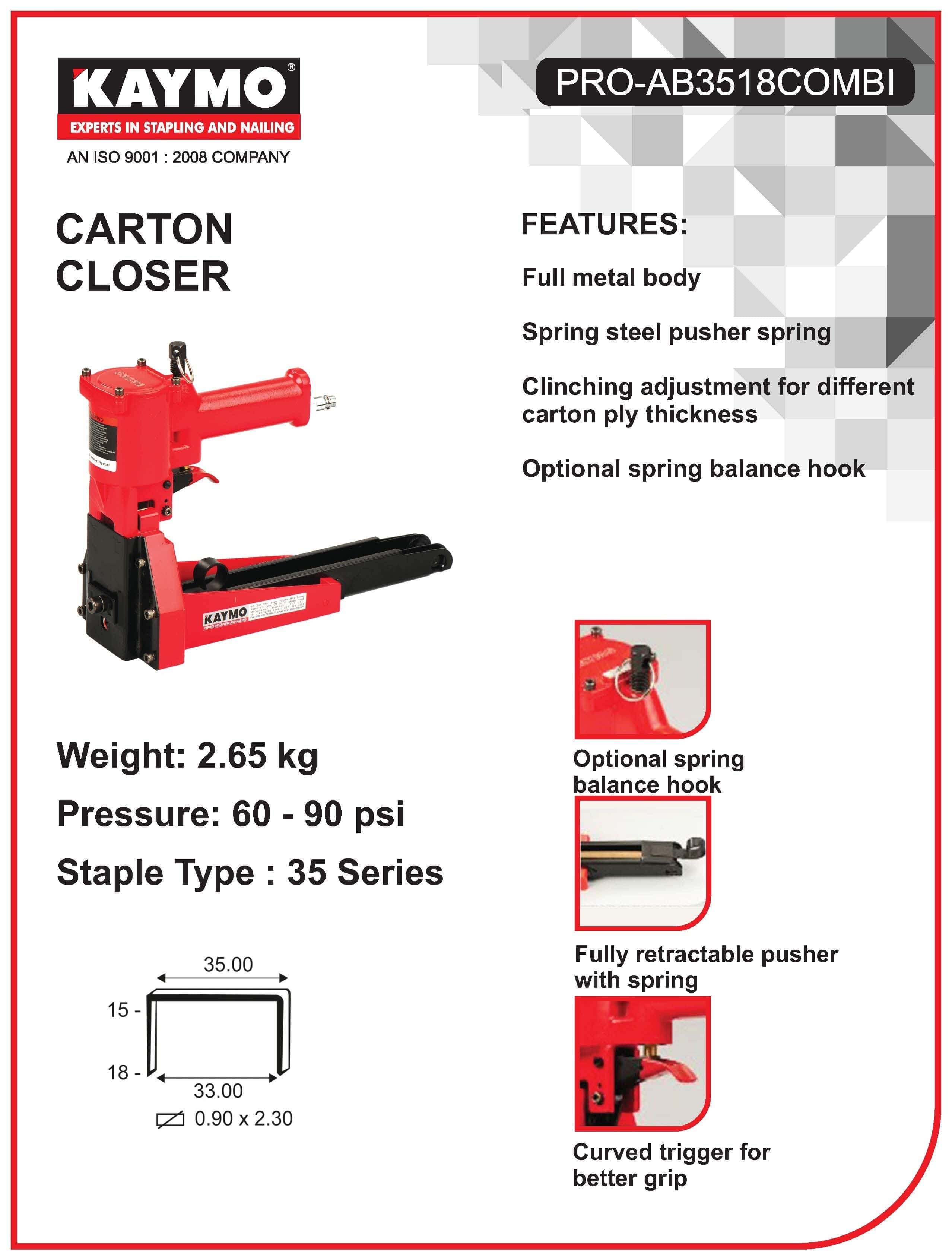

One Sheeter

Application
CORRUGATED BOXES- TOP CLOSING Onsite carton closing
To close top of corrugated cartons
